Super-precision angular contact ball bearing, 110 x 170 x 28 mm, 15° contact angle, class P4A, open. Universally matchable, light preload GB, bearing steel.
List Price
$1,200.23
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7022 CDGB/P4A |
| Model | 7022CDP4ADGB |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 110 mm |
| OD | 170 mm |
| Width | 28 mm |
| Material | Chrome Steel |
|---|---|
| Series | 7000 |
| Preload | Light (GB) |
| Base Number | 7022 |
| Industry Terms | Spindle bearing; super-precision bearing; precision angular contact bearing; machine tool bearing |
| Common Misspellings | 7022 CDGB P4A; 7022CGDB/P4A; 70 22 CDGB; 7022CDG8/P4A; 7202 CDGB/P4A |
| Application Types | Machine tool spindles; grinding spindles; high-speed motor spindles; precision rotary tables |
| Overall Width | 28 mm |
| Mpn Variants | 7022 CDGB/P4A; 7022-CD/P4ADGB; 7022-CD-P4A-DGB; 7022CDP4ADGB; 7022C |
| Arrangement Configuration | Universally matchable |
| Precision Class | P4A |
| Cage Type | Outer-ring shoulder-guided |
| Dynamic Load Rating | 111,000 N |
| Static Load Rating | 108,000 N |
| Precision Rating | P4A |
| Rolling Elements | Ball |
| Item Weight | 1.93 kg (4.25 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universally matchable — back-to-back, face-to-face or tandem |
| Bearing Material | Bearing steel |
| Cross Reference 1 | Fafnir 2MM9122WICRSUM - medium vs light preload |
|---|---|
| Cross Reference 2 | FAG B7022-C-T-P4S-UM - medium vs light preload |
| Cross Reference 3 | NSK 7022CTRSUMP4 - medium vs light preload |
| Cross Reference 4 | RHP 7022X2TRSUMP4 - medium vs light preload |

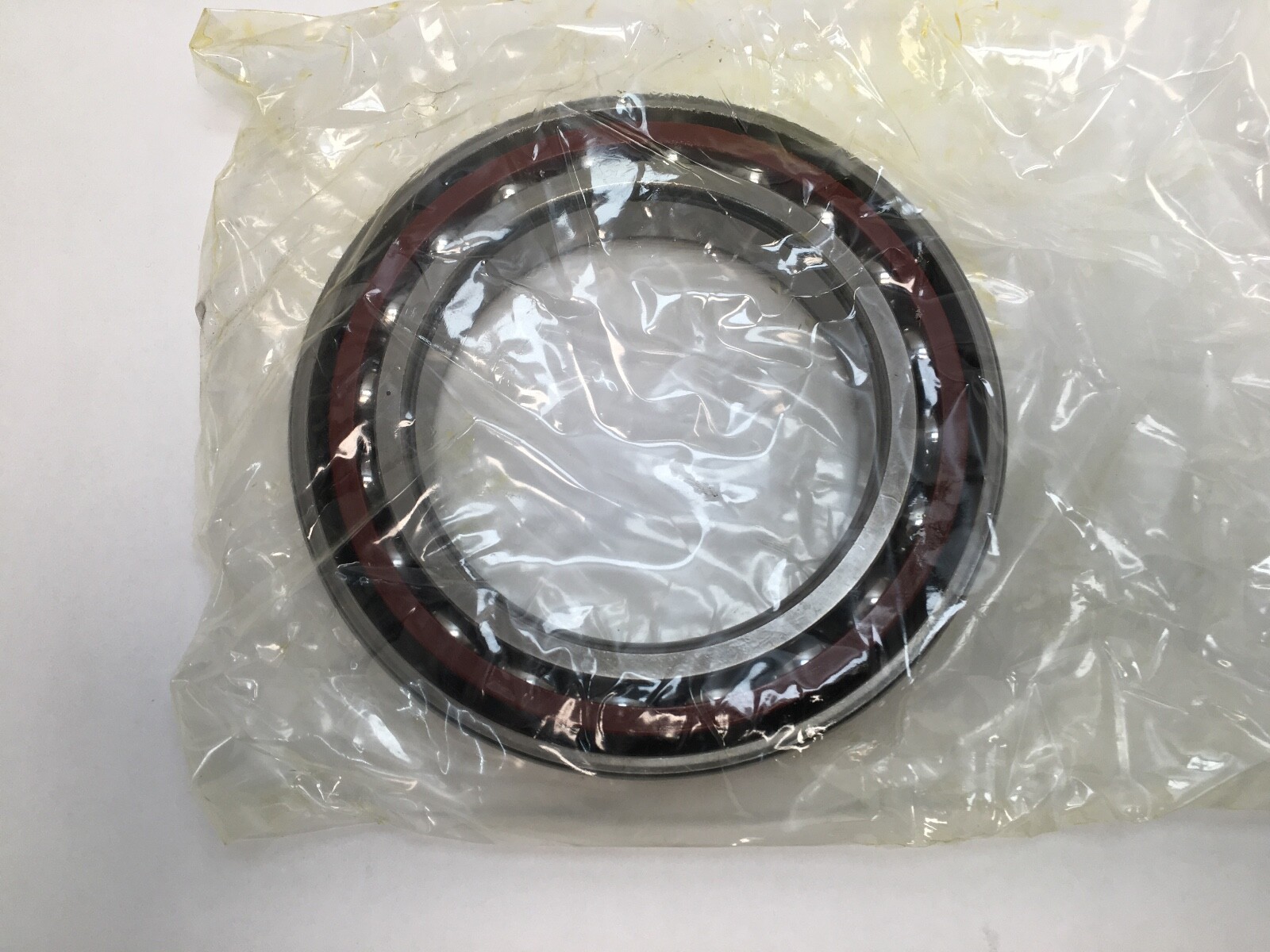

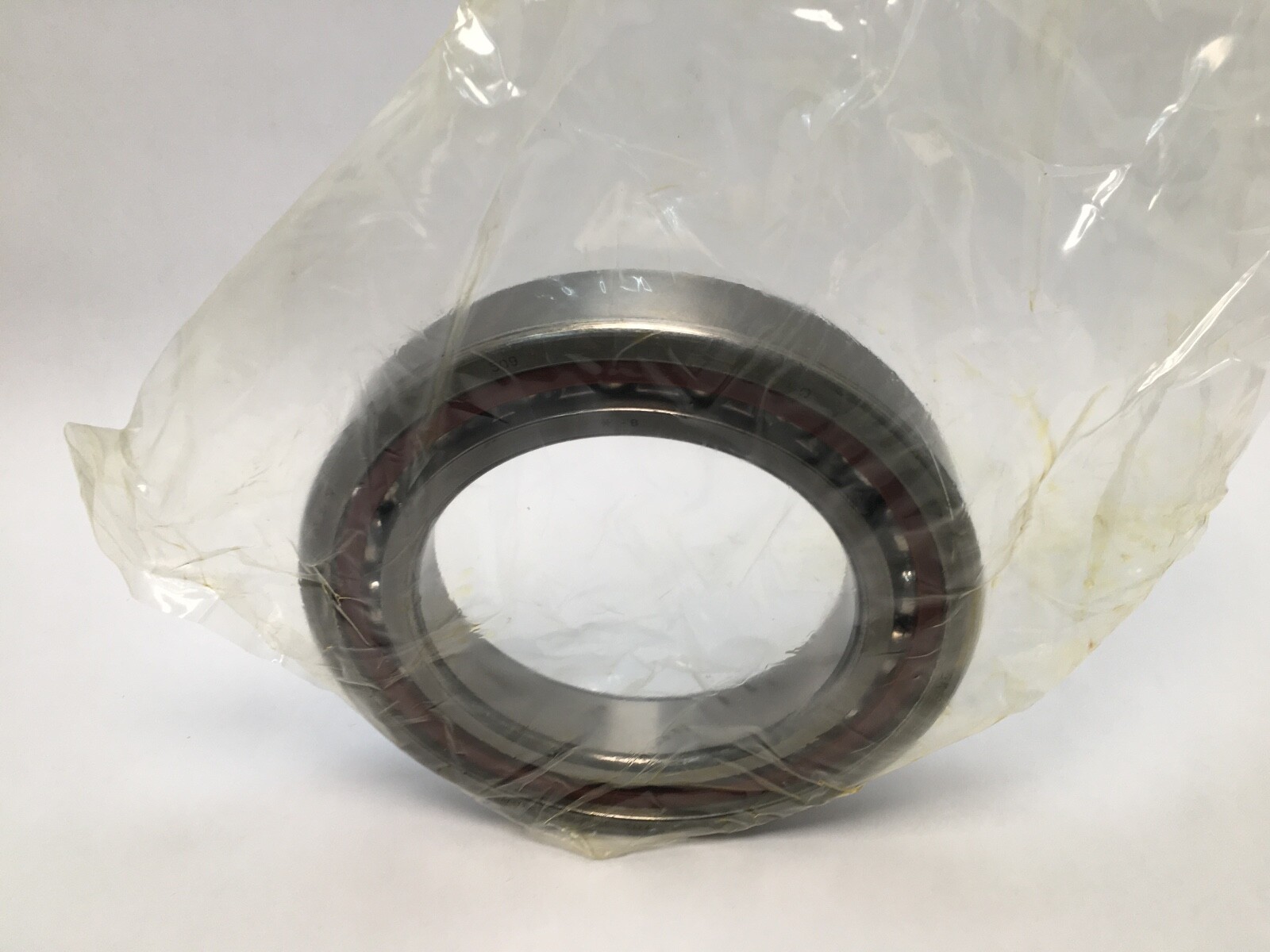

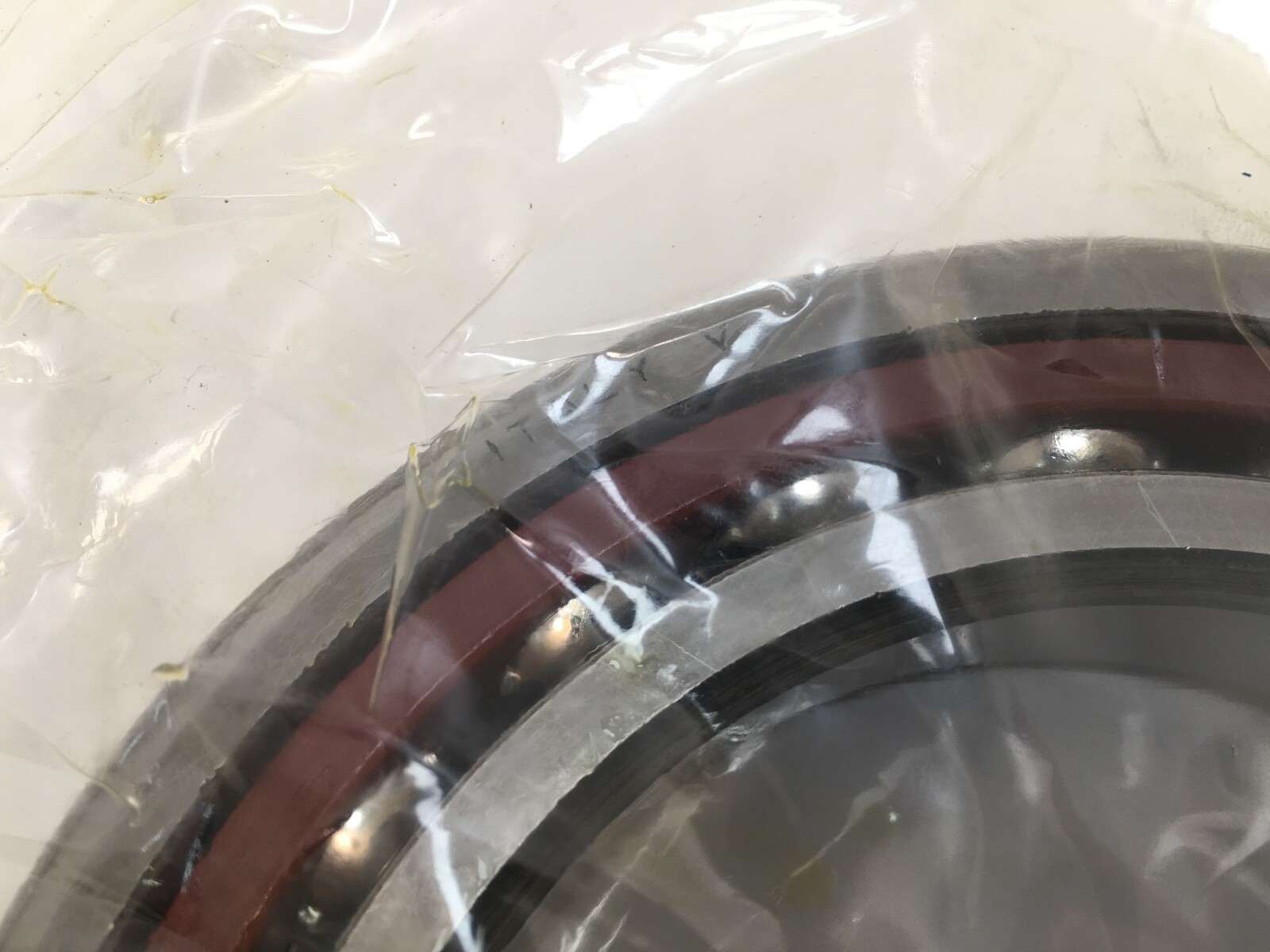

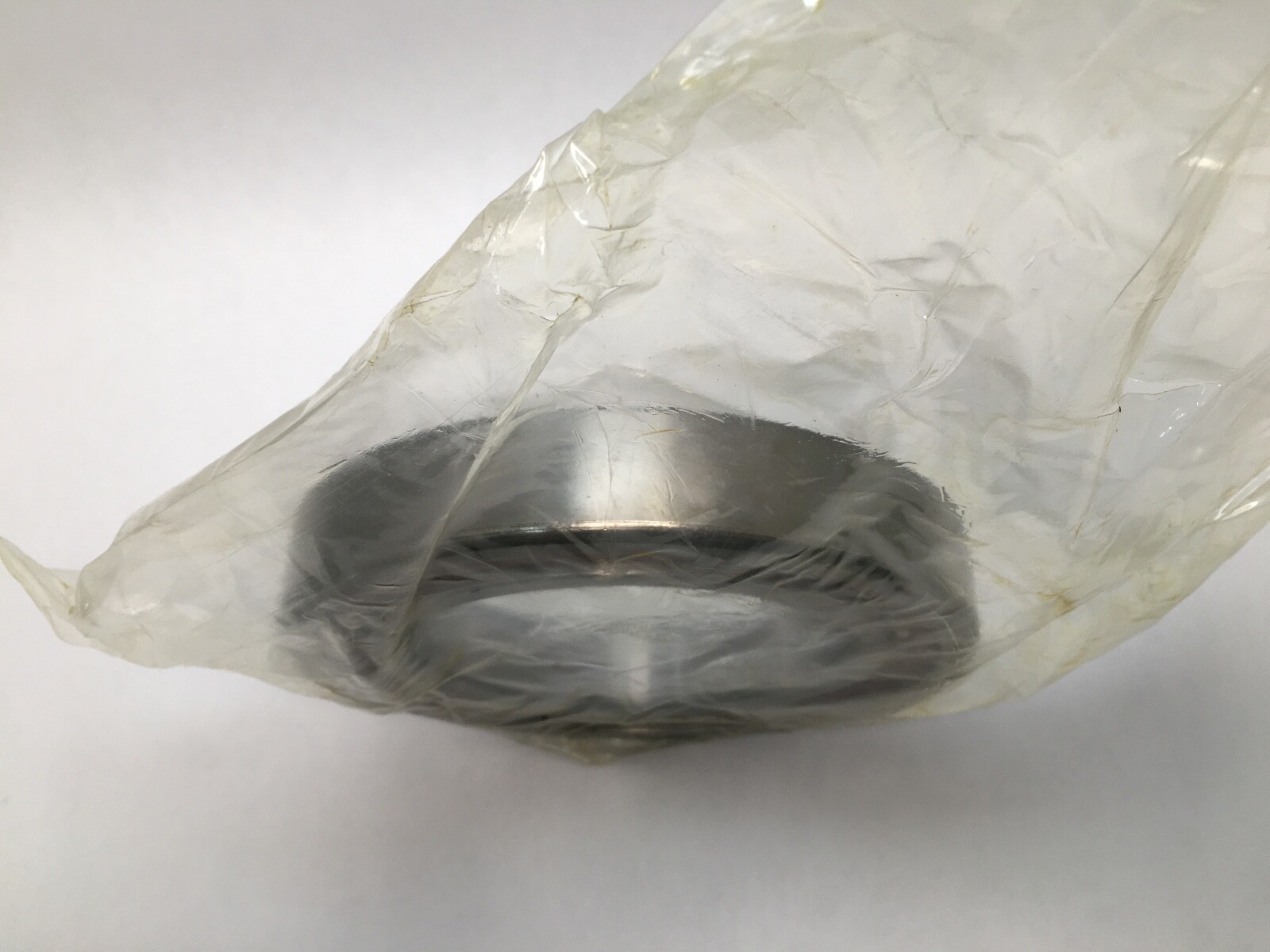

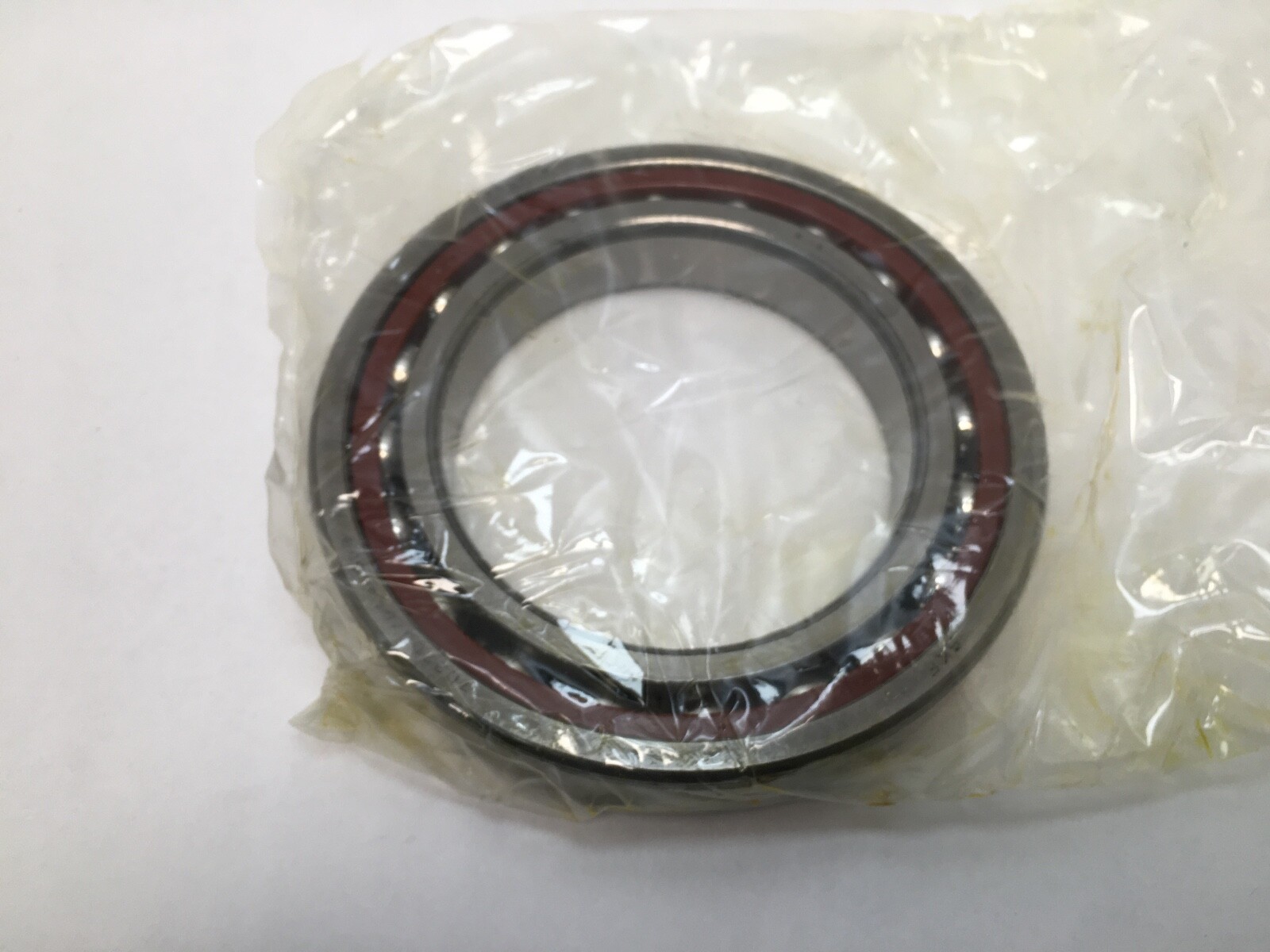

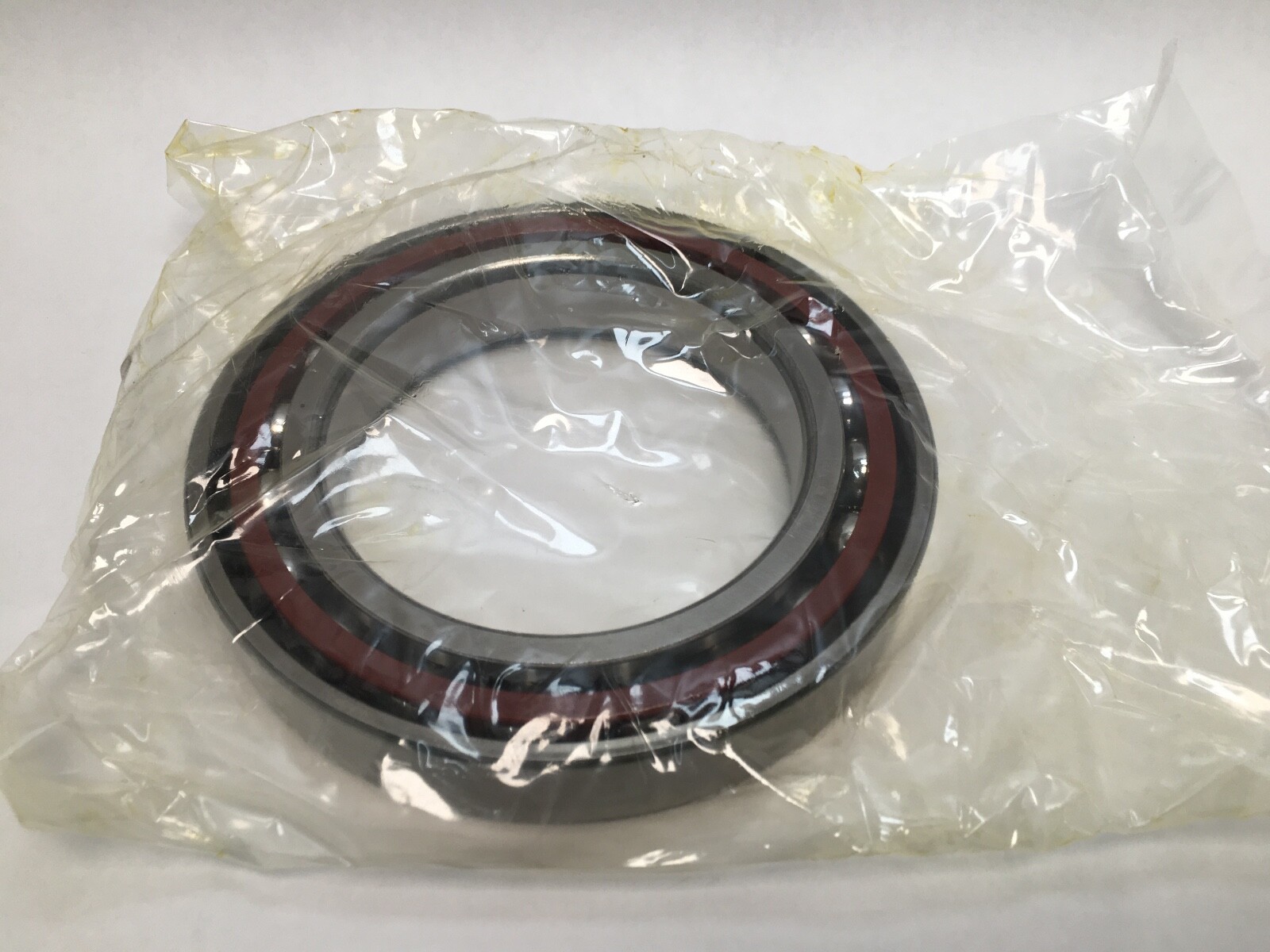

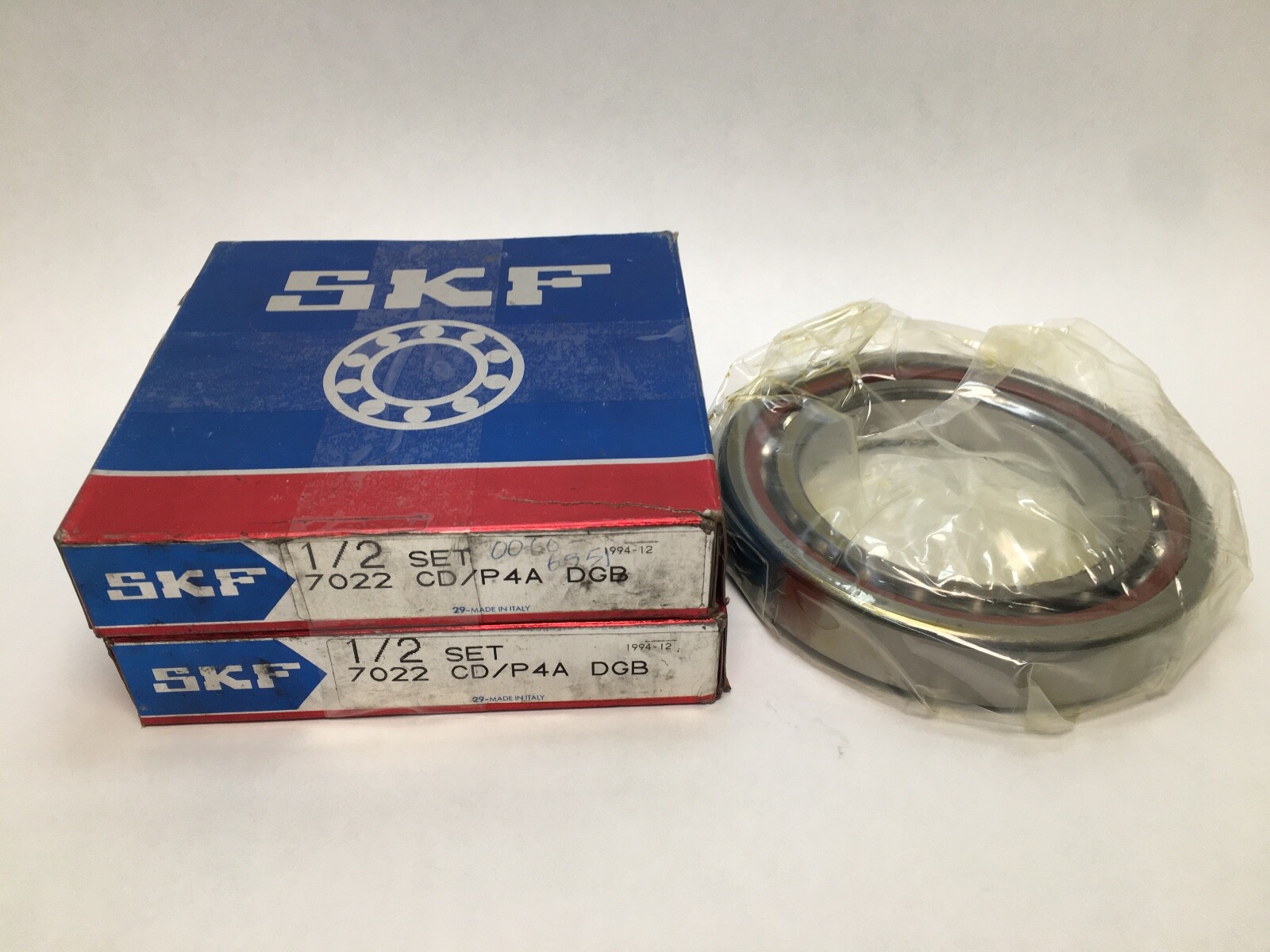

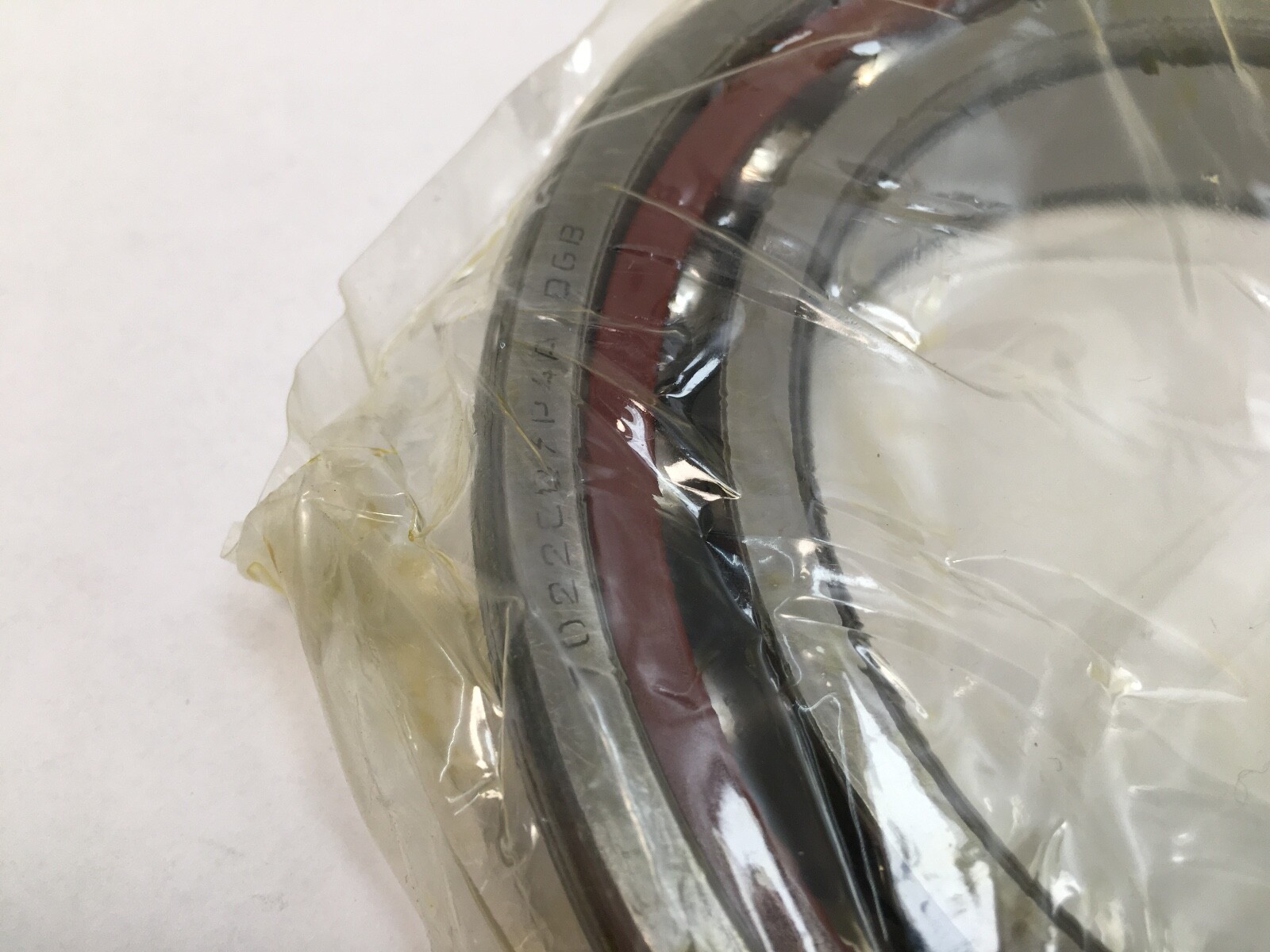

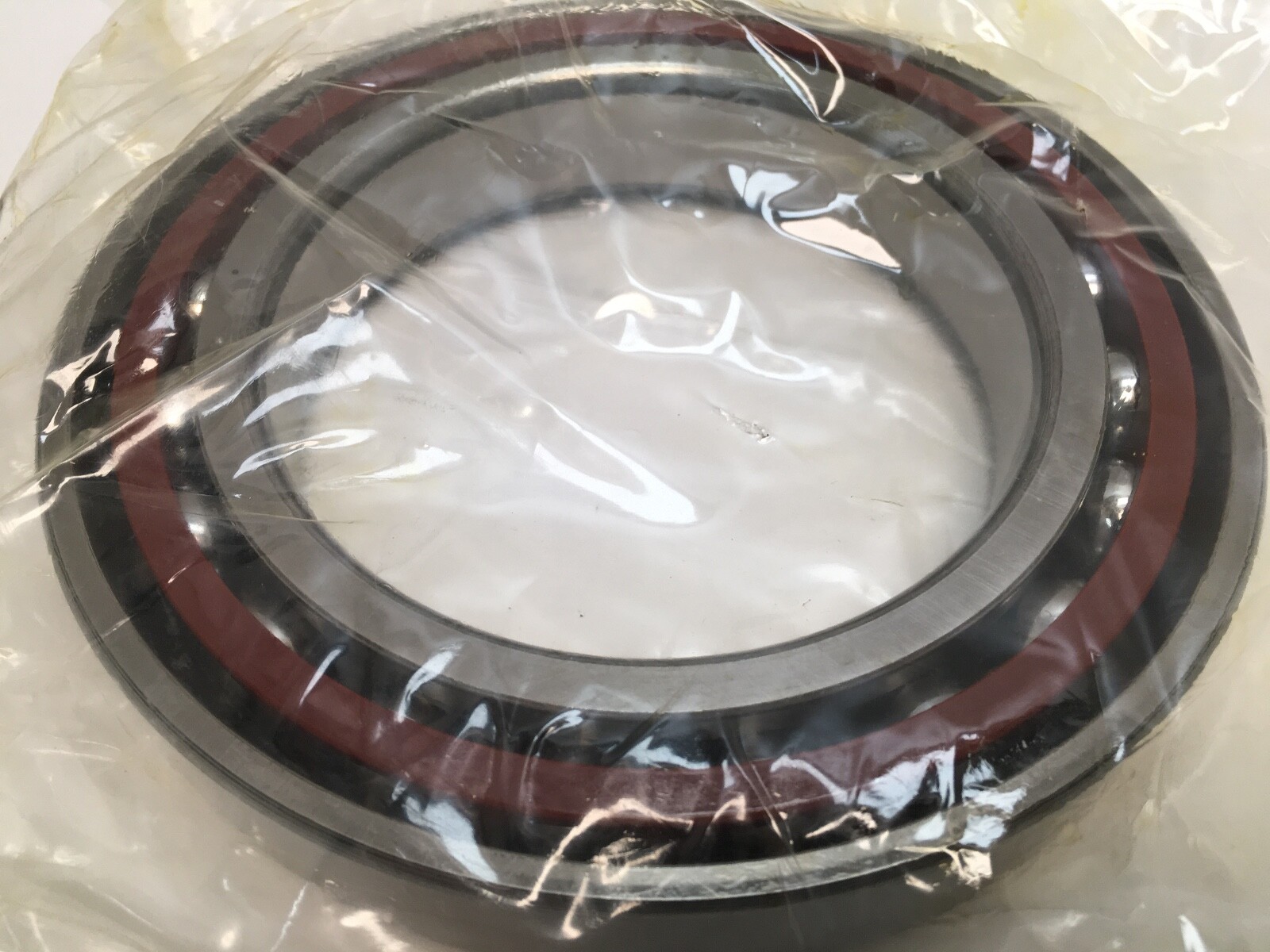

SKF 7022 CDGB/P4A super-precision, high-capacity, universally matchable single-row angular contact ball bearing, 110 x 170 x 28 mm, open. 15° contact angle, light preload (GB), P4A tolerance class. Country of origin: Italy.
70 — ISO light dimension series 10.
22 — bore code, 22 × 5 = 110 mm.
C — 15° contact angle.
D — high-capacity internal design.
GB — universally matchable, light preload.
P4A — SKF super-precision tolerance class, P4 dimensional accuracy with tighter running accuracy.
Bore Diameter: 110 mm. Outside Diameter: 170 mm. Overall Width: 28 mm. Contact Angle: 15°. Number Of Rows: 1. Rolling Elements: Ball. Dynamic Load Rating: 111,000 N. Static Load Rating: 108,000 N. Precision Class: P4A. Preload: light (GB). Mounting Arrangement: universally matchable. Bore Type: Straight. Closure Type: Open. Cage Type: Outer-ring shoulder-guided. Bearing Material: Bearing steel. Item Weight: 1.93 kg (4.25 lb).
Universally matchable for back-to-back, face-to-face or tandem arrangement. Rings are one piece. Supplied open and unlubricated. Harmonization Code: 8482.10.50.
Cross-references on the same 110 x 170 x 28 mm, 15° envelope at medium preload: Timken/Fafnir 2MM9122WICRSUM, FAG B7022-C-T-P4S-UM, NSK 7022CTRSUMP4, RHP 7022X2TRSUMP4. Other preload executions of 7022 CD/P4A are separate parts. Searchable forms include 7022-CD/P4ADGB, 7022CDP4ADGB and 7022C.
110 mm bore, 170 mm outside diameter, 28 mm width.
Dynamic Load Rating 111,000 N and Static Load Rating 108,000 N, per bearing.
Universally matchable with light preload.
