Availability:
Out of stock

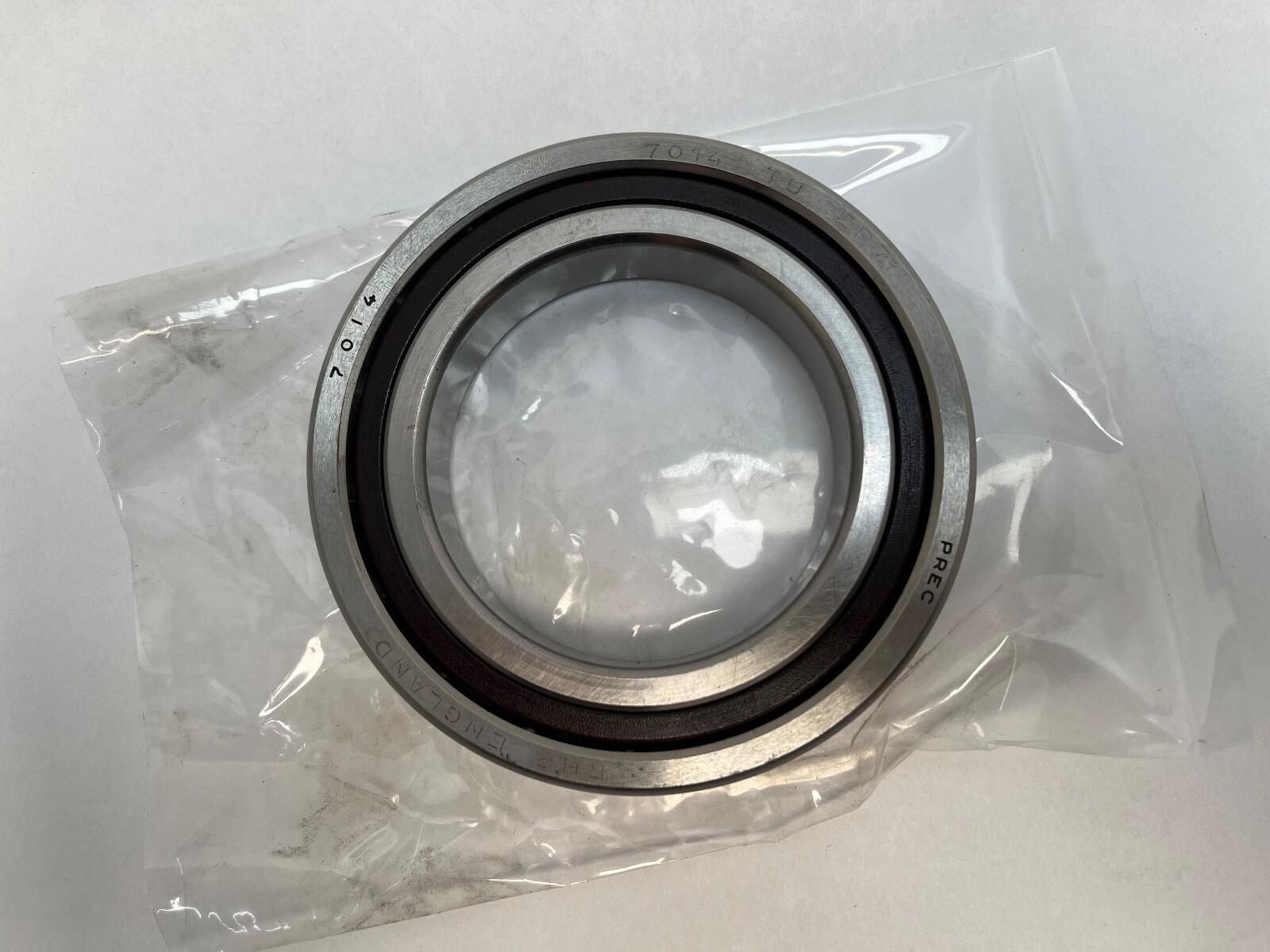

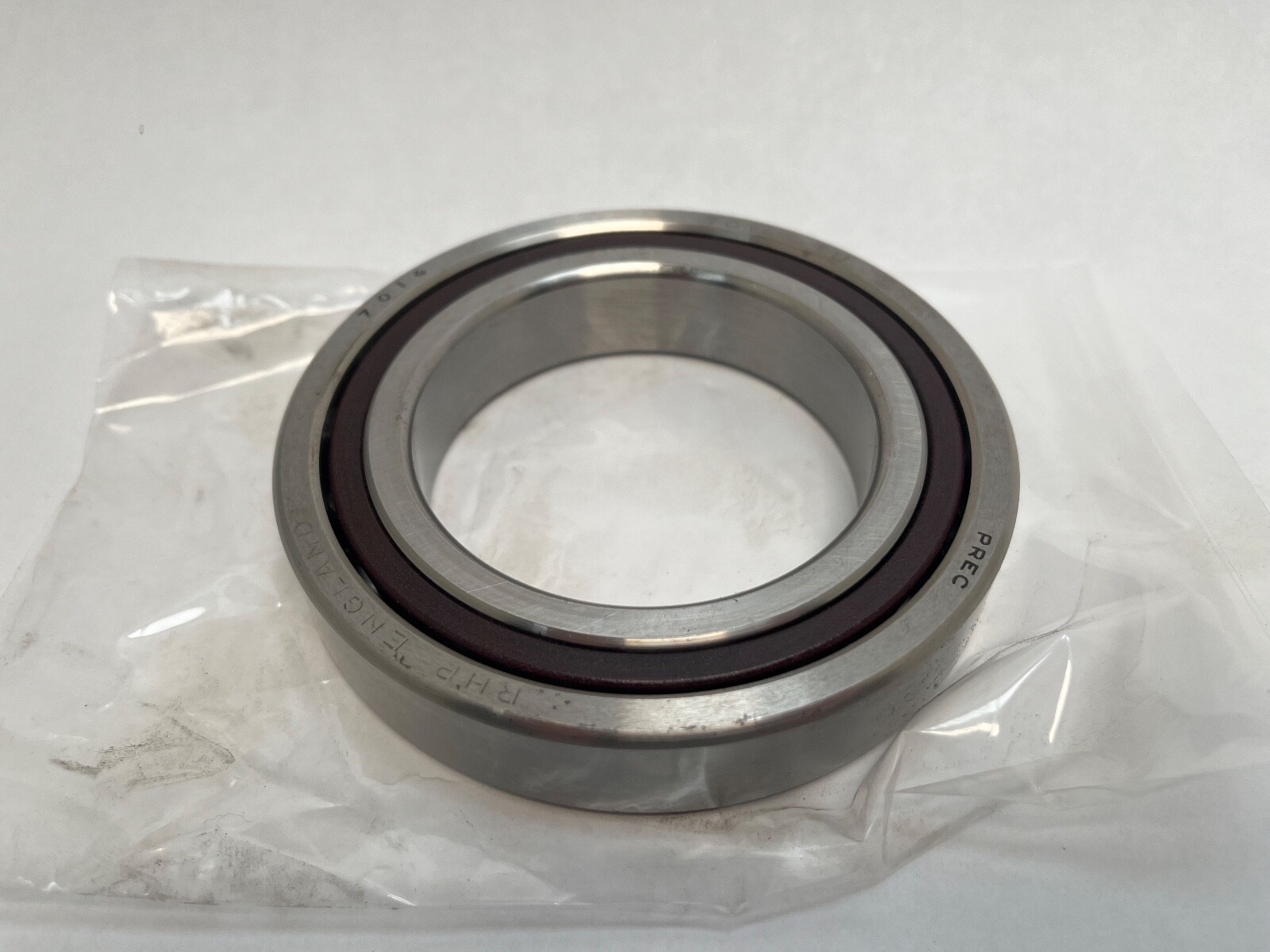

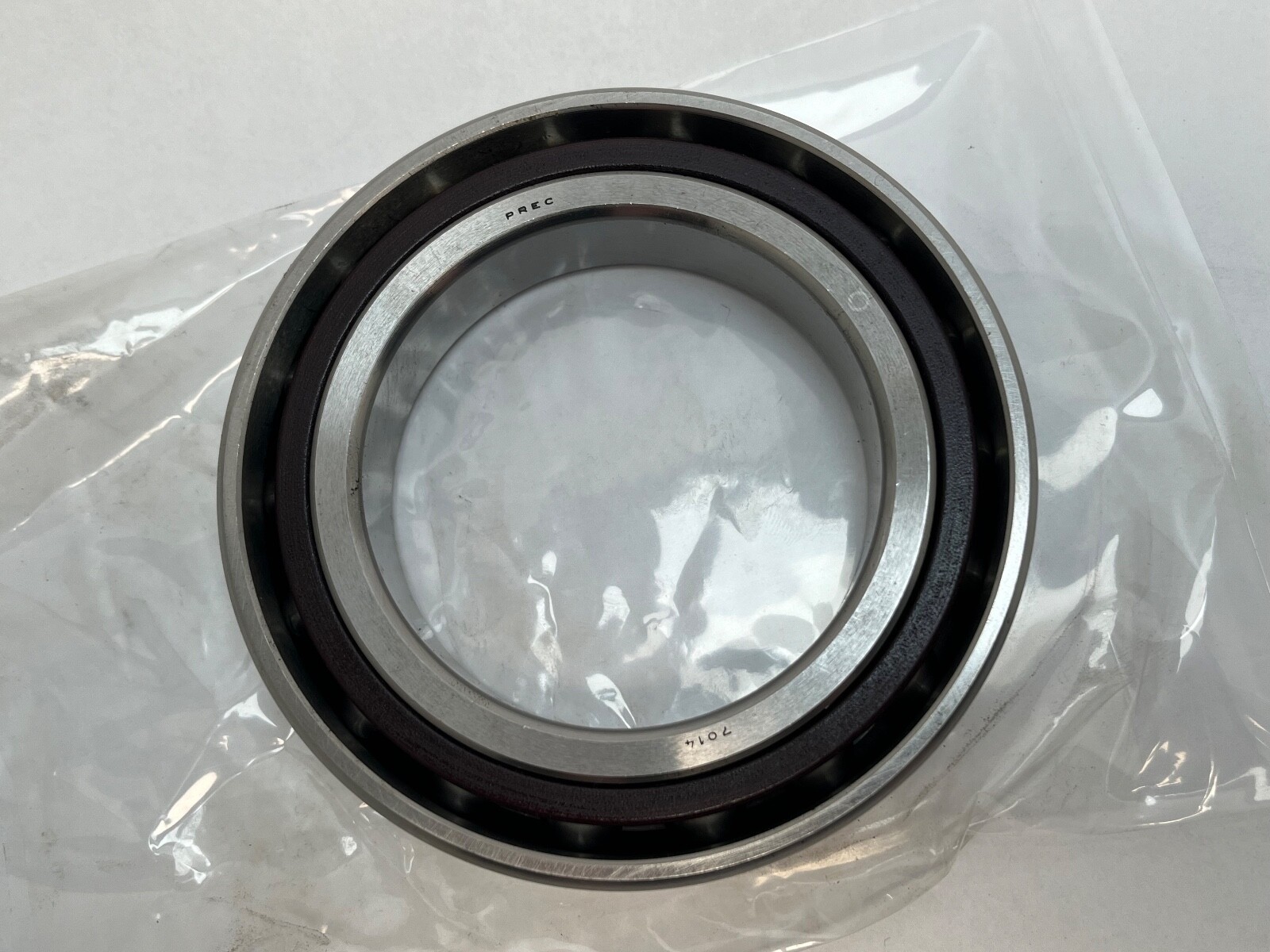

Super precision angular contact ball bearing, 70 x 110 x 20 mm, light preload, phenolic outer-ring guided cage, P4 / EP7 precision class.
List Price
$72.26
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing — 70 mm ID, 110 mm OD, 20 mm Width, 15° Contact Angle, ABEC 7, Light Preload$168.28
Angular Contact Ball Bearing - 70 mm ID, 110 mm OD, 20 mm Width, 15 Degree Contact Angle, Phenolic Cage, Light Preload, Universal Face Control$93.97
Single-Row Angular Contact Ball Bearing 70 x 110 x 20 mm, 15° Contact Angle, Open$71.57
Angular Contact Ball Bearing - Straight Bore, 70 mm ID, 110 mm OD, 20 mm Width, Open, 15° Contact Angle, Single Row$78.67| MFR / Brand | RHP |
|---|---|
| MPN | 7014TSULP4 |
| Model | 7014 B T SUL P4 / 7014 T UL EP7 / MM9114WI CR SUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 110 mm |
| Width | 20 mm |
| Preload | Light |
|---|---|
| Material | Bearing Steel |
| Series | 70 |
| Base Number | 7014 |
| Bore Shaft Size | 70 mm |
| Mpn Variants | 7014-T-SUL-P4, 7014 T SUL P4, 7014TULEP7, 7014-B, MM9114WICRSUL, 7014 B T SUL P4 |
| Rolling Elements | Balls |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Part Number | 7014TSULP4 |

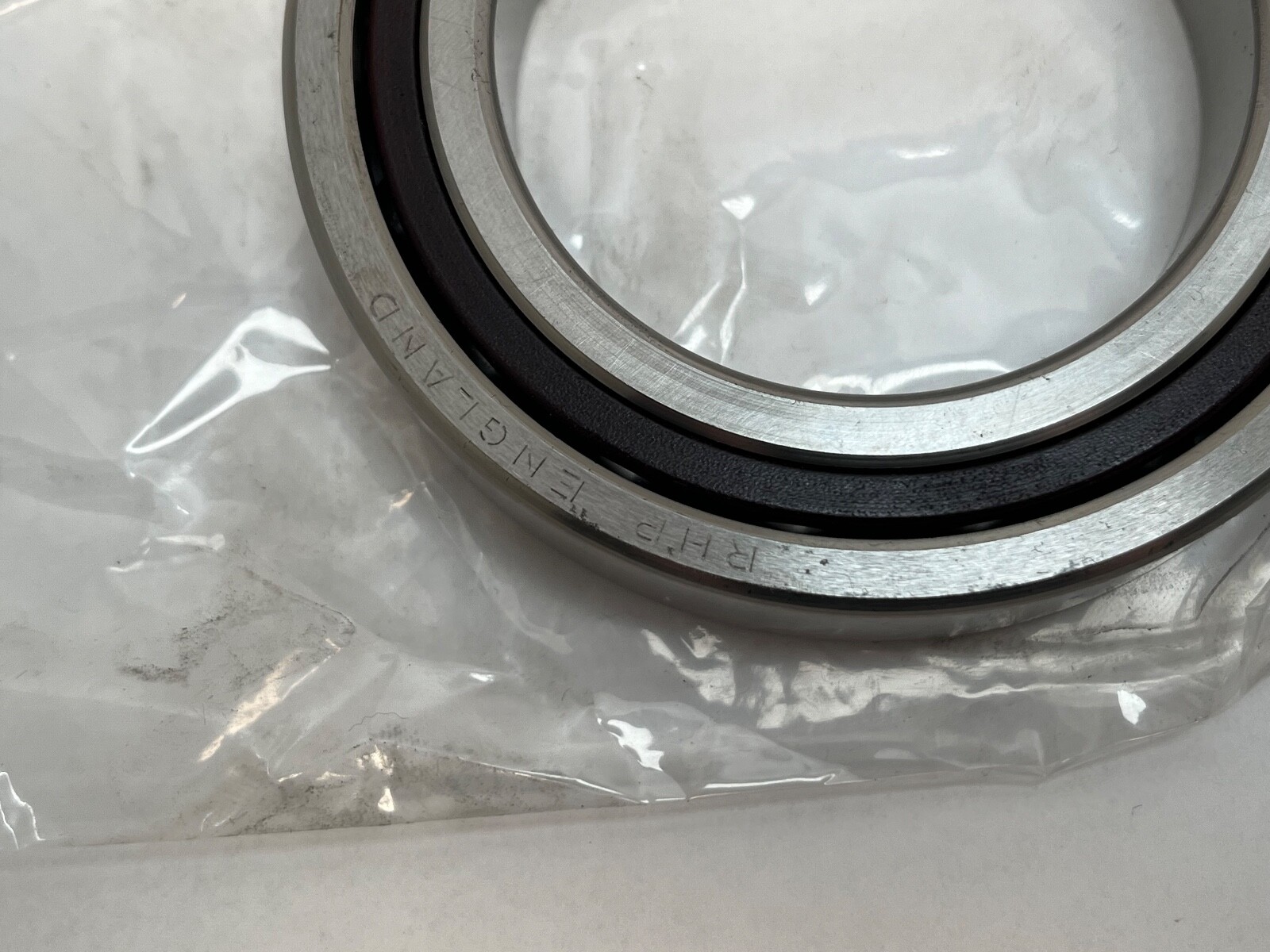

RHP 7014TSULP4 super precision angular contact ball bearing. Bore: 70 mm. Outside Diameter: 110 mm. Overall Width: 20 mm. Bore Type: Straight. Number Of Rows: 1. Rolling Elements: Balls. Closure Type: Open. Cage Material: Phenolic. Cage Type: Outer-ring land-riding. Precision Class: P4, RHP EP7. Running Accuracy — Radial And Axial Runout: P4. Preload: Light. Internal Clearance: N/A. Mounting Arrangement: Universal. Contact Angle: Not specified. Bearing Material: Bearing steel. Series: 70 light section. Item Weight: 1.35 lbs. Unit Quantity: 1 Pc.

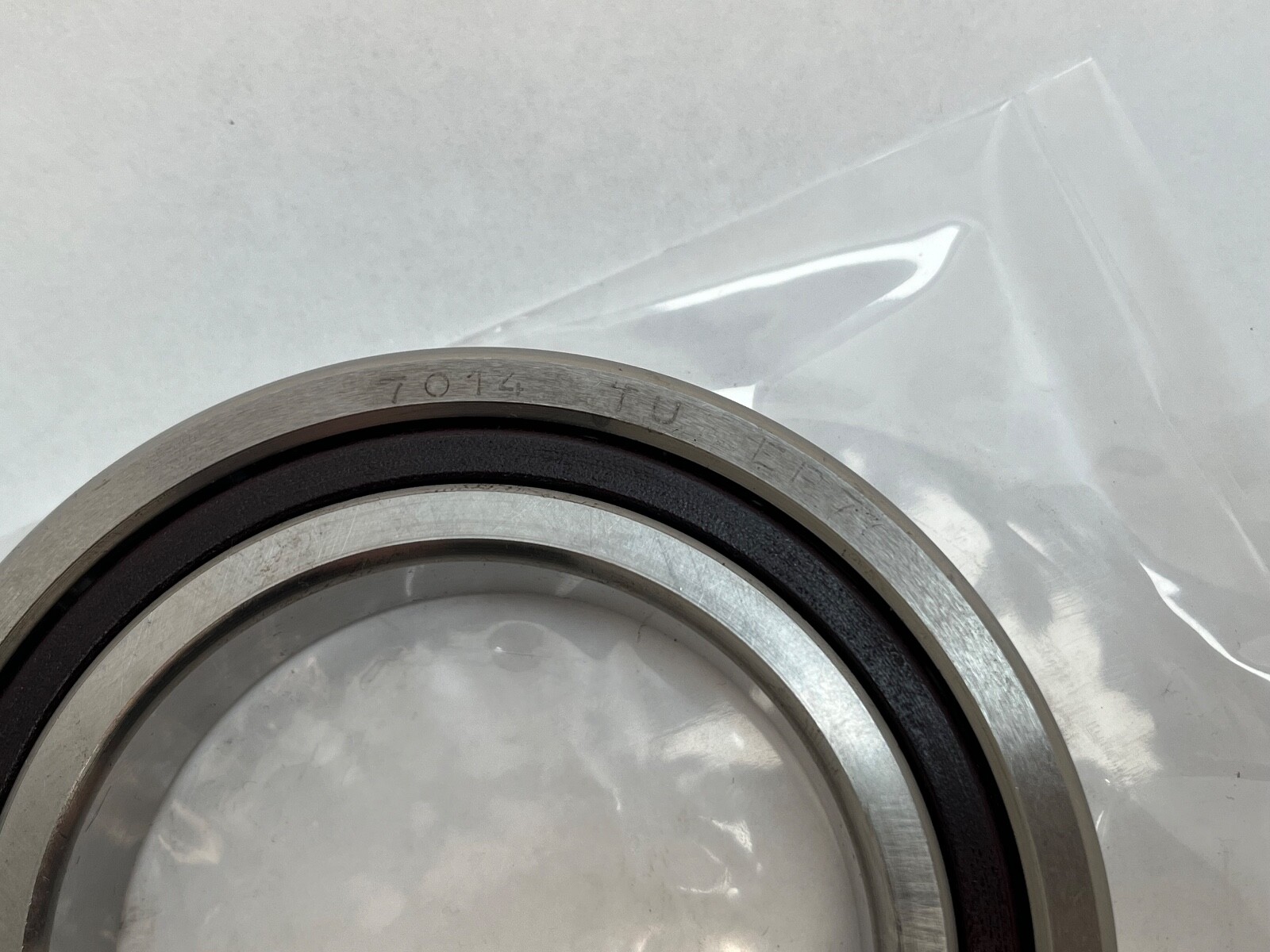

7014: 70 mm bore, ISO 70 light section, angular contact. T: phenolic cage. SU: a single bearing, universally ground, so any two mount together back-to-back, face-to-face or in tandem. L: light preload. P4: ABEC 7 tolerance class, given as EP7 in RHP’s own grading. The carton also carries the forms 7014 B T SUL P4, 7014 T UL EP7 and the Fafnir cross MM9114WI CR SUL. Searchable variants: 7014TSULP4, 7014-T-SUL-P4, 7014 T SUL P4, 7014TULEP7, 7014-B, MM9114WICRSUL.

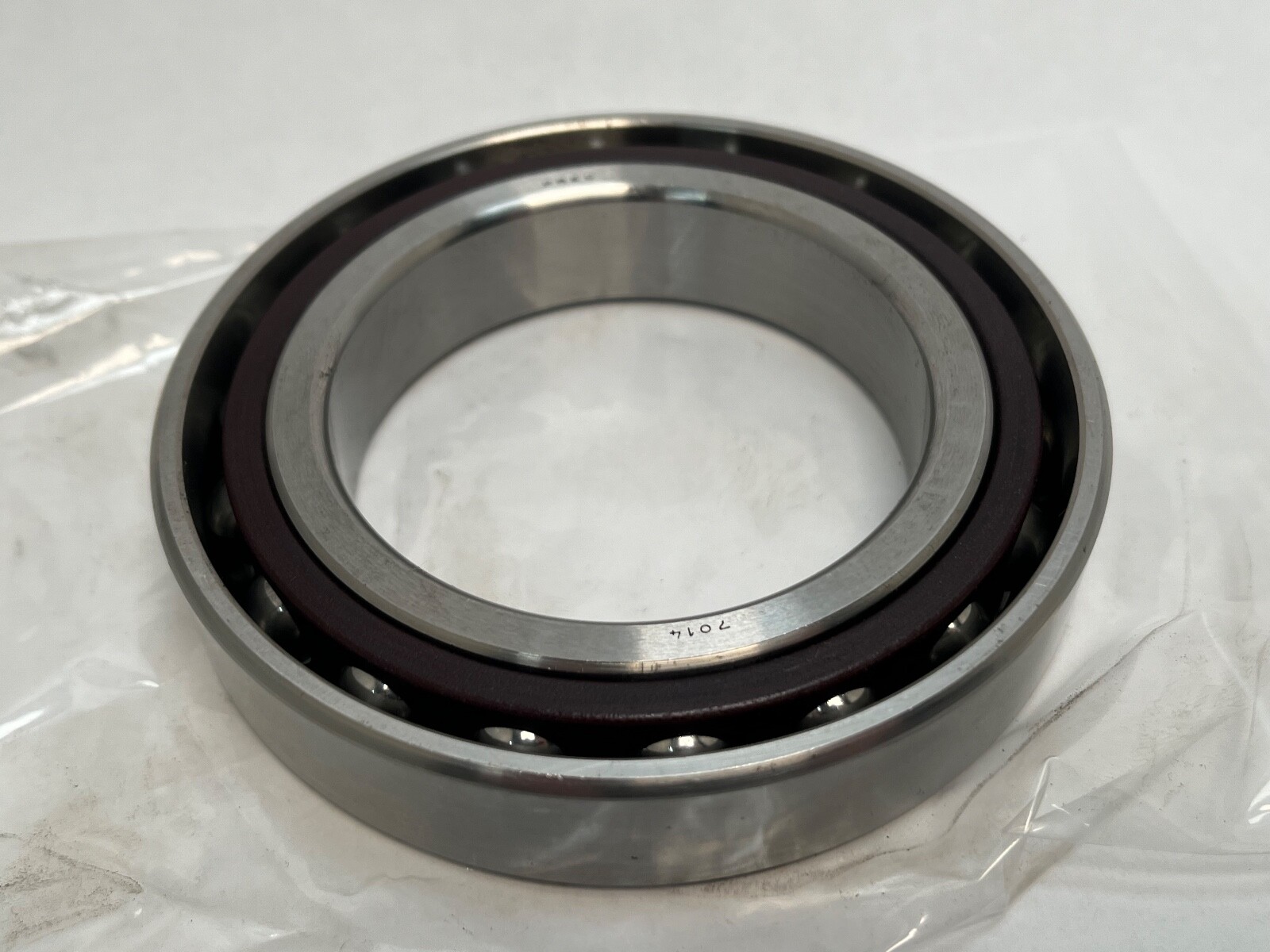

Light preload gives the lowest friction and the least heat of the three preload classes while still holding the balls in defined contact through load reversal. Universal grinding holds the ring faces to a common width, so two bearings of the same designation set their own preload when clamped, with no shims or spacers. P4 / EP7 tolerances hold bore, outside diameter and runout to spindle grade, which is what keeps shaft position repeatable. The phenolic cage rides on the outer ring land: low mass, quiet running, and a 120 °C ceiling.
Unit Quantity: 1 Pc. One single bearing, universally ground, light preload, open on both faces.
Straight bore, so the inner ring seats on a cylindrical shaft journal. Clamping the ground faces of two matched bearings together sets the preload. Preloaded bearings are set at the factory, so no internal clearance figure applies. Operating temperature range: -30 °C to 120 °C.

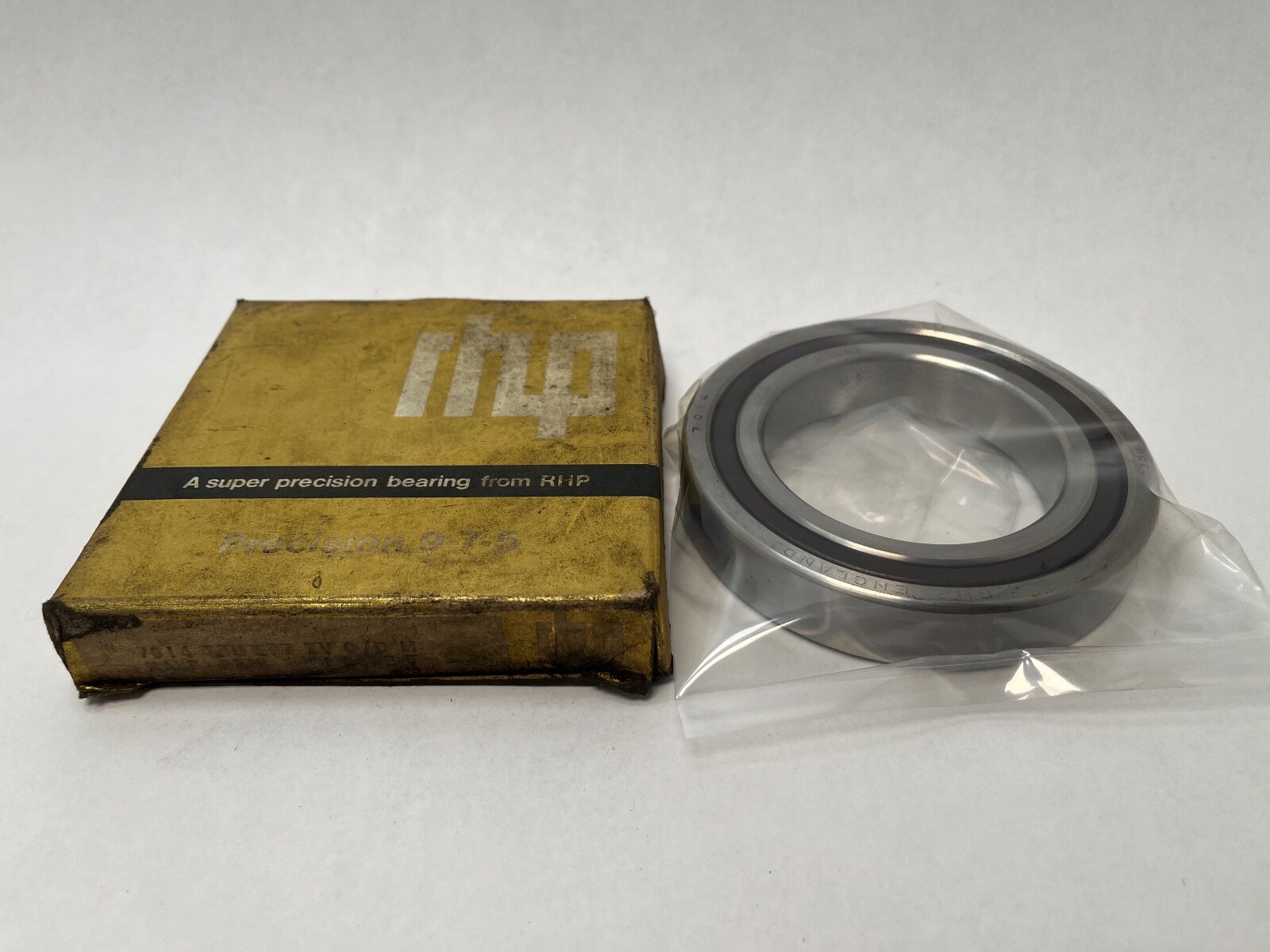

Same envelope, 70 x 110 x 20 mm: ISO 7014 in every maker’s numbering, and the Fafnir cross MM9114WI CR SUL on the carton. Fafnir 9114 maps to ISO 7014, which matches this envelope.
$760.47
16 in stock
