Angular contact ball bearing, 70 x 110 x 20 mm, 15 degree contact angle, phenolic cage, light preload, universal face control. 47 kN dynamic rating.
List Price
$93.97
19 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7014CTSUL |
| Model | 7014 C T SUL P0 / B7014X2 T UL EP1 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 110 mm |
| Width | 20 mm |
| Material | Chrome steel |
|---|---|
| Series | 70 (ISO dimension series 10) |
| Lubricant | Oil/Grease |
| Preload | Light |
| Base Number | 7014 |
| Total Width | 20 mm |
| Bore Shaft Size | 70 mm |
| Mpn Variants | 7014CTSUL, 7014-C-T-SUL, 7014 C T SUL, 7014C, B7014X2TULEP1 |
| Arrangement Configuration | Universally ground single (SU) |
| Precision Class | P0 (EP1 / ABEC 1) |
| Cage Type | Machined |
| Dynamic Load Rating | 47.0 kN (47,000 N) |
| Static Load Rating | 43.0 kN (43,000 N) |
| Precision Rating | ABEC 1 |
| Rolling Elements | Ball |
| Item Weight | 0.606 kg (1.336 lb) |
| Cage Material | Laminated phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.5028 |
| Contact Angle | 15° |
| Part Number | 7014CTSUL |
| Cross Reference 1 | NSK 7014C |
|---|---|
| Cross Reference 2 | SKF 7014 CD |
| Cross Reference 3 | FAG B7014-C |
| Cross Reference 4 | RHP B7014X2TULEP1 |

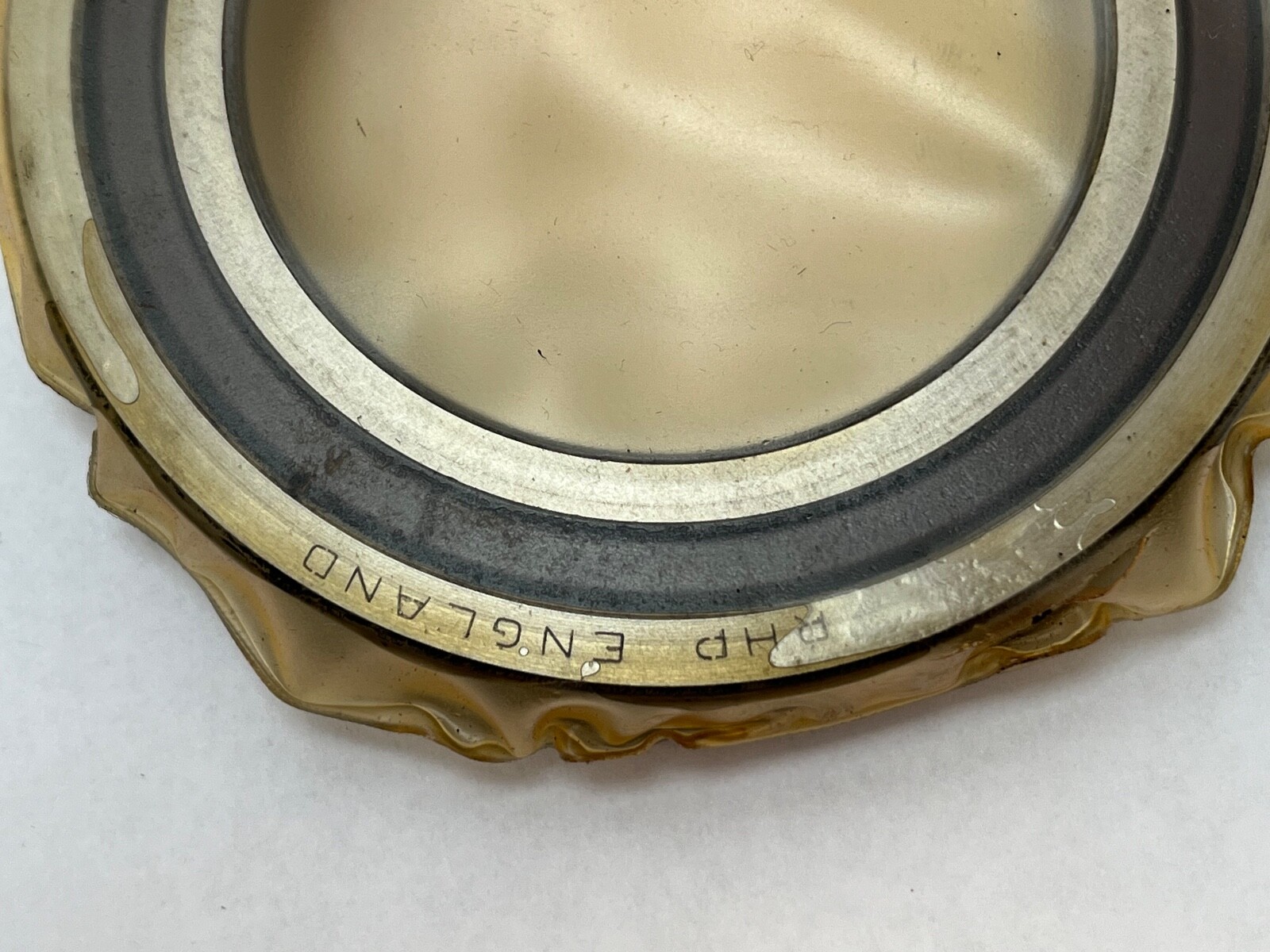

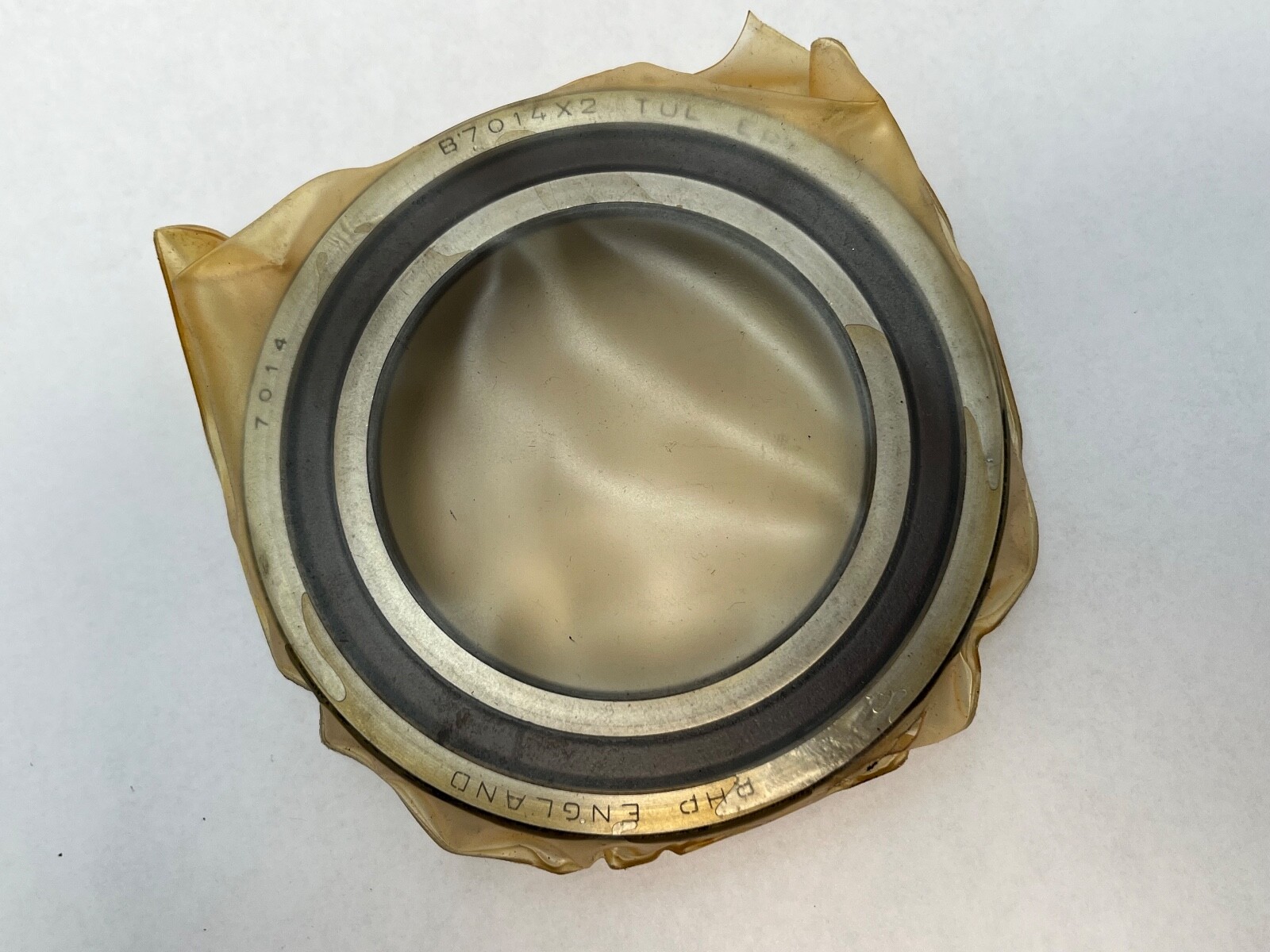

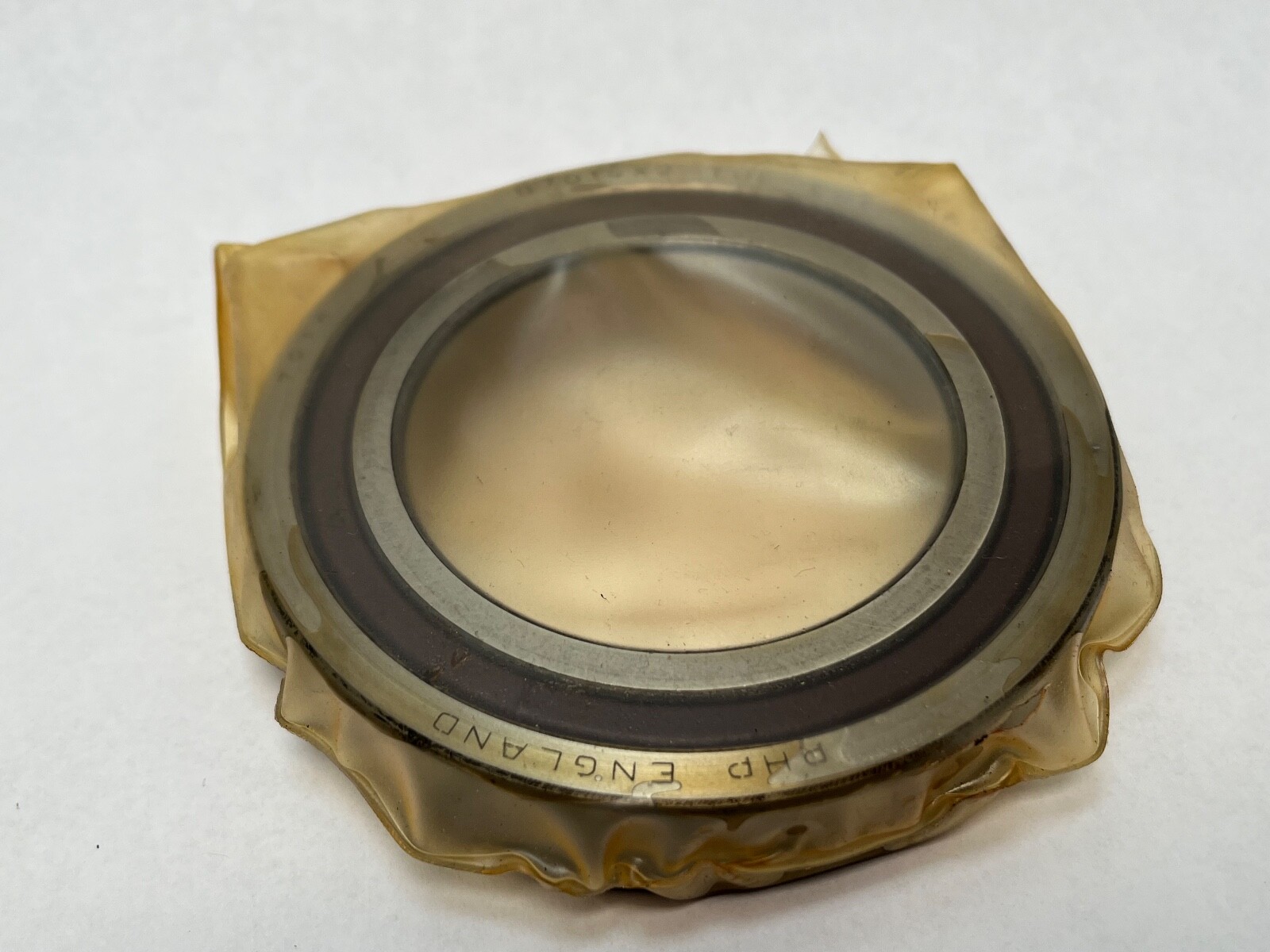

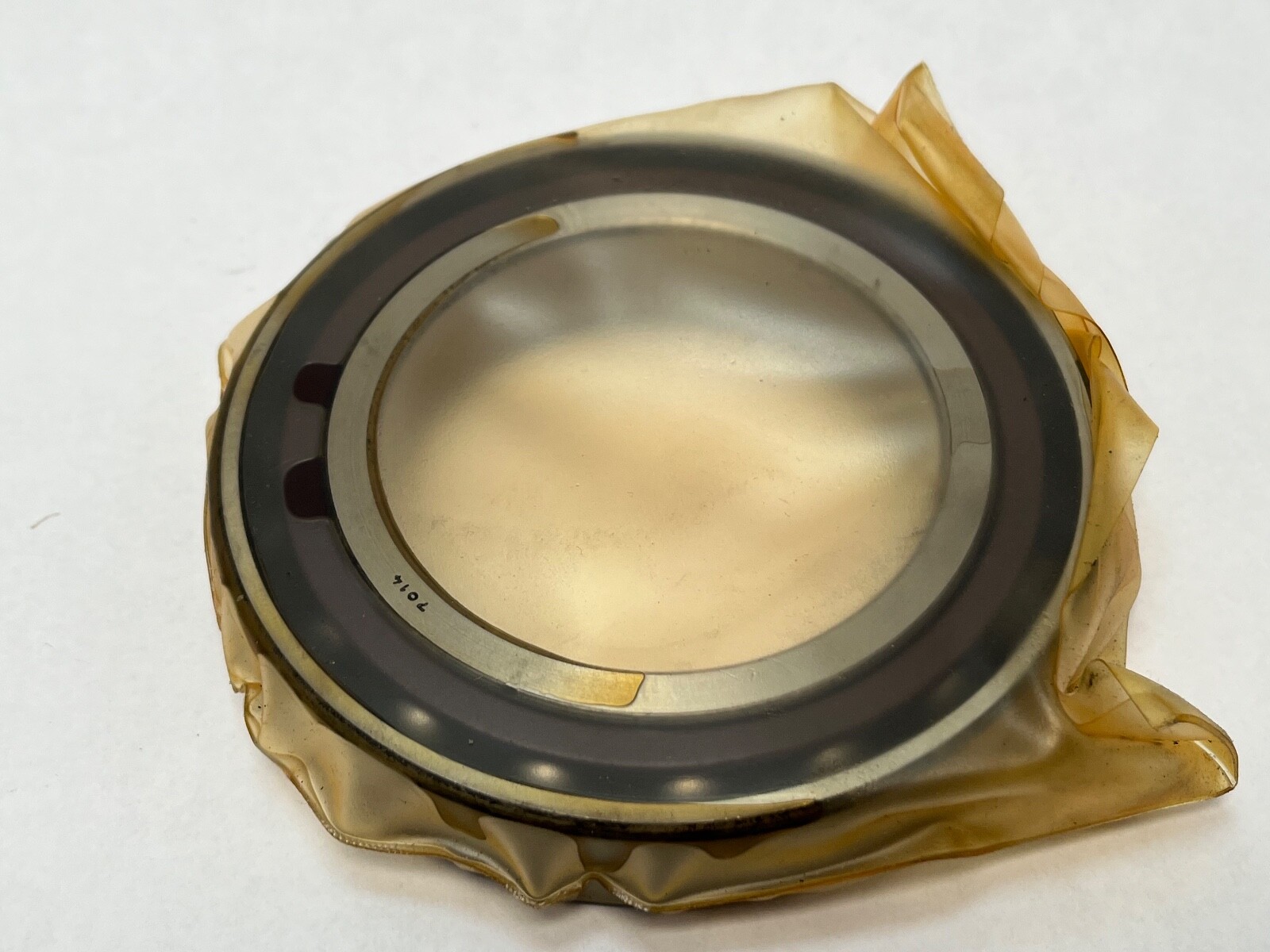

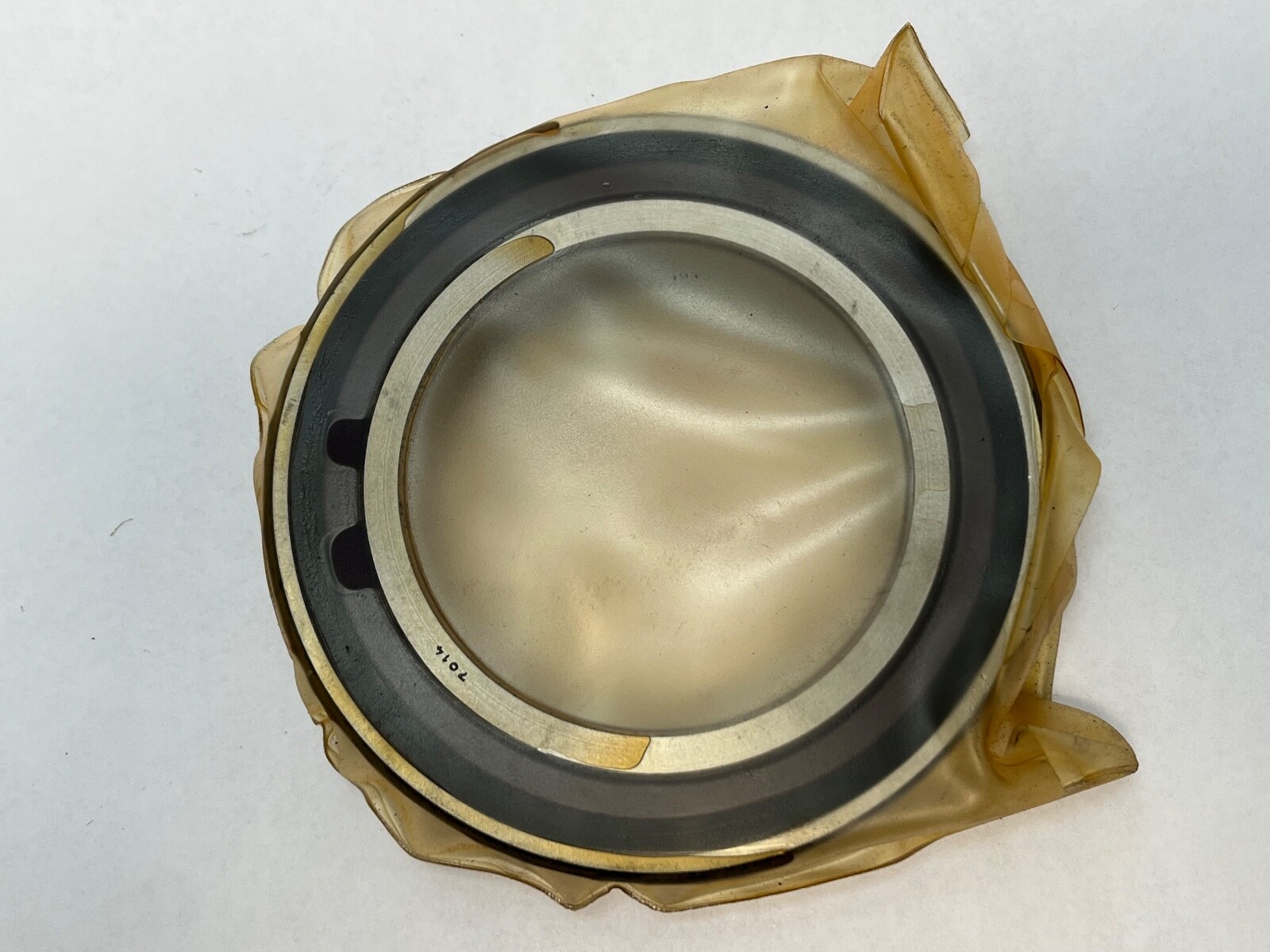

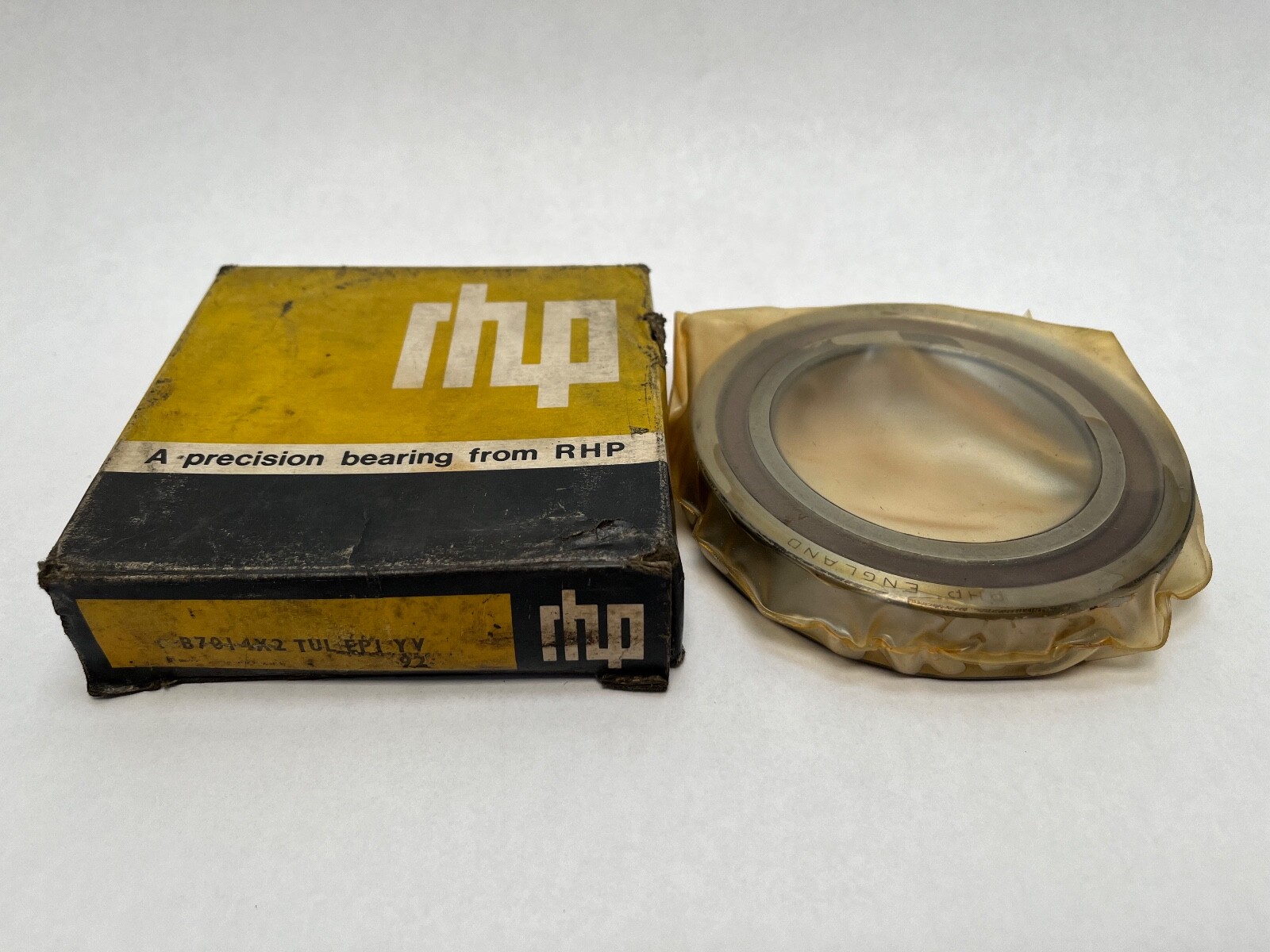

RHP 7014CTSUL single-row angular contact ball bearing, 70 x 110 x 20 mm, universally ground, one bearing per unit. 15° contact angle, laminated phenolic cage, light preload.
7014 — RHP’s number for the ISO 7014 size, 70 x 110 x 20 mm, dimension series 10.
C — 15° contact angle.
T — laminated phenolic cage.
SU — universal face control. The faces are ground so that any two bearings from the range mount together as a pair in any orientation.
L — light preload class.

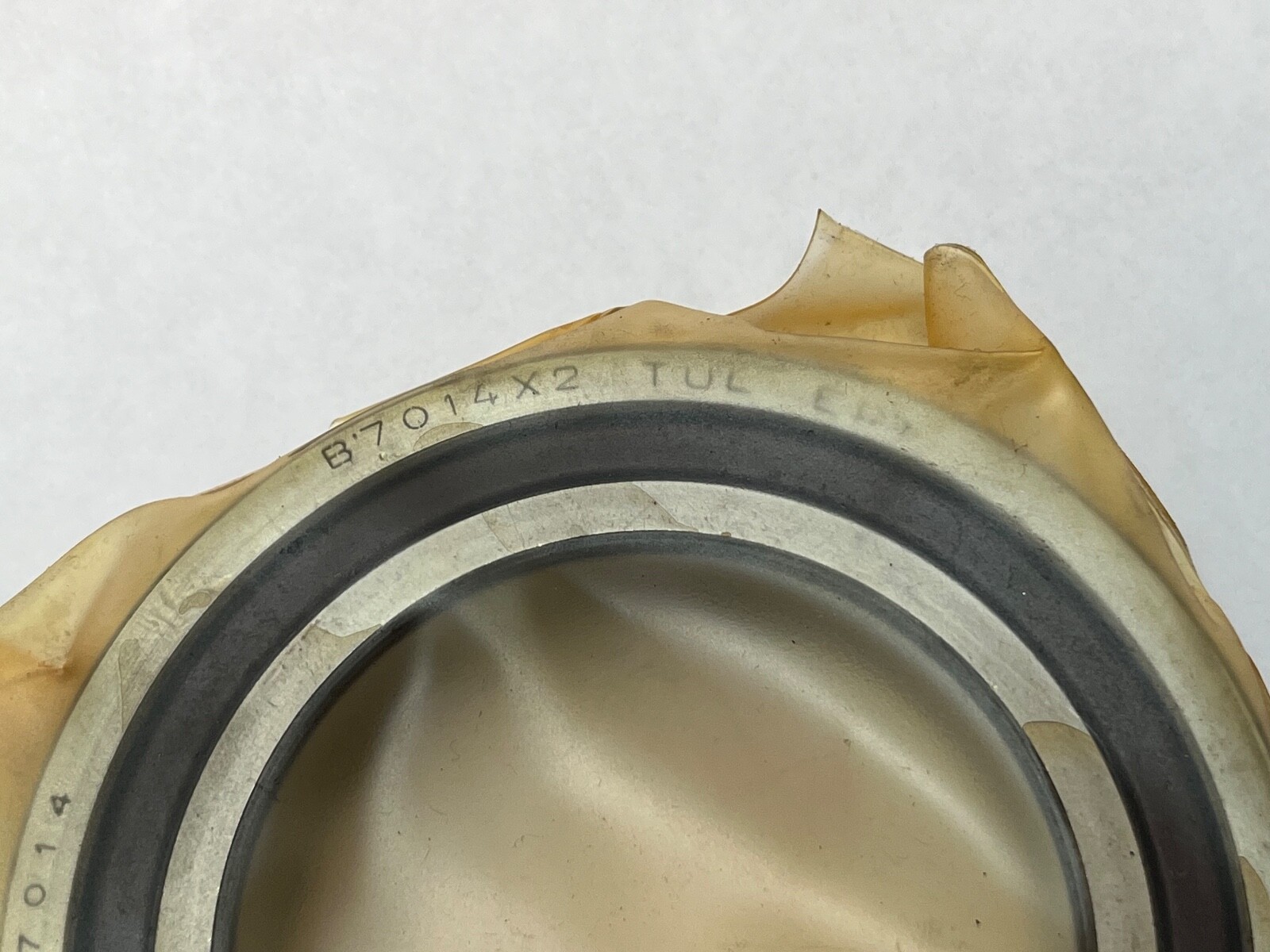

B7014X2TULEP1 — the same bearing in RHP’s B-series scheme. X2 is the 15° contact angle and EP1 is precision class P0.
Bore Diameter: 70 mm. Outside Diameter: 110 mm. Overall Width: 20 mm. Contact Angle: 15°. Dynamic Load Rating: 47,000 N. Static Load Rating: 43,000 N. Precision Class: P0 (EP1 / ABEC 1). Preload: Light. Cage Material: Laminated phenolic. Rolling Elements: Ball. Closure Type: Open. Item Weight: 0.606 kg (1.336 lb). Unit Quantity: 1 Pc. Country of Origin: United Kingdom.
Effective load centre a: 22.1 mm. Chamfer r min: 1.1 mm. Chamfer r1 min: 0.6 mm. Internal volume: 26.3 cm³. Shaft abutment diameter d1: 77 mm minimum. Housing abutment diameter D1: 103 mm maximum. Second housing abutment diameter D2: 105 mm maximum. PCD of lubrication jets dT: 83.7 mm.
Cross-Reference 1: NSK 7014C. Cross-Reference 2: SKF 7014 CD. Cross-Reference 3: FAG B7014-C. Cross-Reference 4: RHP B7014X2TULEP1. MPN forms: 7014CTSUL, 7014-C-T-SUL, 7014 C T SUL, 7014C.
Bore 70 mm, outside diameter 110 mm, width 20 mm.
15°. The C in the designation and the X2 in the B-series number B7014X2TULEP1 both denote 15°.
Dynamic load rating 47,000 N and static load rating 43,000 N, per RHP catalogue C859.
