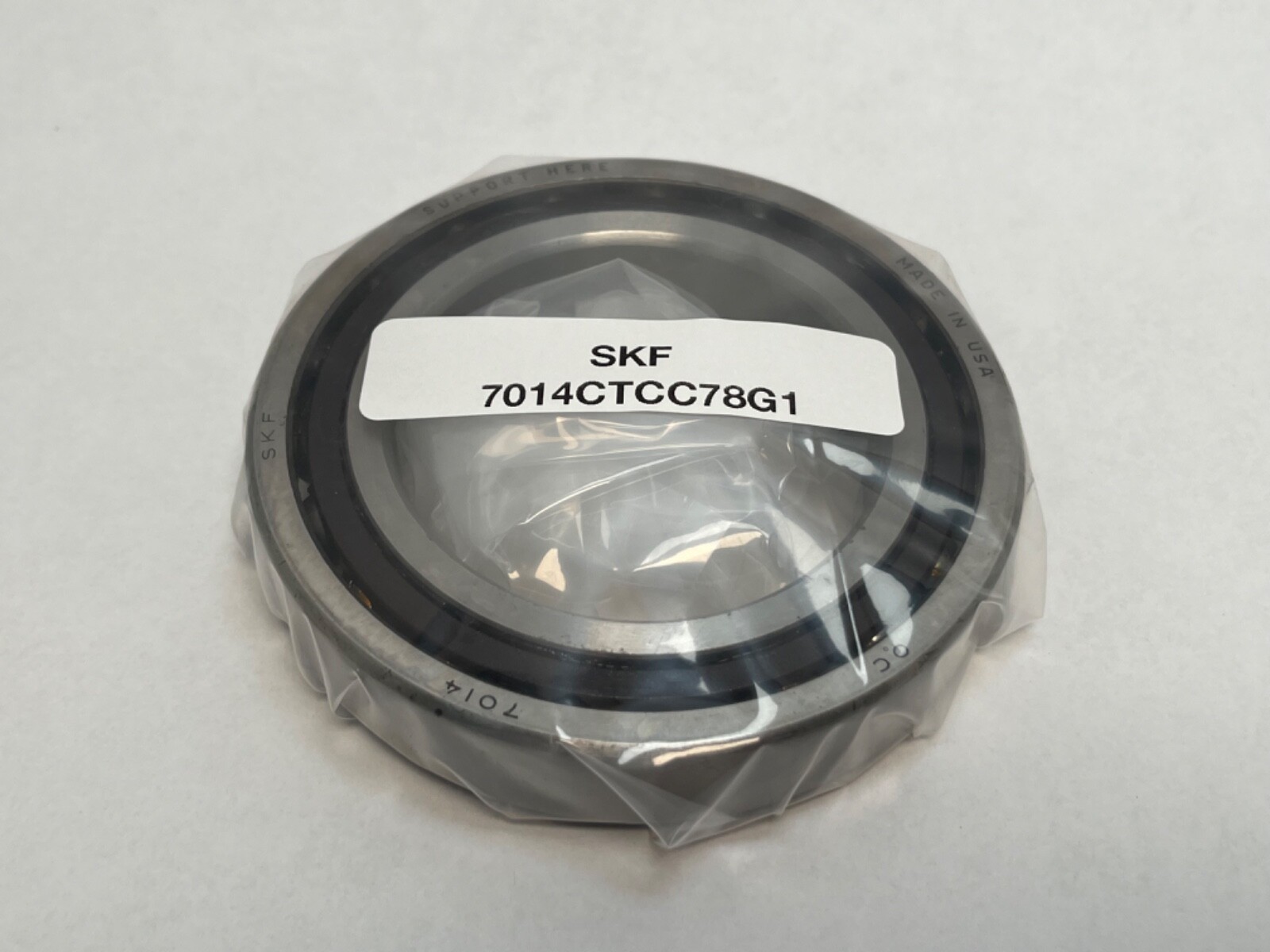

SKF7014CTCC78G1Single-Row Angular Contact Ball Bearing 70 x 110 x 20 mm, 15° Contact Angle, Open

Product Description

What this part is

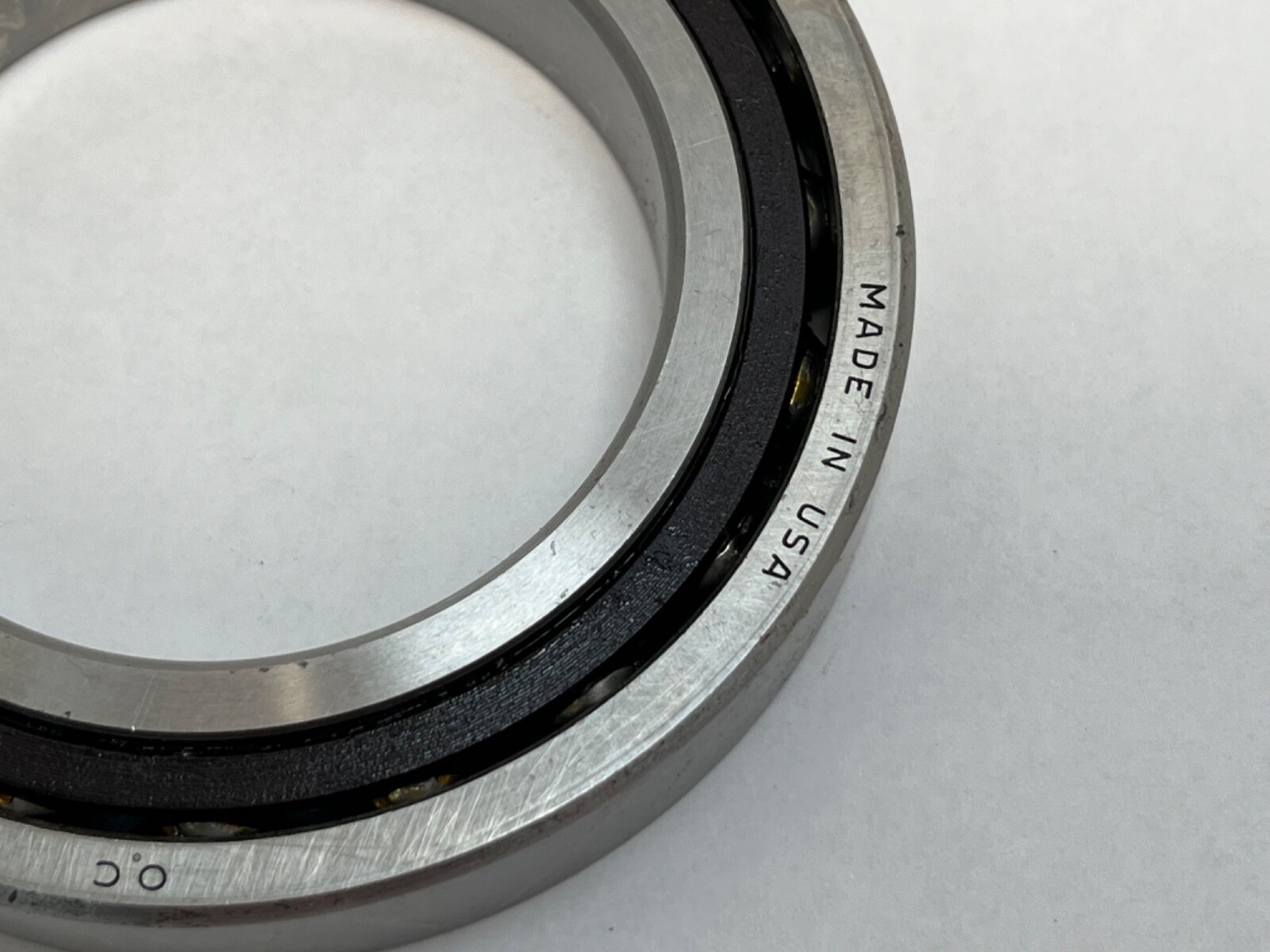

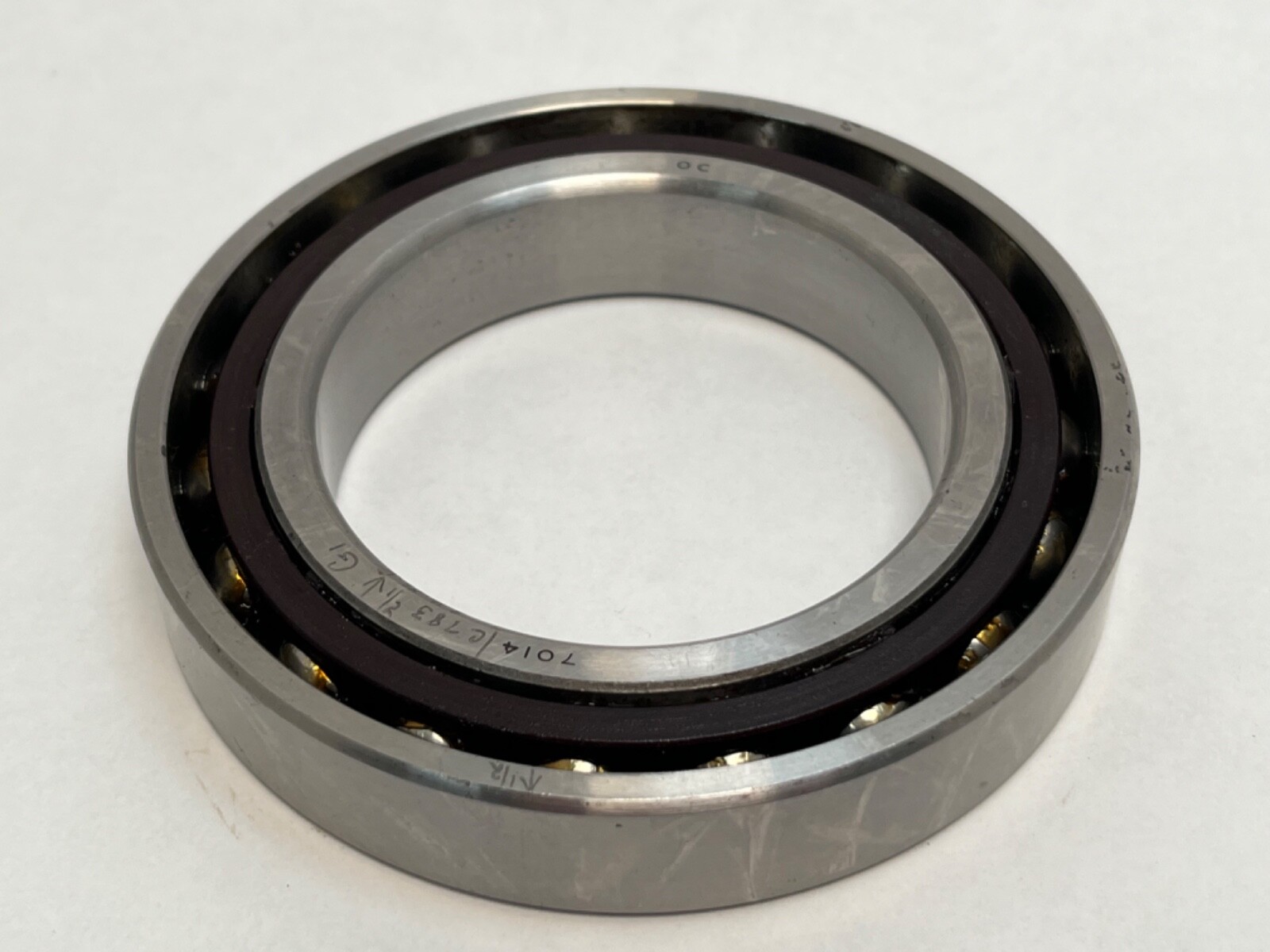

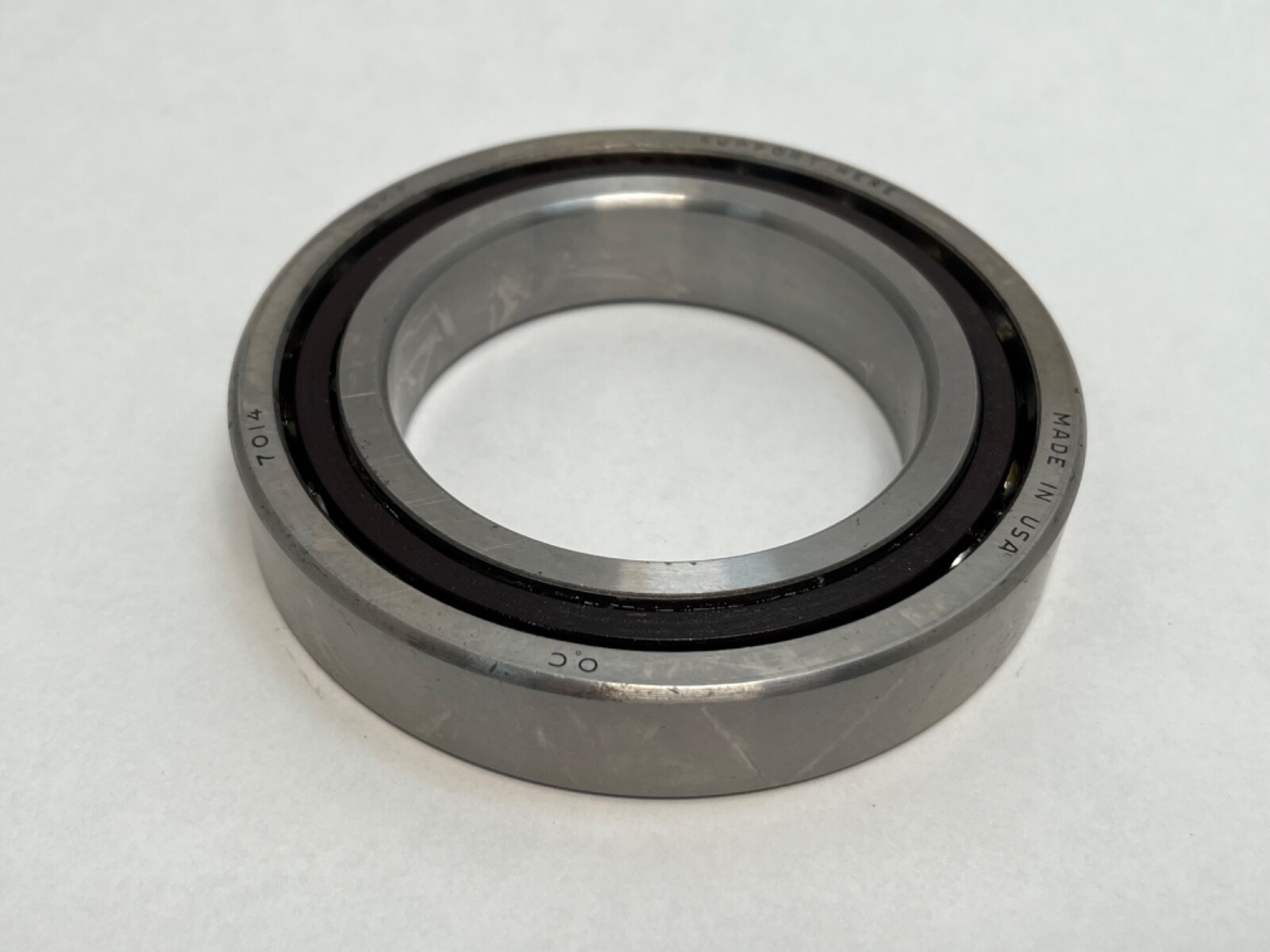

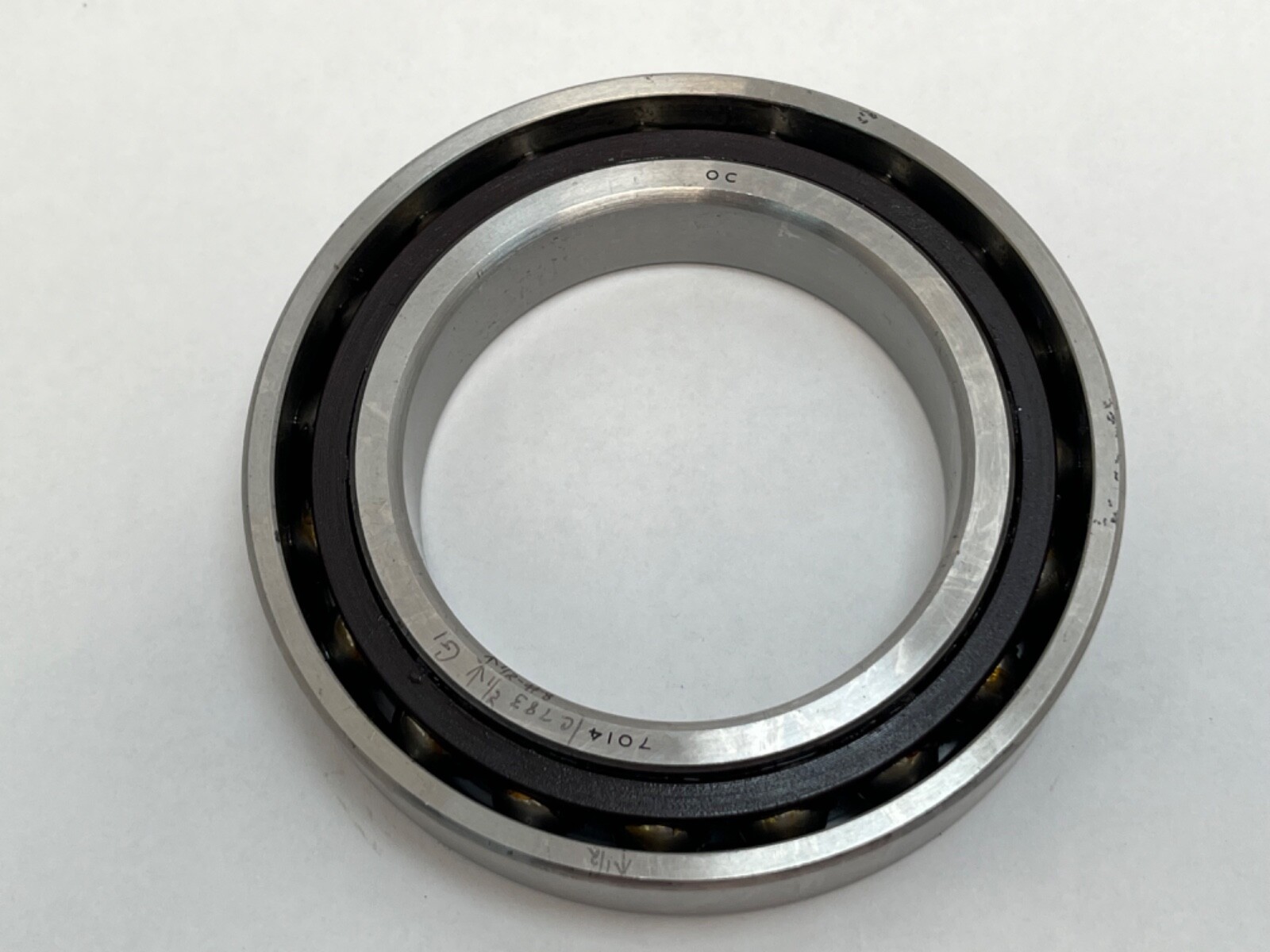

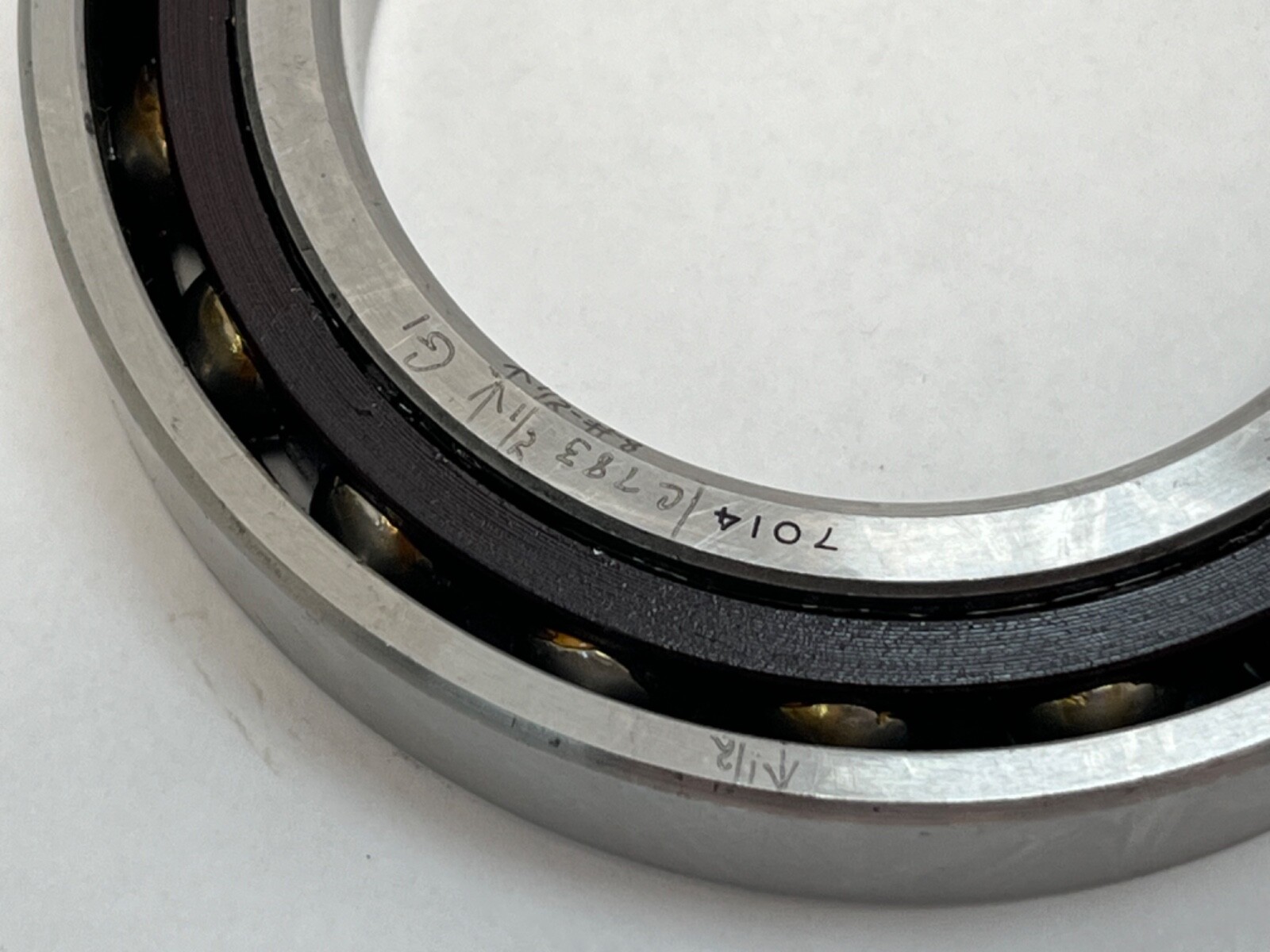

This is an SKF 7014 C single-row angular contact ball bearing with a 70 mm bore, 110 mm outside diameter and 20 mm width, open on both faces. The 70 series is the light dimension series, giving a slim section for its bore.

Decoding the designation

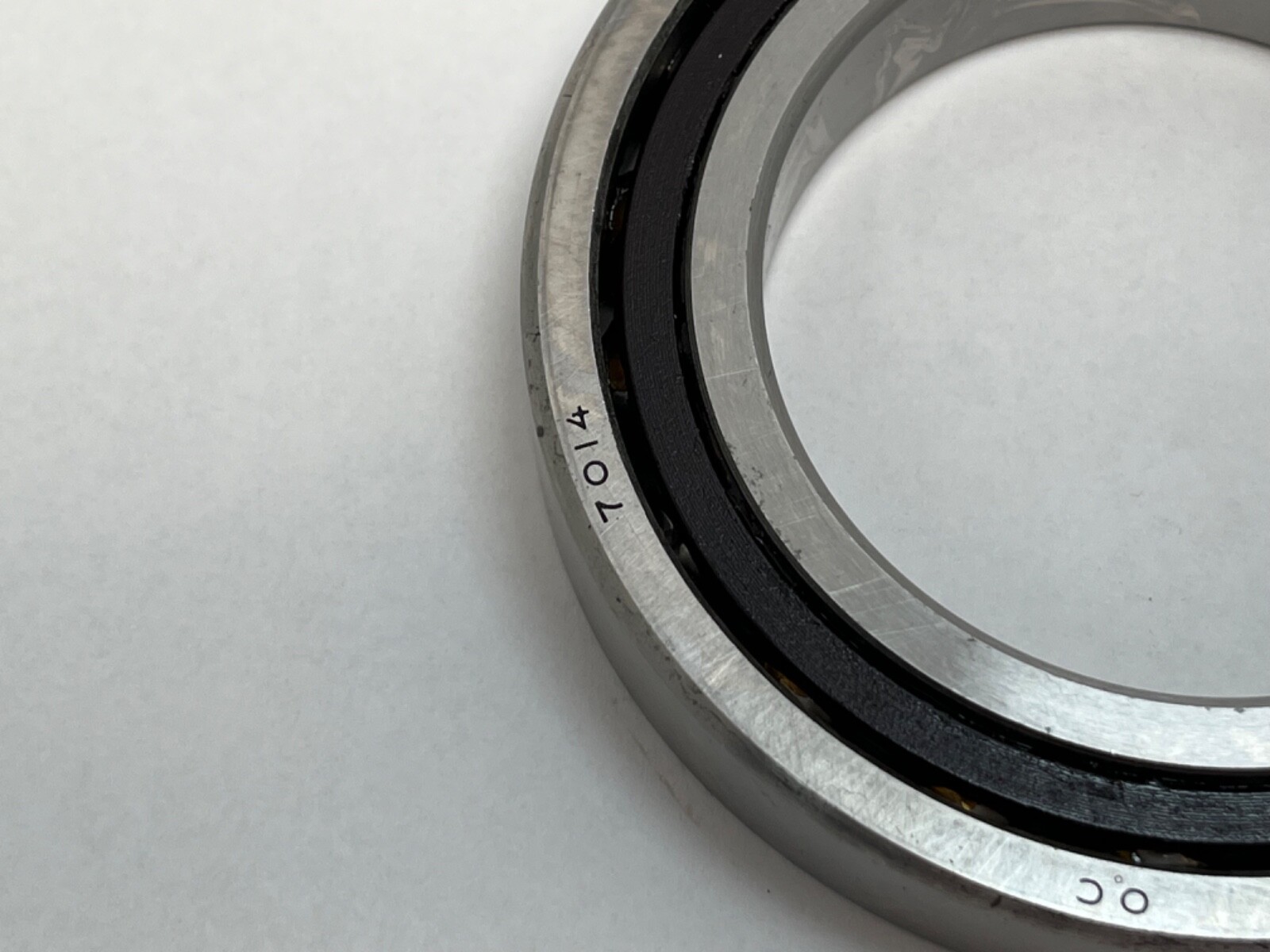

The 70 series prefix with bore code 14 gives the 70 mm bore in the light dimension series. In SKF’s scheme the C suffix specifies a 15° contact angle, which is why the bearing is also listed as a 7014C. There is no clearance suffix, so radial internal clearance is normal, CN.

What these specs mean in practice

A 15° contact angle is the high-speed, low-thrust end of the angular contact range: less axial capacity than a 25° or 40° bearing of the same envelope, but higher speed capability and lower heat generation. The light 70 series keeps the outside diameter and width down for a 70 mm shaft, which is what makes this size common in compact spindle and gearbox housings. A single row takes thrust in one direction only, so locating a shaft in both directions needs a second bearing opposed to this one.

Quantity and configuration

Single bearing, 1 Pc. Straight bore, mounting directly onto a cylindrical shaft seat.

Fitting notes

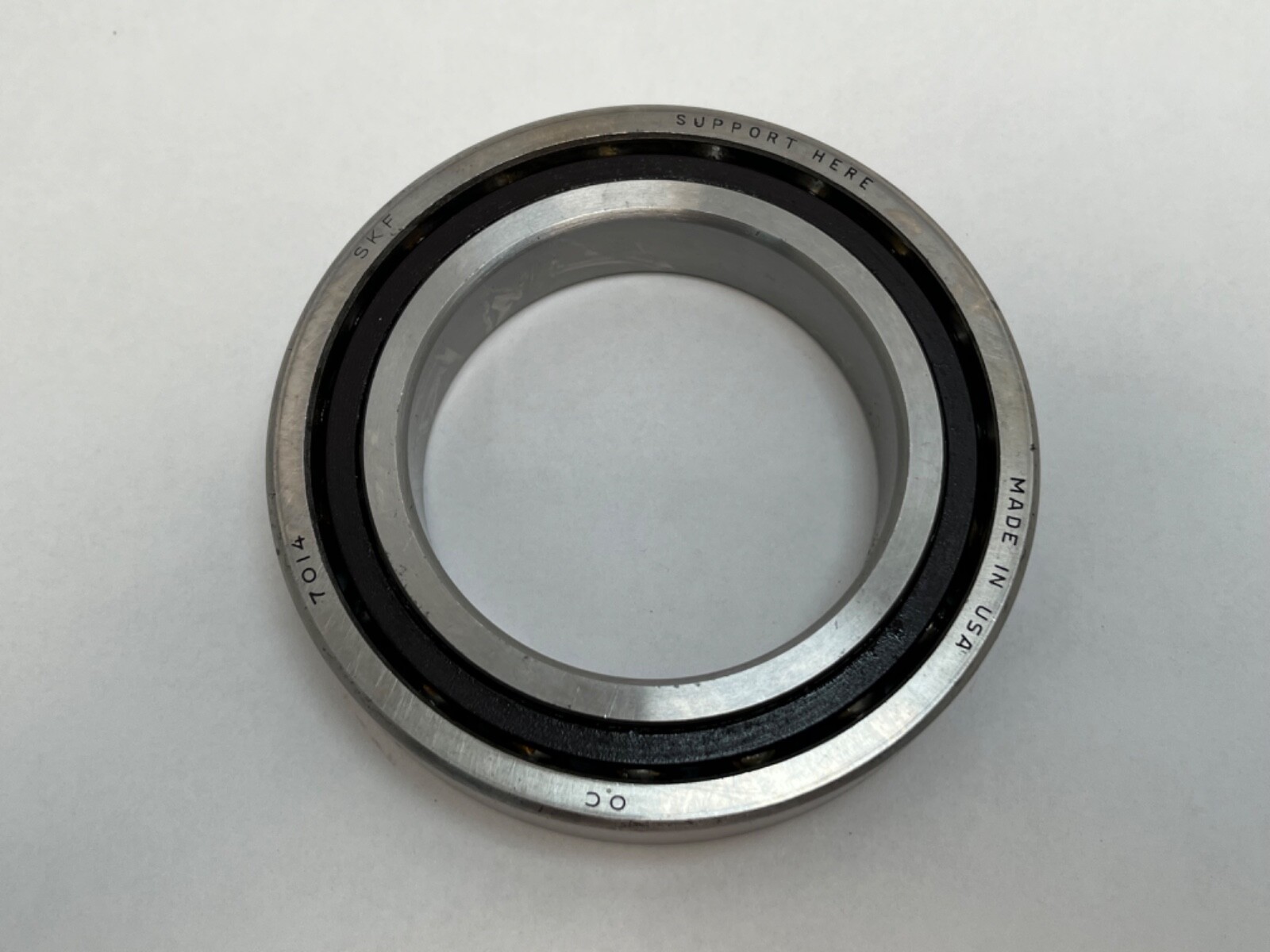

The rings have a distinct wide face and narrow face, and the direction they are fitted determines which way the bearing takes thrust. Mounting force is applied through the ring being fitted rather than transmitted across the balls.

Interchange guidance

Same-envelope, same-angle equivalents are FAG 7014-C, NSK 7014C and NTN 7014C, all 15°, 70 x 110 x 20 mm. A 7014 AC at 25° and a 7014 B at 40° share the envelope with a different contact angle, and a 7214 is the heavier 72 series at the same bore; those are related sizes rather than substitutions.
