Super precision angular contact ball bearing, 60 x 110 x 22 mm, 15 degree contact angle, ball-guided cage, 80.5 kN dynamic, P4 class accuracy.
List Price
$99.42
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing – Straight Bore, 60 mm ID, 110 mm OD, 22 mm Width, Open, 15° Contact Angle, ABEC 7 / P4$151.76
Super-Precision Angular Contact Ball Bearing - Straight Bore, 60 mm ID, 110 mm OD, 22 mm Width, Open, 15° Contact Angle, Medium Preload, P4A$187.42
Angular Contact Ball Bearing Pair - 60 mm Bore, 110 mm OD, 22 mm Wide, 15° Contact Angle, ABEC 7, Universally Flush Ground$328.12
Angular Contact Ball Bearing - 60 mm ID, 110 mm OD, 22 mm Width, Open, Light Preload, ABEC 7, Phenolic Separator$344.22| MFR / Brand | NSK |
|---|---|
| MPN | 7212CTYP4 |
| Model | 7212 C TY P4/ 2MM212WI / B7212CTP4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 60 mm |
| OD | 110 mm |
| Width | 22 mm |
| Source | NSK, Applied |
|---|---|
| Material | Bearing Steel |
| Series | 7200 |
| Base Number | 7212 |
| Overall Width | 22 mm |
| Bore Shaft Size | 60 mm |
| Mpn Variants | 7212CTYP4; 7212-C-TY-P4; 7212 C TY P4; 7212CTY P4 |
| Precision Class | P4 (ISO Class 4, ABEC 7) |
| Additional Attributes | Shaft abutment da min 69 mm; housing abutment Da max 101 mm; housing shoulder Db max 104 mm; shaft fillet r min 1.5 mm; front face fillet r1 min 1 mm; ra max 1.5 mm; rb max 0.8 mm; effective load centre a 22.4 mm; permissible axial load Pa 34.0 kN; f0 14.4; recommended grease quantity 4.5 g per bearing |
| Cage Type | Ball-guided |
| Dynamic Load Rating | 80.5 kN |
| Static Load Rating | 49.0 kN |
| Precision Rating | P4 (ISO Class 4, ABEC 7) |
| Rolling Elements | Ball |
| Item Weight | 0.780 kg |
| Limiting Speed | 13600 |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Design Units | Metric |
| Part Number | 7212CTYP4 |
| Cross Reference 1 | 2MM212WI |
|---|---|
| Cross Reference 2 | B7212CTP4 |

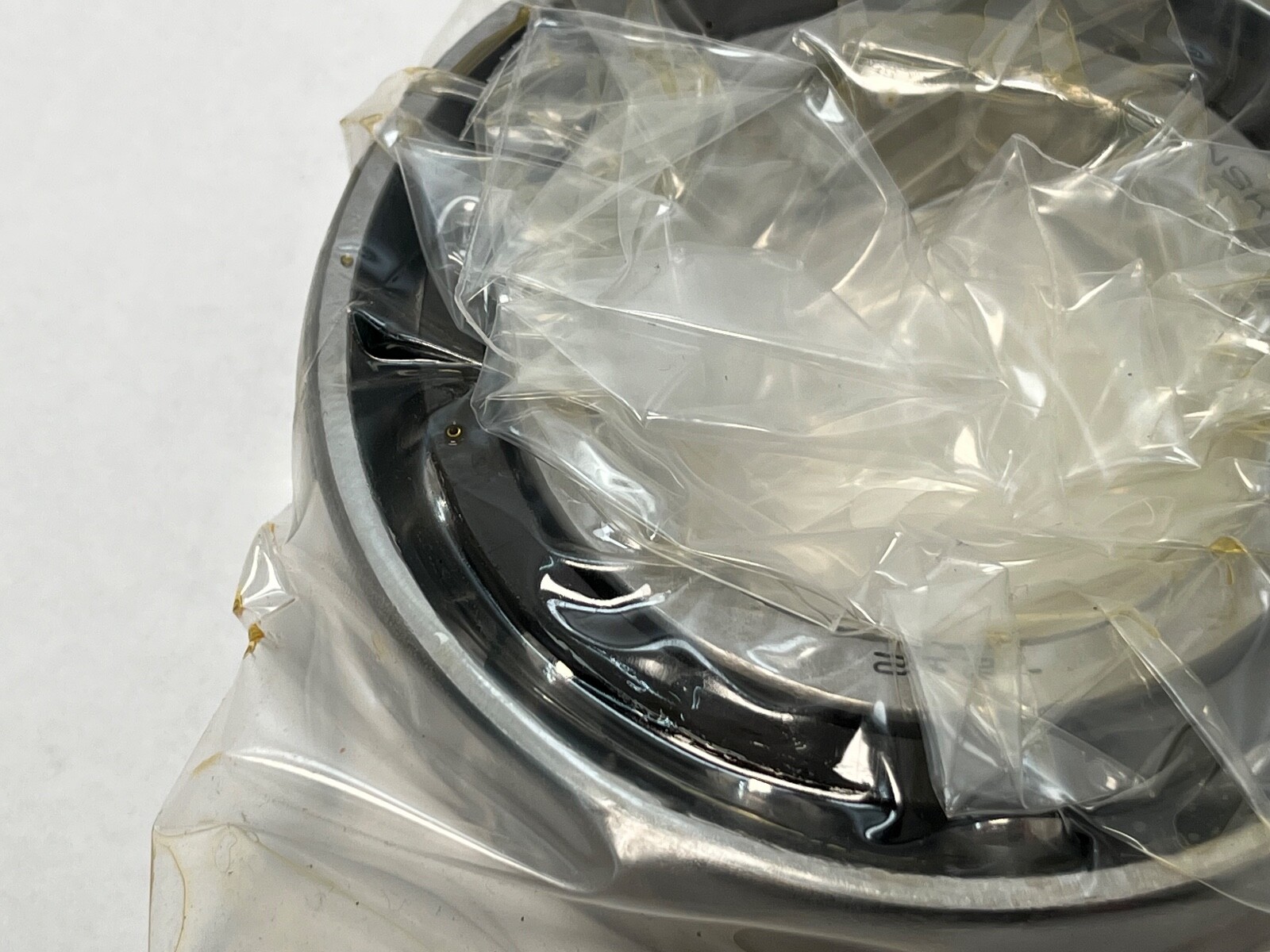

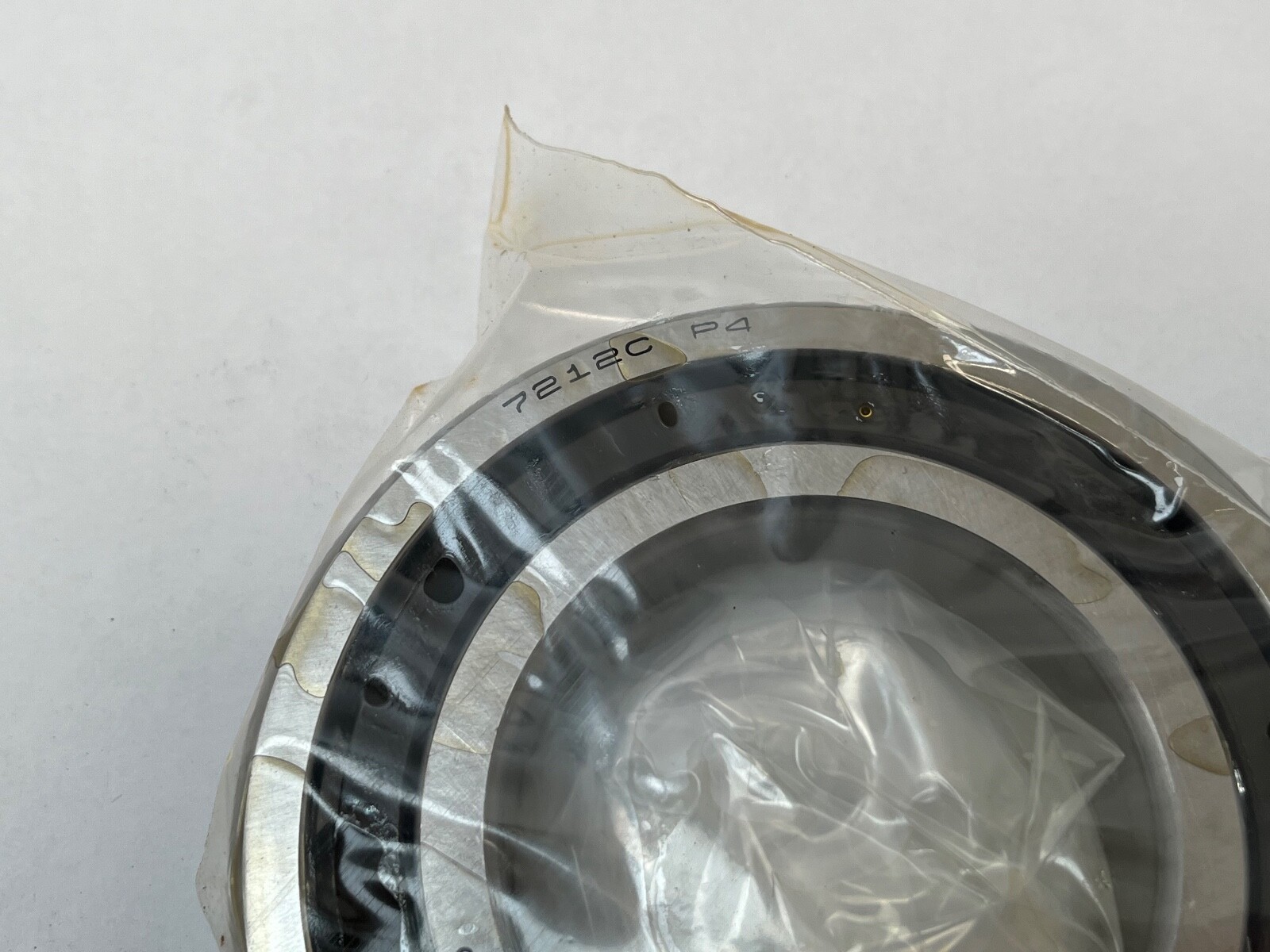

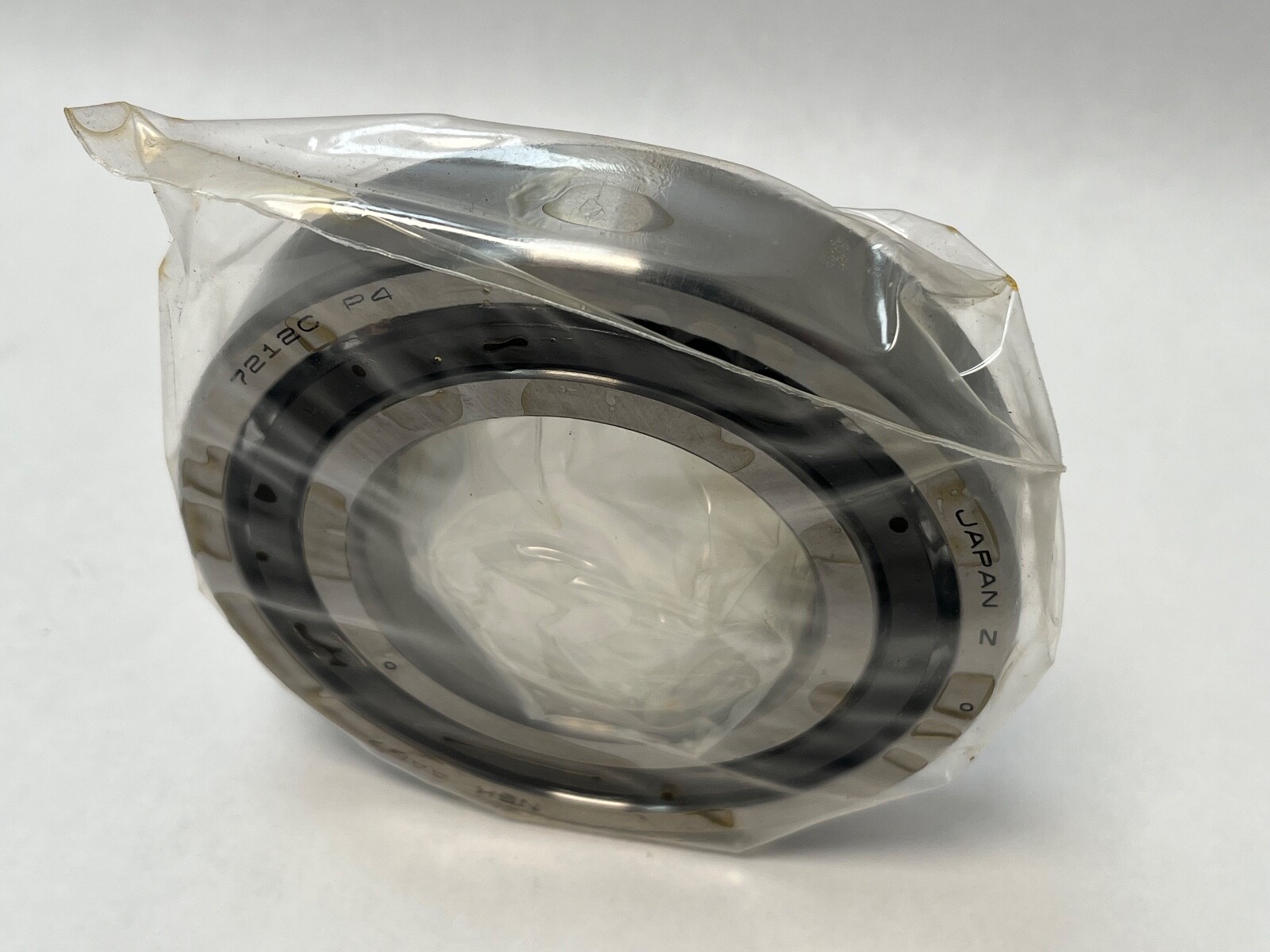

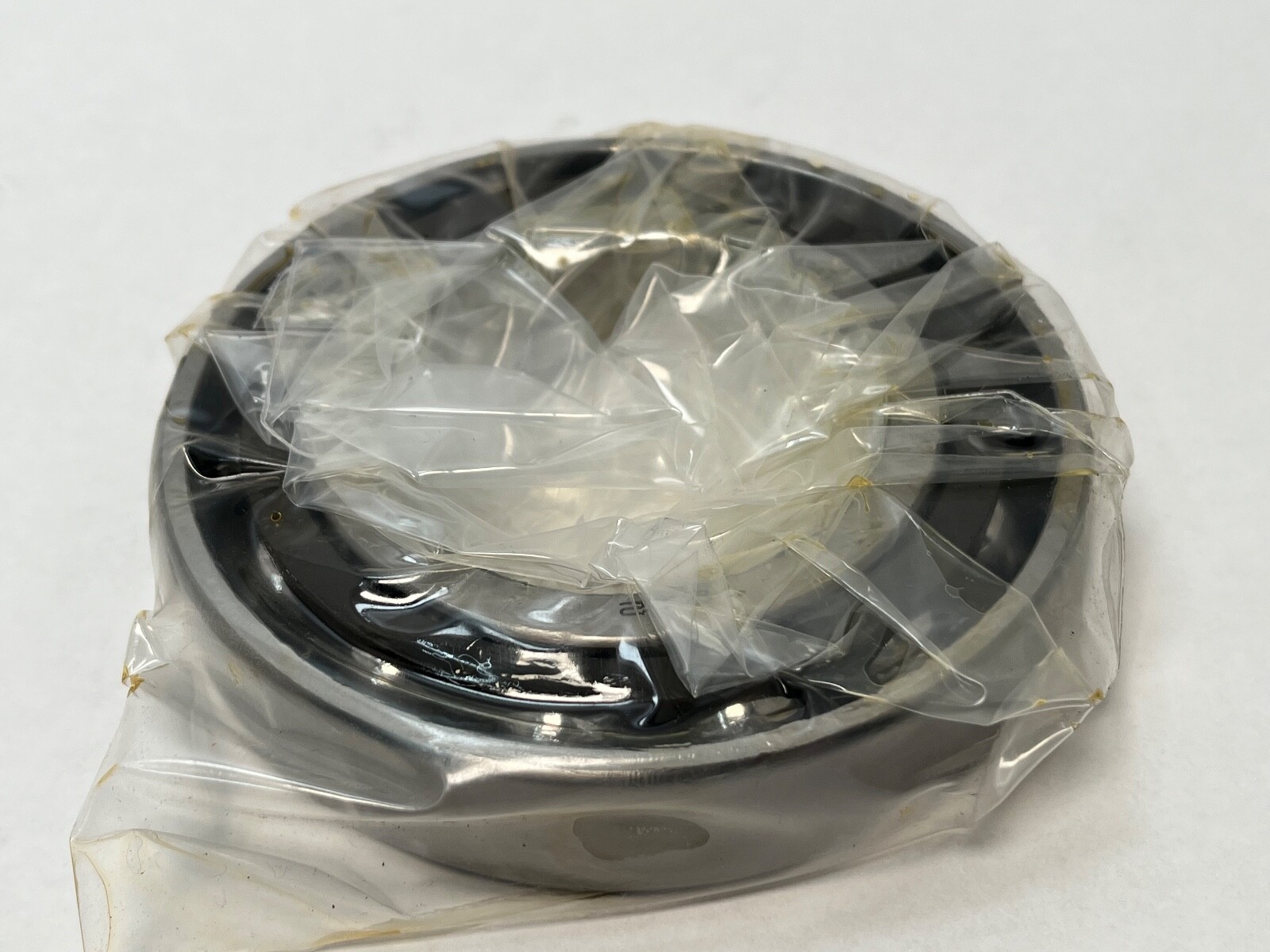

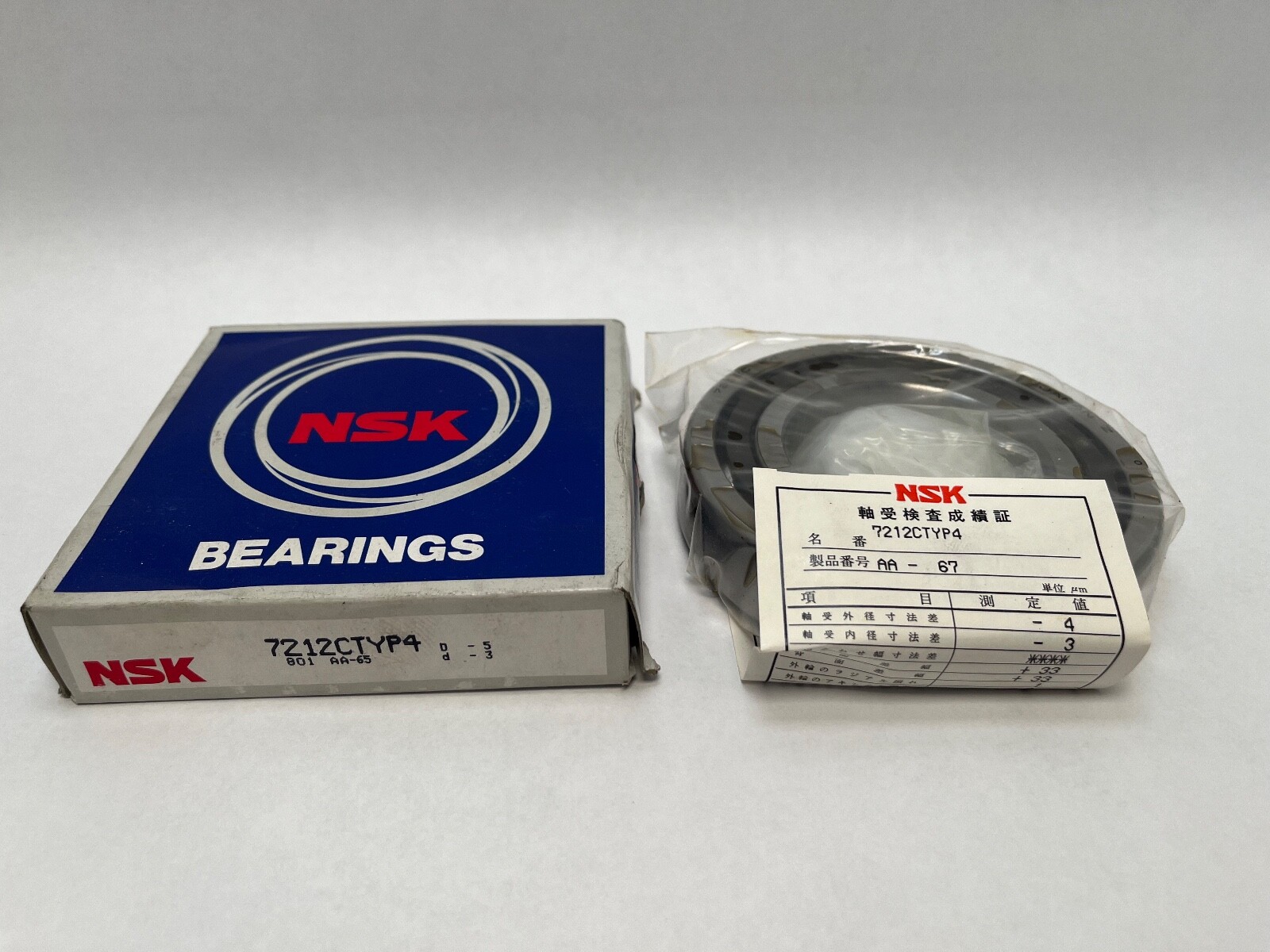

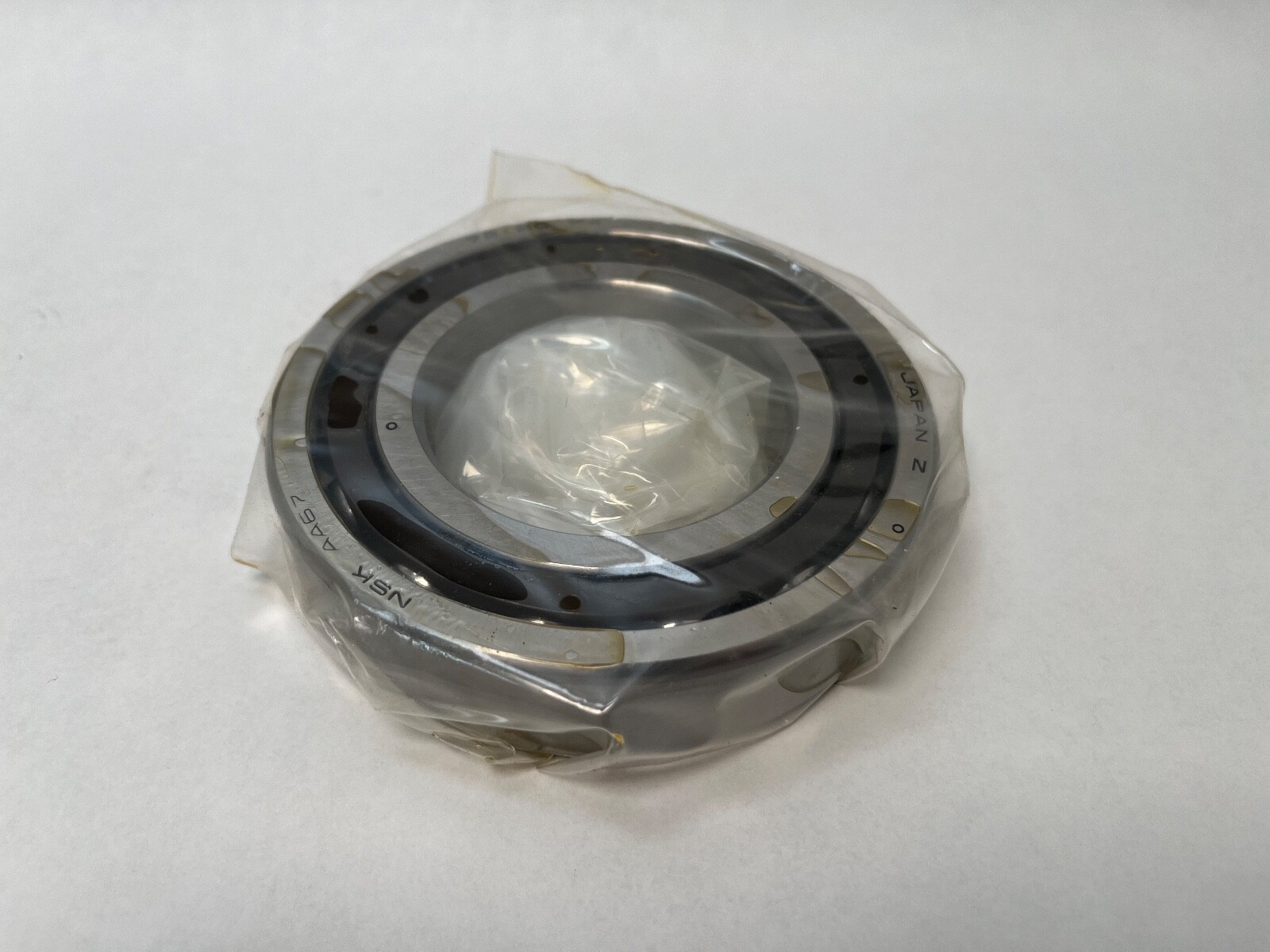

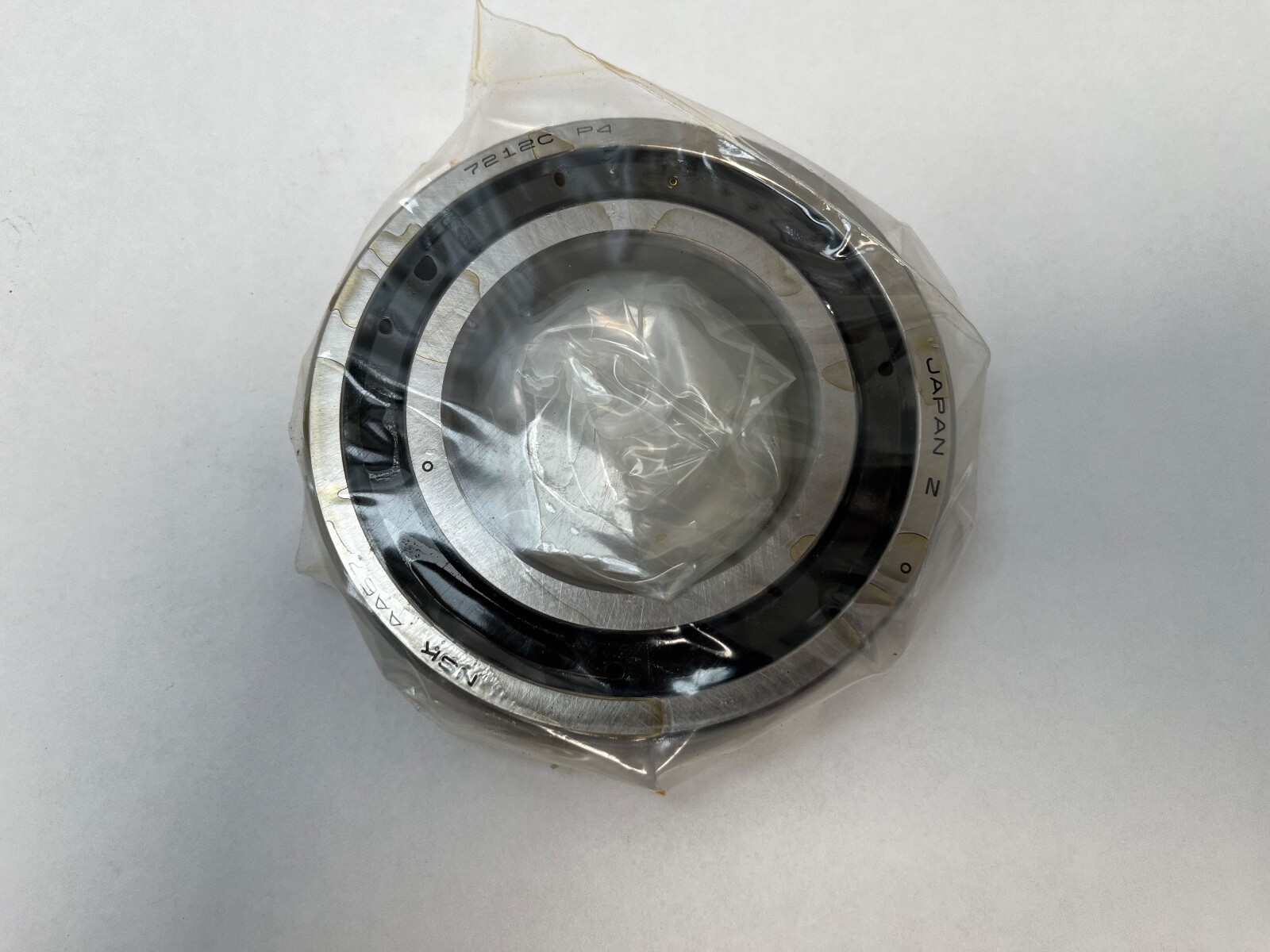

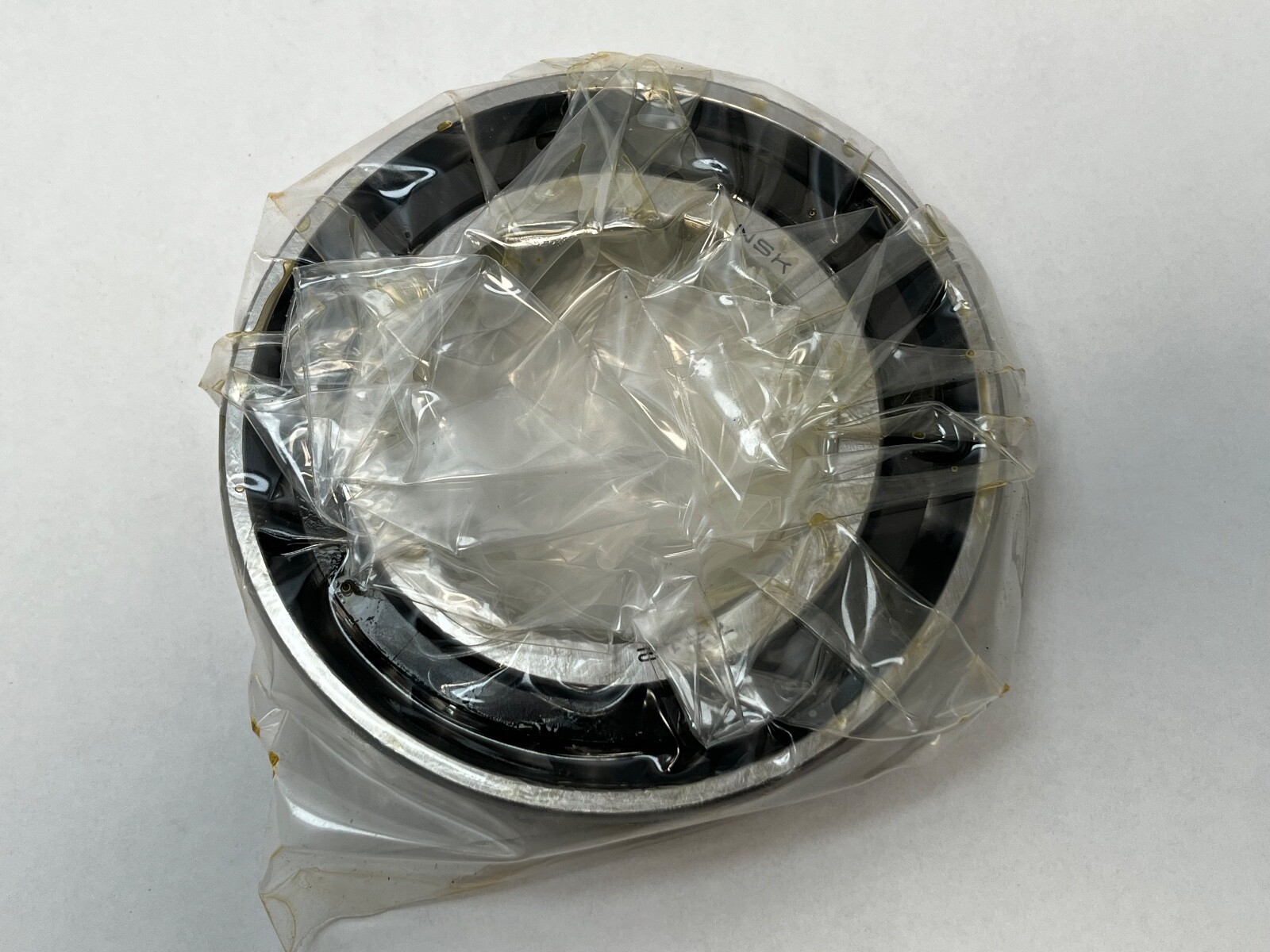

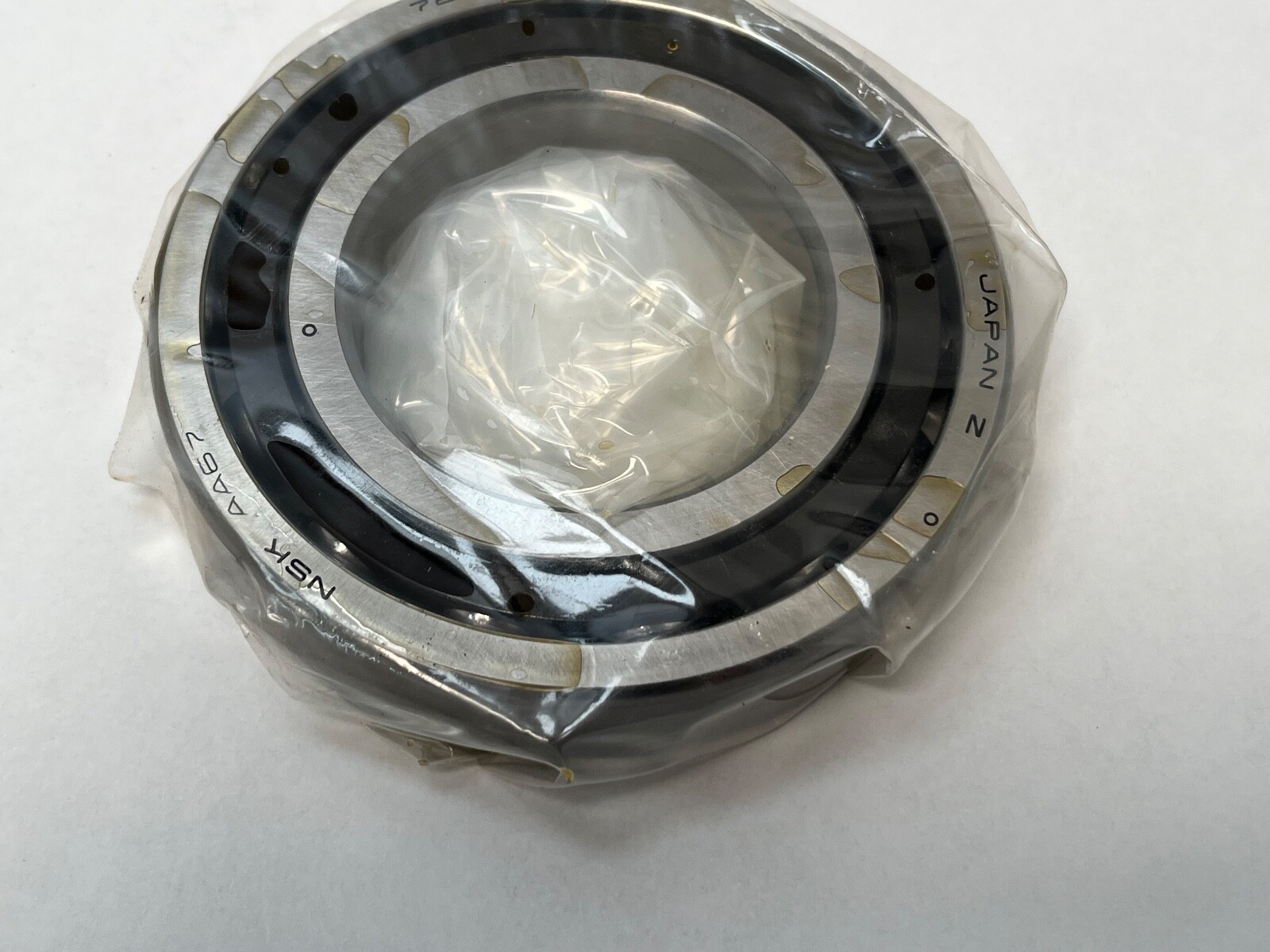

This is an NSK 7212CTYP4 super precision angular contact ball bearing. Bore: 60 mm. Outside Diameter: 110 mm. Overall Width: 22 mm. Rolling Elements: Ball. Number Of Rows: 1. Closure Type: Open. Bore Type: Straight. Material: High Carbon Chrome Steel. Lubricant: Grease or oil. Design Units: Metric. Item weight: 0.780 kg. Unit Quantity: 1 Pc.
7212 — the ISO 7212 boundary size, 60 x 110 x 22 mm.
C — a 15° contact angle.
TY — a ball-guided cage.
P4 — ISO Class 4 accuracy, equivalent to ABEC 7.
Contact Angle: 15°. Dynamic Load Rating: 80.5 kN. Static Load Rating: 49.0 kN. Permissible Axial Load: 34.0 kN. Limiting Speed: 13,600 rpm grease, 20,600 rpm oil or oil-air. Precision Class: P4. Factor f0: 14.4. The 15° contact angle favours speed and radial stiffness while still carrying thrust in one direction, and the ball-guided cage is centred by the ball complement itself. Recommended grease quantity is 4.5 g.
Shaft Fillet Radius r min: 1.5 mm. Inner Ring Front Face Fillet r1 min: 1 mm. Shaft Abutment Diameter da min: 69 mm. Housing Abutment Diameter Da max: 101 mm. Housing Bore Shoulder Db max: 104 mm. Shaft Fillet ra max: 1.5 mm. Housing Fillet rb max: 0.8 mm. Effective Load Centre a: 22.4 mm, measured from the bearing face.
Unit Quantity: 1 Pc, supplied as a single bearing for individual mounting or for pairing to a chosen arrangement on assembly.
Part Number: 7212CTYP4. Base Number: 7212. Series: 7200. Cross-Reference 1: 2MM212WI. Cross-Reference 2: B7212CTP4. The designation also appears as 7212-C-TY-P4 and 7212 C TY P4 across catalogues and distributor systems, all referring to the same 60 x 110 x 22 mm 15° super precision bearing.
