Super-precision angular contact ball bearing, 60 x 110 x 22 mm, 15 degree contact angle, universally matchable at light preload, P4A running accuracy.
List Price
$187.42
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7212 CD/GB/P4A |
| Model | 7212 CD/GB/P4A |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 60 mm |
| OD | 110 mm |
| Width | 22 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Preload | Light |
| Base Number | 7212 |
| Industry Terms | spindle bearing; super precision angular contact; light preload |
| Application Types | Machine tool spindles; milling and boring heads; rotary tables |
| Bore Shaft Size | 60 mm |
| Mpn Variants | 7212CDGB/P4A; 7212-CDGB/P4A; 7212 CD GB P4A; 7212CDGBP4A; 7212C |
| Manufacturer Status | SKF super-precision range; MRC and SNFA lines absorbed into SKF |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Part Number | 7212 CD/GB/P4A |

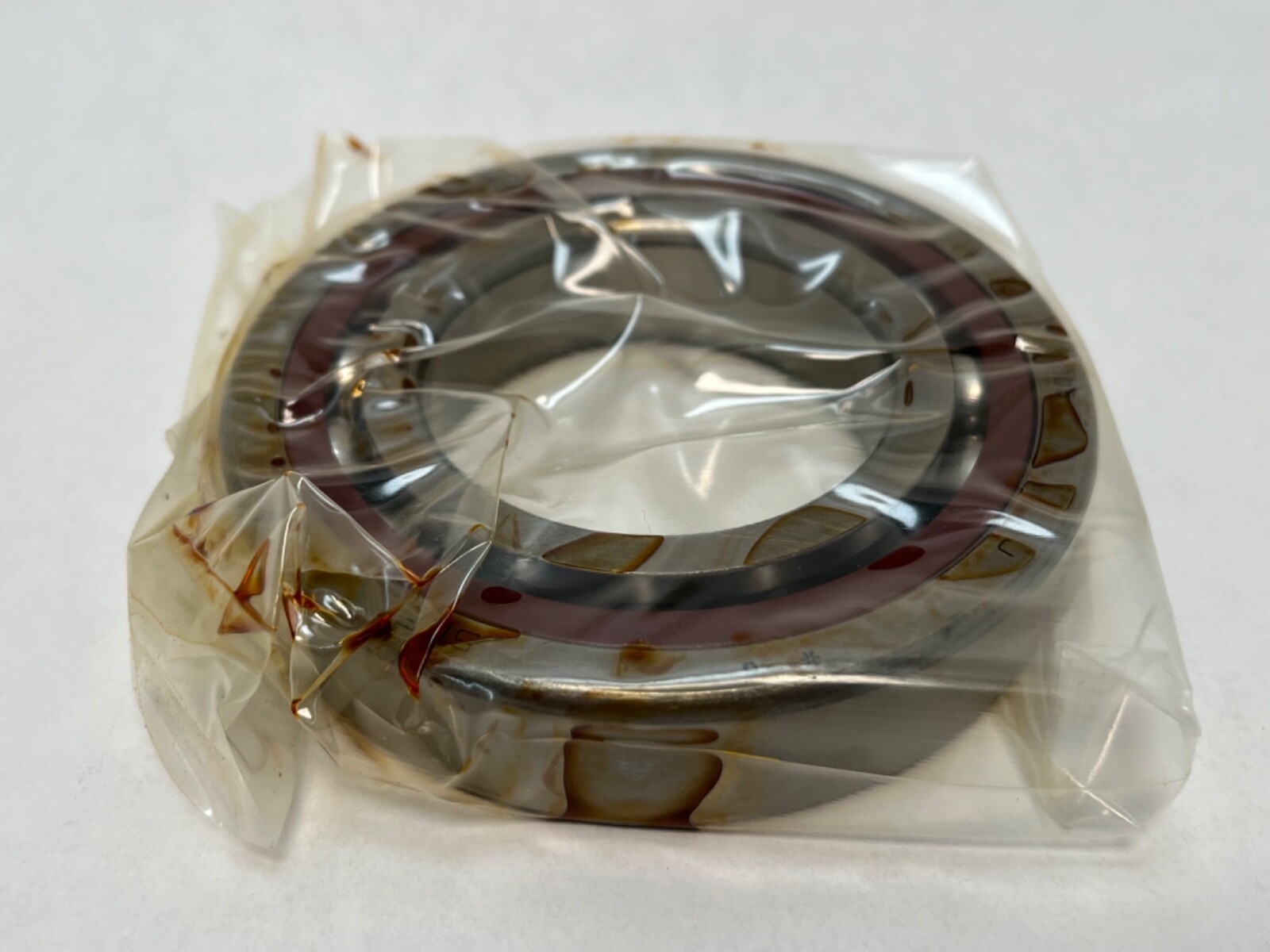

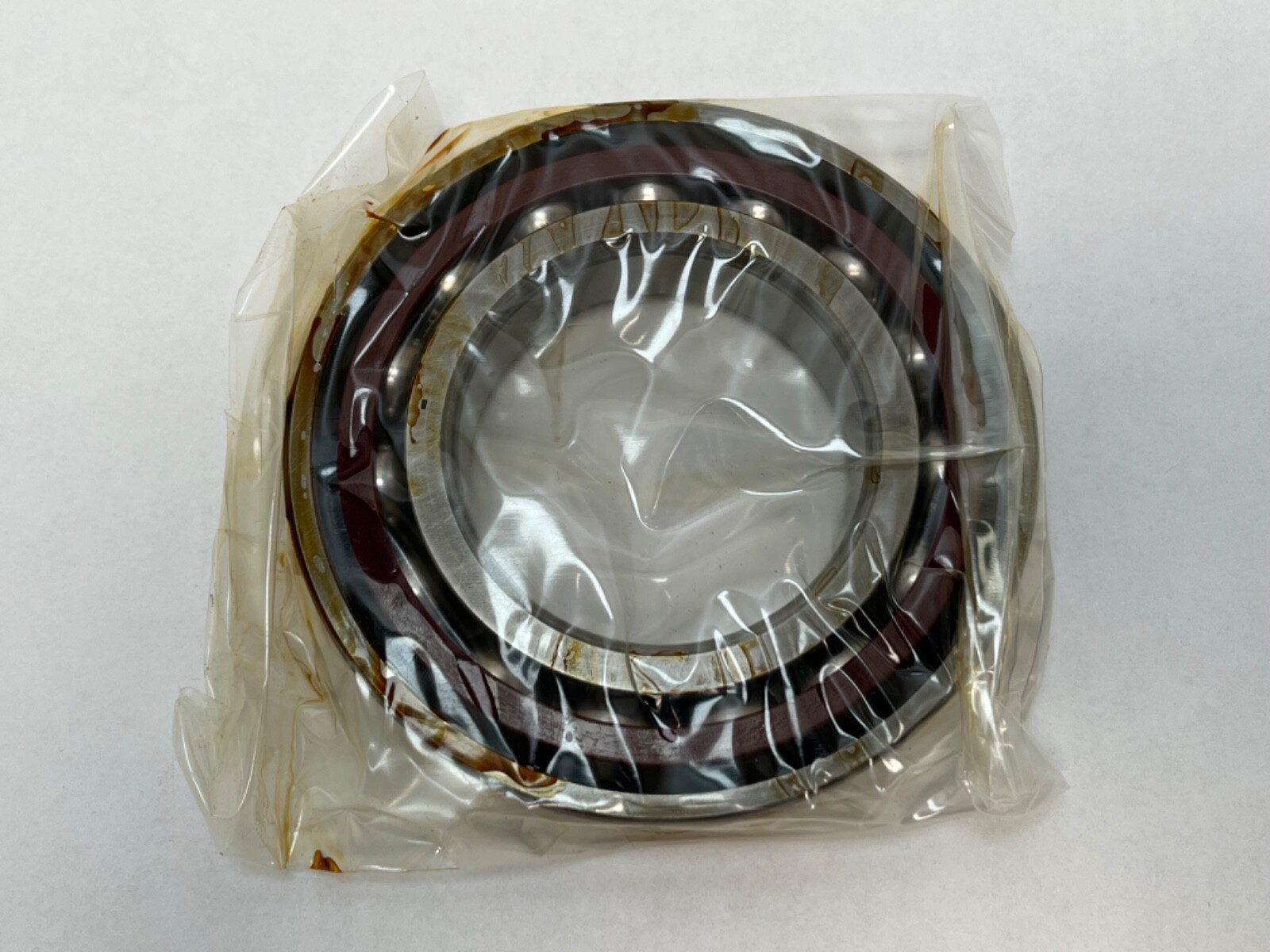

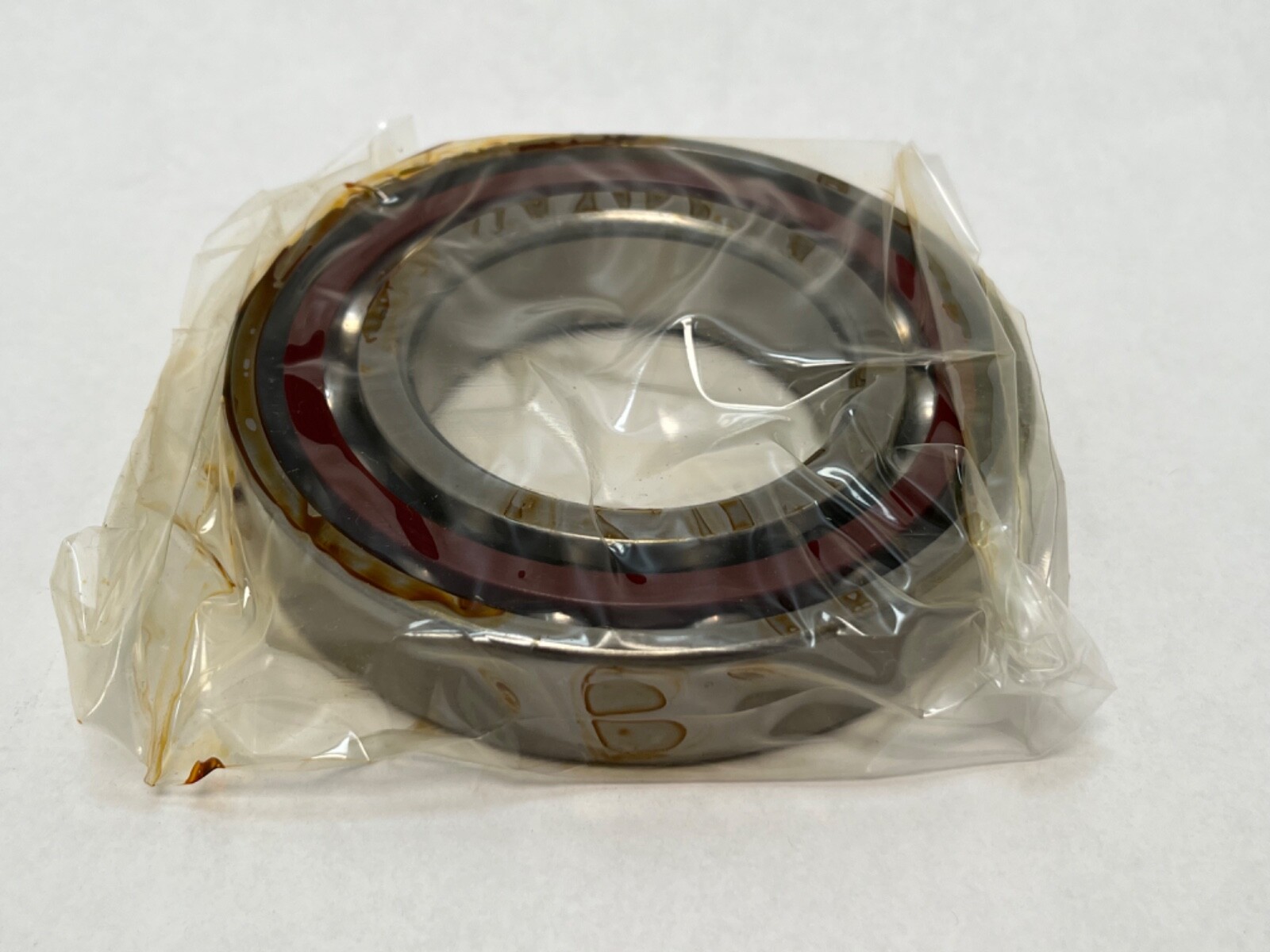

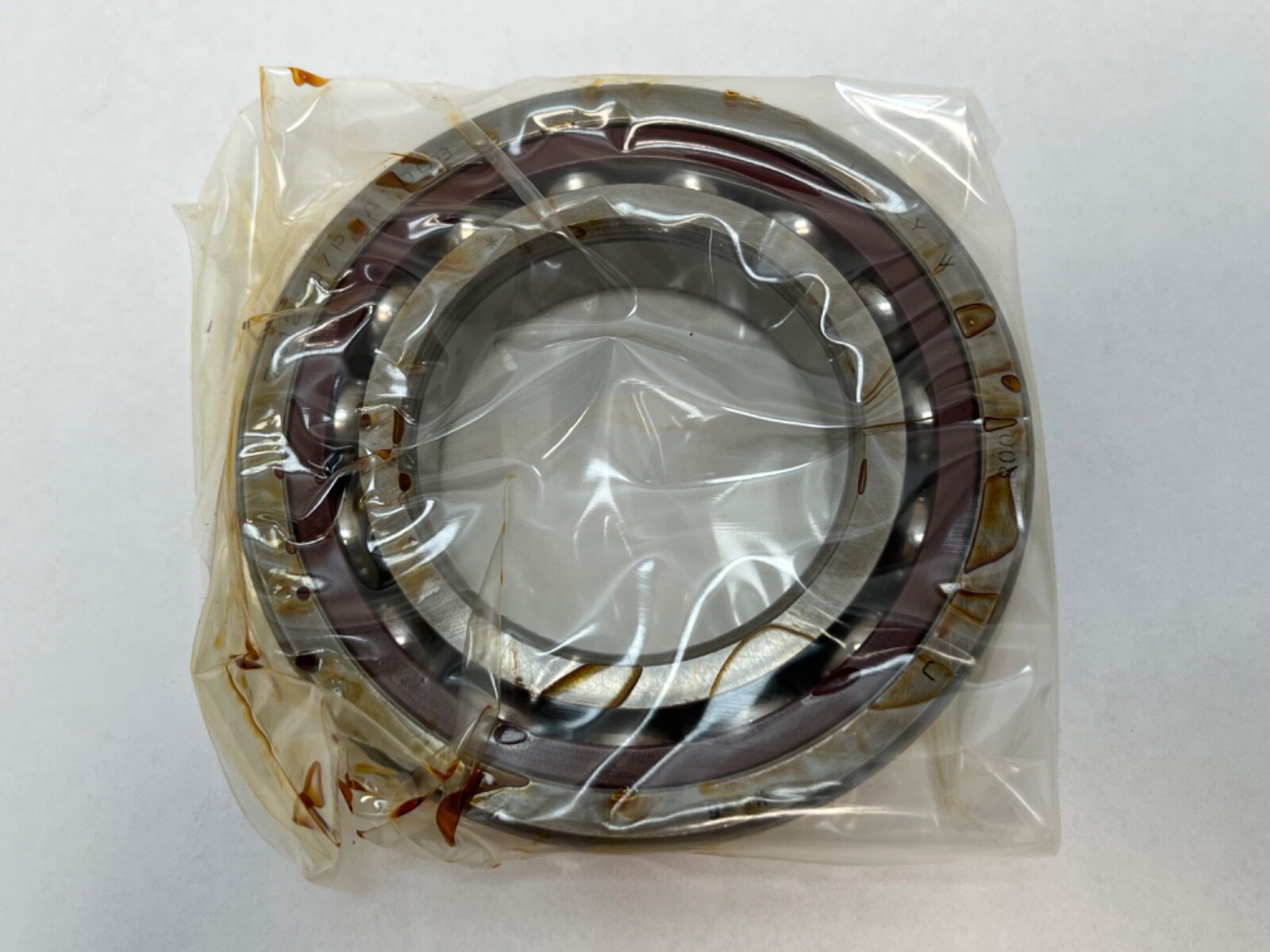

A single-row SKF super-precision angular contact ball bearing in the 72 dimension series, 60 mm bore by 110 mm outside diameter by 22 mm wide, ground for universal matching at light preload.
7212 — angular contact ball bearing, 72 series, 60 mm bore.
CD — 15° contact angle, super-precision internal design.
GB — universally matchable, light preload.
P4A — SKF super-precision class: P4 dimensional tolerance with P4A running accuracy.
Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 22 mm. Series: 72. Contact Angle: 15°. The 15° contact angle favors high radial stiffness, low friction and low heat, with modest axial capacity. Preload: Light (GB). Light preload adds axial rigidity and positional hold over an extra light GA set while keeping heat and speed loss modest. Unit Quantity: 1 Pc.
Envelope: 60 x 110 x 22 mm, the ISO 72-series boundary dimensions. Single bearing. Being universally matchable, it combines with an identical GB bearing to form a light-preload DF, DB or DT set.
Also written 7212CDGB/P4A, 7212-CDGB/P4A, 7212 CD GB P4A, 7212CDGBP4A, 7212CD/P4A, 7212C and 7212. Manufacturer Status: SKF super-precision range; MRC and SNFA precision lines absorbed into SKF.
Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 22 mm.
GB is universally matchable, light preload.
Contact Angle: 15°, from the CD code.
