Availability:
Out of stock
Super precision angular contact ball bearing set, 30 x 62 x 16 mm each, 40 degree contact angle. Phenolic outer-ring guided cage, P5, three-bearing DFD set.
List Price
$121.60
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing - 30 mm Bore, 62 mm OD, 16 mm Width, Open, 40° Contact Angle, Polyamide Window Cage$25.46
Single Row Angular Contact Ball Bearing - 30 mm ID, 62 mm OD, 16 mm Width, Open, 40° Contact Angle, CN Clearance, Straight Bore$32.10
Angular Contact Ball Bearing - 30 mm ID, 62 mm OD, 16 mm Width, 29° Contact Angle, Phenolic Cage, Open, Universally Ground$27.28
Angular Contact Ball Bearing - 30 mm ID, 62 mm OD, 16 mm Width, Straight Bore, Open, 40 Degree, Universally Ground, Light 7200 Series$27.42| MFR / Brand | NSK |
|---|---|
| MPN | 7206BTDFDC8P5 |
| Model | 7206 B T DFD C8 P5 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 62 mm |
| Width | 32 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Preload | Medium |
| Base Number | 7206 |
| Industry Terms | super precision angular contact ball bearing; three-bearing matched set; triplex bearing set; machine tool spindle bearing; phenolic cage bearing; 40 degree angular contact bearing |
| Common Misspellings | 7206BTDFD C8P5; 7206BTDFCD8P5; 72O6BTDFDC8P5; 7206-B-T-DFD-C8-P5; 7206 BTDFDC8P5; 7206BTDFDC8P4 |
| Application Types | machine tool spindles; high axial load spindles; precision screw drives; indexing heads; precision gearboxes |
| Overall Width | 16 mm |
| Mpn Variants | 7206BTDFDC8P5; 7206B T DFD C8 P5; 7206B-T-DFD-C8-P5; 7206BTDFD; 7206BT; 7206B |
| Precision Class | P5 |
| Additional Attributes | Effective load centre a: 27.3 mm; shaft abutment da min: 36 mm; housing abutment Da max: 56 mm; abutment fillet ra max: 1 mm; bearing chamfer r min: 1 mm; r1 min: 0.6 mm |
| Closure Type | Open |
| Cage Type | Machined, outer-ring guided |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 40° |
| Mounting Arrangement | DFD three-bearing matched set |
| Bearing Material | Bearing steel |
| Cross Reference 1 | SKF 7206 BEP (standard precision execution) |
|---|---|
| Cross Reference 2 | FAG 7206-B-TVP (standard precision execution) |
| Cross Reference 3 | NTN 7206B |
| Cross Reference 4 | Koyo 7206B |
| Cross Reference 5 | Nachi 7206B |
| Cross Reference 6 | NSK 7206BW (standard line, pressed steel cage) |

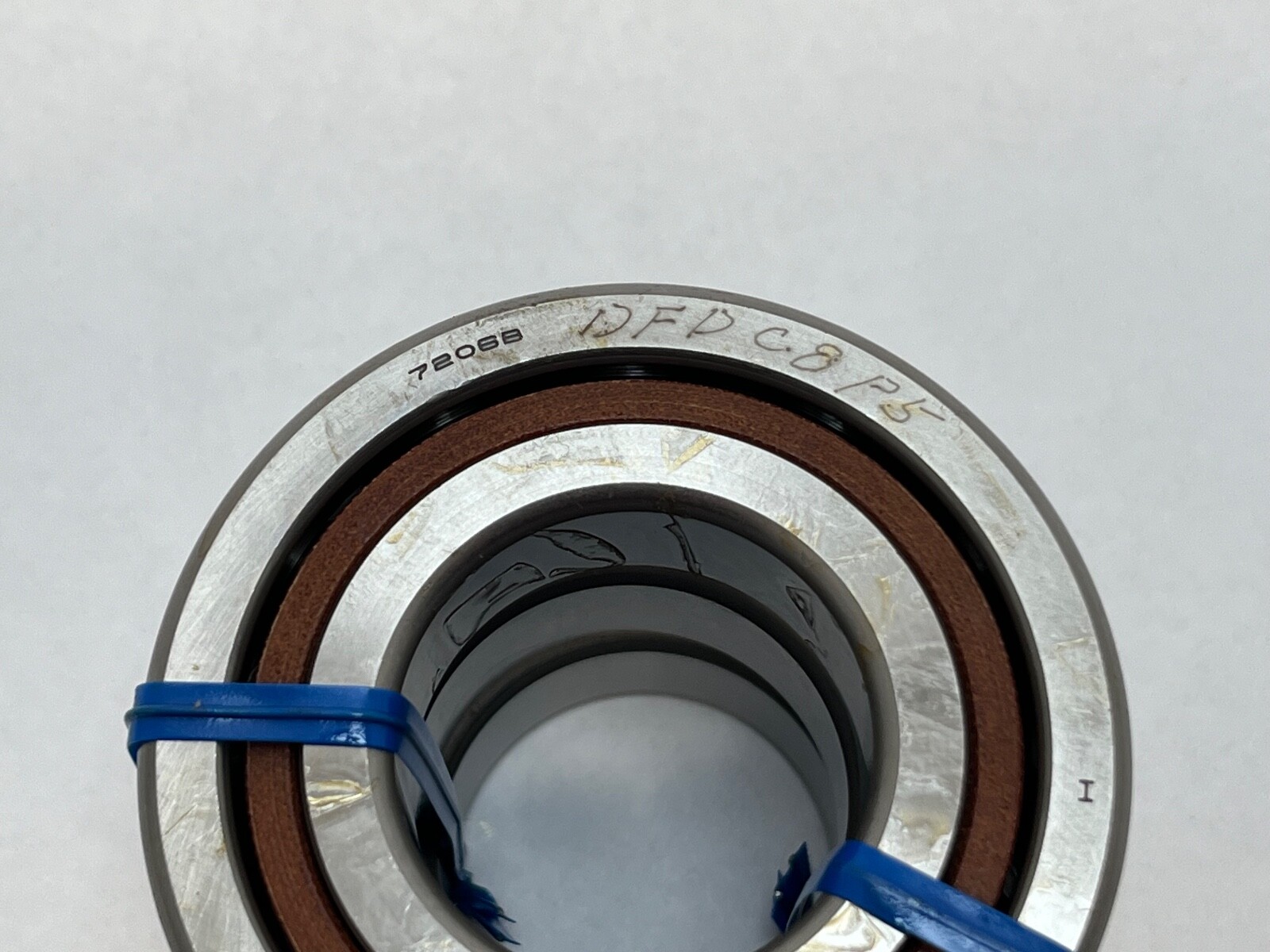

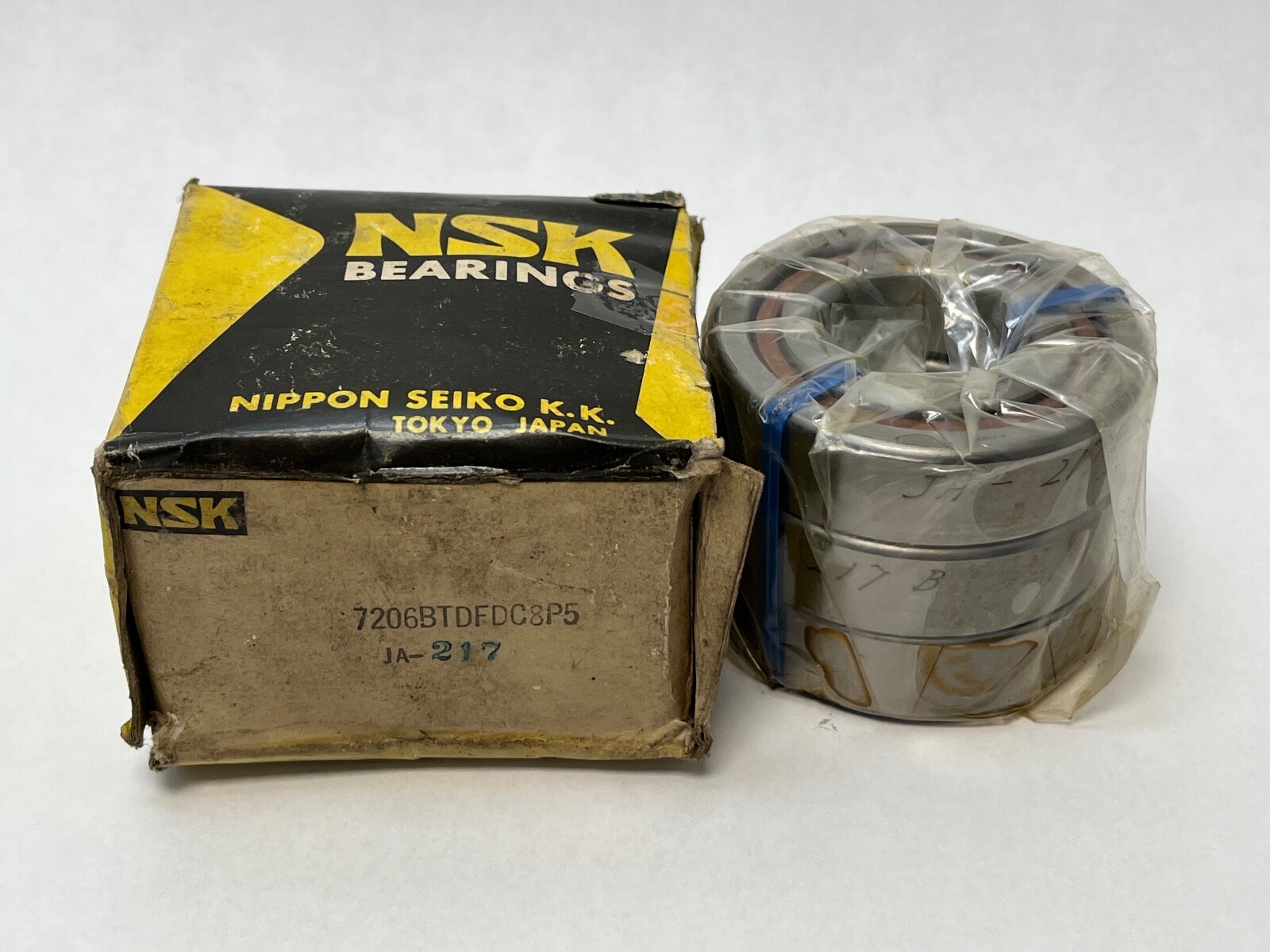

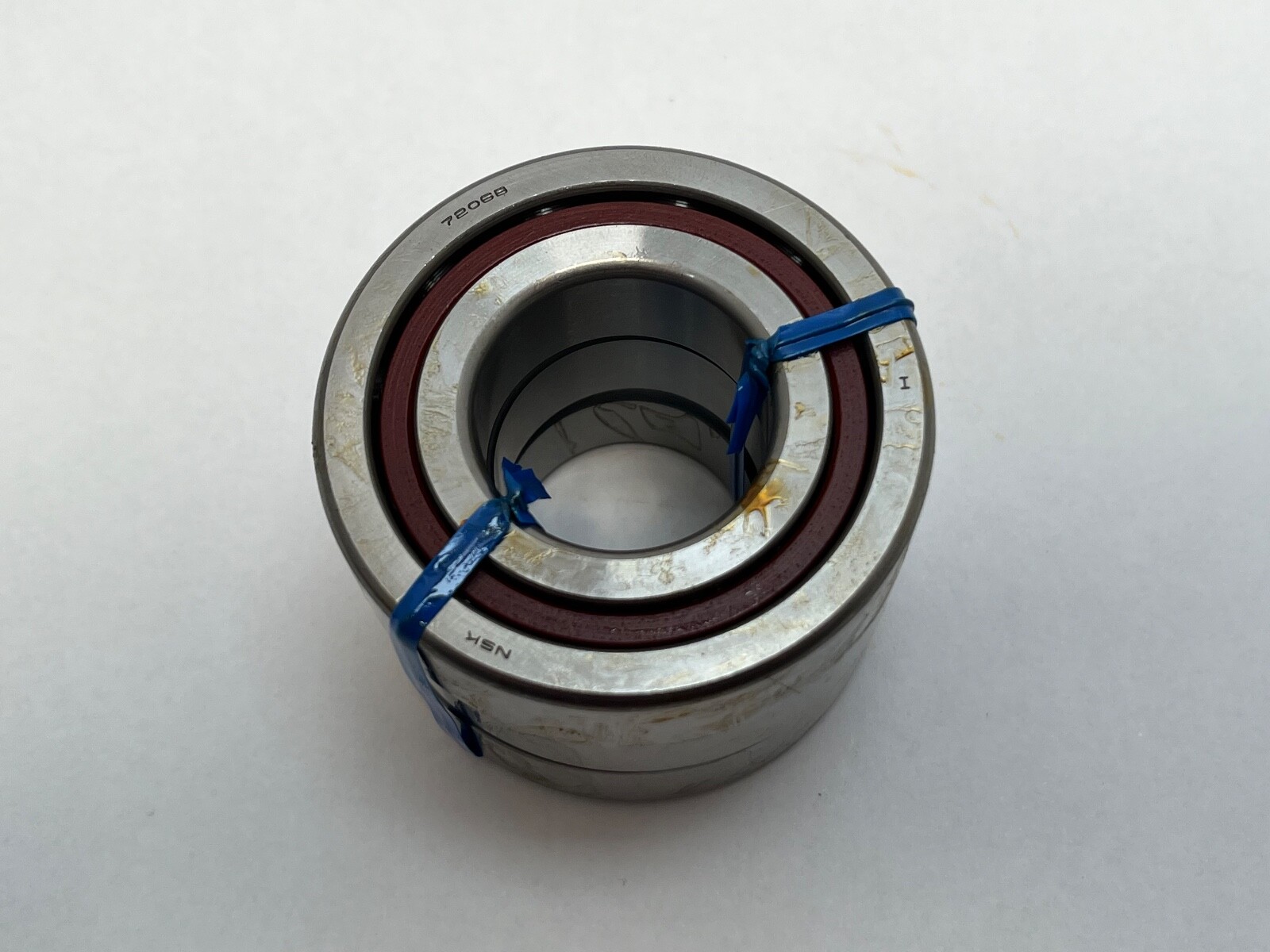

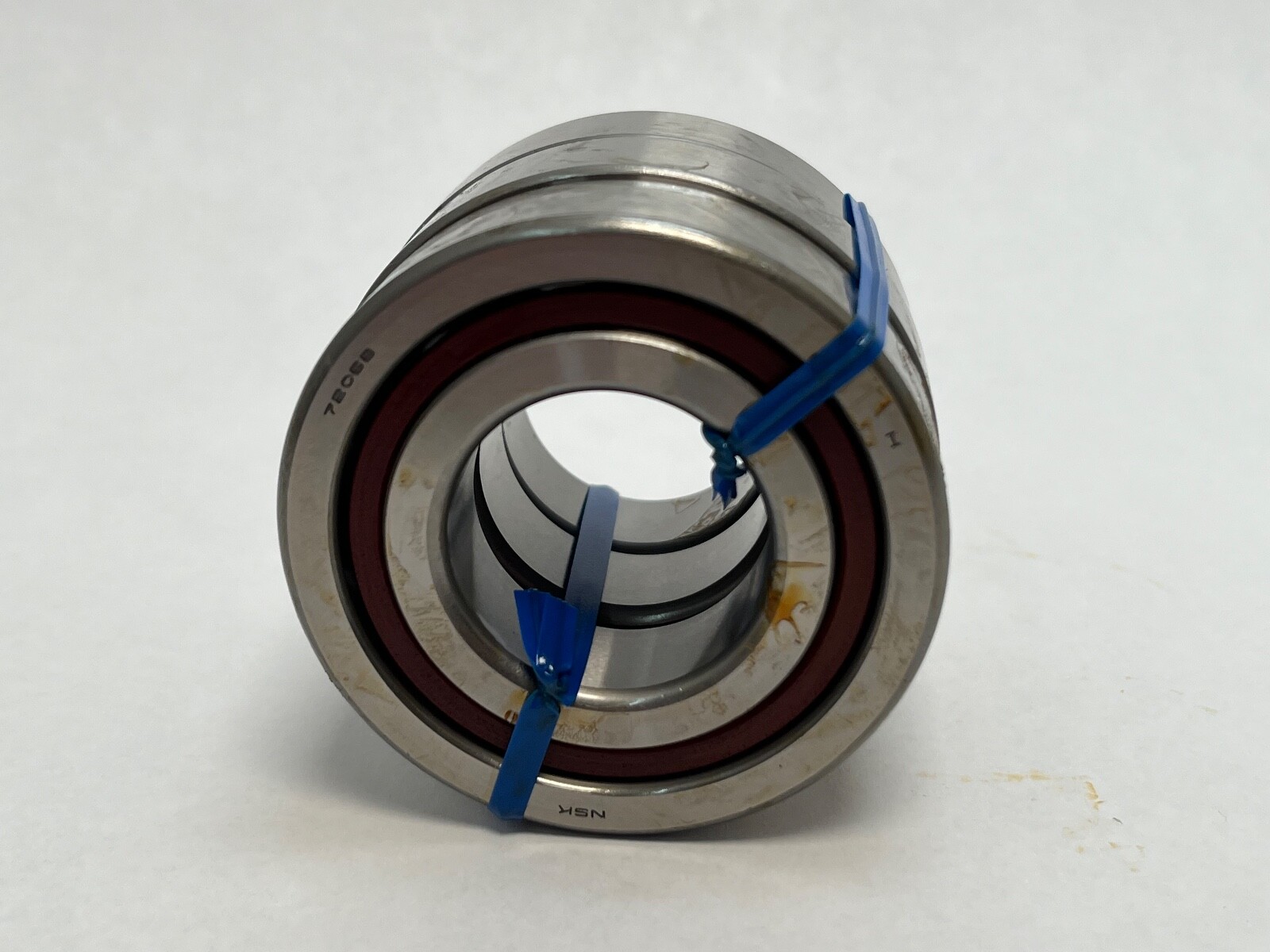

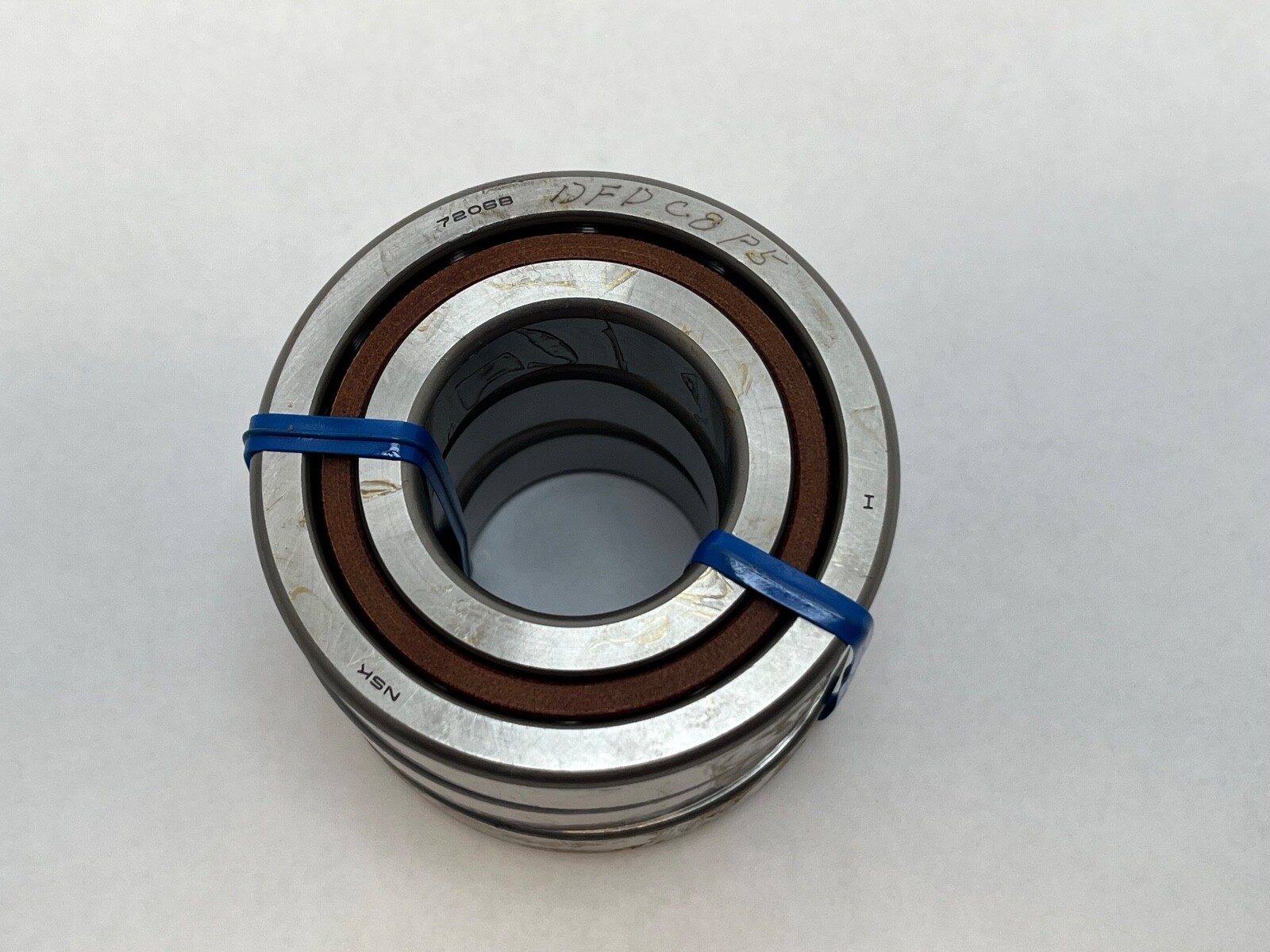

NSK 7206B T DFD C8 P5 super precision angular contact ball bearings, supplied as a factory three-bearing matched set. Bore Diameter: 30 mm. Outside Diameter: 62 mm. Overall Width: 16 mm per bearing. Contact Angle: 40°. Precision Class: P5. Cage Material: Phenolic. Cage Type: Machined, outer-ring guided. Closure Type: Open. Rolling Elements: Ball. Bore Type: Straight. Number Of Rows: 1 per bearing. Series: 7200. Base Number: 7206. Preload: C8.
7206 — NSK’s number for the ISO 72-series size, 30 x 62 x 16 mm.
B — 40° contact angle.
T — machined phenolic resin cage, guided on the outer ring.
DFD — a three-bearing matched set, face-to-face at the first pair with a third bearing in tandem.
C8 — NSK preload class for the matched set. The set is preload-ground, so it runs without internal clearance.
P5 — NSK super precision accuracy grade.
A 40° contact angle is the highest of the NSK angular contact range and carries the most axial load for a given size, at the lowest speed ceiling. Lubricant: grease or oil.
Three bearings in a matched set share axial load across more contact paths than a duplex pair of the same size.
Shaft abutment diameter da min: 36 mm. Housing abutment diameter Da max: 56 mm. Abutment fillet radius ra max: 1 mm.
Bearing chamfer r min: 1 mm. Bearing chamfer r1 min: 0.6 mm. Effective load centre a: 27.3 mm.

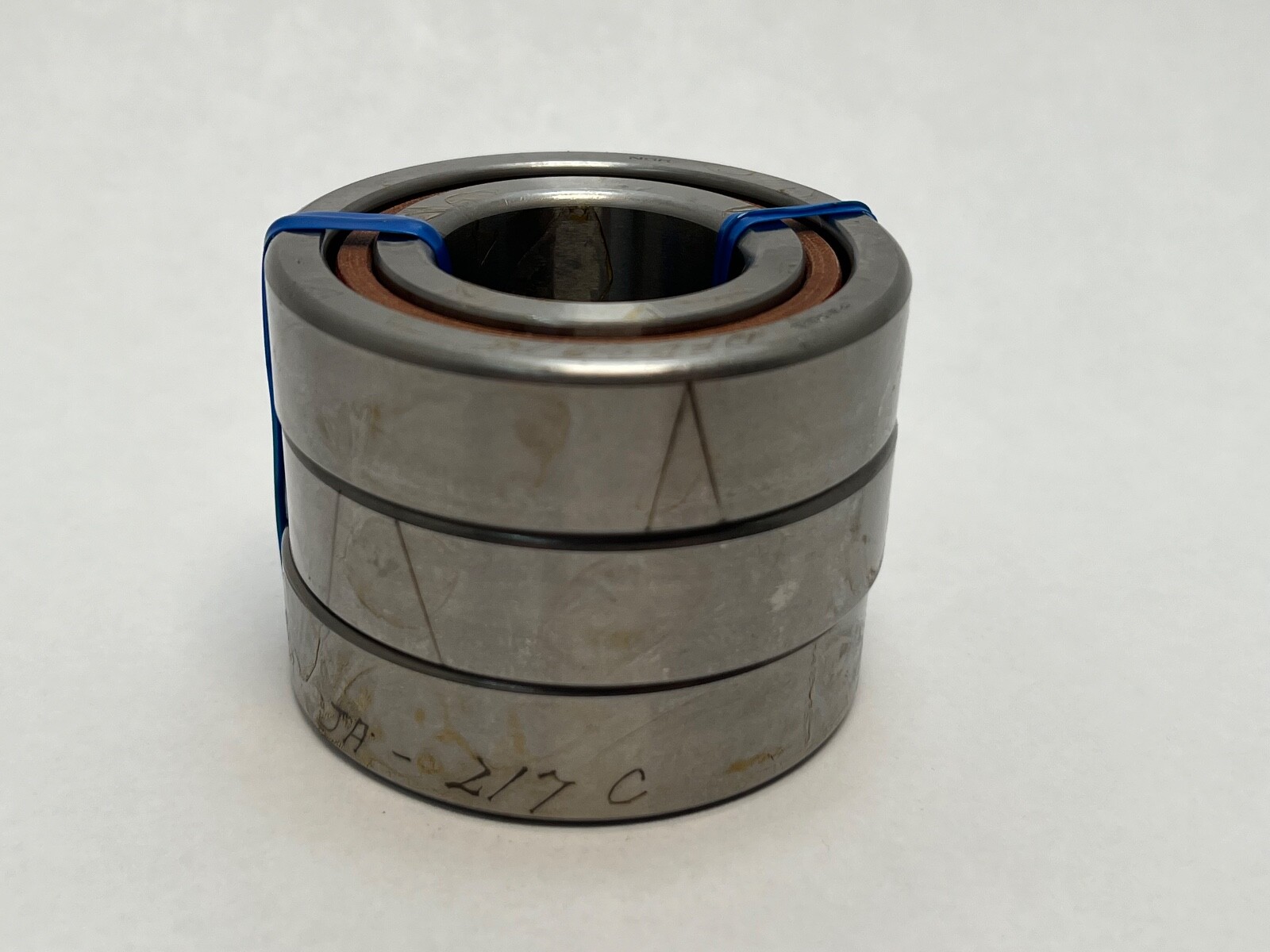

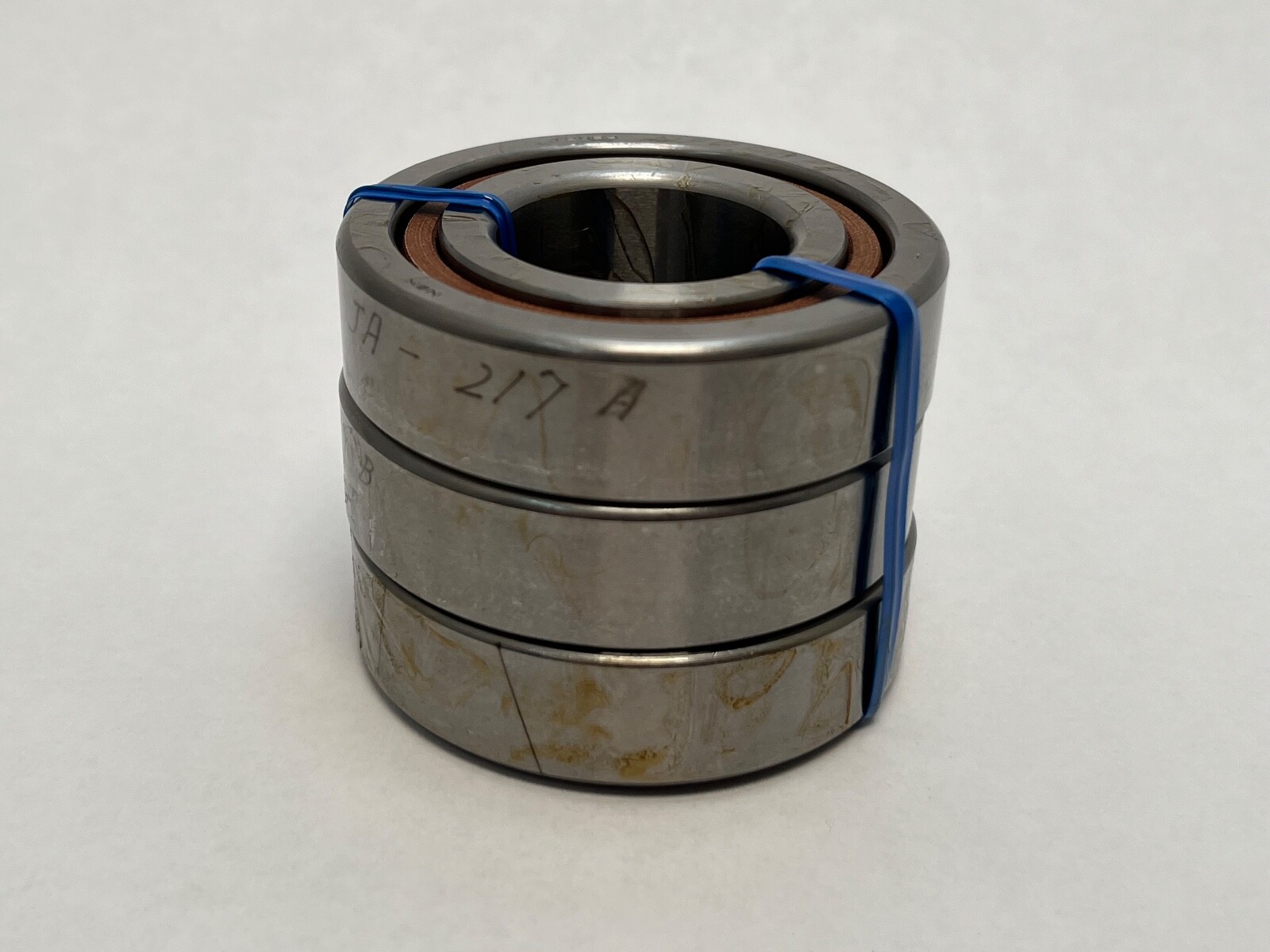

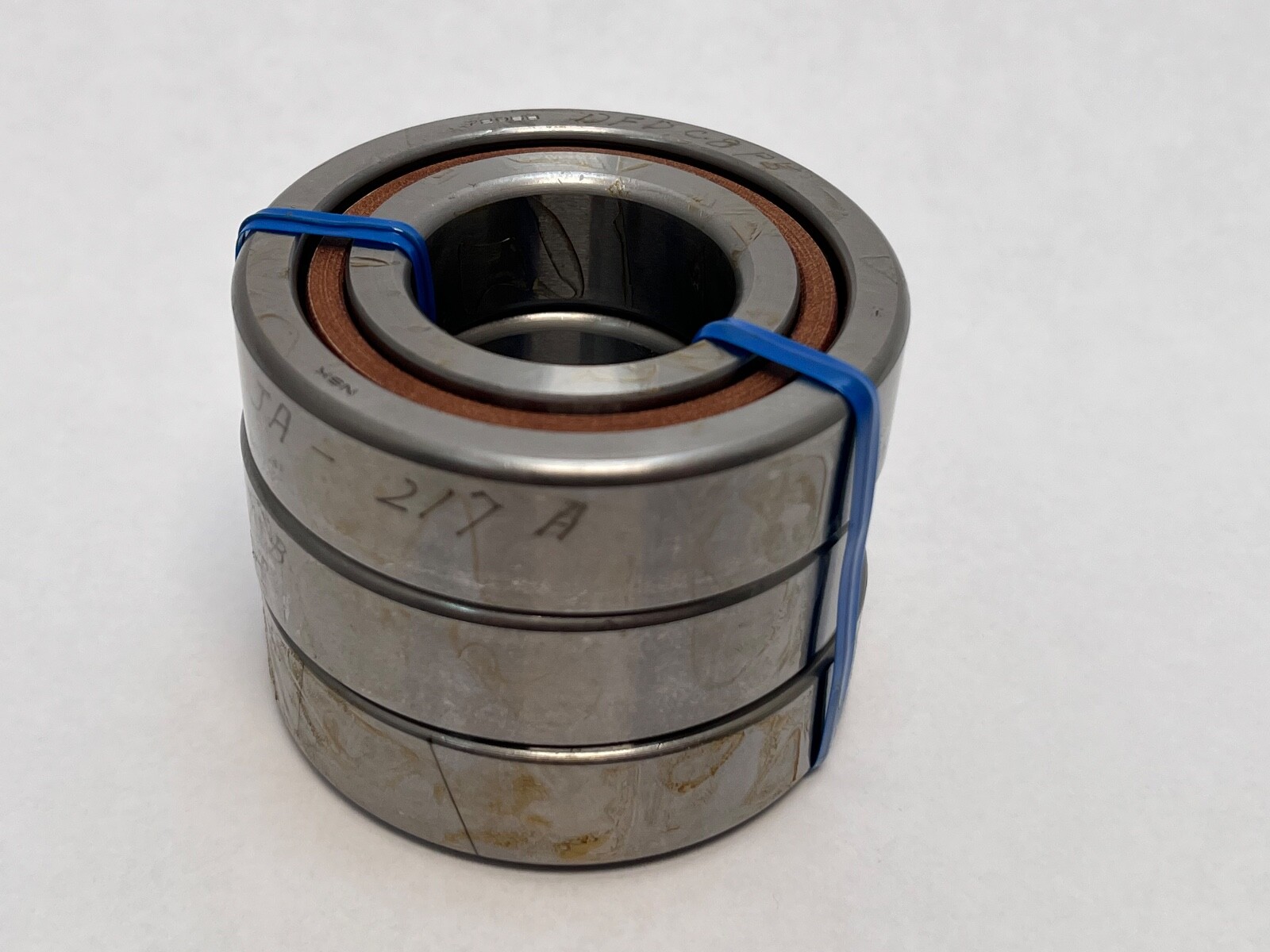

Unit Quantity: 3 Pcs. A matched three-bearing DFD set.
Bearings sharing the 30 x 62 x 16 mm envelope at 40°: SKF 7206 BEP, FAG 7206-B-TVP, NTN 7206B, Koyo 7206B, Nachi 7206B, NSK 7206BW. Those are standard precision executions; this set is ground to P5.
$231.30
29 in stock
