Availability:
11 in stock
Angular contact ball bearing, 30 x 62 x 16 mm, 40° contact angle for high thrust, universally ground for duplex mounting, open, straight bore.
List Price
$27.42
11 in stock
11 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | MRC |
|---|---|
| MPN | 7206PJDU |
| GTIN | 097741016407 |
| Model | 7206-PJDU |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 62 mm |
| Width | 16 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Condition | New |
| Lubricant | Oil |
| Preload | Light Preload |
| Base Number | 7206 (ISO 7206 envelope) |
| Industry Terms | Angular contact ball bearing; high thrust bearing; universally ground bearing; pump shaft bearing; Marlin Rockwell; 7206 |
| Common Misspellings | 7206 PJDU; 7206PDJU; 7206-PJDU; MCR 7206PJDU |
| Bore Shaft Size | 30 mm |
| Mpn Variants | 7206PJDU; 7206 PJ DU; 7206-PJ-DU; 7206PJ; 7206DU; H501 |
| Manufacturer Status | MRC brand acquired by SKF; designation discontinued |
| Arrangement Configuration | Universally ground single, stacks back-to-back, face-to-face or tandem |
| Rolling Elements | Ball |
| Limiting Speed | 15000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 40° |
| Part Number | 7206PJDU |
| Cross Reference 1 | SKF 7206 BE (same envelope, 40° execution) |
|---|---|
| Cross Reference 2 | FAG 7206-B (same envelope, 40° execution) |
| Cross Reference 3 | NSK 7206B (same envelope, 40° execution) |

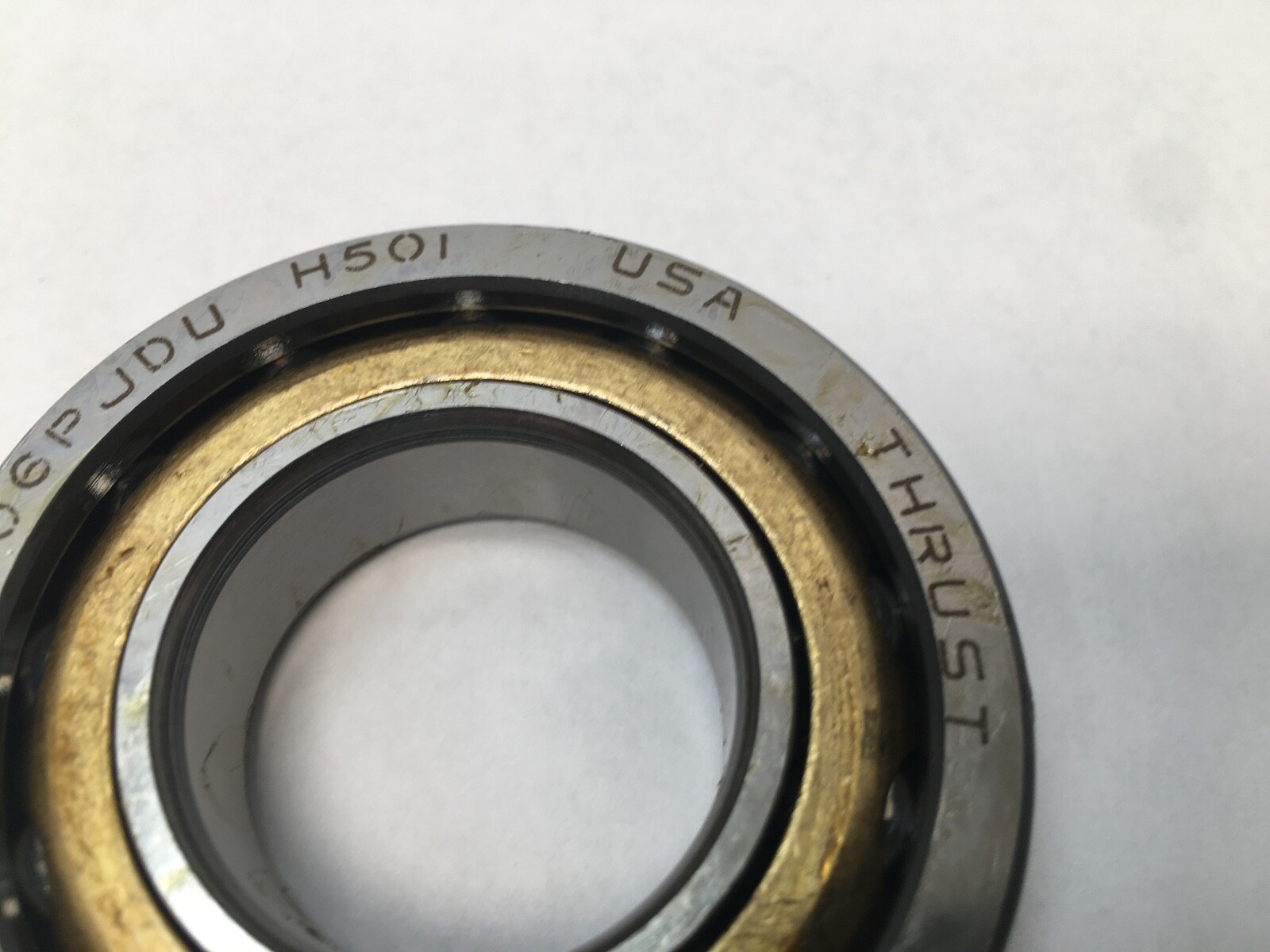

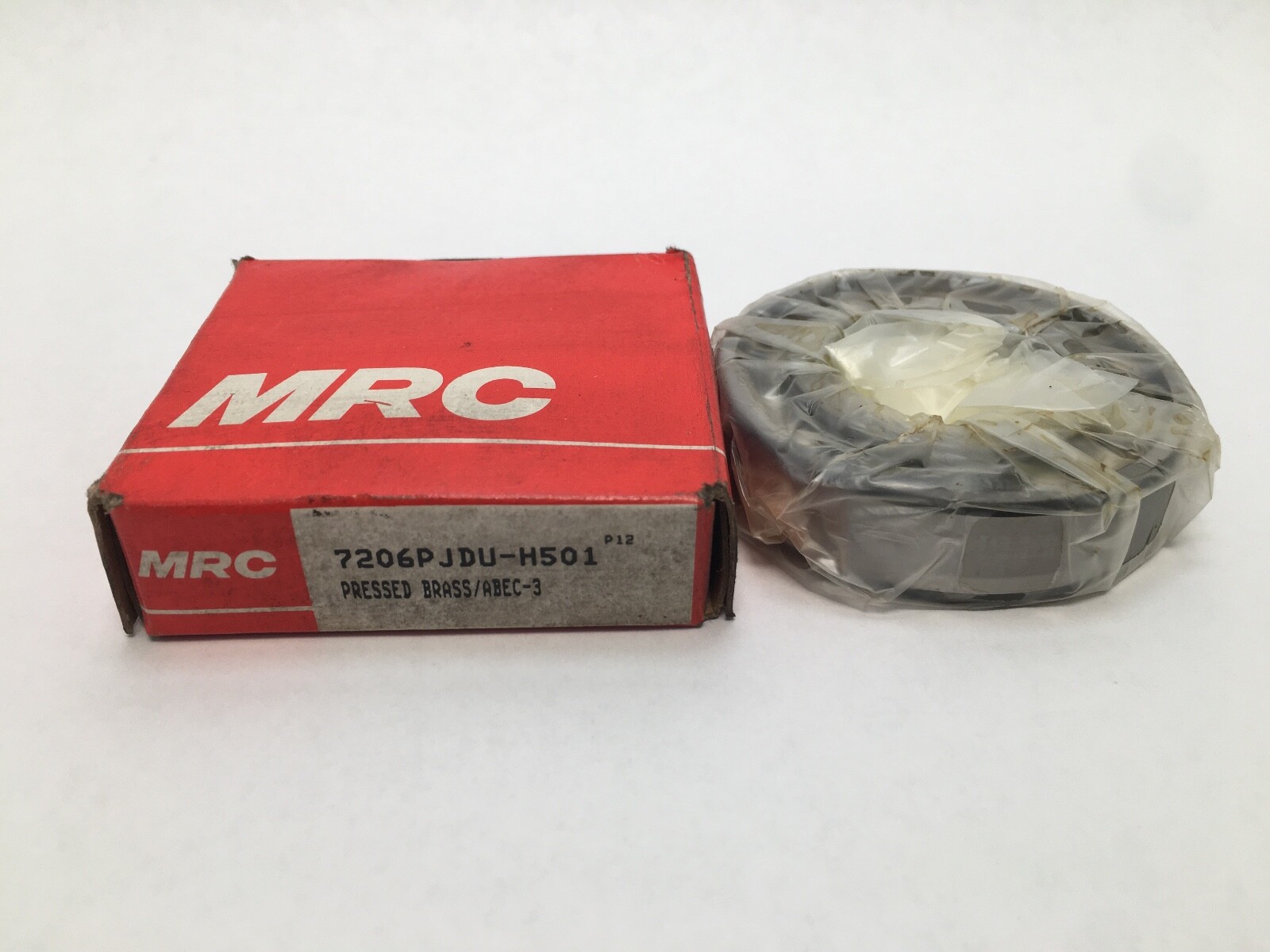

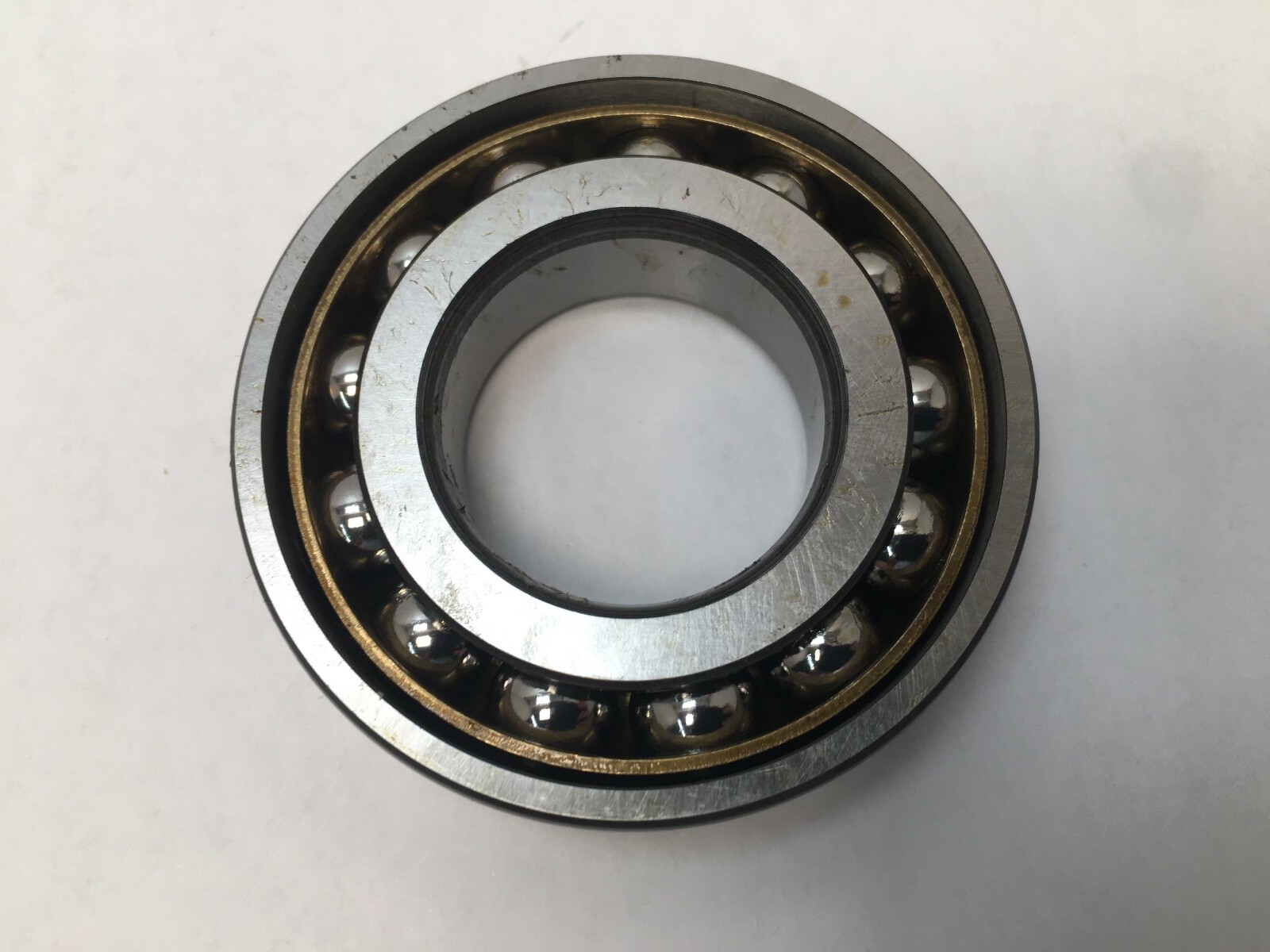

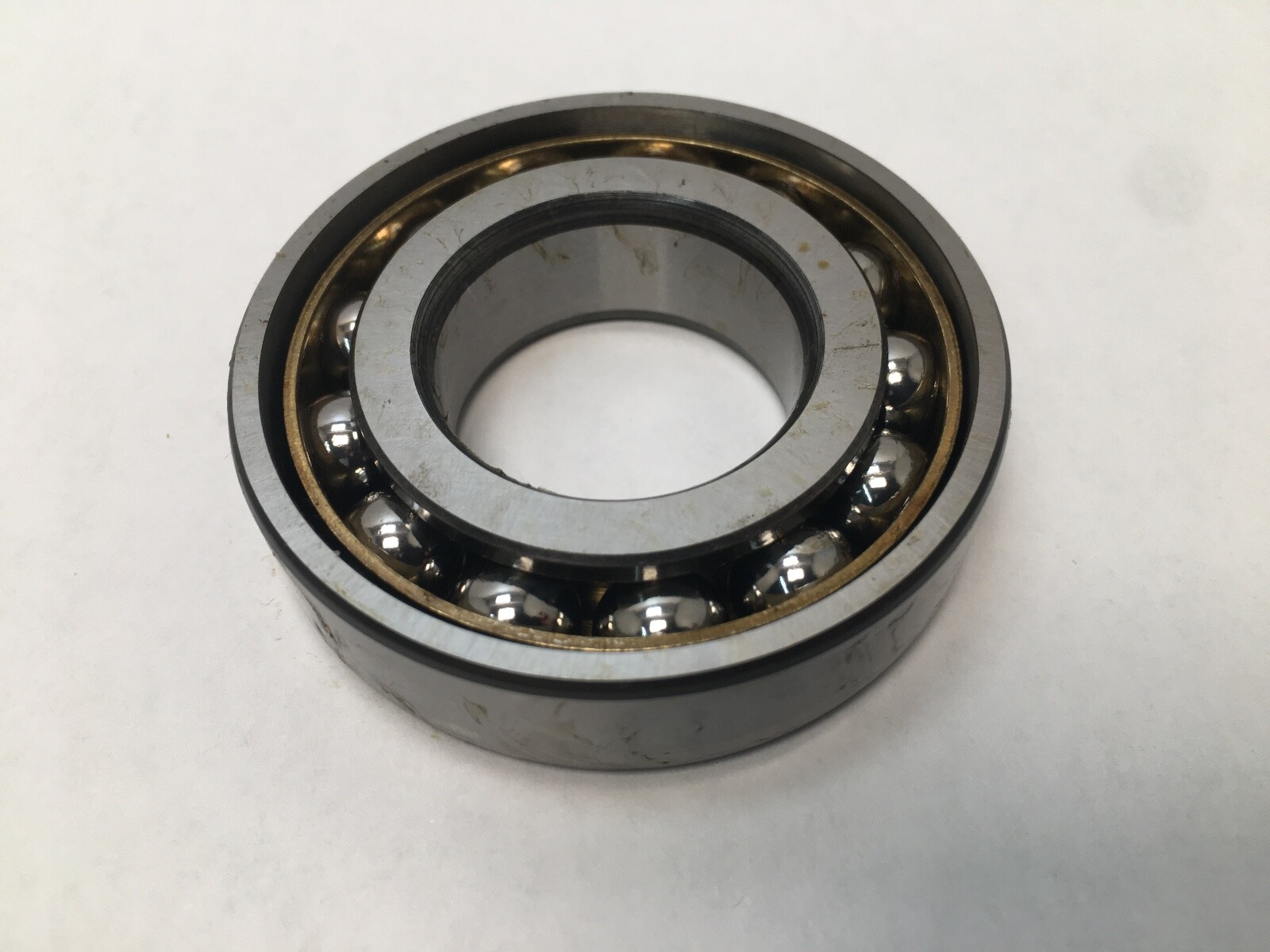

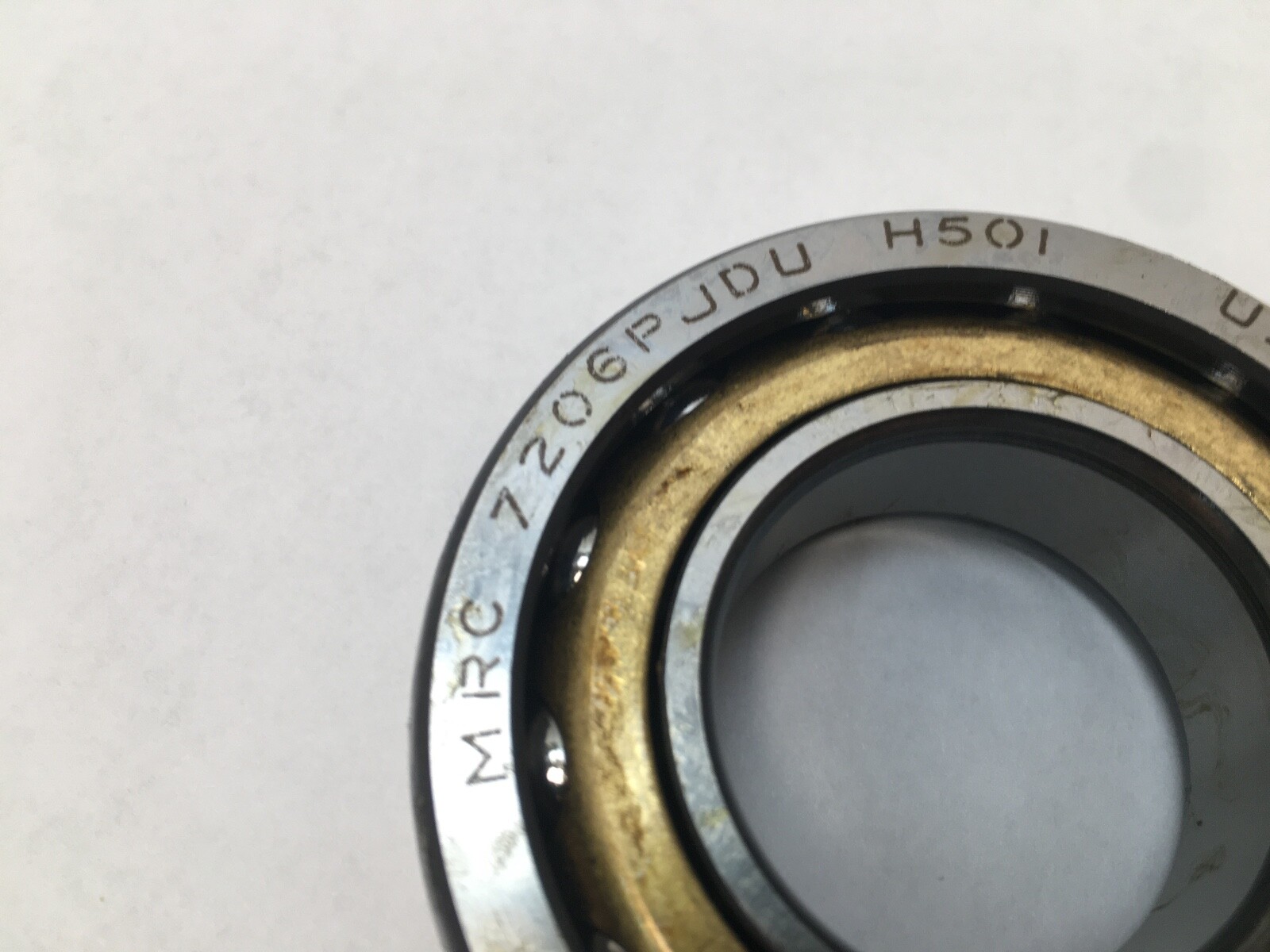

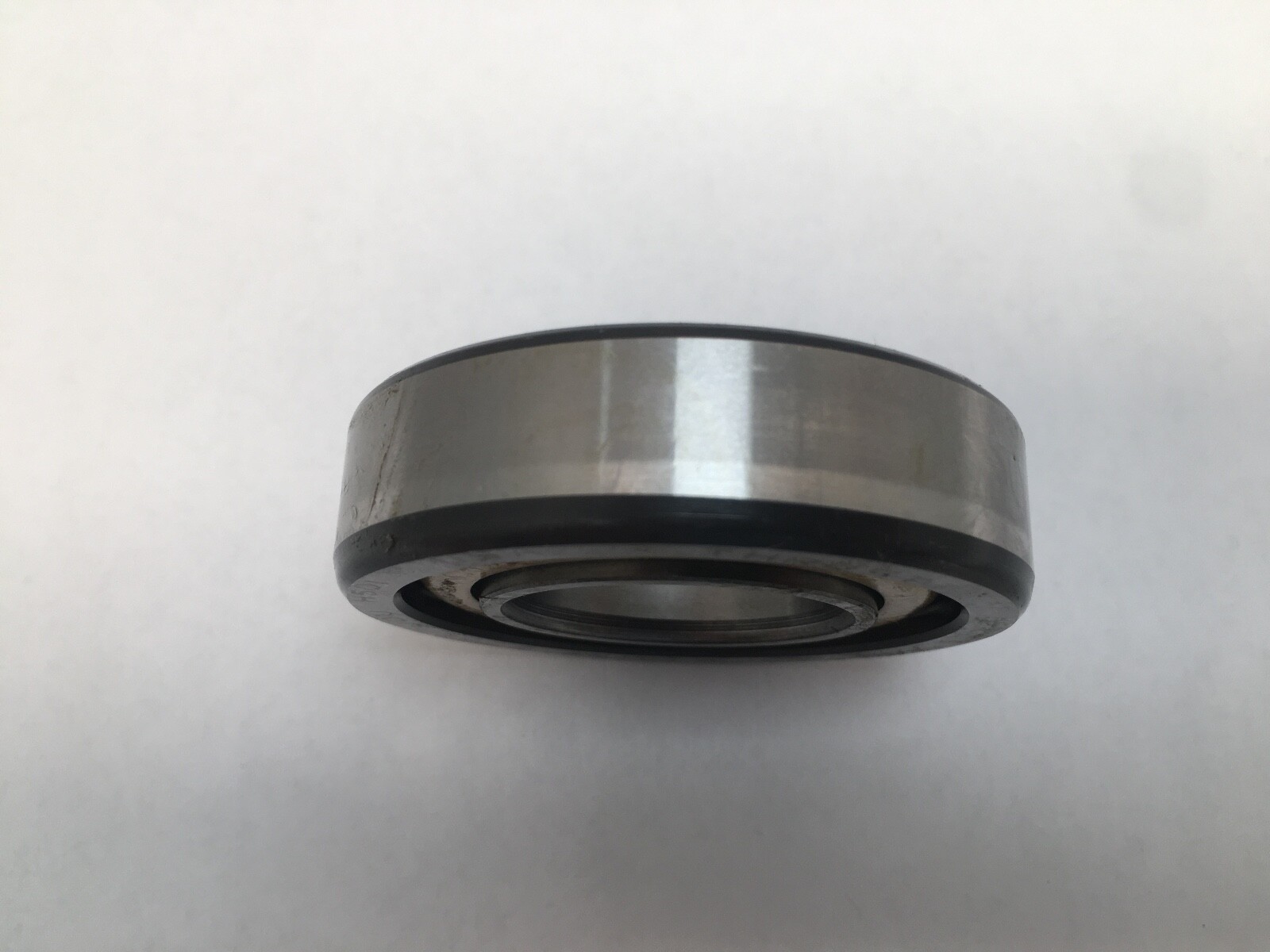

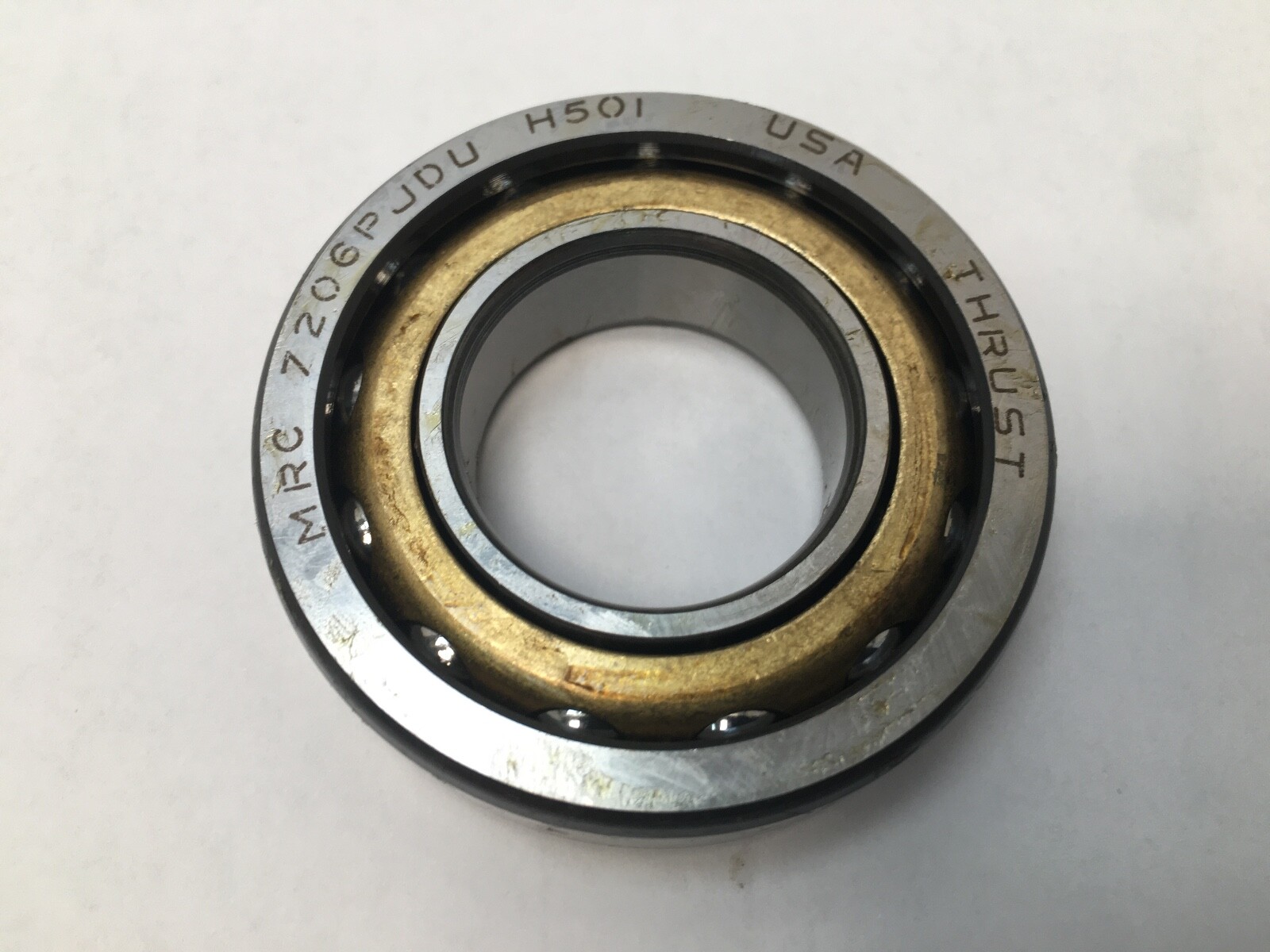

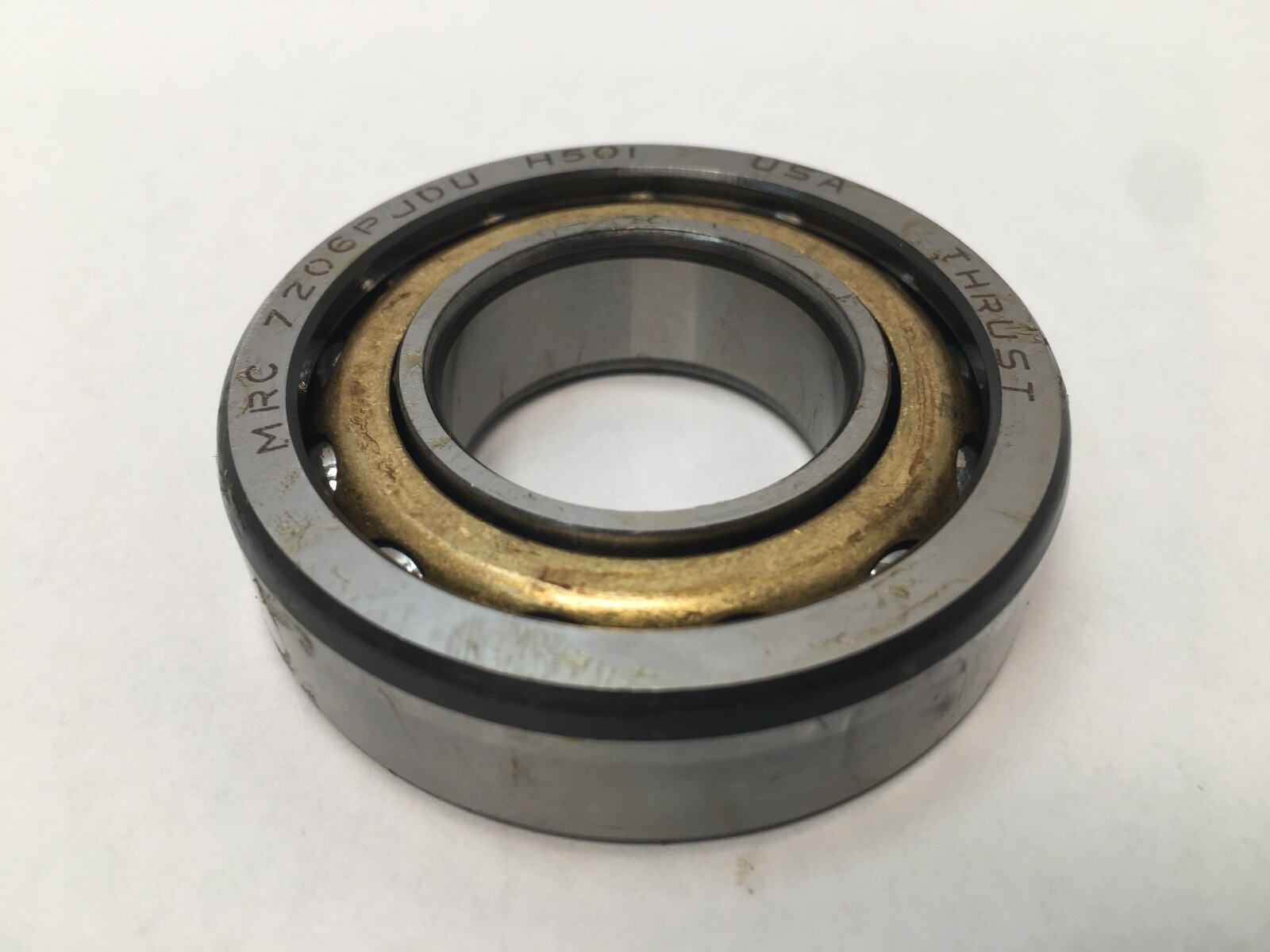

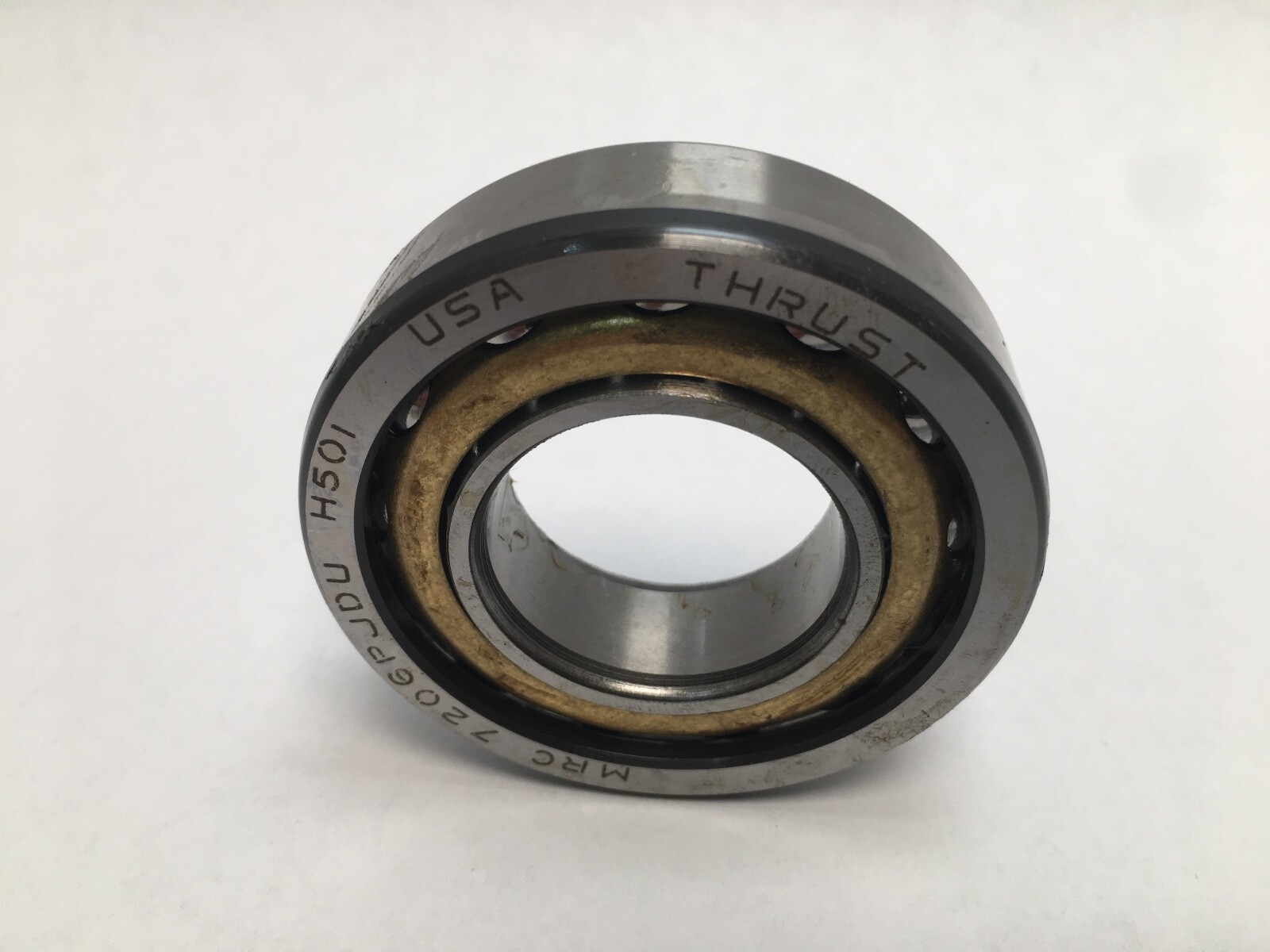

MRC 7206PJDU single-row angular contact ball bearing. Bearing type: Angular contact ball bearing. Bore: 30 mm. Outside Diameter: 62 mm. Overall Width: 16 mm. Contact Angle: 40°. Bore Type: Straight. Closure Type: Open, both faces. Number Of Rows: 1. Rolling Elements: Ball. Material: Chrome bearing steel. Series: MRC 7200 light, ISO 72 dimension series. Unit Quantity: 1 Pc. GTIN: 097741016407.
72 — light section angular contact series, matching the ISO 72 dimension series.
06 — bore code giving Bore: 30 mm.
P — Contact Angle: 40°, the high-thrust MRC execution.
DU — universally ground faces, so the bearing stacks with others of the same designation back-to-back, face-to-face or in tandem without shimming.
Contact Angle: 40°. The steep angle runs most of the load path along the shaft axis, so this execution carries substantially more one-direction thrust than a 15° or 29° bearing in the same envelope, at a lower speed ceiling. That is the trade a pump shaft, a compressor thrust position or a vertical spindle is built around. Universally ground faces mean two or more of these clamp together to a repeatable preload with no shim stack and no measuring at assembly.
Unit Quantity: 1 Pc. One universally ground bearing, open on both faces, straight bore. It runs alone or stacks into a matched set with further bearings of the same designation.
Straight bore on an interference-fit shaft seat, outer ring located in a bored housing. A single row locates axially in one direction, so the direction the bearing faces on assembly sets which way thrust is carried. Mounting force is applied through the ring being fitted rather than across the balls.
The 30 x 62 x 16 mm envelope at a 40° contact angle corresponds to the ISO 7206 B executions — SKF 7206 BE, FAG 7206-B and NSK 7206B. A 7206 AC at 25° or a 7206 C at 15° shares the same shaft and housing seats at a shallower angle and is a related size rather than an interchange.
