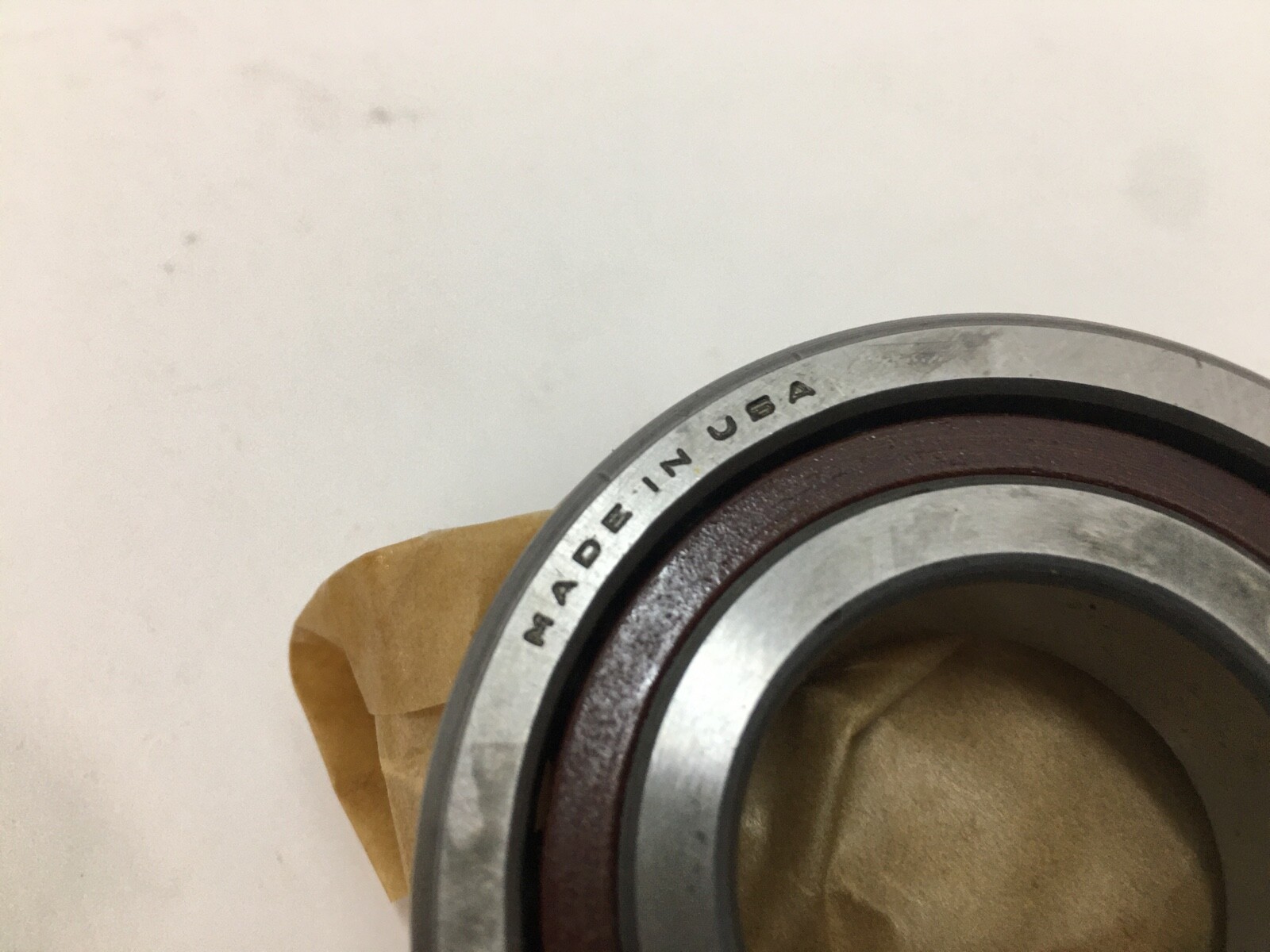

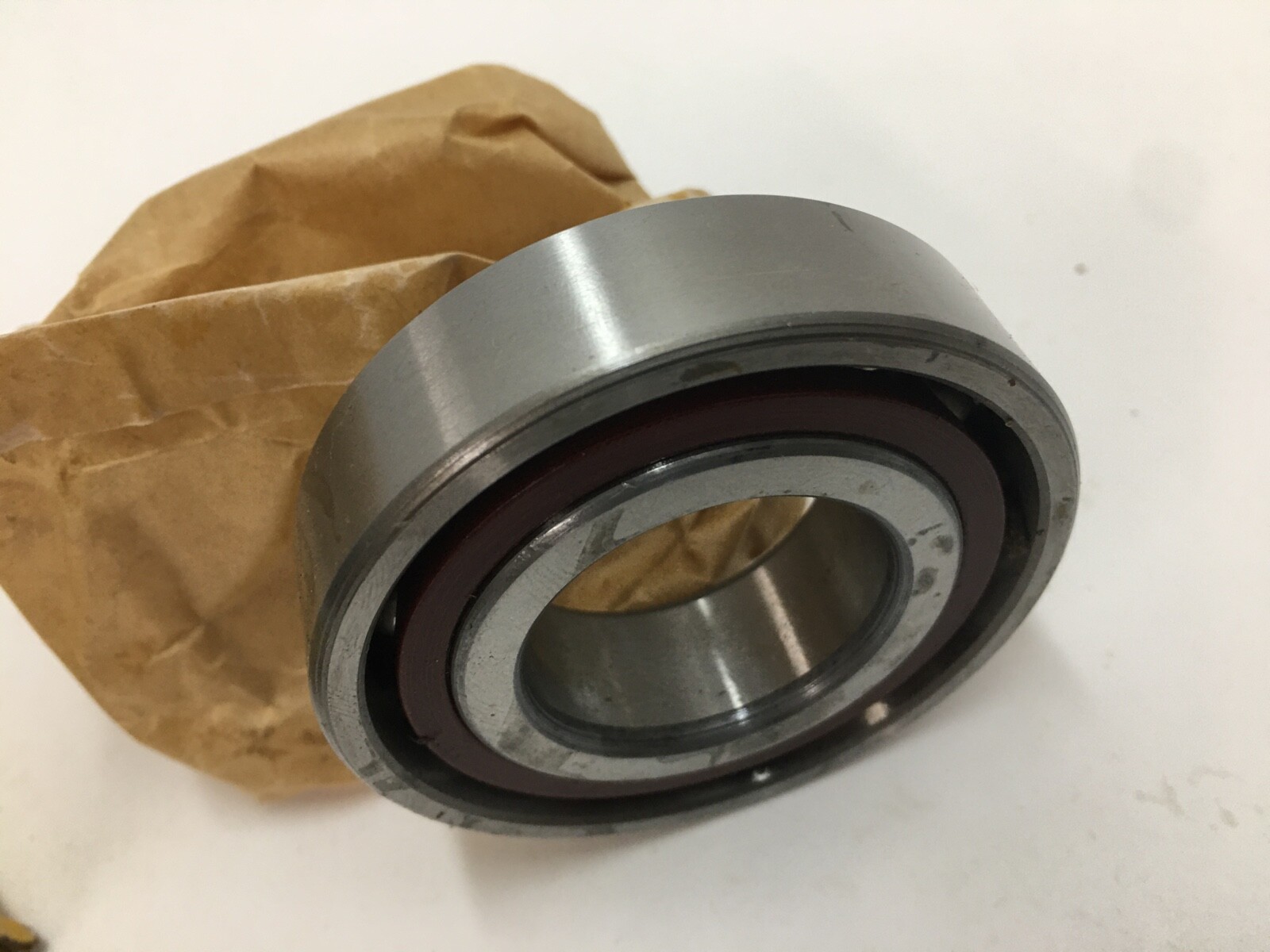

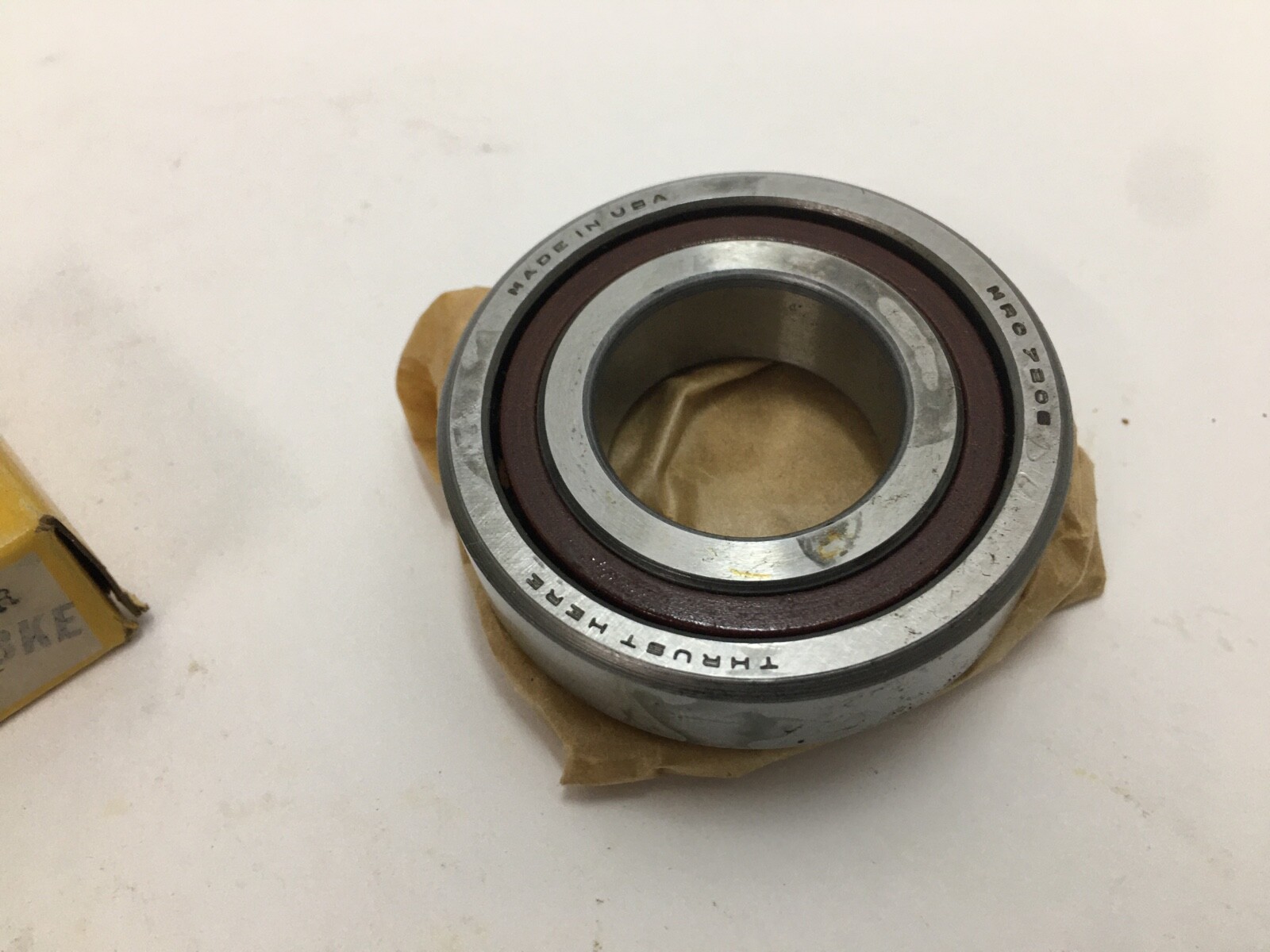

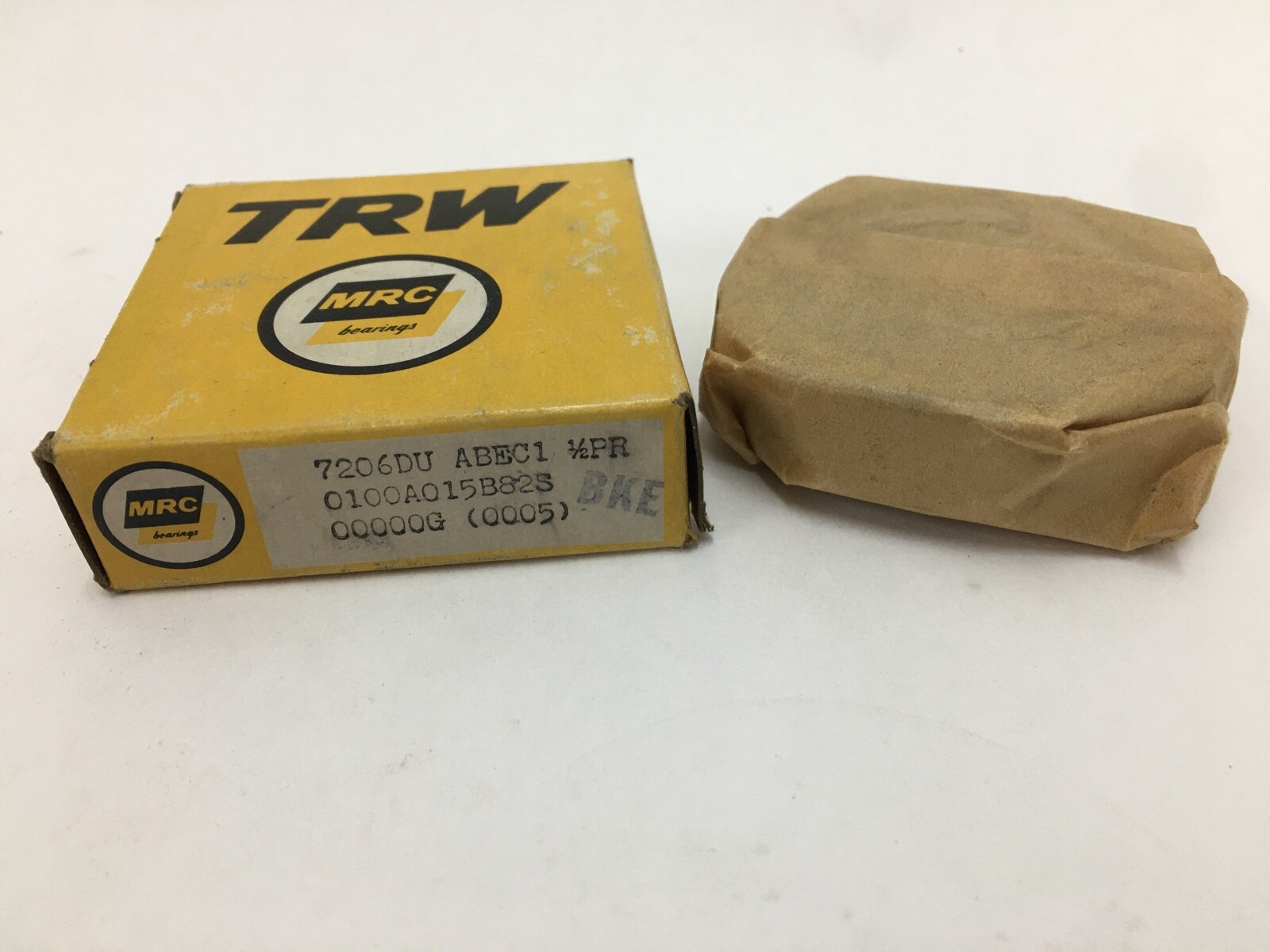

MRC 7206DU angular contact ball bearing, 30 x 62 x 16 mm, 29° contact angle, phenolic (BKE) cage. Single universally ground bearing for DB, DF or DT pairs.
List Price
$27.28
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | MRC |
|---|---|
| MPN | 7206DU |
| Model | 7206 DU BKE |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 62 mm |
| Width | 16 mm |
| Series | 7200 |
|---|---|
| Dynamic Load Rating | 16,800 N |
| Static Load Rating | 11,800 N |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Contact Angle | 29° |
| Base Number | 7206 |
| Mpn Variants | 7206DU, 7206-DU, 7206 DU, 7206DU BKE, 7206DU-BKE, 7206D |
| Harmonization Code | 8482.10.50 |
| Mounting Arrangement | Universal (DB, DF or DT) |
| Cross Reference 1 | NSK 7206A (30°, related size) |
|---|---|
| Cross Reference 2 | Koyo 7206 (30°, related size) |
| Cross Reference 3 | NTN 7206 (30°, related size) |
MRC 7206DU is a single-row angular contact ball bearing from the MRC 7200 light series, 30 mm bore, 62 mm outside diameter and 16 mm wide, with a phenolic cage. It carries combined radial and one-direction axial loads. Unit Quantity: 1 Pc. One universally ground bearing, half of a pair.
7206 — MRC 7200 light angular contact series, 06 bore code, 30 x 62 x 16 mm. No type letter: 29° contact angle, counterbored outer ring.
DU — single bearing, universally ground for duplex mounting back-to-back, face-to-face or tandem.
BKE — machined phenolic (Bakelite) cage.
Contact Angle: 29°. Dynamic Load Rating: 16,800 N. Static Load Rating: 11,800 N. Cage Material: Phenolic. Closure Type: Open. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Mounting Arrangement: Universal (DB, DF or DT). Harmonization Code: 8482.10.50.
Bore Diameter: 30 mm. Outside Diameter: 62 mm. Overall Width: 16 mm. Series: 7200.
Related parts in the same 30 x 62 x 16 mm envelope at a 30° contact angle: NSK 7206A, Koyo 7206, NTN 7206. Searchable forms of the number: 7206DU, 7206-DU, 7206 DU, 7206DU BKE, 7206DU-BKE, 7206D.
Bore Diameter 30 mm, Outside Diameter 62 mm, Overall Width 16 mm.
29°; the plain 7000 series with no type letter is 29° per MRC.
Dynamic Load Rating 16,800 N and Static Load Rating 11,800 N.
