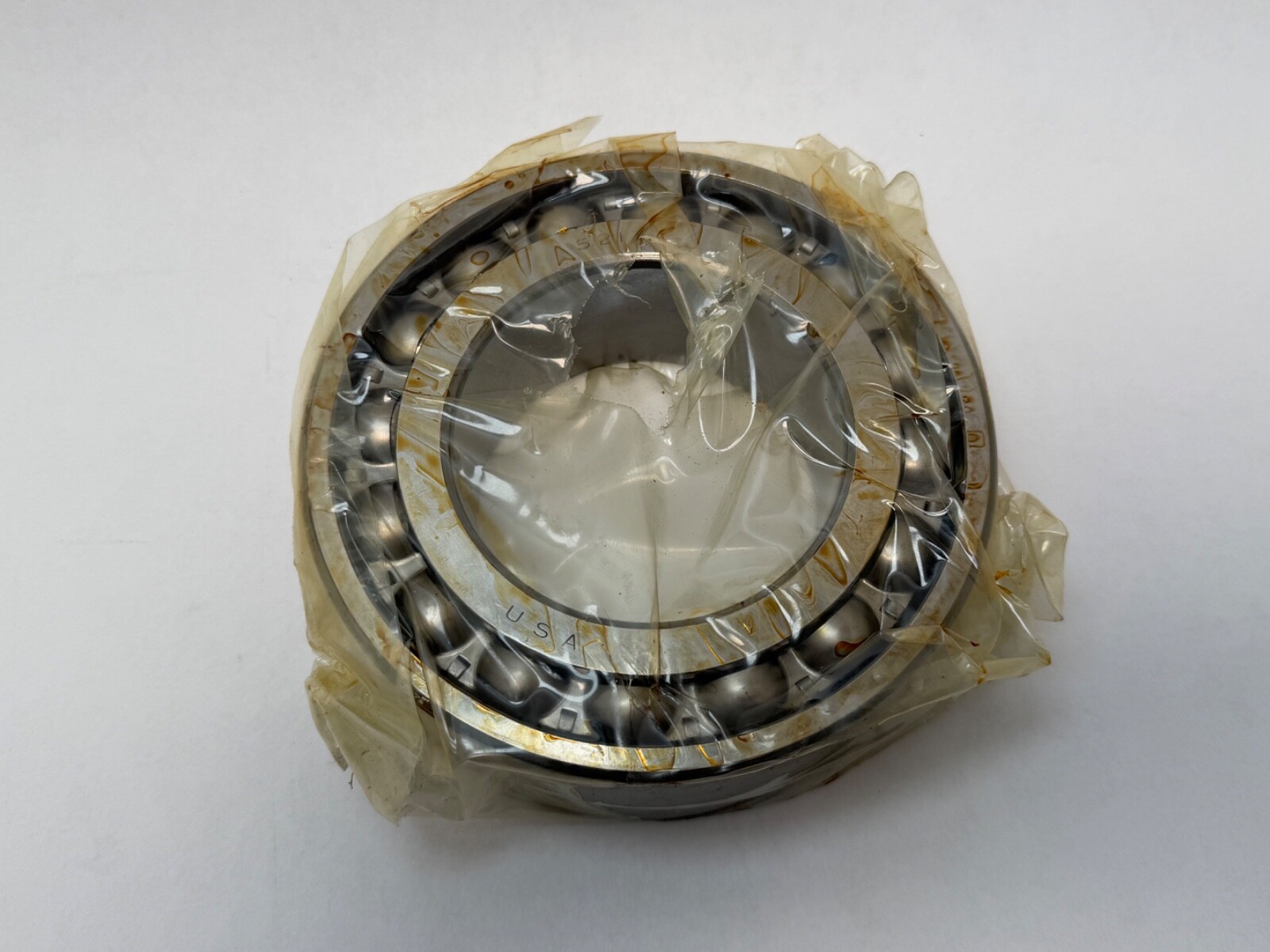

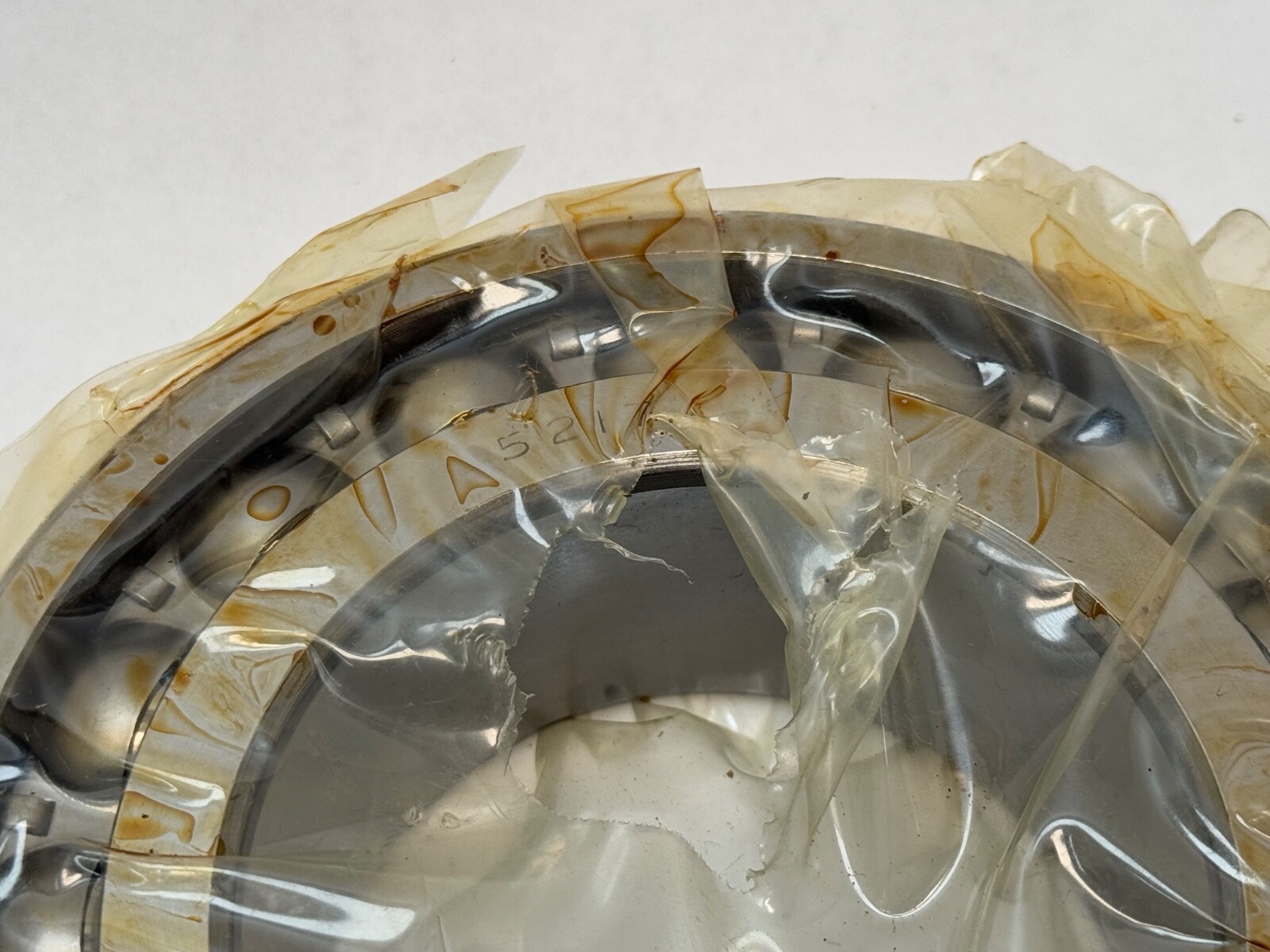

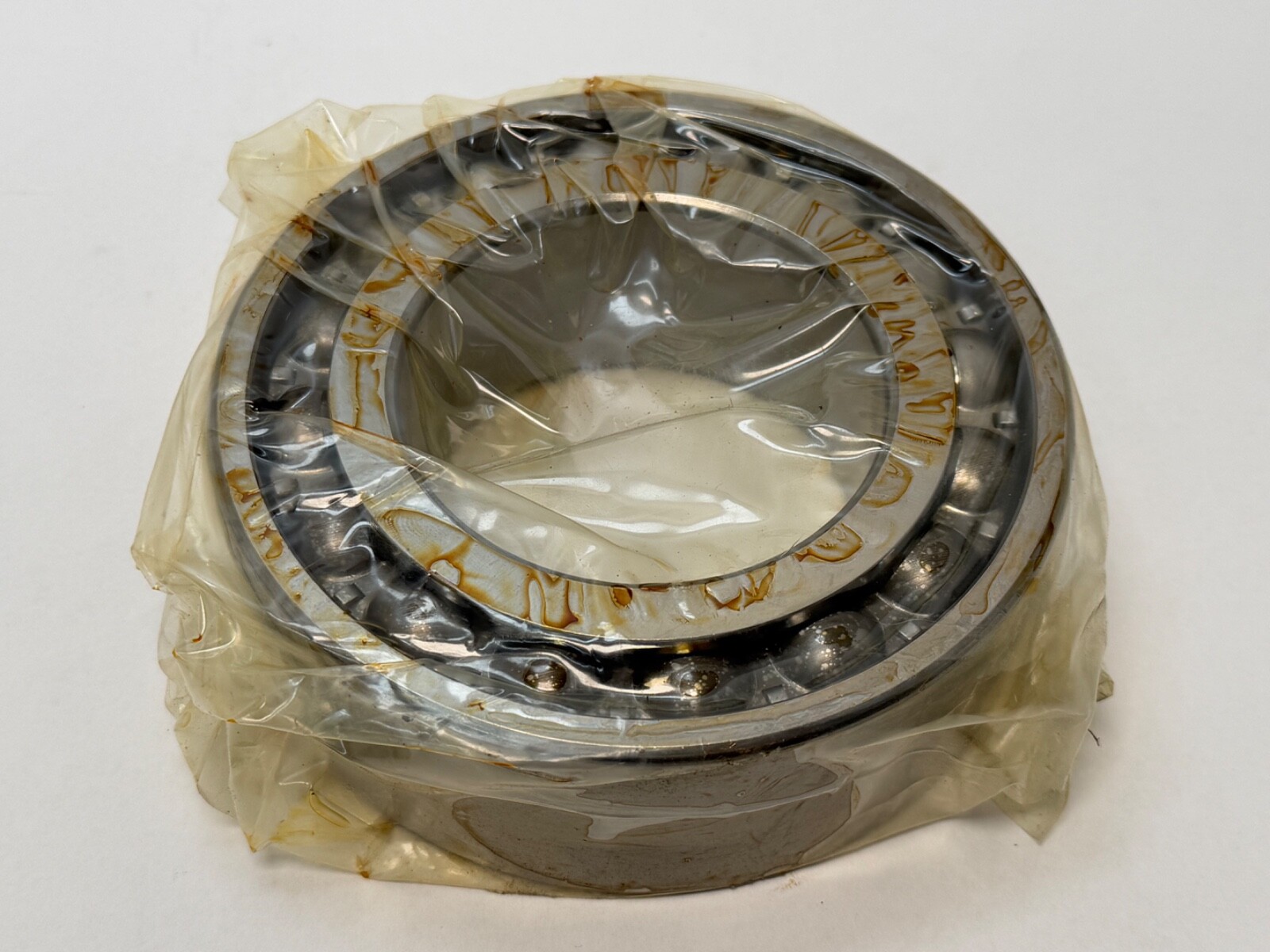

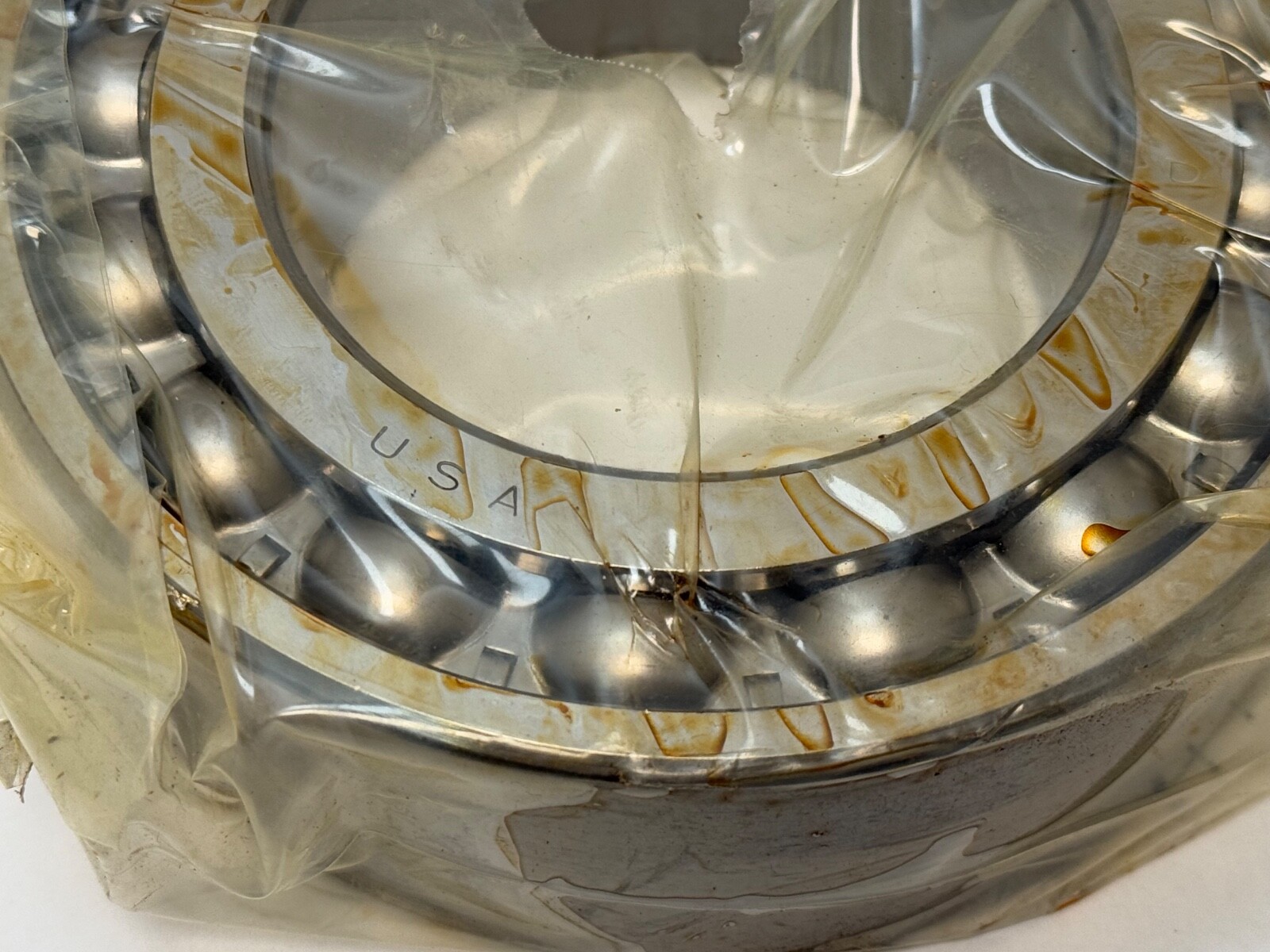

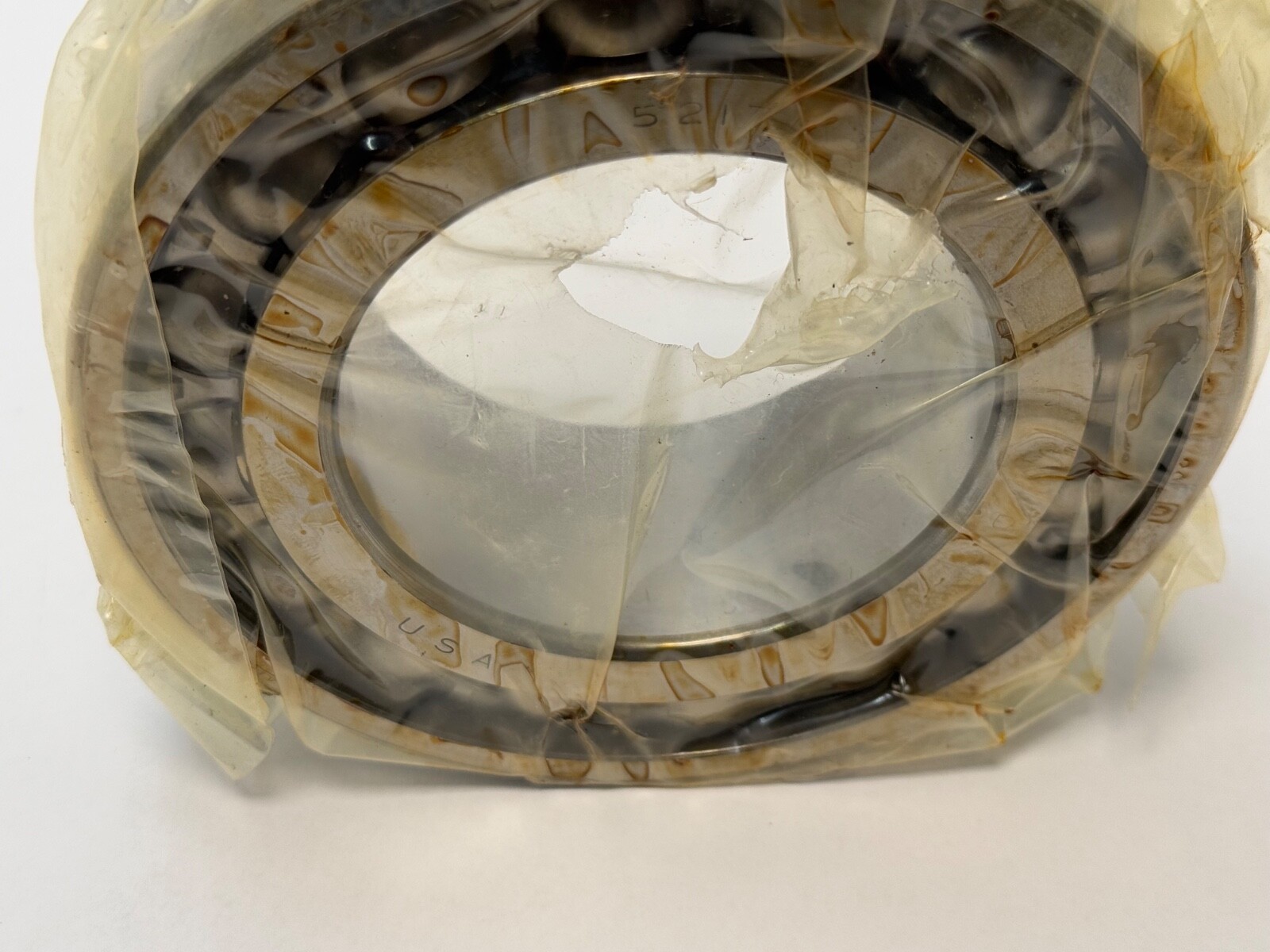

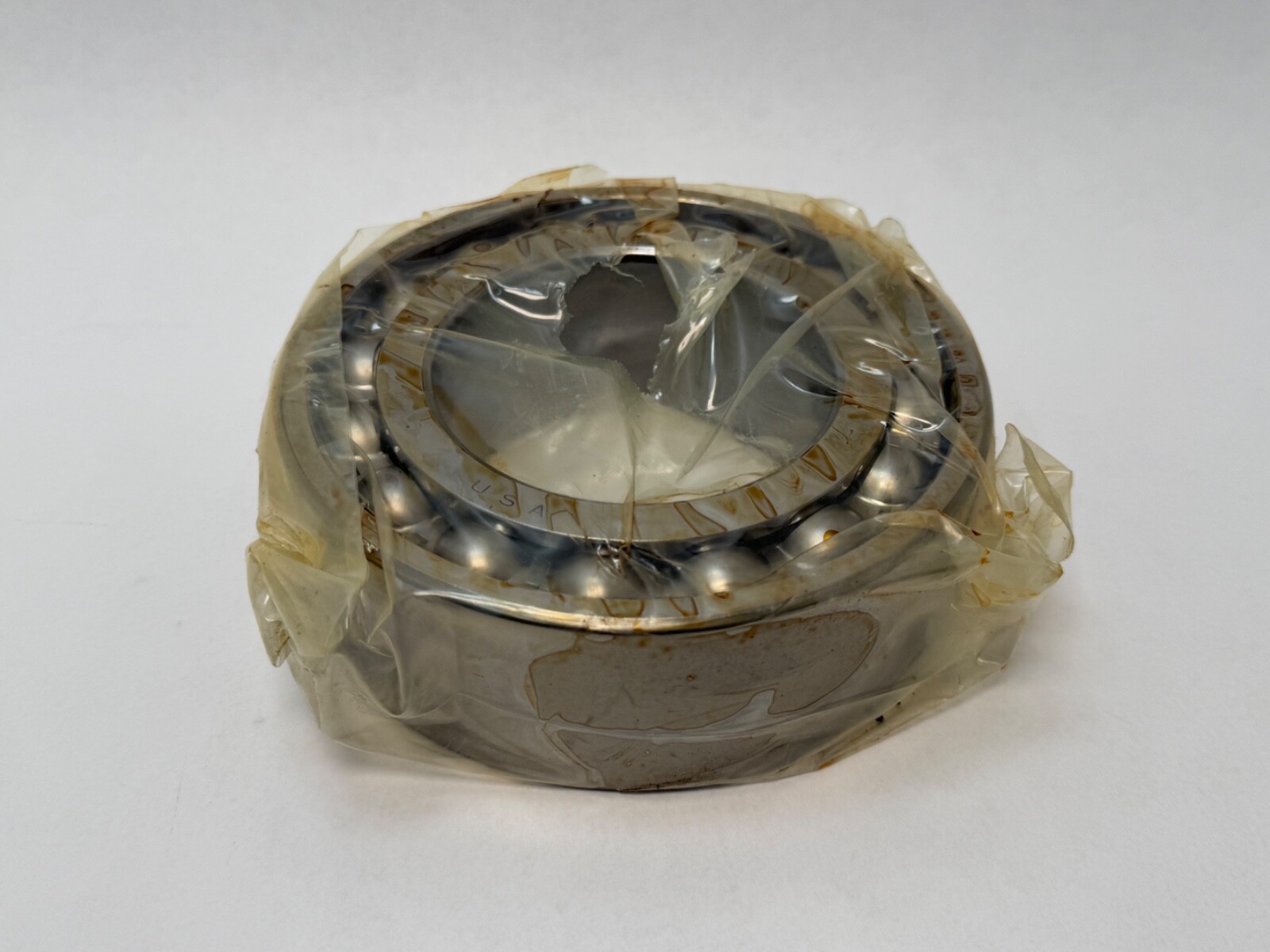

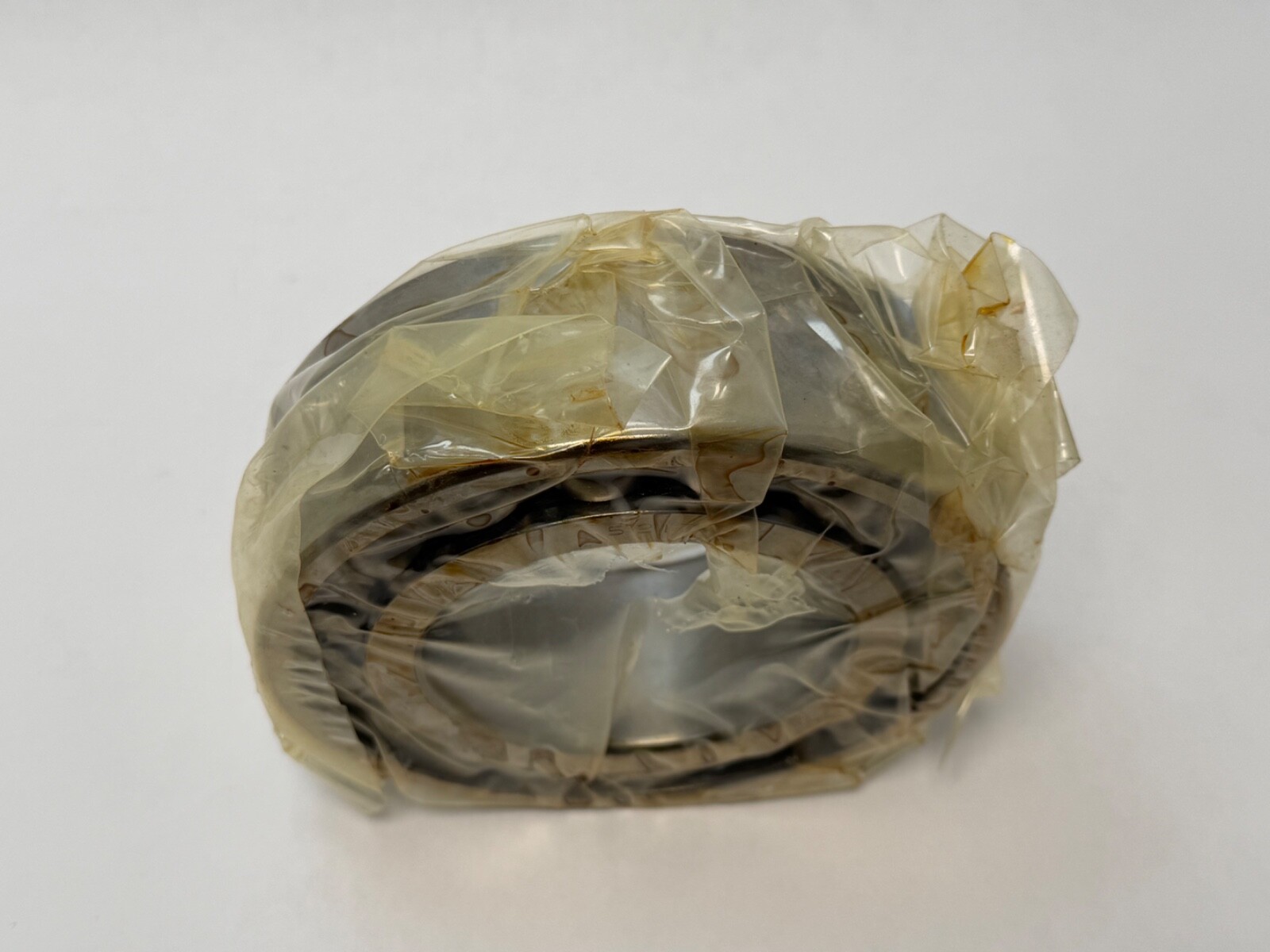

NDH 5217X5A double row angular contact ball bearing, 85 x 150 x 49.21 mm (1-15/16 in wide), ABEC 5 / P5, the 3217 envelope. New Departure Hyatt 5200 series.
List Price
$62.80
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing - Straight Bore, 85 mm ID, 150 mm OD, 28 mm Width, Open, ABEC 7, Light Preload, Phenolic Separator$420.71
Angular Contact Ball Bearing 85 x 150 x 28 mm, 29° Contact Angle, Universally Matchable, Open$73.20
Single-Row Angular Contact Ball Bearing - 85 mm Bore, 150 mm OD, 28 mm Width, Open, 40° Contact Angle, Machined Brass Cage$74.70
Angular Contact Ball Bearing 85x150x28 mm, 40° Contact Angle, Polyamide Window Cage, Open — 90 kN Dynamic, 4,500 rpm$83.33| MFR / Brand | NDH |
|---|---|
| MPN | 5217X5A |
| Model | 5217X5A |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 85 mm |
| OD | 150 mm |
| Width | 49.21 mm |
| Base Number | 5217 |
|---|---|
| Industry Terms | double row angular contact ball bearing, 5200 series, New Departure Hyatt |
| Mpn Variants | 5217X5A, 5217-X-5A, 5217 X 5A, 5217, 3217 |
| Precision Class | ABEC 5 / P5 |
| Number Of Rows | 2 |
The NDH 5217X5A is a New Departure Hyatt double row angular contact ball bearing in the 5200 series. Bore Diameter: 85 mm. Outside Diameter: 150 mm. Overall Width: 1.9375 in (49.21 mm). Number Of Rows: 2. Rolling Elements: Ball. Precision Class: ABEC 5 / P5.
52 — double row angular contact, 02 diameter series, 5200 family.
17 — bore code, 17 x 5 = 85 mm.
5 — ABEC 5 tolerance.
A — rust preventive compound.
A double row angular contact bearing carries radial load and axial load in both directions in one ring set. ABEC 5 tolerance tightens running accuracy over a standard ABEC 1 bearing.

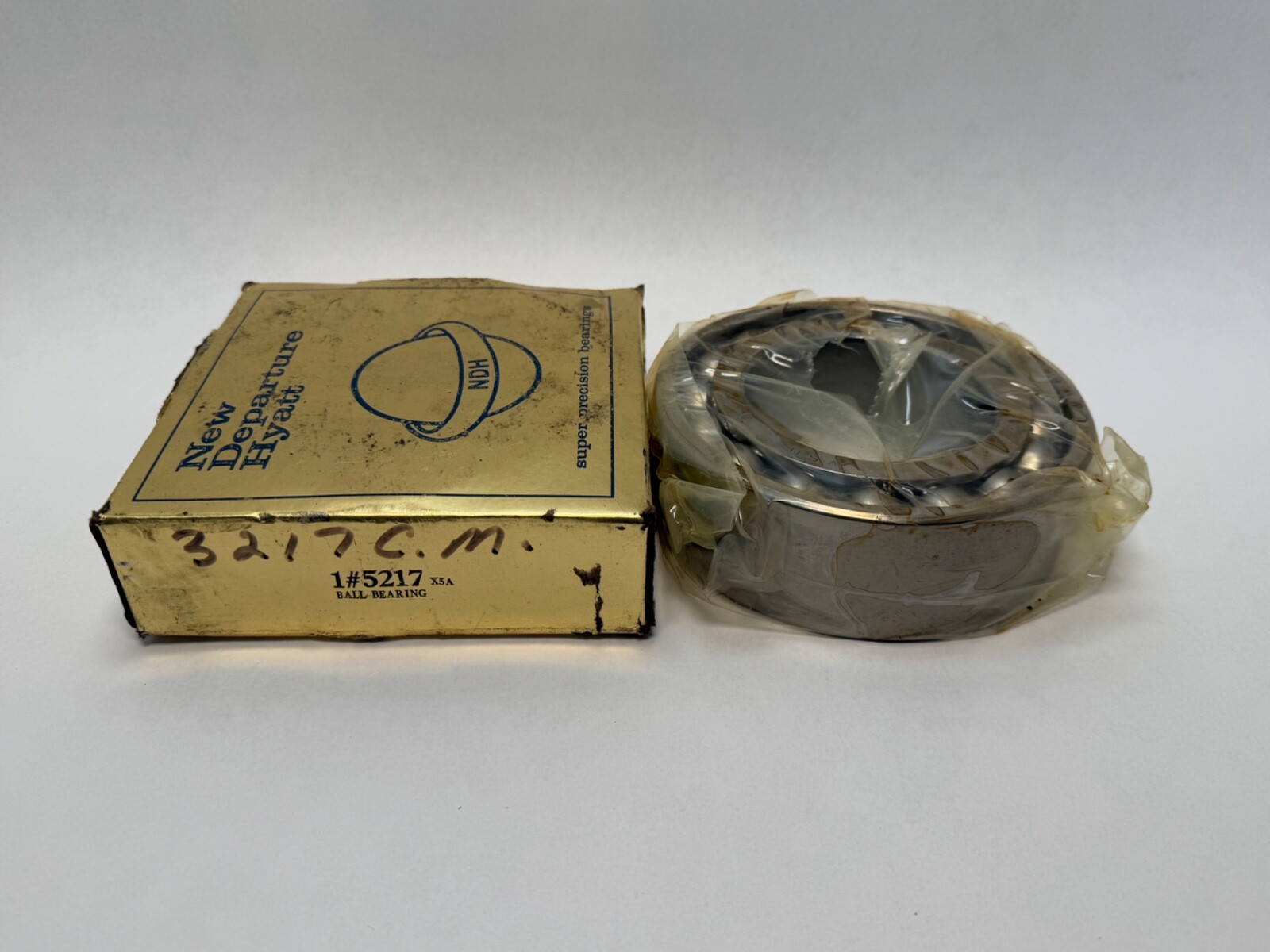

Envelope 85 x 150 x 49.21 mm, listed against the 3217 double row designation with P5 / ABEC 5 marking. Also written 5217-X-5A and 5217 X 5A.
Frequently asked questions
What is the NDH 5217X5A?The NDH 5217X5A is a New Departure Hyatt ABEC 5 double row angular contact ball bearing, 85 mm bore, 150 mm outside diameter, 1-15/16 in wide.
What size is it?Bore 85 mm, outside diameter 150 mm, width 1.9375 in (49.21 mm).
What precision class is it?The trailing 5 and the carton marking give ABEC 5, equivalent to ISO P5.
