Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

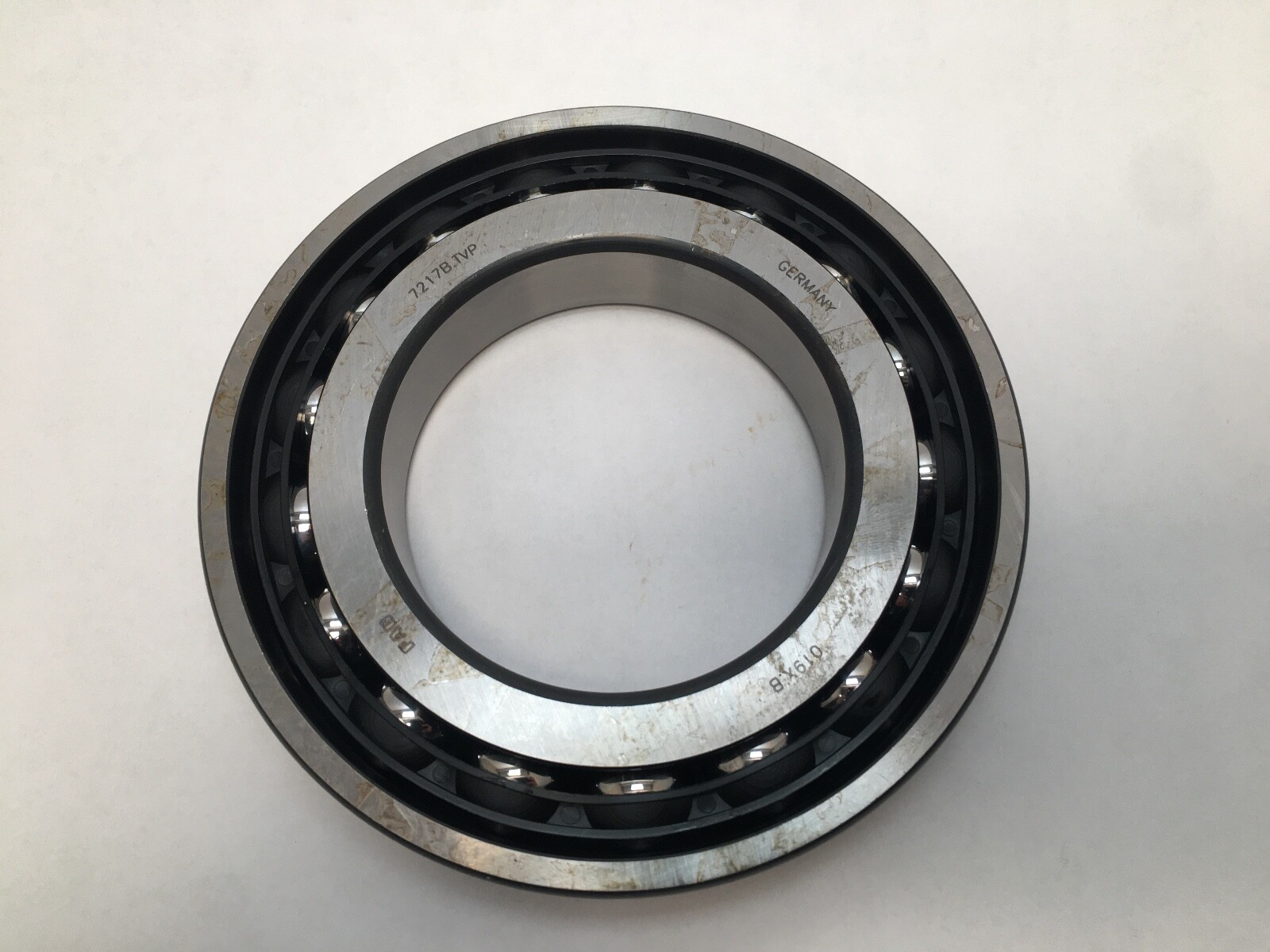

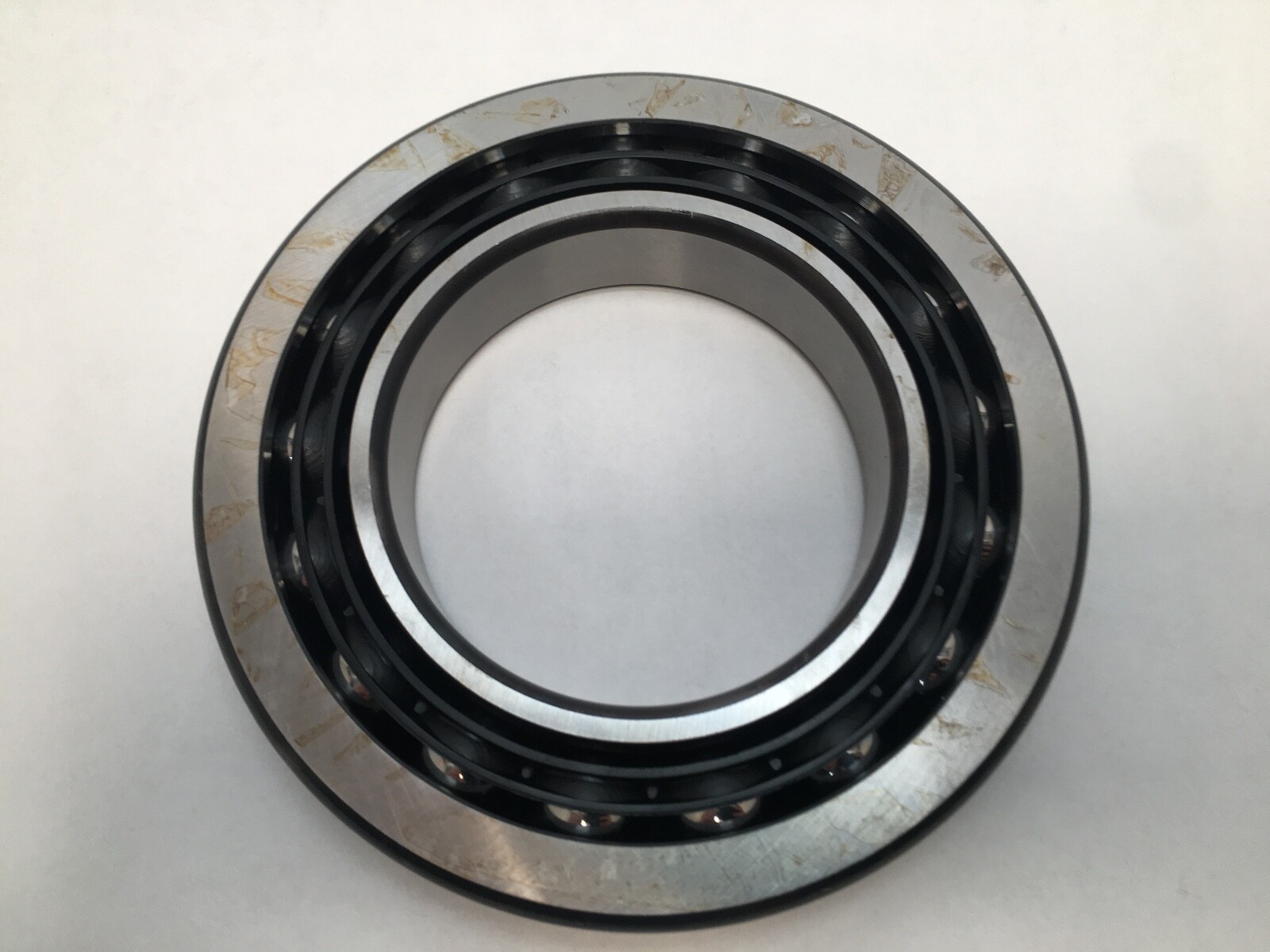

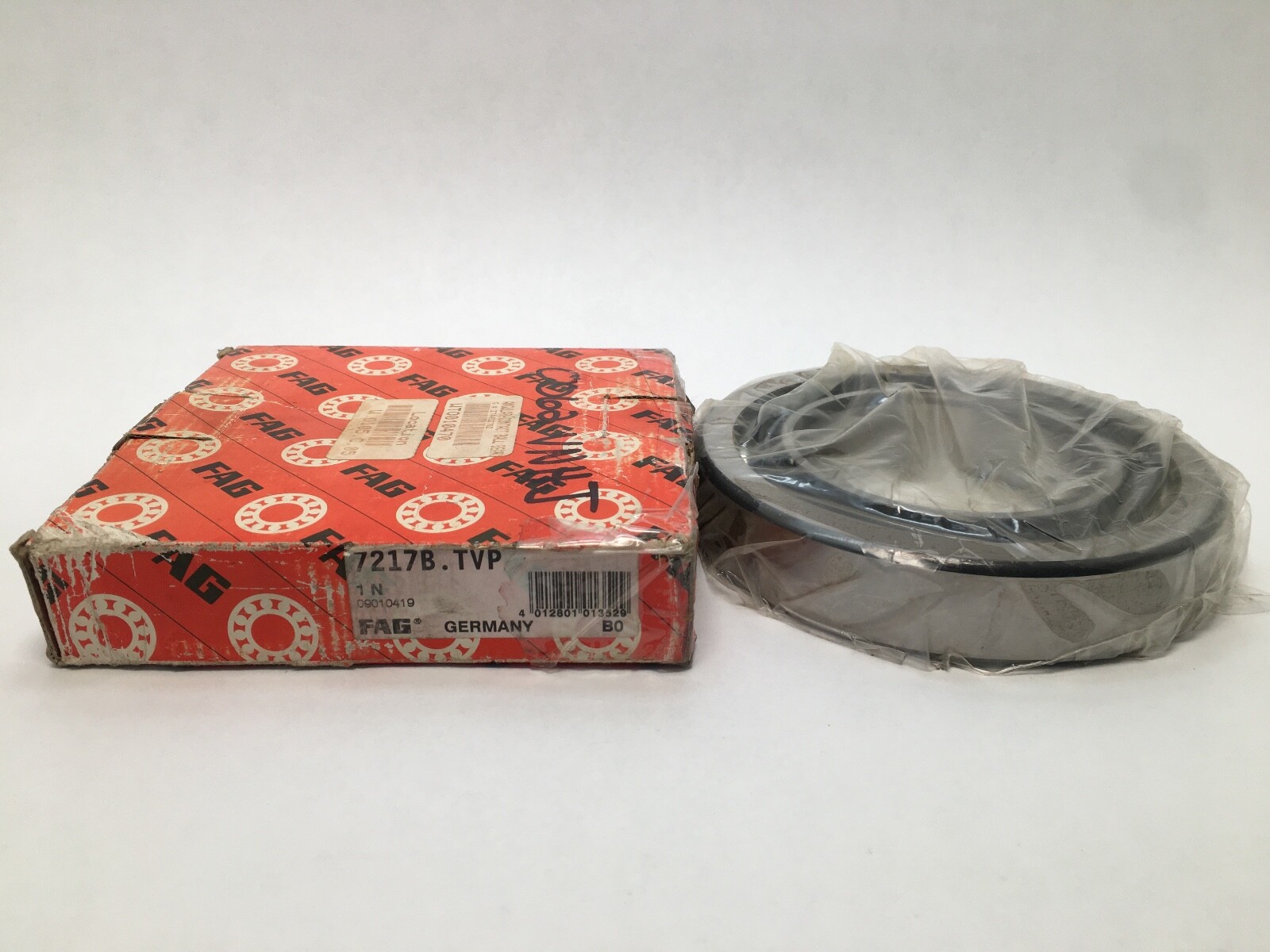

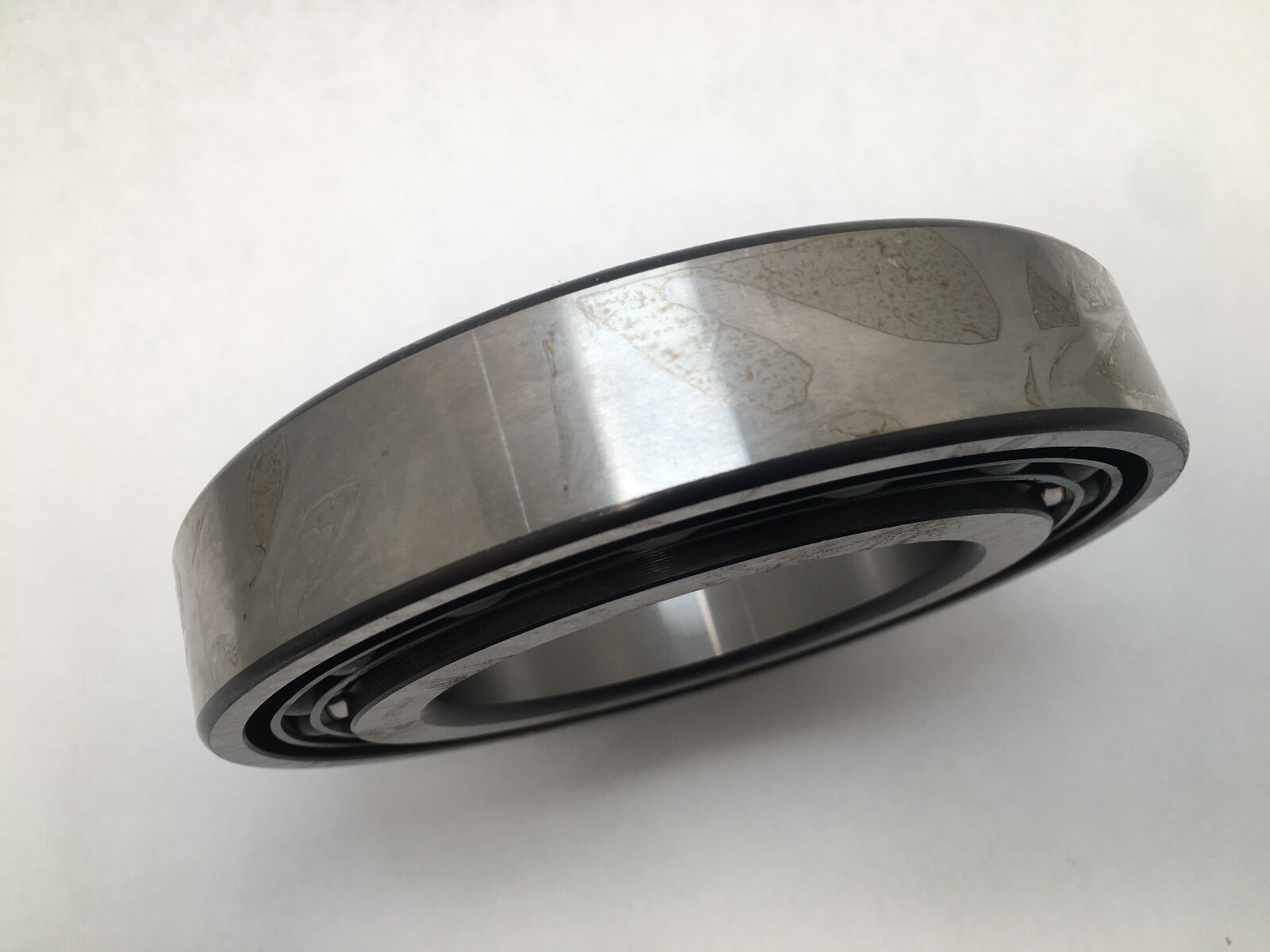

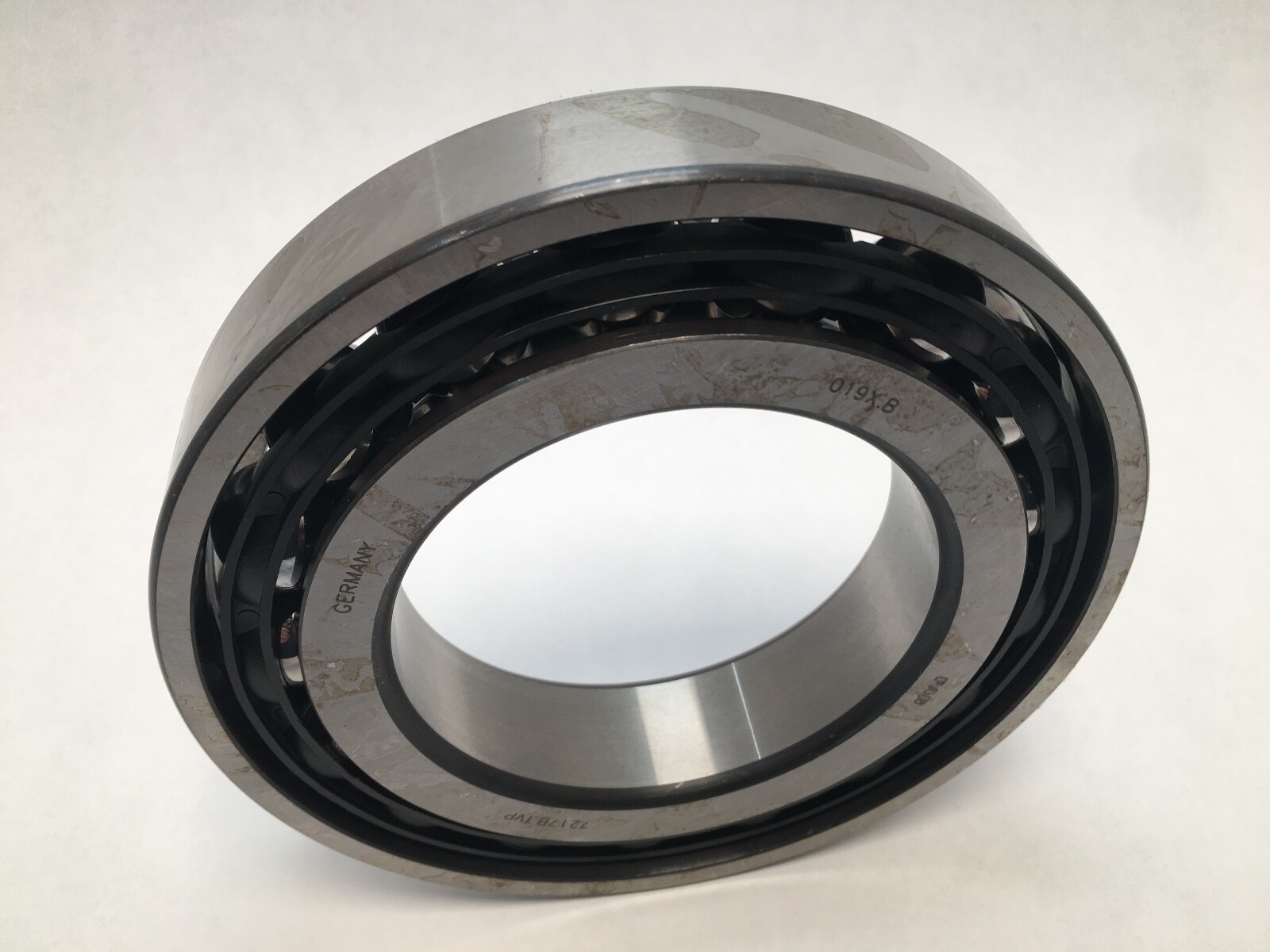

FAG 7217-B-TVP single-row angular contact ball bearing, 85 x 150 x 28 mm, 40 deg contact angle, polyamide cage, 90 kN dynamic, 4,500 rpm. 1 Pc.
List Price
$83.33
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 7217-B-TVP |
| GTIN | 4012801013529 |

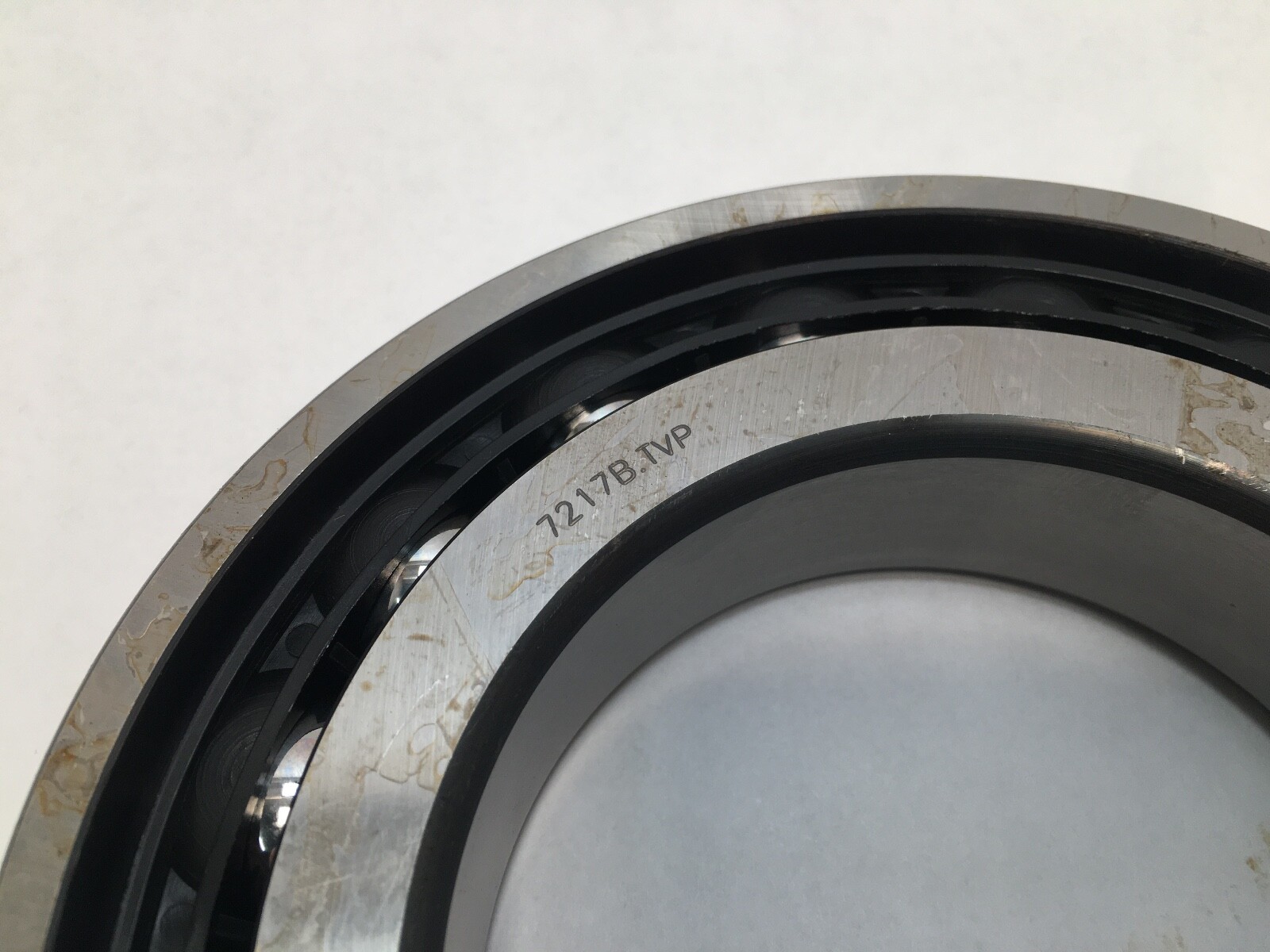

| Model | 7217BTVP |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 85 mm |
| OD | 150 mm |
| Width | 28 mm |
| Material | Bearing Steel |
|---|---|
| Base Number | 7217 |
| Industry Terms | angular contact ball bearing, 40 degree, thrust bearing |
| Common Misspellings | FAG 7217 BTVP, 7217-BTVP, 7217B TVP, FAG 7127BTVP |
| Application Types | Pump shafts, vertical shafts, worm drives, gearboxes |
| Bore Shaft Size | 85 mm |
| Mpn Variants | 7217BTVP, 7217-B-TVP, 7217 B TVP, 7217-B-XL-TVP, 7217B |
| Manufacturer Status | Part of Schaeffler; current production 7217-B-XL-TVP |
| Compatible With Replaces | FAG 7217-B-XL-TVP, SKF 7217 BEP, NSK 7217B |
| Cage Type | Solid window cage, ball guided |
| Dynamic Load Rating | 90,000 N |
| Static Load Rating | 80,000 N |
| Rolling Elements | Balls |
| Item Weight | 1.82 kg (4.01 lb) |
| Cage Material | Glass-fibre reinforced polyamide |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Contact Angle | 40° |
| Part Number | 7217BTVP |
| Limiting Speed | 4,500 rpm |
| Cross Reference 1 | SKF 7217 BEP |
|---|---|
| Cross Reference 2 | NSK 7217B |
| Cross Reference 3 | NTN 7217B |
| Cross Reference 4 | Koyo 7217B |
| Cross Reference 5 | Nachi 7217B |
| Cross Reference 6 | SKF 7217 ACD/P4A - 25 deg vs 40 deg |
| Cross Reference 7 | NSK 7217A5 - 25 deg vs 40 deg |
| Cross Reference 8 | SKF 7217 CD/P4A - 15 deg vs 40 deg |
| Cross Reference 9 | NSK 7217C - 15 deg vs 40 deg |

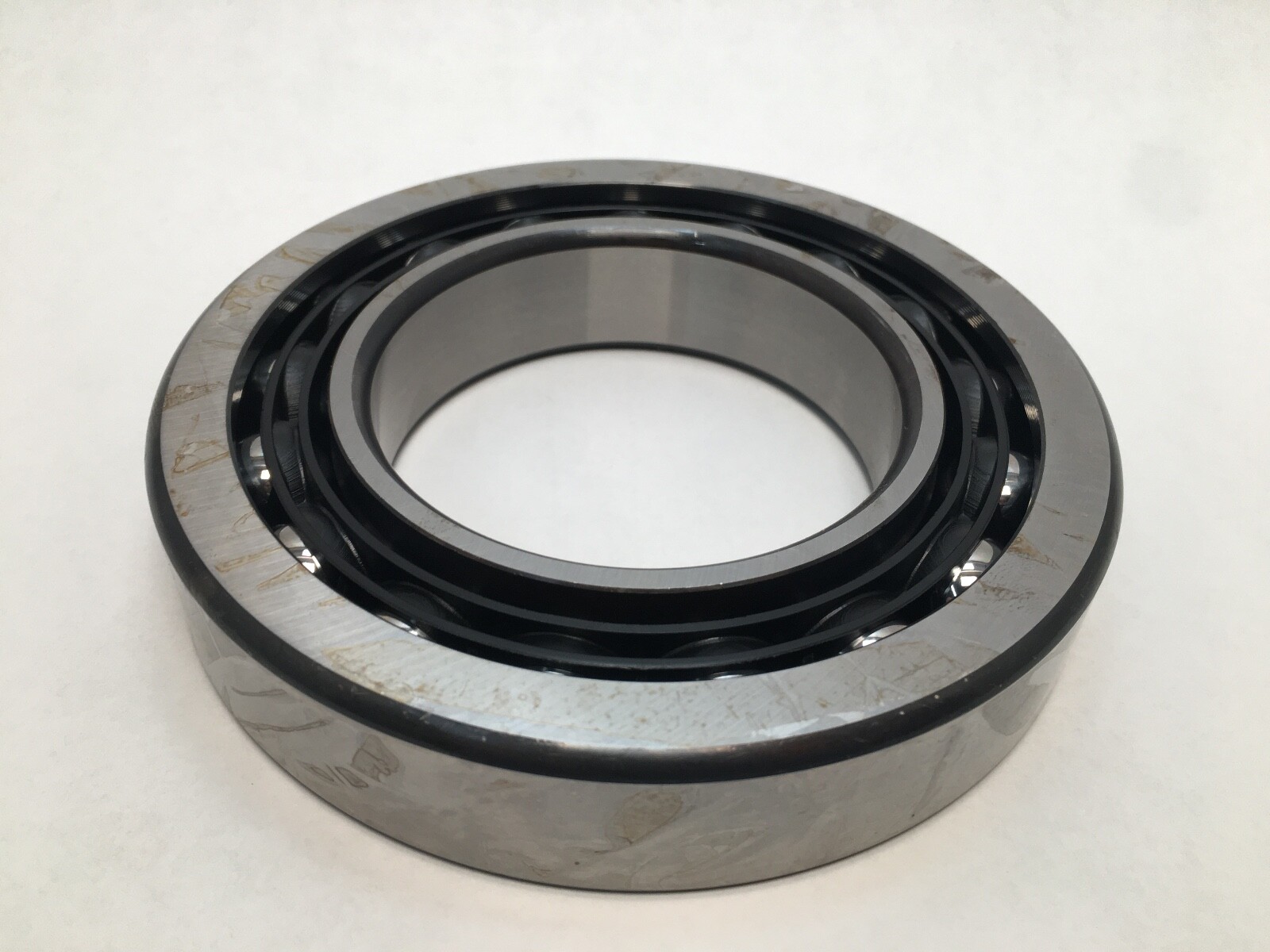

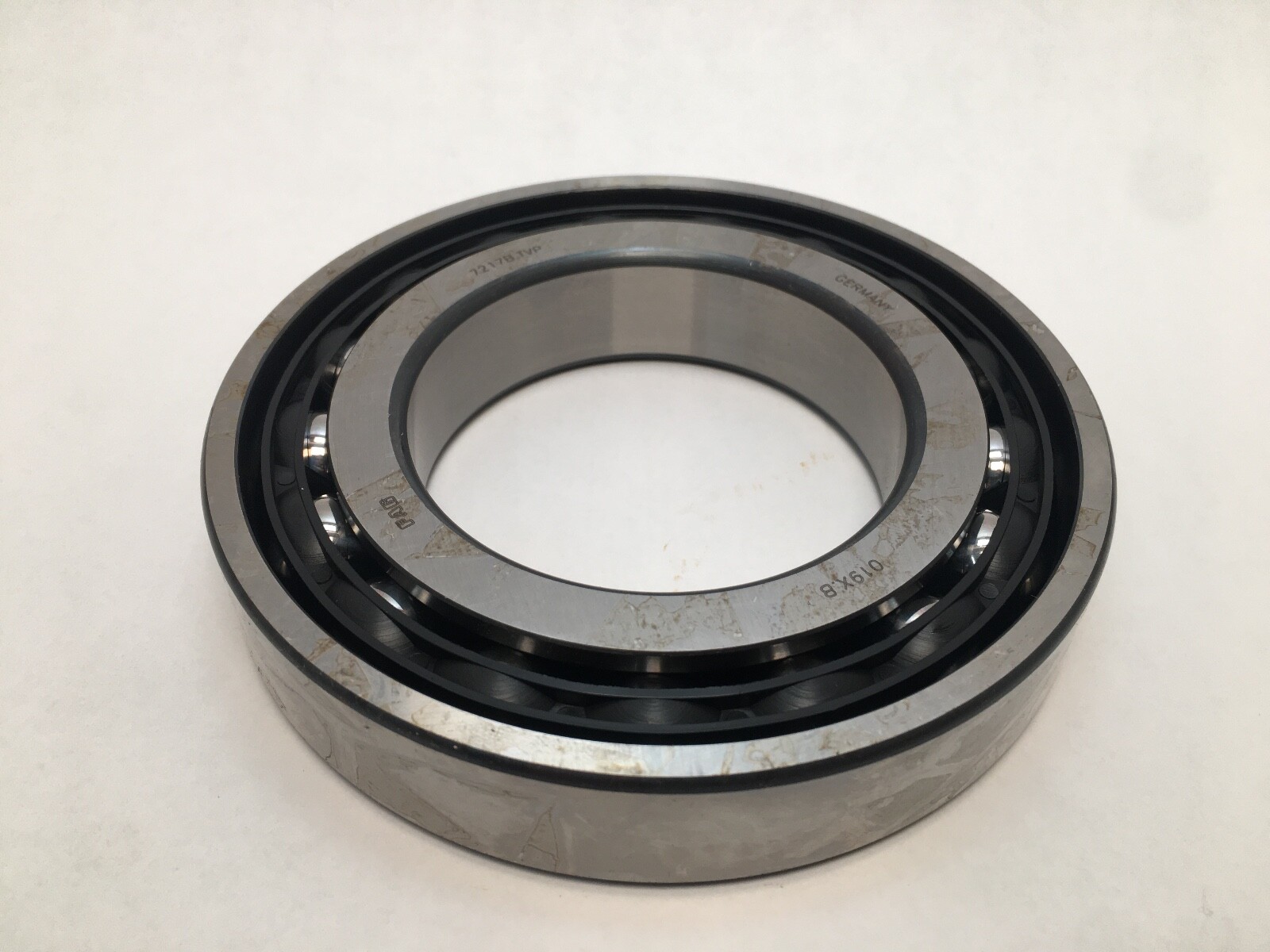

FAG 7217-B-TVP, a single-row angular contact ball bearing, 85 mm bore, 150 mm outside diameter, 28 mm width, 40° contact angle, glass-fibre reinforced polyamide window cage, open. The outer ring is counterbored on one side. Unit Quantity: 1 Pc.
72 — single-row angular contact ball bearing, light series.
17 — bore code, 17 x 5 = 85 mm.
B — FAG modified internal design, 40° contact angle on single-row 72xx bearings.
TVP — solid window cage in glass-fibre reinforced polyamide, ball guided.

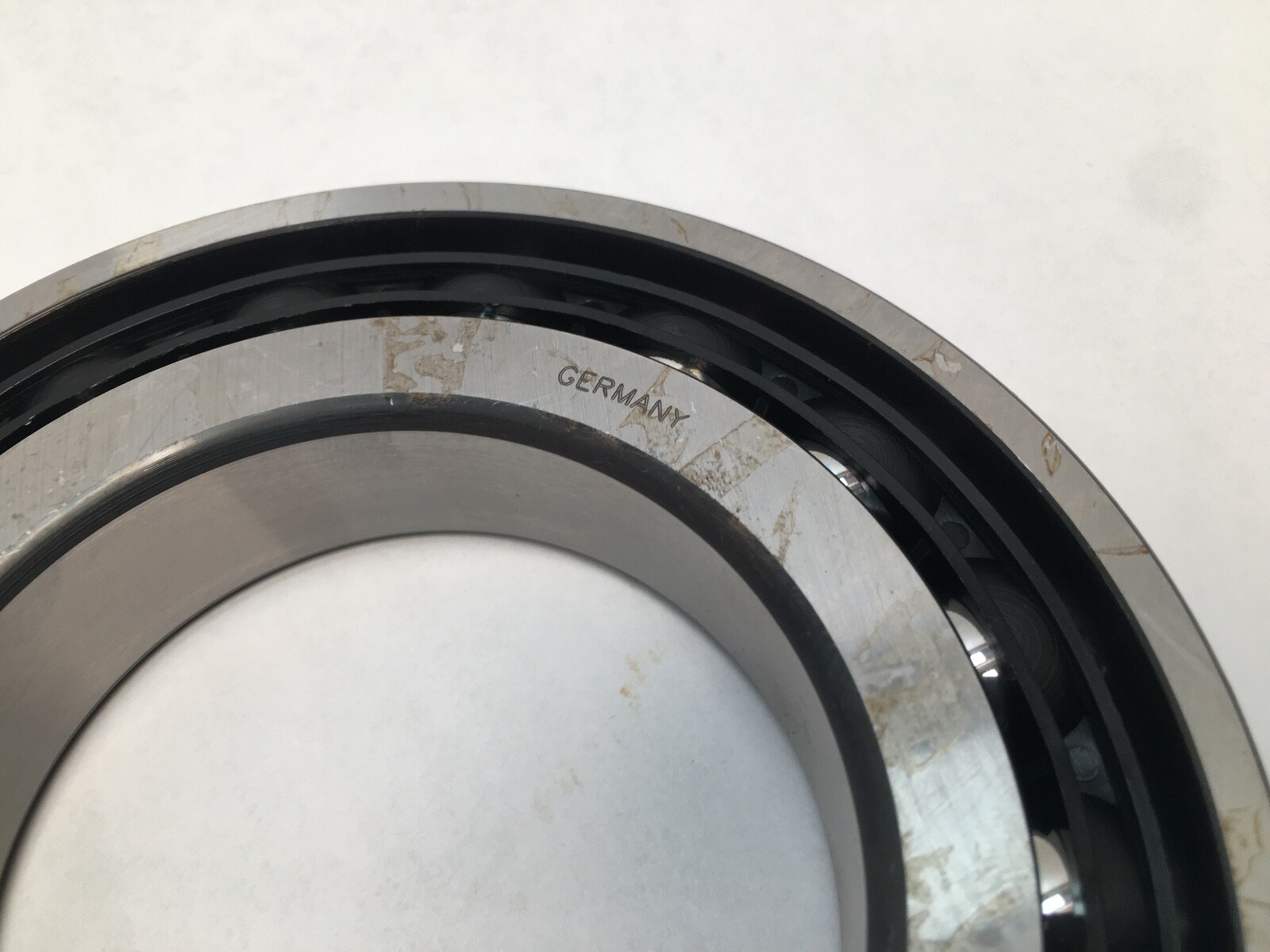

Bore Diameter: 85 mm. Outside Diameter: 150 mm. Width: 28 mm. Contact Angle: 40°. Number Of Rows: 1. Closure Type: Open. Rolling Elements: Ball. Cage Material: Glass-fibre reinforced polyamide. Cage Type: Solid window cage, ball guided. Dynamic Load Rating: 90,000 N. Static Load Rating: 80,000 N. Limiting Speed: 4,500 rpm. Item Weight: 1.82 kg (4.01 lb). Series: 72 light series. Country of Origin: Germany. Unit Quantity: 1 Pc.
Envelope 85 x 150 x 28 mm. A 40° single-row bearing carries radial load plus thrust in one direction; the high shoulder faces the thrust.
Current Schaeffler production is 7217-B-XL-TVP, with 7217-B-XL-TVP-UA and 7217-B-XL-TVP-UO as universally matchable versions, 7217-B-TVP-P5 as the precision-class build and 7217-B-MP as the machined brass cage version. Cross-references at 40° on the 85 x 150 x 28 mm envelope: SKF 7217 BEP, NSK 7217B, NTN 7217B, Koyo 7217B, Nachi 7217B. Same envelope at other angles: SKF 7217 ACD/P4A and NSK 7217A5 at 25°; SKF 7217 CD/P4A and NSK 7217C at 15°.
40°, from the FAG B code.
Dynamic Load Rating 90,000 N, Static Load Rating 80,000 N, Limiting Speed 4,500 rpm.

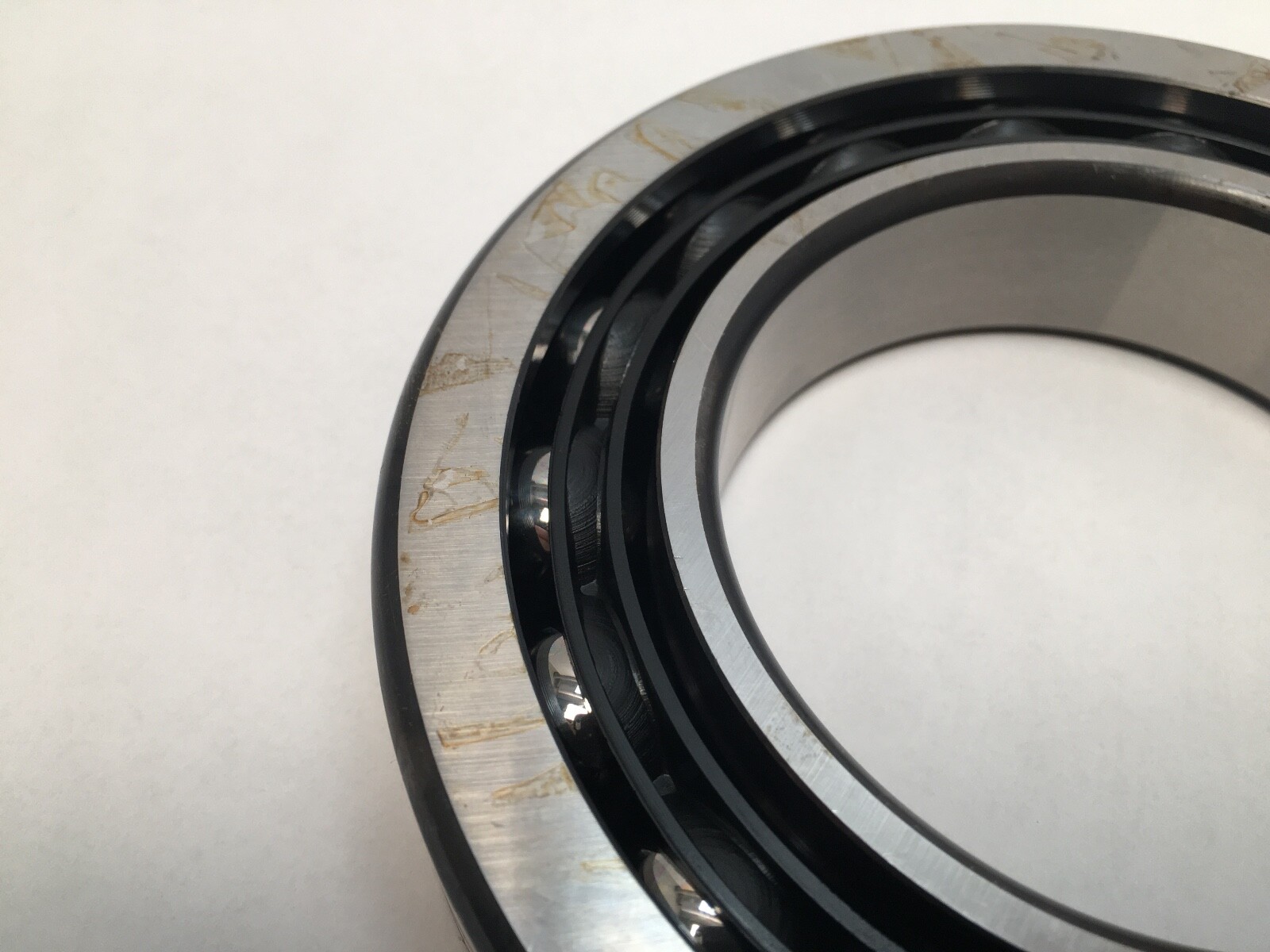

A solid window cage in glass-fibre reinforced polyamide, ball guided.
