Single-row angular contact ball bearing, 85 x 150 x 28 mm, 40° contact angle. Open, machined brass cage, 93 kN dynamic rating, 4500 rpm limiting speed.
List Price
$74.70
2 in stock
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Consolidated |
|---|---|
| MPN | 7217BG |
| Model | 7217B G |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 85 mm |
| OD | 150 mm |
| Width | 28 mm |
| Material | Chrome Steel |
|---|---|
| Series | 7200 |
| Condition | New – Open box |
| Lubricant | Oil |
| Base Number | 7217B |
| Industry Terms | 40 degree angular contact bearing; heavy thrust angular contact; brass cage angular contact ball bearing; 7217 bearing |
| Common Misspellings | 7217 BG bearing; 7217-BG; 7217BG-FAG; 7217 B G |
| Application Types | Pump and compressor thrust locations; gearbox input shafts; vertical shafts; worm gear drives |

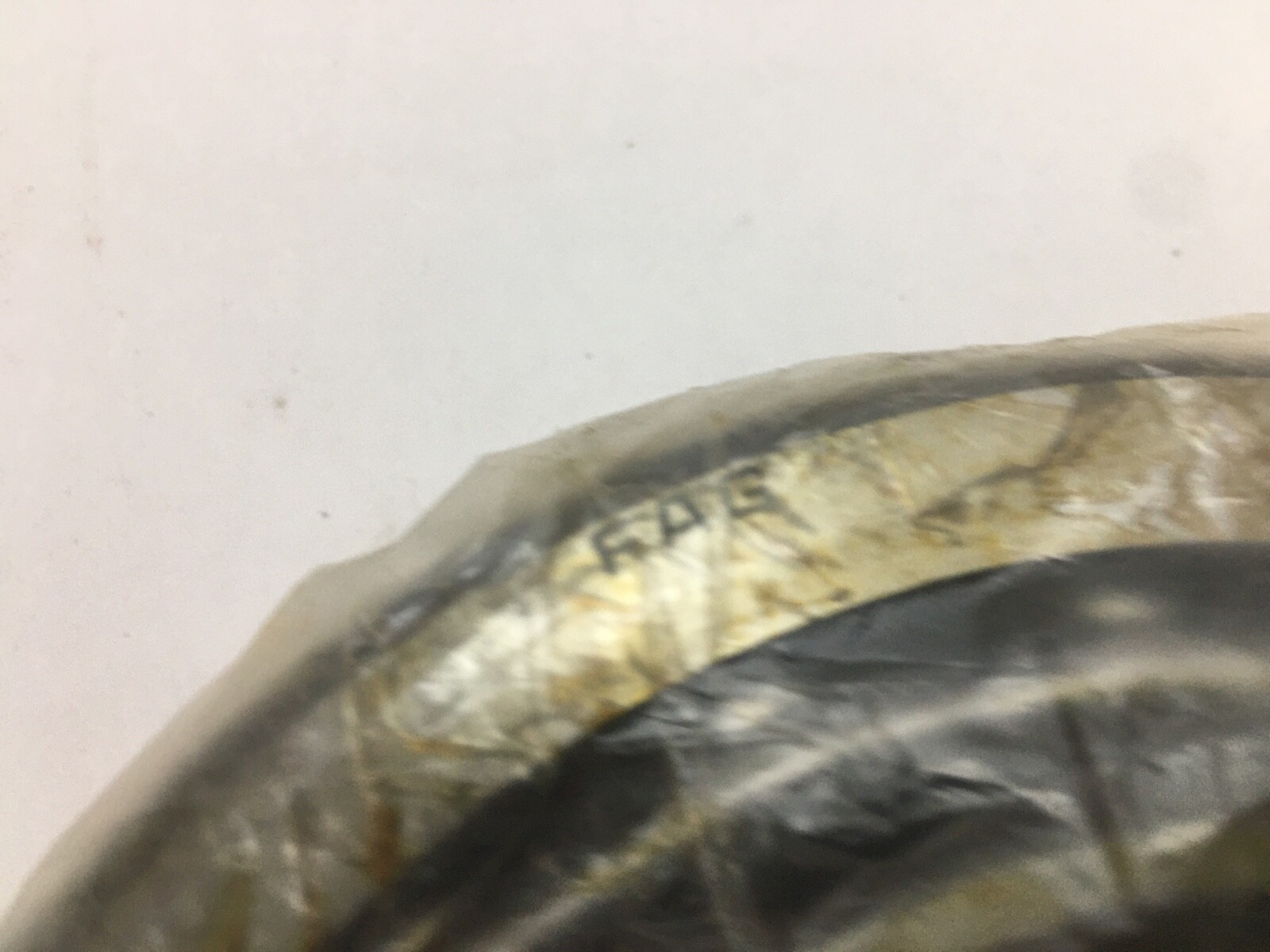

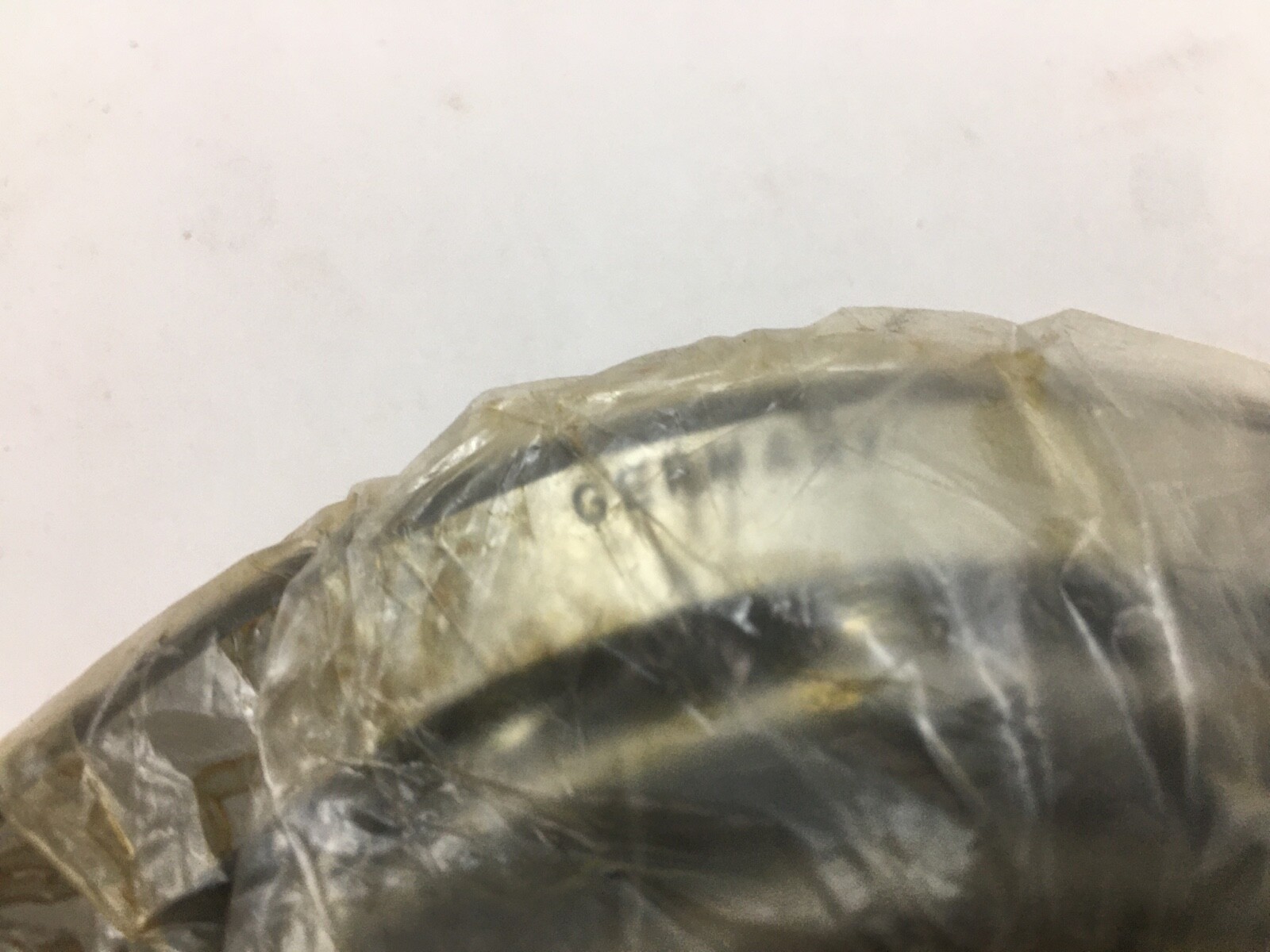

| Condition Note | New Old Stock, FAG Bearing, Made In Germany |
| Bore Shaft Size | 85 mm (3.3465 in), straight bore |
| Mpn Variants | 7217BG; 7217 BG; 7217-B-G; 7217B; 7217-B; 7217 B |
| Arrangement Configuration | Single bearing, non-separable, takes axial load in one direction |
| Precision Class | P0 (ISO Normal, ABEC 1) |
| Additional Attributes | Non-separable single-row design. Steep 40° contact angle gives the highest axial capacity of the 72-series angular contact range. Mounted in opposed pairs or against a second bearing to locate the shaft in both directions. |
| Min Temp | -30 °C |
| Cage Type | Machined Brass |
| Dynamic Load Rating | 93 kN |
| Static Load Rating | 83 kN |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 3.50 lb (1.59 kg) |
| Cage Material | Machined brass |
| Limiting Speed | 4500 |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without snap ring |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 40° |
| Design Units | Metric |
| Part Number | 7217BG |
| Cross Reference 1 | SKF 7217 BM |
|---|---|
| Cross Reference 2 | NSK 7217B |
| Cross Reference 3 | FAG 7217-B-MP (same envelope, machined brass cage) |
| Cross Reference 4 | FAG 7217-B-TVP (related size, glass-fibre polyamide cage) |
| Cross Reference 6 | Koyo 7217B |
| Cross Reference 7 | 7217BG suffix G (unverified carton suffix, retained for search) |
| Cross Reference 8 | B7217-C-T-P4S-UL (related size, 15° super-precision, P4S class) |

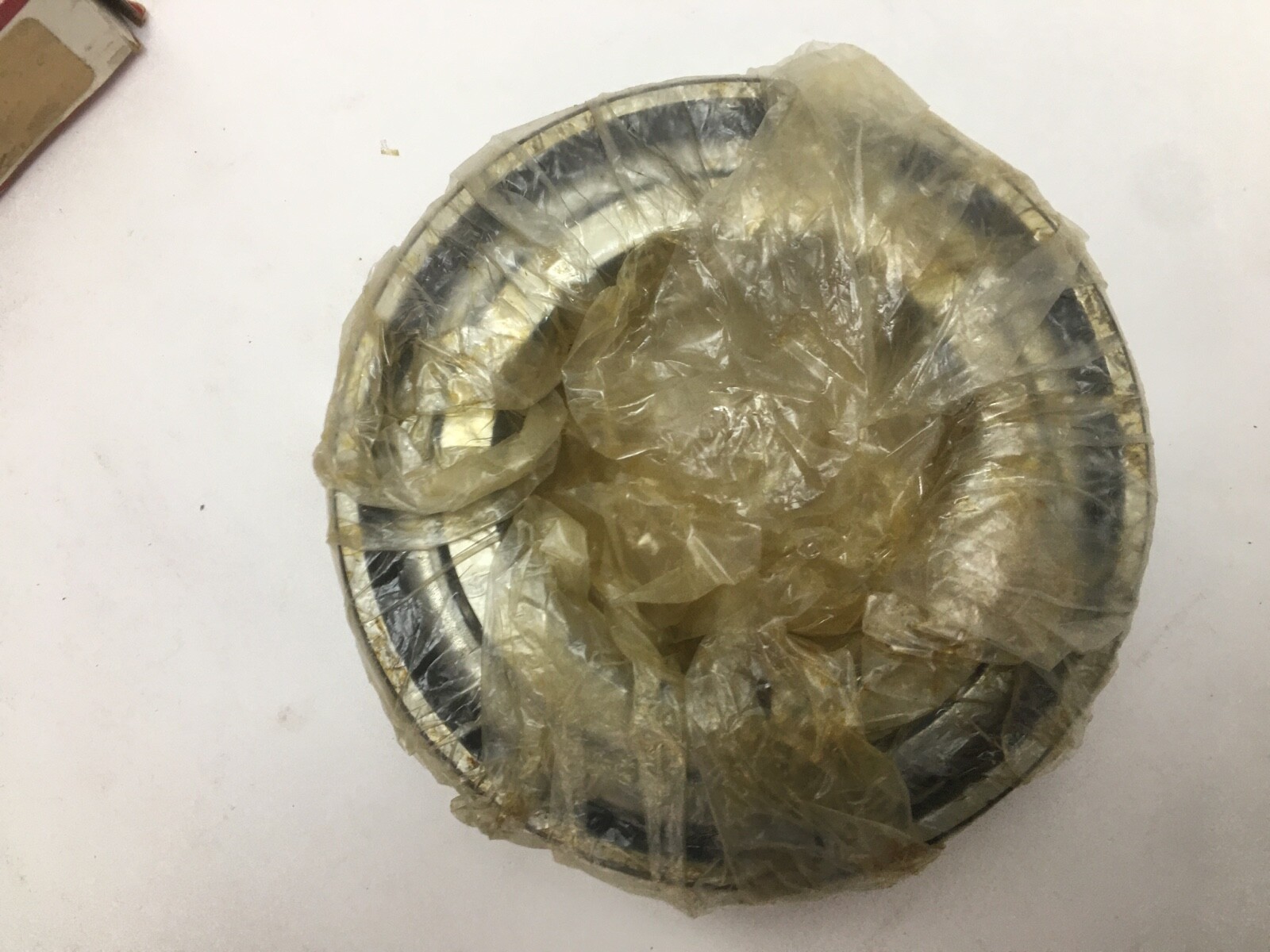

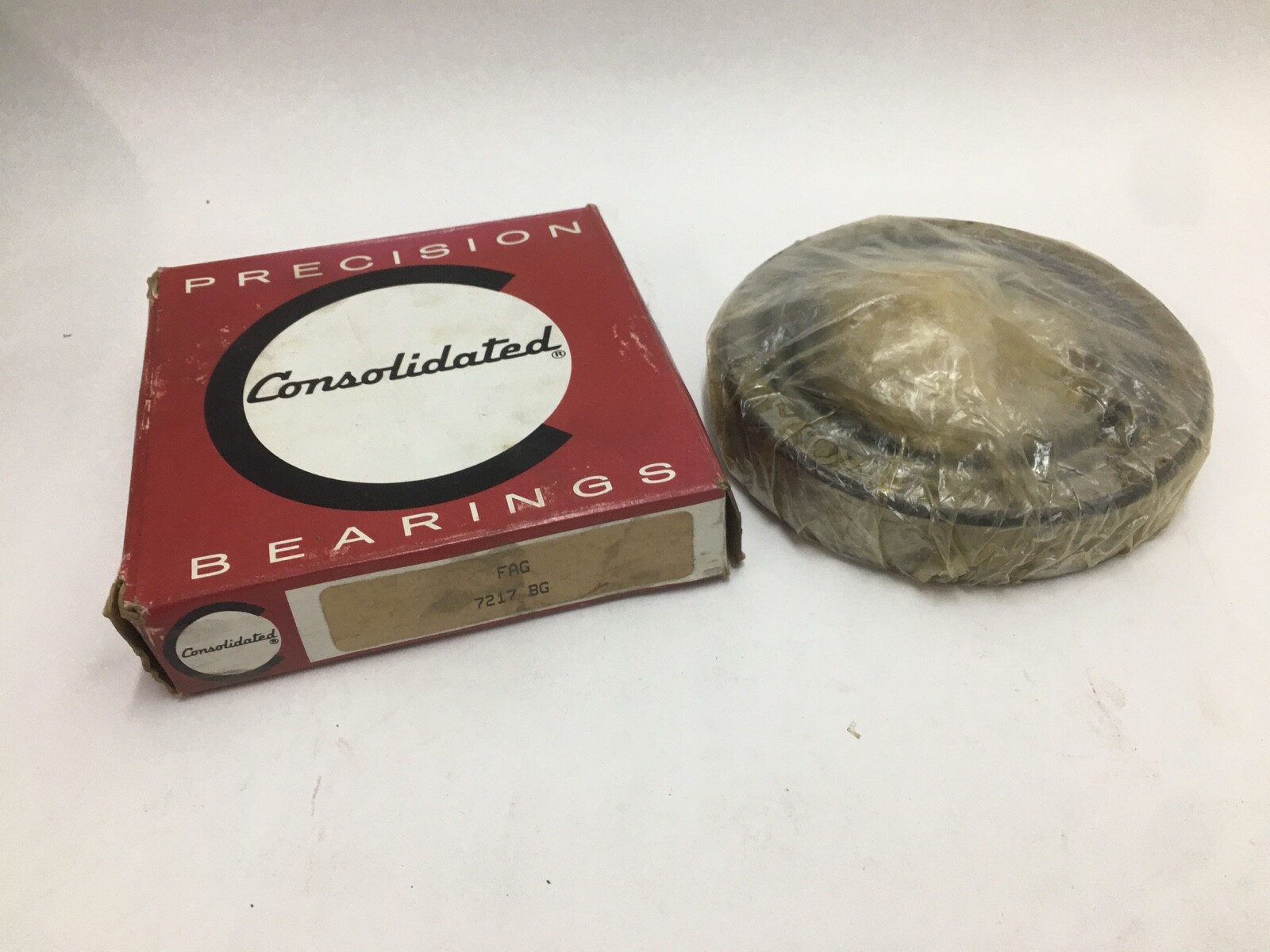

A 7217B single-row angular contact ball bearing, 85 mm bore by 150 mm outside diameter by 28 mm wide, with a 40° contact angle, a machined brass cage and open faces. The record carries a Consolidated brand field and a FAG carton marking; the 7217B designation is an ISO number common to both.
72 is the light angular contact dimension series and 17 is the bore code, giving an 85 mm bore. The B denotes the 40° contact angle in the FAG scheme. A machined brass cage of this kind is catalogued by FAG as an MP execution.
A 40° contact angle is the steepest in the single-row angular contact range, so this bearing carries the highest axial load and the least radial load of the family — the opposite trade to a 15° contact bearing, which spins faster and takes far less thrust. Dynamic rating is 93 kN and static rating 83 kN, with a 4500 rpm limiting speed. The machined brass cage tolerates higher temperature and shock loading than a moulded polyamide cage, and is the reason the same envelope is offered in two cage executions.
1 Pc. Single bearing, non-separable, open on both faces, without a snap ring. Axial load is taken in one direction only.
The bearing locates the shaft in one direction, so it is normally mounted against a second angular contact bearing or an opposing location bearing. The wide land is the load-carrying side and faces the thrust. Straight bore, mounted directly on the shaft seat.
SKF 7217 BM, NSK 7217B, NTN 7217B and Koyo 7217B are direct interchanges on envelope, contact angle and cage type. The 7217-B-TVP shares the envelope but substitutes a glass-fibre polyamide cage, which changes the temperature and shock limits, so it is a related size. The B7217-C-T-P4S-UL is a 15° super-precision bearing in the same envelope and a different part entirely.
