This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing - Straight Bore, 90 mm ID, 190 mm OD, 43 mm Width, Open, 40° Contact Angle, CN Internal Clearance.$197.00
Super Precision Angular Contact Ball Bearing 90x140x24 mm 15° ABEC 7 Light Preload$168.28
Angular Contact Ball Bearing, 90 mm ID, 160 mm OD, 30 mm, 15°$212.54
Angular Contact Ball Bearing - 90 mm ID, 160 mm OD, 30 mm Width, 15° Contact Angle, Medium Preload, Phenolic Cage, ISO P4$220.92| MFR / Brand | MRC |
|---|---|

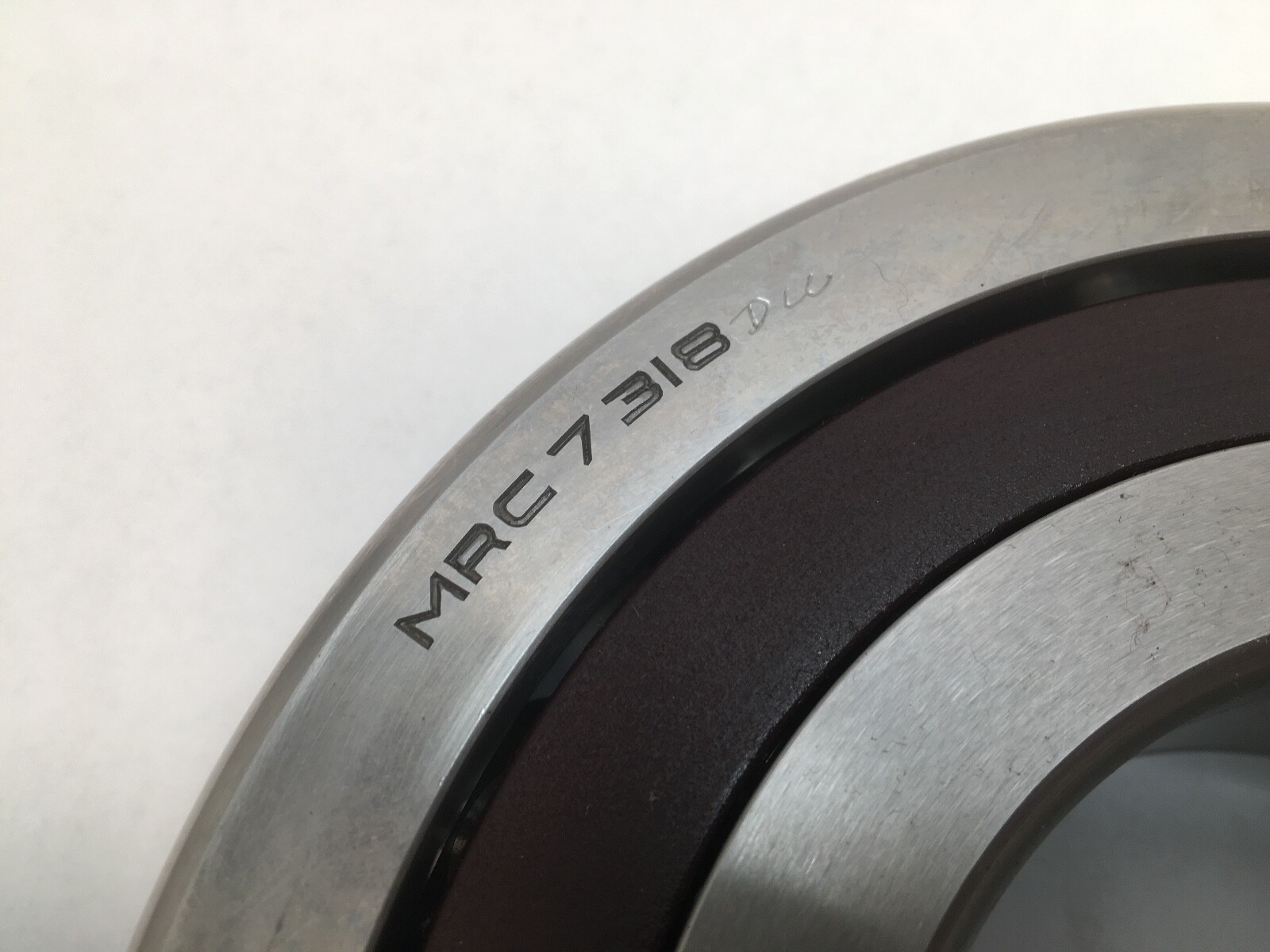

| MPN | 7318DU |

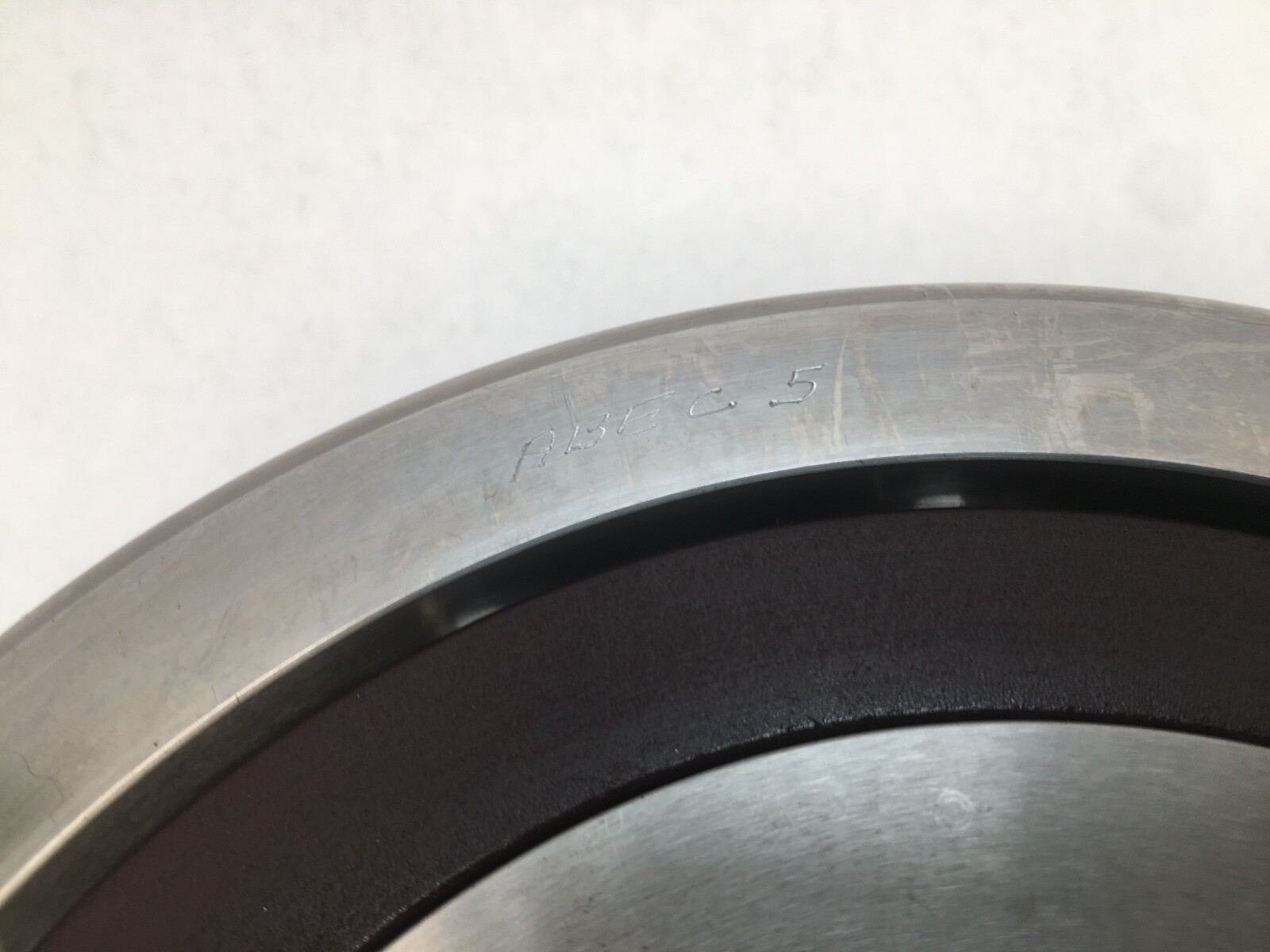

| Model | 7318D U ABEC5 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 90 mm |
| OD | 190 mm |
| Width | 43 mm |
| Material | Chrome Steel |
|---|---|
| Series | 7300 |
| Min Temp | -40 °C |
| Cage Type | Machined |
| Dynamic Load Rating | 151 kN / 33946 lbf |
| Static Load Rating | 143 kN / 32147 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Max Temp | 121 °C |
| Item Weight | 10.5 lbs |
| Cage Material | Bronze |
| Limiting Speed | 5300 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 40° |
| Mounting Arrangement | Duplex |
| Cross Reference 1 | SKF 7318 BECBM |
|---|---|
| Cross Reference 2 | FAG 7318-B-XL-MP |
| Cross Reference 3 | NTN 7318B |
Angular contact bearings – 90 mm ID, 190 mm OD, 43 mm Width, Open, 40°.
$231.30
29 in stock
$43.50
29 in stock
$73.22
35 in stock
$43.50
29 in stock
