Angular Contact Ball Bearing — 190 mm ID, 340 mm OD, 55 mm Width, 40°, Light Preload, P5, Brass Cage$1,627.03
Angular Contact Ball Bearing — Super-Precision P4A, 190 mm ID, 260 mm OD, 33 mm Width, 25° Contact Angle, Universally Matchable, Extra Light Preload$2,714.93
Angular Contact Ball Bearing — 55 mm ID, 80 mm OD, 13 mm Width, 15° Contact Angle, ABEC 7 / P4$152.05
Double Row Angular Contact Ball Bearing - 40 mm ID, 80 mm OD, 30.2 mm Width, Straight Bore, One Steel Shield, 30 Degree$25.49| MFR / Brand | Gulf |
|---|---|
| MPN | 7038CTP4UL |
| Model | 7038 C T P4 UL / 2MM9138WI CR SUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 190 mm |
| OD | 290 mm |
| Width | 46 mm |
| Material | Chrome Steel |
|---|---|
| Series | 7000 |
| Lubricant | Oil |
| Preload | Light |
| Min Temp | -30 °C |
| Cage Type | Phenolic |
| Dynamic Load Rating | 260 kN |
| Static Load Rating | 325 kN |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 16.5 lbs |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal |
| Limiting Speed | 2600 rpm |
| Cross Reference 1 | SKF 7038 CDGA/P4 |
|---|---|
| Cross Reference 2 | NSK 7038CTYNSULP4 |

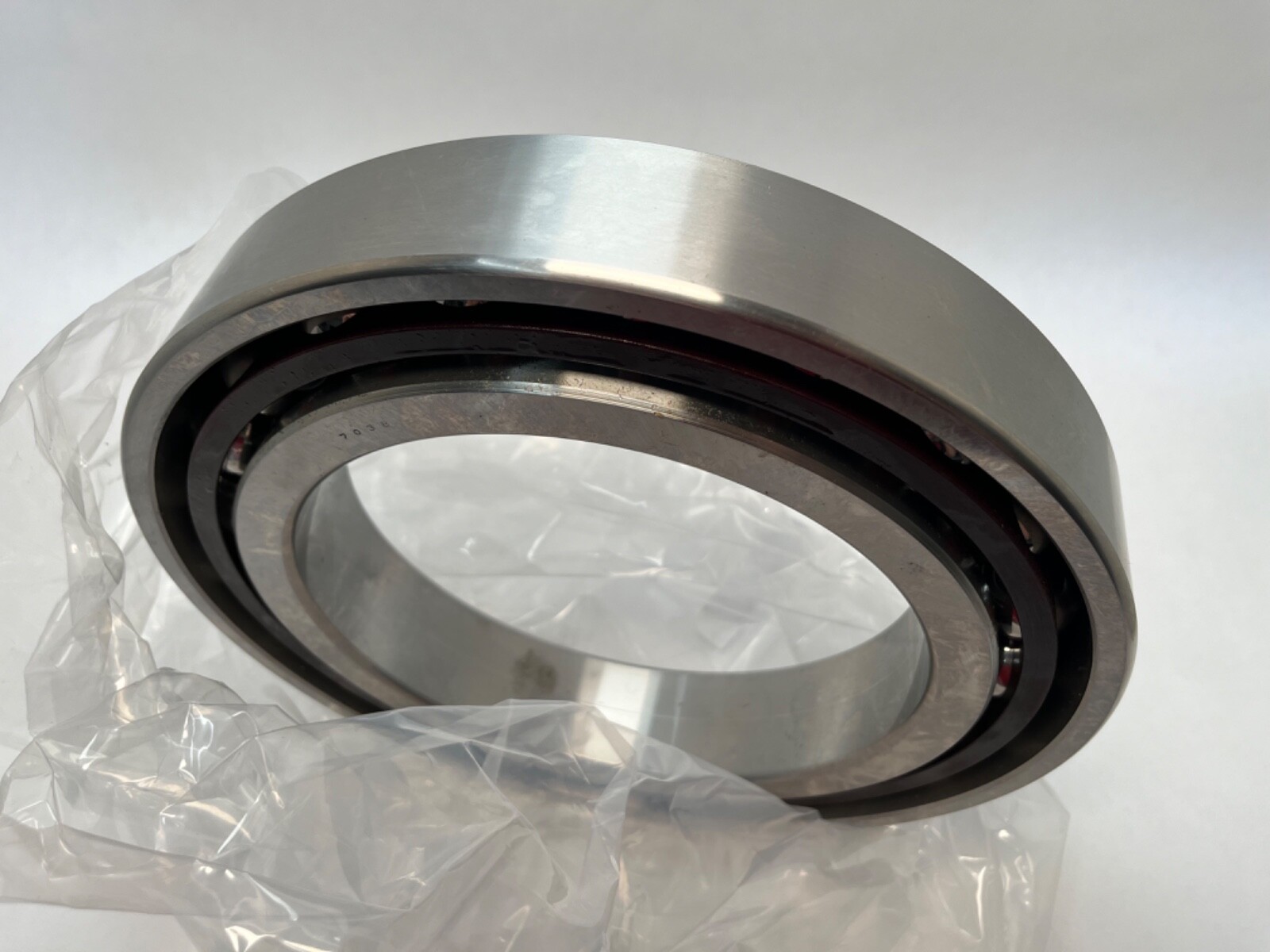

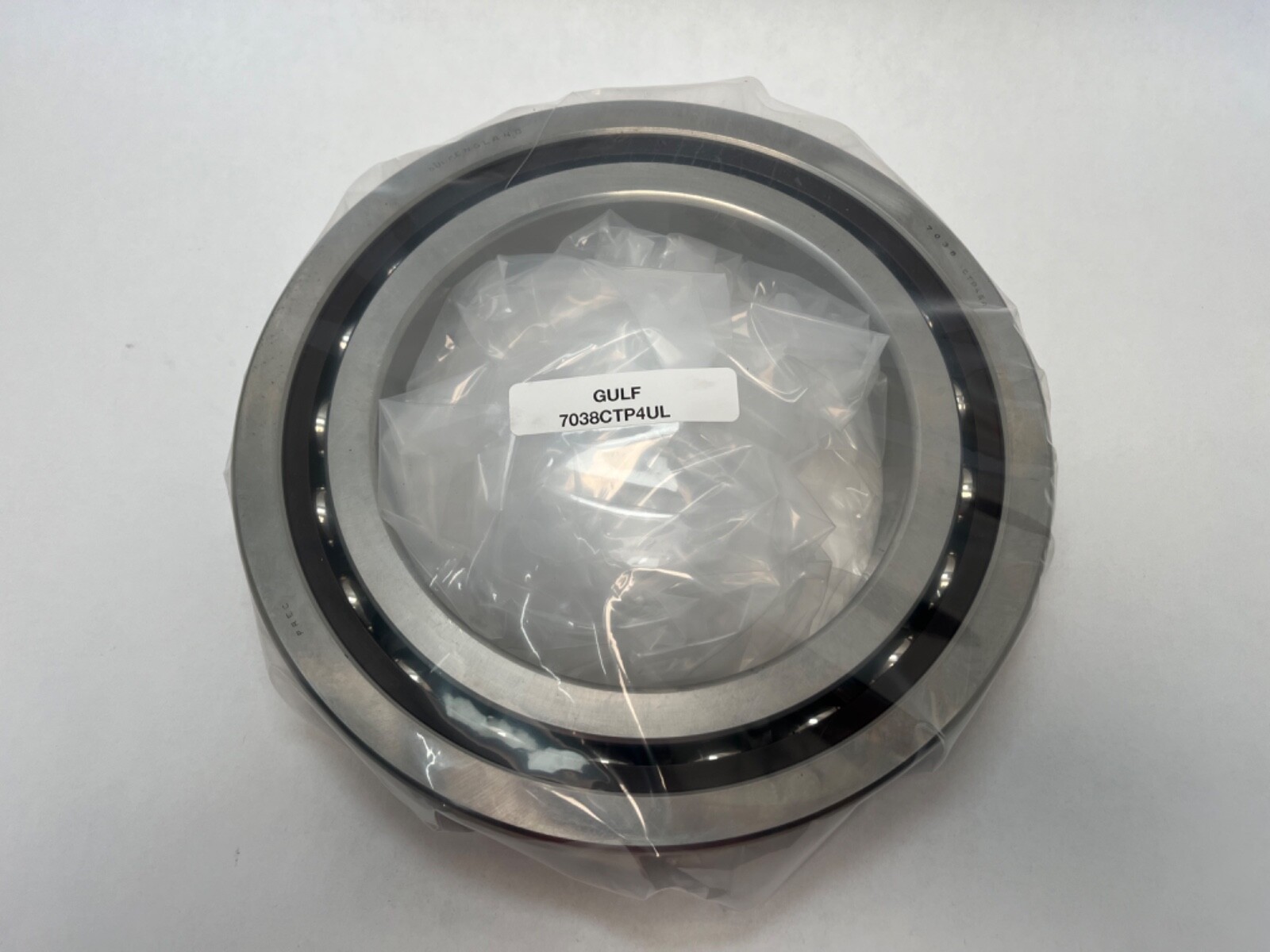

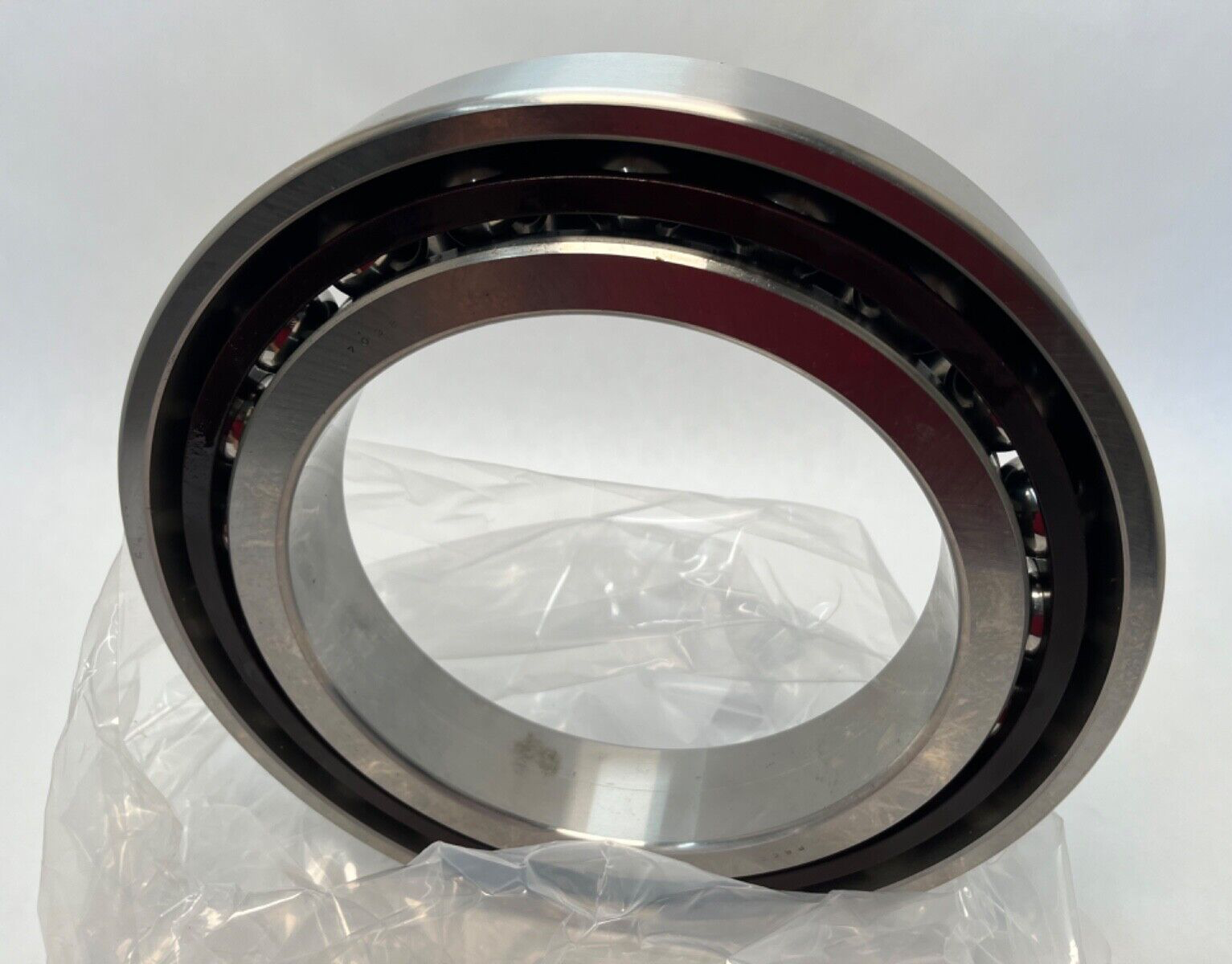

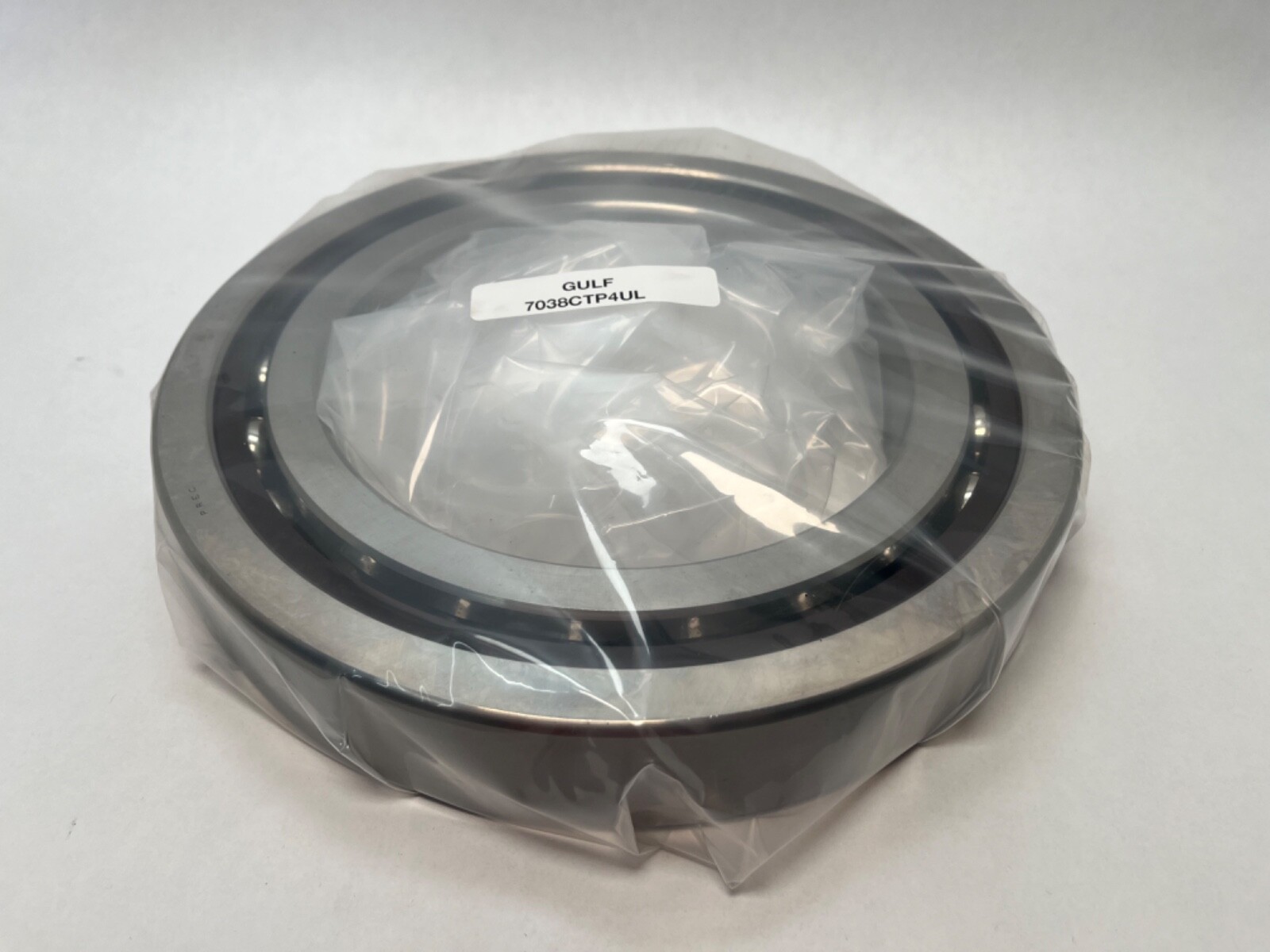

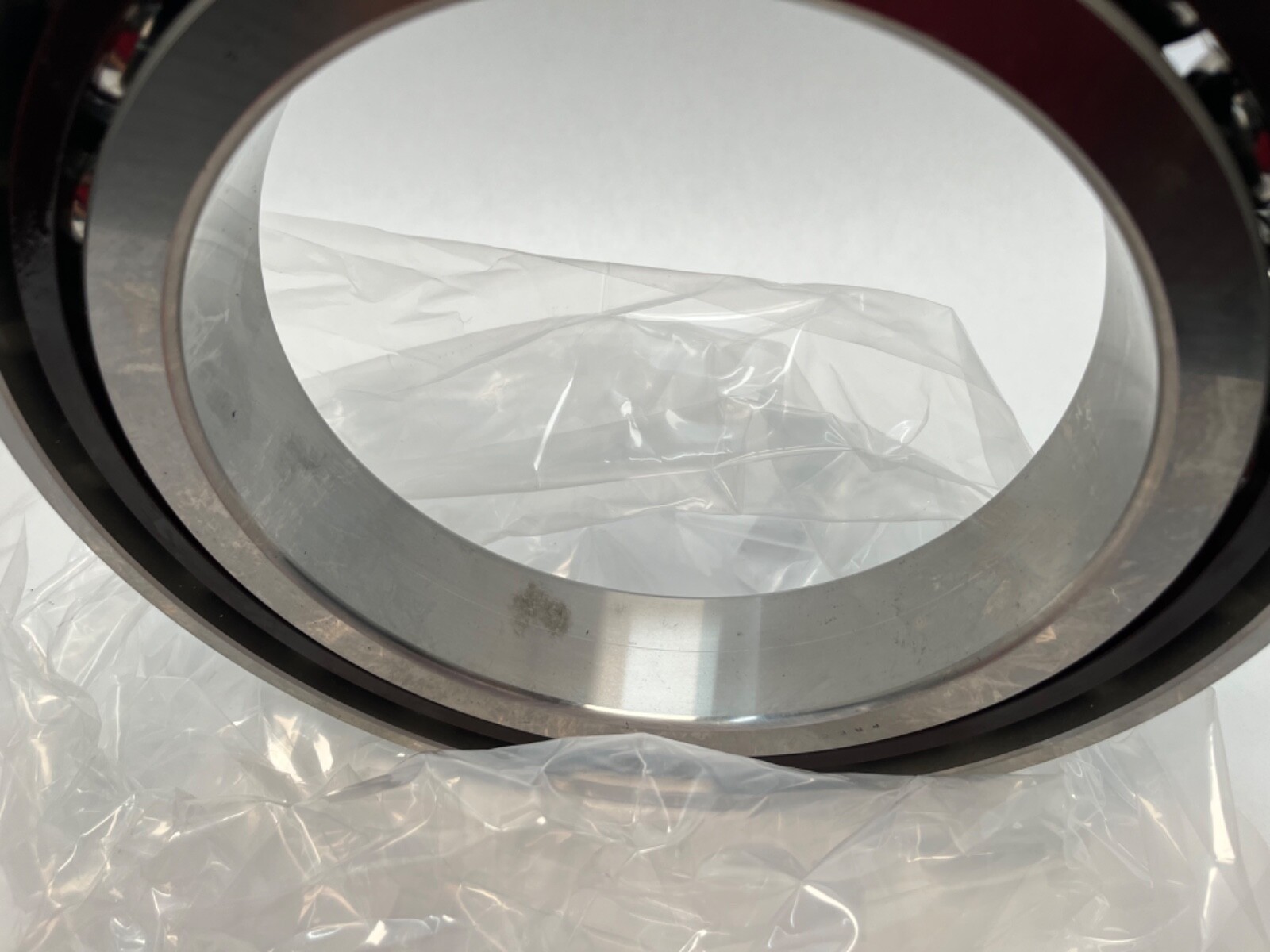

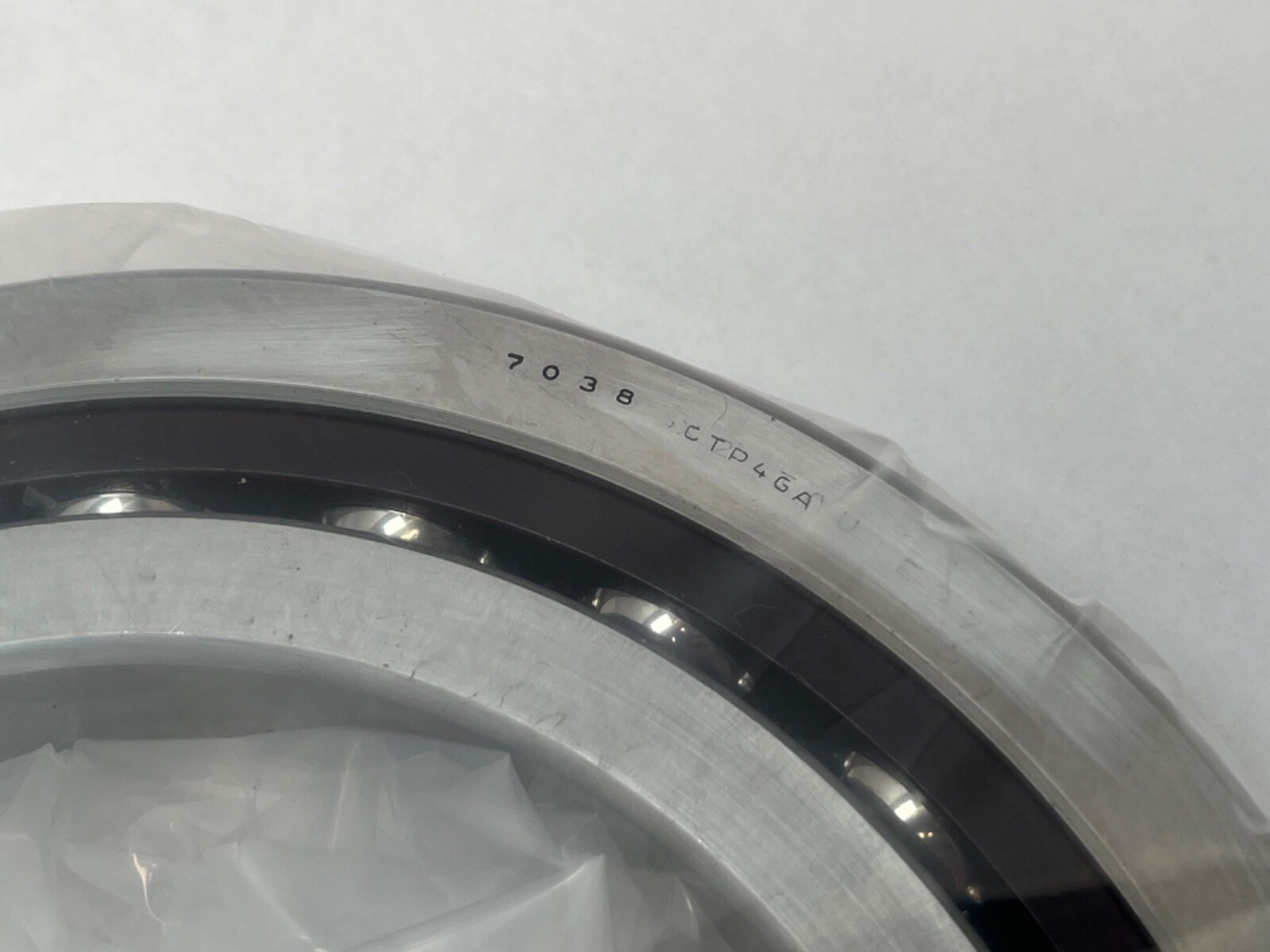

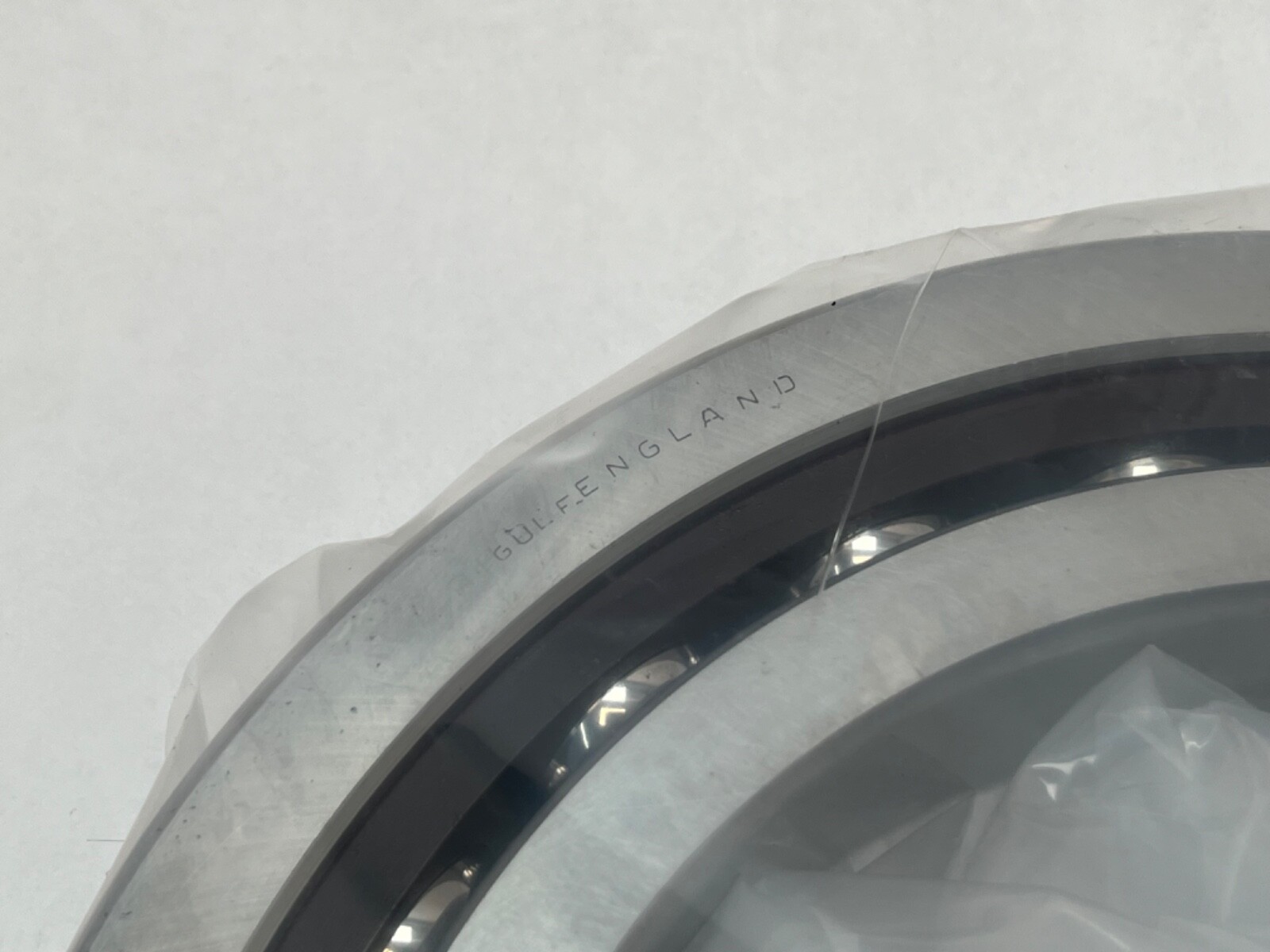

Introducing the Gulf 7038CTP4UL Angular Bearing, a premium-quality ball bearing crafted to enhance your industrial automation and motion control systems. Engineered by Gulf in the United Kingdom, this angular contact ball bearing is a reliable solution for ensuring smooth and efficient power transmission in diverse mechanical applications.
With a precise bore diameter of 190 mm (approximately 7.48 inches) and an outer diameter of 290 mm (about 11.42 inches), the Gulf 7038CTP4UL offers exceptional dimensional accuracy. Its robust width of 92 mm (around 3.62 inches) promises durability and longevity, making it ideal for high-load applications.
This bearing type is designed to withstand radial and axial loads, ensuring stability and performance. Made from high-quality steel, it boasts excellent resistance to wear and tear, contributing to reduced maintenance costs and extended service life.
Upgrade your machinery with the Gulf 7038CTP4UL Angular Bearing and experience the difference in performance and efficiency. Ideal for professionals in manufacturing, machinery assembly, and mechanical repair, this bearing stands out as a trusted choice for quality and reliability.
$111.47
35 in stock
$227.83
45 in stock
