Availability:
Out of stock
List Price
$33.91
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing Duplex Pair - 45 mm ID, 85 mm OD, 19 mm Width, 15° Contact Angle, Light Preload, ABEC 7/9 P4S$42.41
Super-Precision Angular Contact Ball Bearing Pair – 45 mm Bore, 85 mm OD, 19 mm Width, 15°, Medium Preload$51.13
Angular Contact Ball Bearing - 45 mm ID, 85 mm OD, 19 mm Width, 15° Contact Angle, P4S, Medium Preload Duplex$55.28
Super-Precision Angular Contact Ball Bearing – 45 mm ID, 85 mm OD, 19 mm Width, Open, 15° Contact Angle, Phenolic Cage, Light Preload$76.05| MFR / Brand | GMN |
|---|---|
| MPN | S6209 |
| Model | S 6209 / 7209 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 19 mm |
| Series | 6200 |
|---|---|
| Lubricant | Oil |
| Preload | Light Pre-Load (230 N) |
| Material | Bearing Steel |
| Retaining Feature | Ball |
| Dynamic Load Rating | 45.5 kN / 10228 lbf |
| Static Load Rating | 33.5 kN / 7531 lbf |
| Precision Rating | ABEC 5 / P5 |
| Item Weight | 0.917 lbs |
| Cage Material | Resin / Fabric (TA) |
| Limiting Speed | 26000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Relubrication Feature | Without |
| Contact Angle | 15° |
| Cross Reference 1 | RHP 7209A |
|---|---|
| Cross Reference 2 | NSK 7209A5 |
| Cross Reference 3 | FAG B7209-C-T-P4S |
| Cross Reference 4 | SKF 7209 ACD |

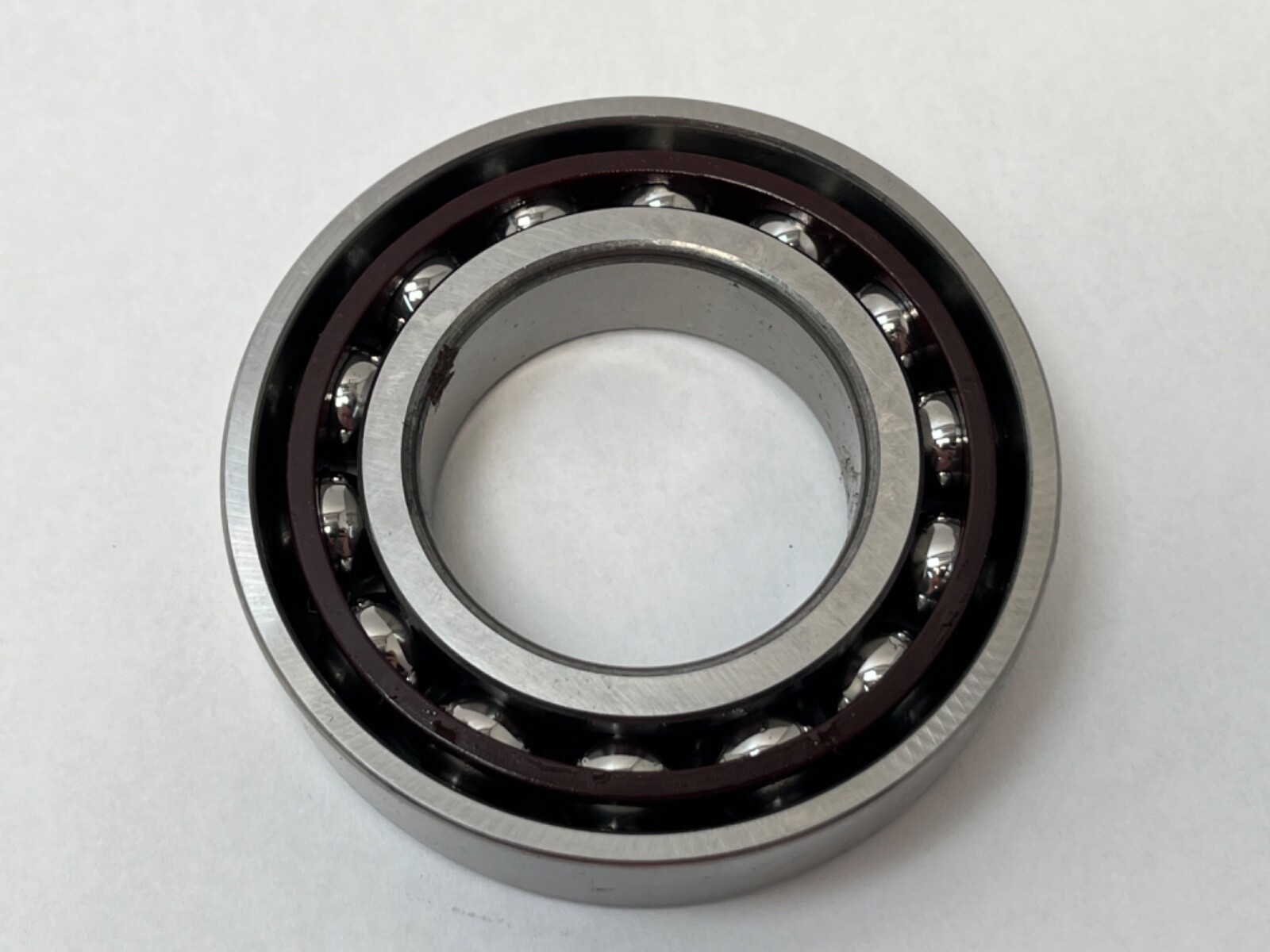

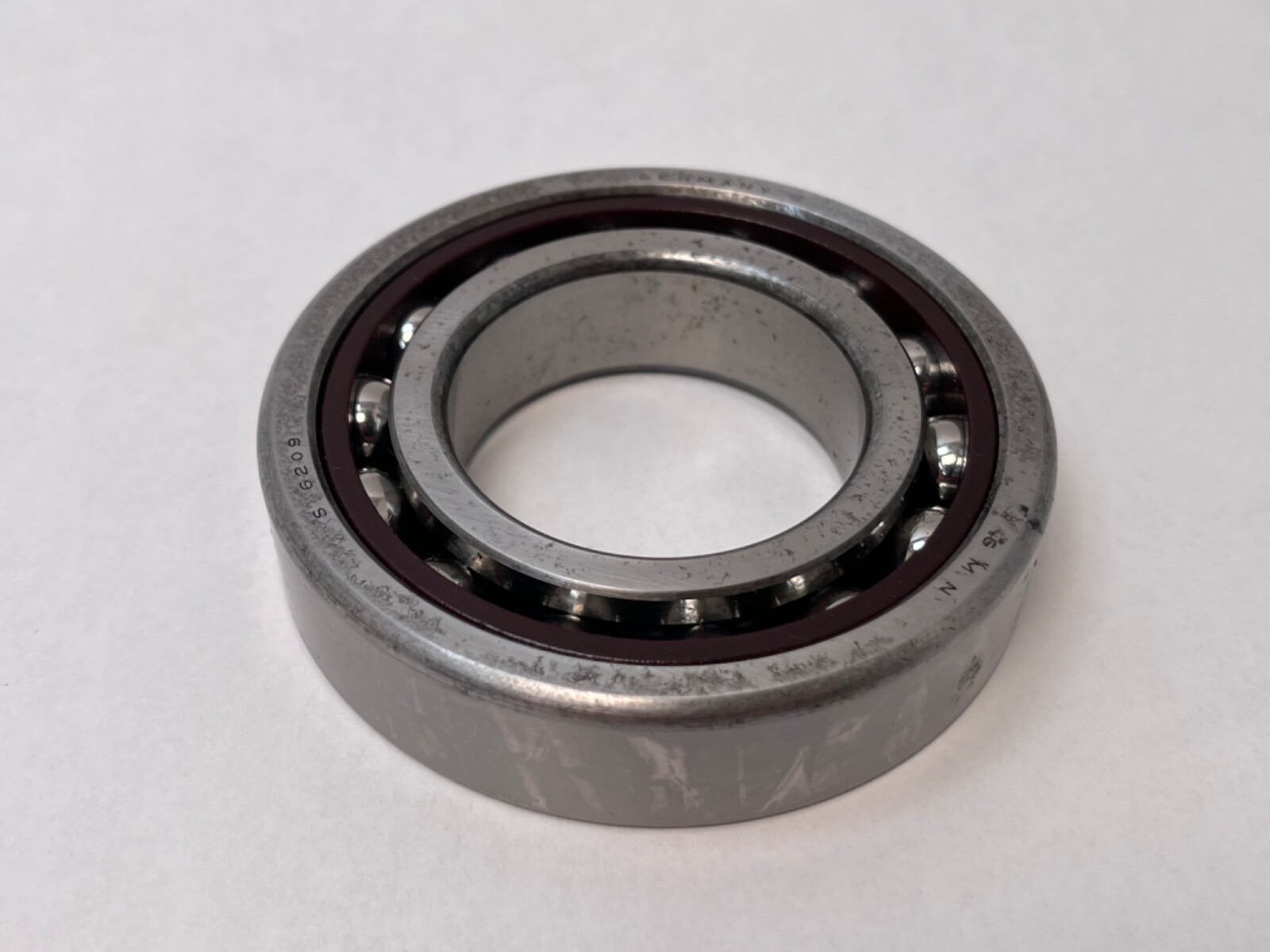

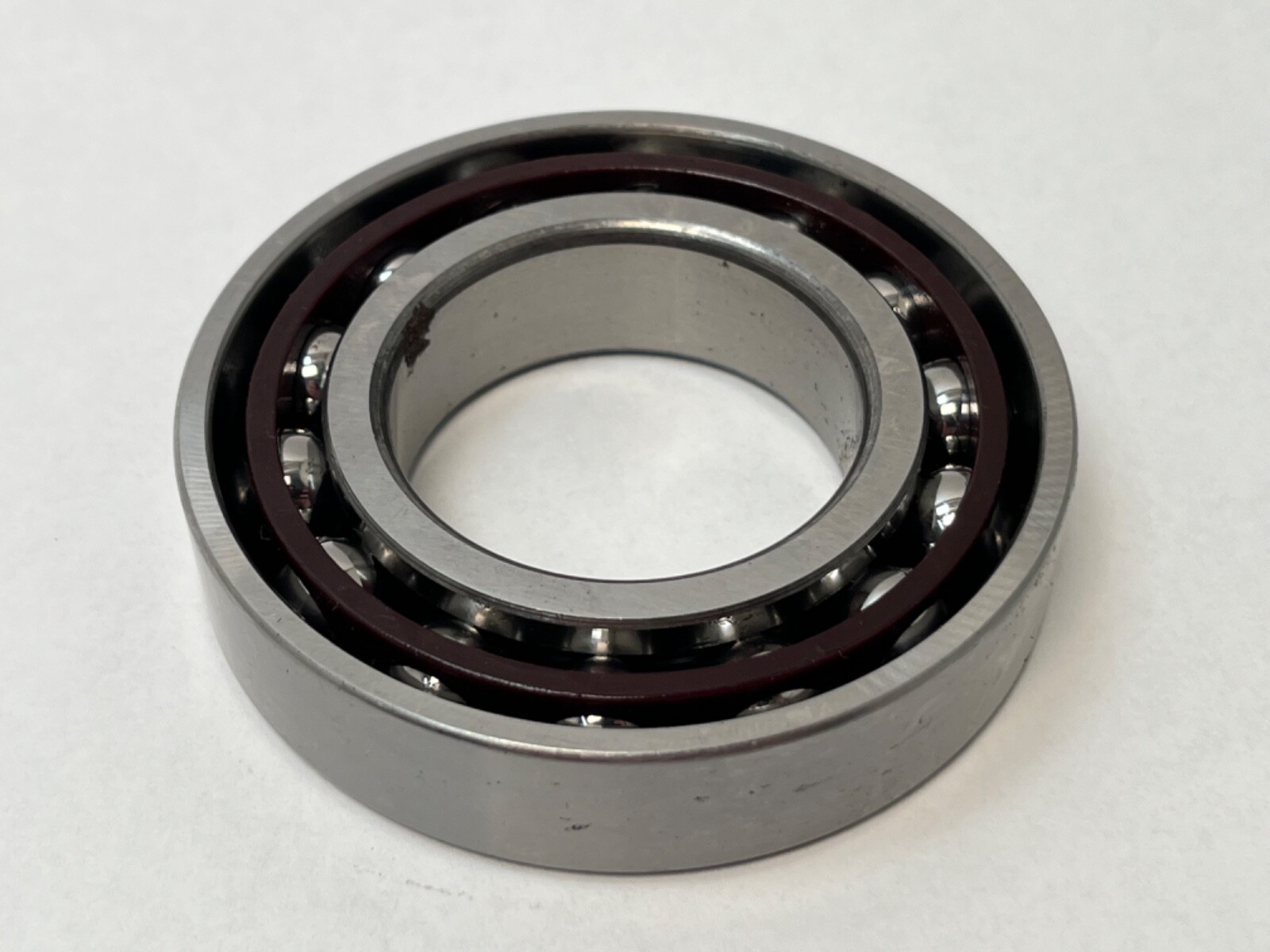

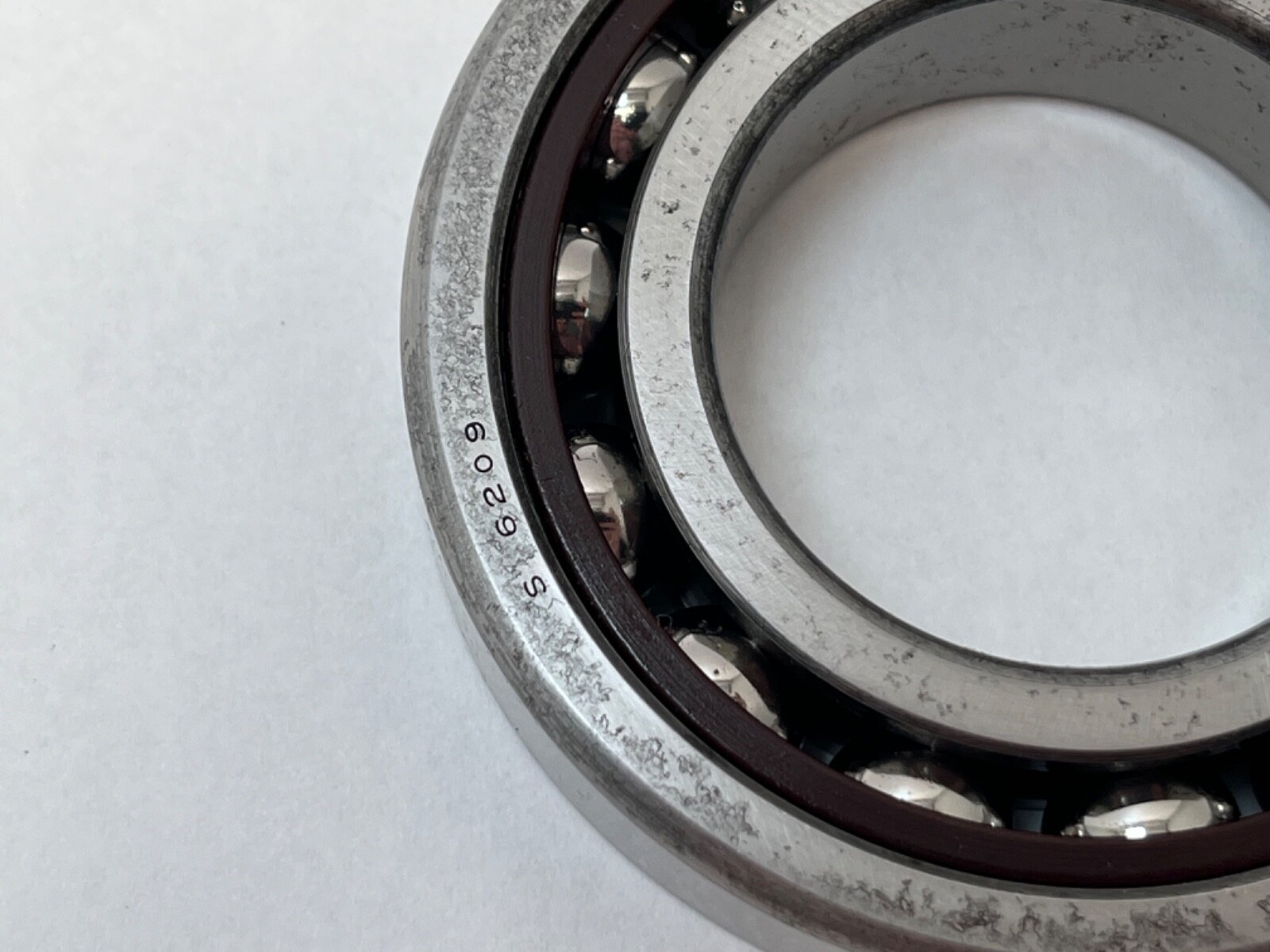

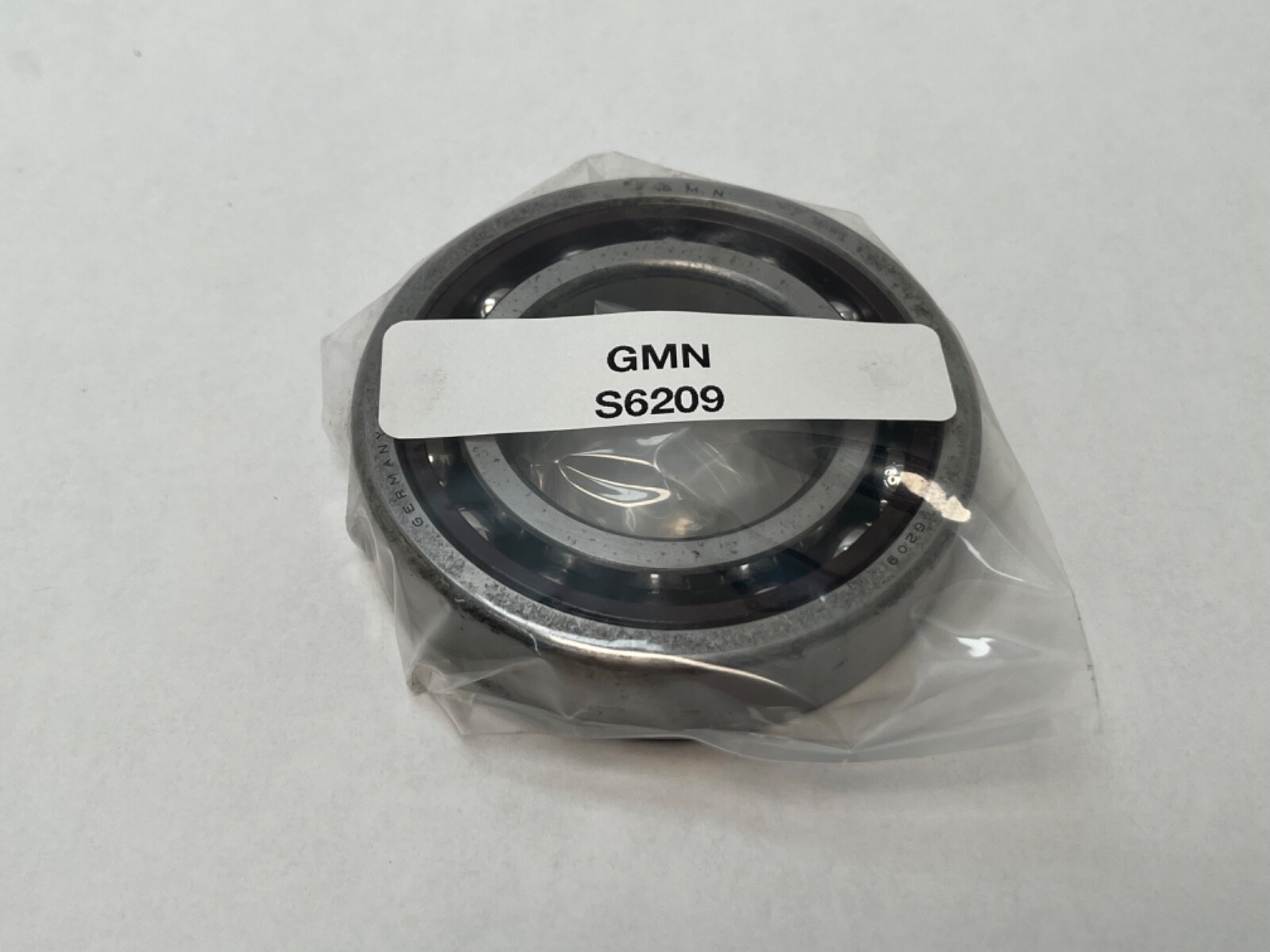

Introducing the GMN S6209 Angular Bearing: a masterpiece of engineering precision and durability. Measuring 45x85x19mm, this top-tier bearing is ideal for various applications, from machinery to automotive components. Proudly manufactured in Germany by GMN, a renowned leader in the industry, the S6209 model (also referred to as 7209) is an Angular Contact Ball Bearing specifically designed to accommodate combined loads.
Type: Angular Contact Ball Bearing
Brand: GMN
Model: S6209 / 7209
Condition: New – Open box

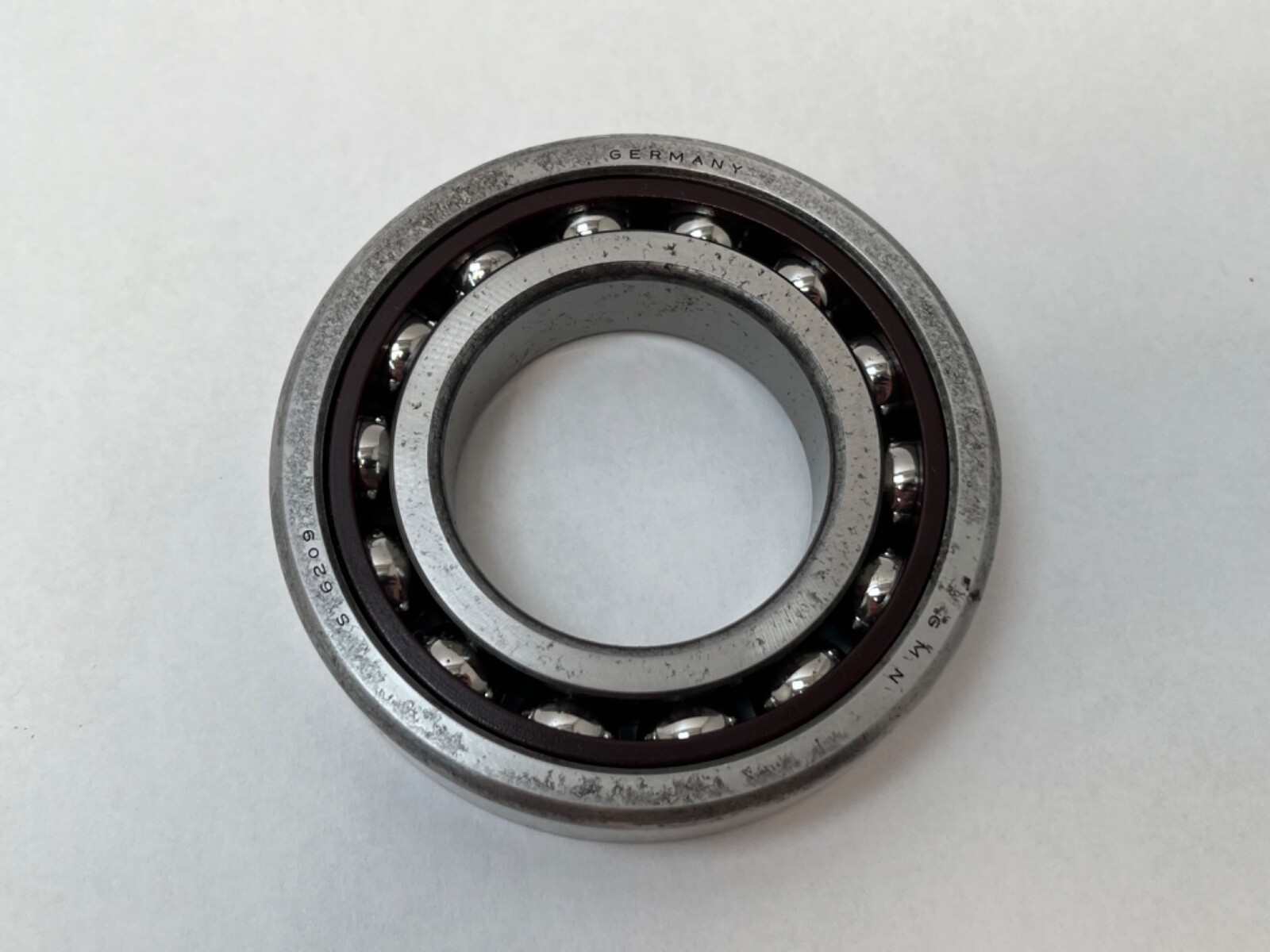

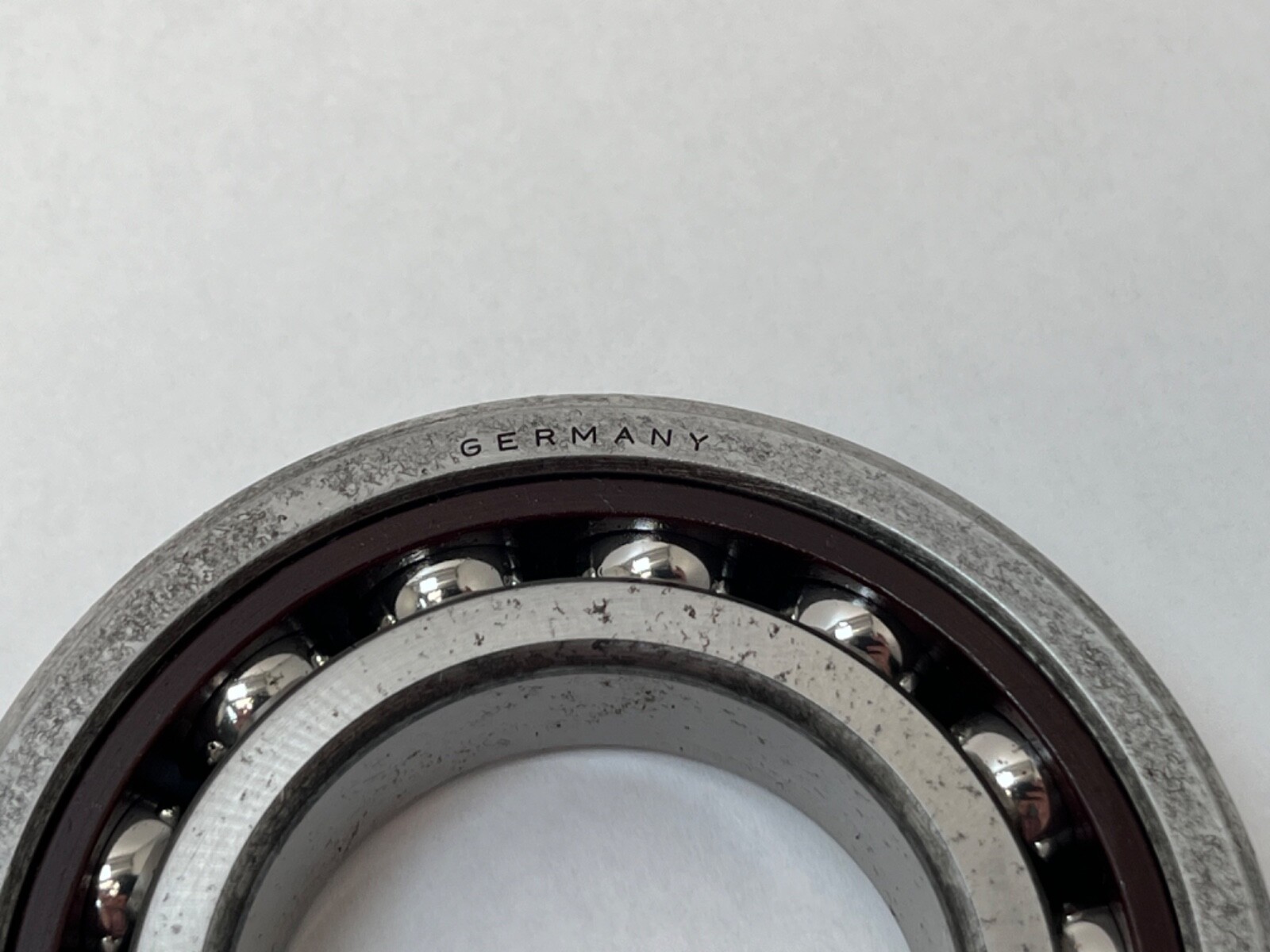

Origin: Germany
This GMN S6209 bearing is meticulously crafted to meet the high demands of precision and reliability. It is the perfect choice for industries requiring exceptional quality and performance, ensuring optimal functionality in every use case.
We provide competitive pricing and can source additional parts upon request. Enjoy international shipping on every order, with combined shipping options available to optimize your costs. With same-day shipping and expedited next-day delivery options at checkout, your order will arrive when you need it.
Elevate the performance of your machinery with the reliable GMN S6209 Angular Bearing. Order now and discover the difference!
$137.64
92 in stock
$141.11
255 in stock
