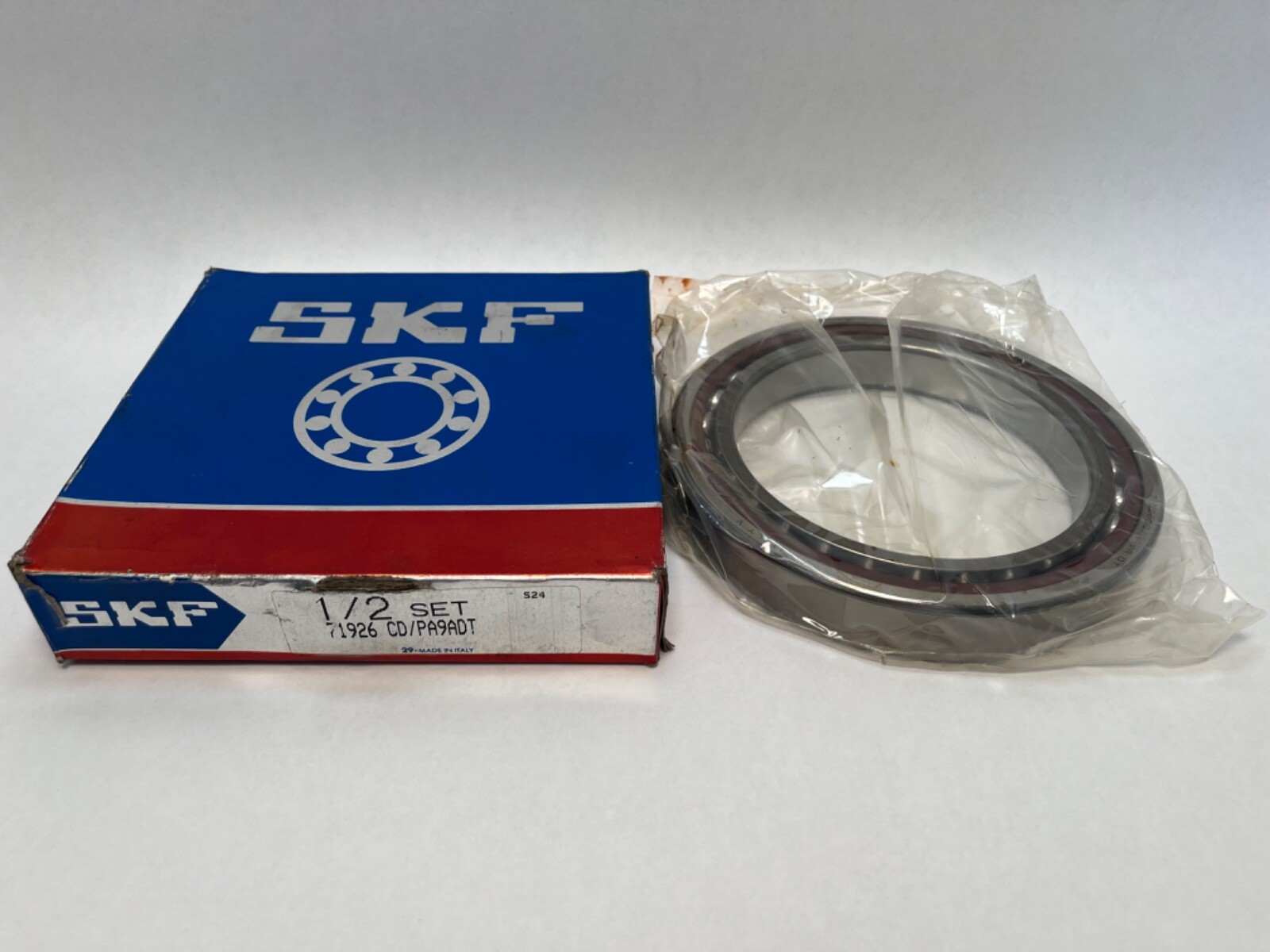

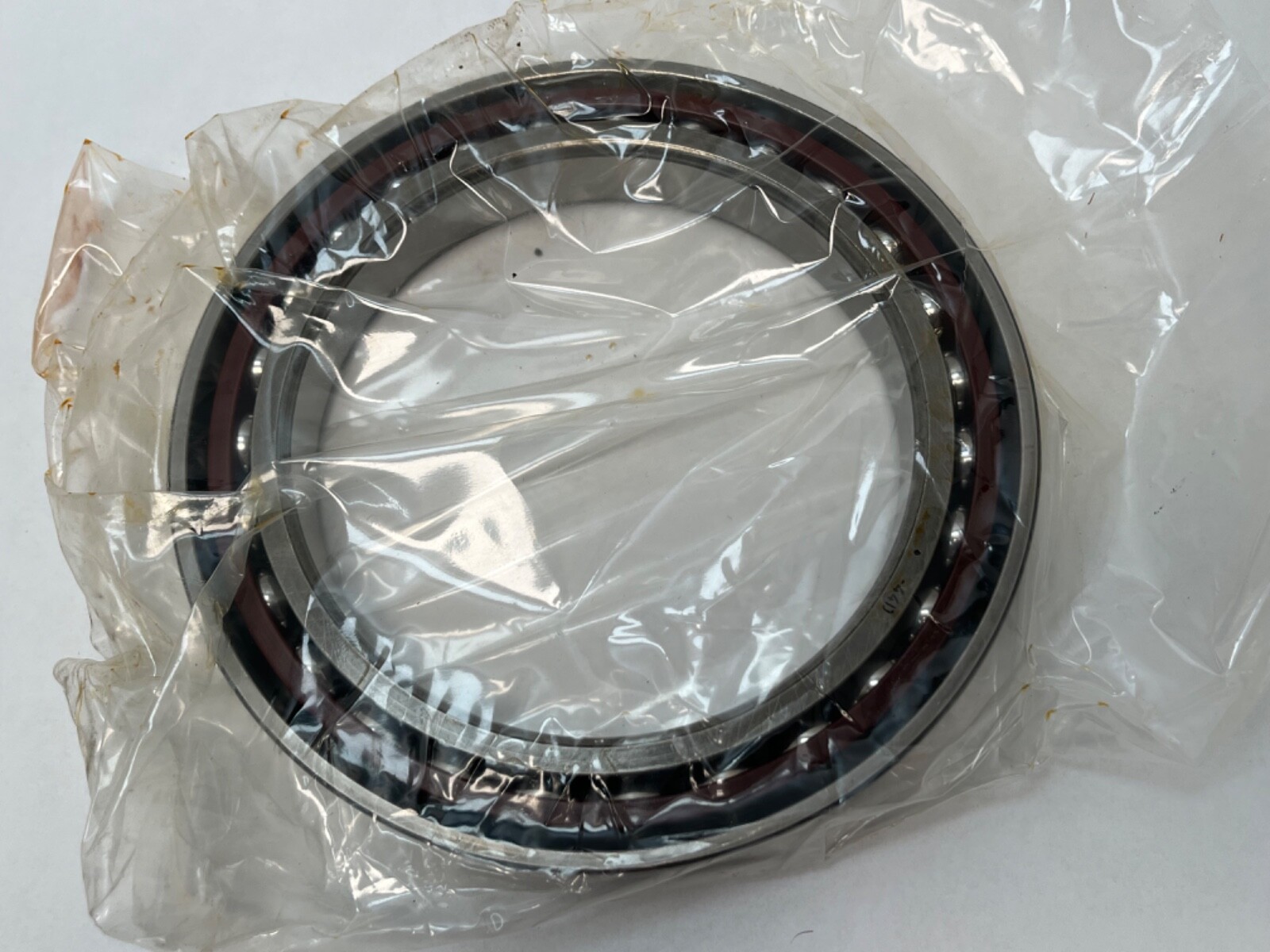

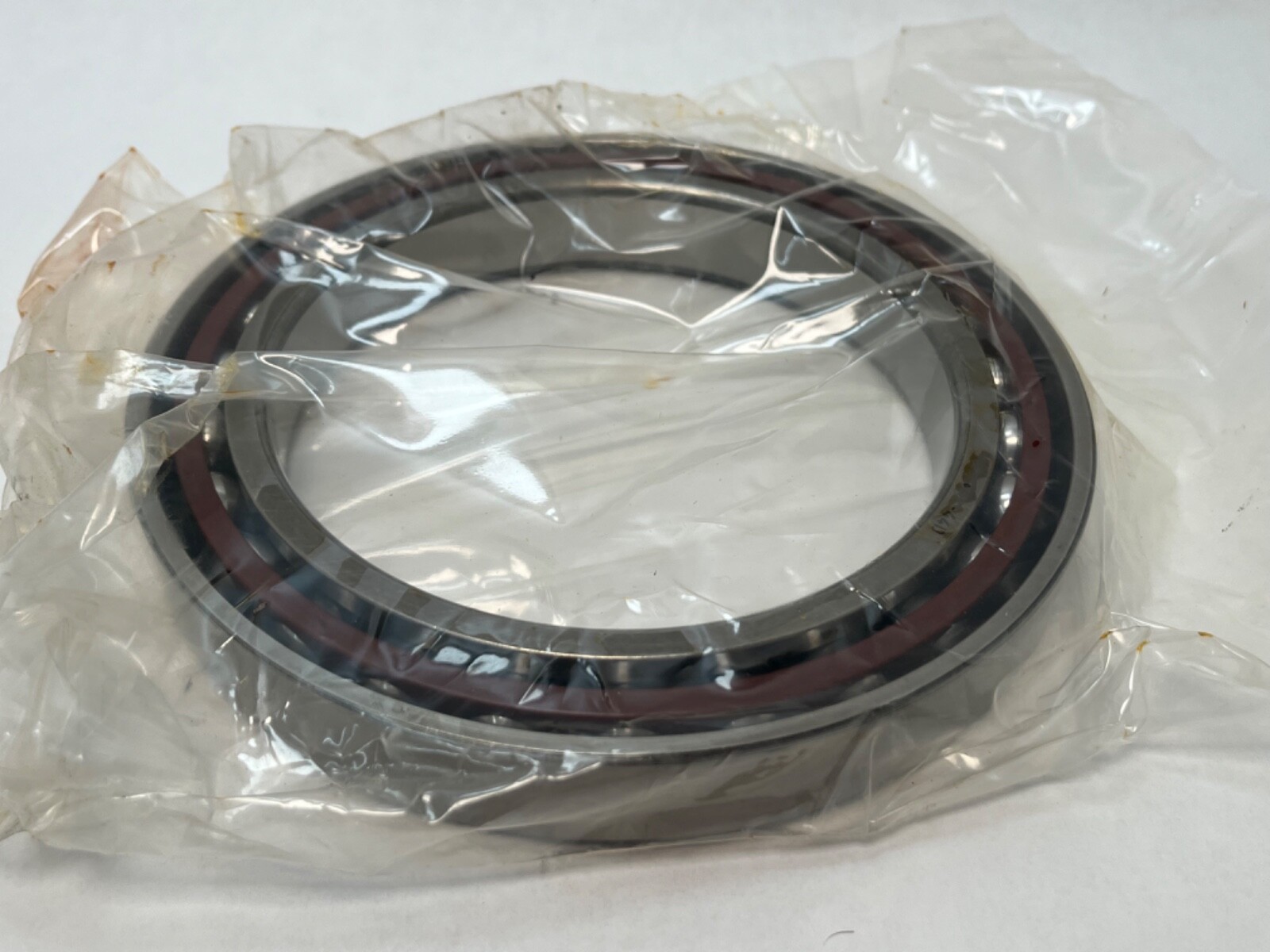

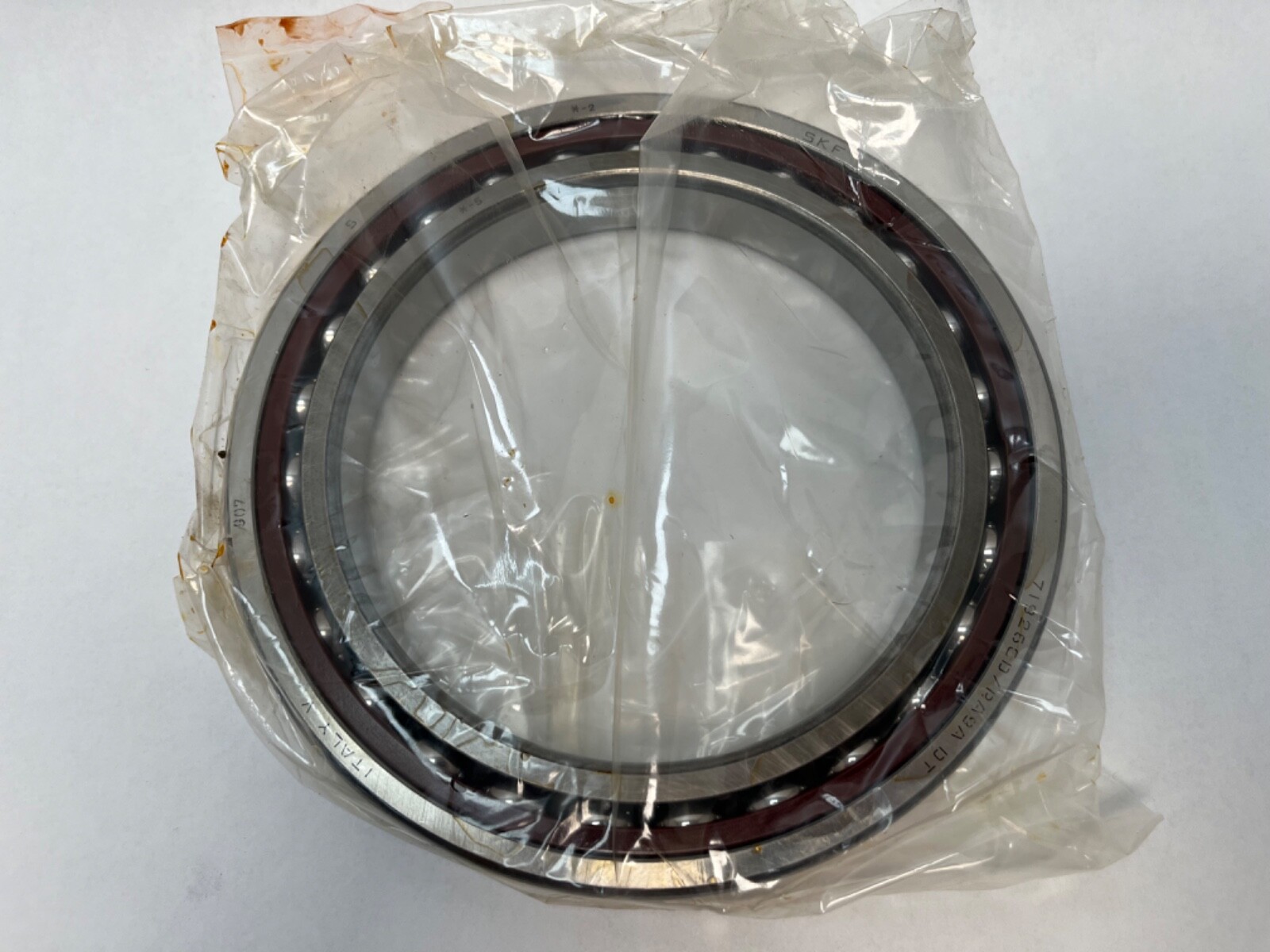

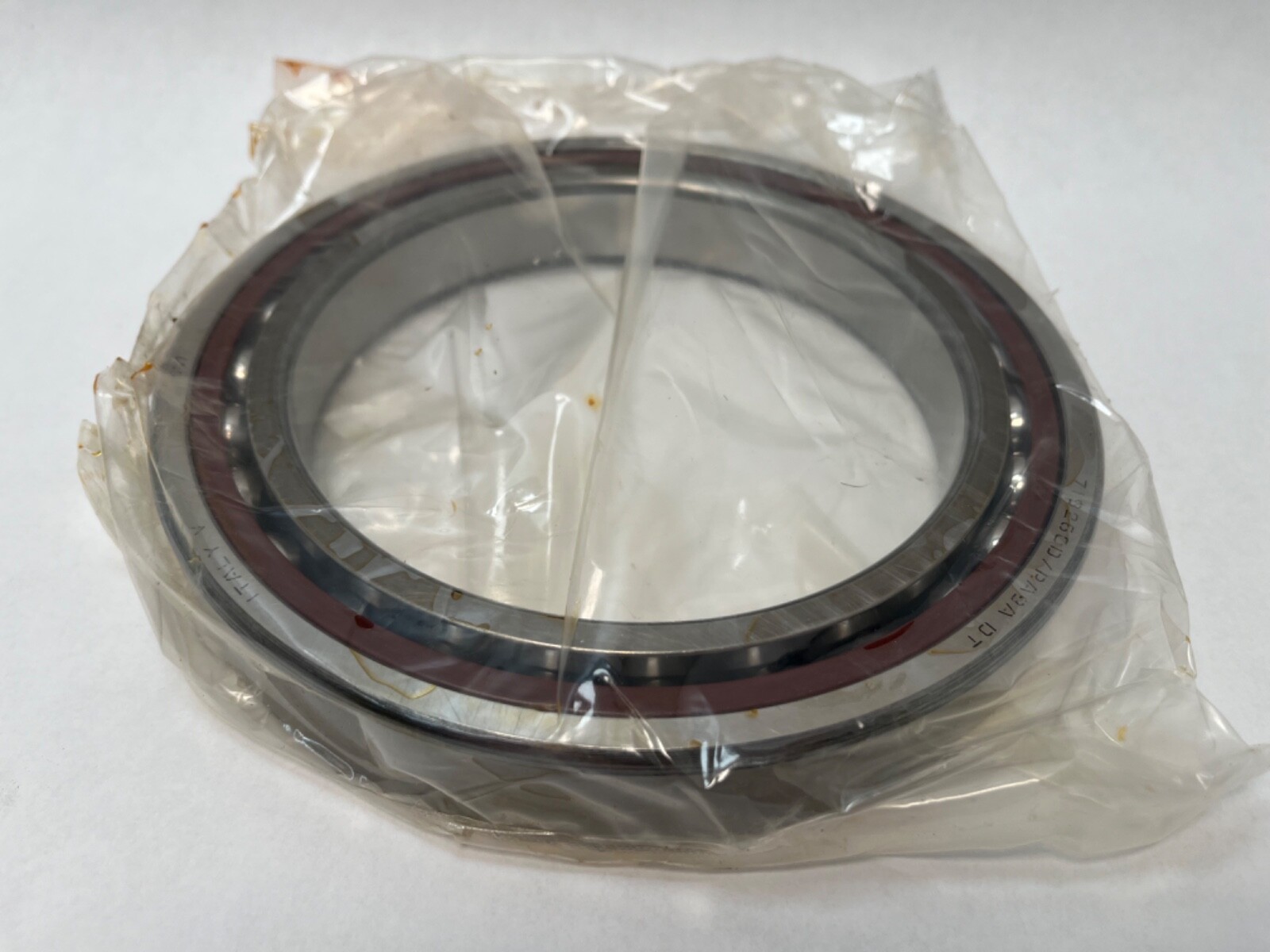

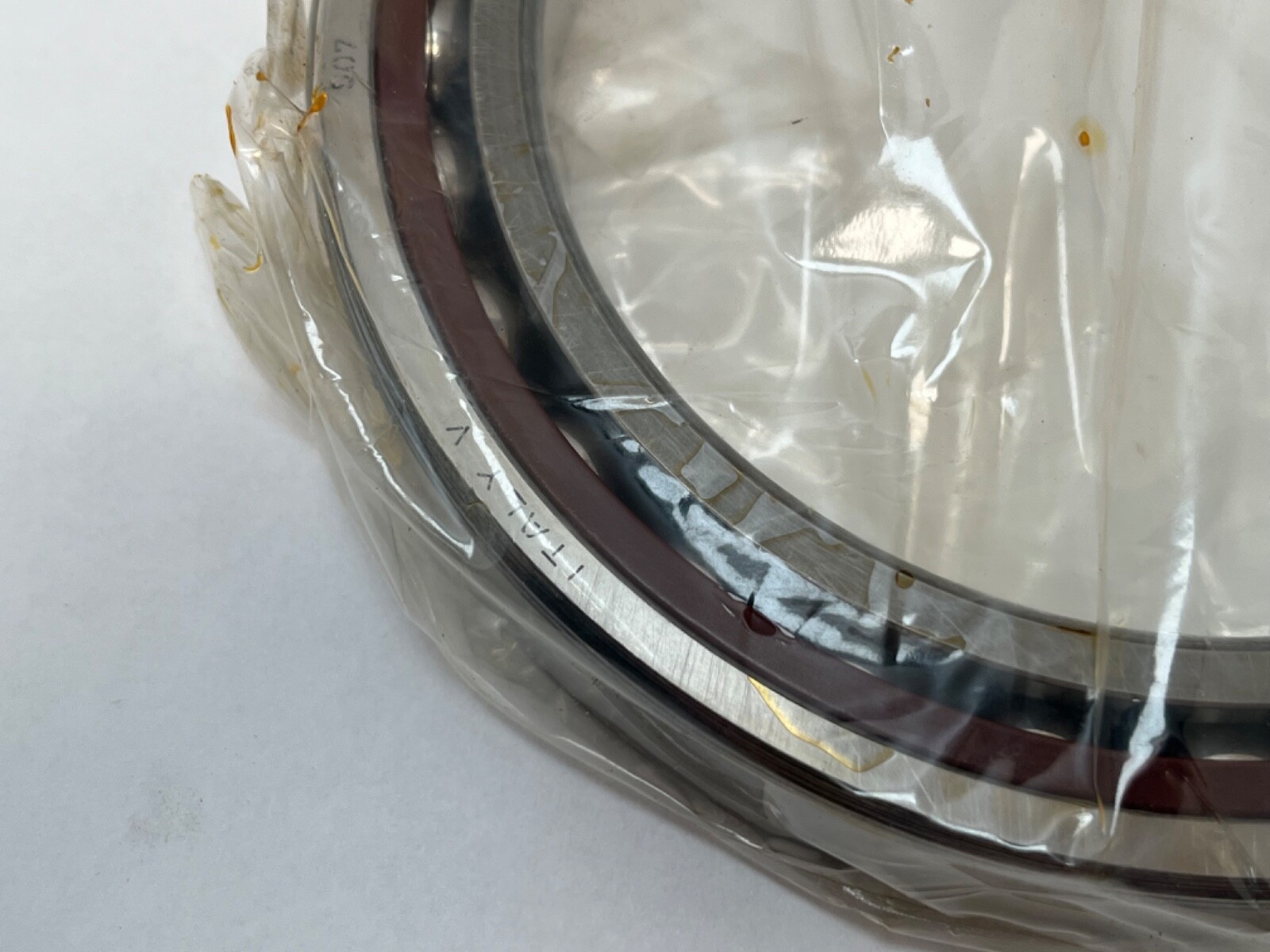

SKF71926 CD/PA9ADTAngular Contact Ball Bearing — Super-Precision, 130 mm ID, 180 mm OD, 24 mm Width, 15° Contact Angle, ABEC 9, Tandem Matched

Condition: New

Availability:

1 in stock

SKF 71926 CD/PA9ADT super-precision angular contact bearing, 130 x 180 x 24 mm, 15° angle, ABEC 9 / P2. One bearing from a tandem-matched pair. C 92,300 N.

List Price

$900.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandSKF
MPN71926 CD/PA9ADT
Model71926-CD-PA9A-DT
Bearing TypeAngular Contact Ball Bearing, Open
ID130 mm
OD180 mm
Width24 mm

Technical Specifications

MaterialSteel
Series71900
Mpn Variants71926 CD/PA9ADT, 71926CDPA9ADT, 71926-CD-PA9A-DT, 71926C, 7926C
Precision ClassABEC 9 / P2
Dynamic Load Rating92,300 N
Static Load Rating108,000 N
Precision RatingABEC 9 / P2
Rolling ElementsBall
Item Weight1.53 kg (3.37 lb)
Number Of Rows1
Bore TypeStraight
Snap Ring IncludedNo
Harmonization Code8482.10.50
Contact Angle15°
Mounting ArrangementTandem (DT)
Bearing MaterialBearing steel
Closure TypeOpen

Cross-References

Cross Reference 1FAG B71926-C-T-P2
Cross Reference 2NSK 7926C - no P-class suffix
Cross Reference 3GMN S61926 C - no P-class suffix
Cross Reference 4NTN 7926C - no P-class suffix
Seller Part Number: B-FF2#7FHXNL

Product Description

What this part is:

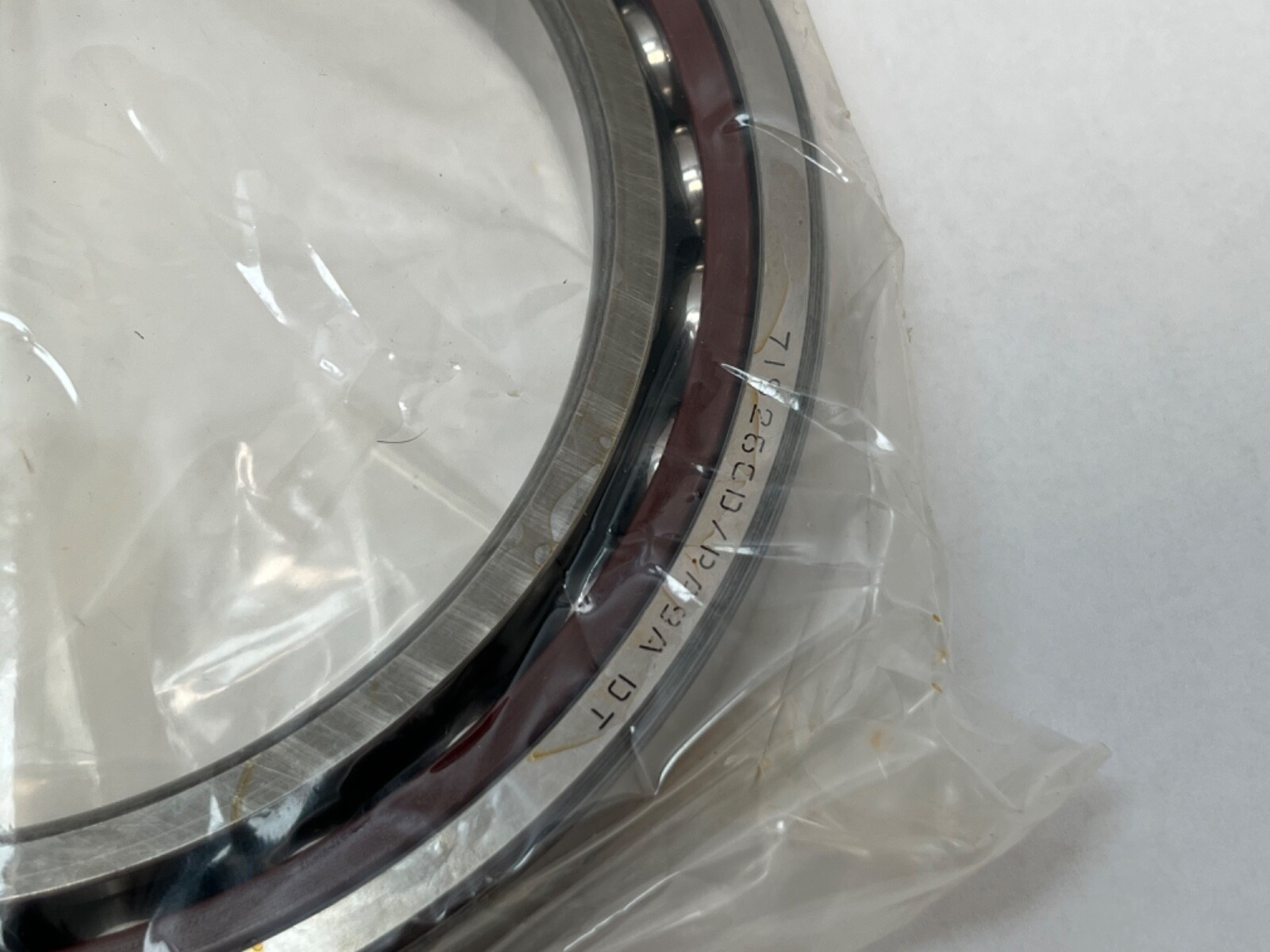

SKF 71926 CD/PA9ADT is a super-precision, high-capacity single row angular contact ball bearing in the 719 ultra-light series, 130 x 180 x 24 mm, with a 15° contact angle and ABEC 9 / ISO P2 tolerance. One bearing from a factory-matched tandem pair, marked 71926 CD/PA9ADT. Unit Quantity: 1 Pc. Country of Origin: Italy.

Decoding the designation:

719 — ISO dimension series 19, ultra-light section.

26 — bore code, 26 x 5 = 130 mm bore.

CD — 15° contact angle, high-capacity D design.

PA9A — SKF tolerance class, ABEC 9 / ISO P2 dimensional and running accuracy.

DT — matched for tandem arrangement; both bearings face the same direction and share the axial load.

Specifications:

Dynamic Load Rating: 92,300 N per bearing. Static Load Rating: 108,000 N per bearing. Contact Angle: 15°. Precision Class: ABEC 9 / P2. Mounting Arrangement: Tandem (DT). Design: High-capacity D. Number Of Rows: 1. Bearing Material: Bearing steel. Closure Type: Open. Item Weight: 1.53 kg (3.37 lb). Series: 71900. Harmonization Code: 8482.10.50.

Dimensions and mounting:

Bore Diameter: 130 mm. Outside Diameter: 180 mm. Width: 24 mm. Bore Type: Straight.

Compatibility and replacement:

Cross-references on the 130 x 180 x 24 mm envelope and 15° angle: FAG B71926-C-T-P2; NSK 7926C (no P-class suffix); NTN 7926C (no P-class suffix); GMN S61926 C (no P-class suffix); Fafnir 2MMV9326WI (P4S class). Also written as 71926CDPA9ADT, 71926-CD-PA9A-DT, 71926C and 7926C.

Frequently asked questions:

What are the dimensions of the SKF 71926 CD/PA9ADT?

Bore 130 mm, outside diameter 180 mm and width 24 mm.

What do CD and PA9A mean in 71926 CD/PA9ADT?

CD is a 15° contact angle with the high-capacity D design; PA9A is SKF’s ABEC 9 / ISO P2 tolerance class.

How many bearings are in this listing?

One bearing, taken from a factory tandem-matched pair (DT).
