Availability:
1 in stock

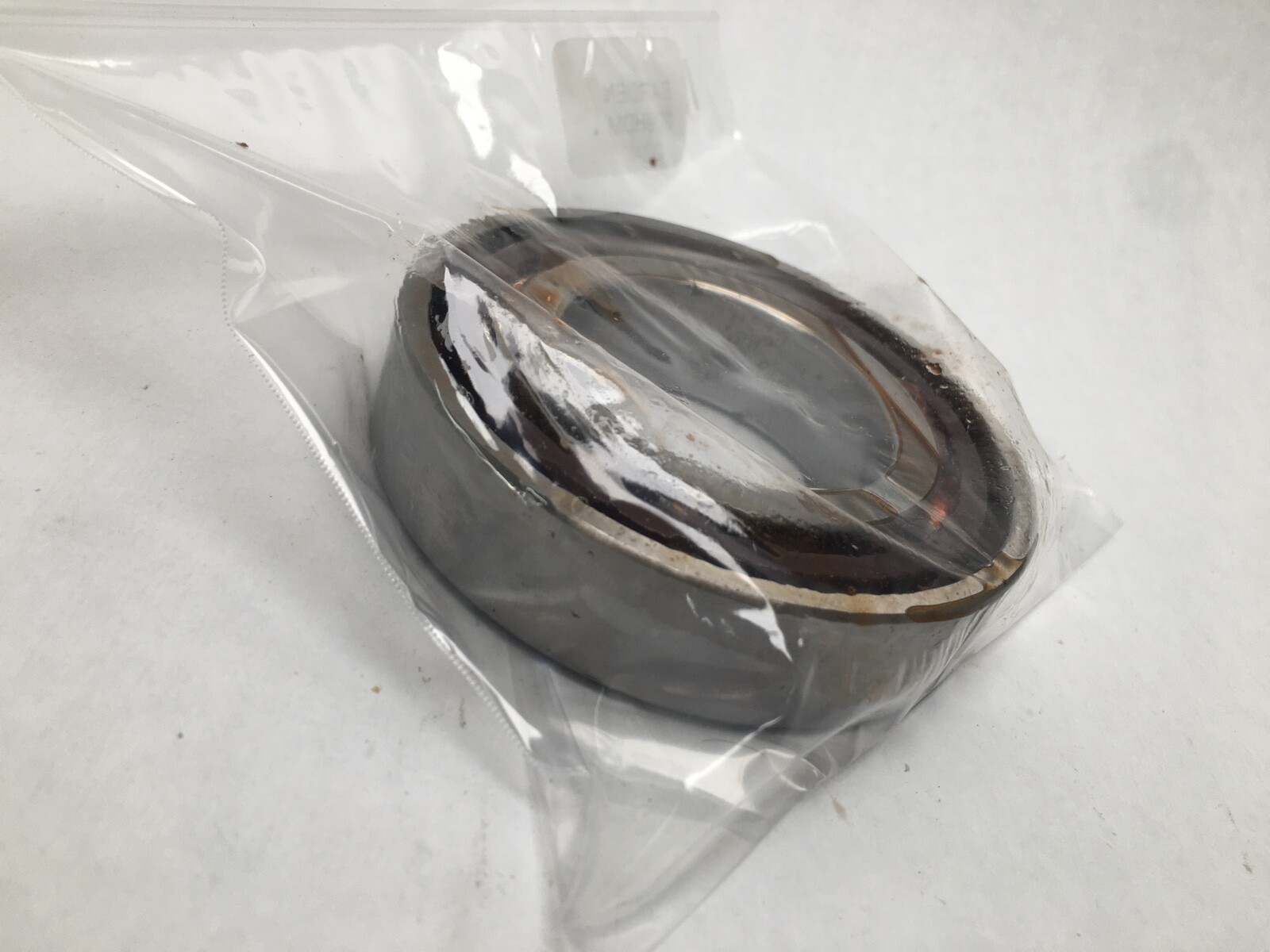

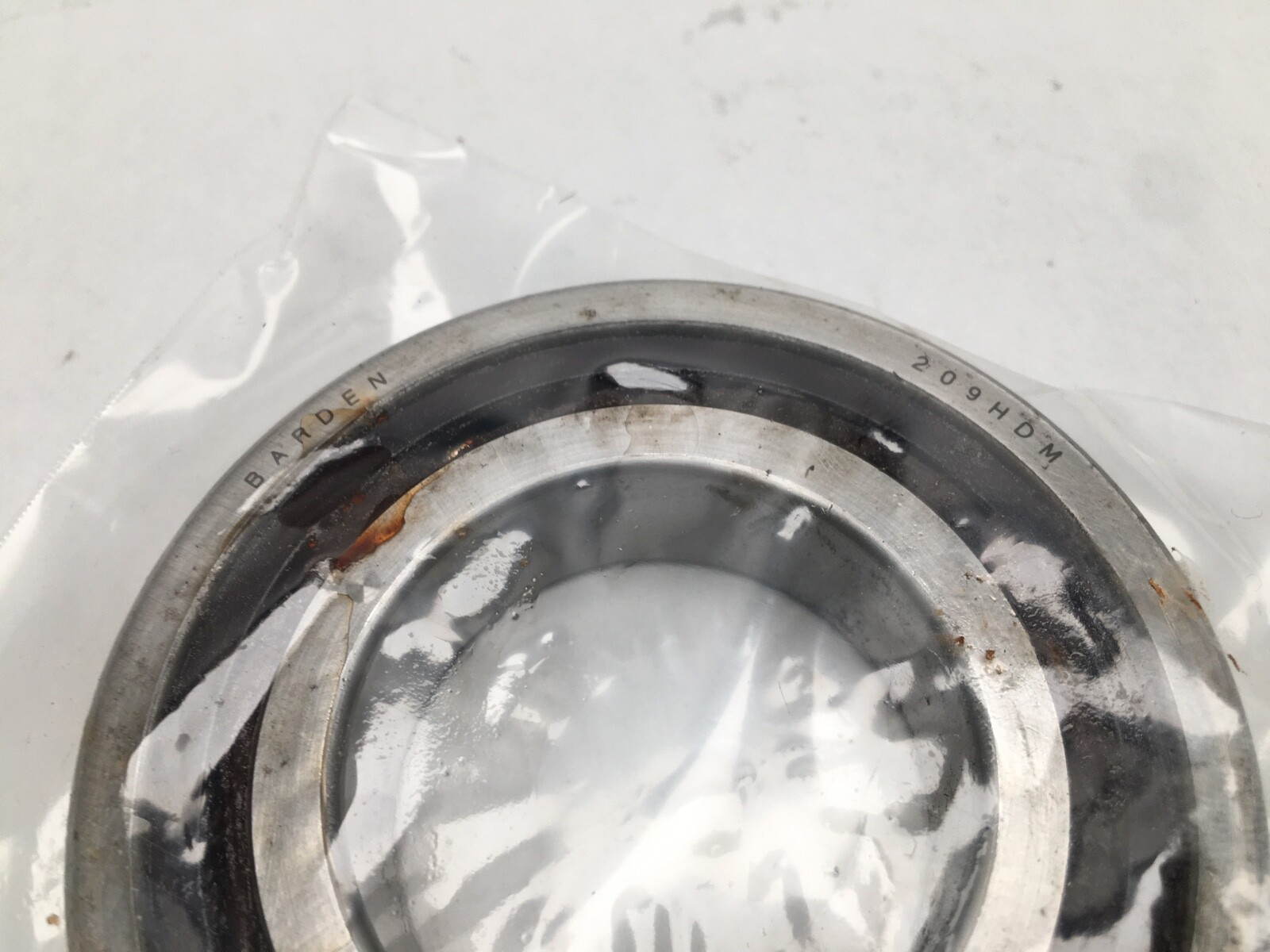

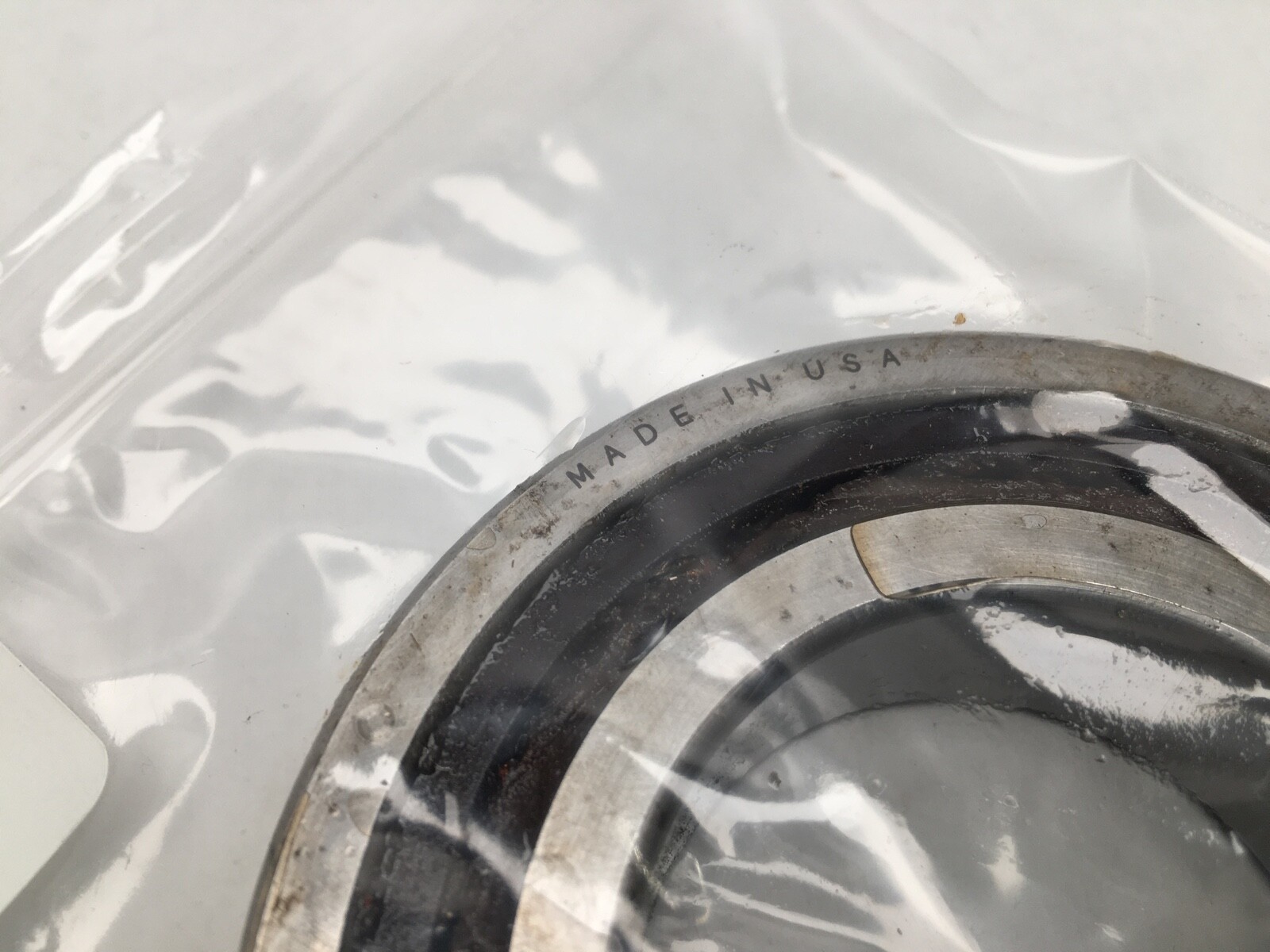

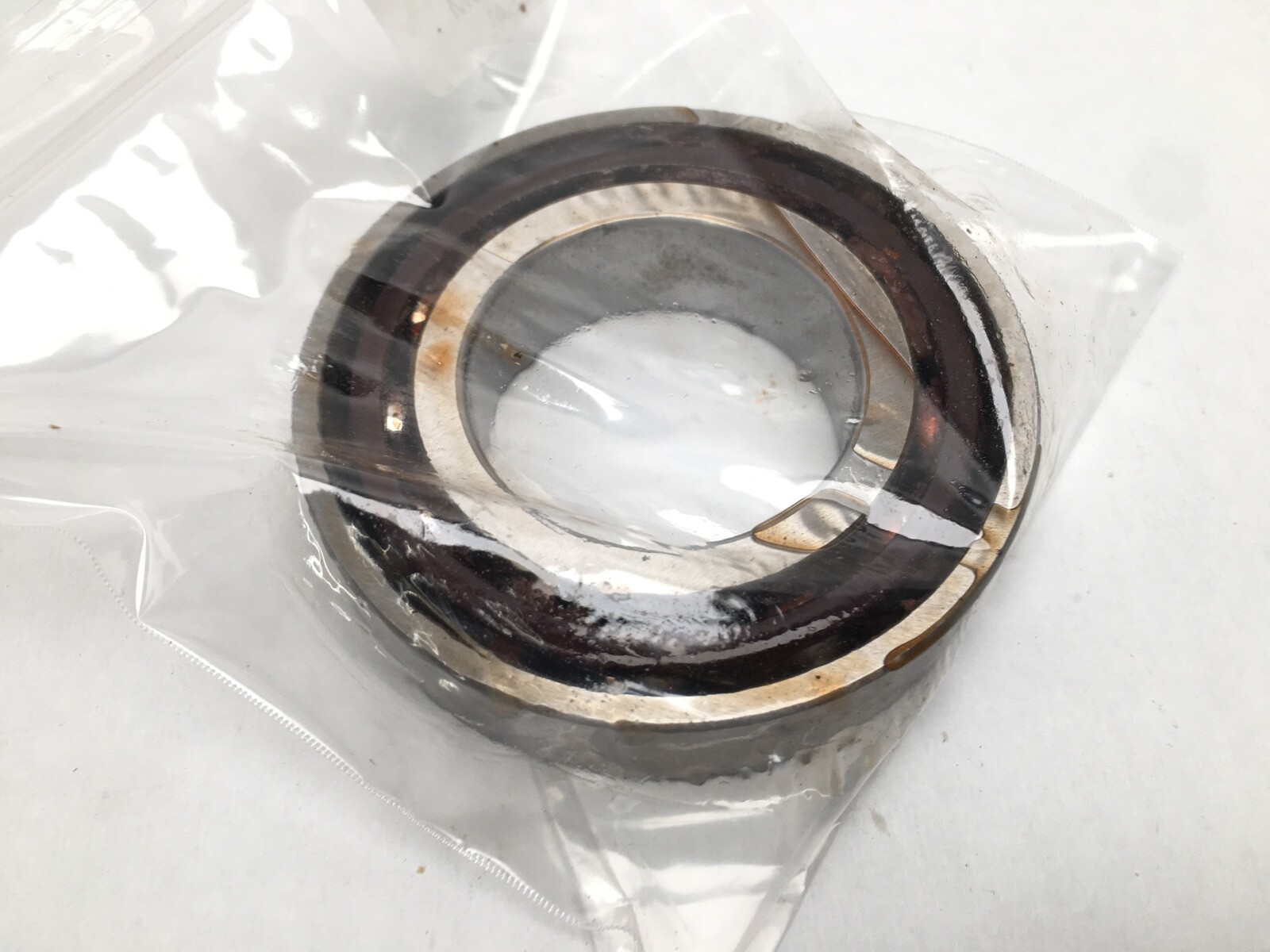

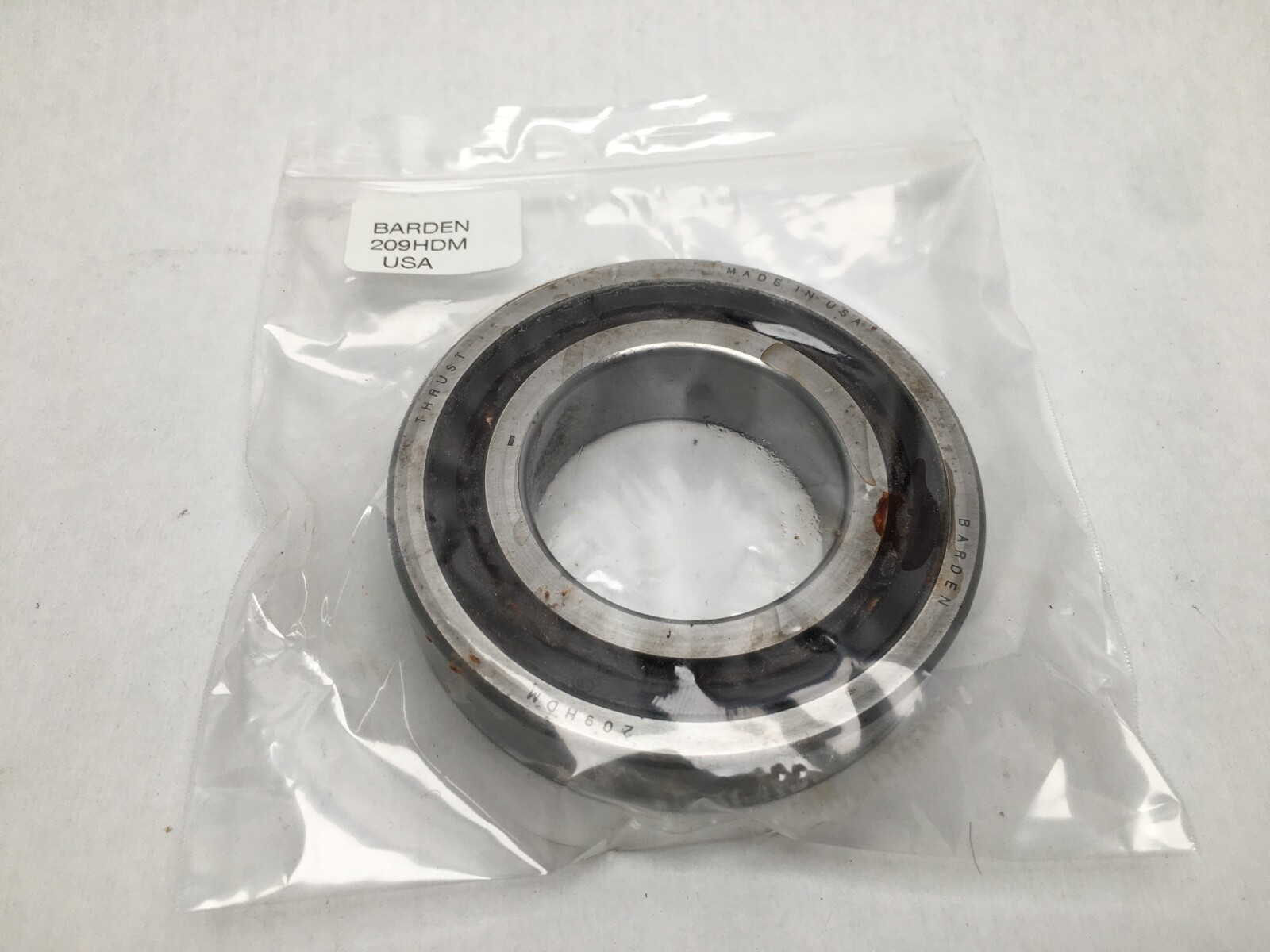

Barden 209HDM angular contact ball bearing pair, 45 x 85 x 19 mm, 15° contact angle, P4S precision, universal duplex set with medium preload.
List Price
$55.28
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Barden |
|---|---|
| Model | 209HDM |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 19 mm |
| Lubricant | Oil |
|---|---|
| Preload | Medium (440 N) |
| Material | 100Cr6 steel |
| Mpn Variants | 209HDM, 209-HDM, 209 HDM, 209H |
| Compatible With Replaces | Barden 209H (single bearing) |
| Precision Class | P4S |
| Additional Attributes | Radius r1 max: 1.00 mm; Radius r2 max (non-thrust side): 0.50 mm; Preload Light: 175 N; Preload Heavy (Barden S): 885 N; Axial rigidity L/M/S: 52.75 / 78.97 / 110.50 N/µm; Unloading force L/M/S: 548.78 / 1,474.88 / 3,174.84 N |
| Cage Type | One-piece halo |
| Dynamic Load Rating | 35,377 N |
| Static Load Rating | 28,064 N |
| Rolling Elements | Balls |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 17,000 rpm grease; 25,000 rpm oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal duplex (DB, DF or DT) |
| Bearing Material | 100Cr6 steel rings, steel balls |
| Cross Reference 1 | FAG B7209-C-T-P4S-DUM |
|---|---|
| Cross Reference 2 | SKF 7209 CD/P4ADGB |
| Cross Reference 3 | NSK 7209CTRDUMP4 |
| Cross Reference 4 | Fafnir 2MM209WI DUM |
Barden 209HDM is a super precision angular contact ball bearing set in the ISO 7209 envelope, supplied as a universal duplex pair with medium preload. Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 19 mm per bearing. Contact Angle: 15°. Precision Class: P4S.
209 — Barden 200-series bore code 09, 45 mm bore, ISO 72 dimension series.
H — Barden H spindle bearing design with a one-piece phenolic halo cage, 15° contact angle.
D — universal duplex matching.
M — medium preload, 440 N per Barden.
Dynamic Load Rating: 35,377 N. Static Load Rating: 28,064 N. Limiting Speed: 17,000 rpm grease; 25,000 rpm oil. Cage Material: Phenolic. Cage Type: One-piece halo. Closure Type: Open. Bearing Material: 100Cr6 steel rings, steel balls. Preload: Medium (440 N). Axial rigidity at medium preload: 78.97 N/µm. Unloading force at medium preload: 1,474.88 N.
Radius r1 max: 1.00 mm. Radius r2 max, non-thrust side: 0.50 mm. Barden preload levels for this size: Light 175 N, Medium 440 N, Heavy (Barden S) 885 N.
Unit Quantity: 2 Pcs, a matched universal duplex pair.
Same envelope, angle and class: FAG B7209-C-T-P4S-DUM, SKF 7209 CD/P4ADGB, NSK 7209CTRDUMP4, Fafnir 2MM209WI DUM.
