Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

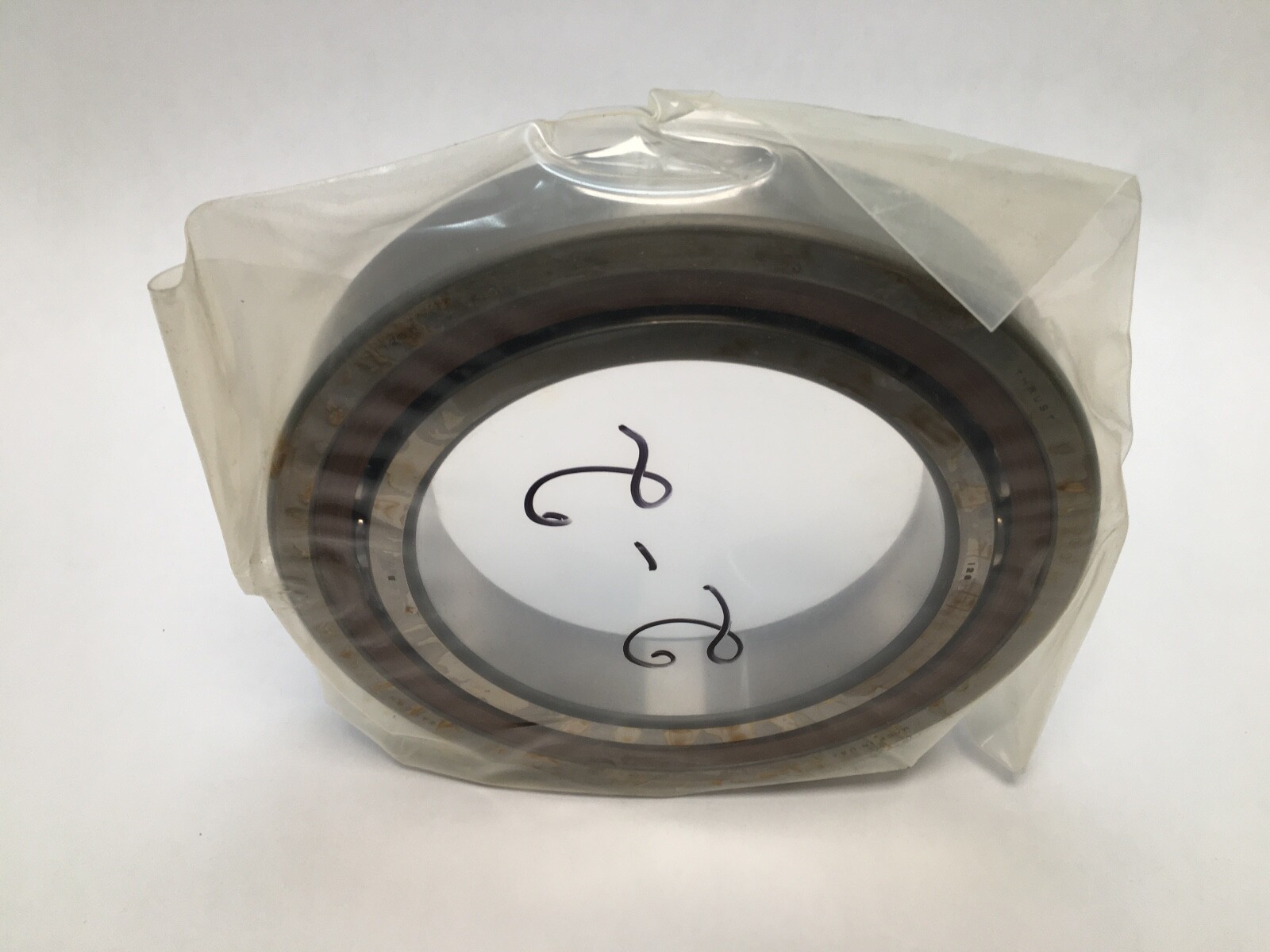

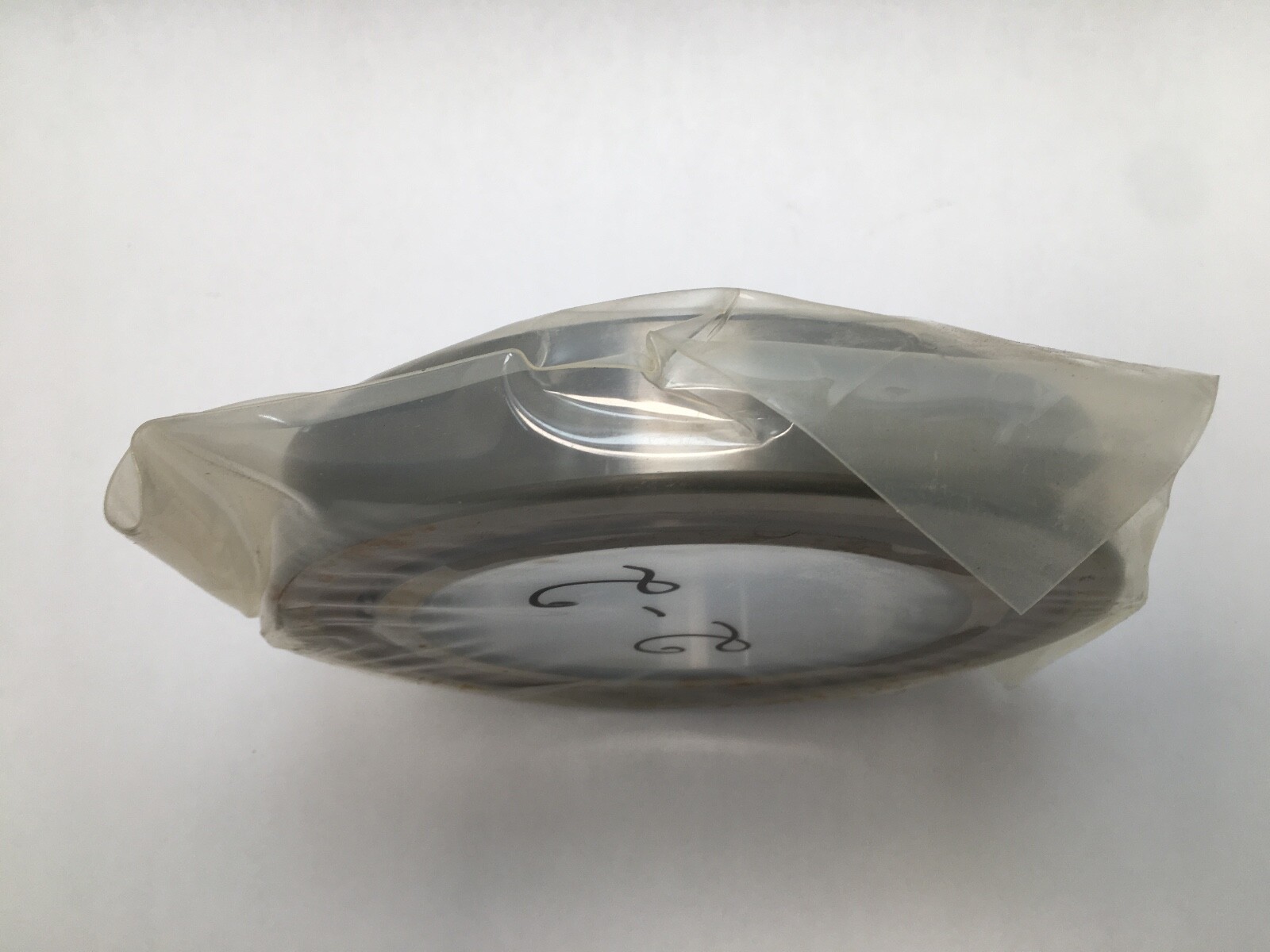

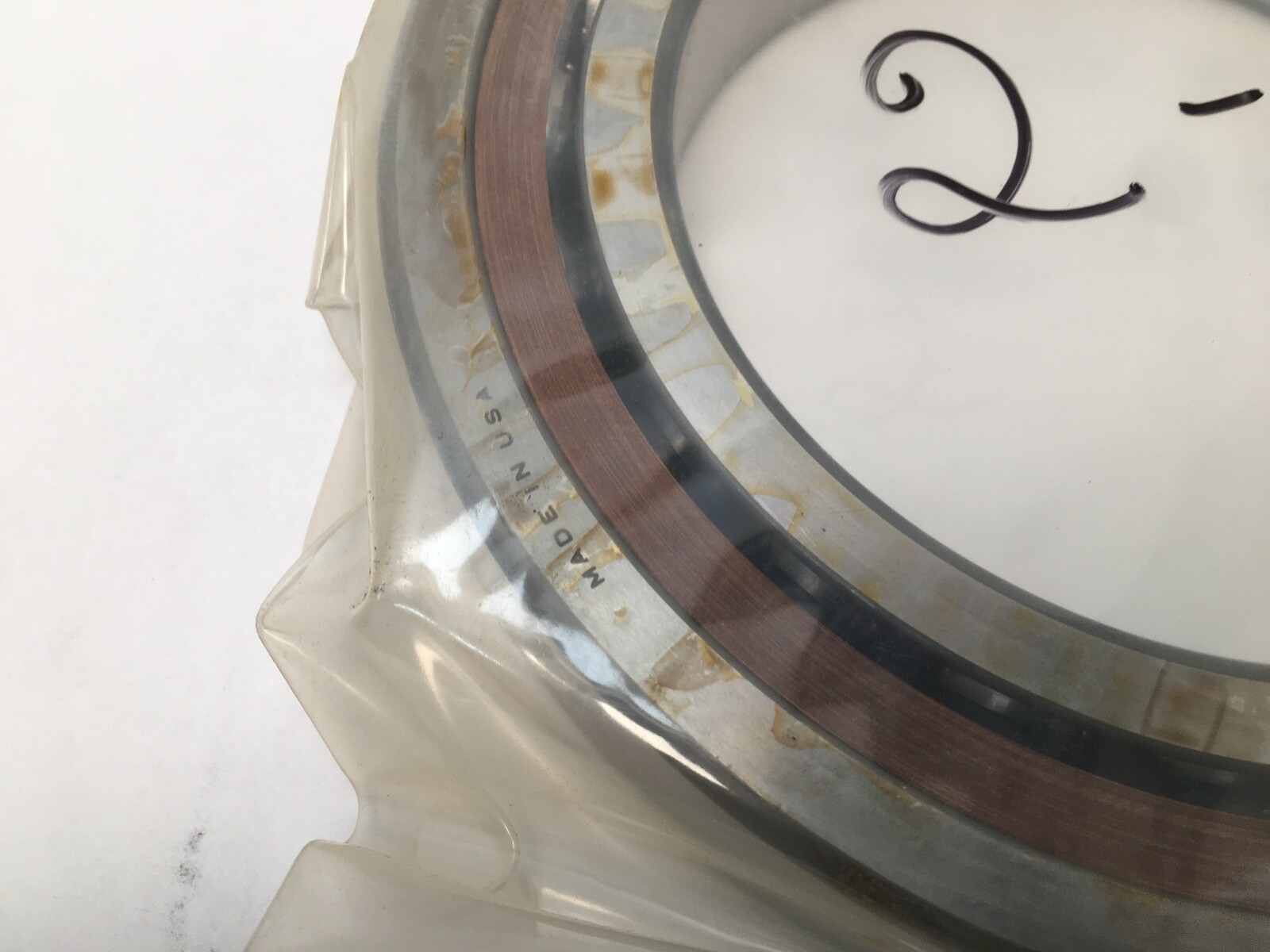

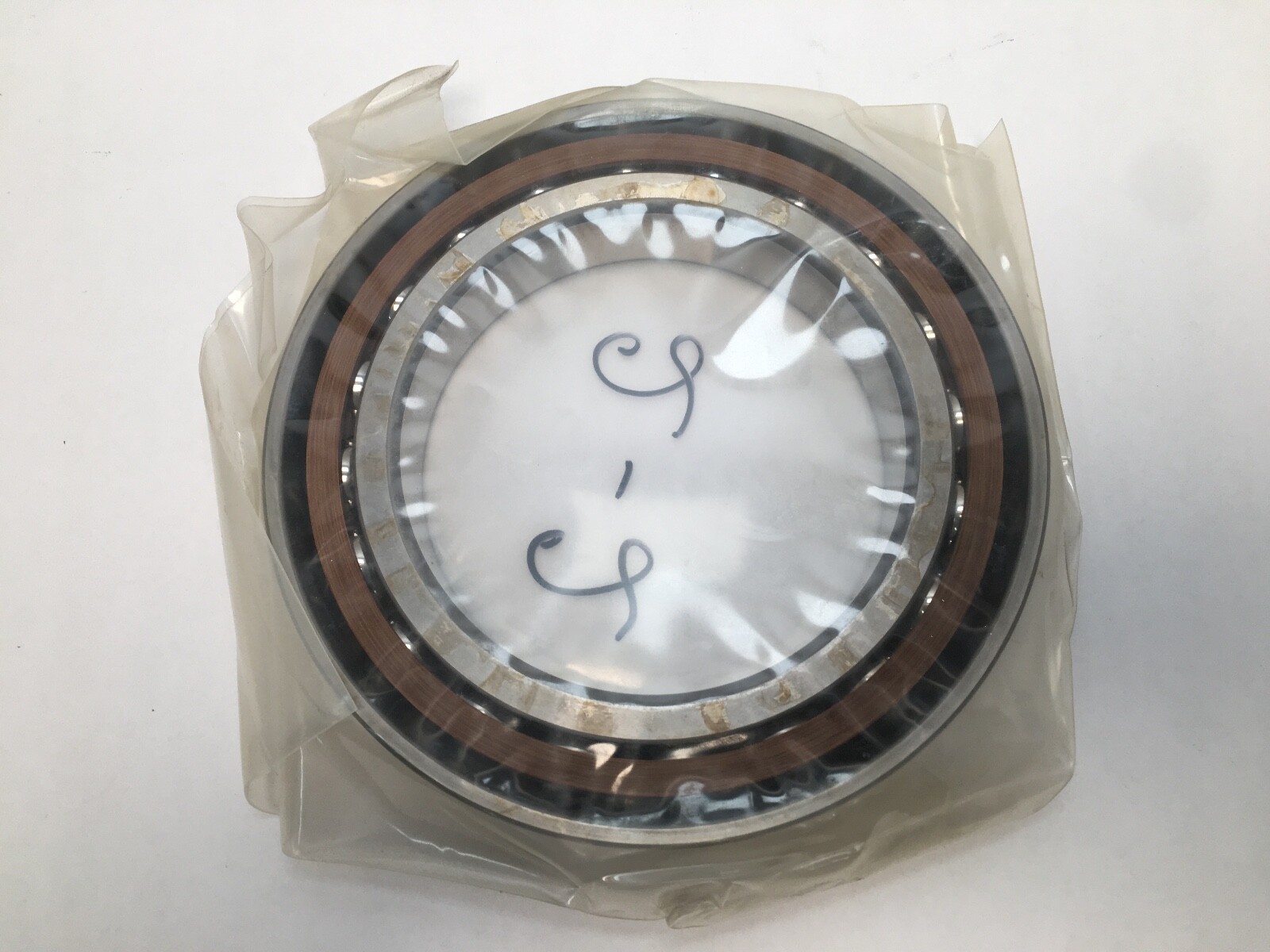

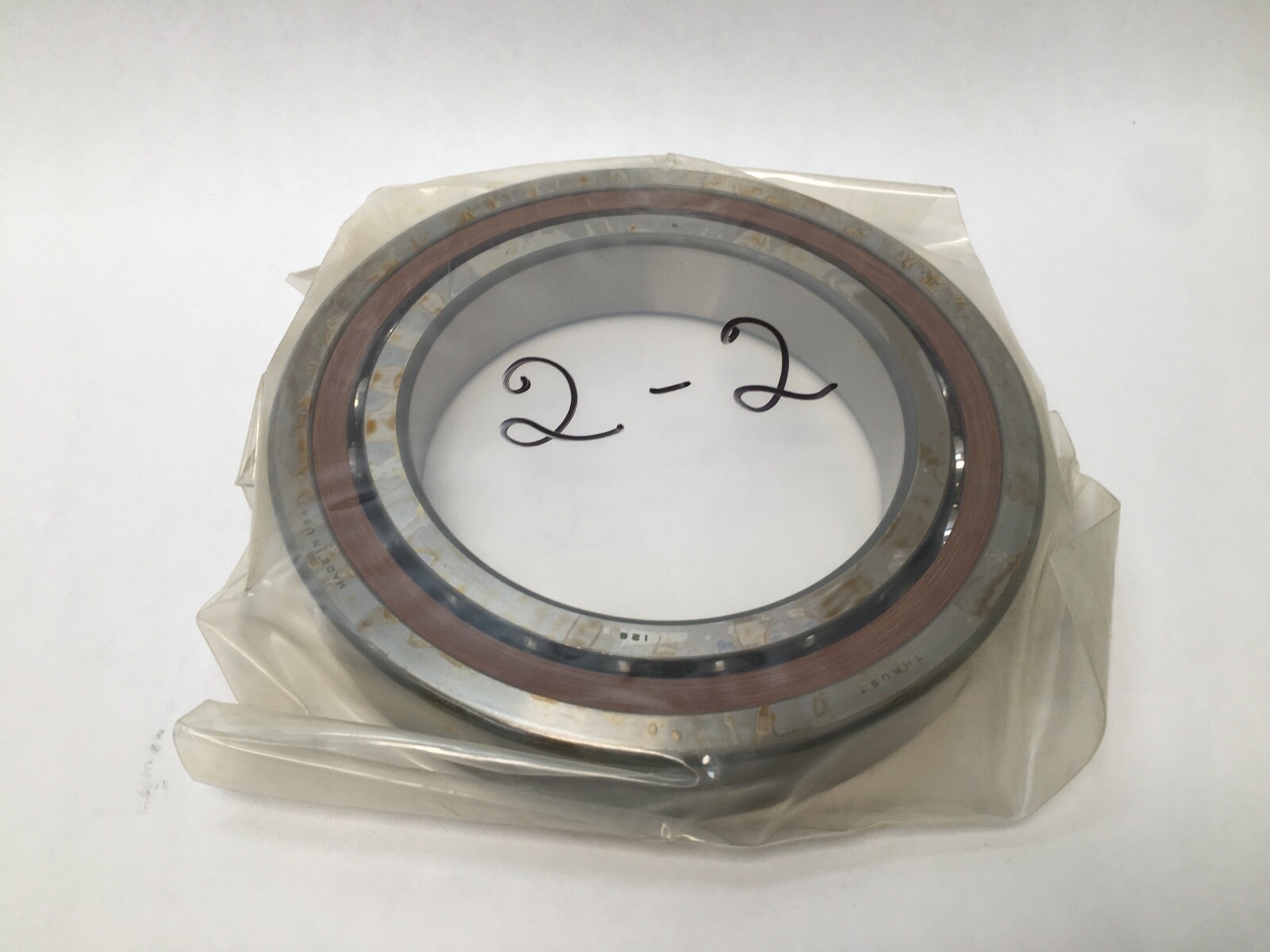

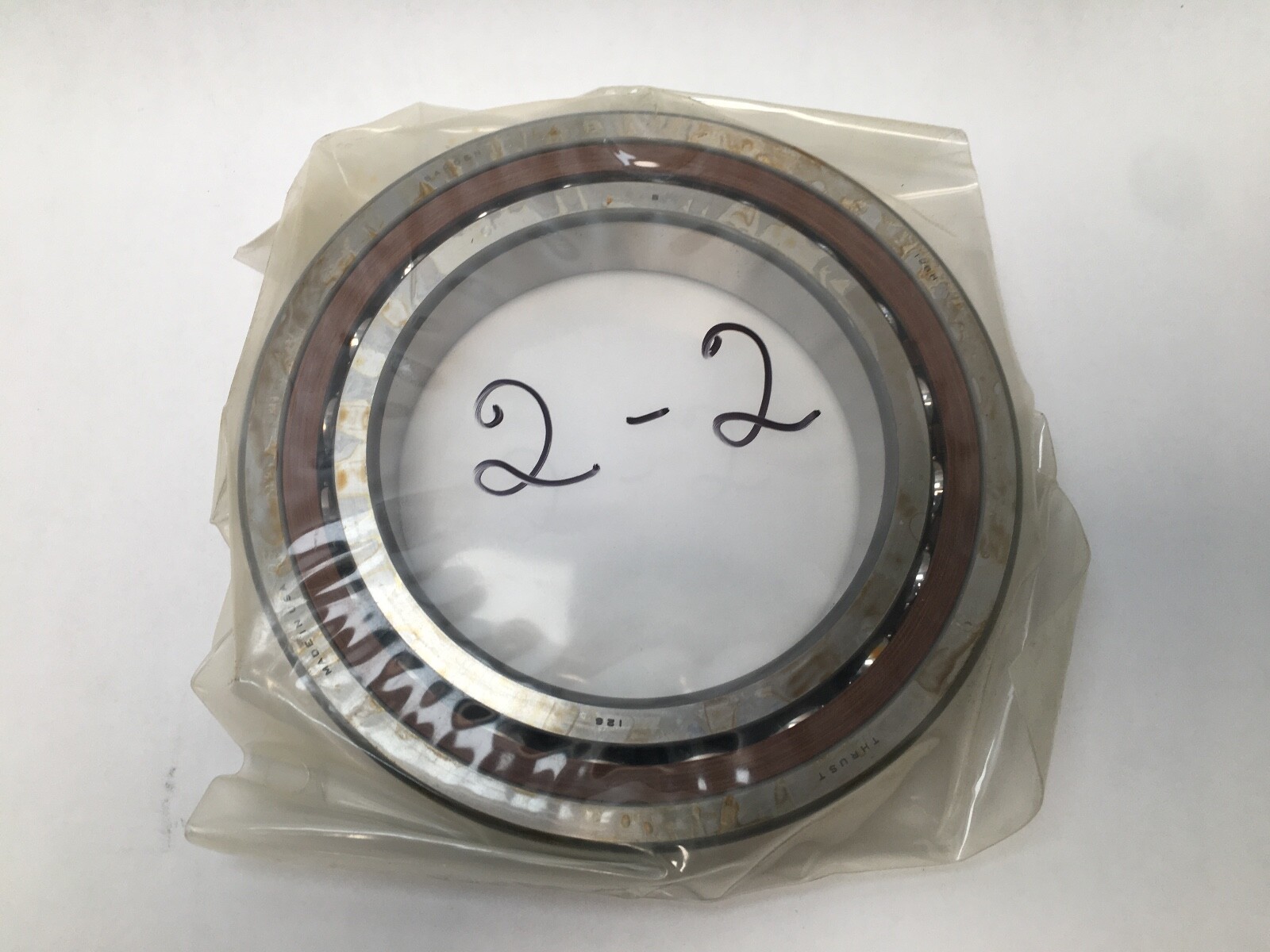

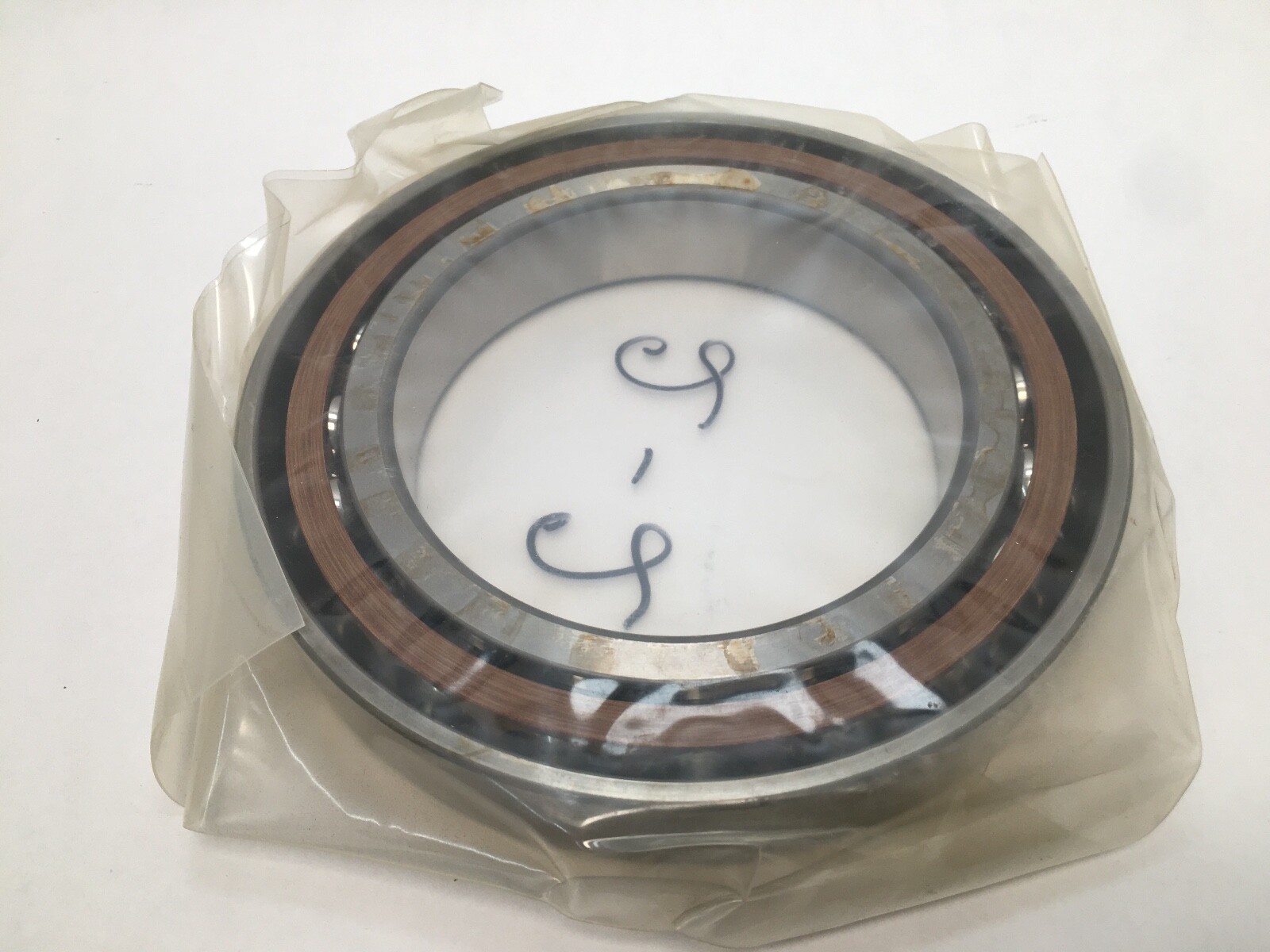

Super precision angular contact ball bearing, 130 x 200 x 33 mm, Barden 100 series, one-piece phenolic halo cage. Universal duplex pair, light preload.
List Price
$1,070.20
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Barden |
|---|---|

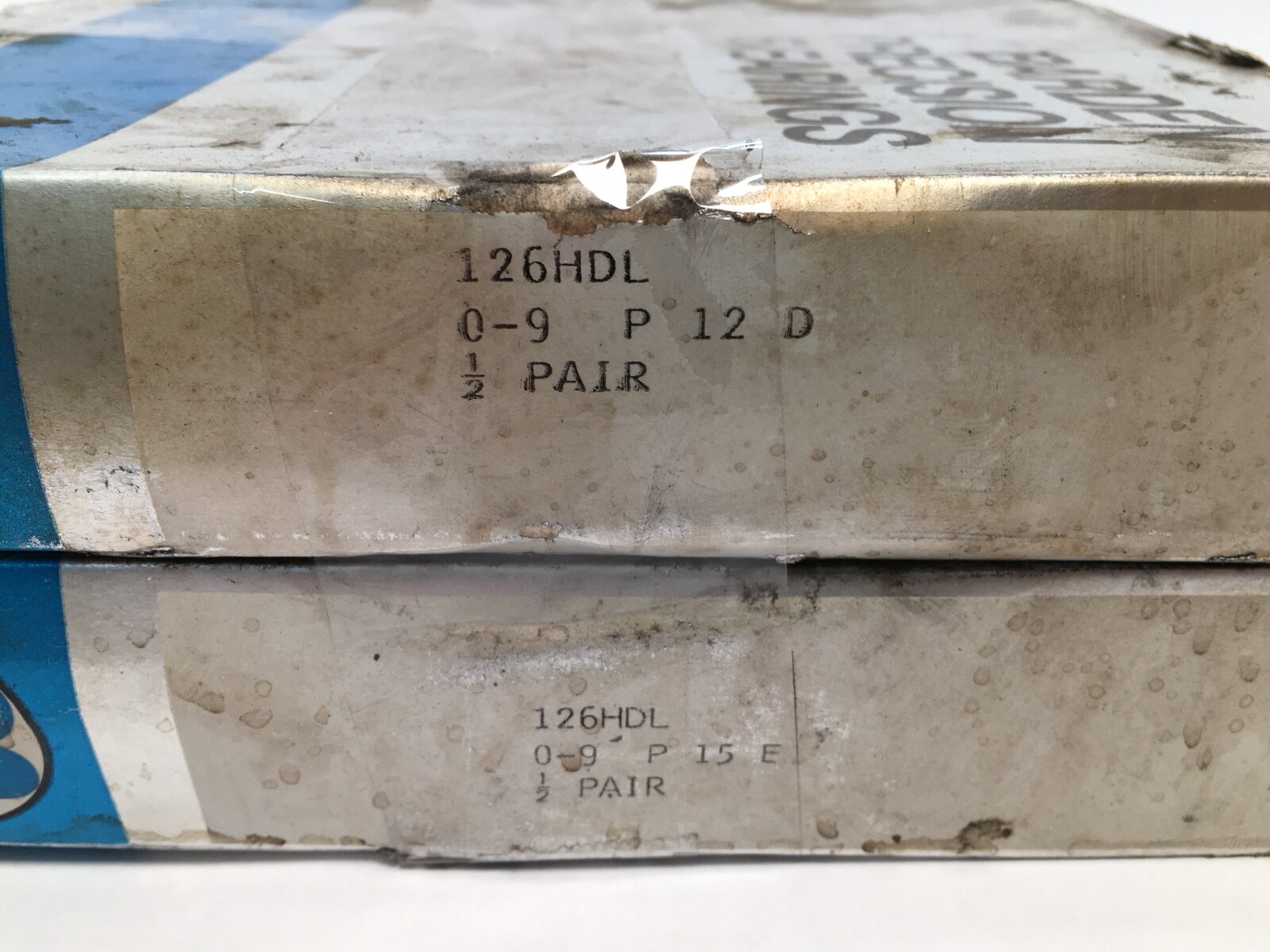

| MPN | 126HDL |
| Model | 126-HDL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 130 mm |
| OD | 200 mm |
| Width | 33 mm |
| Series | 100 |
|---|---|
| Preload | Light (L), Barden standard preload |
| Base Number | 126H |
| Industry Terms | super precision angular contact spindle bearing, machine tool spindle bearing, duplex bearing |
| Common Misspellings | Bardon 126HDL, Barden 126-H-DL |
| Application Types | Machine tool spindles, grinding spindles, high-speed motor spindles |
| Overall Width | 33 mm |
| Mpn Variants | 126HDL, 126-HDL, 126H DL, 126 HDL |
| Arrangement Configuration | Universal duplex set of 2 (D), mounts DB, DF or DT |
| Additional Attributes | Cage type: one-piece halo, reinforced phenolic. Barden 100 series: non-separable, relieved outer ring. |
| Rolling Elements | Balls |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Cross Reference 1 | FAG B7026C.T.P4S (same envelope) |
|---|---|
| Cross Reference 2 | Timken Fafnir 2MM9126WI (same envelope) |

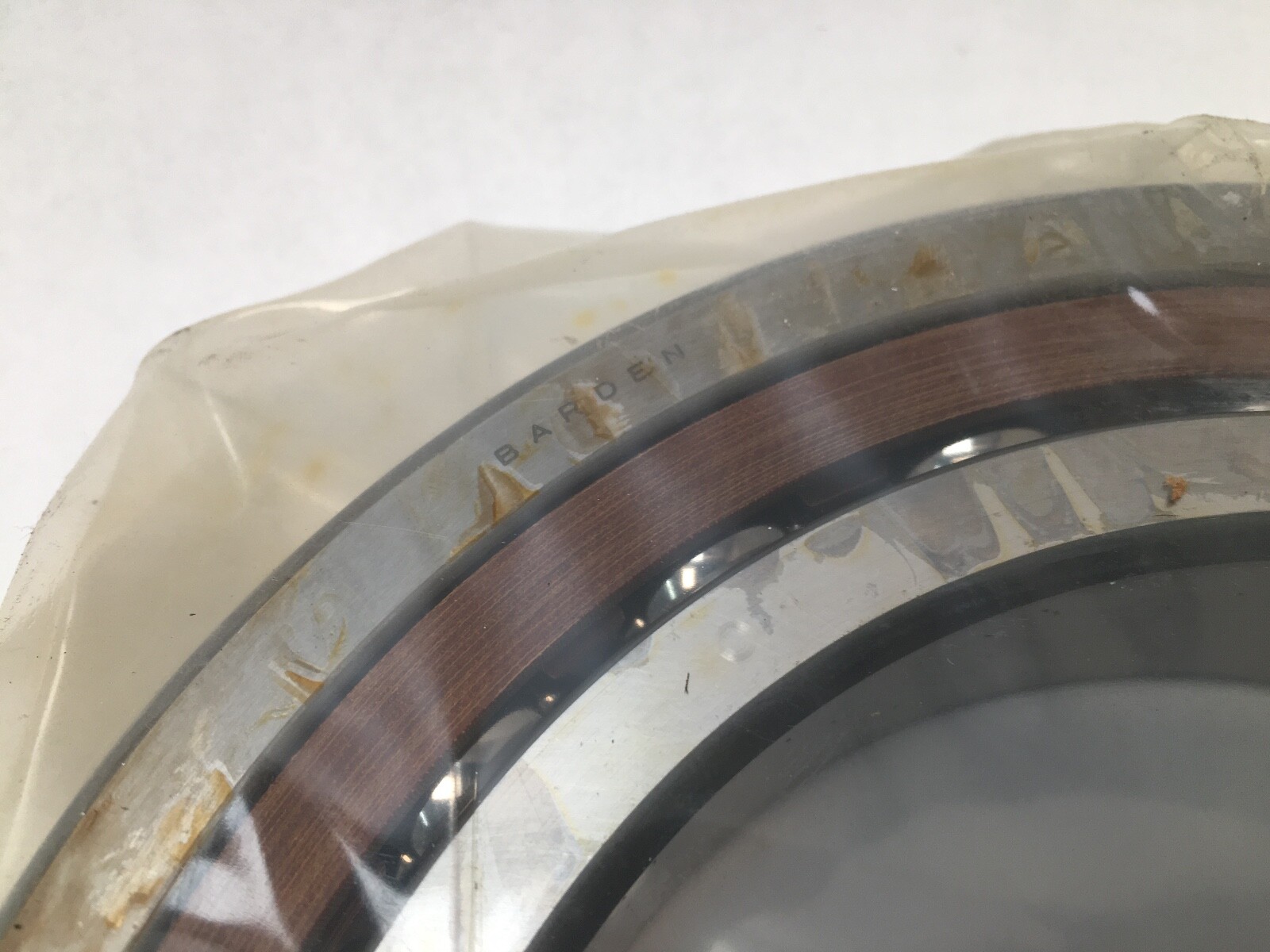

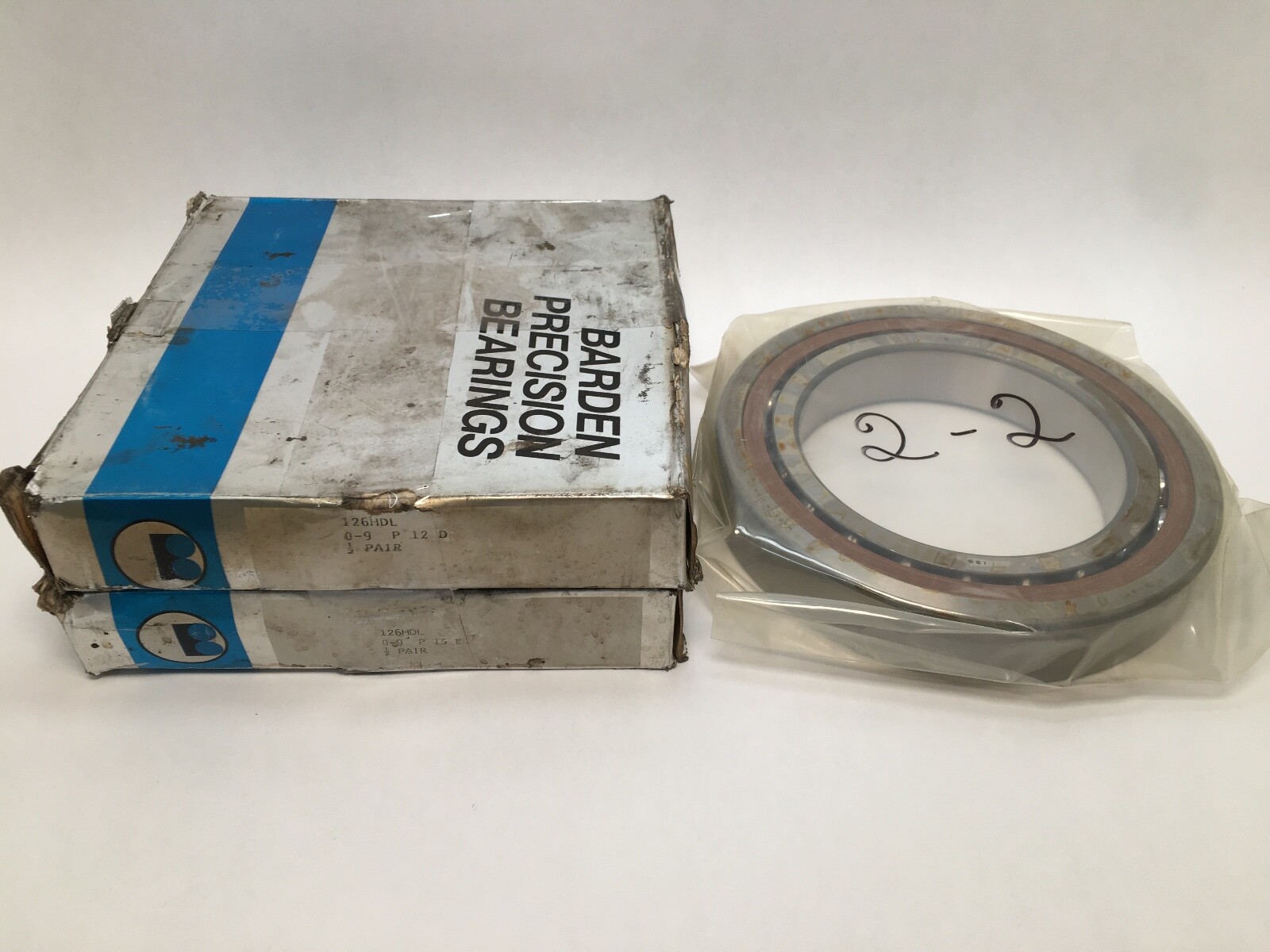

The Barden 126HDL is a super precision angular contact ball bearing from the Barden 100 metric spindle series, supplied as a universal duplex set of two with light preload. It is a non-separable design with a relieved outer ring, built for spindle service.
126 — 100 series metric spindle bearing, bore code 26 = 130 mm bore.

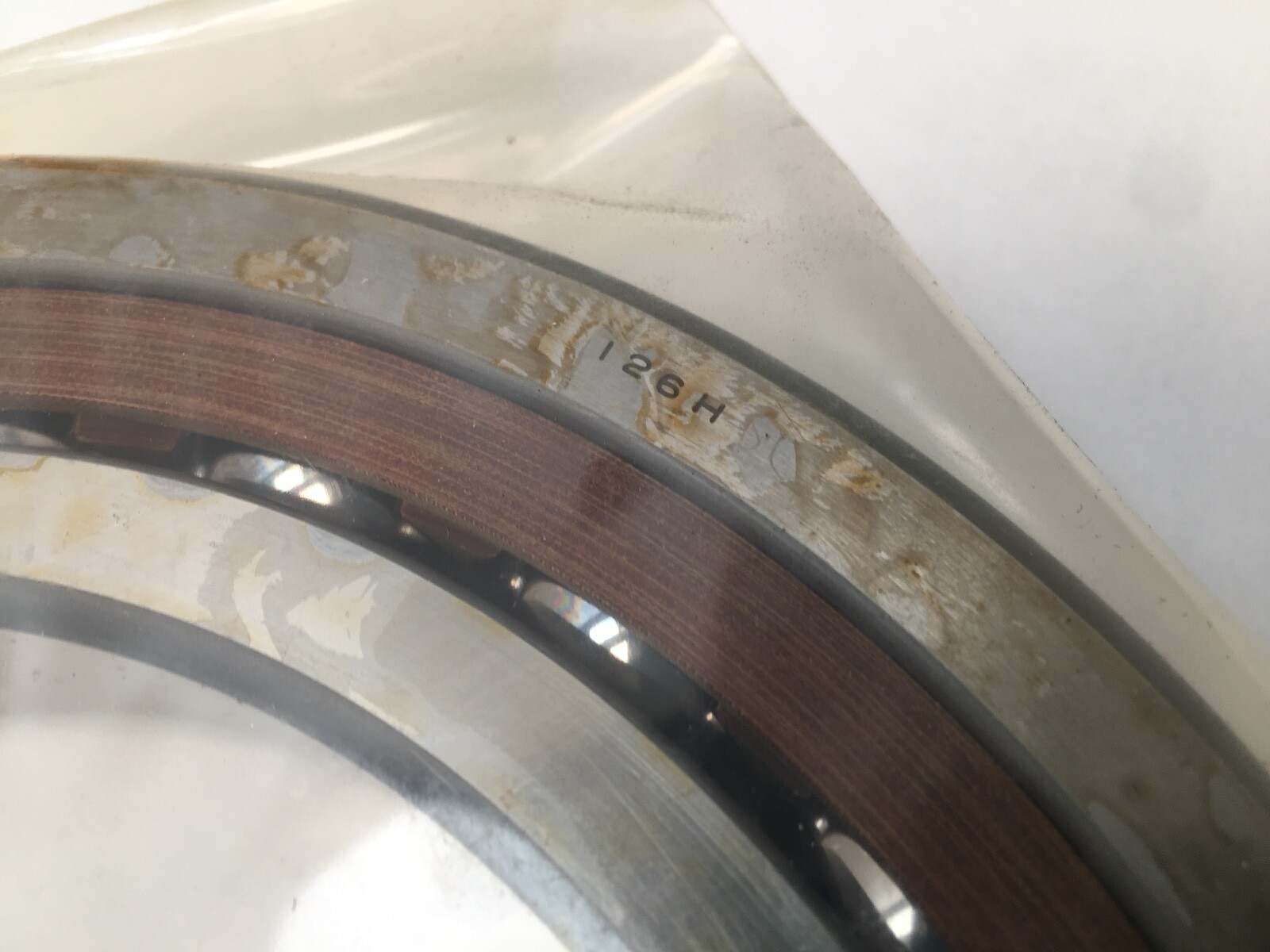

H — one-piece reinforced phenolic halo cage.
D — universal mounting: inner and outer rings of equal width, so the set installs back-to-back (DB), face-to-face (DF) or tandem (DT).
L — light preload; no numerals follow, so Barden standard light preload applies.
Bore Diameter: 130 mm. Outside Diameter: 200 mm. Overall Width: 33 mm per bearing. This is the ISO 7026 envelope used on large machine tool spindles.
Preload: Light (L), Barden standard preload. Light preload keeps heat generation low at spindle speed.
Cage Material: Phenolic. The one-piece halo cage is light and runs quietly at speed.
Envelope 130 x 200 x 33 mm per bearing; the set of two occupies 66 mm of axial length on the shaft.
One set of 2 bearings, universal duplex (D), matched for DB, DF or DT mounting with light preload.
Same envelope: FAG B7026C.T.P4S and Timken Fafnir 2MM9126WI.
