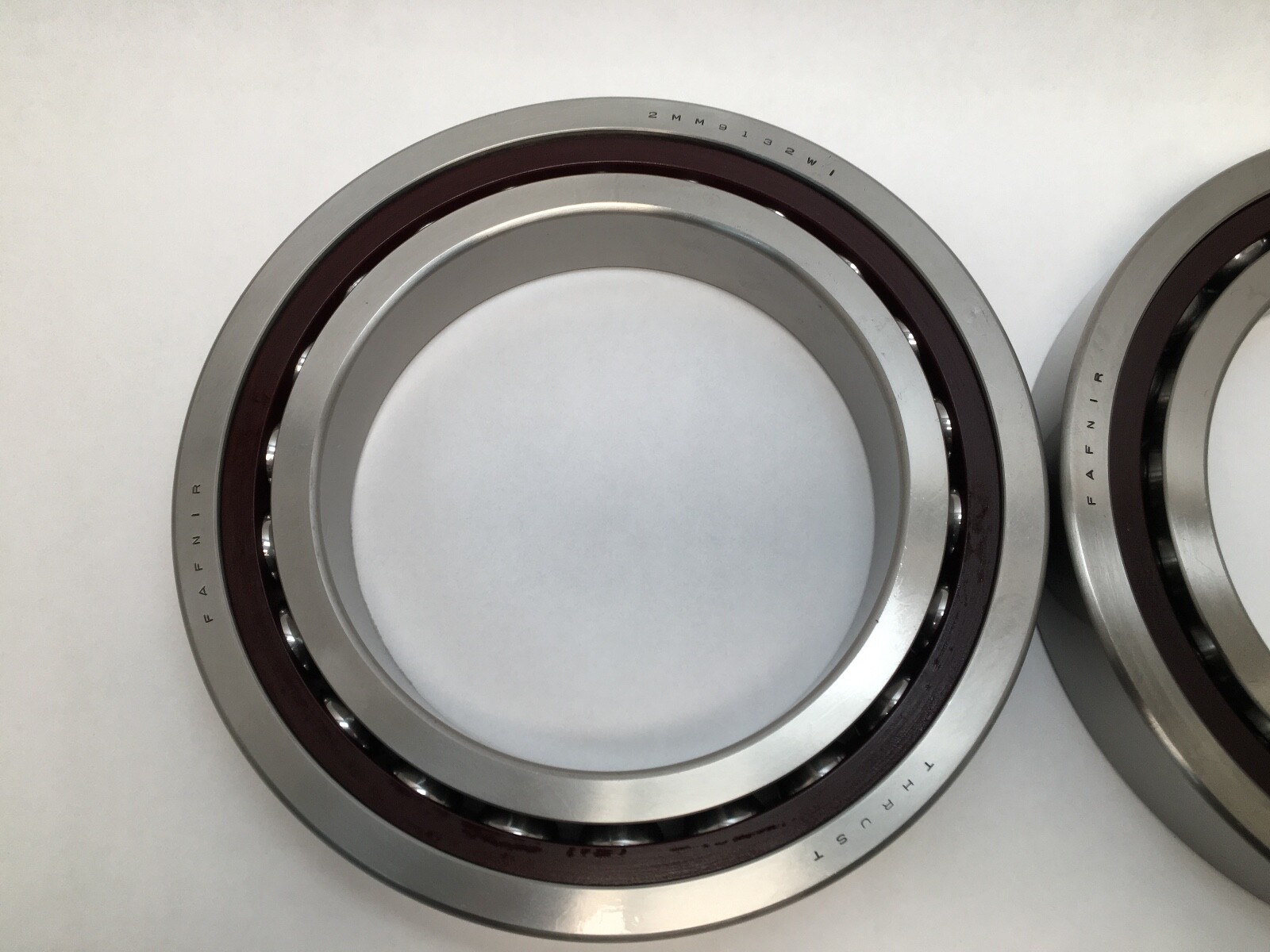

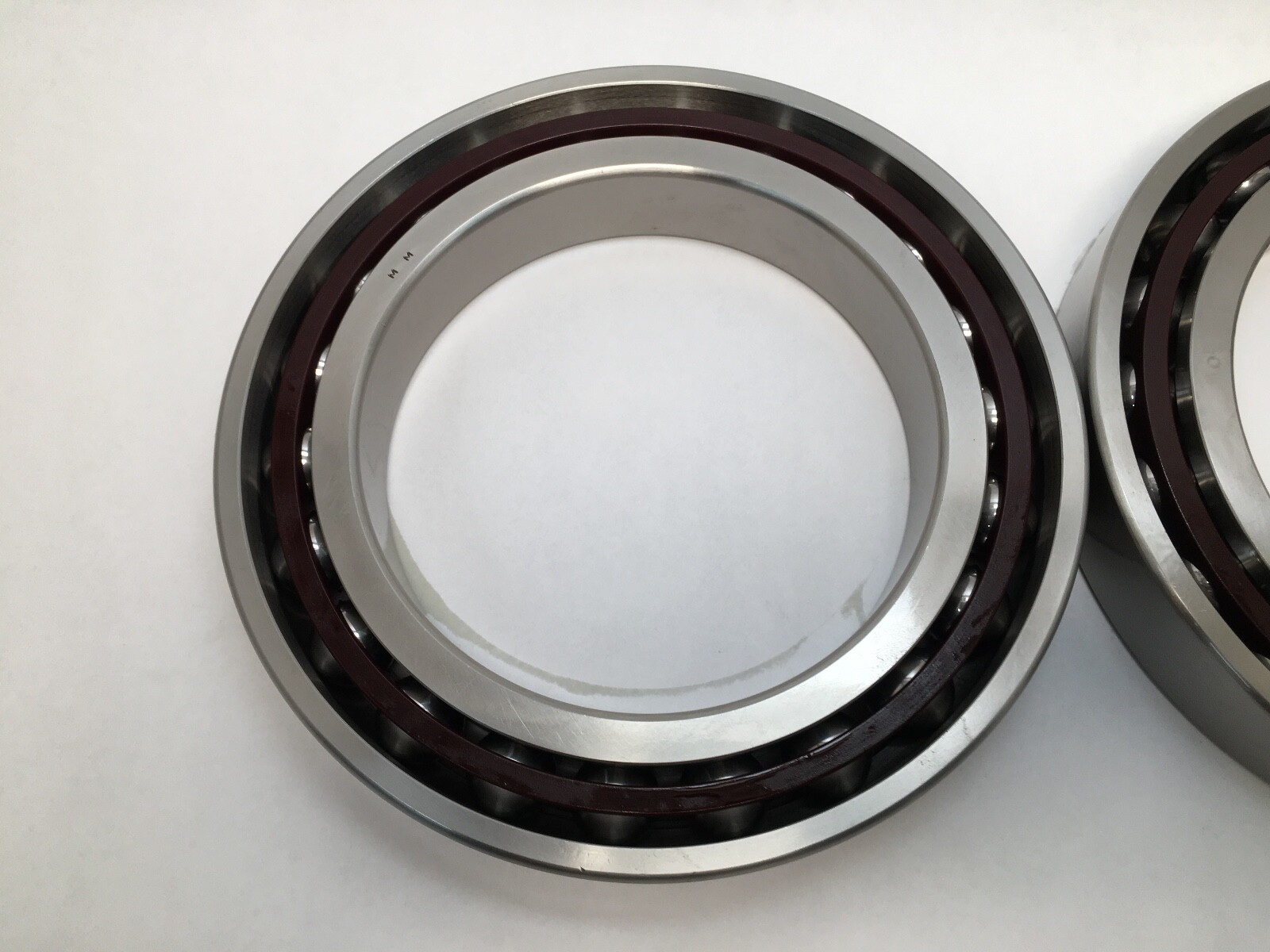

Fafnir 2MM9132WI-DUL matched duplex pair of 160 x 240 x 38 mm angular contact bearings, 15° contact angle, light preload, phenolic cage, ISO P4S.
List Price
$2,263.99
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM9132WICRDUL |
| GTIN | 087796221239 |
| Model | 2MM 9132 WI DUL 7032C |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 160 mm |
| OD | 240 mm |
| Width | 38 mm |
| Material | Chrome bearing steel |
|---|---|
| Series | 9100 |
| Preload | Light |
| Base Number | 2MM9132WI |
| Industry Terms | Super precision spindle bearing, ABEC 7/9 angular contact, phenolic cage spindle bearing, duplex pair, matched bearing set, extra-light series |
| Common Misspellings | 2MM9132WIDUL-, 2MM 9132WI DULL, 2MM9132WI DUL, Fafner 2MM9132WI-DUL, 2M9132WIDUL |
| Bore Shaft Size | 160 mm |
| Mpn Variants | 2MM9132WICRDUL, 2MM9132WI-DUL, 2MM9132WIDUL, 2MM 9132 WI DUL, 2MM9132WI, 7032C, 7032-C |
| Compatible With Replaces | Machine tool spindles, grinding spindles, jig borers and precision rotary tables using a 7032-size 15° angular contact pair |
| Arrangement Configuration | Duplex pair, universally ground |
| Precision Class | ISO P4S (ABEC 7/9) |
| Additional Attributes | Shaft backing shoulder 176.2 mm; housing backing shoulder 224.7 mm; max fillet radius 2 mm |
| Dynamic Load Rating | 189,500 N (C1, 1M revs) |
| Static Load Rating | 192,600 N |
| Precision Rating | ISO P4S (ABEC 7/9) |
| Rolling Elements | Ball |
| Item Weight | 10.38 kg (22.88 lb) per matched pair |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 5,200 rpm grease; 10,400 rpm oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Part Number | 2MM9132WI-DUL |
| Total Width | 76 mm (matched pair) |
| Cross Reference 1 | SKF 7032 CD/P4ADGA |
|---|---|
| Cross Reference 2 | NSK 7032CTRDULP4 |
| Cross Reference 3 | RHP 7032CTRDULP4 |
| Cross Reference 4 | GMN S6032CTA |
| Cross Reference 5 | 3MM9132WI - 25° contact angle |
| Cross Reference 6 | 2MM9132WI-DUM - medium preload |

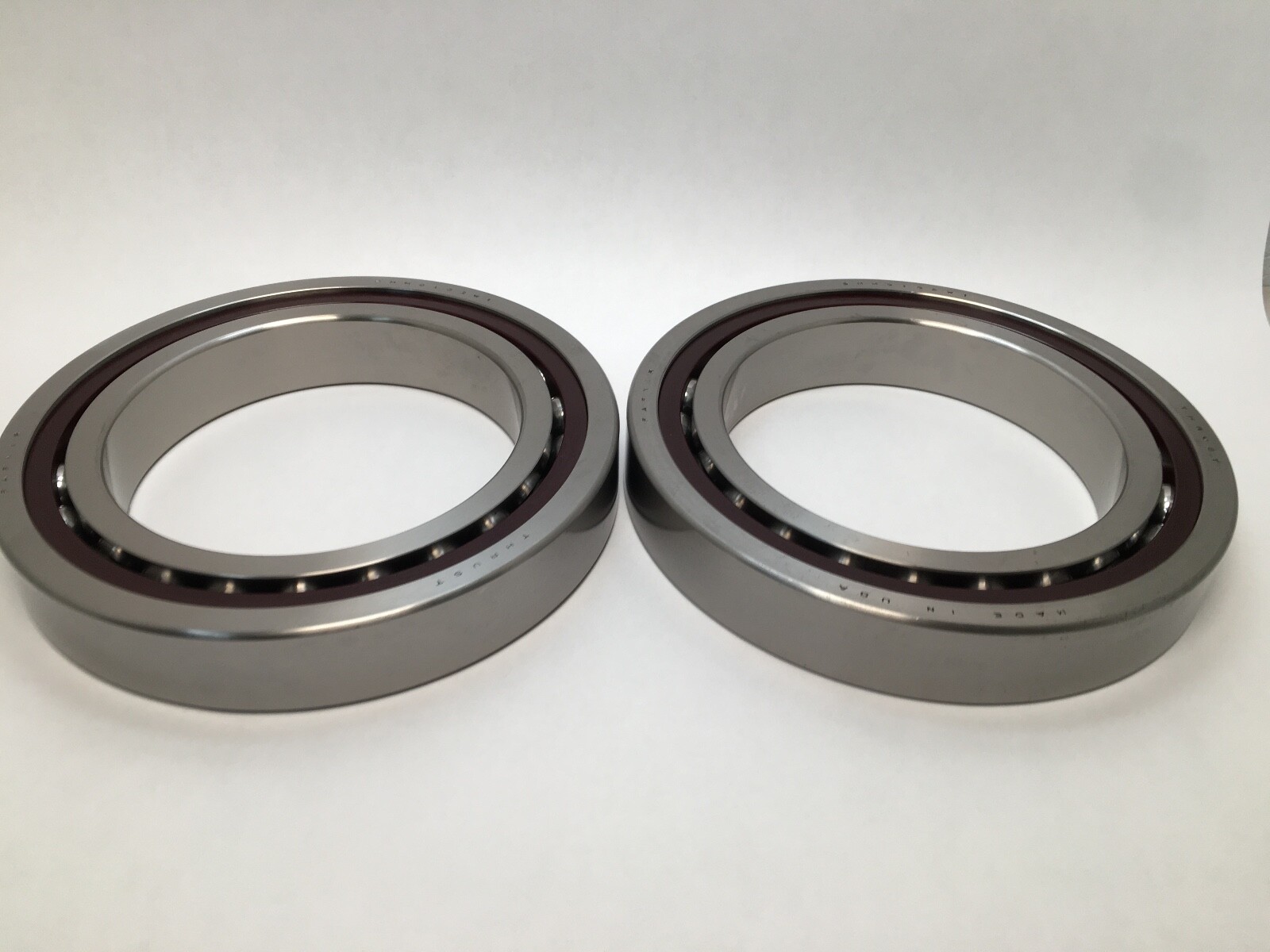

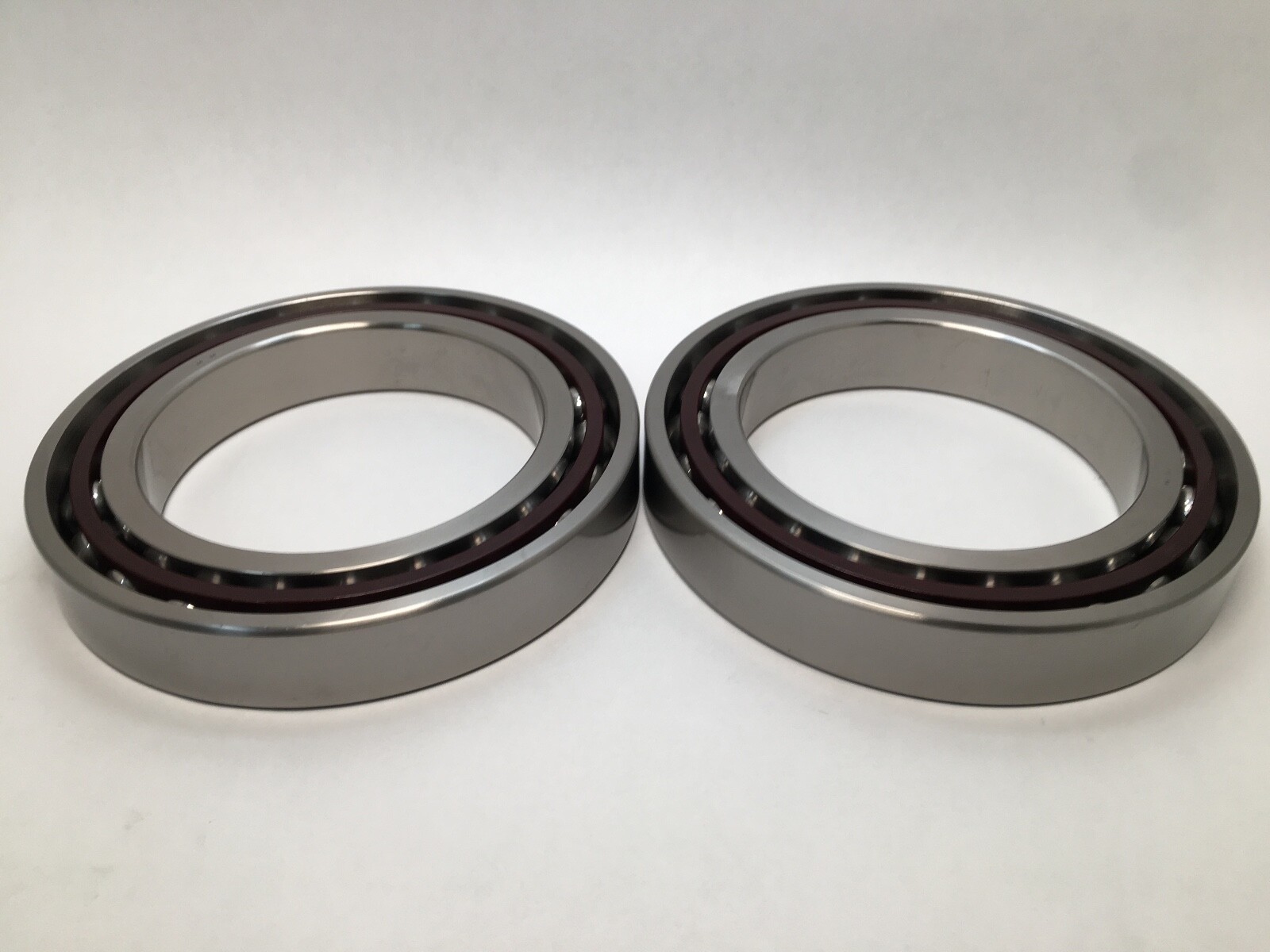

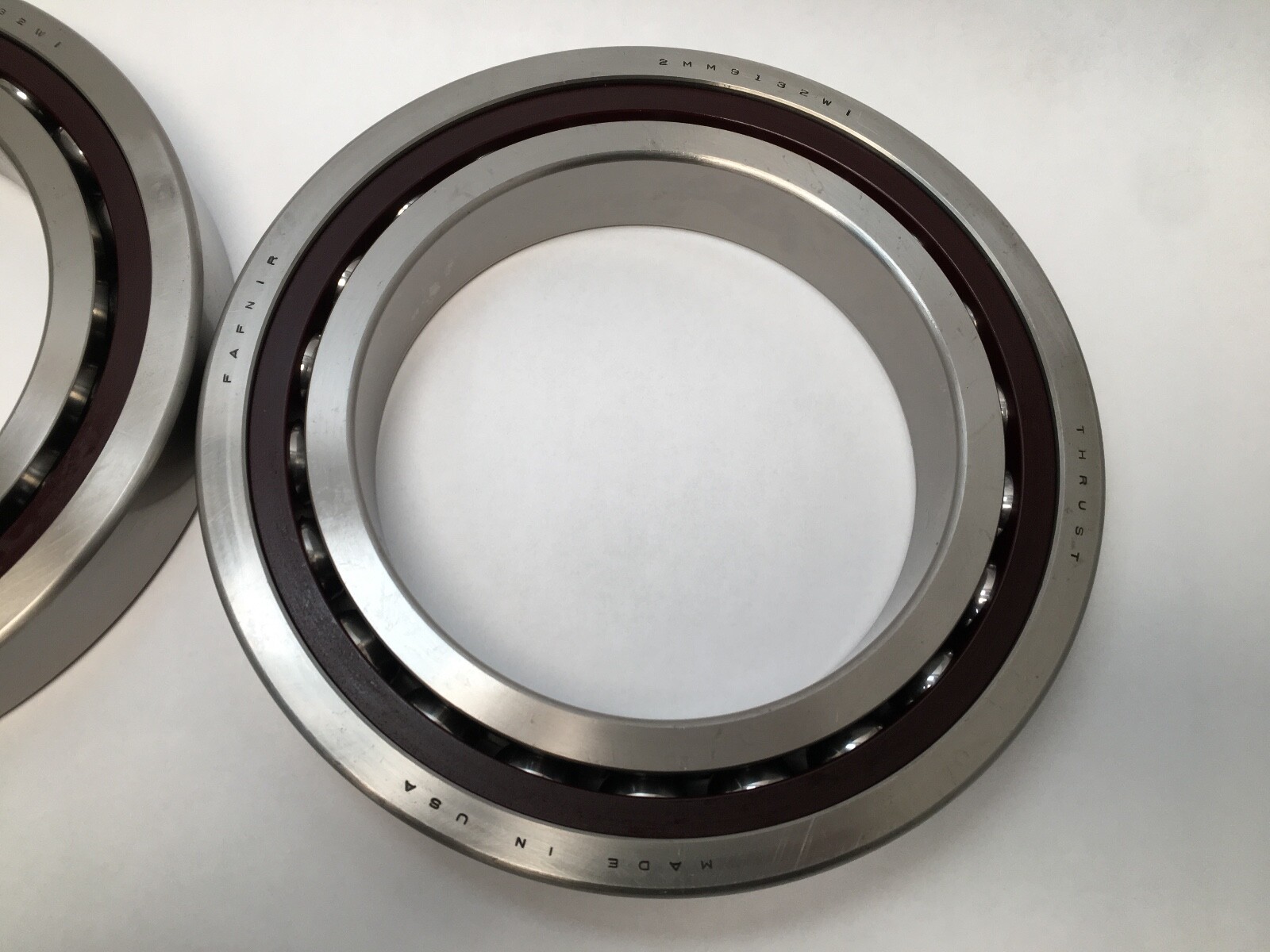

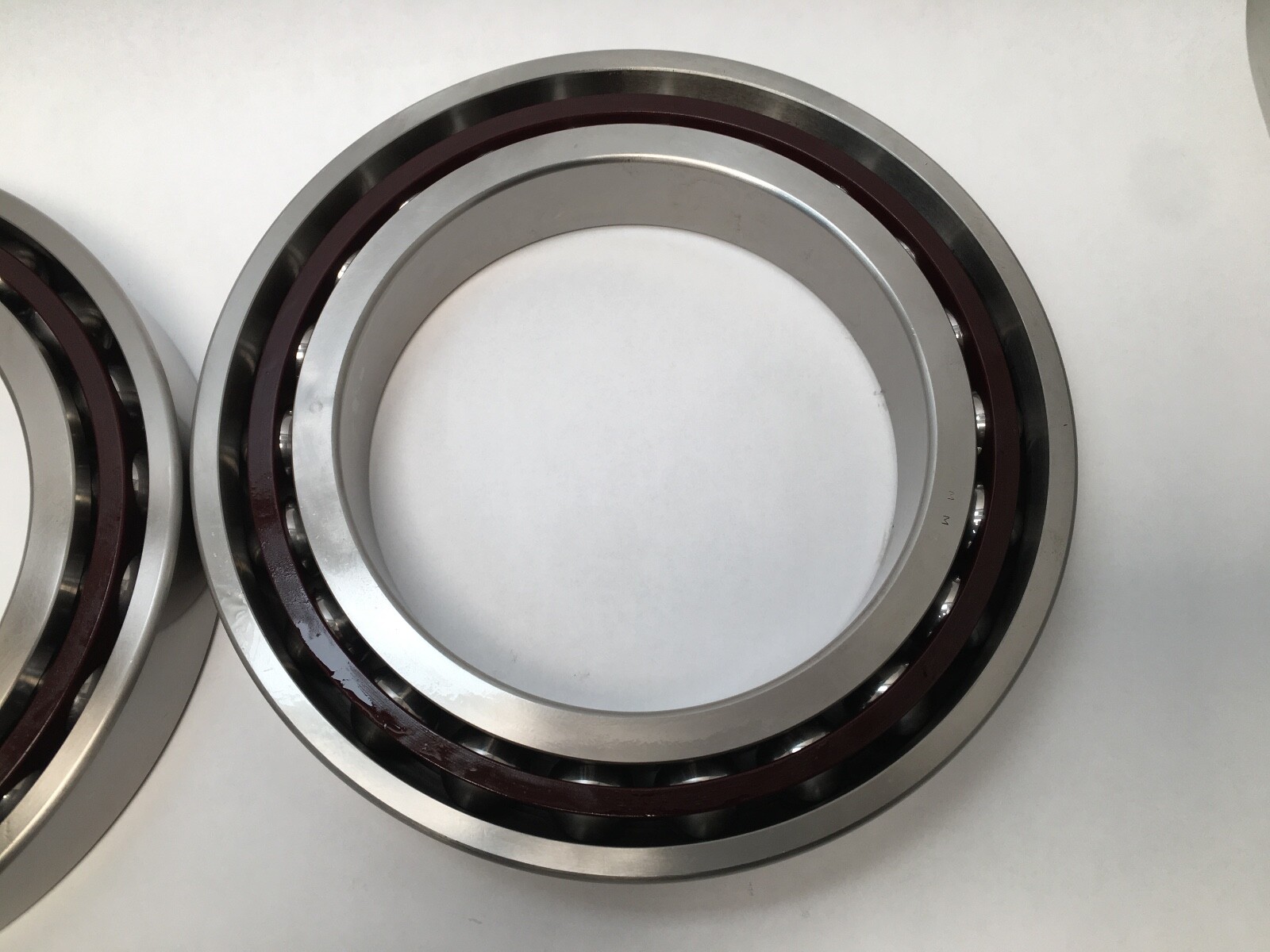

Fafnir 2MM9132WI-DUL is a matched duplex pair of super-precision single-row angular contact ball bearings, universally ground, light preload. Unit Quantity: 2 Pcs, one matched duplex pair. ISO equivalent designation: 7032C. GTIN: 087796221239.

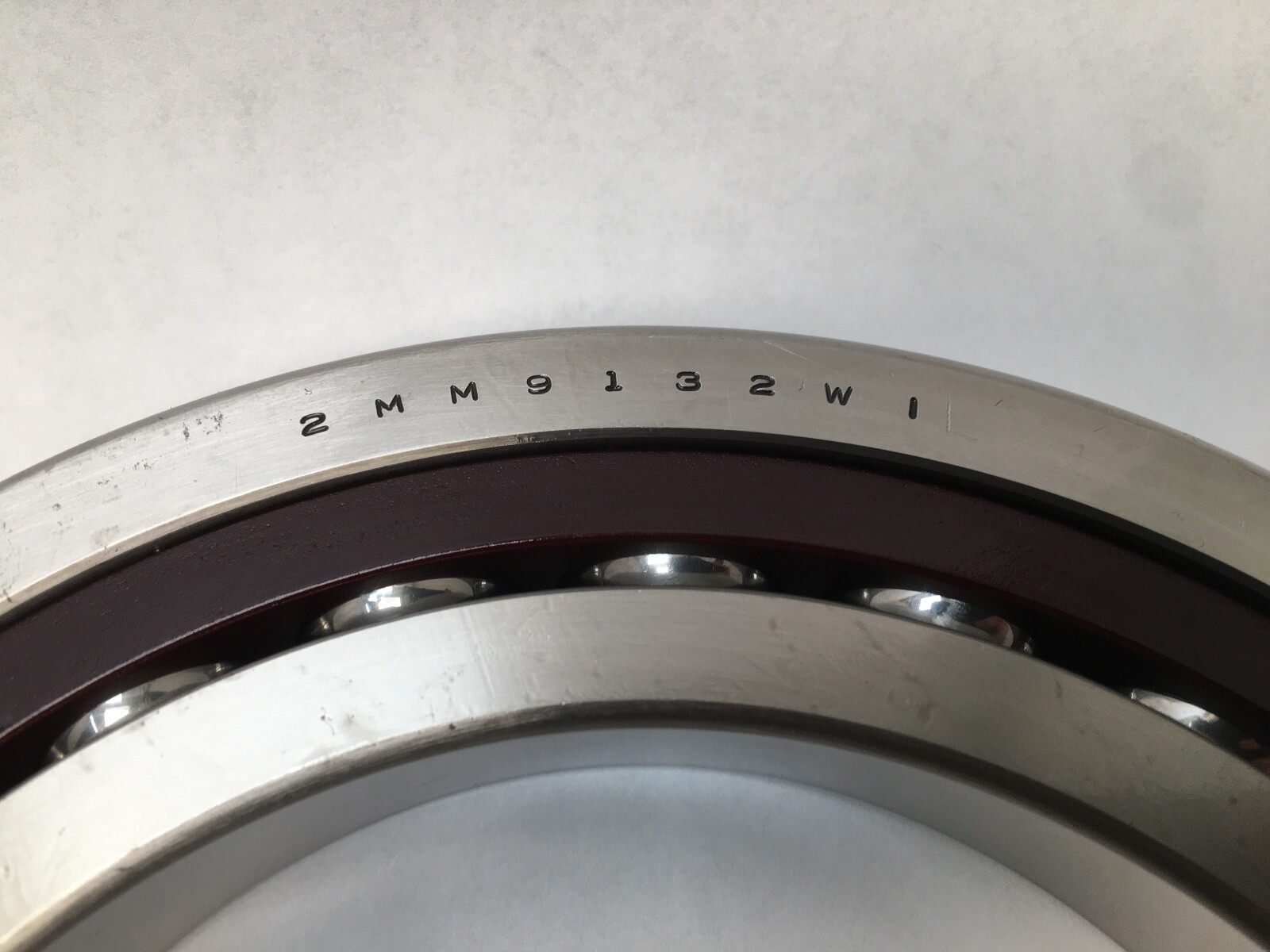

2MM — Fafnir super-precision prefix, 15° contact angle.
91 — extra-light dimension series, ISO 70 series envelope.
32 — bore code, 32 × 5 = 160 mm bore.

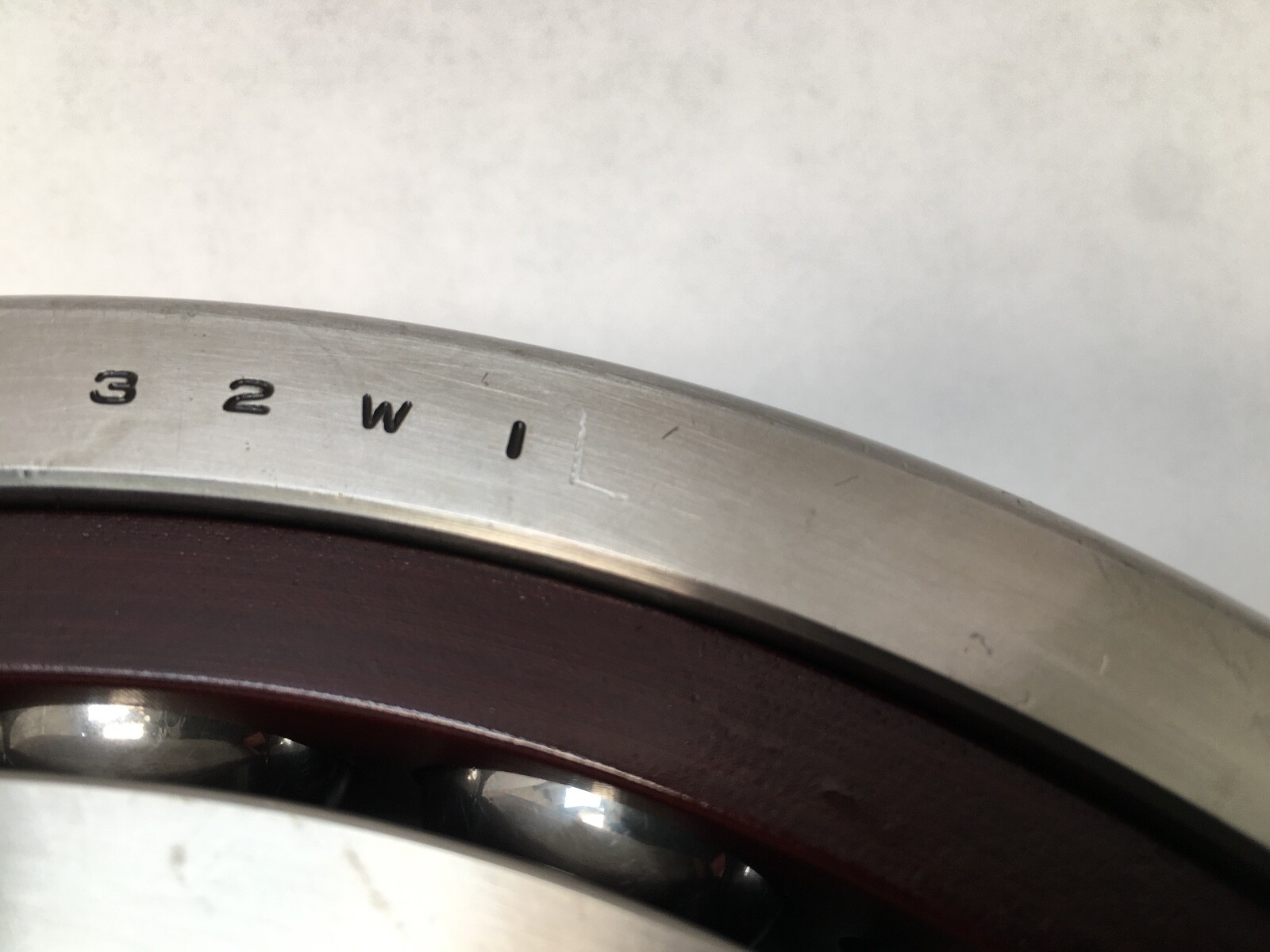

WI — super-precision spindle execution with a low shoulder on both rings.

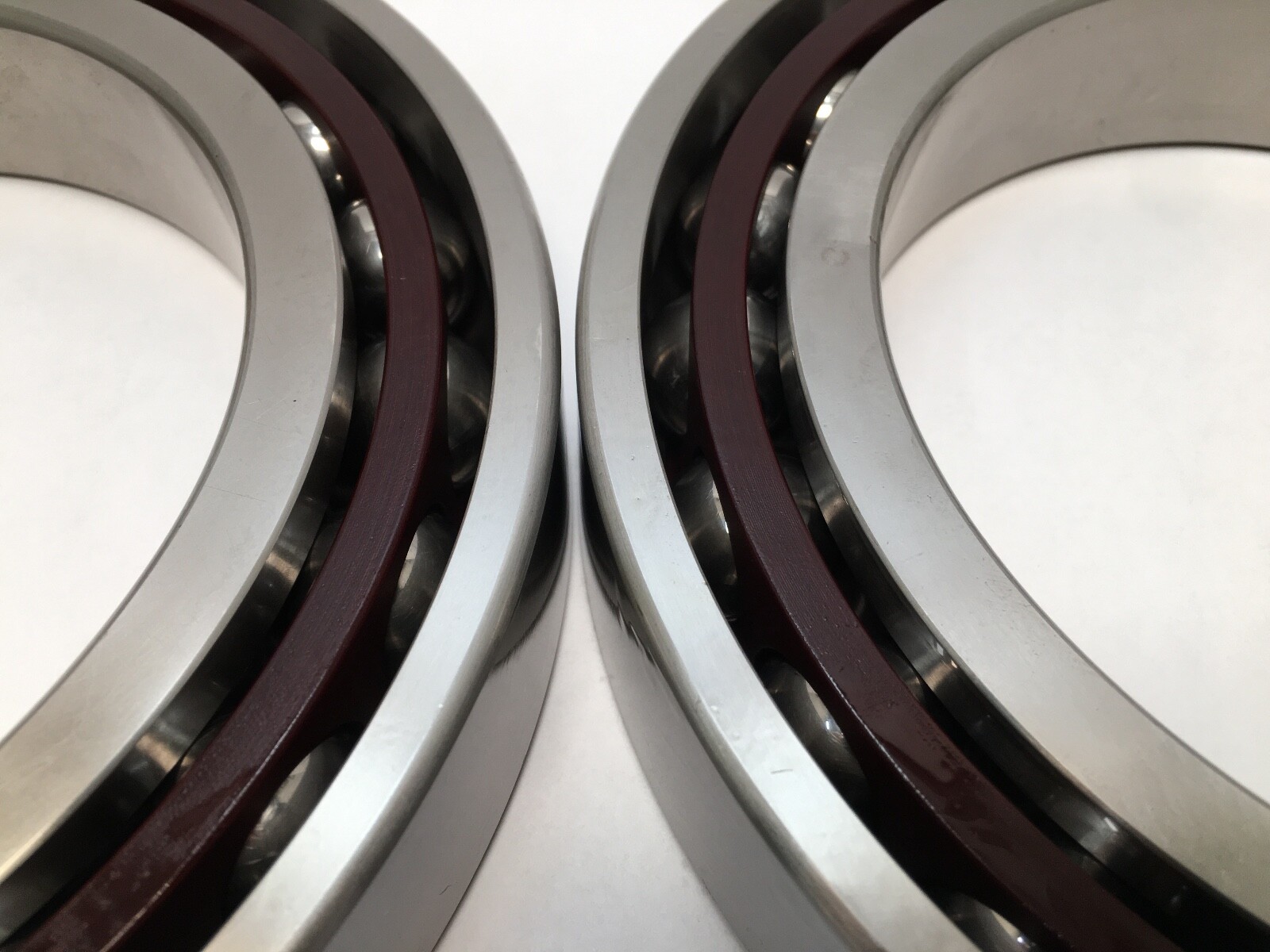

CR — phenolic cage.
DUL — duplex pair, universally ground, light preload.
Contact Angle: 15°. Precision Class: ISO P4S (ABEC 7/9). Preload: Light. Rolling Elements: Ball (steel). Number Of Rows: 1 per bearing. Cage Material: Phenolic. Closure Type: Open. Bore Type: Straight. Dynamic Load Rating (C1, 1M revs): 189,500 N. Static Load Rating (C0): 192,600 N. Limiting Speed: 5,200 rpm grease; 10,400 rpm oil. Item Weight: 10.38 kg (22.88 lb) per matched pair. Series: Fafnir 9100WI extra-light.
Bore Diameter: 160 mm. Outside Diameter: 240 mm (9.449 in). Width: 38 mm (1.496 in) per bearing. Total Width: 76 mm as a pair. Shaft Backing Shoulder Diameter: 176.2 mm (6.940 in). Housing Backing Shoulder Diameter: 224.7 mm (8.850 in). Maximum Fillet Radius: 2 mm (0.079 in).
Cross-references: SKF 7032 CD/P4ADGA; NSK 7032CTRDULP4; RHP 7032CTRDULP4; GMN S6032CTA. All are 15° light-preload duplex pairs in the 160 x 240 x 38 mm envelope. Related sizes: 3MM9132WI (25° contact angle) and 2MM9132WI-DUM (medium preload). Also written 2MM9132WIDUL, 2MM 9132 WI DUL, 2MM9132WICRDUL and 7032C.
160 mm bore, 240 mm outside diameter and 38 mm width per bearing; the pair is 76 mm wide.
Contact angle is 15° and the preload is light (DUL).
Dynamic C1 189,500 N, static C0 192,600 N, limiting speed 5,200 rpm with grease and 10,400 rpm with oil.
