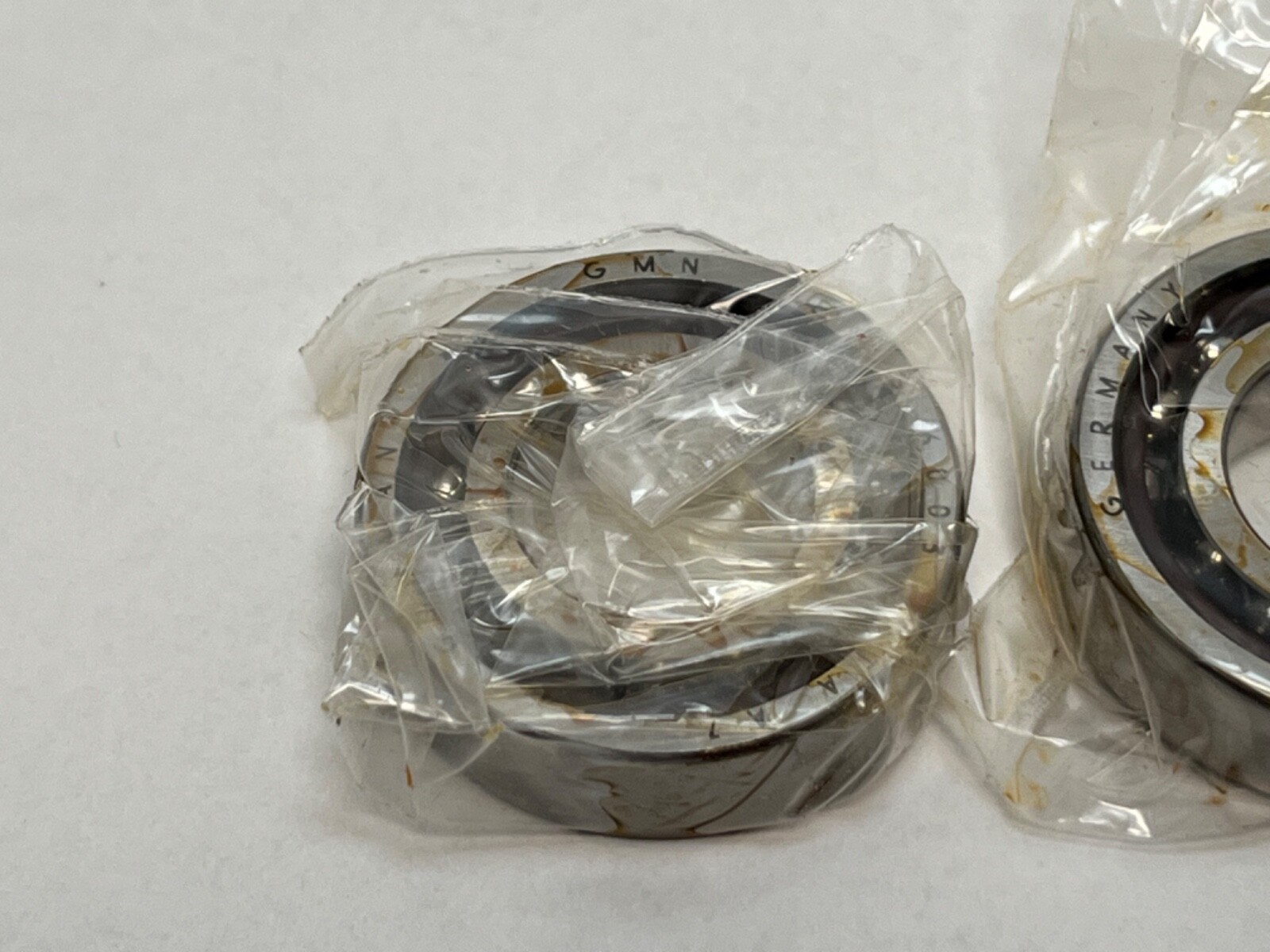

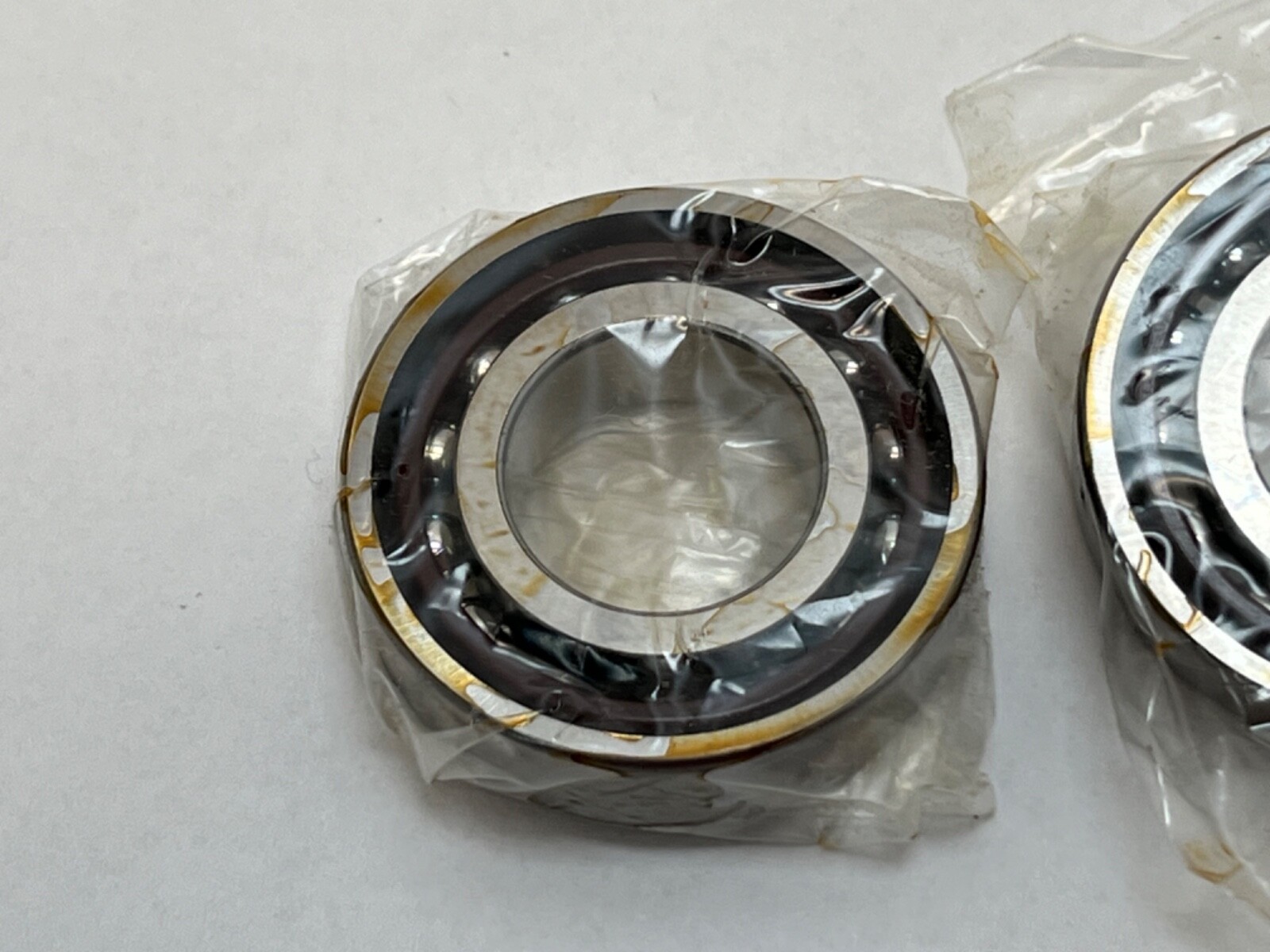

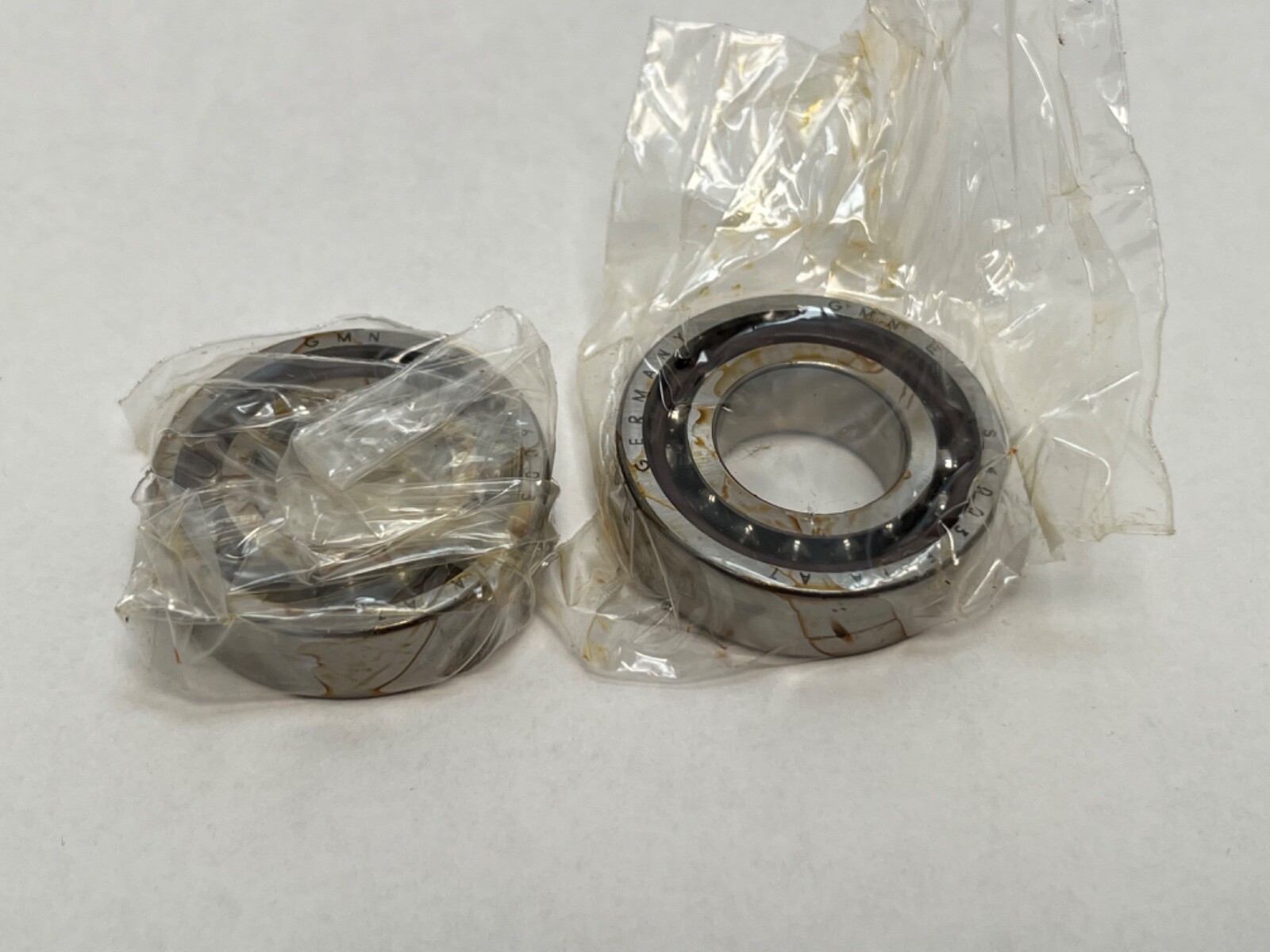

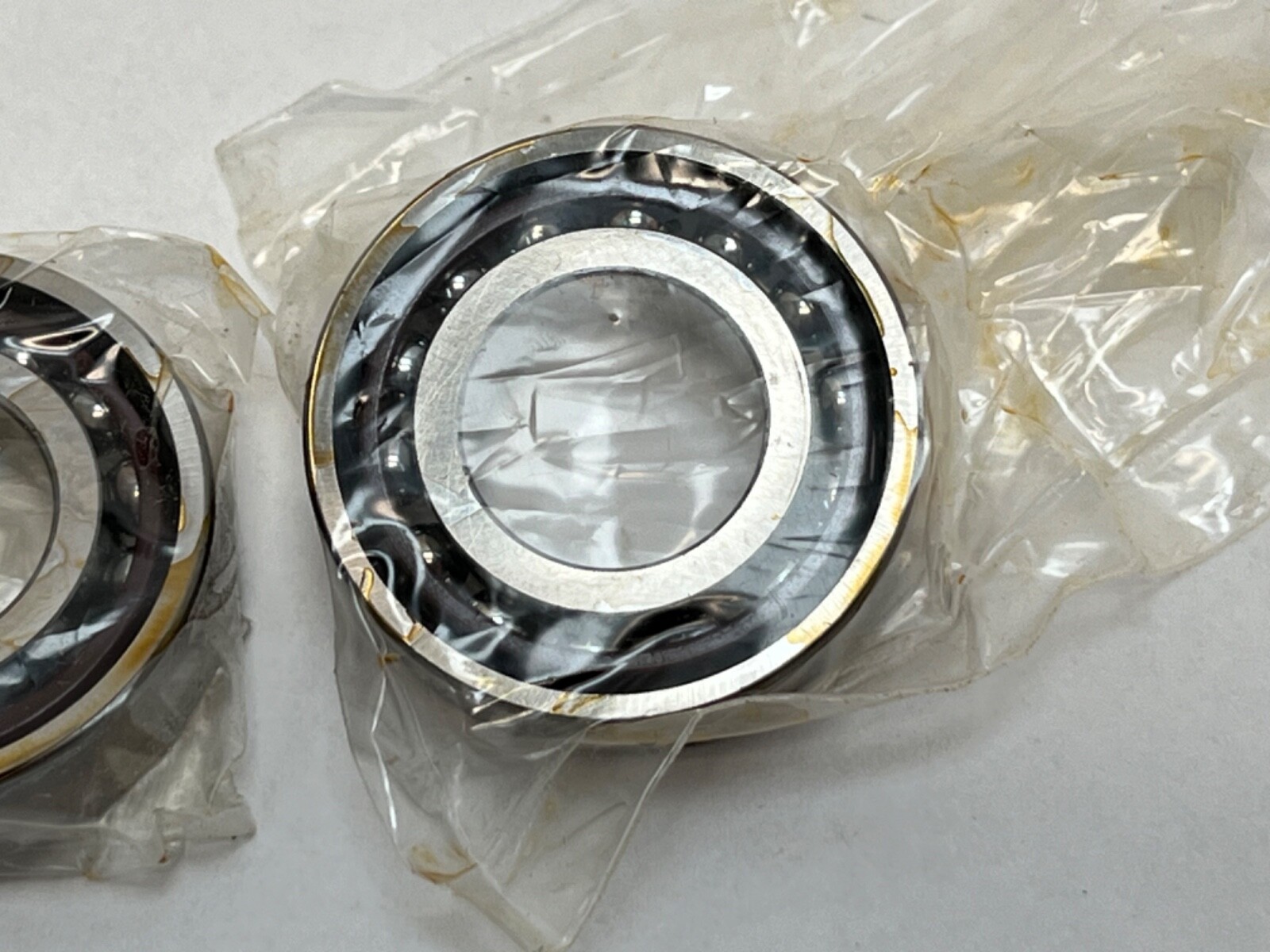

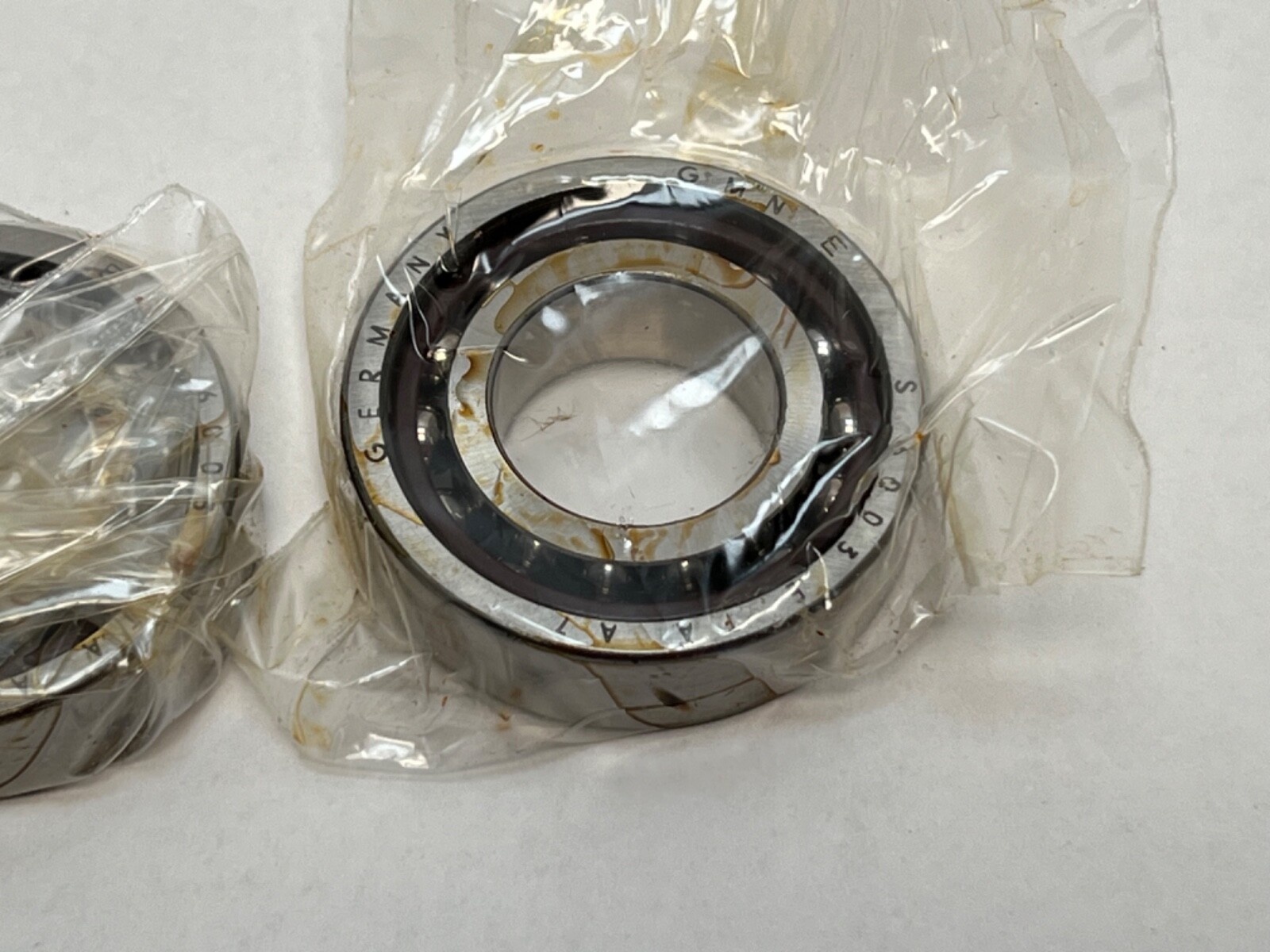

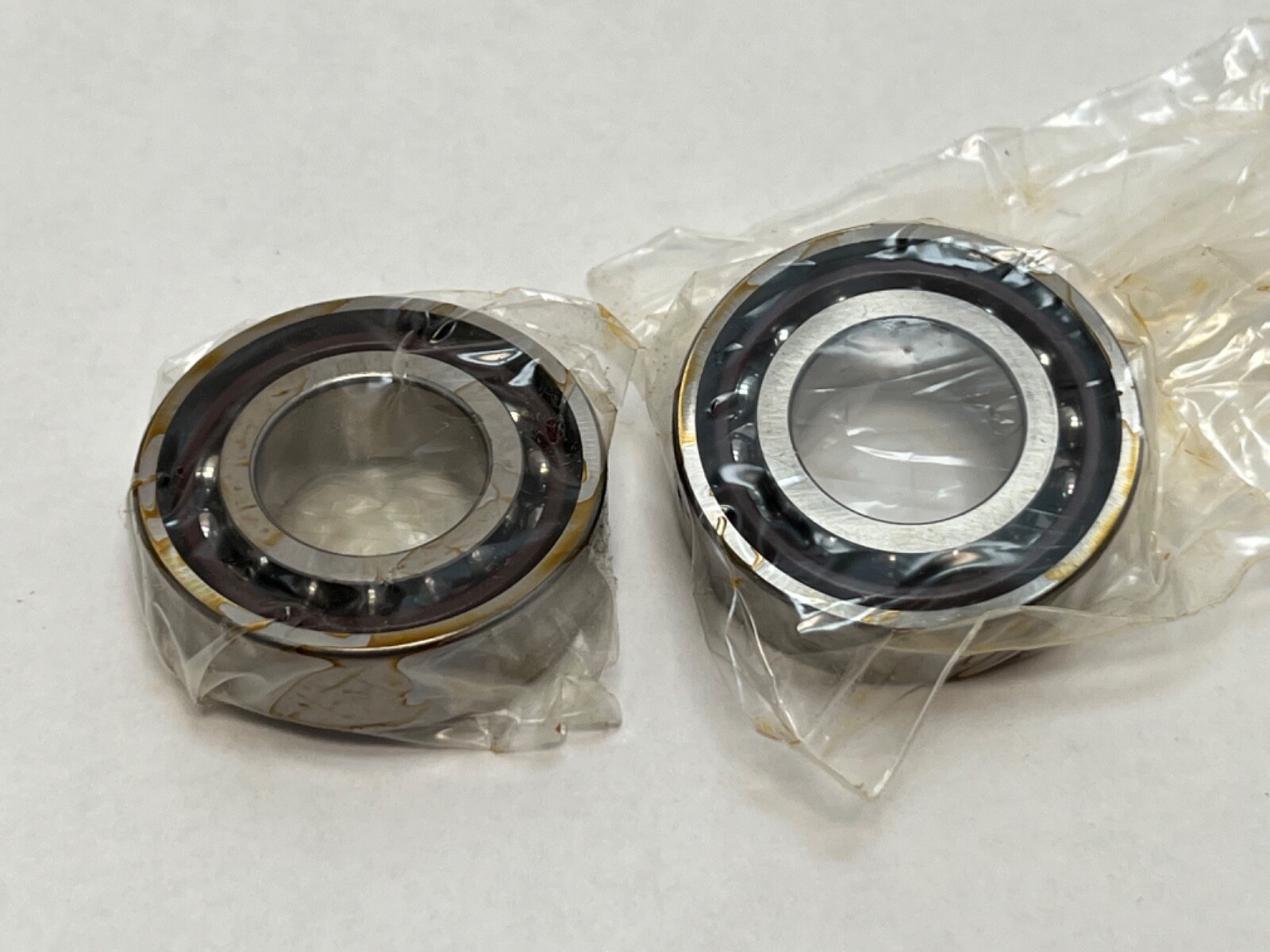

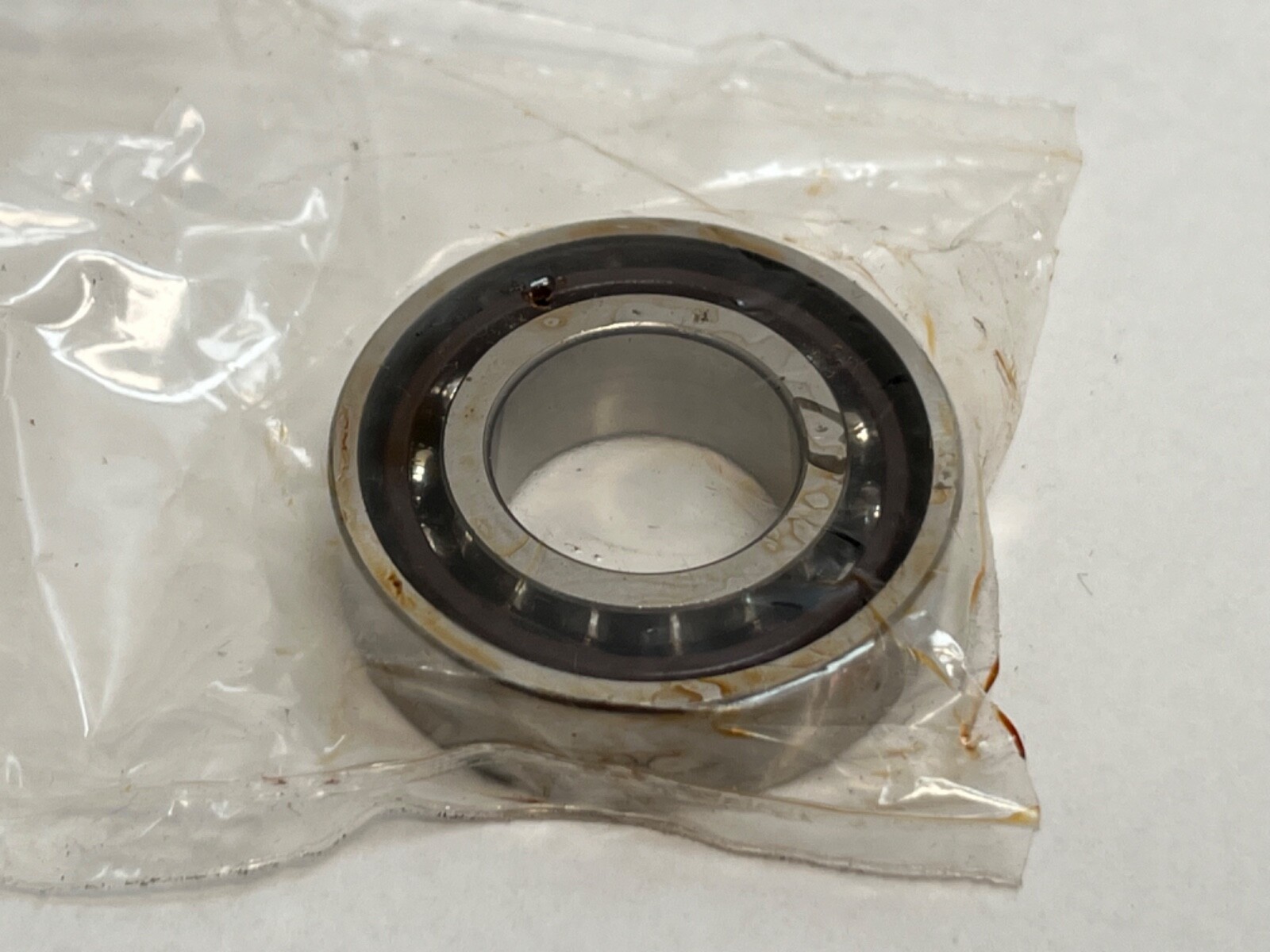

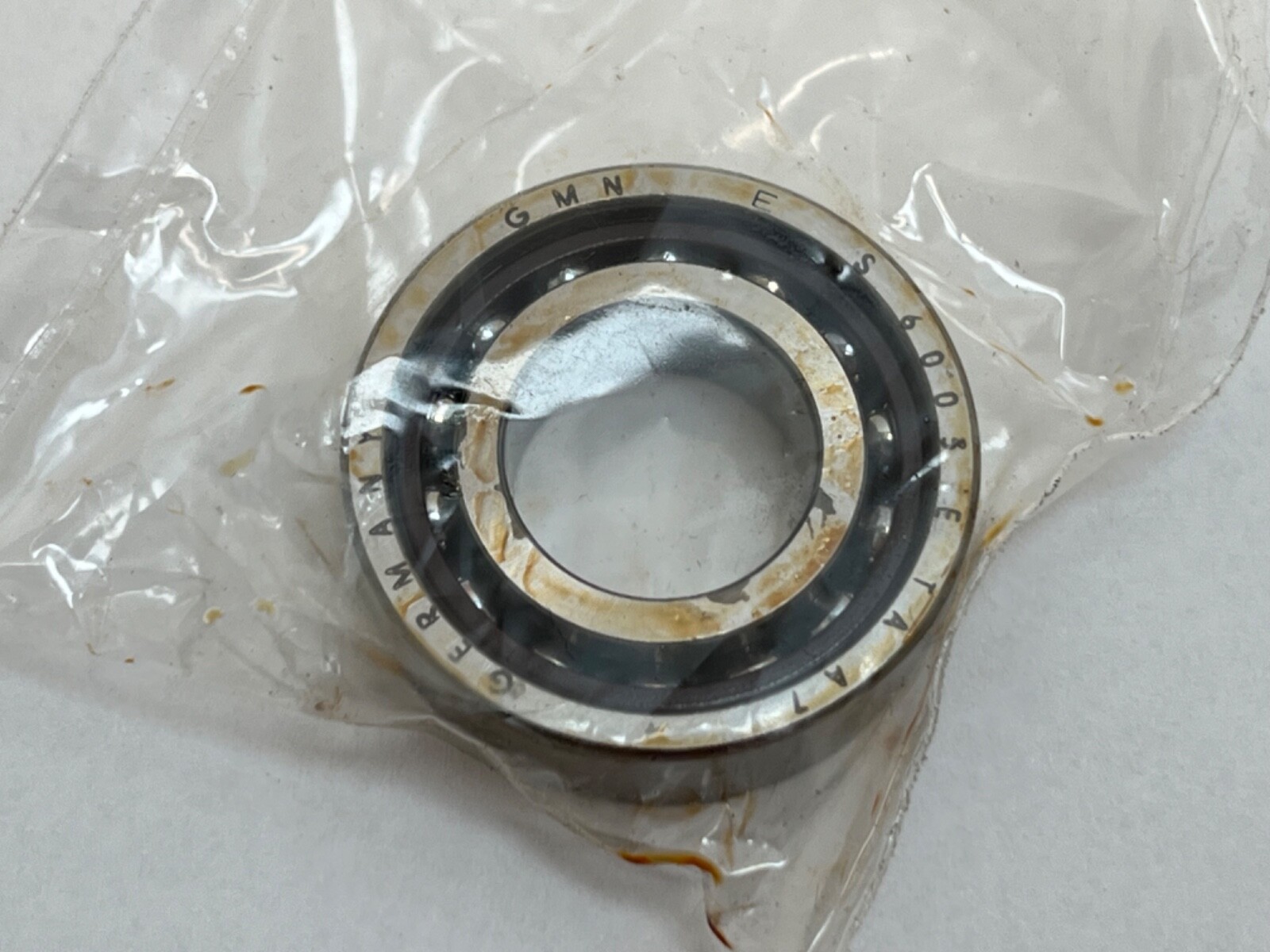

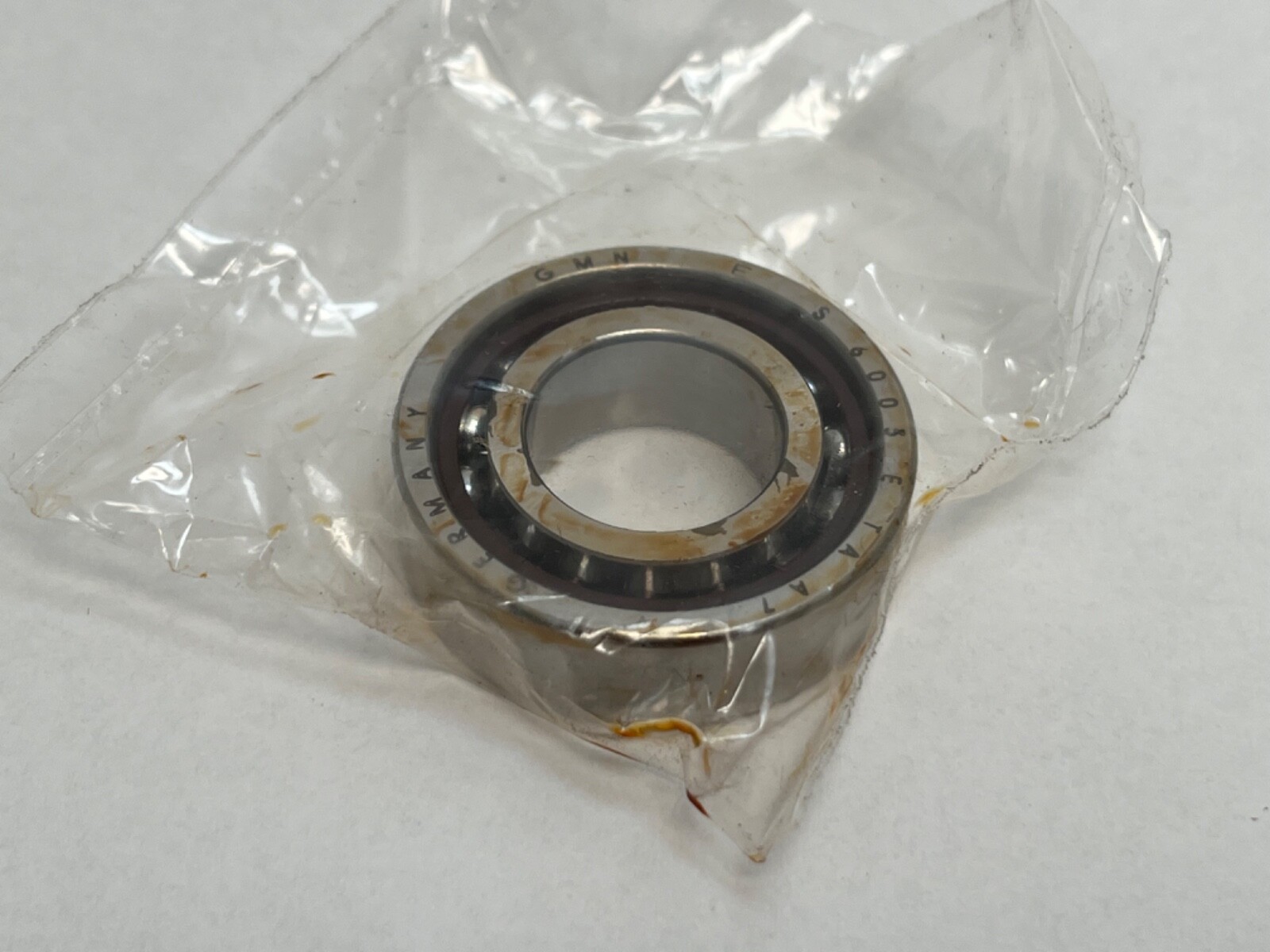

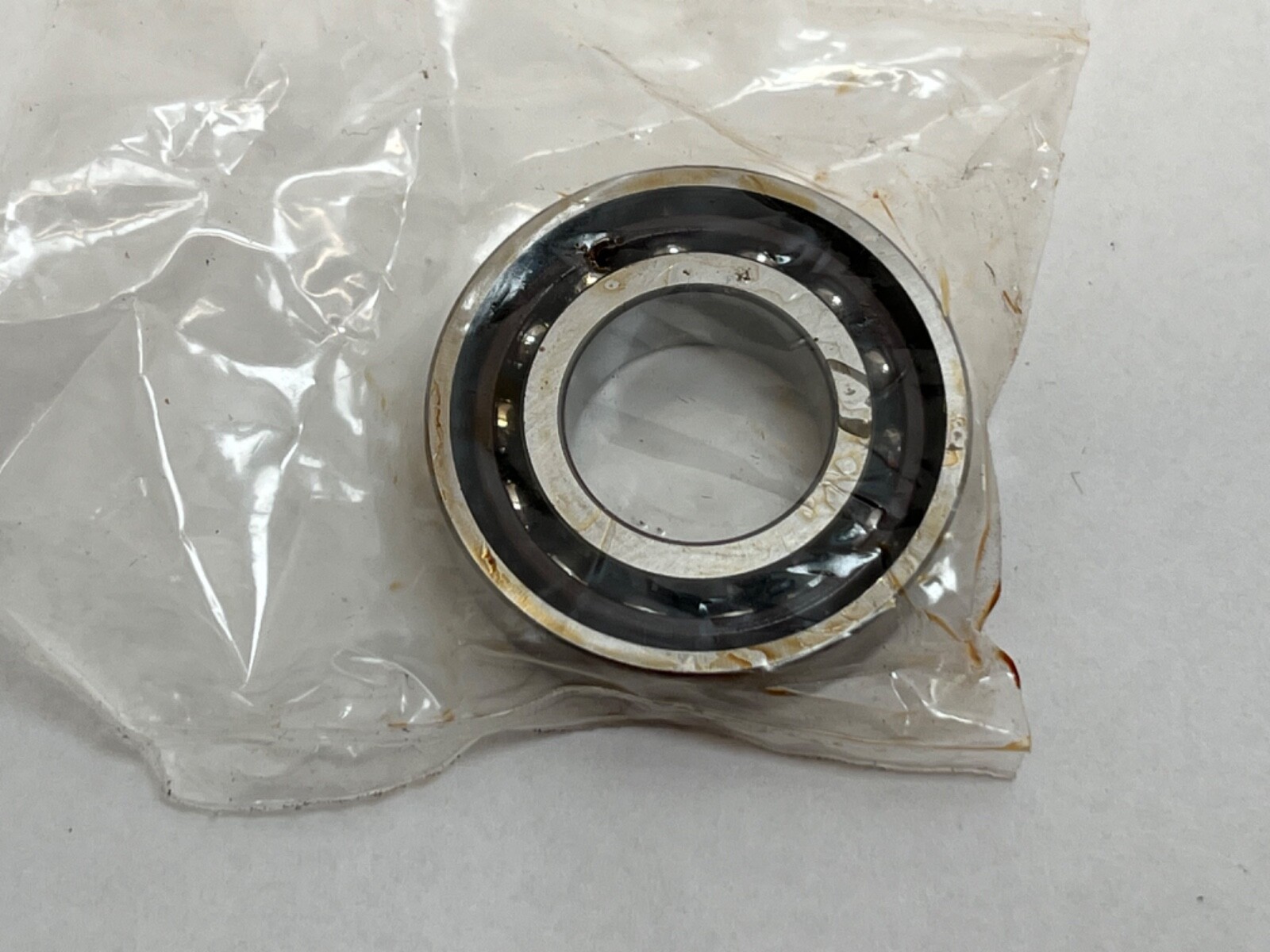

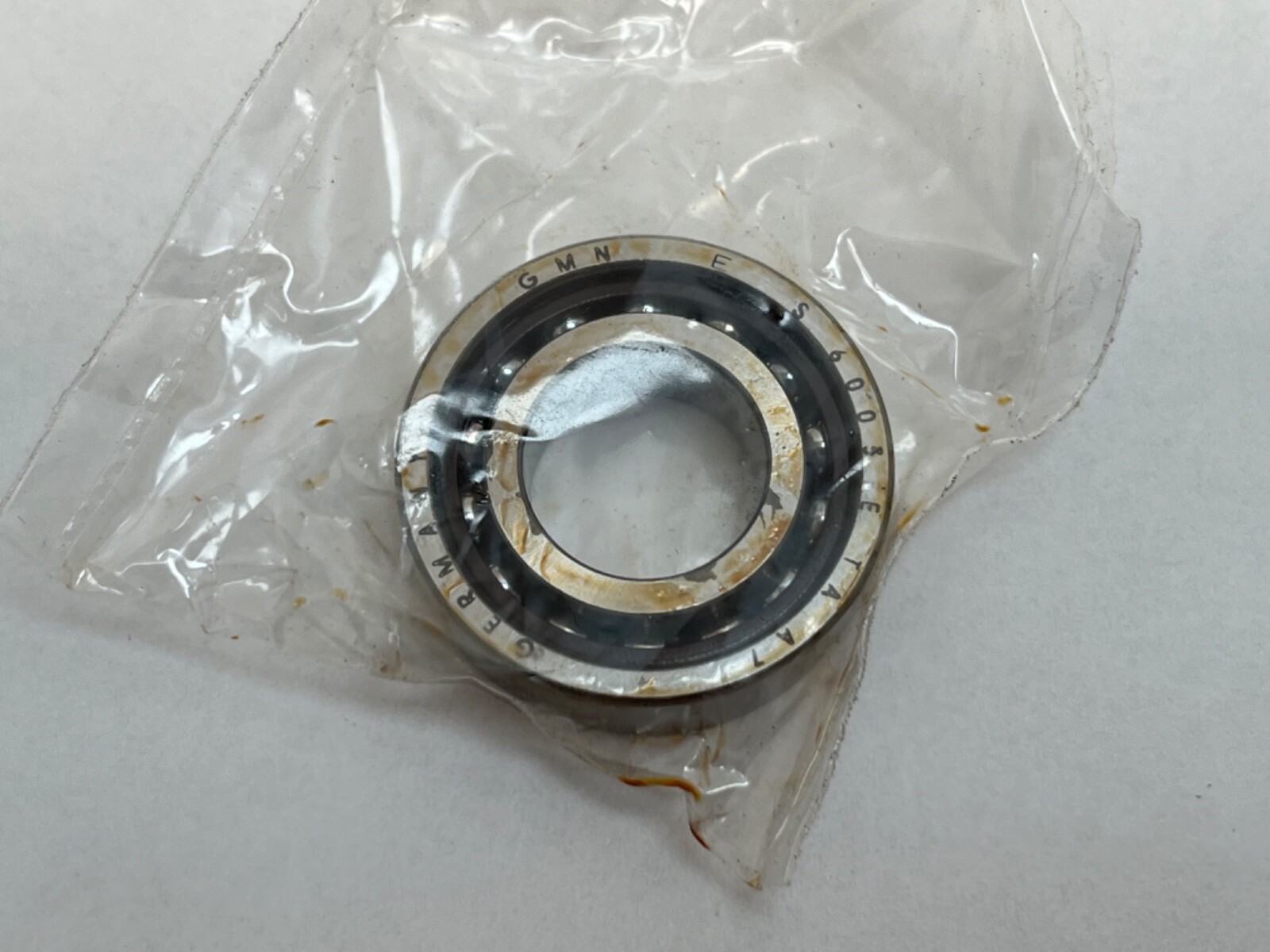

Angular contact spindle bearing pair, 17 mm bore x 35 mm OD x 10 mm, 25°, phenolic TA cage, ABEC 7 / P4, universal light preload 60 N. GMN S 6003 E TA A7 DUL, 2 Pcs.
List Price
$70.32
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | GMN |
|---|---|
| MPN | S6003ETAA7DUL |
| Model | S 6003 E TA A7 DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 17 mm |
| OD | 35 mm |
| Width | 10 mm |
| Material | Bearing Steel |
|---|---|
| Series | S 60 |
| Lubricant | Grease or oil |
| Preload | L (light), 60 N |
| Closure Type | Open |
| Cage Type | TA, machined, outer-ring guided |
| Dynamic Load Rating | 6,650 N |
| Static Load Rating | 4,000 N |
| Rolling Elements | Ball |
| Item Weight | 0.037 kg (0.08 lb) per bearing |
| Cage Material | Laminated phenolic resin |
| Limiting Speed | 42,000 rpm grease; 56,000 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Mounting Arrangement | Universal (DB, DF or DT) |
| Overall Width | 10 mm |
| Mpn Variants | S6003ETAA7DUL, S 6003 E TA A7 DUL, S-6003-E-TA-A7-DUL, 7003E |
| Arrangement Configuration | DUL — universal matched pair (DB, DF or DT) |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Bearing design: S, two lands on inner ring, non-separable; Balls: 14 x 4.762 mm; Axial rigidity (pair, light preload): 58 N/µm; Cage max operating temperature: 120 °C |
| Cross Reference 1 | Fafnir 3MM9103WI |
|---|---|
| Cross Reference 2 | FAG B7003-E-T |
| Cross Reference 3 | SKF 7003 ACD |
| Cross Reference 4 | RHP 7003 X3TA |
| Cross Reference 5 | Barden 2103H |
| Cross Reference 6 | SNFA EX 17 CE3 |
| Cross Reference 7 | SNR 7003 H |
GMN S 6003 E TA A7 DUL super-precision angular contact spindle bearing set, two bearings universally matched with light preload. Bore Diameter: 17 mm. Outside Diameter: 35 mm. Overall Width: 10 mm per bearing. Contact Angle: 25°. Cage Material: Laminated phenolic resin. Cage Type: Machined, outer-ring guided. Precision Class: ABEC 7 / P4. Preload: L (light), 60 N. Rolling Elements: Ball, 14 x 4.762 mm.
S — GMN standard spindle bearing, two lands on the inner ring, non-separable.
6003 — dimension series 10, bore code 03: 17 x 35 x 10 mm, the ISO 7003 size.
E — 25° nominal contact angle.
TA — laminated phenolic resin cage guided on the outer ring, rated to 120 °C.
A7 — ABEC 7 tolerance class per ABMA, corresponding to P4.
D — set of two bearings.
UL — universal matching, light preload. The pair mounts back-to-back, face-to-face or in tandem.
Dynamic Load Rating: 6,650 N. Static Load Rating: 4,000 N. Limiting Speed: 42,000 rpm grease; 56,000 rpm oil. Item Weight: 0.037 kg per bearing. Axial rigidity at light preload: 58 N/µm per pair. The 25° angle carries more axial load than a 15° bearing of the same size. Lubricant: grease or oil. Closure Type: Open. Snap Ring: No.

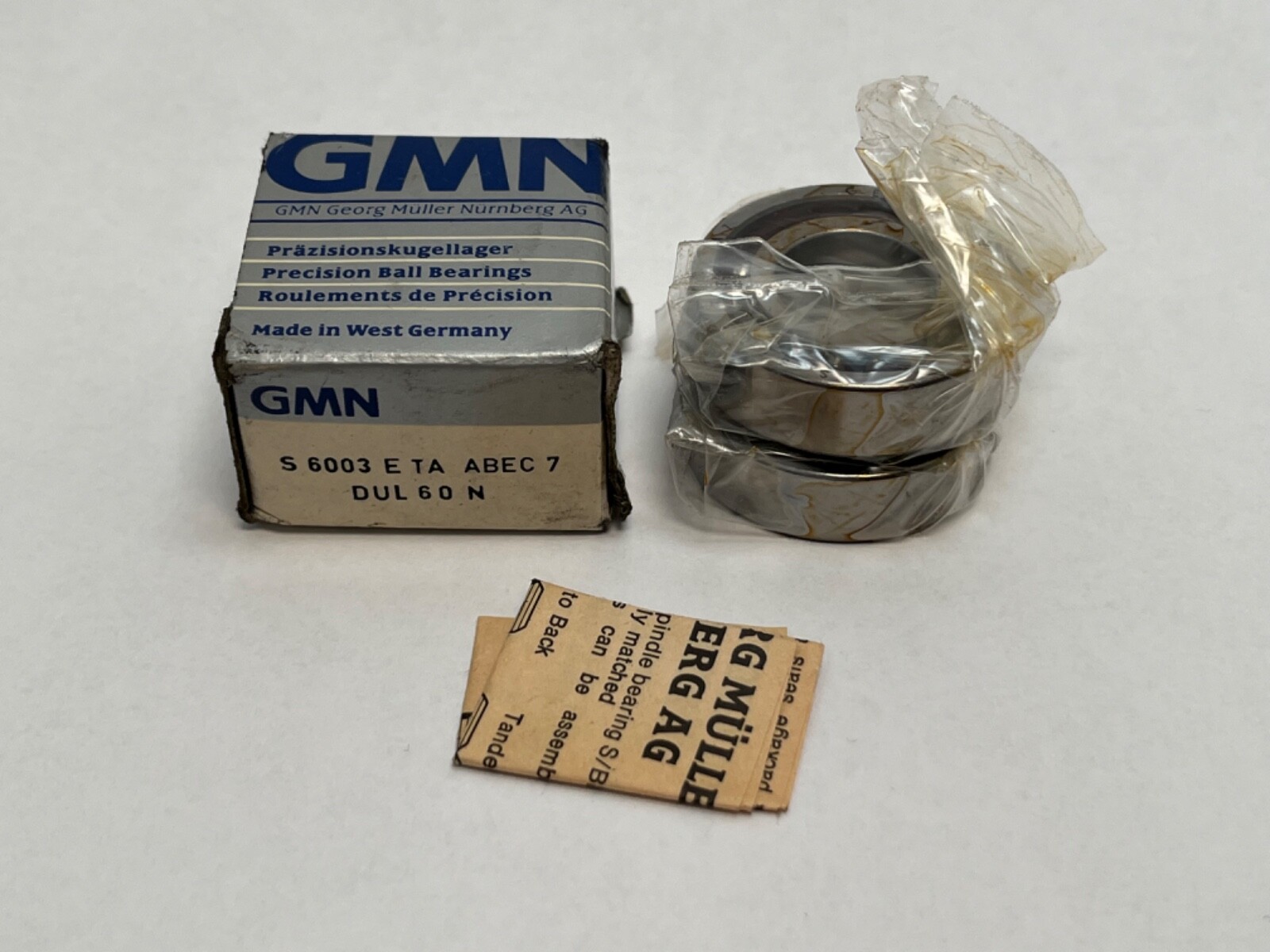

Unit Quantity: 2 Pcs. One factory duplex set, universally ground.
Same 17 x 35 x 10 mm envelope and 25° angle: Fafnir 3MM9103WI, FAG B7003-E-T, SKF 7003 ACD, RHP 7003 X3TA, Barden 2103H, SNFA EX 17 CE3, SNR 7003 H.
