Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
2 in stock
Angular contact ball bearing, 75 mm bore, 130 mm OD, 25 mm wide. ISO 72 series, single universally ground, open. 1 Pc.
List Price
$89.78
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| Model | 7215W N SU |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Lubricant | Oil |
| Base Number | 7215 |
| Industry Terms | Angular contact bearing; spindle bearing; single universal; machine tool bearing |
| Common Misspellings | Faffnir; Fafner; 7215WM-SU; 7215WN SU |
| Application Types | Machine tool spindles; pumps; gearbox shafts carrying combined radial and thrust load |
| Bore Shaft Size | 75 mm (2.9528 in) |
| Mpn Variants | 7215WN-SU; 7215WNSU; 7215WN; 7215-WN-SU; 7215 WN SU |
| Manufacturer Status | Fafnir line, now branded Timken |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 40° |
| Part Number | 7215WN-SU |

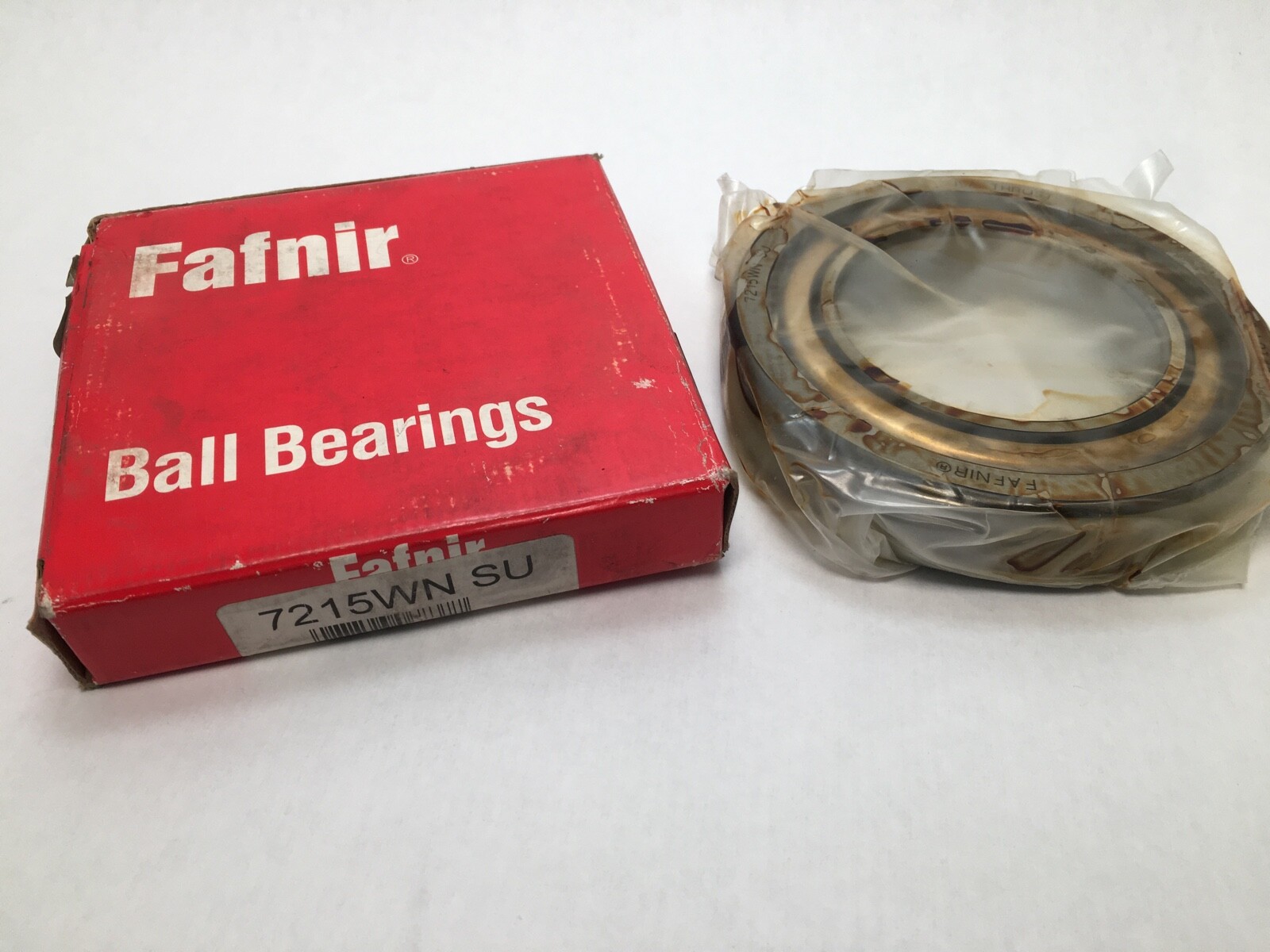

A Fafnir 7215WN-SU angular contact ball bearing, single universally ground. Bore Diameter: 75 mm. Outside Diameter: 130 mm. Width: 25 mm. Contact Angle: 40°. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Fafnir is Timken’s bearing line.
7215 — the ISO 72 dimension series, with the 15 size code giving a 75 mm bore.
WN — Fafnir’s 40° angular contact family designation.
SU — single universally ground.
An angular contact ball bearing takes radial and one-direction axial load together, and is located axially by whatever it is clamped against. A 40° contact angle gives high thrust capacity and axial stiffness. The SU grind relieves the ring faces so that two or more of these bearings clamped together come up to a defined preload, which means a pair, a triplex or a quad can be built from single pieces rather than ordering a factory-matched set.
Bore Type: Straight. An angular contact bearing carries thrust in one direction only and locates the shaft in that direction.
Unit Quantity: 1 Pc. One bearing, single universally ground, open.
