Fafnir3MM9140WISuper Precision Angular Contact Ball Bearing 200 x 310 x 51 mm, 25° Contact Angle, ABEC 7, Universally Ground Single Bearing

Product Description

What this part is

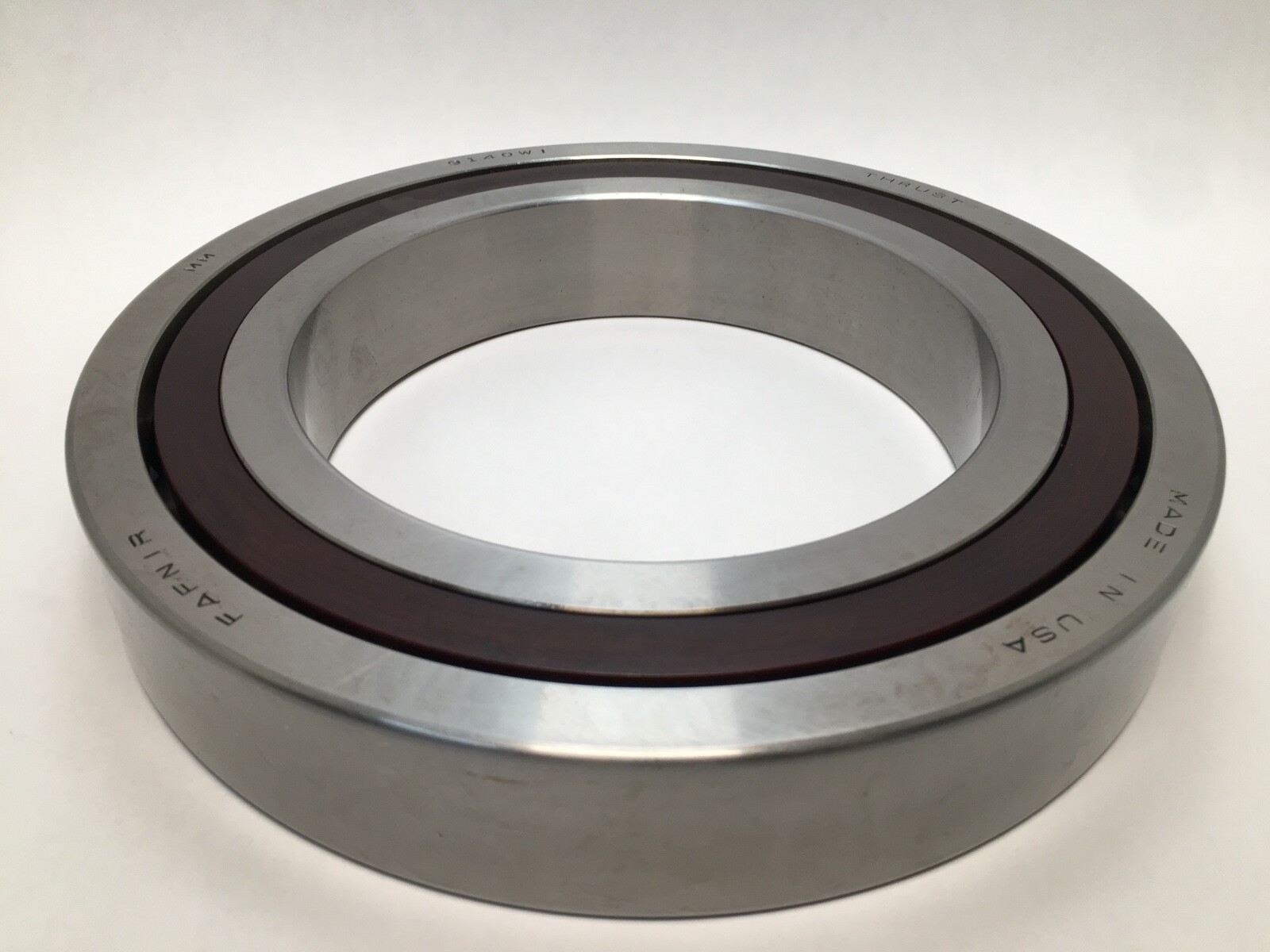

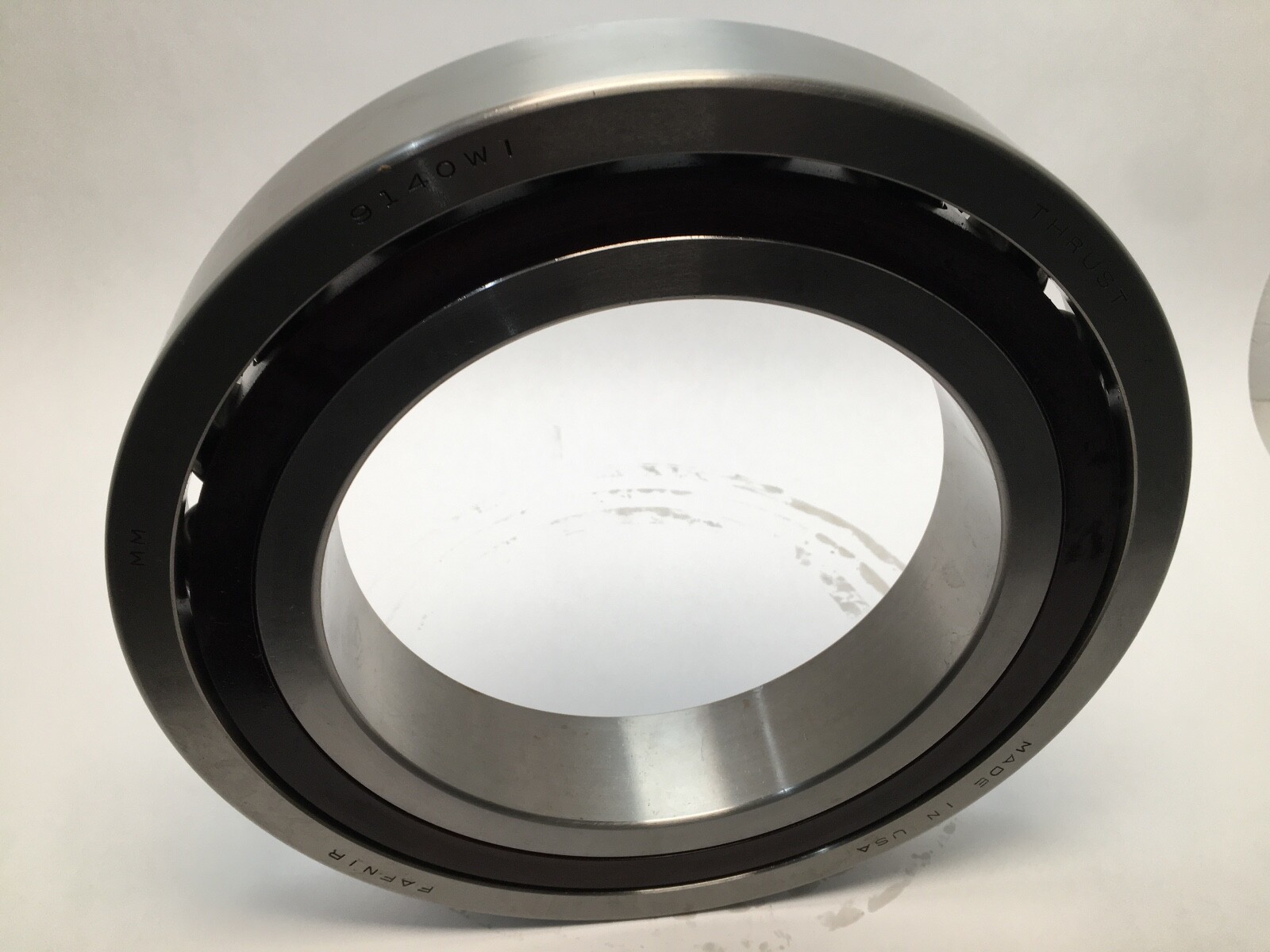

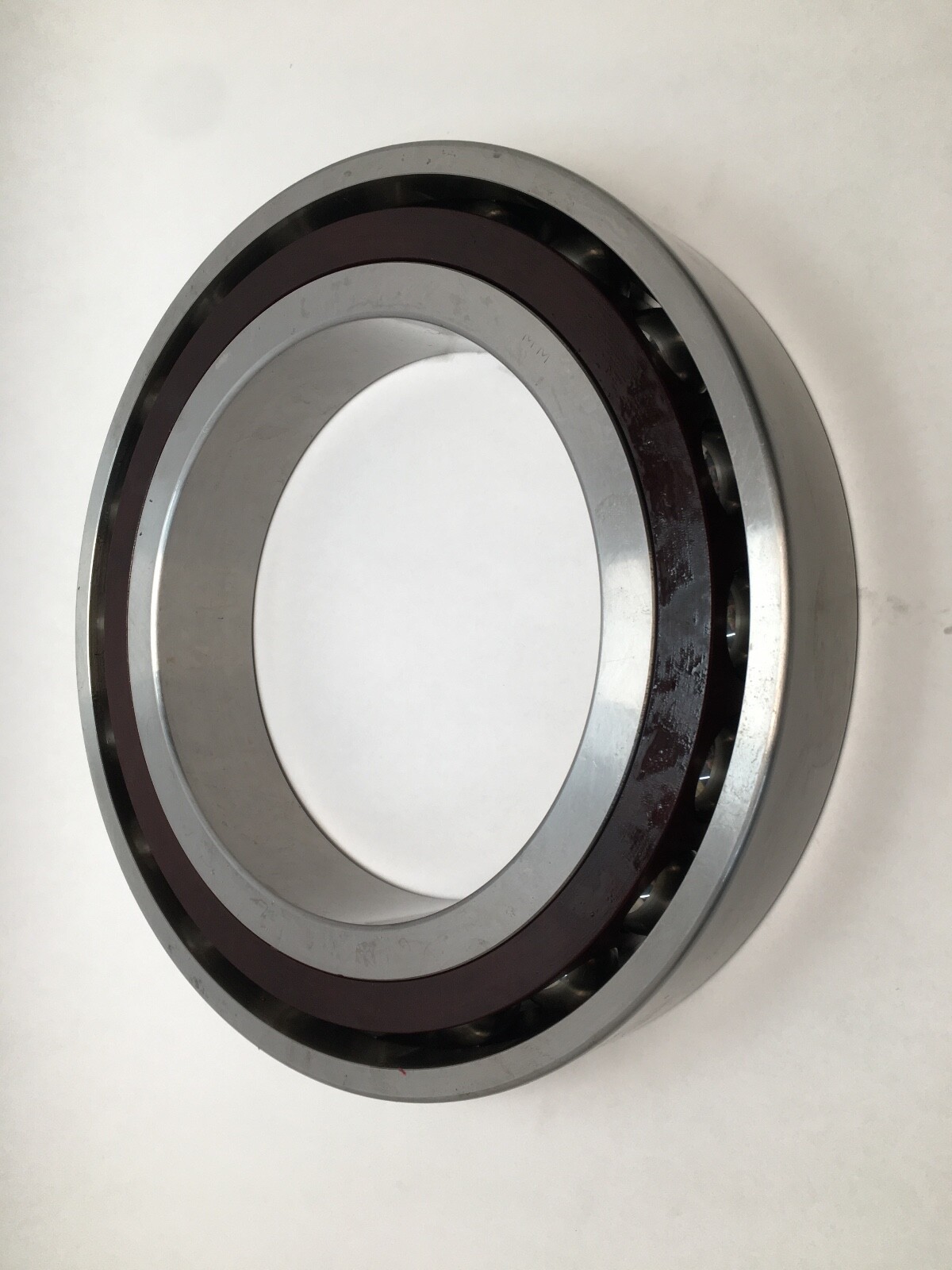

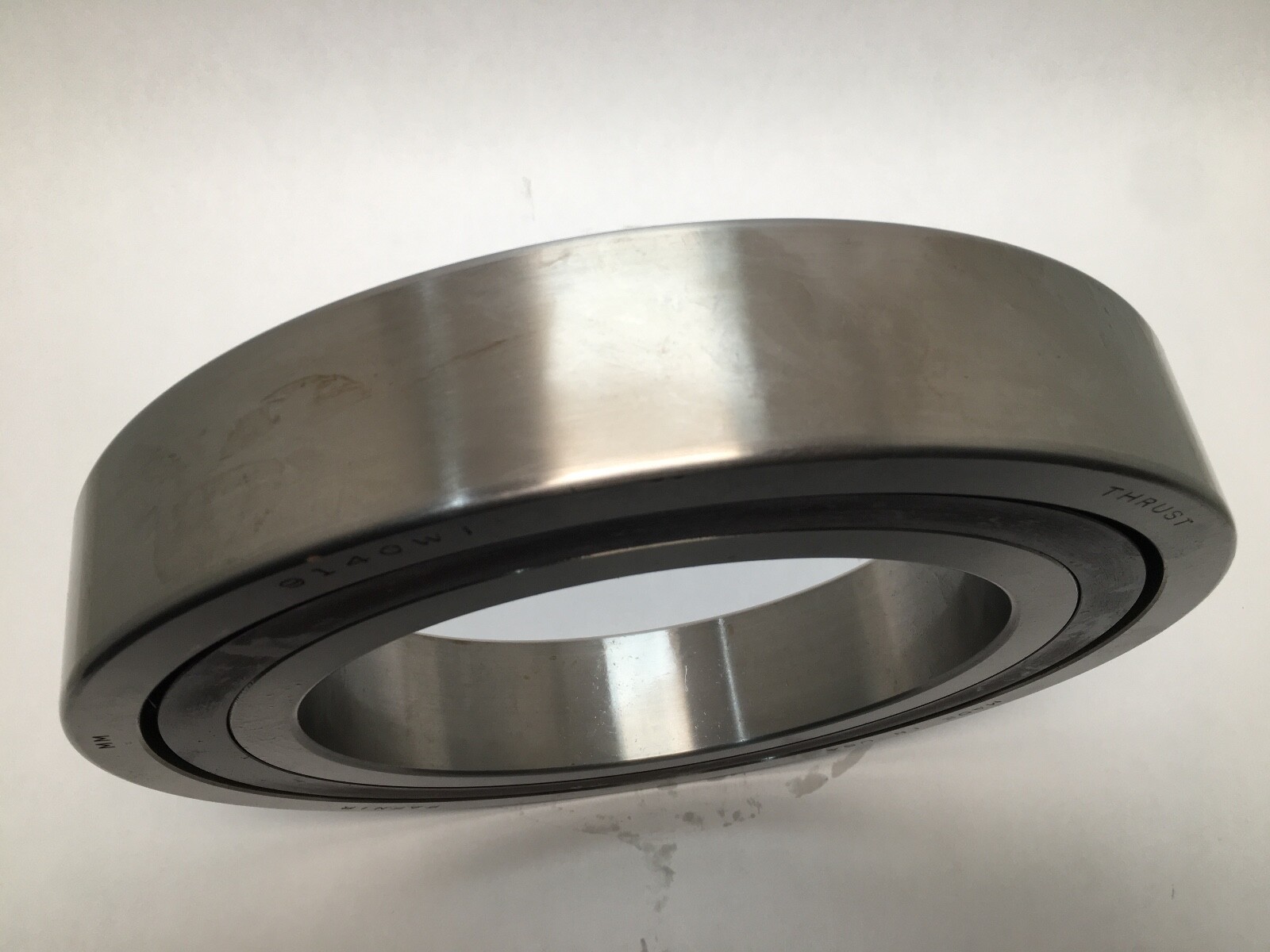

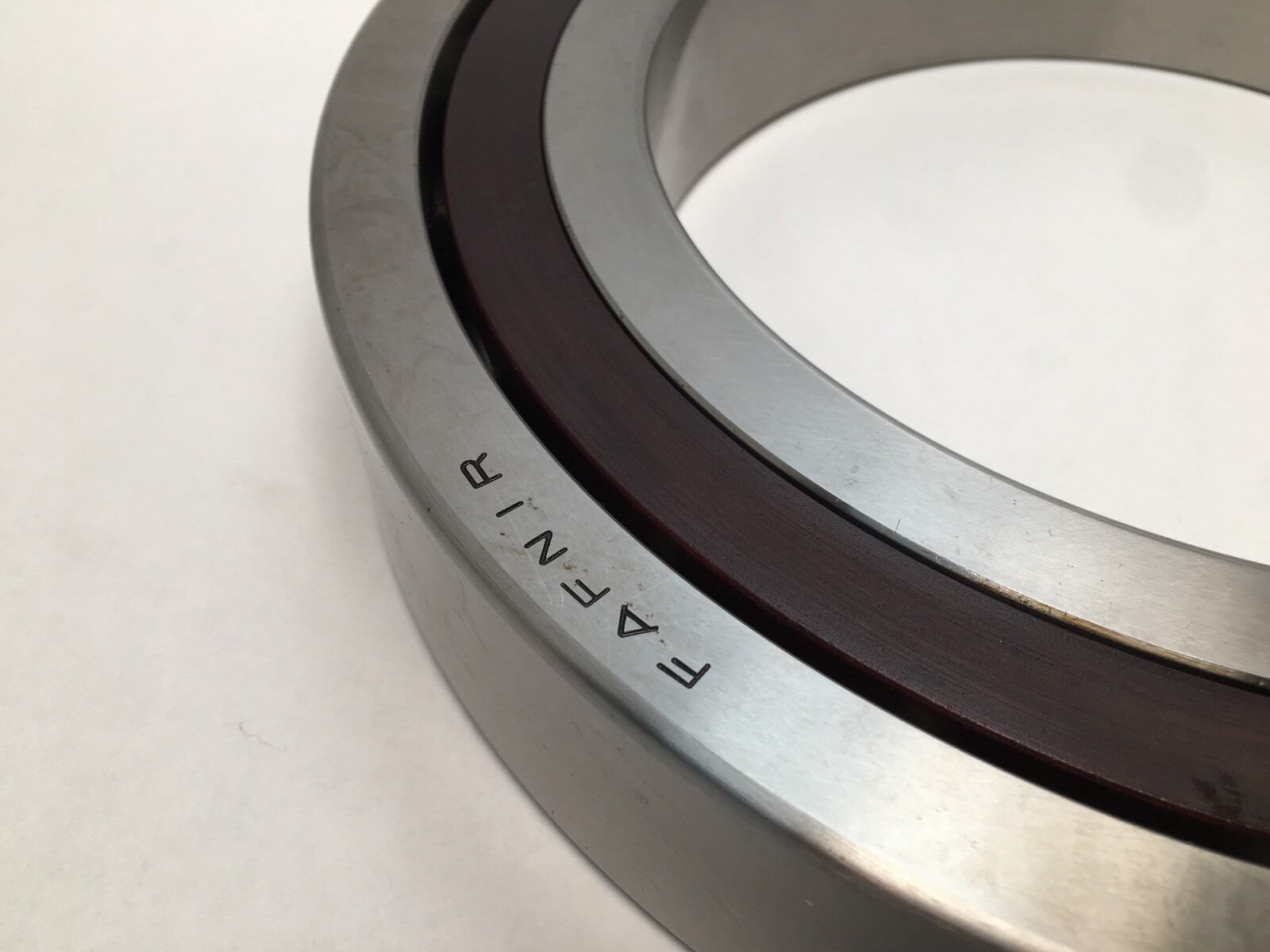

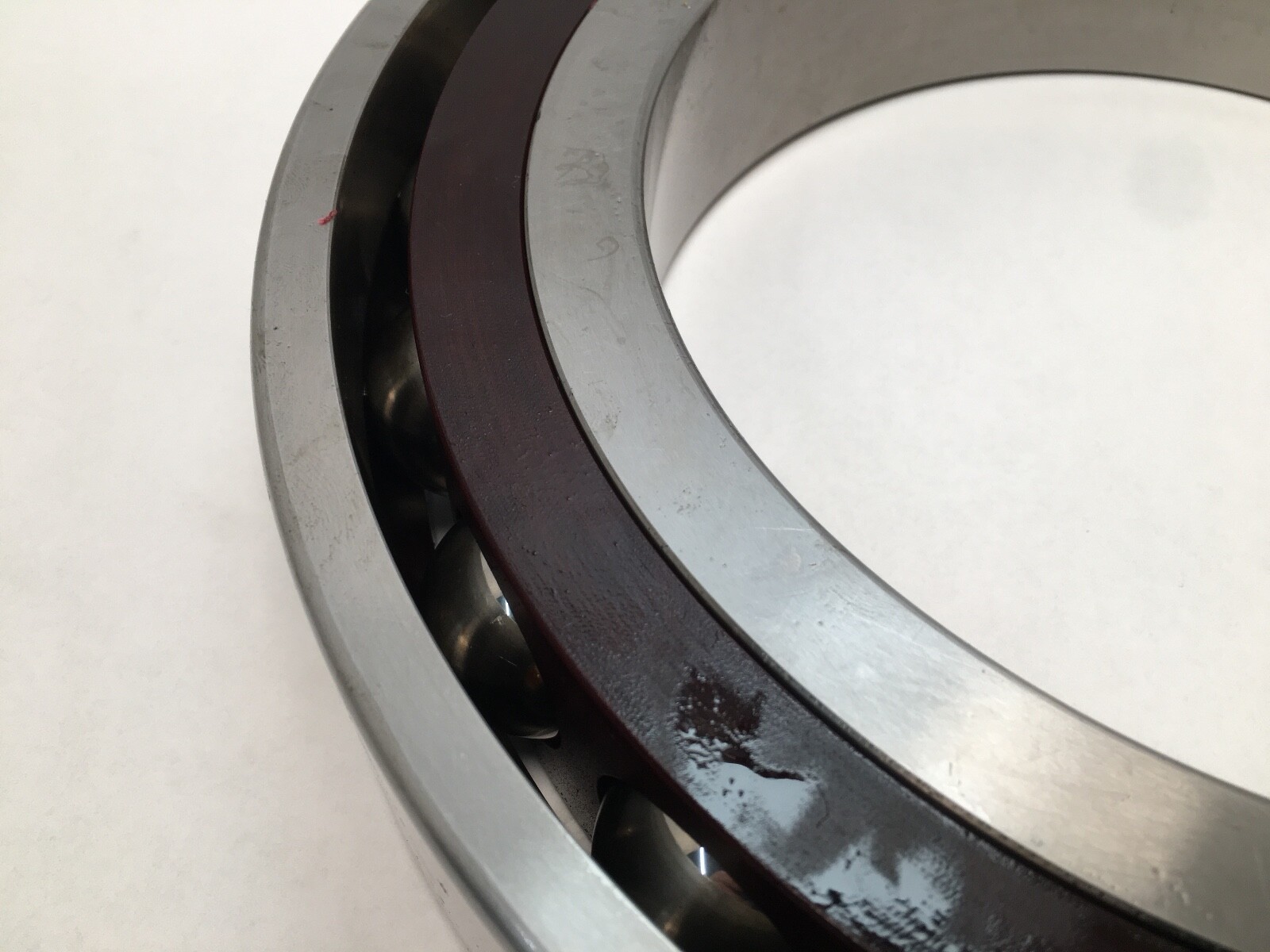

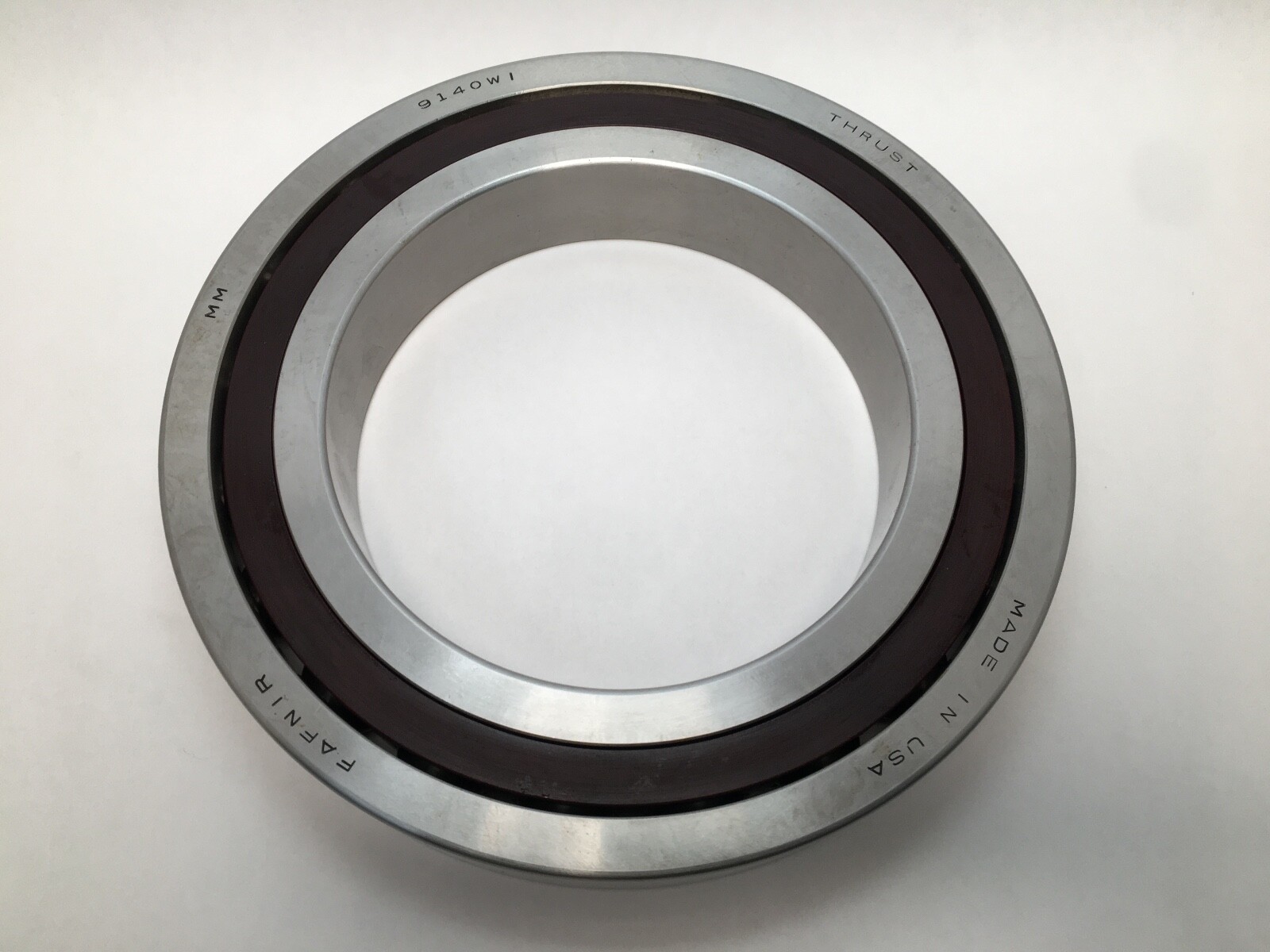

A single super precision angular contact ball bearing in the 7040 envelope — 200 mm bore, 310 mm outside diameter, 51 mm width. This is the large end of the spindle bearing range, the size found in horizontal boring mills, large vertical turning centres and heavy rotary and indexing tables.

Decoding the designation

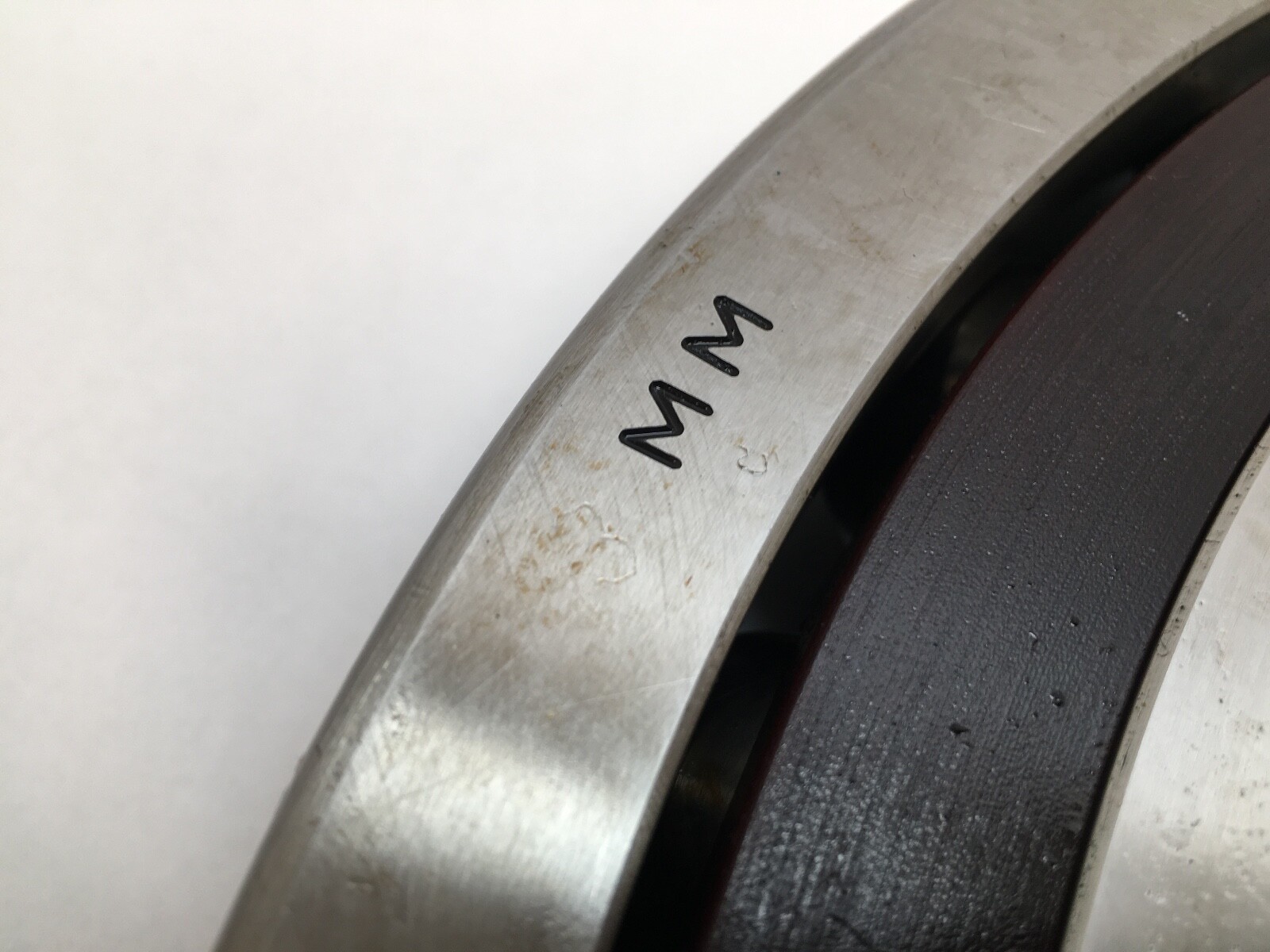

3MM — Fafnir super precision series, 25° contact angle. The MM prefix carries P4S tolerance (ABEC 7 running accuracy with tighter ABEC 9 bore and outside diameter control).

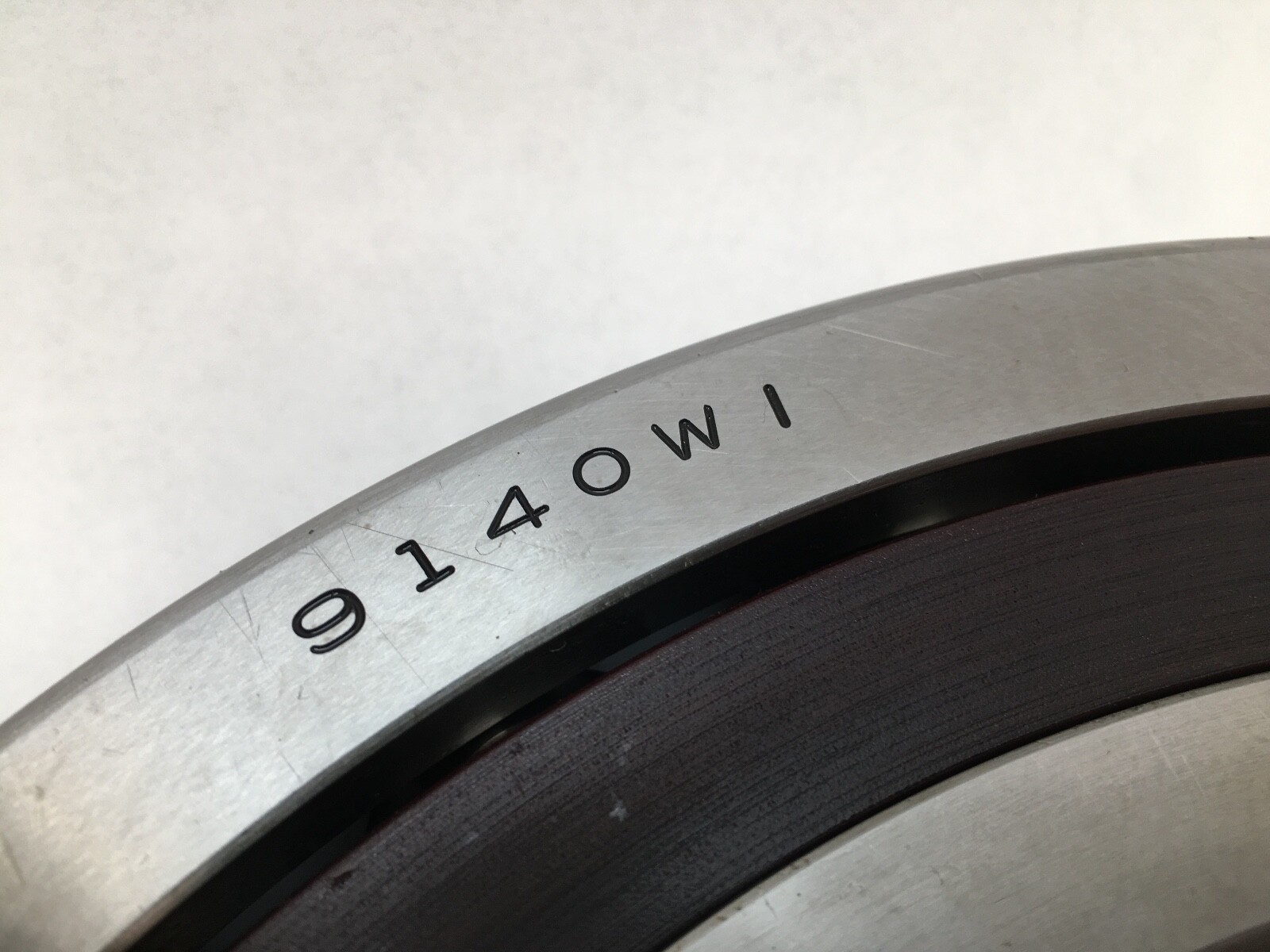

9140 — the Fafnir 91xx block maps to the ISO 70xx dimension series, so this is the 7040 envelope: 200 x 310 x 51 mm.

WI — Fafnir super precision angular contact spindle bearing.

The bearing is supplied as a single piece.

What these specs mean in practice

At 200 mm bore, a 25° angular contact bearing is chosen over a deep groove ball or a cylindrical roller for stiffness under combined load. The 25° angle takes meaningful thrust as well as radial load and resists the tipping moment a long boring bar or a heavy faceplate puts into a spindle. Against a 15° bearing it gives more axial stiffness and thrust capacity; against a 30° or 40° bearing it runs faster and generates less heat, which matters a great deal at this diameter because surface speed at the ball track climbs quickly with bore size.

P4S tolerance means the bore, outside diameter and running accuracy are all held tightly enough that the spindle’s own geometry, not the bearing, becomes the limit on achievable runout.

Quantity and configuration

This listing is for a single bearing. Because the rings are universally ground, a single WI bearing can be used on its own or combined with a second matched bearing of the same designation to form a back-to-back (DB), face-to-face (DF) or tandem (DT) set, or with two more for a triplex arrangement.

Interchange guidance

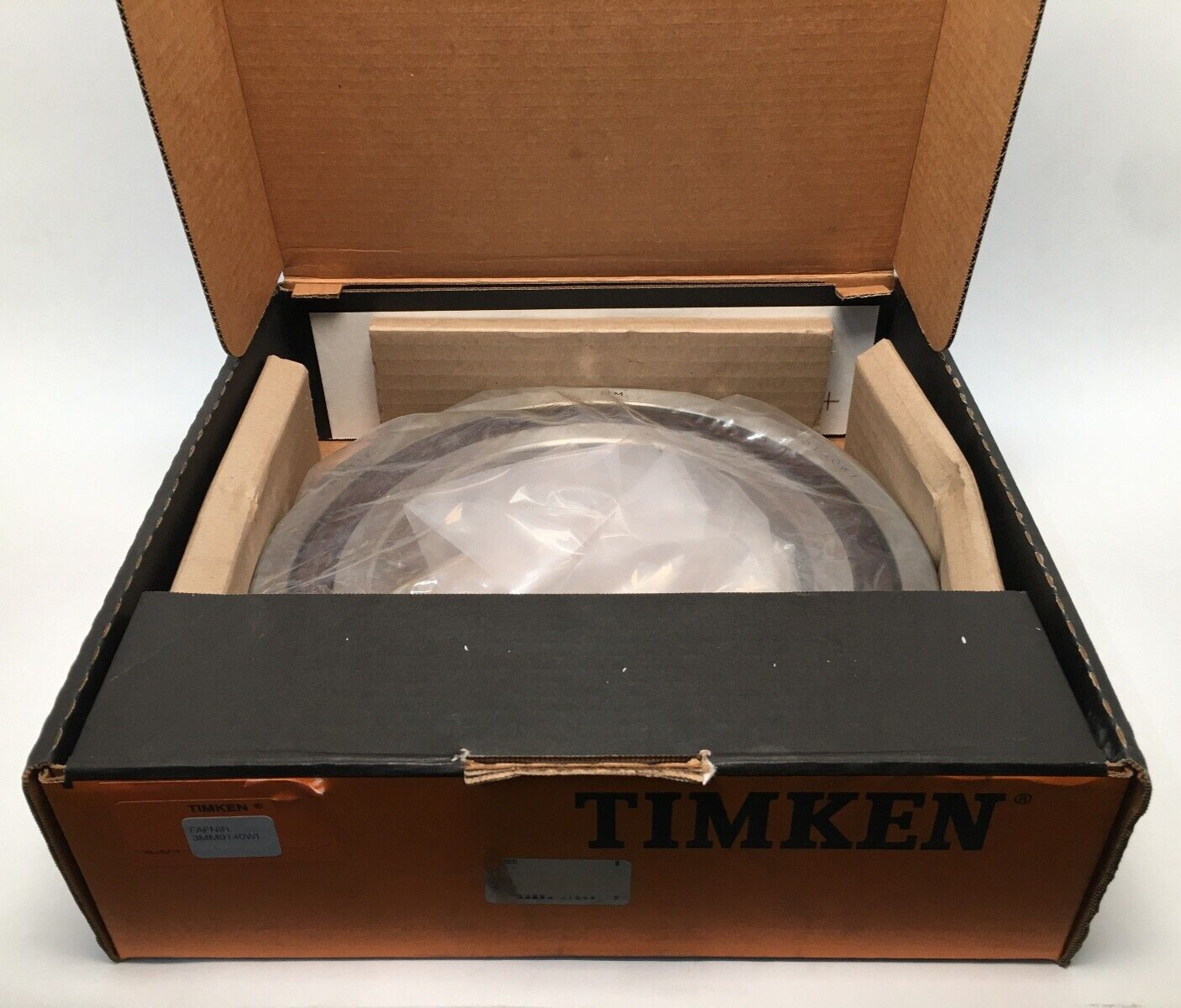

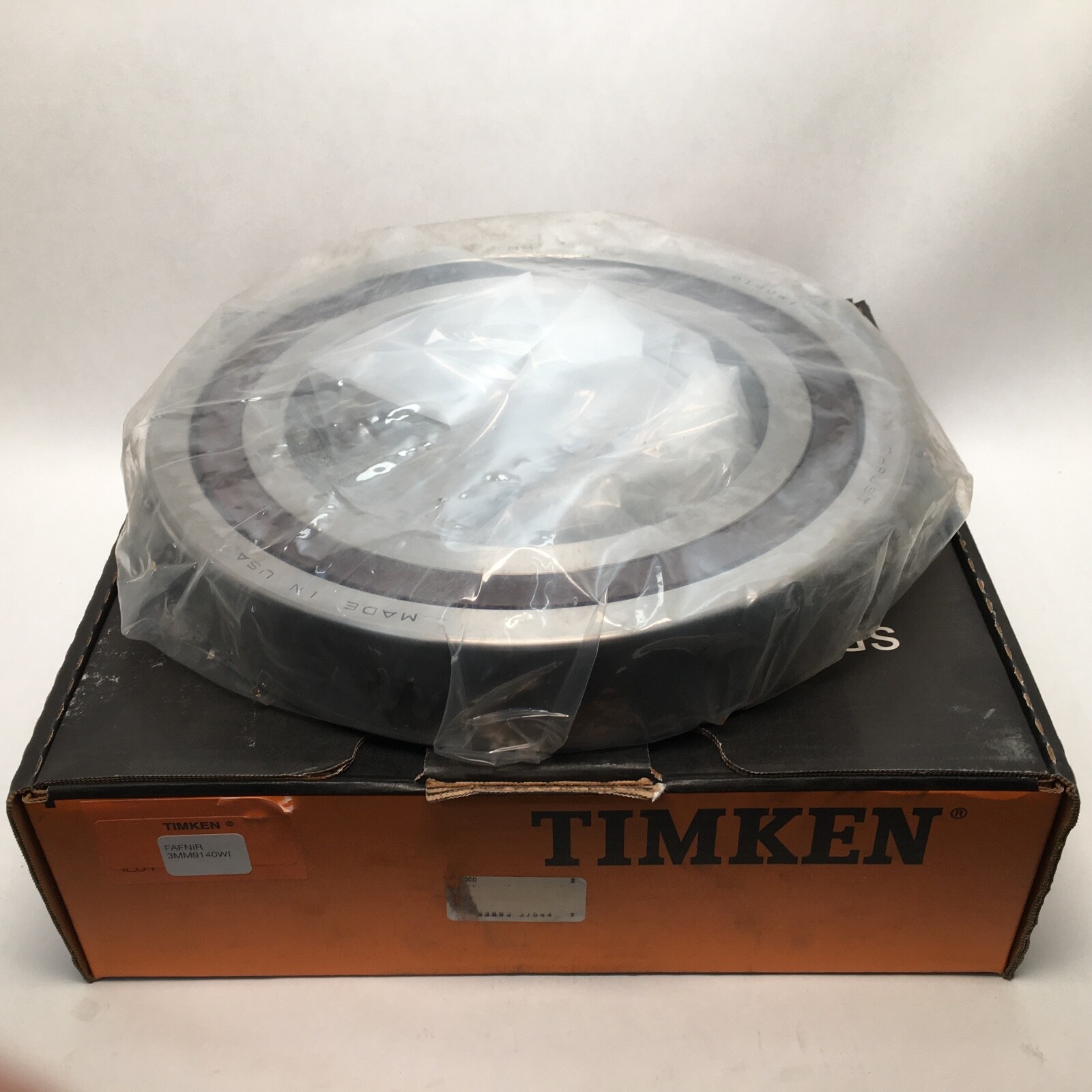

Fafnir super precision is now supplied under the Timken brand, and the Fafnir numbers remain in active cross-reference use. Same-envelope 25° equivalents include NSK 7040A5, FAG B7040-E-T-P4S, SKF 7040 ACD/P4A and NTN 7040 in the corresponding precision grade. The 7040A reference carried on this listing shares the 200 x 310 x 51 mm envelope; a plain A suffix in NSK nomenclature indicates a 30° contact angle, so it is kept here as a dimensional cross-reference rather than a contact angle claim. The 15° sibling is 2MM9140WI — a different bearing, not a substitute inside an existing set.
