Availability:
1 in stock

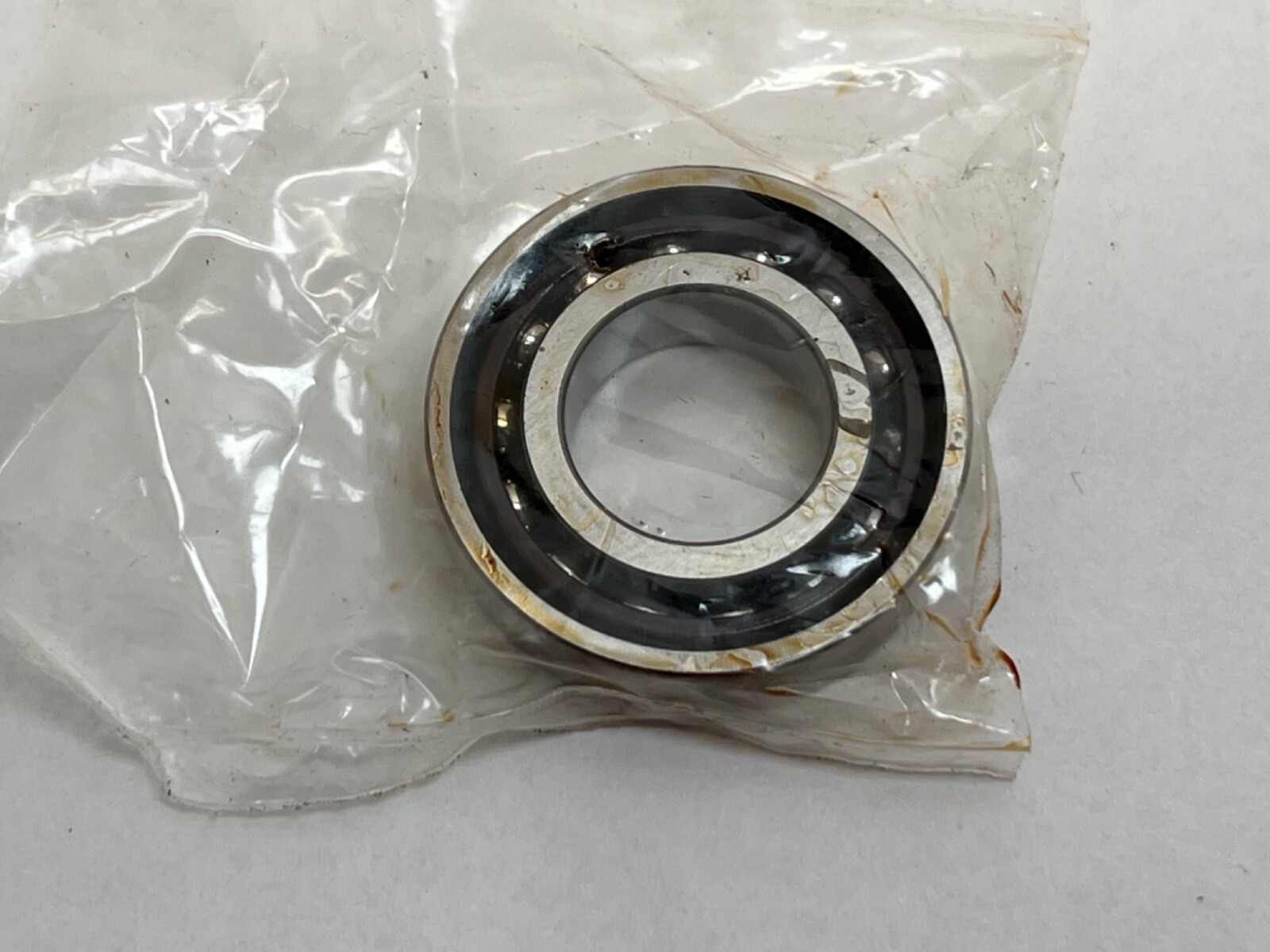

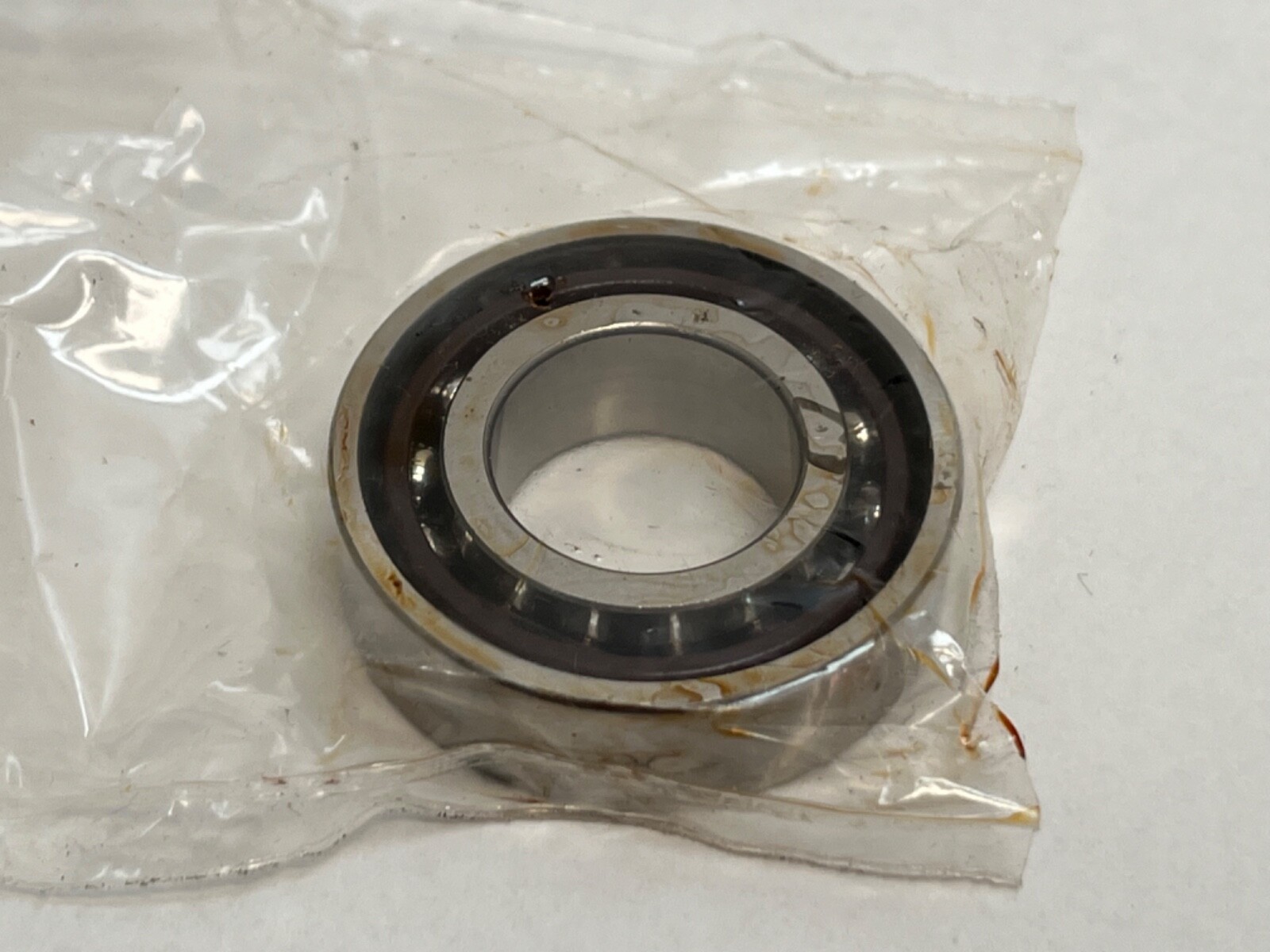

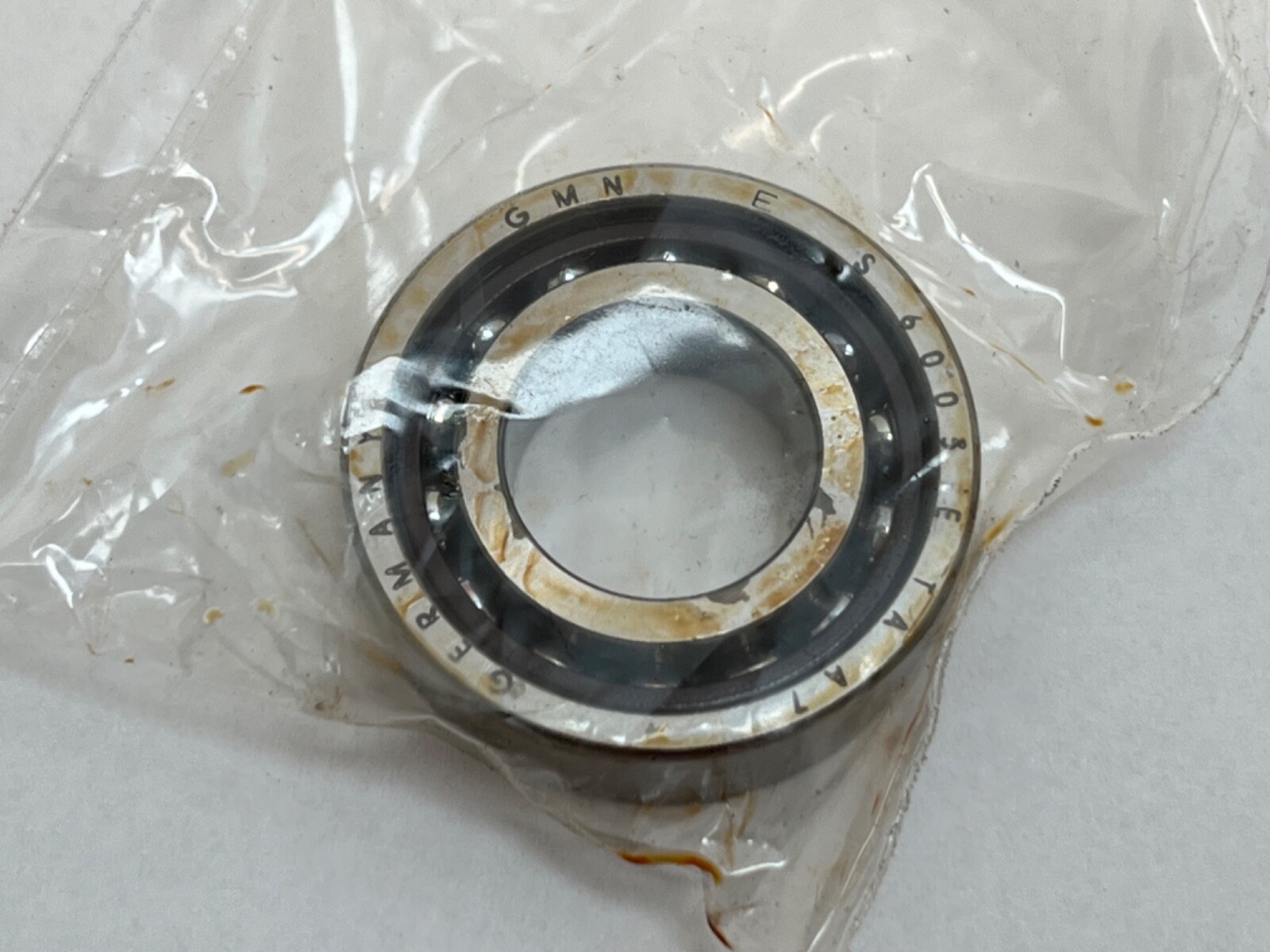

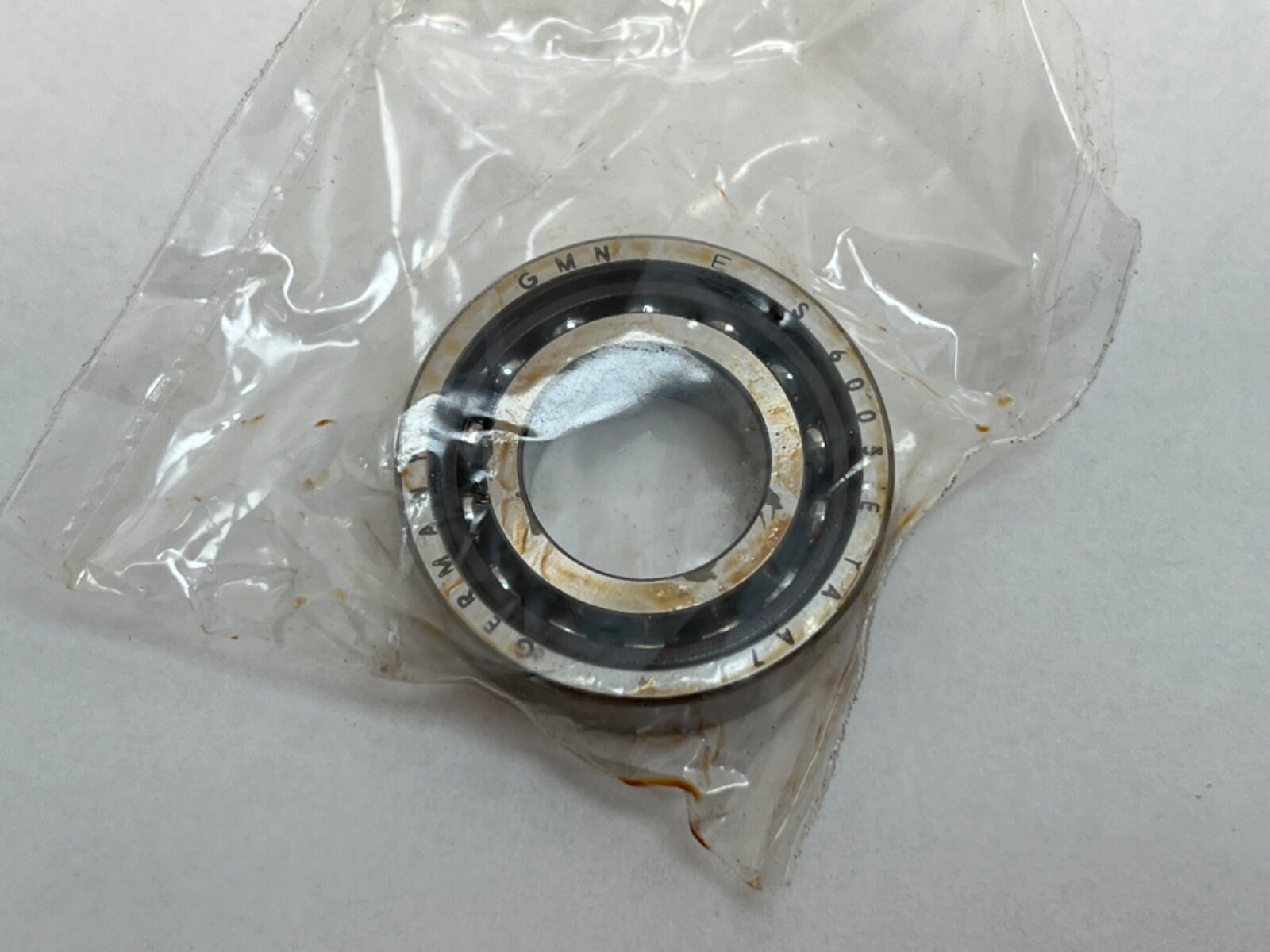

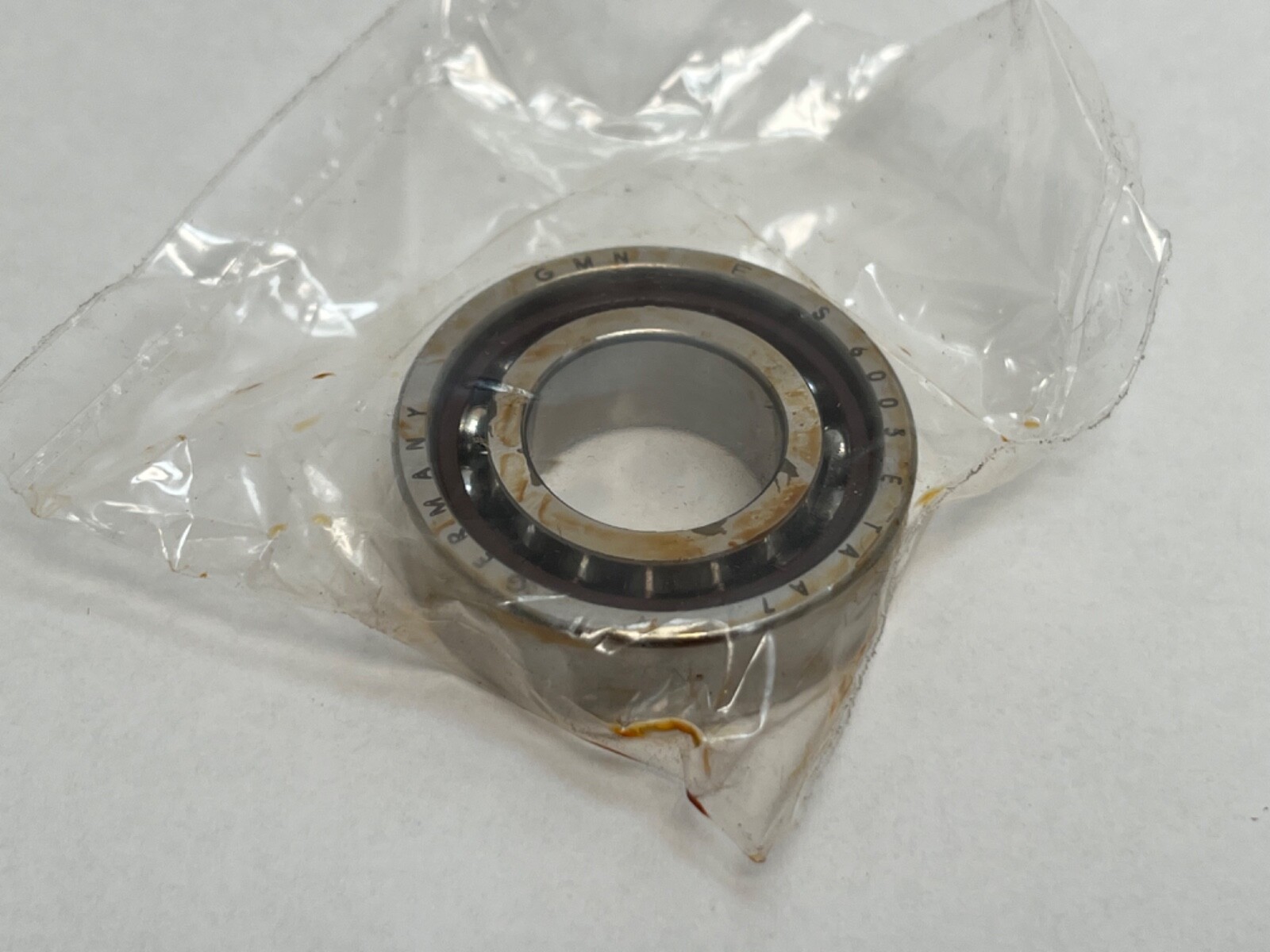

GMN S6003ETAA7DUL angular contact spindle bearing, 17 x 35 x 10 mm, 25° contact angle, ABEC 7, universal matched with light preload (60 N), phenolic cage.
List Price
$31.63
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | GMN |
|---|---|
| MPN | S6003ETAA7DUL |
| Model | S6003ETAA7DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 17 mm |
| OD | 35 mm |
| Width | 10 mm |
| Material | 100Cr6 (SAE 52100) steel |
|---|---|
| Series | GMN S 60 |
| Lubricant | Grease or oil |
| Preload | L (light), 60 N |
| Cage Type | Machined, outer-ring guided |
| Dynamic Load Rating | 6,650 N |
| Static Load Rating | 4,000 N |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Item Weight | 0.037 kg (0.08 lb) |
| Cage Material | Phenolic |
| Limiting Speed | 42,000 rpm grease; 56,000 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Mpn Variants | S6003ETAA7DUL, S 6003 E TA A7 DUL, S-6003-E-TA-A7-DUL, S6003ETA, 7003E |
| Arrangement Configuration | Universal matching (DUL) |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Number of balls: 14; Ball diameter: 4.76 mm; Pitch circle diameter: 26 mm; Abutment da min: 20 mm; Abutment Da max: 31.5 mm; GMN preload values: L 60 N, M 170 N, S 340 N; Axial rigidity (pair, light preload): 58 N/µm; TA cage operating temperature: 120 °C |
| Bearing Material | 100Cr6 (SAE 52100) steel |
| Cross Reference 1 | SKF 7003 ACD/P4A |
|---|---|
| Cross Reference 2 | FAG B7003-E-T-P4S |
| Cross Reference 3 | NSK 7003A5TYP4 |
| Cross Reference 4 | Fafnir 3MM9103WI |
GMN S6003ETAA7DUL is a single-row angular contact spindle bearing from GMN’s S series on the 7003 envelope, universally ground for matched mounting with light preload. Bore Diameter: 17 mm. Outside Diameter: 35 mm. Overall Width: 10 mm. Contact Angle: 25°. Precision Class: ABEC 7 / P4.
S — GMN standard spindle bearing series, non-separable.
6003 — 60 dimension series, 17 mm bore: the 7003 size, 17 x 35 x 10 mm.
E — 25° nominal contact angle.
TA — laminated phenolic resin cage guided on the outer ring.
A7 — ABEC 7 per ABMA, corresponding to P4.
DUL — universal matching with light preload. GMN light preload for this size: 60 N.
Dynamic Load Rating: 6,650 N. Static Load Rating: 4,000 N. Limiting Speed: 42,000 rpm grease; 56,000 rpm oil. The 25° angle carries more axial load than a 15° bearing of the same size. Preload: L (light), 60 N; axial rigidity of a pair at light preload 58 N/µm. Cage Material: Phenolic, rated by GMN to 120 °C.
Item Weight: 0.037 kg. Number of balls: 14. Ball diameter: 4.76 mm. Pitch circle diameter: 26 mm. Abutment diameter inner ring da min: 20 mm. Abutment diameter outer ring Da max: 31.5 mm. Chamfer rs: 0.3 mm. GMN preload values for this size: L 60 N, M 170 N, S 340 N.
Unit Quantity: 1 Pc. Universally matched, so it pairs in back-to-back, face-to-face or tandem sets with another universally matched bearing of the same designation. Closure Type: Open.
Same 17 x 35 x 10 mm envelope, 25° angle and P4-class tolerance: SKF 7003 ACD/P4A, FAG B7003-E-T-P4S, NSK 7003A5TYP4, Fafnir 3MM9103WI. Preload levels and cage materials vary by maker.
