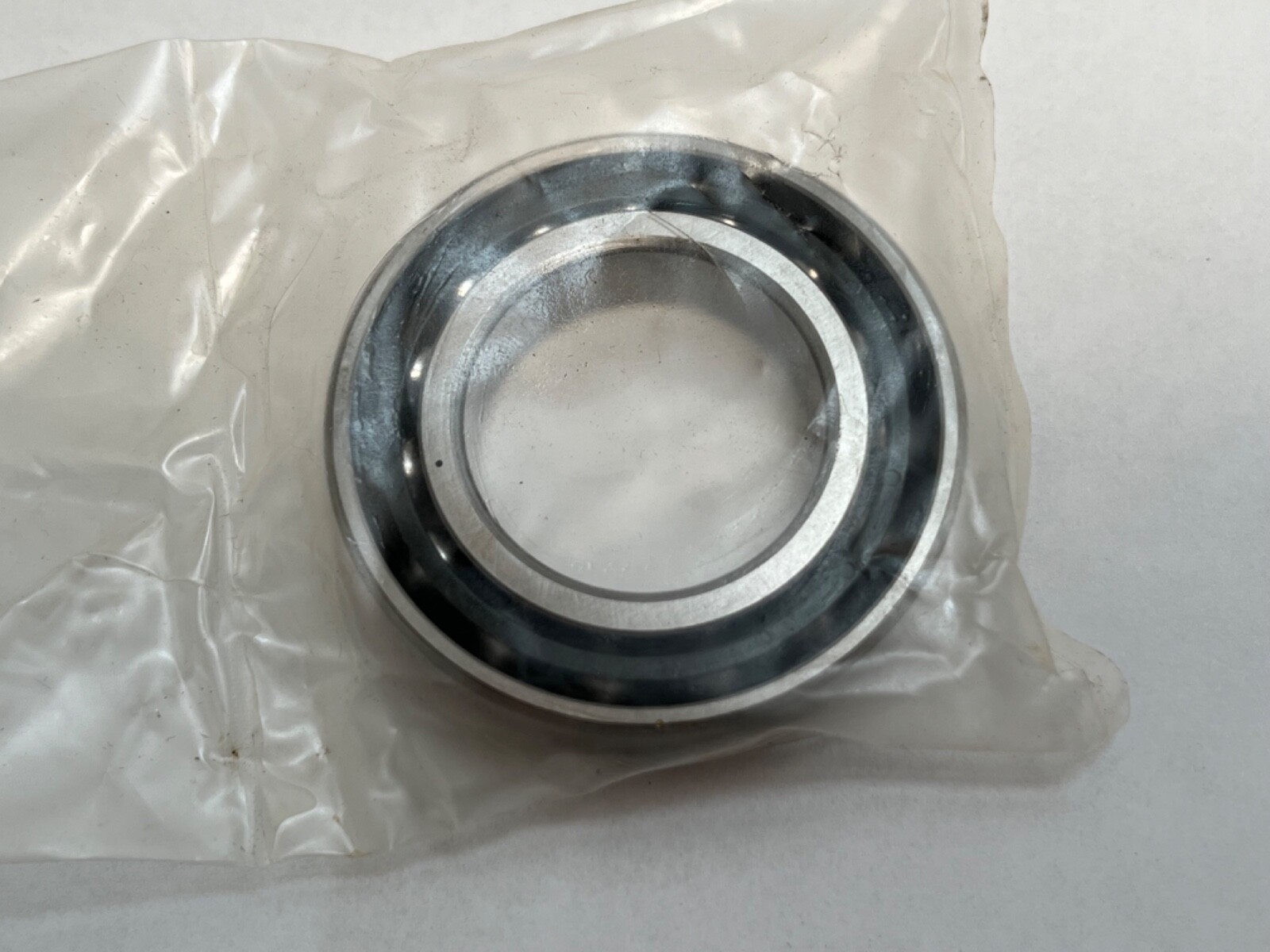

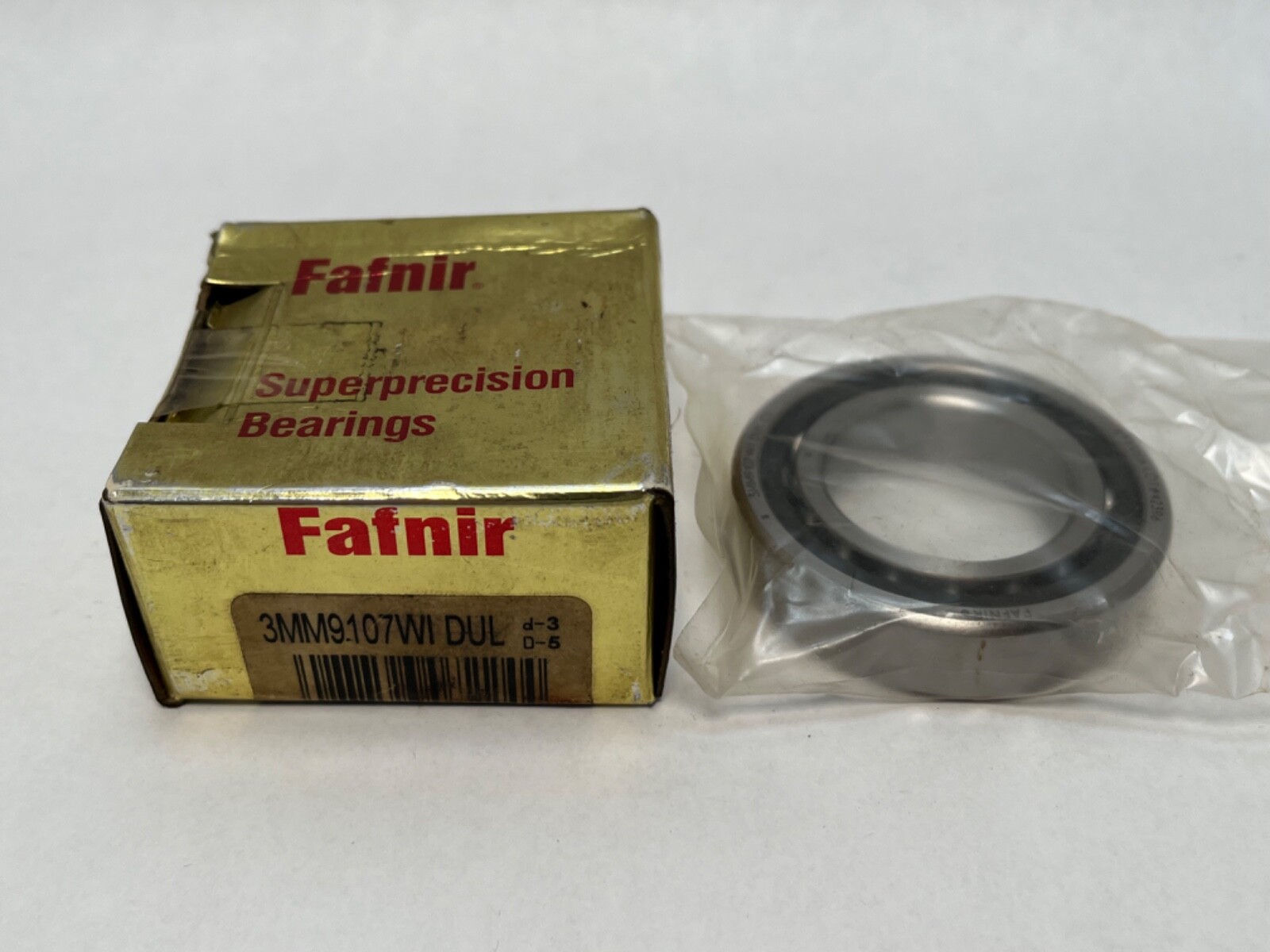

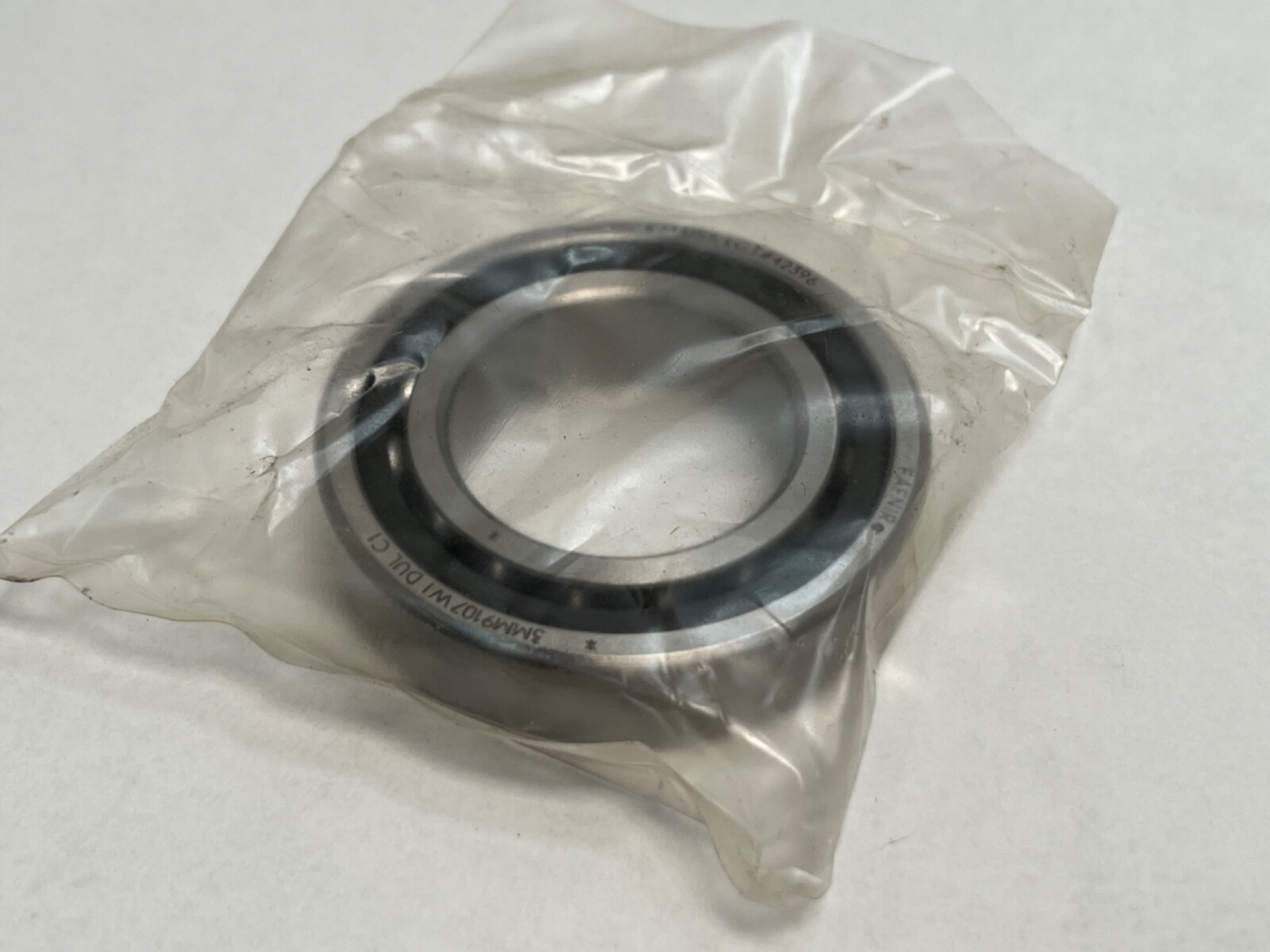

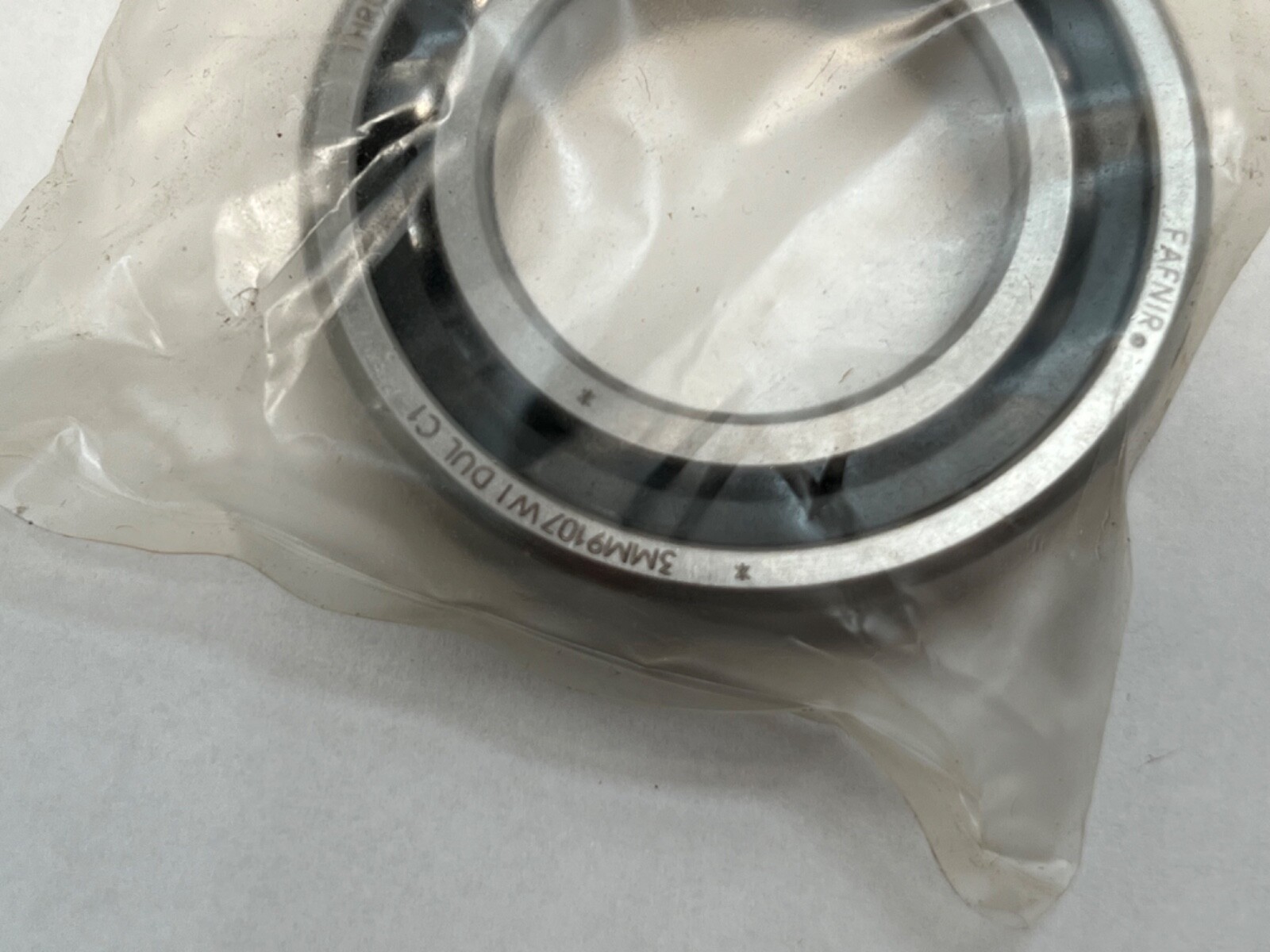

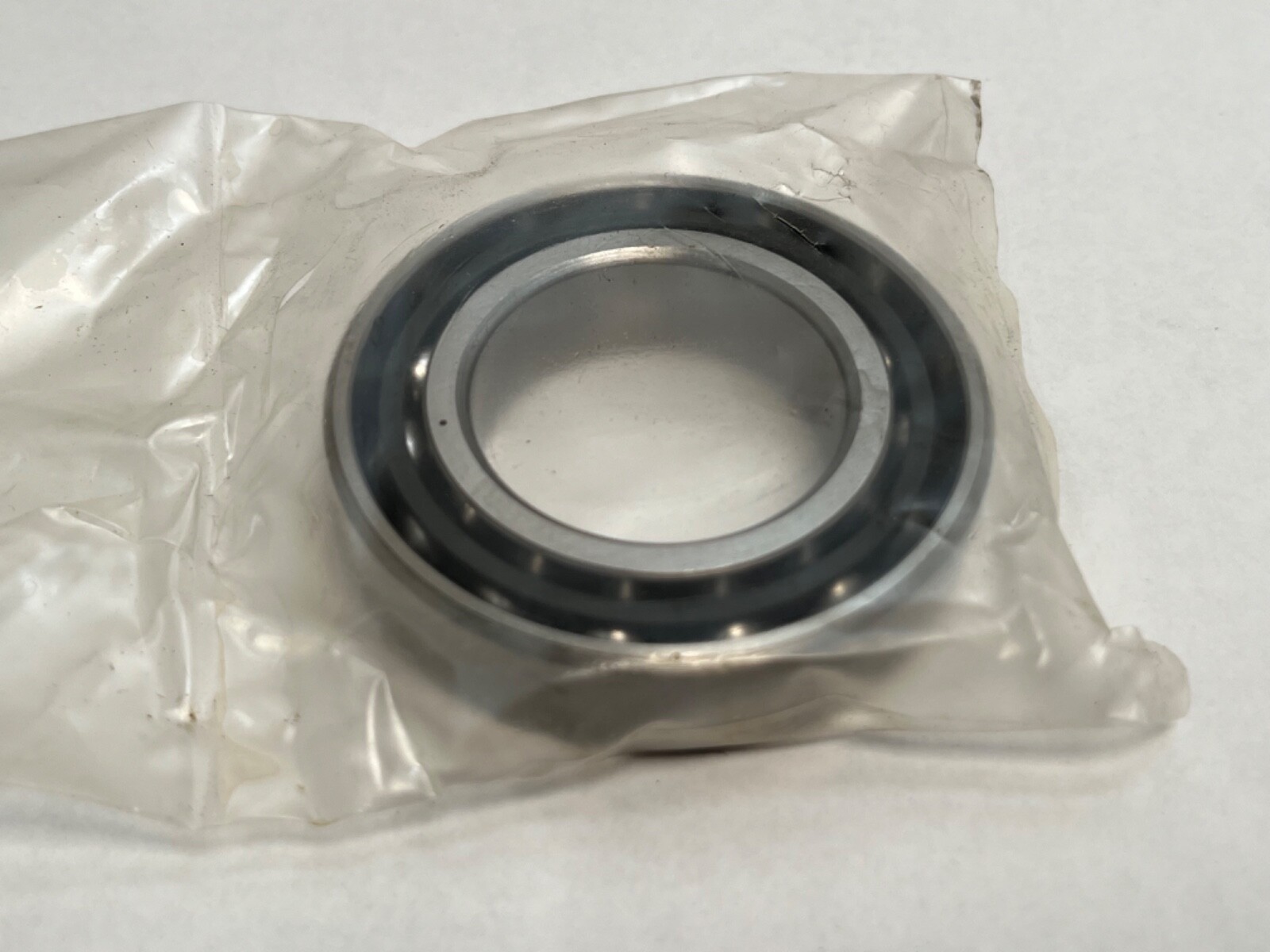

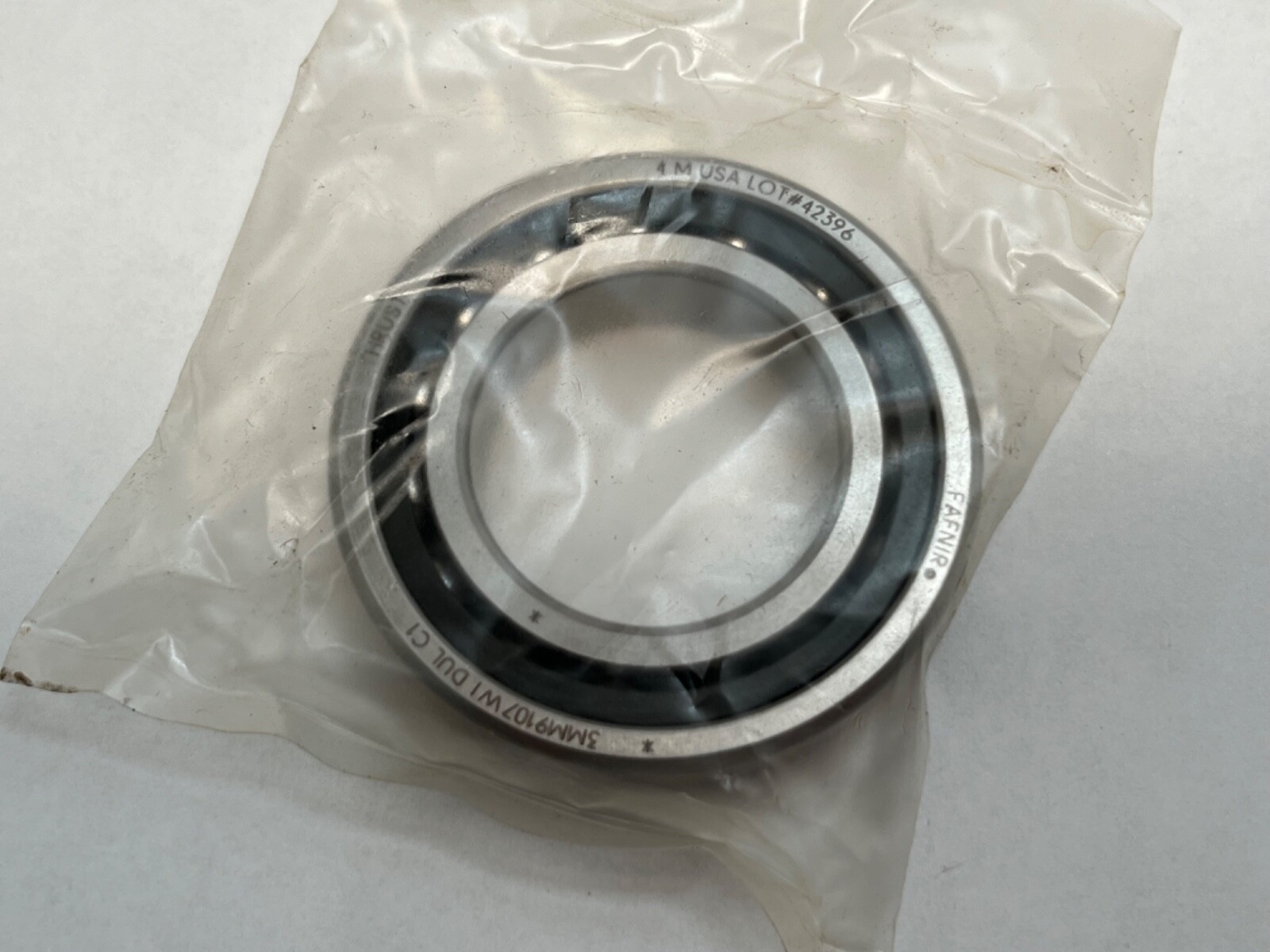

Fafnir 3MM9107WI-SUL super-precision angular contact ball bearing, 35 x 62 x 14 mm, 25 degree contact angle, single universal ground, light preload, open.
List Price
$90.45
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing - 30 mm ID, 55 mm OD, 13 mm Width, Open, 25°, P4, Light preload$78.09
Super-Precision Angular Contact Ball Bearing 35x62x14 mm 25 Degree Duplex Matched Pair Light Preload ABEC 9$180.90
Angular Contact Ball Bearing - 35 mm ID, 62 mm OD, 14 mm Width, Open, 25° Contact Angle, Light Preload.$74.77
Super Precision Angular Contact Ball Bearing - 35 mm ID, 62 mm OD, 14 mm Width, 25° Contact Angle, P4 / EP7, Light Preload, Open$88.77| MFR / Brand | Fafnir |
|---|---|
| MPN | 3MM9107WI SUL |
| GTIN | 087796072244 |
| Model | 3MM9107WIDUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 35 mm |
| OD | 62 mm |
| Width | 14 mm |
| Material | Bearing Steel |
|---|---|
| Base Number | 7007 |
| Industry Terms | Spindle bearing; super precision bearing; machine tool bearing; single universal; ABEC 7 |
| Common Misspellings | Faffnir; Fafner; 3MM9107W1-SUL; 3M9107WI-SUL |
| Application Types | Machine tool spindles; ball screw drives; precision rotation under combined load |
| Bore Shaft Size | 35 mm (1.3780 in) |
| Mpn Variants | 3MM9107WI-SUL; 3MM-9107-WI-SUL; 3MM9107WISUL; 3MM9107WI-DUL; 3MM 9107 WI; 9107WI |
| Manufacturer Status | Fafnir super-precision line, now branded Timken |
| Rolling Elements | Balls |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Contact Angle | 25° |
| Part Number | 3MM9107WI-SUL |
| Cross Reference 1 | SKF 7007 ACD/P4A |
|---|---|
| Cross Reference 2 | FAG B7007-E-T-P4S-UL |
Fafnir 3MM9107WI-SUL super-precision angular contact ball bearing, single universally ground at light preload, open. Bore 35 mm, outside diameter 62 mm, width 14 mm. Fafnir is Timken’s super-precision line.
3MM — 25° contact angle, Timken P4 precision class.
9107 — ISO 7007 size, 35 x 62 x 14 mm (9100 series corresponds to ISO 70xx).
WI — low-shoulder super-precision angular contact design.
SUL — single universally ground bearing at light preload.
Bore Diameter: 35 mm (1.3780 in).
Outside Diameter: 62 mm.
Width: 14 mm.
Contact Angle: 25°.
Precision Class: P4.
Preload: Light.
Closure Type: Open.
Number Of Rows: 1.
Rolling Elements: Ball.
Bore Type: Straight.
Material: Bearing Steel.
Unit Quantity: 1 Pc.
Series: ISO 70 light series (7007). Universal grind allows any two of these bearings to be arranged back-to-back, face-to-face or in tandem at light preload.
SKF 7007 ACD/P4A and FAG B7007-E-T-P4S-UL are the same size at 25° contact angle in P4-class precision. Related designations: 3MM9107WI-SUL, 3MM9107WISUL, 3MM9107WIDUL, 7007E.
25°. The 3MM prefix sets 25°, and the 7007E designation carries the same angle.
Bore 35 mm, outside diameter 62 mm, width 14 mm.
Single universally ground bearing at light preload.
