Super precision angular contact ball bearing, 35 x 62 x 14 mm, 25° contact angle, P4 spindle precision, light preload, open, machined phenolic cage.
List Price
$88.77
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7007-E-T-SUL-P4 |
| Model | 7007-E-T-SUL-P4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 35 mm |
| OD | 62 mm |
| Width | 14 mm |
| Series | 70 (ISO Dimension Series 10) |
|---|---|
| Material | Chrome bearing steel |
| Base Number | 7007 |
| Industry Terms | spindle bearing, super precision bearing, precision angular contact, ABEC 7 bearing, EP7 bearing, machine tool bearing, high speed spindle bearing, universally ground bearing, preloaded ball bearing |
| Common Misspellings | RHP 7007 E T SUI P4, 7007ETSULP-4, RHP 70O7E, B7007X3TAULEP-7, Ransome Hoffmann Pollard |
| Application Types | High-speed machine tool spindles, grinding spindles, small precision turning and milling spindles, precision rotary and indexing tables, high accuracy gearboxes |
| Bore Shaft Size | 35 mm (1.3780 in) |
| Mpn Variants | 7007ETSULP4, 7007-E-T-SUL-P4, 7007 E T SUL P4, 7007ETSUL, 7007E, B7007X3TAULEP7, B7007-X3-TA-UL-EP7, B7007X3TAUL, 7007ETDULP4, 7007-E-T-DUL-P4 |
| Manufacturer Status | RHP super precision was absorbed into NSK; RHP numbers remain in active cross-reference use |
| Compatible With Replaces | Machine tool spindle and precision rotary positions specified for a 7007-envelope 25° super precision angular contact bearing at light preload |
| Rolling Elements | Balls |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Part Number | 7007-E-T-SUL-P4 |
| Cross Reference 1 | NSK 7007A5TRSULP4 |
|---|---|
| Cross Reference 2 | FAG B7007-E-T-P4S-UL |
| Cross Reference 3 | SKF 7007 ACD/P4A |
| Cross Reference 4 | Fafnir / Timken 3MM9107WI (25°) |
| Cross Reference 5 | Fafnir 2MM9107WI-CR (15° contact angle, not interchangeable) |
| Cross Reference 6 | 7007-C-T-SUL-P4 (15° contact angle, not interchangeable) |

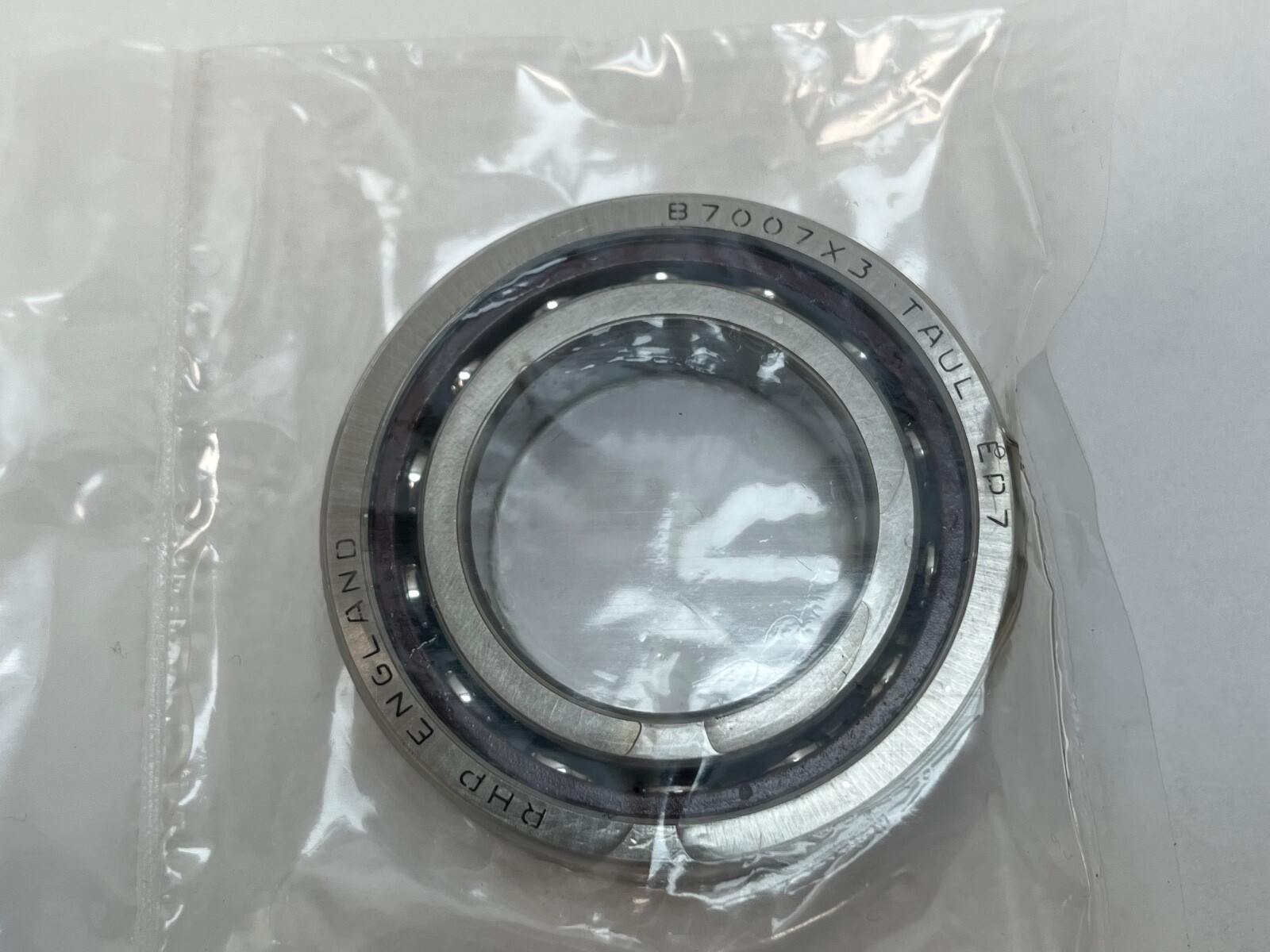

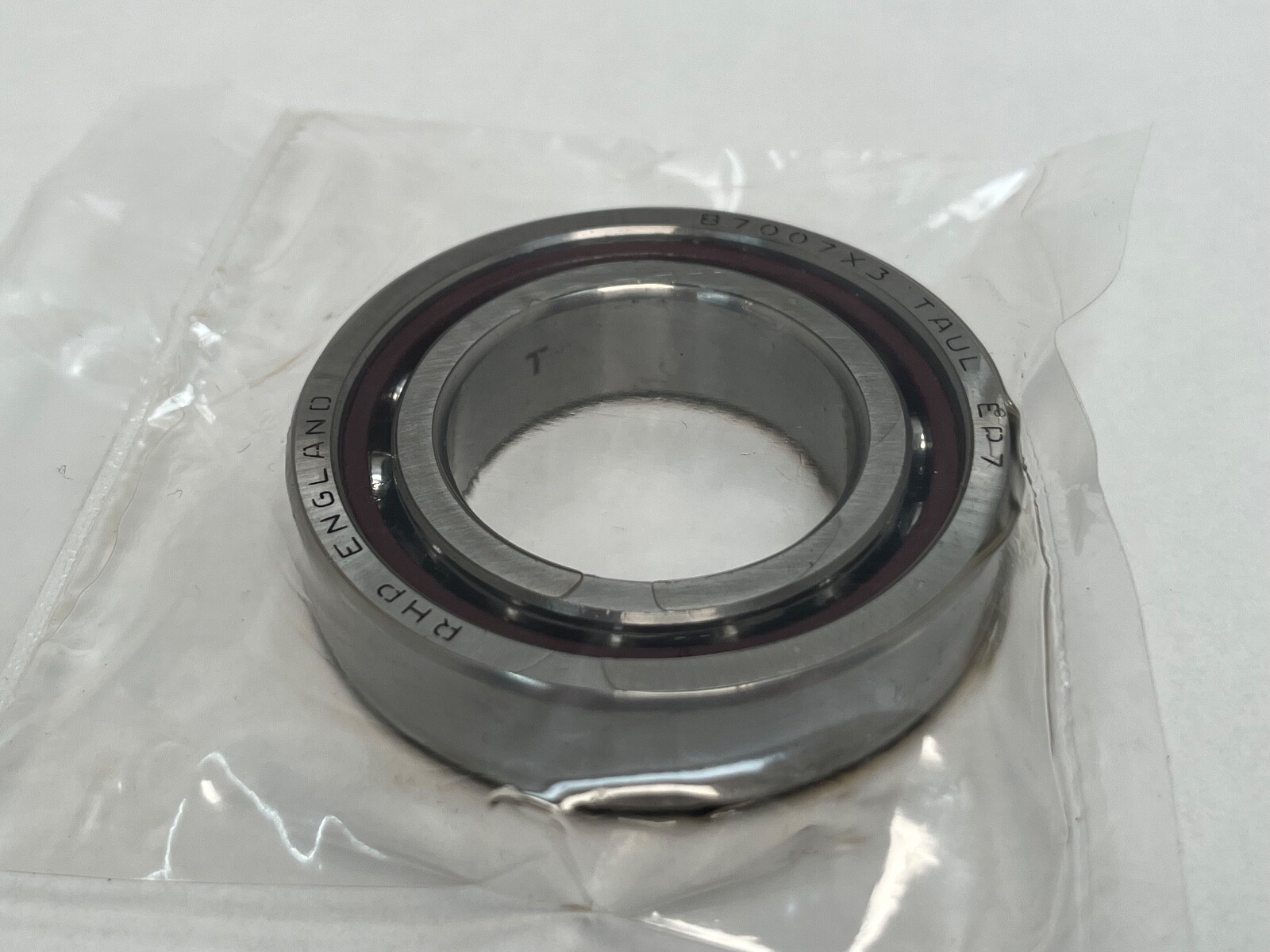

RHP 7007ETSULP4 super precision angular contact ball bearing. Bore: 35 mm. Outside diameter: 62 mm. Width: 14 mm. Series: 70, ISO dimension series 10. Single row, open, straight bore, universally faced. Manufactured in the United Kingdom.
7007 — ISO 70 series, 35 mm bore code 07: 35 x 62 x 14 mm.
E — RHP design suffix for the high-capacity internal design.

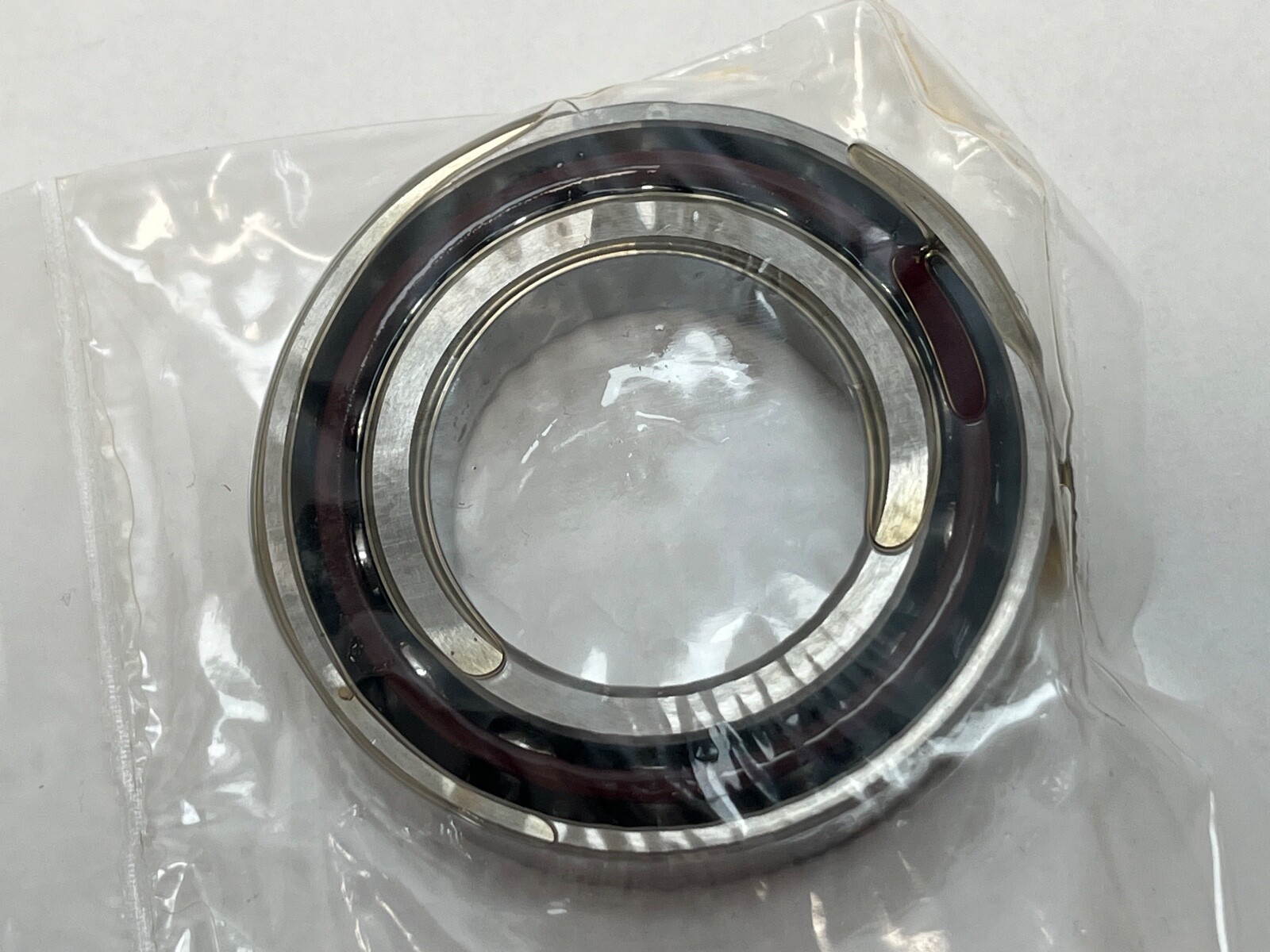

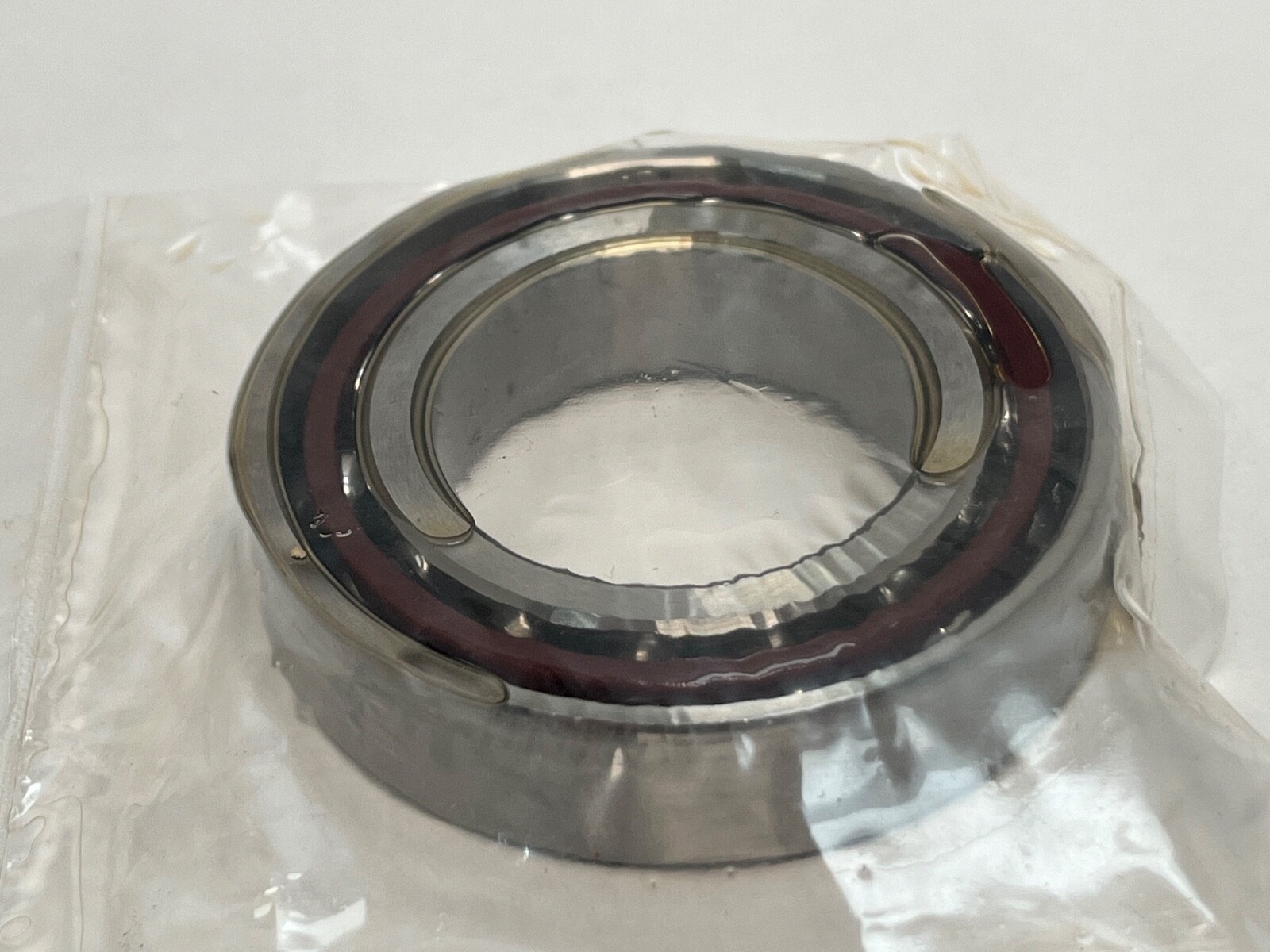

T — machined laminated phenolic cage, outer ring guided.
SU — single universal: one bearing ground so that any two or more build a back-to-back, face-to-face or tandem set.
L — light preload.
P4 — precision grade, equivalent to EP7, ABEC 7 and ISO Class 4.
Contact Angle: 25°. Cage Type: Machined laminated phenolic resin, outer ring guided. Preload: Light. Precision Grade: P4. Mounting Arrangement: Single universal. Seal Type: Open. Rolling Elements: Balls. Number Of Rows: 1. Bearing Material: SAE 52100 through-hardened chrome bearing steel. Harmonization Code: 8482.10.50.
Dynamic Load Rating: 18.2 kN. Static Load Rating: 13.0 kN. Limiting Speed: 33,100 rpm on oil/air lubrication and 20,500 rpm on grease.
Axial Preload: 150 N. Axial Stiffness: 107 N/µm at light preload. Inner ring radial runout: 4 µm maximum. Outer ring radial runout: 5 µm maximum. Maximum operating temperature: 120 °C. Mass: 0.150 kg (0.33 lb).
Bore Diameter: 35 mm (1.3780 in). Outside Diameter: 62 mm (2.4409 in). Width: 14 mm (0.5512 in).
Inner ring abutment diameter d1: 41 mm minimum. Outer ring abutment diameters D1 and D2: 56 mm and 57 mm maximum. Fillet radii r and r1: 1.0 mm and 0.6 mm minimum. Effective load centre a: 18.3 mm. Lubrication jet pitch circle diameter: 44.6 mm. Internal free volume: 7.0 cm3.

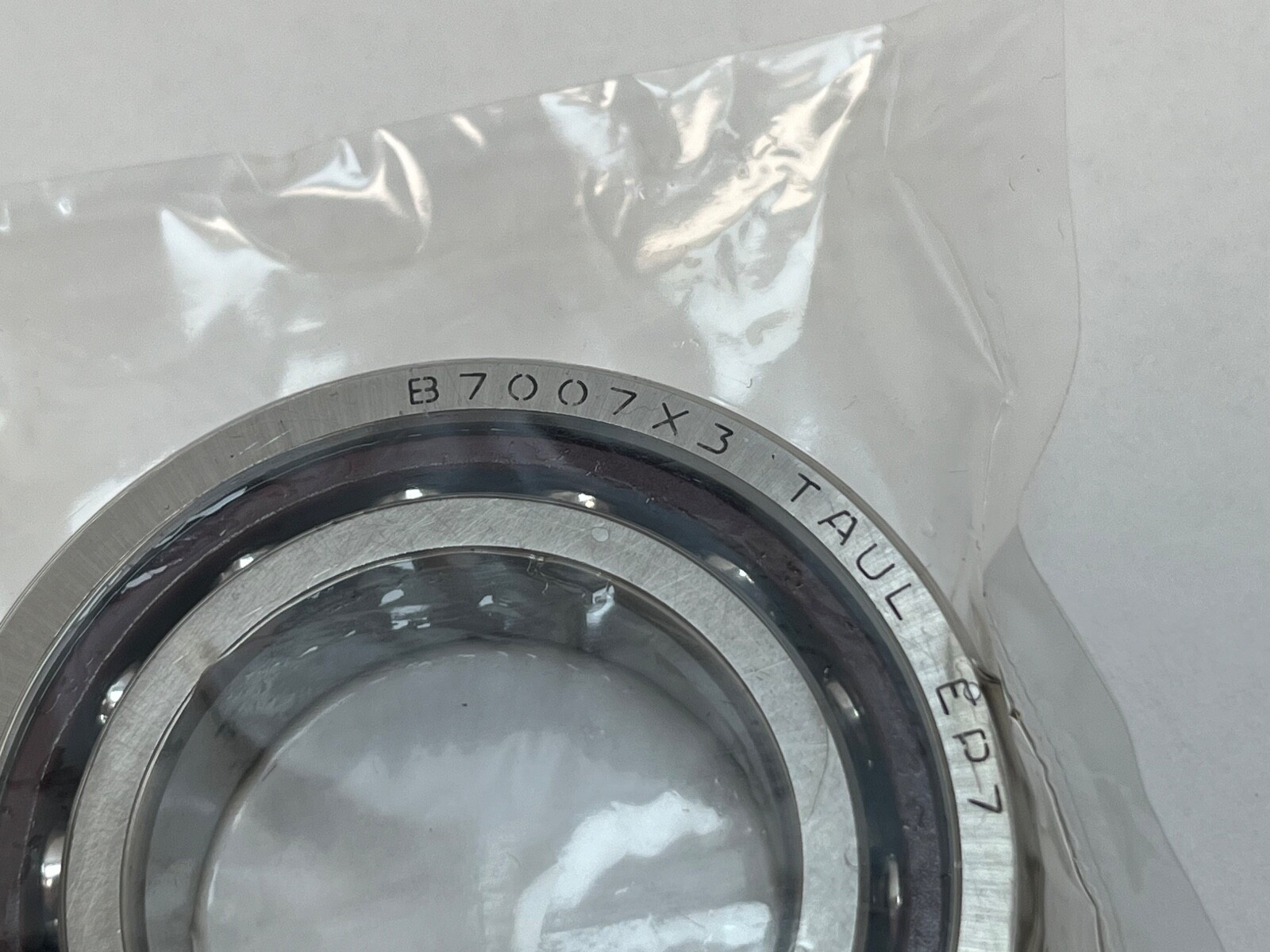

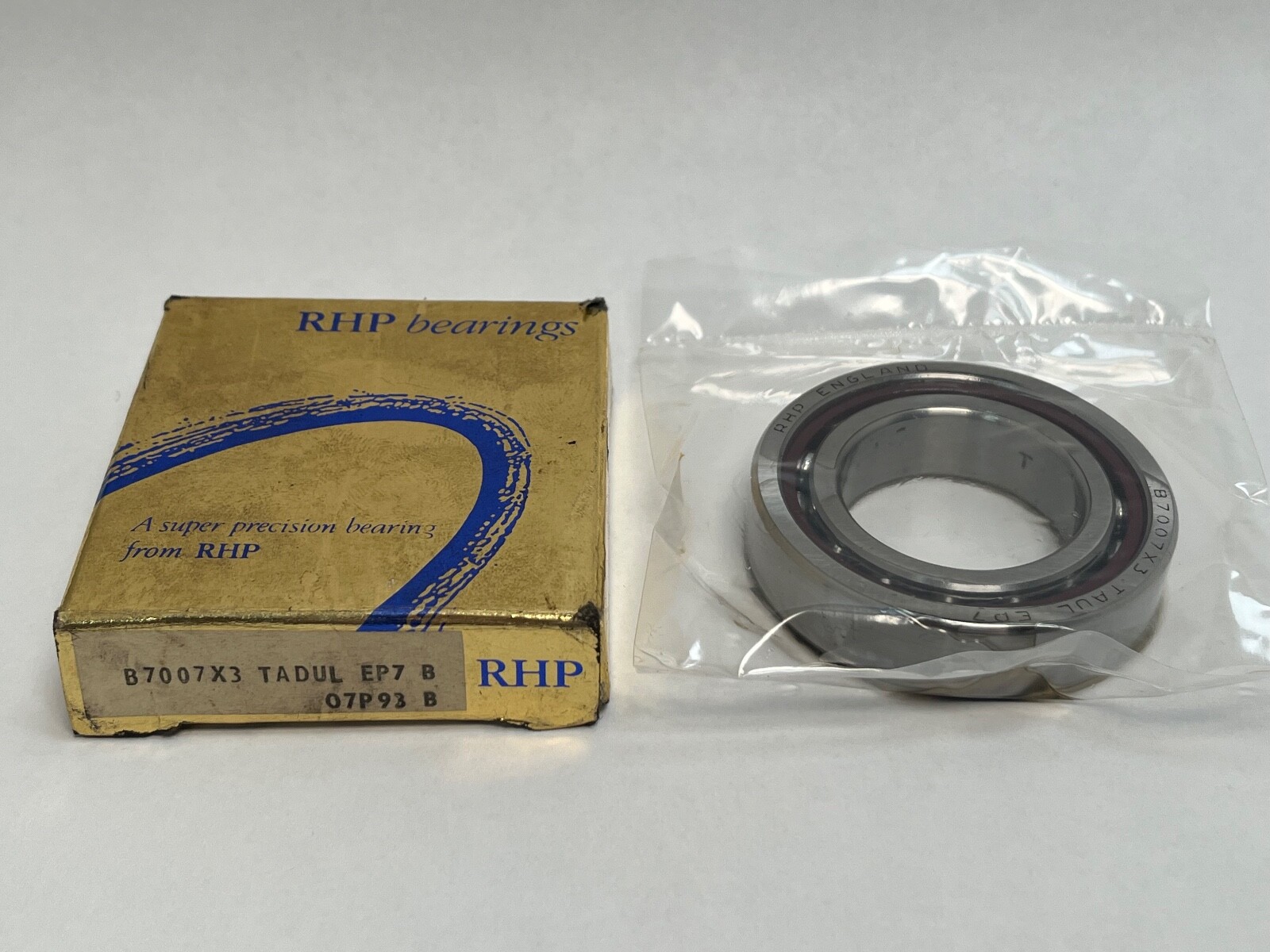

Carton designations: 7007ETSULP4, 7007-E-T-SUL-P4, B-7007-X3-TA-UL-EP7, 2MM9107WICRSUL. NSK 7007A5TRSULP4 is the current-scheme equivalent at 25° with the same outer-ring-guided phenolic cage. FAG B7007-E-T-P4S-UL and SKF 7007 ACD/P4A are 25° equivalents. Fafnir 3MM9107WI is the 25° Fafnir equivalent in this envelope.
Related size: Fafnir 2MM9107WI-CR shares the 35 x 62 x 14 mm envelope at 15°.
Contact Angle: 25°.
SU is single universal, a bearing ground to pair in any arrangement; L is light preload.
35 mm bore, 62 mm outside diameter, 14 mm width, P4 precision (EP7, ABEC 7, ISO Class 4).
