GE6KAF343010E$A1AC Drive — 10 HP CT / 15 HP VT, 18/23 A, 380–480 VAC 3 Phase, NEMA 1

Product Description

What this part is:

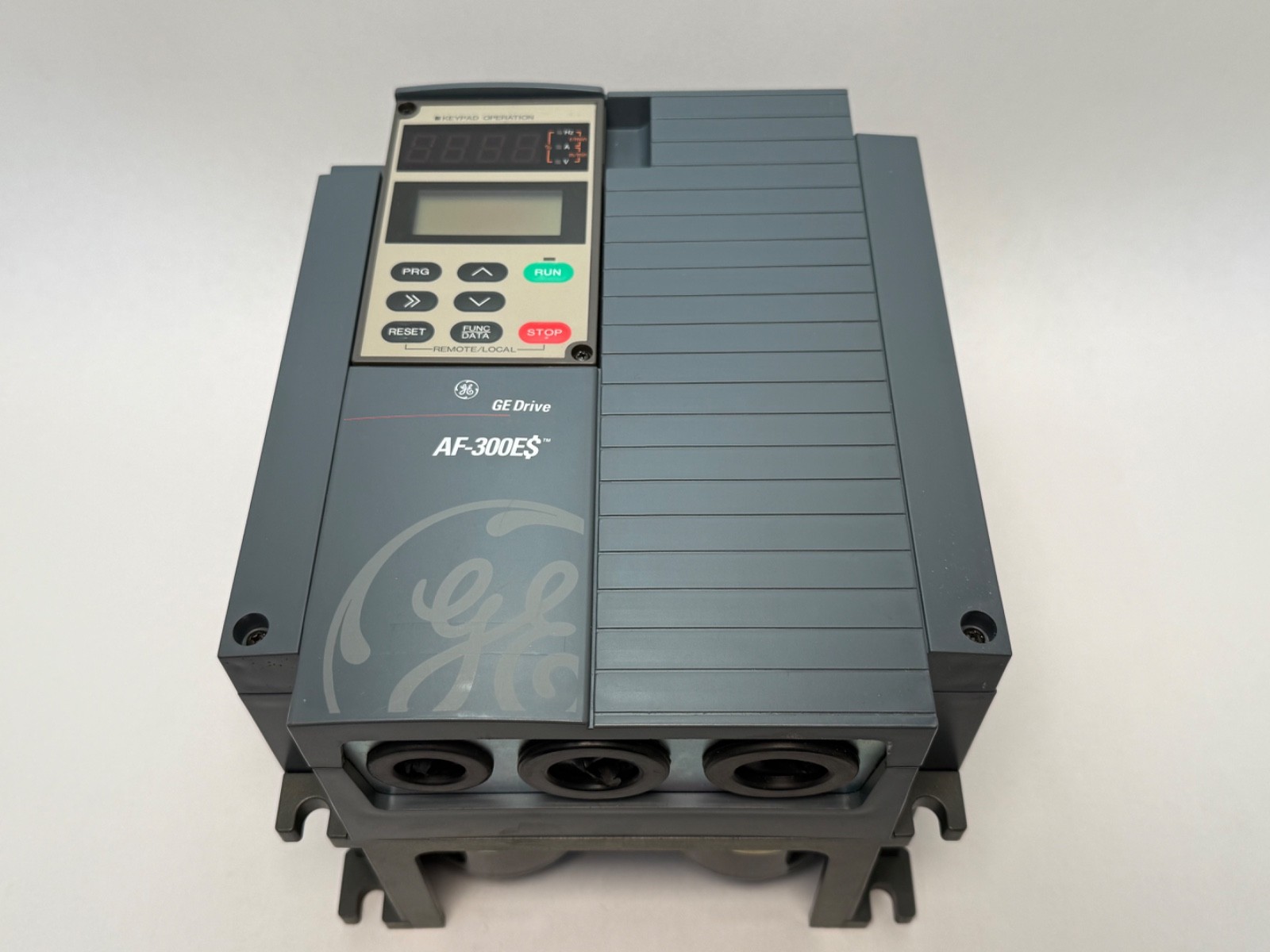

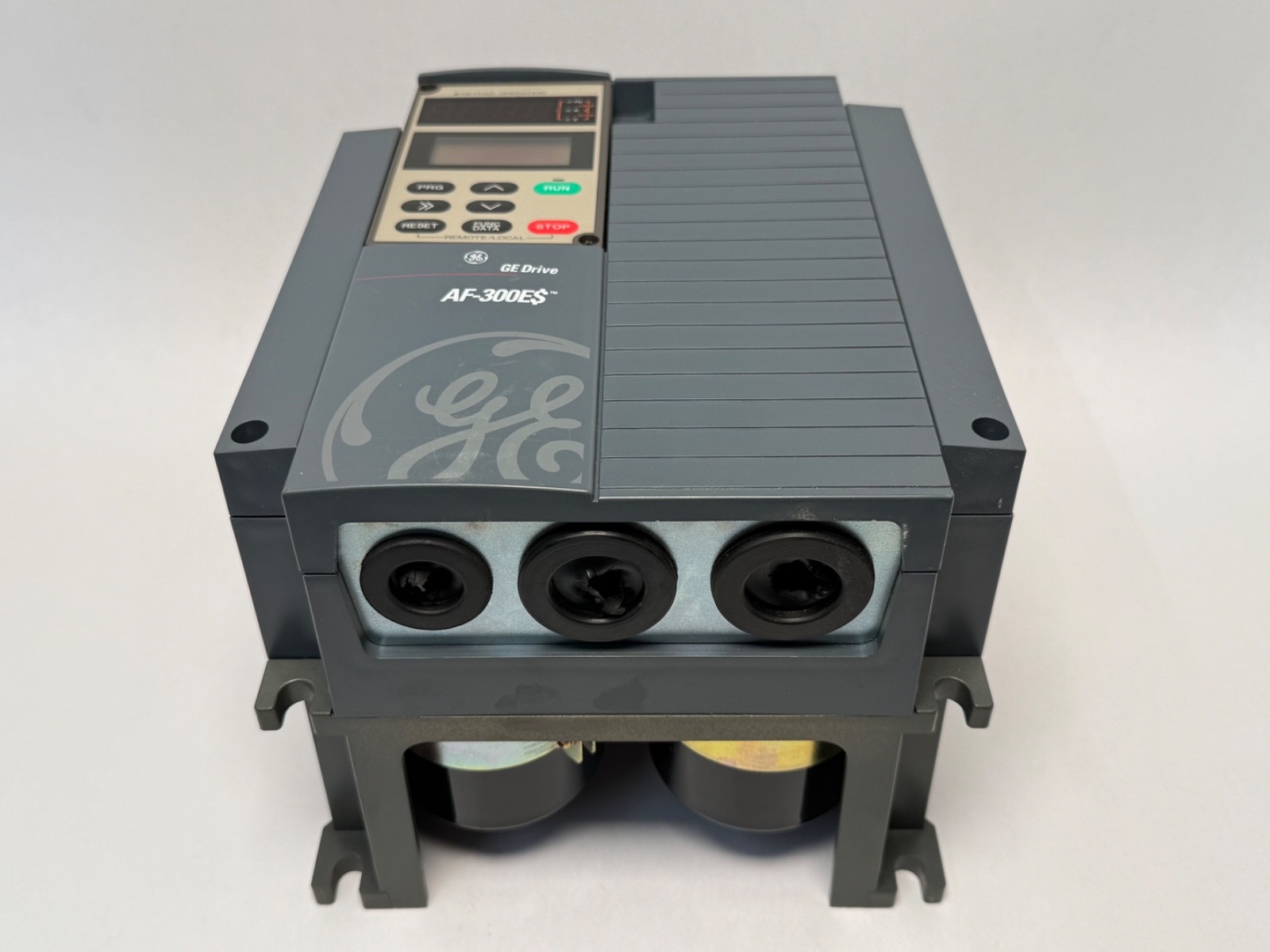

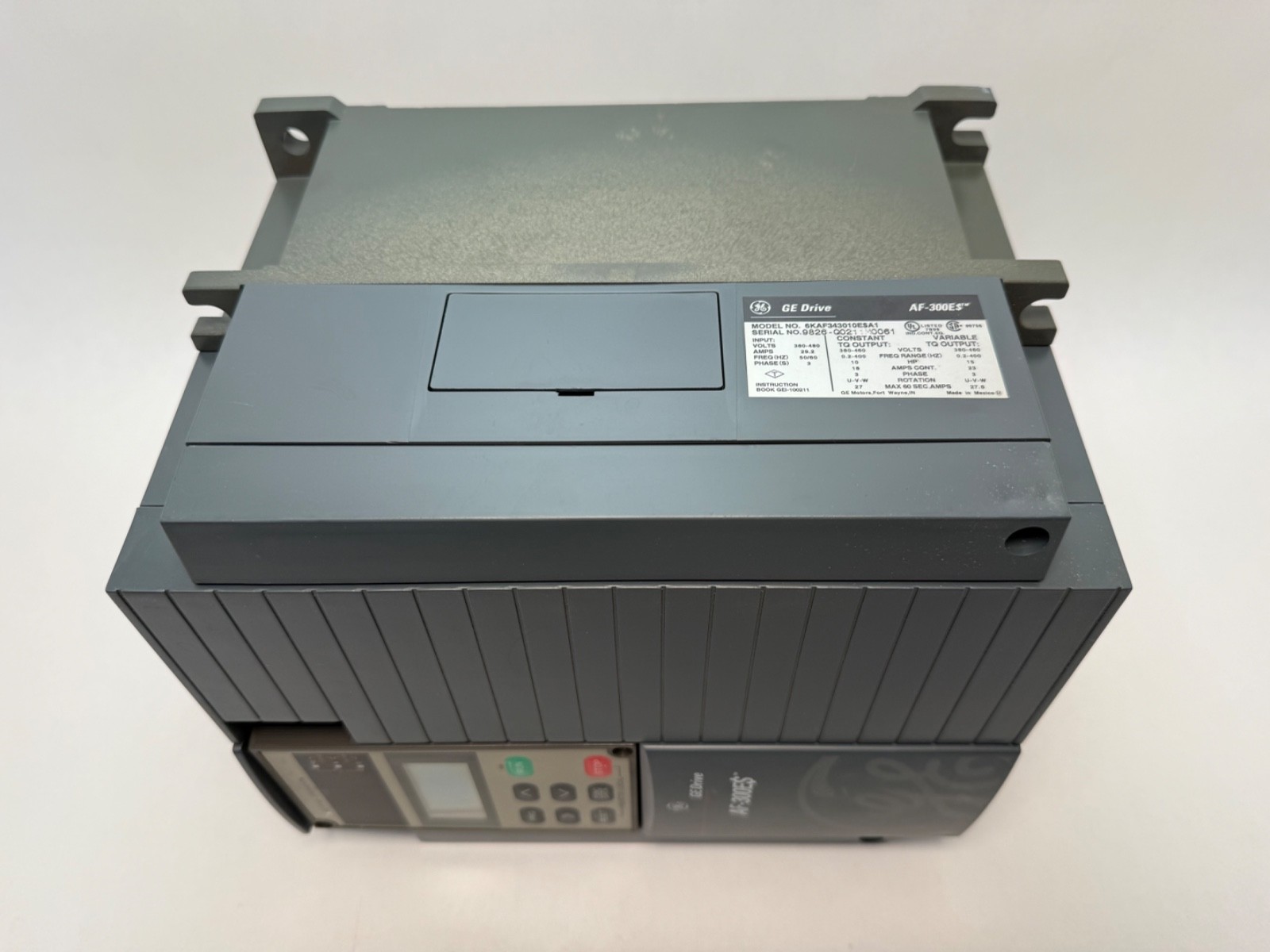

GE 6KAF343010E$A1 adjustable frequency AC drive from the GE Fuji AF-300E$ family. Three-phase 460 V class drive, dual rated for constant torque and variable torque duty.

Decoding the designation:

6KAF343010E$A1 — GE catalog number, AF-300E$ family, 460 V class, three-phase input, 10 HP constant torque rating.

AF-300E$ — GE Fuji drive family name. The 300 is part of the family name, not a horsepower rating.

What these specs mean in practice:

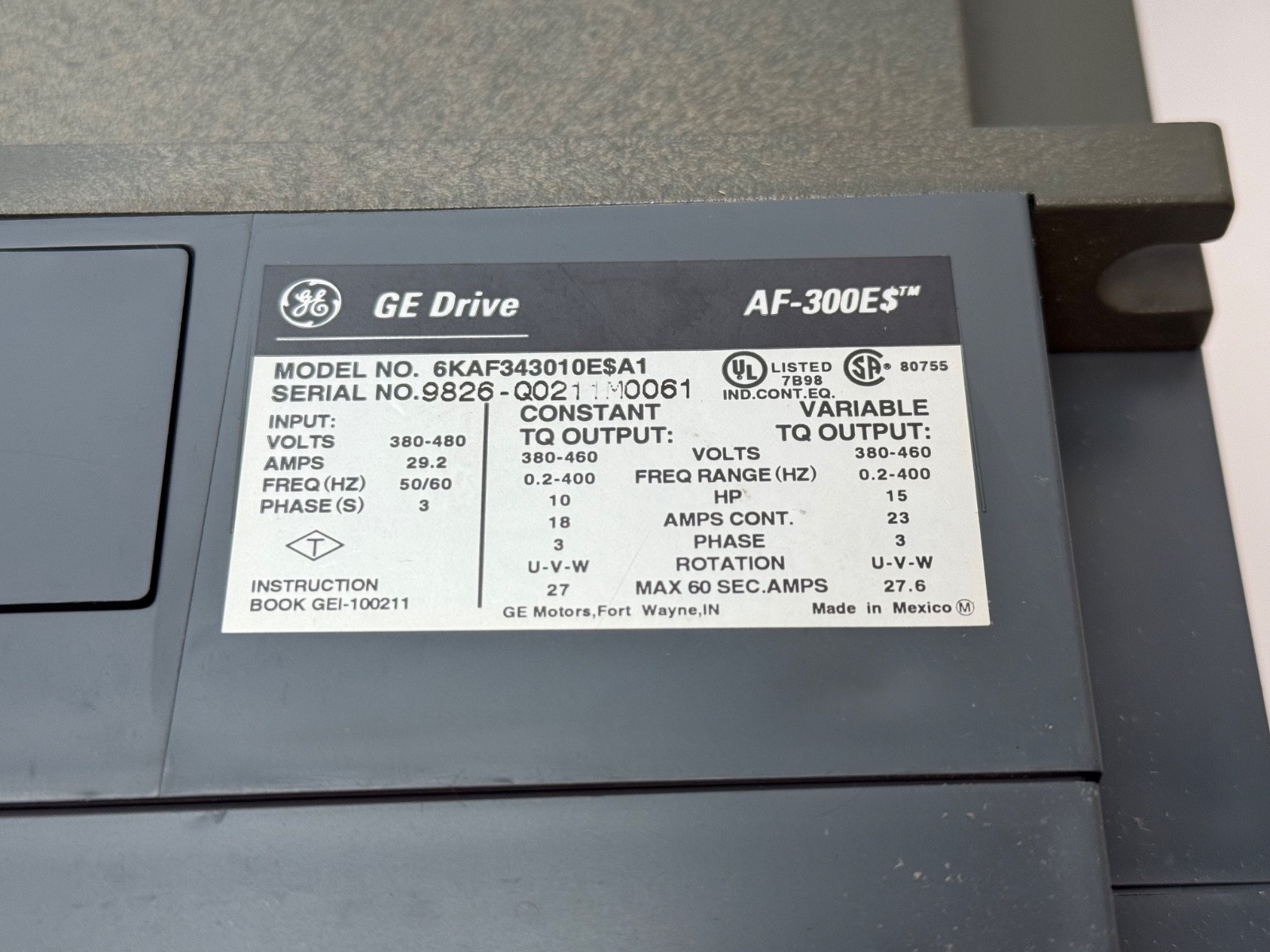

Input HP: 10 HP constant torque; 15 HP variable torque. Output Amperage: 18 A constant torque; 23 A variable torque. Input Voltage: 380–480 VAC, 3 phase. AC Frequency Rating: 50/60 Hz. Output Frequency: 0.2–400 Hz. Overload: 150% for 1 minute. Enclosure Type: NEMA 1. Control: PWM with selectable torque vector control.

Condition:

Takeout unit, tested.

Interchange guidance:

MPN Variants: 6KAF343010E$A1, 6KAF343010ES-A1, 6KAF343010ESA1, 6KAF343010EA1. The E$ position is also written with an S.
