System PlastUCP206-20-OECPillow Block Bearing Unit — 1-1/4 in Bore, Two-Bolt Base, Polyamide Housing, Set Screw Locking

Product Description

What this part is

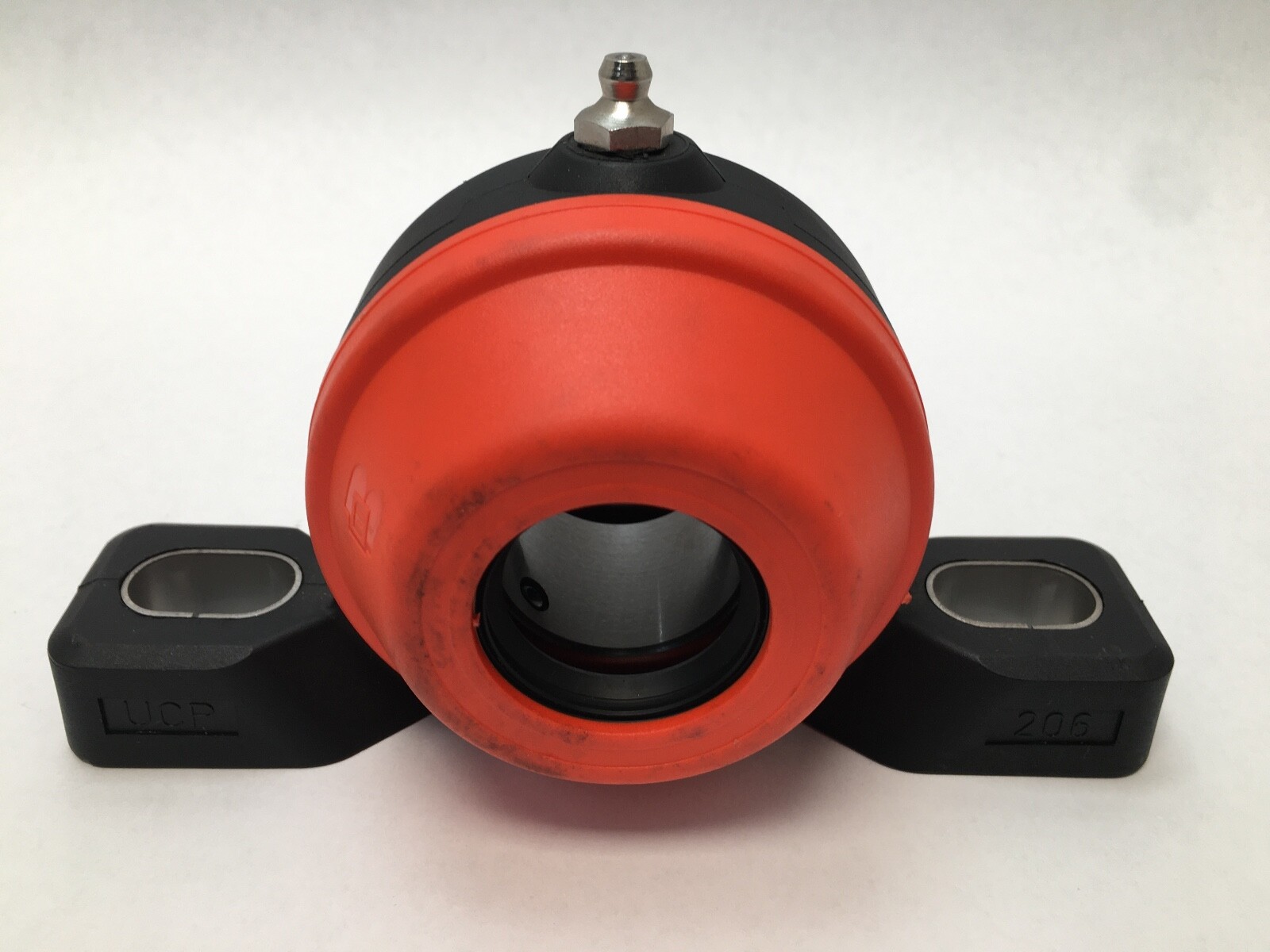

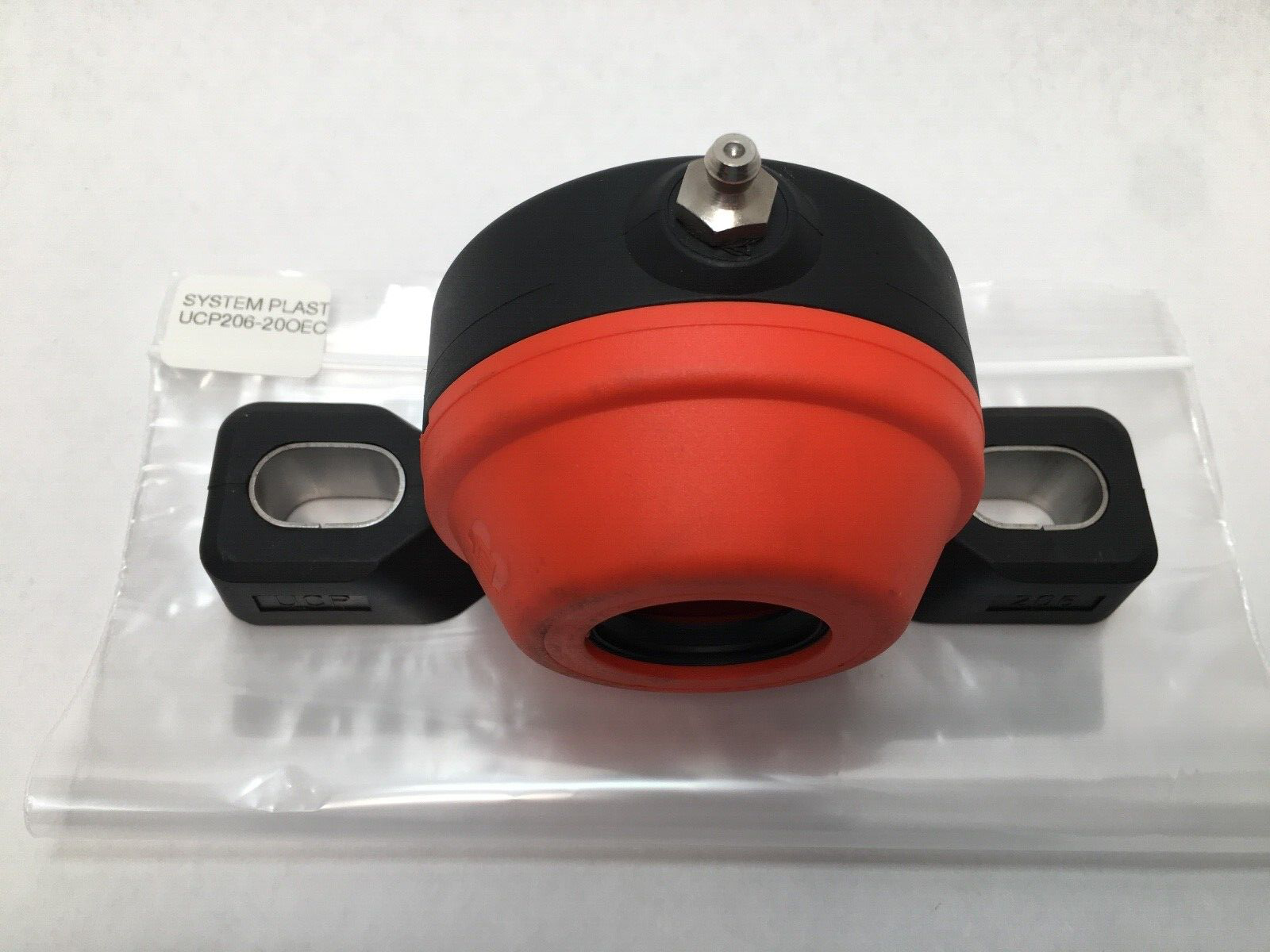

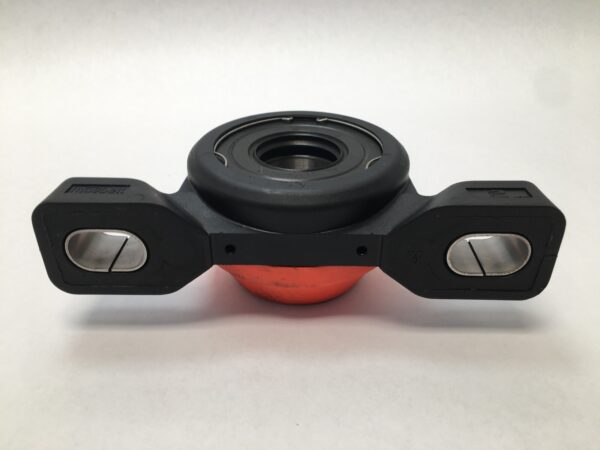

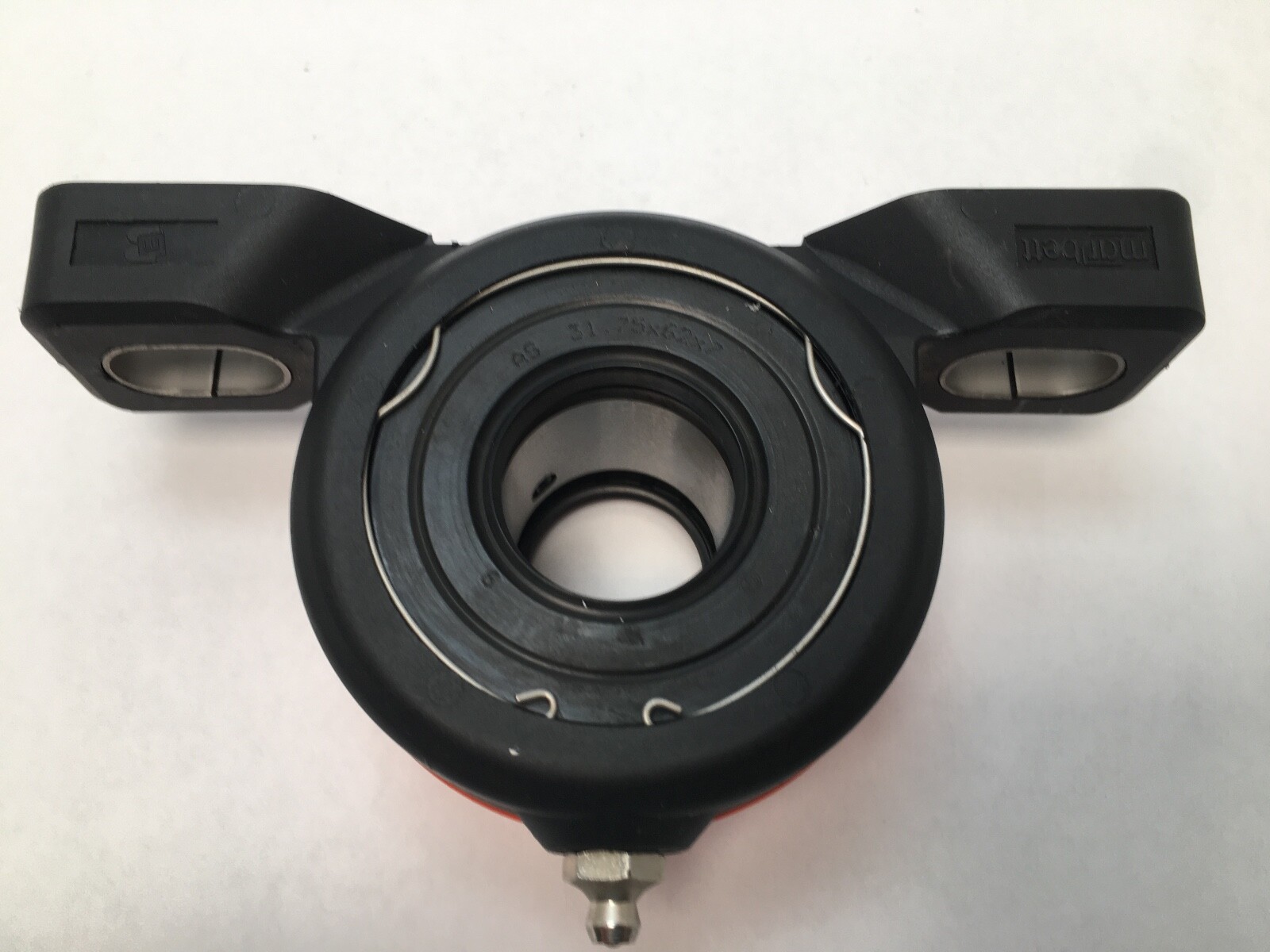

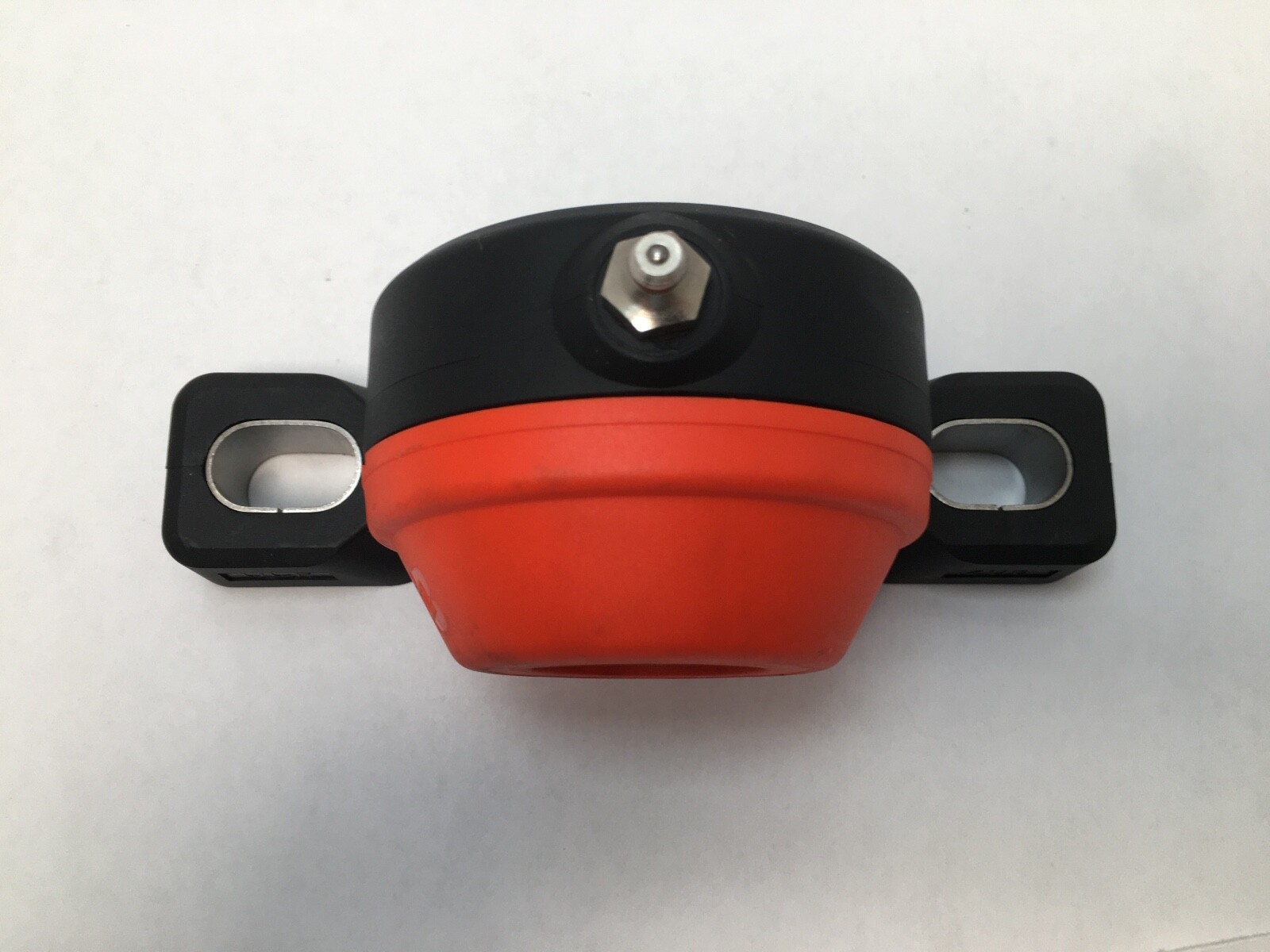

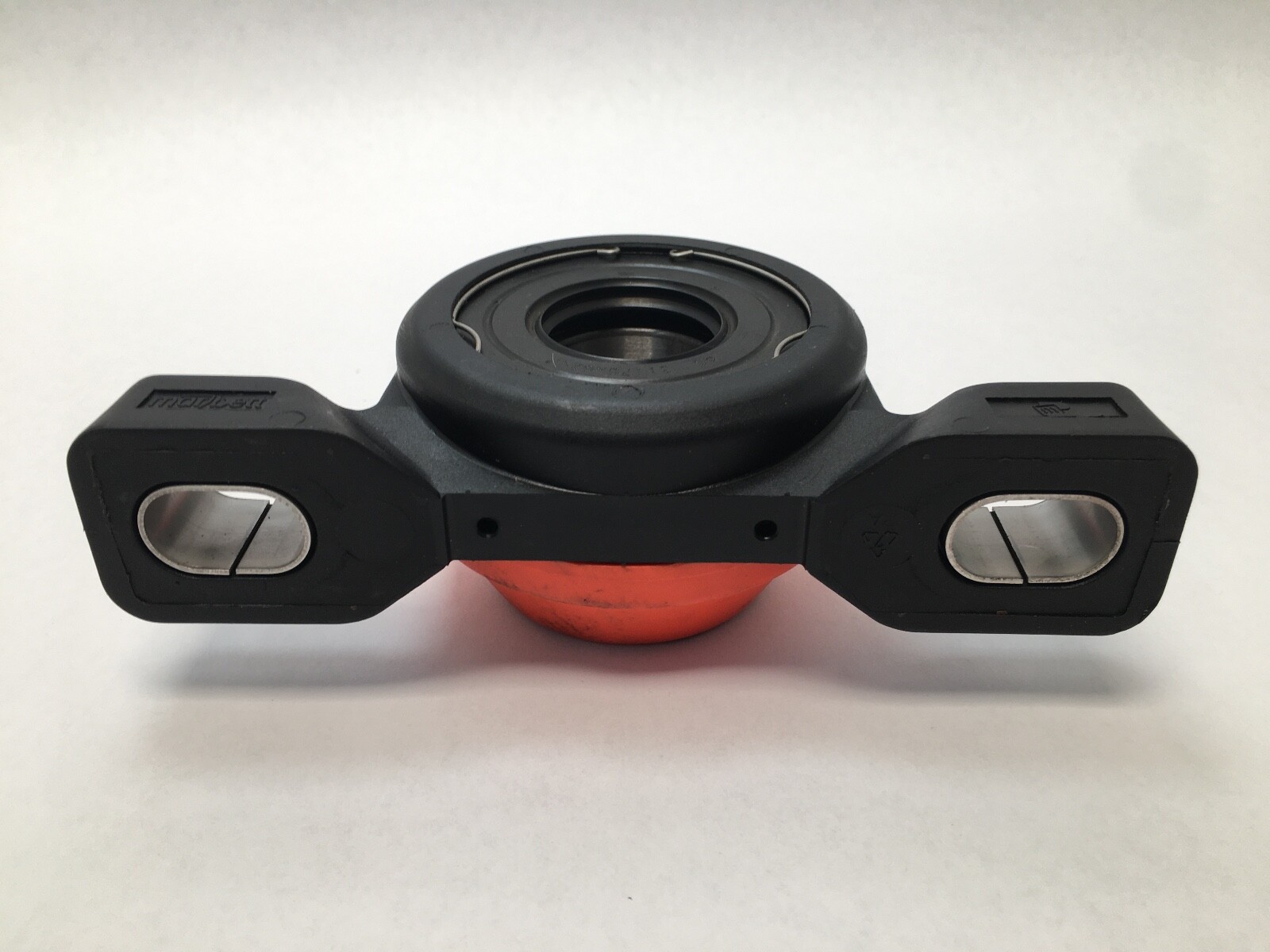

System Plast UCP206-20-OEC is a two-bolt pillow block bearing unit: a UC206-20 wide inner ring ball bearing insert seated in a reinforced polyamide housing, for a 1-1/4 in shaft.

Decoding the designation

UC — ball bearing insert with a wide inner ring and set screw locking.

P — pillow block housing with a two-bolt base.

206 — insert size, 62 mm outside diameter frame.

-20 — inch bore in sixteenths, 20/16 = 1-1/4 in.

Specifications

Housing Style: Pillow block, two-bolt base. Housing Material: Reinforced polyamide. Insert: UC206-20. Locking Method: Set screw. Bore Diameter: 1-1/4 in (31.750 mm). Rolling Elements: Ball.

Dimensions and mounting

Shaft Size: 1-1/4 in. Mounting: Two bolts through the base, shaft axis parallel to the mounting surface.

Compatibility and replacement

The UCP206-20 designation is shared across the industry, so the unit fits applications built for the UCP206-20 size from makers such as NTN, FYH and AMI; housing material and centre height should be matched to the application.

Frequently asked questions

What shaft size fits a UCP206-20?
A 1-1/4 in shaft.

Is the UCP206-20 a flange unit?
No. UCP is a two-bolt pillow block; flange units carry UCF or UCFL codes.

How is the insert locked to the shaft?
By set screws in the wide inner ring.
