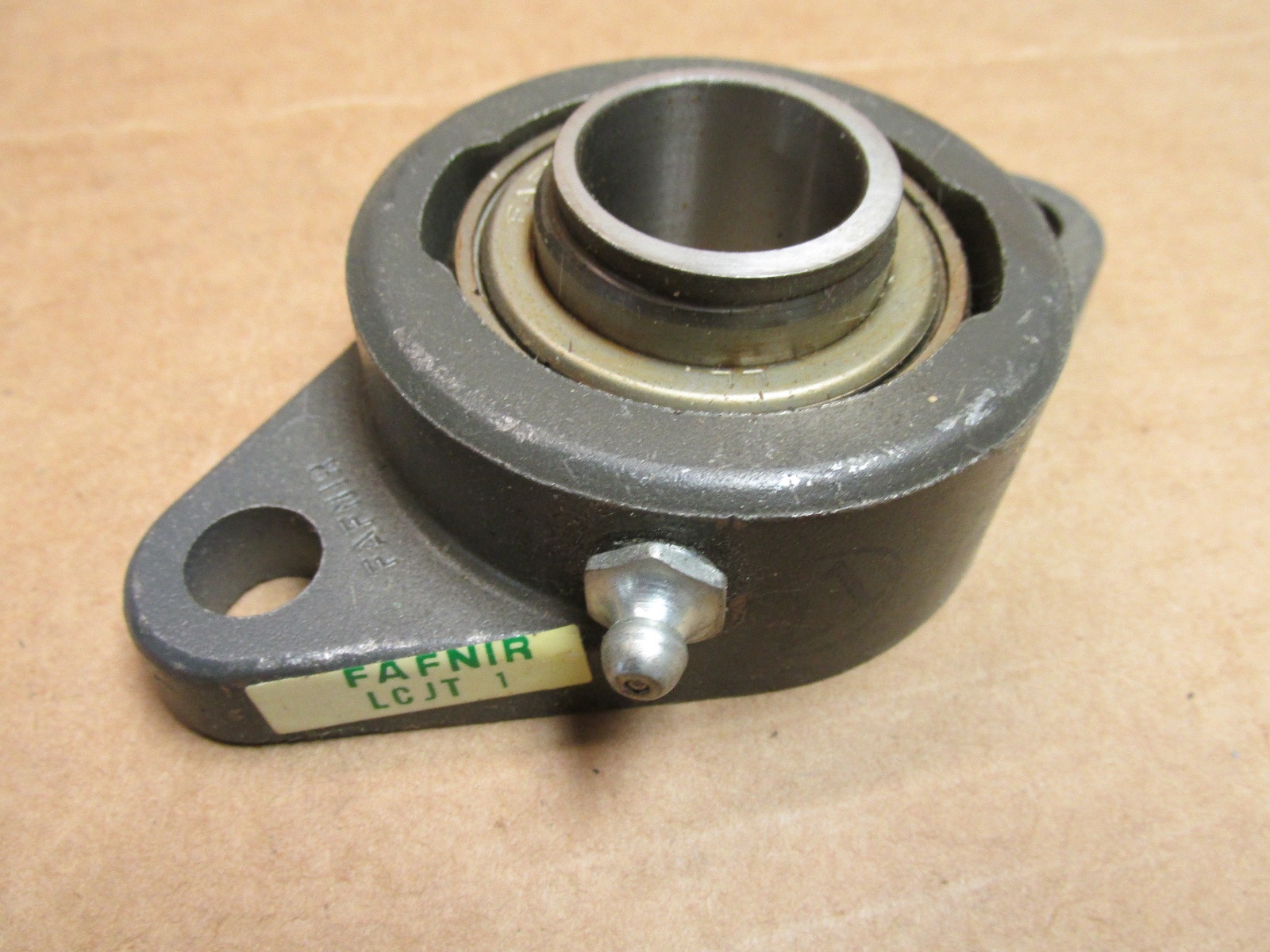

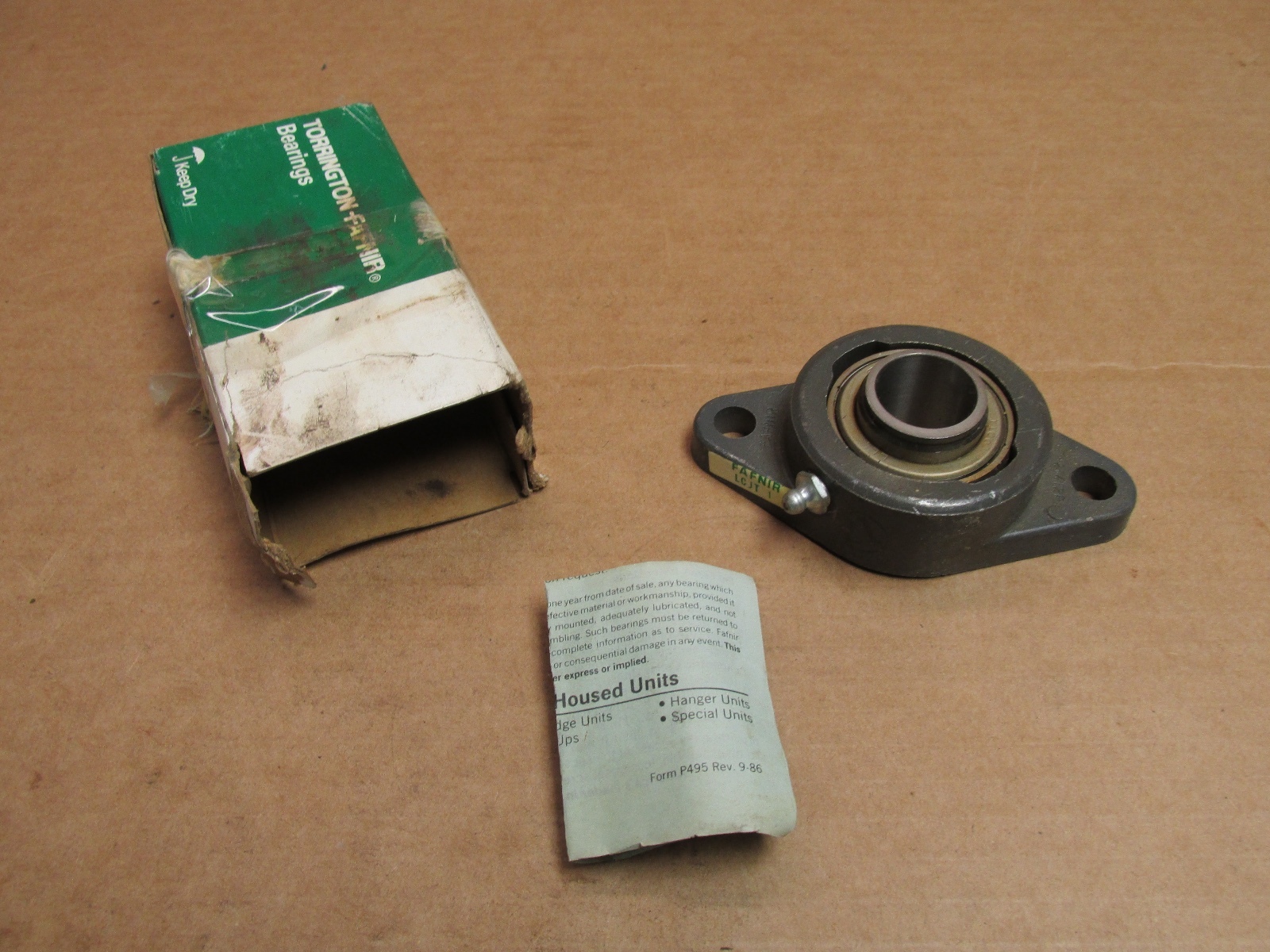

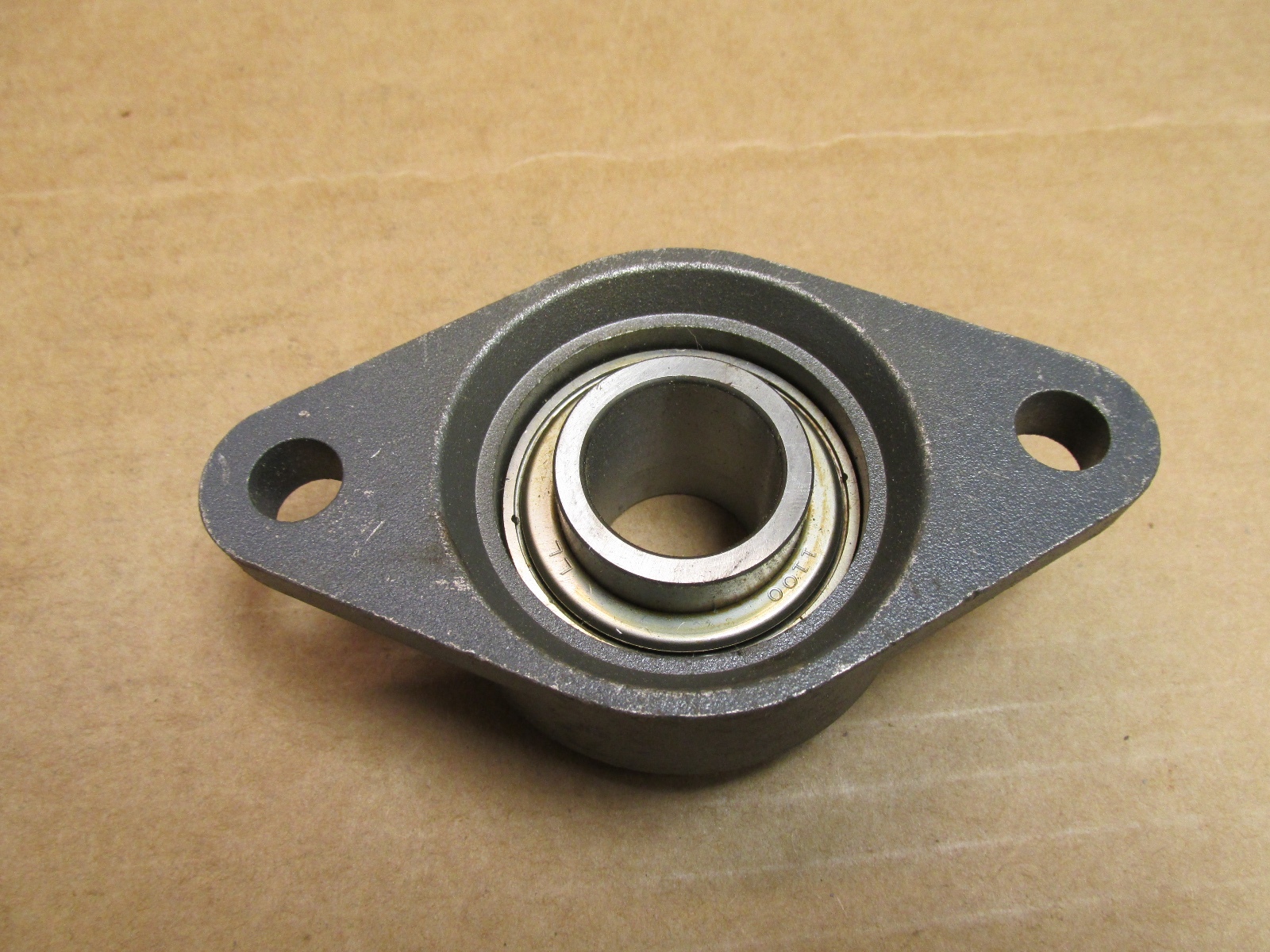

Torrington LCJT1 2-Bolt Flange Bearing Unit. 1.000 in Bore. Cast iron housing. Eccentric locking collar. Standard industrial duty.
List Price
$38.44
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Fafnir |
|---|---|
| MPN | LCJT1 |
| Model | LCJT-1 |
| Bearing Type | , Single Shield |
| ID | 1.000 in |
| Bolt Center To Center | 3.89 in |
|---|---|
| Number Of Bolt Holes | 2 |
| Bolt Center To Center Length | 3.89 in |
| Number Of Bolt Holes For Fasteners | 2 |
| Min Temp | -20 °C |
| Dynamic Load Rating | 14.0 kN / 3150 lbf |
| Static Load Rating | 7.8 kN / 1760 lbf |
| Precision Rating | ABEC 1 / P0 |
| Series | LCJT |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Condition | New – Open box |
| Bearing Type | 2-Bolt Flange Unit |
| Item Weight | 1.80 lbs |
| Limiting Speed | 5300 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Lubricant | Grease |
| Duty Type | Standard |
| Locking Device | Eccentric Collar |
| Relubrication Feature | Yes |
| Housing Material | Cast Iron |
| Expansion Type | Non-Expansion |
| Material | Cast Iron Housing |
| Cross Reference 1 | SKF FYTB 1. FM |
|---|---|
| Cross Reference 2 | Dodge F2B-SC-100 |
| Cross Reference 3 | Fafnir RCJC 1 |
| Cross Reference 4 | INA RCJTY1 |
| Cross Reference 5 | Sealmaster SFT-16 |
