Flanged inch tapered roller bearing cup, 3.3465 in (85 mm) outside diameter, 0.8125 in width. Flange face locates it in a through-bored housing.
List Price
$36.89
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 2924B |
| GTIN | 053893122632 |
| Model | 2924-B |
| Bearing Type | Tapered Roller Bearing Cup |
| OD | 3.3465 in (85.001 mm) |
| Series | 292x |
|---|---|
| Base Number | 2924B |
| Overall Width | 0.8125 in (20.638 mm) |
| Flange Outer Diameter | 3.534 in (89.764 mm) |
| Cup Flange Width | 0.1875" |
| Bearing Width To Flange | 0.7500" |
| Mpn Variants | 2924B; 2924-B; 2924 B |
| Precision Class | Not specified |
| Additional Attributes | e Factor 0.35; K Factor 1.69; Y Factor 1.73; Cg 0.0832; Flange OD (D1) 89.764 mm; Flange width (C2) 4.763 mm; Max housing fillet radius 1.3 mm; Da 82.04 mm |
| Rolling Elements | Tapered Roller |
| Item Weight | 1.30 kg (2.8 lb) |
| Number Of Rows | 1 |
| Harmonization Code | 8482.2 |
| Cup Part Number | 2924B |
| Cup Width | 0.8125" |
| Cup Backface To Clear Radius | 0.05" |
| Part Number | 2924B |
| Industry Terms | 2924B flanged cup; flanged tapered roller bearing cup; inch taper bearing flanged outer race; 85 mm flanged cup |
| Common Misspellings | Timkin 2924B; Timken 2924 B; Timken 2924-B; Timken2924B; Timken 2942B |
| Application Types | Automotive axles and hubs; gearboxes; industrial machinery |
| Cross Reference 1 | Timken 2924 - no flange |
|---|

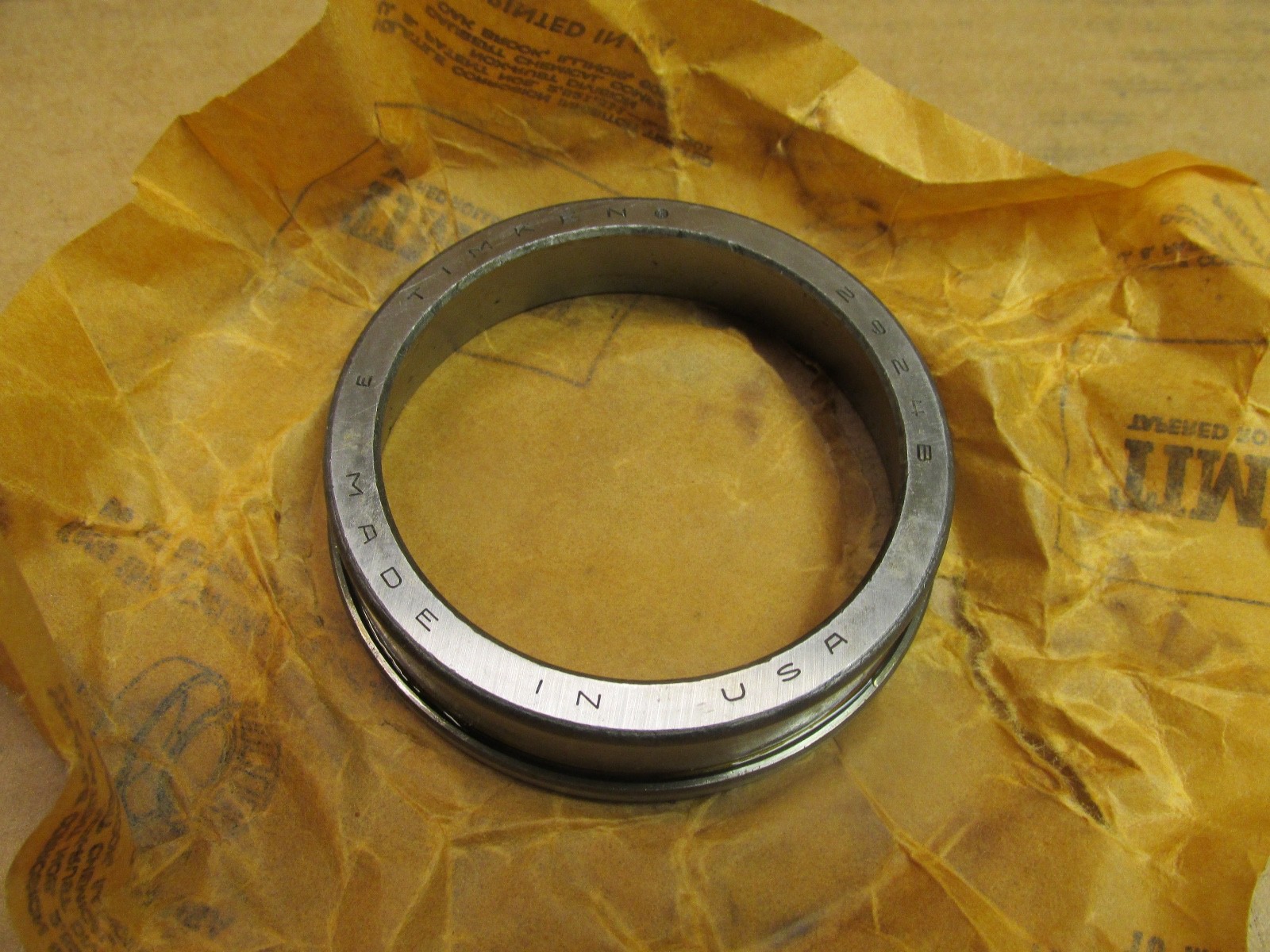

Timken 2924B is a flanged inch tapered roller bearing cup with an integral outer-ring flange. Cup only. Bearing Type: Tapered roller bearing cup. Series: 292x. Base Number: 2924B. Outside Diameter: 3.3465 in (85.001 mm). Overall Width: 0.8125 in (20.638 mm). Outer Ring Flange Outside Diameter (D1): 3.534 in (89.764 mm). Outer Ring Flange Width (C2): 0.1875 in (4.763 mm). Rolling Elements: Tapered Roller. Number Of Rows: 1. Item Weight: 1.30 kg (2.8 lb). Unit Quantity: 1 Pc. GTIN: 053893122632.
2924 — Timken base cup number, 3.3465 in outside diameter (85 mm).

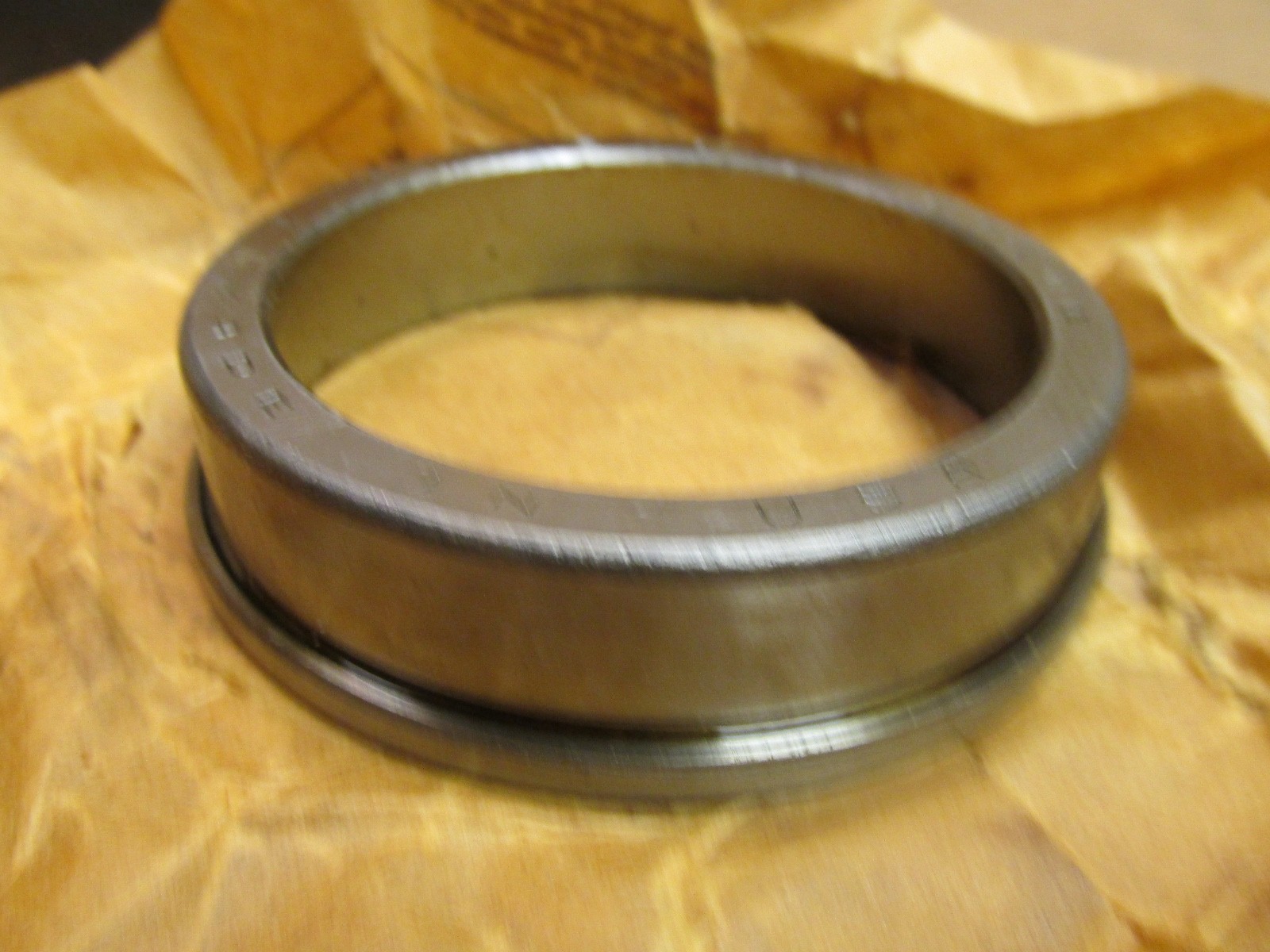

B — flanged execution; the flange raises the outside diameter to 3.534 in over a 0.1875 in band at one end.
e Factor: 0.35. K Factor: 1.69. Y Factor: 1.73. Geometry Factor (Cg): 0.0832. Precision Class: Not specified.
Maximum fillet radius on the mating housing: 1.3 mm (0.050 in). Housing Backing Shoulder Diameter, frontface (Da): 82.04 mm. Outer Ring Flange Outside Diameter (D1): 89.764 mm. Outer Ring Flange Width (C2): 4.763 mm.
Cross-reference: Timken 2924, the unflanged cup on the same raceway. CAD model and data sheet: available from Timken (cad.timken.com).
3.3465 in (85.001 mm) outside diameter, 0.8125 in (20.638 mm) wide.
Flanged outer ring: 3.534 in flange outside diameter, 0.1875 in flange width.
GTIN: 053893122632.
