SICKIME12-02BPSZW5KInductive Proximity Sensor — M12 x 1, 2 mm Sensing Range, Flush, PNP NO, 10–30 VDC, Cable

Product Description

What this part is:

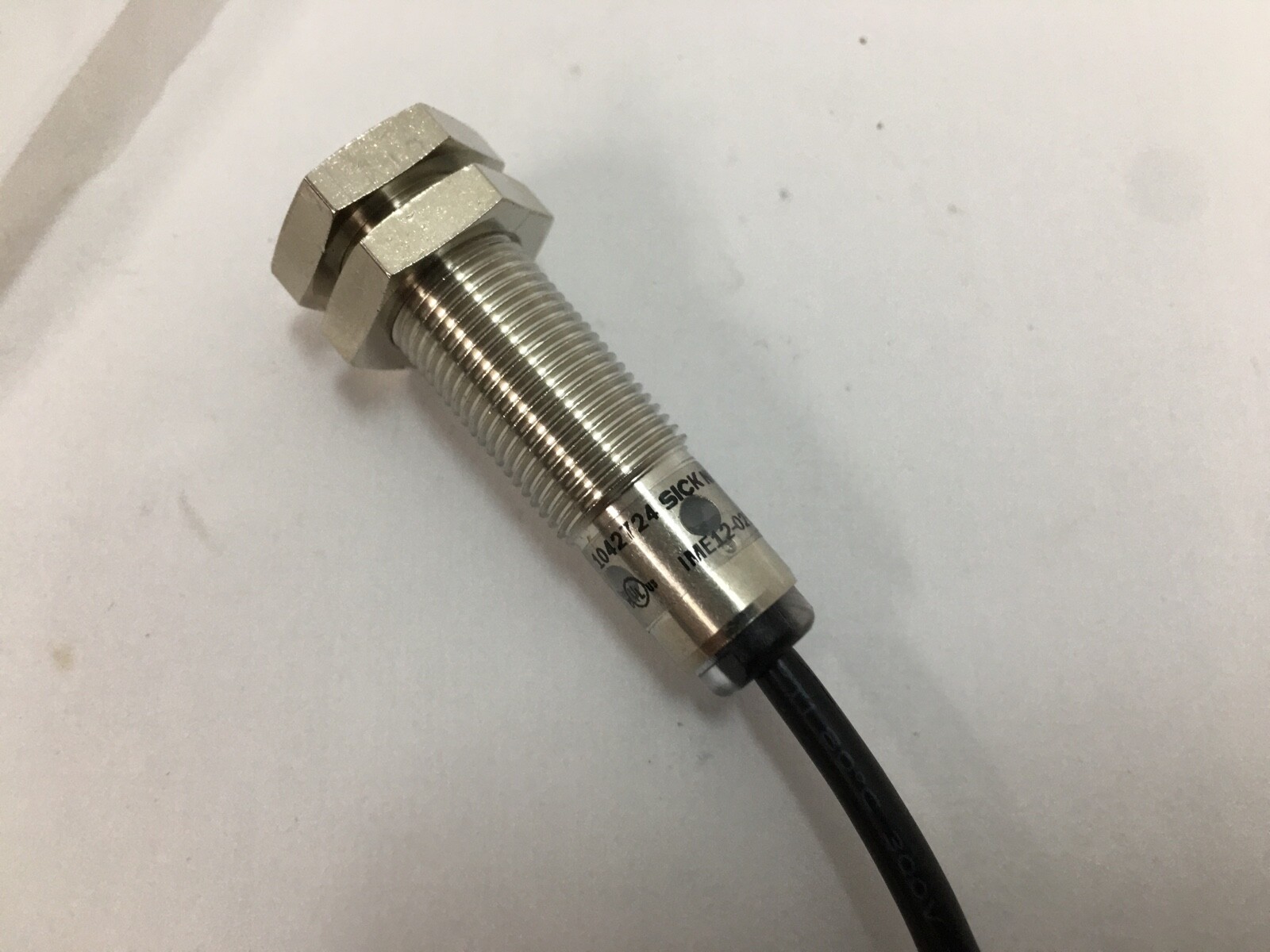

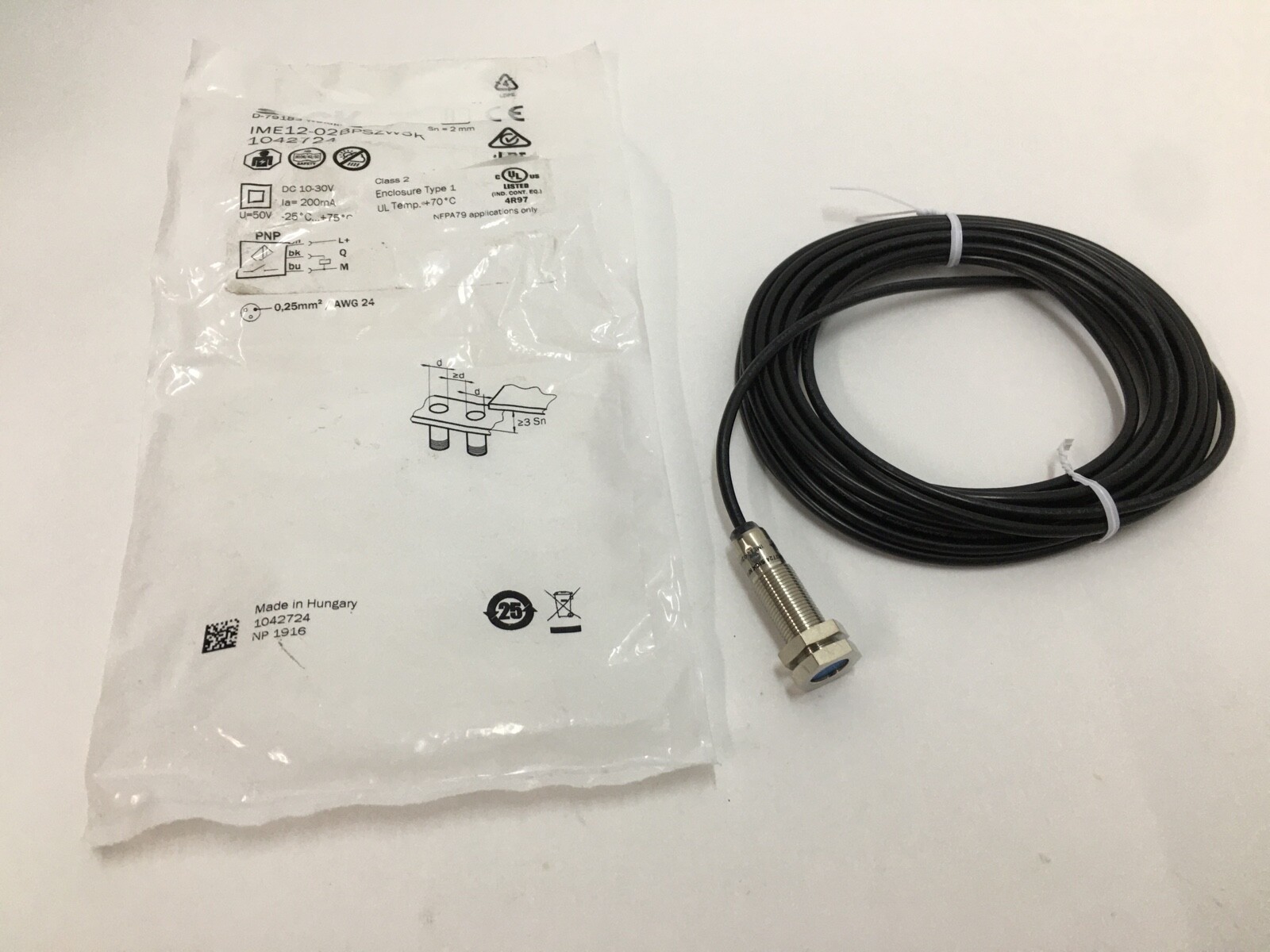

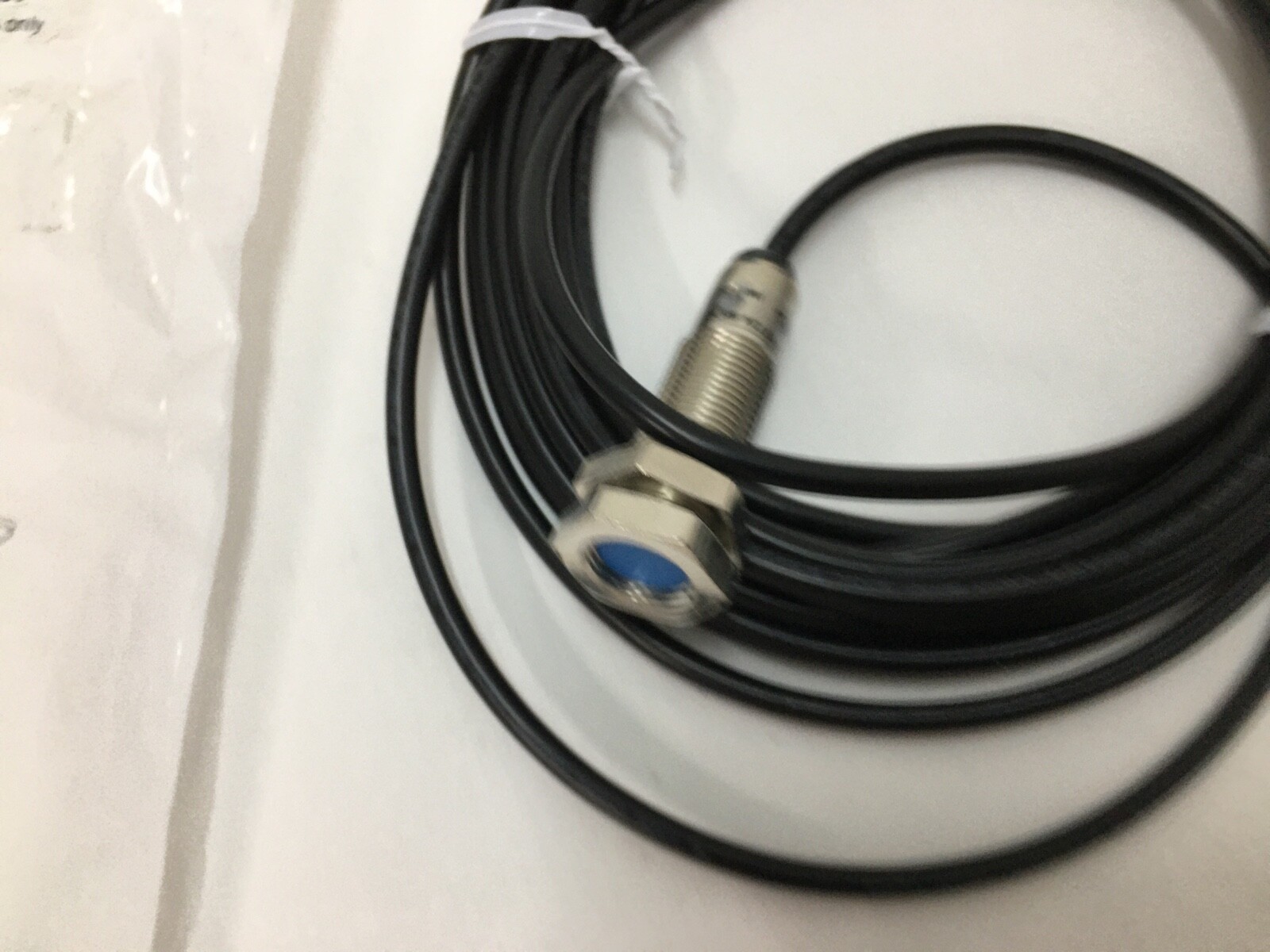

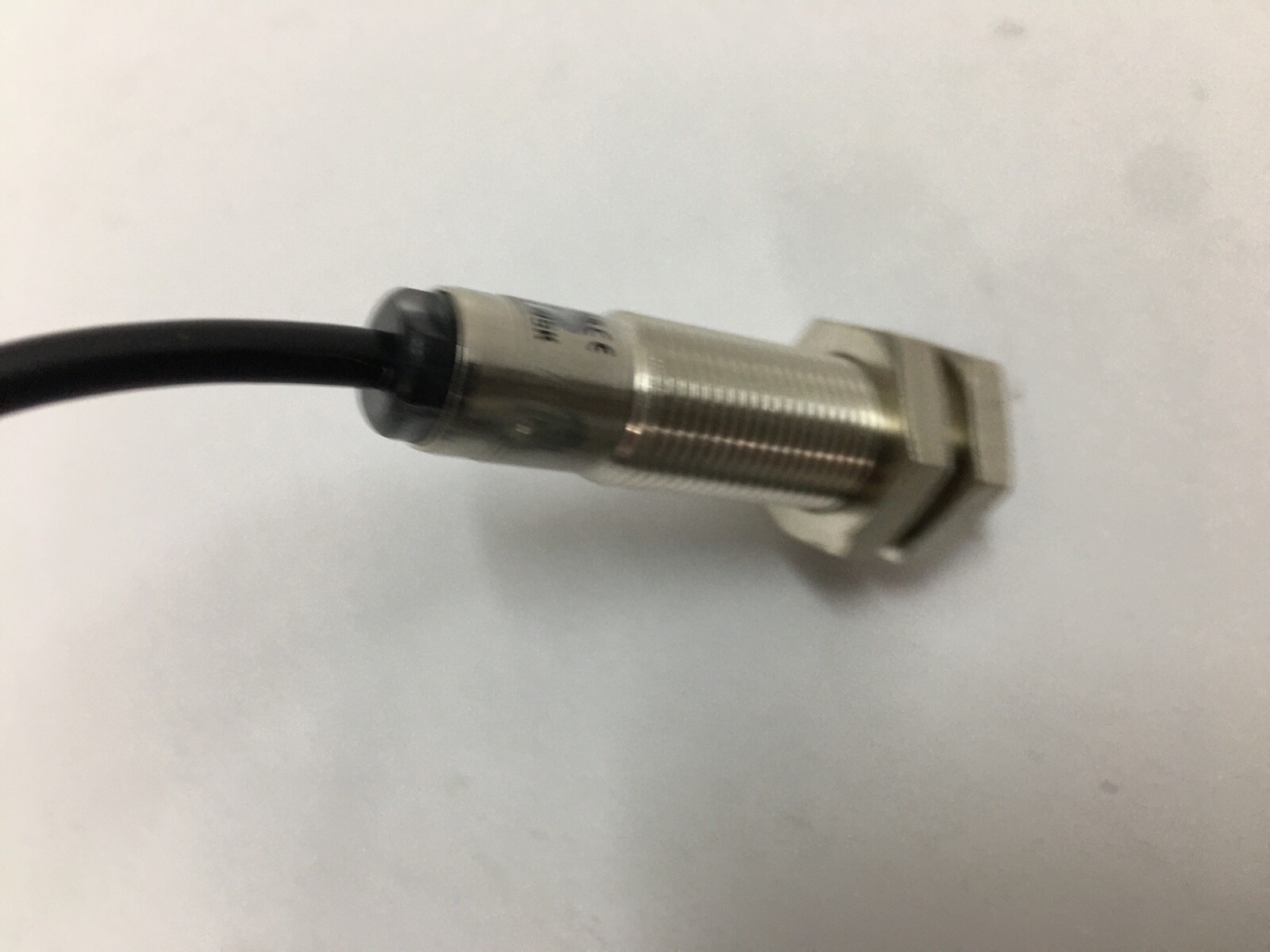

A SICK IME12-02BPSZW5K inductive proximity sensor from the IME family, SICK part number 1042724. An M12 short-body threaded barrel sensor with a pre-wired cable. Unit Quantity: 1 Pc.

Decoding the designation:

IME12 — SICK IME inductive sensor, M12 x 1 metric thread.

02 — sensing range, 2 mm.

B — flush installation.

P — PNP switching output.

S — normally open (NO) output function.

W — cable connection.

Specifications:

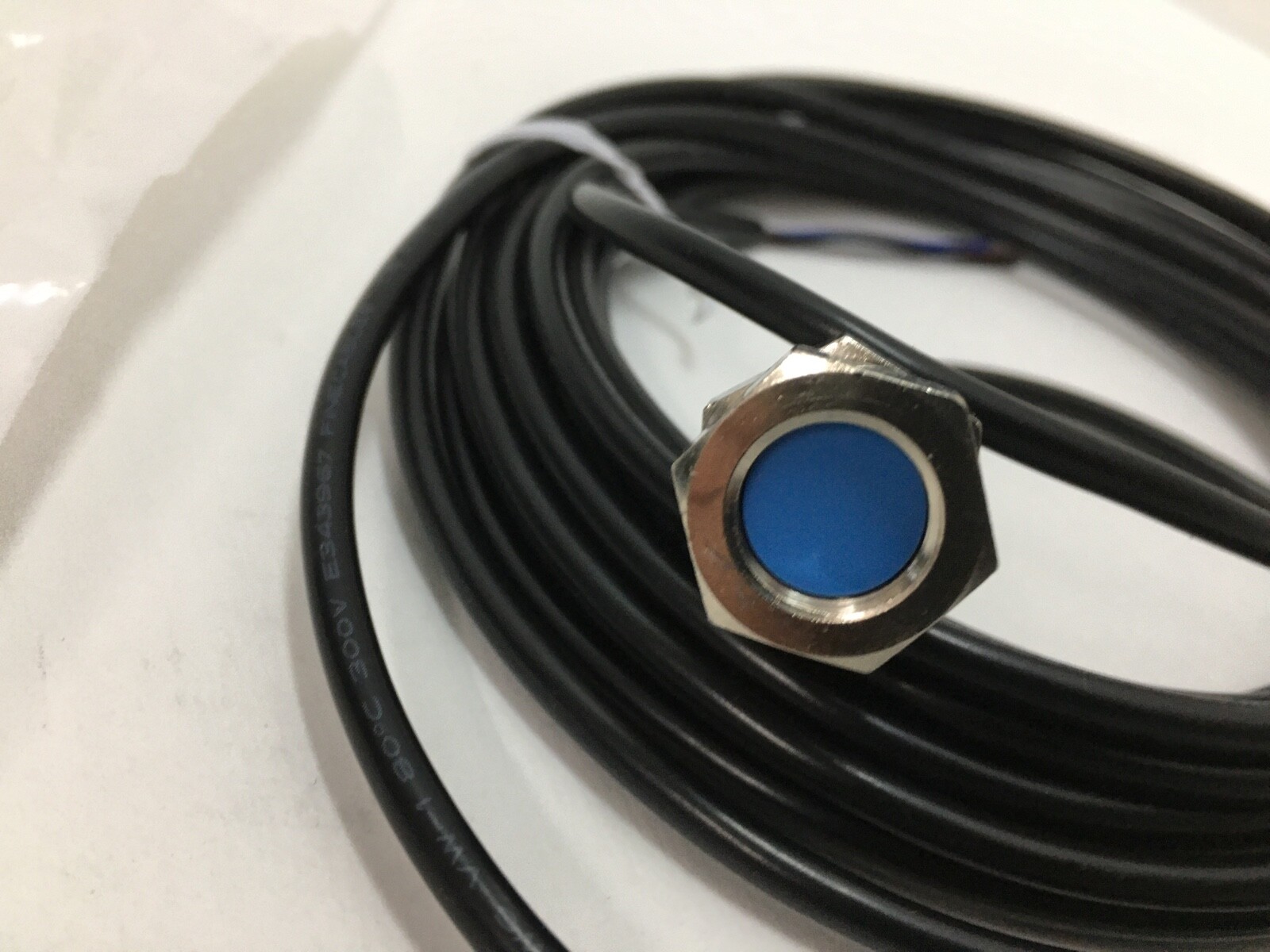

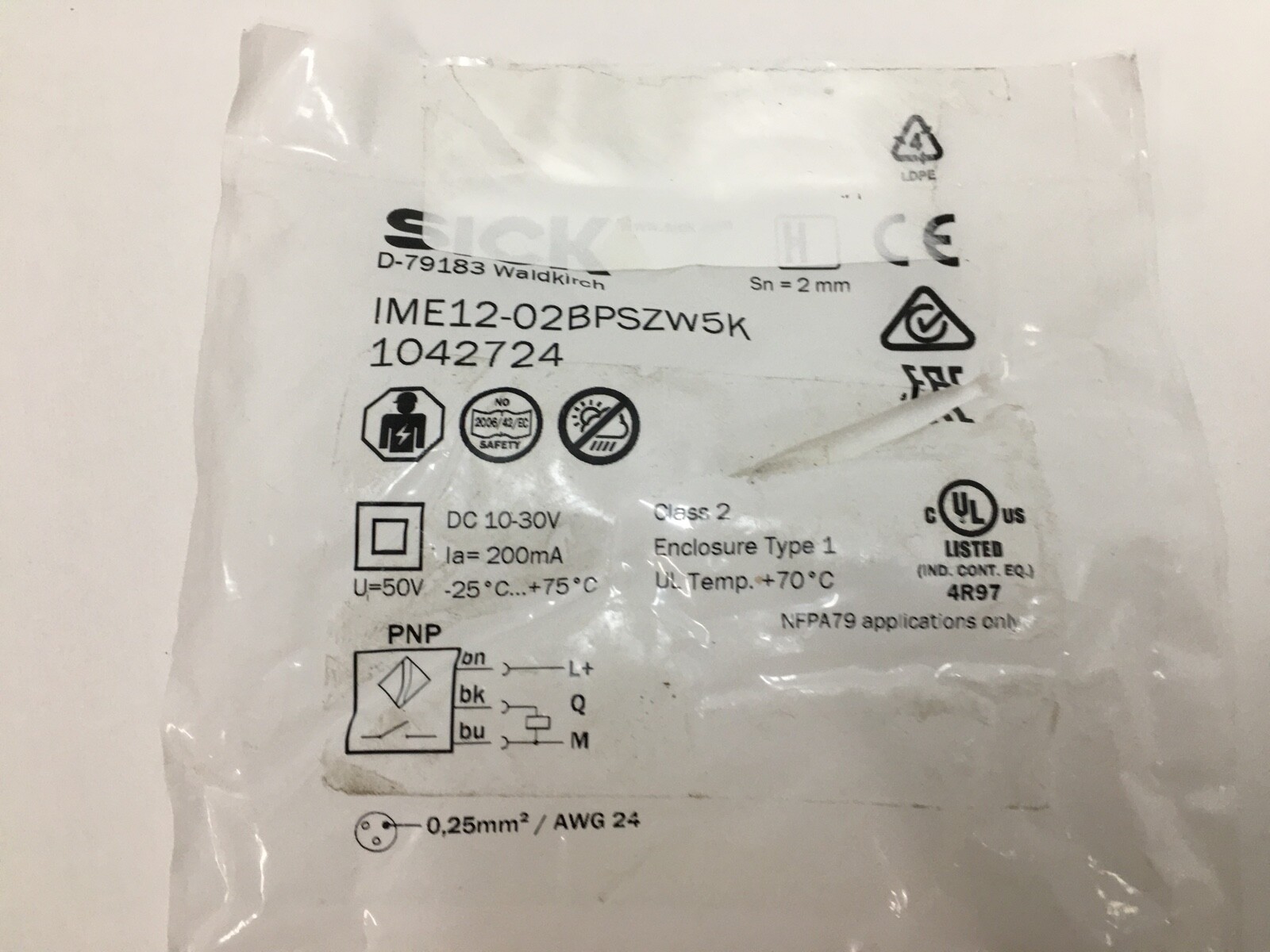

Sensing Range: 2 mm. Safe Sensing Range: 1.62 mm. Installation Type: Flush. Switching Output: PNP. Output Function: NO. Electrical Wiring: DC 3-wire. Supply Voltage: 10–30 VDC. Continuous Current: 200 mA max. Switching Frequency: 2,000 Hz. Enclosure Rating: IP67. Ambient Operating Temperature: –25 °C to +75 °C. Housing Material: brass, nickel-plated. Sensing Face Material: PA 66. Cable Material: PVC, 0.25 mm² conductors, 3.9 mm diameter. Short-circuit protection: yes. Unit Quantity: 1 Pc.

Dimensions and mounting:

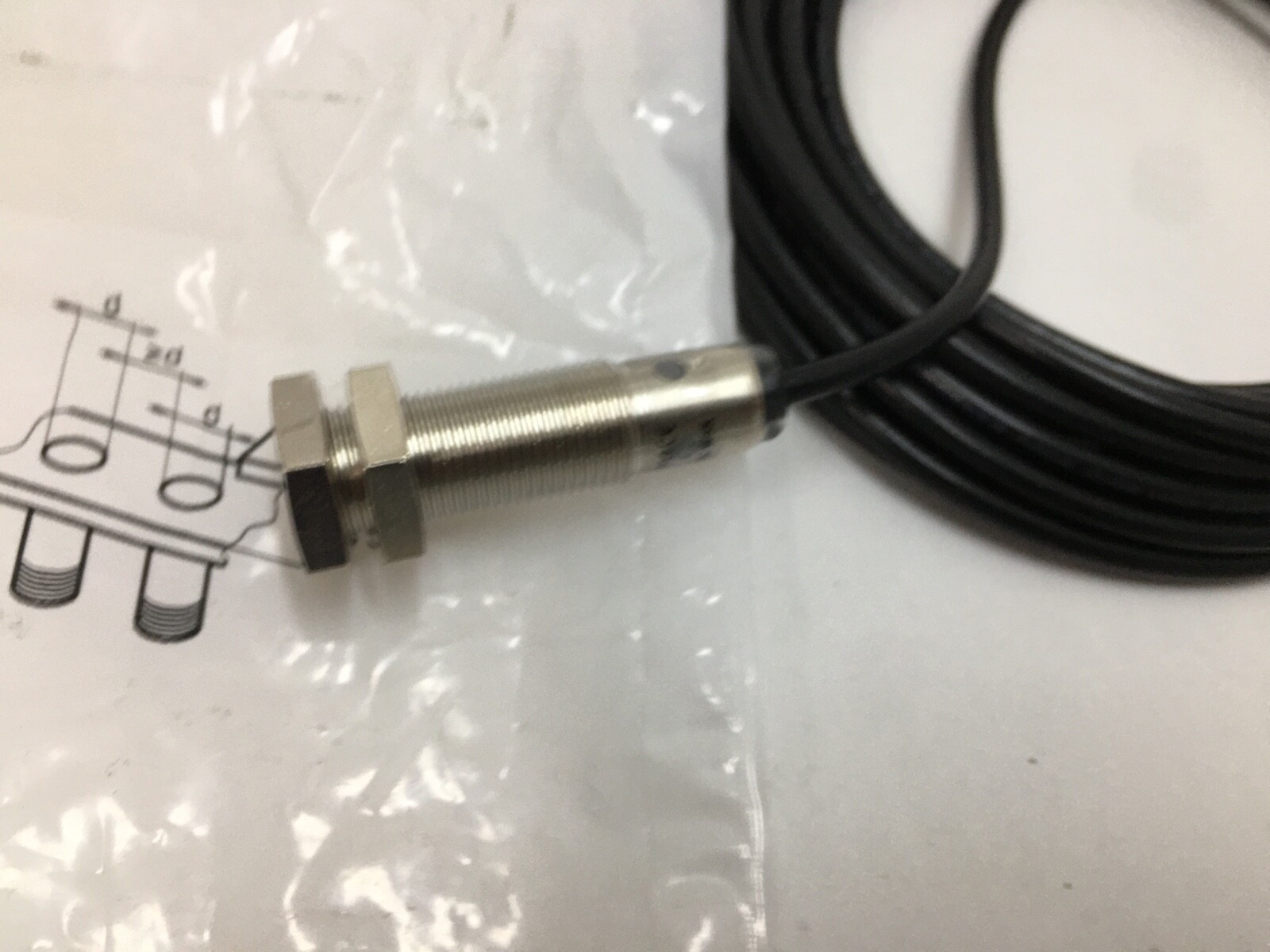

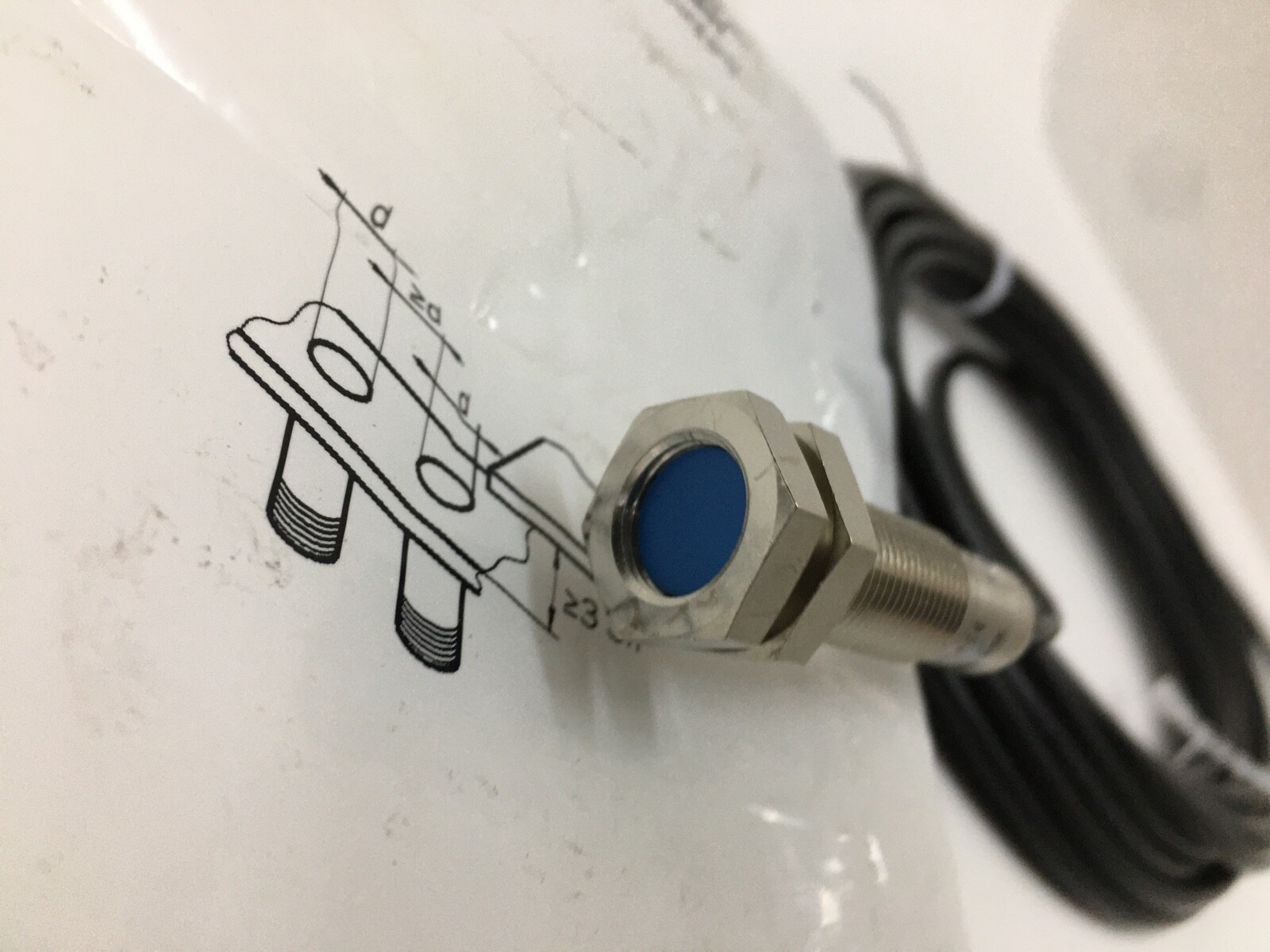

Thread Size: M12 x 1. Housing Length: 44 mm. Thread Length: 29 mm. Tightening Torque: 12 Nm max. Two nickel-plated brass mounting nuts, 17 mm across flats.

Compatibility and replacement:

Same sensor as the SICK IME12-02BPSZW2K (1040733) with a different cable length. The number is also written IME1202BPSZW5K and IME 12-02 BPSZW 5K.

Frequently asked questions:

What is the sensing range of the SICK IME12-02BPSZW5K?

2 mm, flush installation.

What is the output of the IME12-02BPSZW5K?

PNP, normally open, on a DC 3-wire connection at 10 to 30 VDC.

What thread does it have?

M12 x 1, with a 44 mm housing length.
