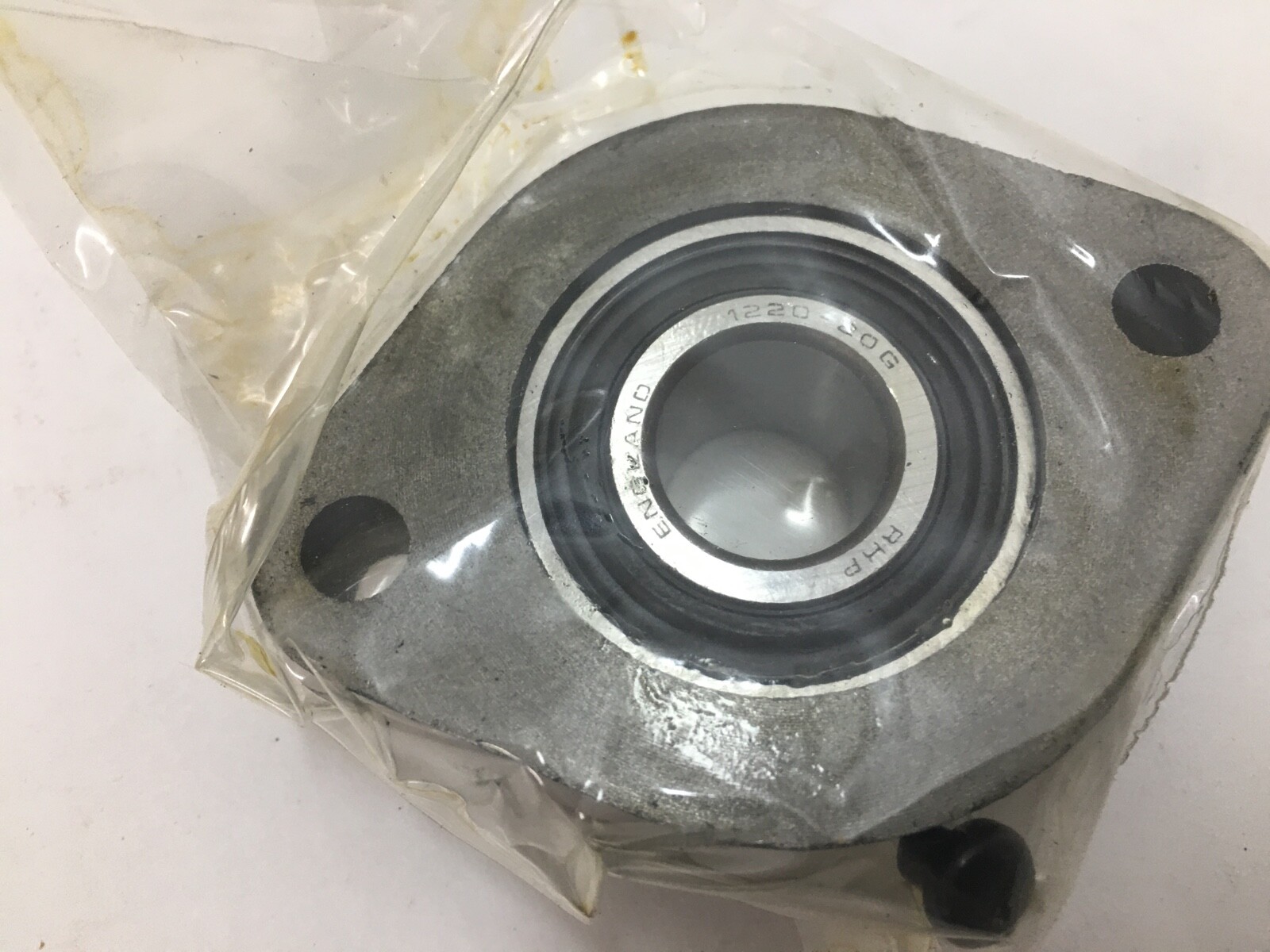

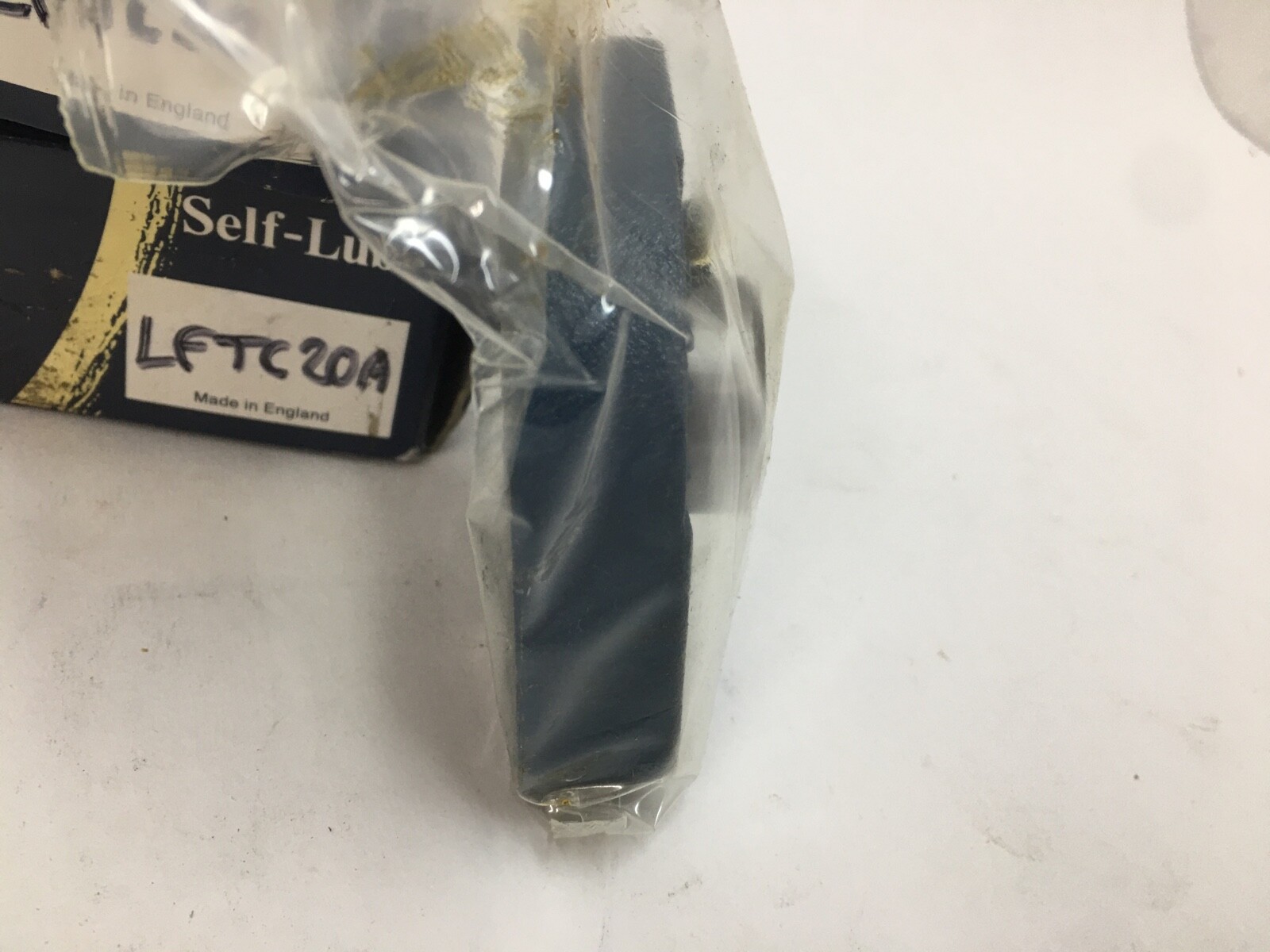

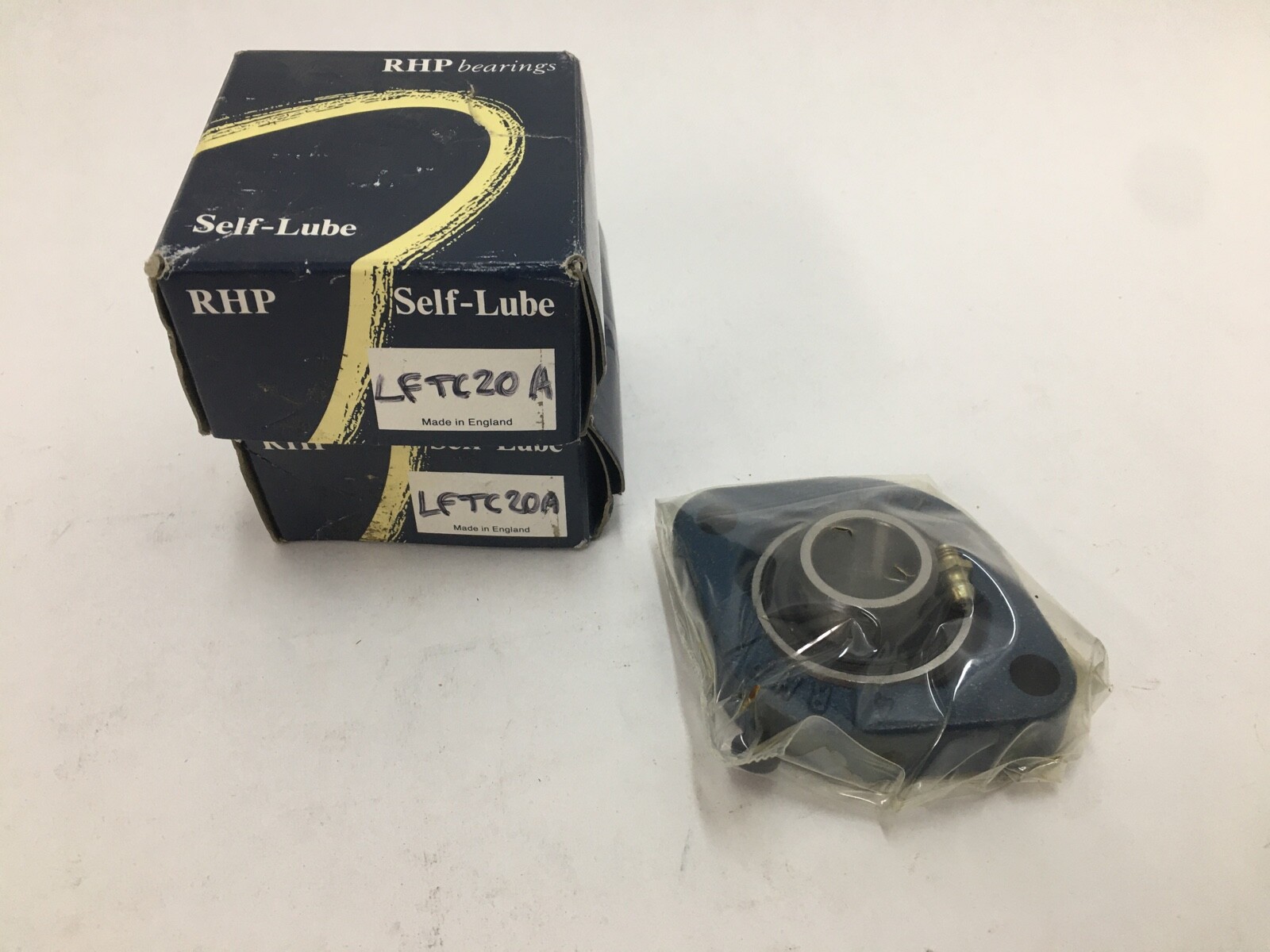

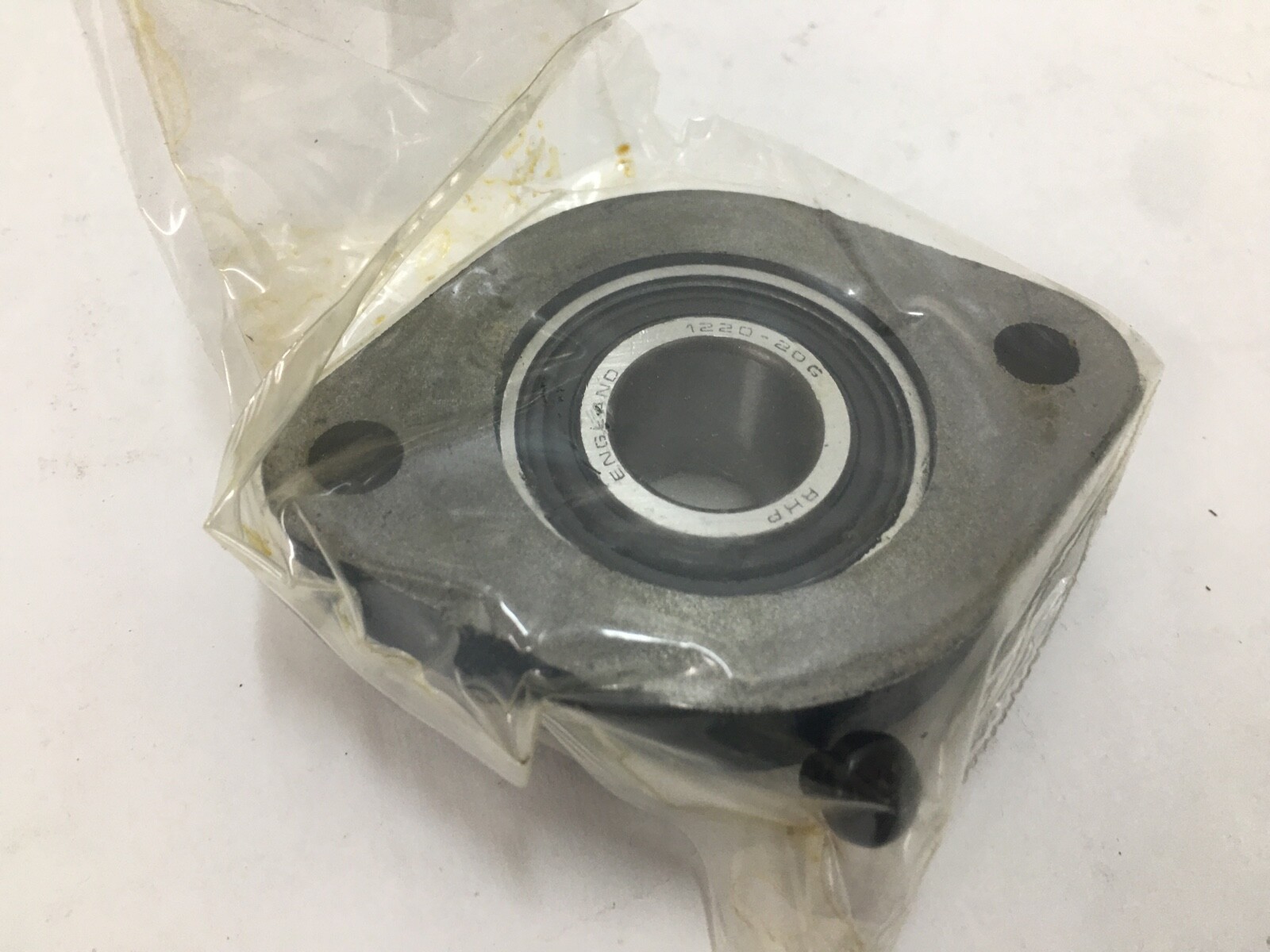

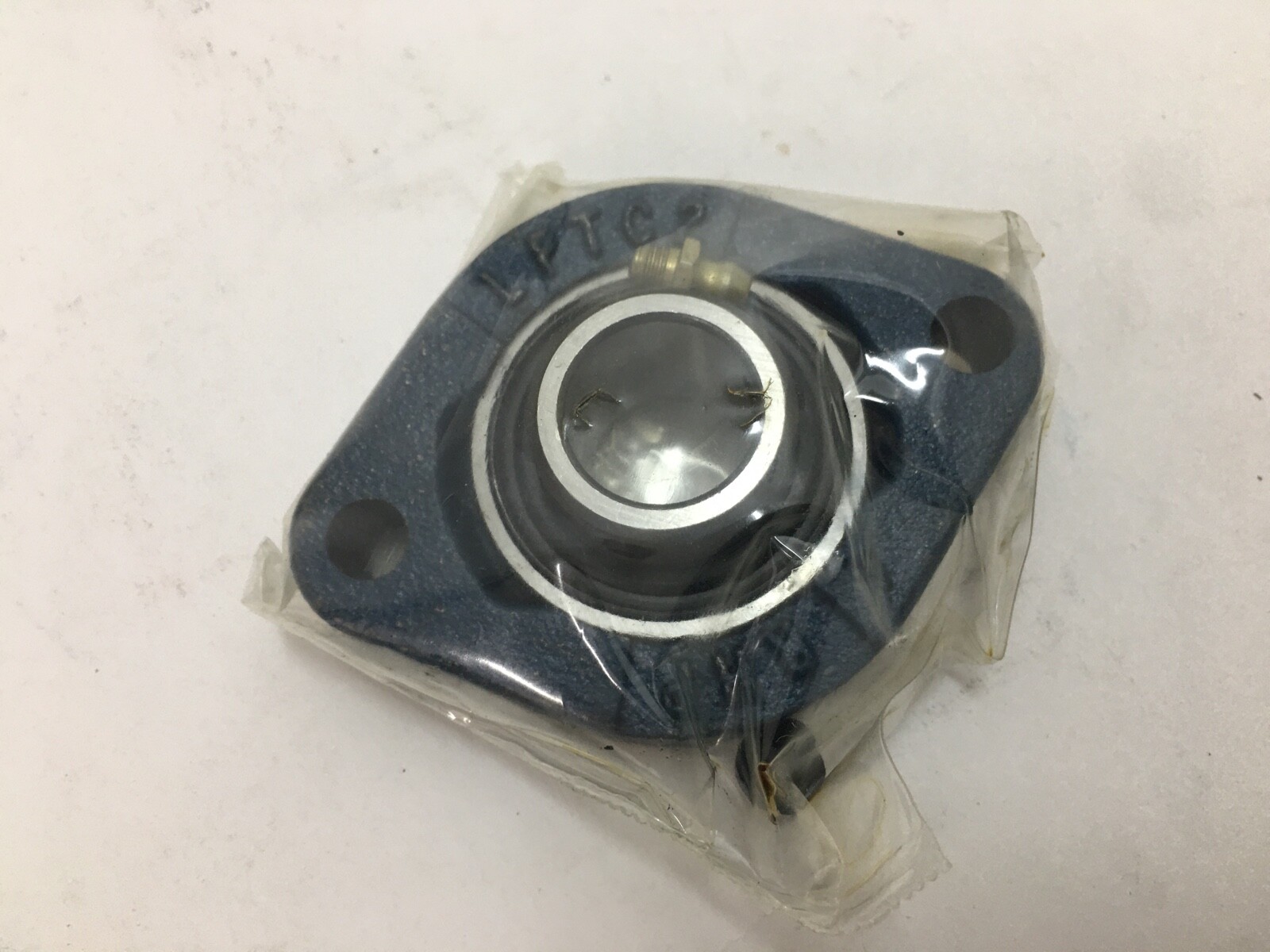

Name: RHP LFTC20A 2-Bolt Flange Bearing Unit 20mm Bore. Cast iron oval housing. Set screw locking mechanism. Reliable solution for light to medium loads 2 pcs
Brand: RHP
SKU: AE6B1#TAQFWZ
Price: 34.85 USD
Availability: InStock

Additional information

Key Specifications

MFR / Brand	RHP
MPN	LFTC20A
Model	LFTC20 A
ID	20 mm

Specifications

Series	LFTC
Condition	New
Type	Flanged Mount Bearing
Lubricant	Grease
Material	Cast Iron Housing
Bolt Center To Center	90 mm
Number Of Bolt Holes	2
Bolt Center To Center Length	90 mm
Number Of Bolt Holes For Fasteners	2
Min Temp	-20 °C
Dynamic Load Rating	12.8 kN / 2880 lbf
Static Load Rating	6.6 kN / 1480 lbf
Precision Rating	ABEC 1 / P0
Rolling Elements	Ball
Max Temp	100 °C
Bearing Type	2-Bolt Flange Unit
Item Weight	1.15 lbs
Limiting Speed	6500 rpm
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	No
Duty Type	Standard
Locking Device	Set Screw
Relubrication Feature	Yes
Housing Material	Cast Iron
Expansion Type	Non-Expansion

Cross-References

Cross Reference 1	SKF FYTB 20 TF
Cross Reference 2	INA PCJTY20
Cross Reference 3	NTN UCFL204D1
Cross Reference 4	Dodge F2B-SC-20M
Cross Reference 5	Fafnir RCJTC 20
