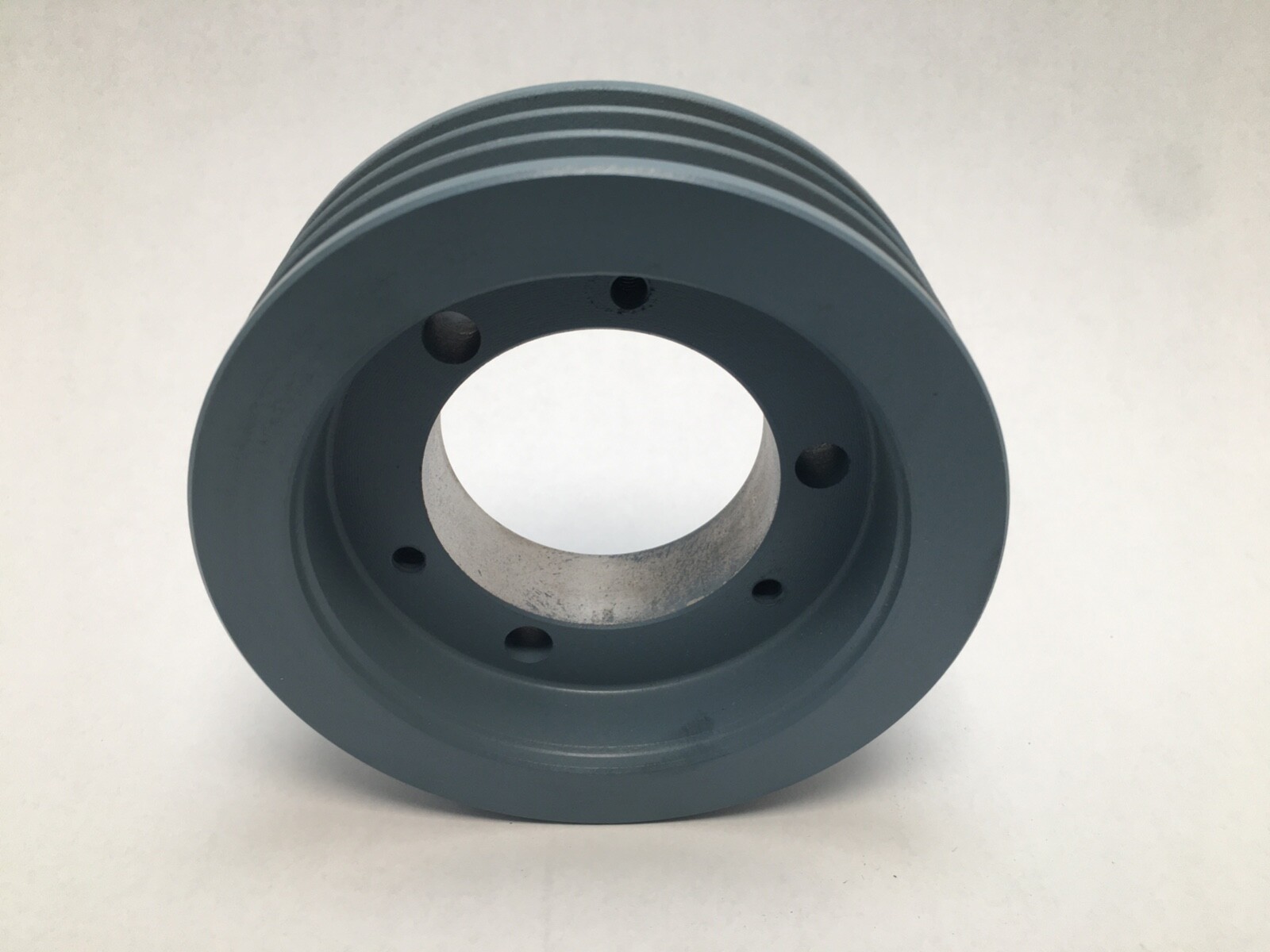

Dodge 3-3V4.50-SDS QD sheave, three 3V grooves, 4.50 in OD, 4.45 in pitch diameter, 1-1/2 in face. Takes an SDS QD bushing for 7/16 in to 2 in shafts. Cast iron.
List Price
$48.01
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | 3-3V4.50-SDS |
| Model | 3-3V4.50-SDS |
| Type | V-Belt Sheave |
|---|---|
| Base Number | 3-3V4.50 |
| Industry Terms | QD sheave, V-belt pulley, narrow wedge sheave, 3V sheave, bushed sheave, quick disconnect sheave |
| Common Misspellings | 3V450, 3-3V450, 3/3V4.5, 3 3V 4.5 SDS, Maska 3-3V4.5, Dodge Baldor |
| Application Types | Fan and blower drives, pump drives, compressor drives, HVAC air handlers, conveyor drives |
| Pitch Diameter | 4.45 in |
| Bore Shaft Size | 7/16 in to 2 in (via QD SDS bushing) |
| Locking Method | QD bushing, size SDS |
| Mpn Variants | 455153, 3-3V4.50-SDS, 3/3V4.50-SDS, 3/3V4.5SDS, 3-3V4.50 SDS, 3-3V4.50 (SDS), 3-3V4.50 SDS / 455153, D3-3V450 |
| Compatible With Replaces | 3V narrow-wedge V-belts; QD SDS bushings; Maska 3-3V4.50 |
| Additional Attributes | Number of Grooves: 3. Belt Type: 3V. Outside Diameter: 4.50 in. Pitch Diameter: 4.45 in. Face Width: 1-1/2 in. Bushing: QD SDS. Sheave Type: B1. Material: Cast iron, gray finish. |
| Item Weight | 1.36 kg (3.0 lb) |
| Harmonization Code | 8483.50 |
| Belt Type | 3V |
| Cross Reference 1 | Maska 3-3V4.50 |
|---|

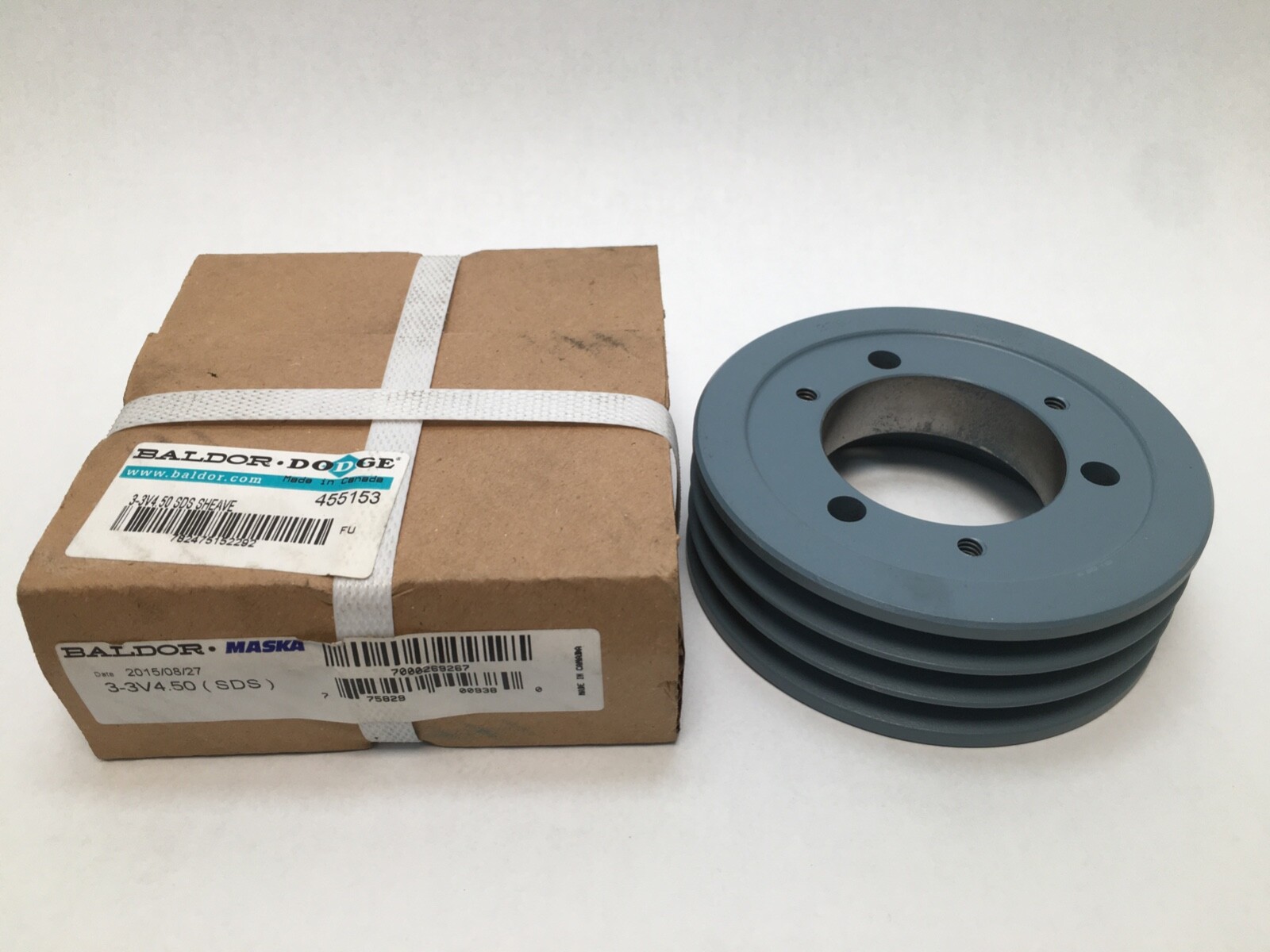

Dodge 455153 is the 3-3V4.50-SDS, a three-groove 3V narrow-wedge V-belt sheave bored for a QD SDS bushing. Product Type: V-belt sheave, QD bushed. Sheave Type: B1. Material: Cast iron. Unit Quantity: 1 Pc.
455153 — Dodge catalogue part number.
3 — number of grooves.
3V — narrow-wedge V-belt cross section the grooves are cut for.
4.50 — outside diameter in inches.
SDS — QD bushing size the tapered hub bore accepts.
Number of Grooves: 3. Belt Type: 3V. Outside Diameter: 4.50 in. Pitch Diameter: 4.45 in. Face Width: 1-1/2 in. Bushing: QD SDS. Bore / Shaft Size: 7/16 in to 2 in (via SDS bushing). Material: Cast iron. Finish: Gray. Item Weight: 1.36 kg (3.0 lb).
The QD bushing sets the shaft bore and keyway, so one sheave covers every shaft size in the SDS bushing range.
One sheave. Tapered QD bore for an SDS bushing.
Runs 3V narrow-wedge V-belts. Mounts on any QD SDS bushing. Maska designation for the same size: 3-3V4.50.
