1 in stock

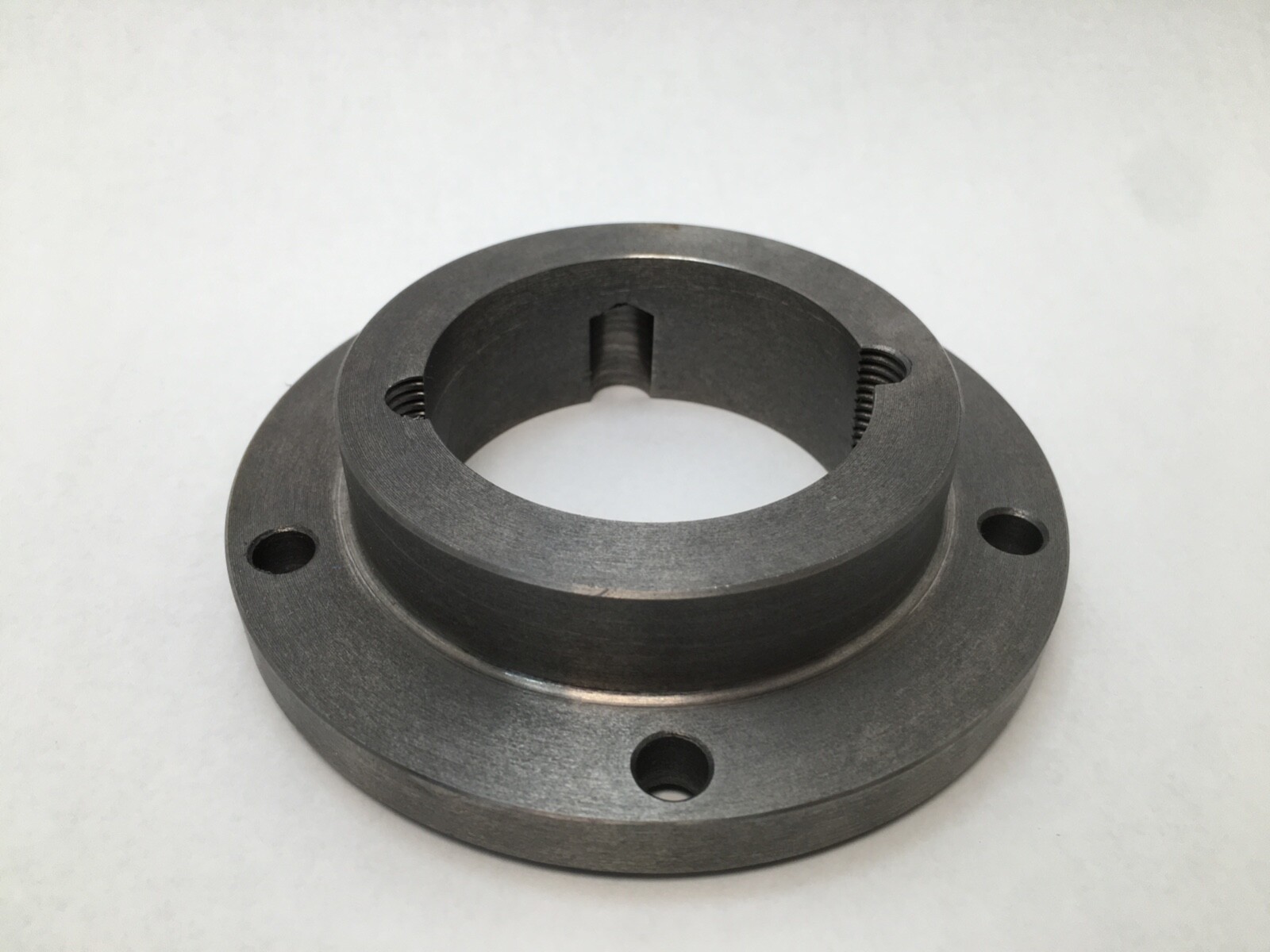

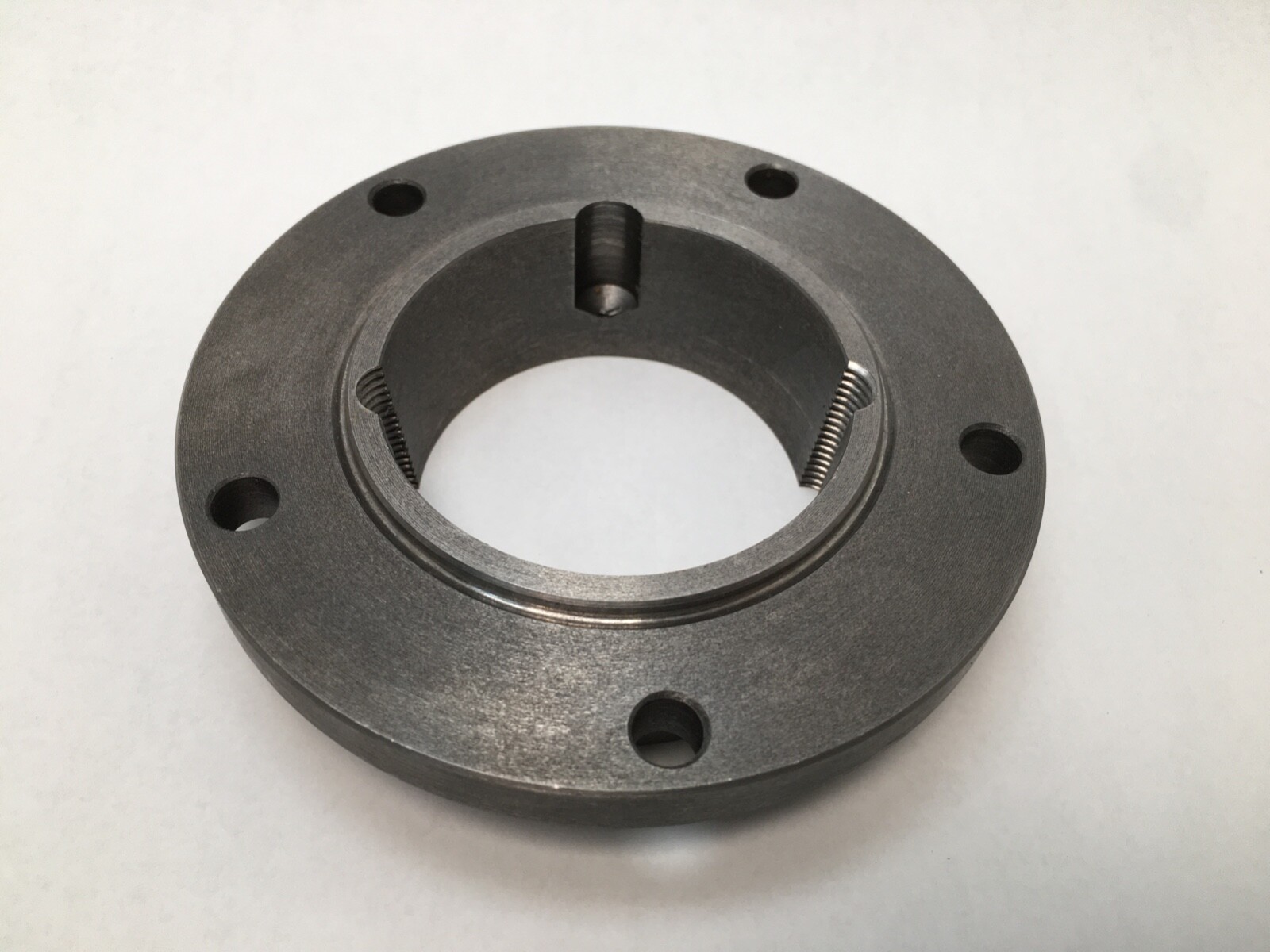

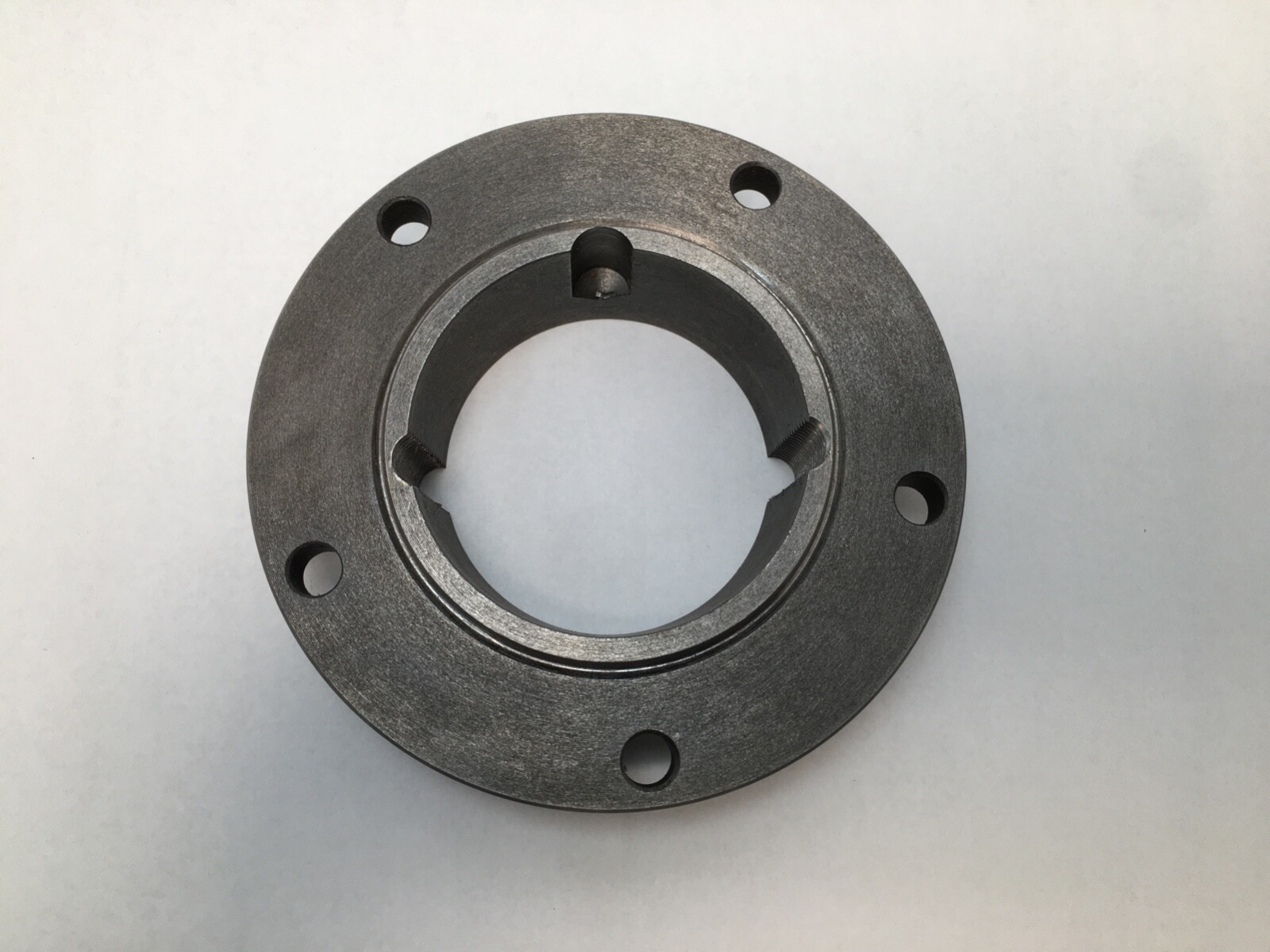

Dodge Para-Flex PS70TL spacer shaft hub for a 2012 Taper-Lock bushing, bores to 2-1/8 in, 5.00 in OD, 1.25 in length through bore. Rated 2,200 in-lb, 3,600 rpm.
List Price
$40.61
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | PS70TL |
| Model | PS70TL |
| Condition | New – Open box |
|---|---|
| Type | Bushed Coupling Hub |
| Base Number | PS70TL |
| Industry Terms | Para-Flex spacer hub, spacer coupling hub, tire coupling hub, elastomeric coupling hub, Taper-Lock coupling hub, bushed coupling hub, drop-out spacer coupling hub |
| Common Misspellings | Paraflex, Para Flex, PS-70, PS 70 TL, 11622, Taperlock, Dodge Baldor |
| Application Types | Pump drives, fan and blower drives, motor-to-gearbox spacer couplings, conveyor drives |
| For Taper Lock Busing | 2012 |
| Bore Width | 1.25 in (1-1/4 in) |
| Bore Shaft Size | Up to 2-1/8 in (via Taper-Lock 2012 bushing) |
| Locking Method | Taper-Lock bushing, size 2012 |
| Mpn Variants | 011622, PS70TL, PS70 TL, PS70 TL 2012, 011622 PS70, 011622/PS70, PS 70 2012 BUSHING |
| Compatible With Replaces | Dodge Para-Flex PS70 spacer center assemblies; Taper-Lock 2012 bushings |
| Additional Attributes | Coupling Size: PS70. Bushing: Taper-Lock 2012. Maximum Bore: 2-1/8 in. Hub Outside Diameter: 5.00 in. Length Through Bore: 1.25 in. Rated Torque: 2,200 in-lb. Power Rating: 3.49 hp per 100 rpm. Center Assembly Removal Clearance: 1.00 in. Hub Weight with Bushing at Maximum Bore: 4.00 lb. |
| Limiting Speed | 3,600 rpm |
| Harmonization Code | 8483.60 |

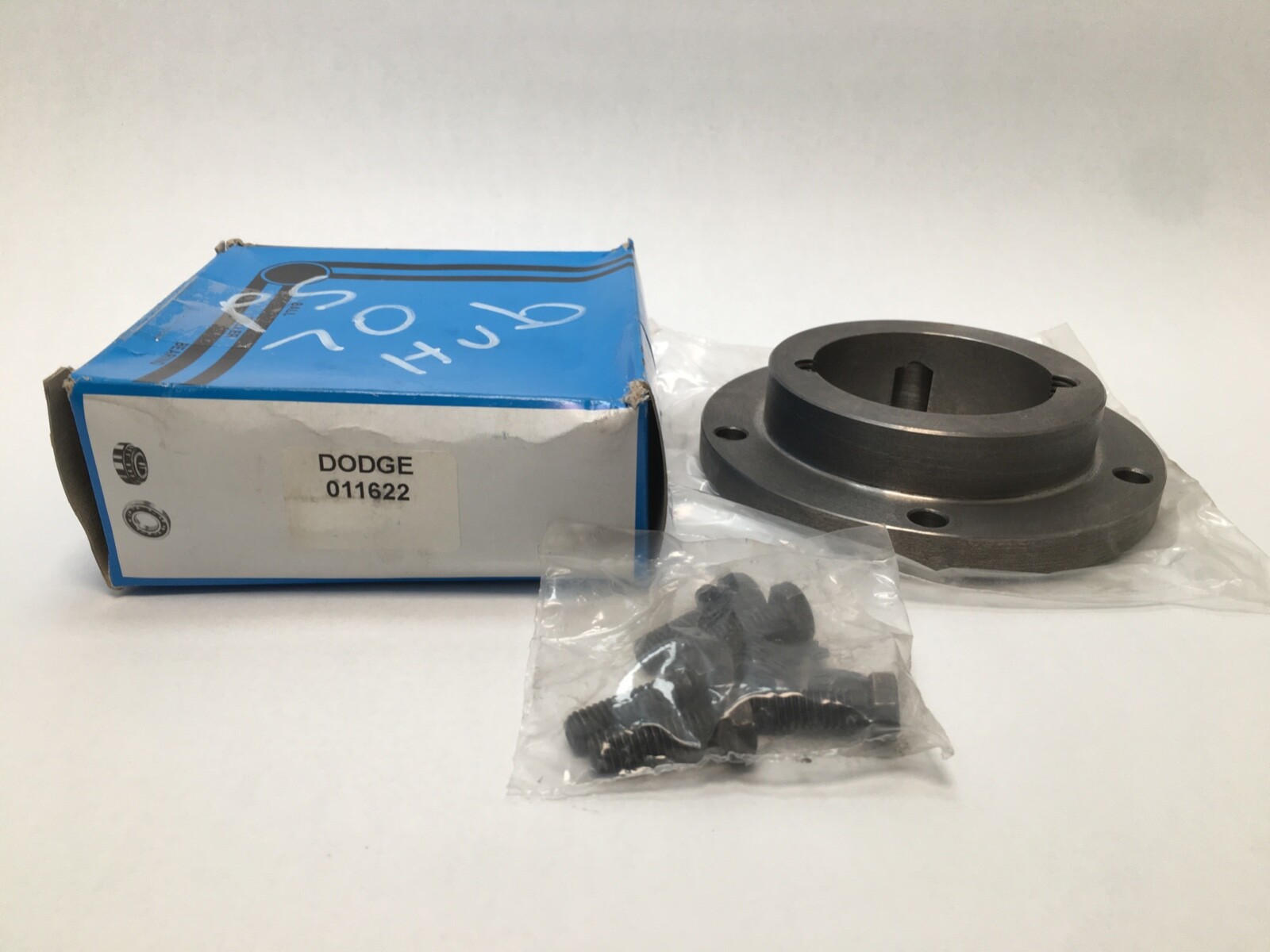

Dodge 011622 is the PS70TL Para-Flex spacer shaft hub, machined to take a Taper-Lock 2012 bushing. Product Type: Spacer coupling shaft hub, Taper-Lock bushed. Coupling Size: PS70. Unit Quantity: 1 Pc.
011622 — Dodge catalogue part number for the PS70 Taper-Lock spacer shaft hub.
PS70 — Para-Flex spacer coupling, size 70.
TL — Taper-Lock bushed hub; the bushing sets the shaft bore and keyway.
2012 — Taper-Lock bushing size the hub seat accepts.
Bushing: Taper-Lock 2012. Maximum Bore: 2-1/8 in (with bushing). Hub Outside Diameter: 5.00 in. Length Through Bore: 1.25 in. Rated Torque: 2,200 in-lb. Power Rating: 3.49 hp per 100 rpm. Maximum Speed: 3,600 rpm. Center Assembly Removal Clearance: 1.00 in. Hub Weight with Bushing at Maximum Bore: 4.00 lb (1.81 kg).
One hub casting covers every shaft size in the 2012 bushing range, and the tapered bushing clamps the hub to the shaft.

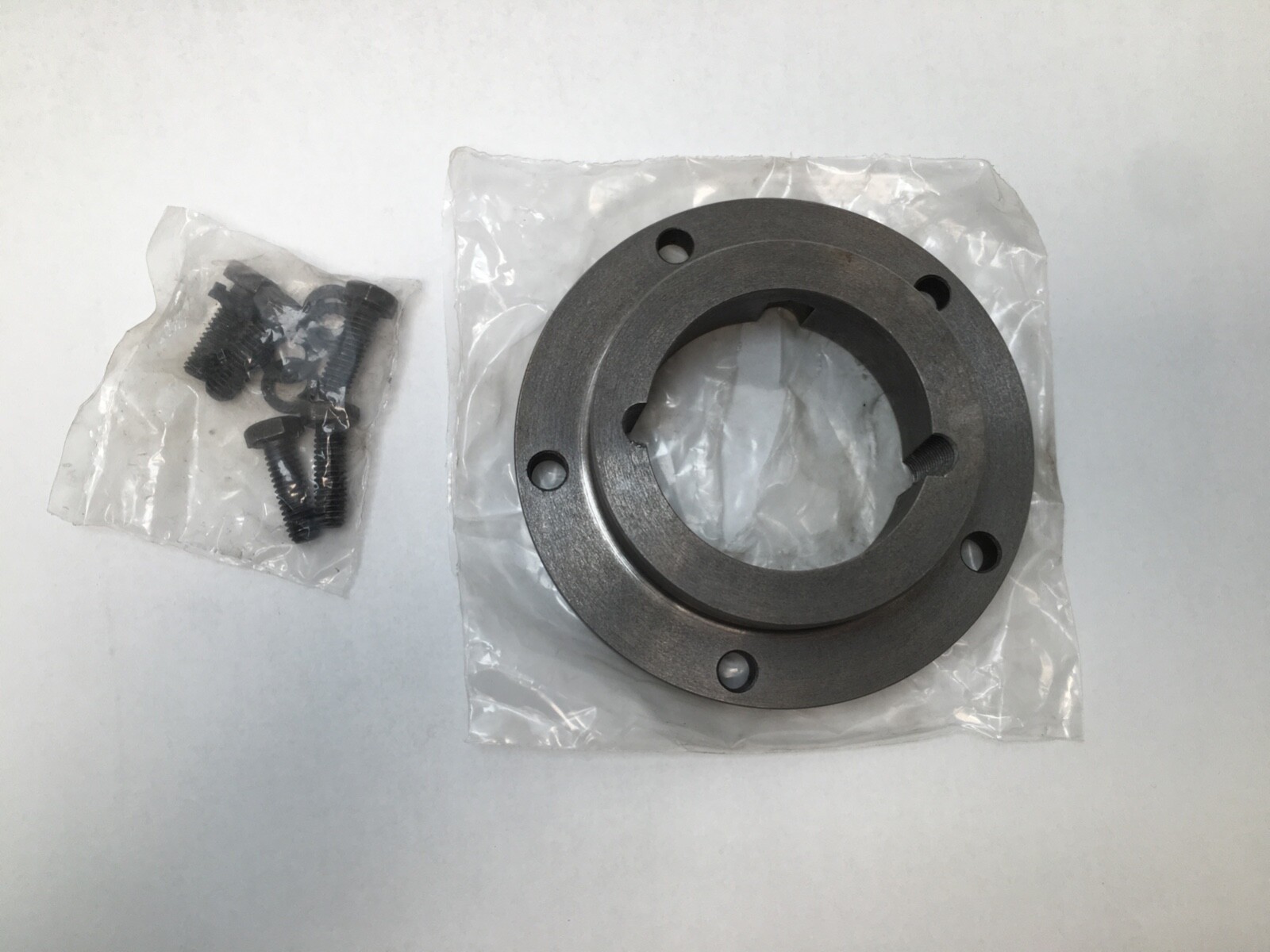

One shaft hub with hardware. A complete PS70 spacer coupling uses two shaft hubs, two Taper-Lock 2012 bushings and one PS70 spacer center assembly.
Fits Dodge Para-Flex PS70 spacer center assemblies, catalogued in between-shaft-end lengths from 3.50 in to 7.50 in. Mounts on any Taper-Lock 2012 bushing. The PS70 finished-bore alternatives are the PS70FBS and PS70FBX hubs.
