Availability:
1 in stock
Martin Quadra-Flex size 13 Type S cast iron coupling flange, pilot bore reborable 2 to 4-1/2 in, 6-3/4 in hub, 4-3/8 in length through bore, 2,400 rpm.
List Price
$307.09
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Martin |
|---|---|
| MPN | 13S-PB |
| GTIN | 697950276021 |
| Model | 13S P/B |
| Condition | New |
|---|---|
| Base Number | 13S |
| Industry Terms | jaw coupling flange, sleeve coupling hub, elastomeric coupling flange, flexible coupling hub |
| Common Misspellings | Qudraflex, Quadraflex, Quadra Flex, 13SPB, 13 S PB |
| Application Types | Blowers, compressors, conveyors, feeders, generators, mills, presses |
| Mpn Variants | 13S P/B, 13S-PB, 13SPB, 13S PB, 13S-P/B |
| Compatible With Replaces | Martin Quadra-Flex size 13 sleeves |
| Additional Attributes | Bore Range: 2 to 4-1/2 in; Hub Diameter: 6-3/4 in; Hub Length: 1.31 in; Length Through Bore: 4-3/8 in; Maximum Speed: 2,400 rpm |
| Material | Cast Iron |
| Series | Quadra-Flex |
| Type | Flexible Coupling Flange |
| Item Weight | 52.40 lb |

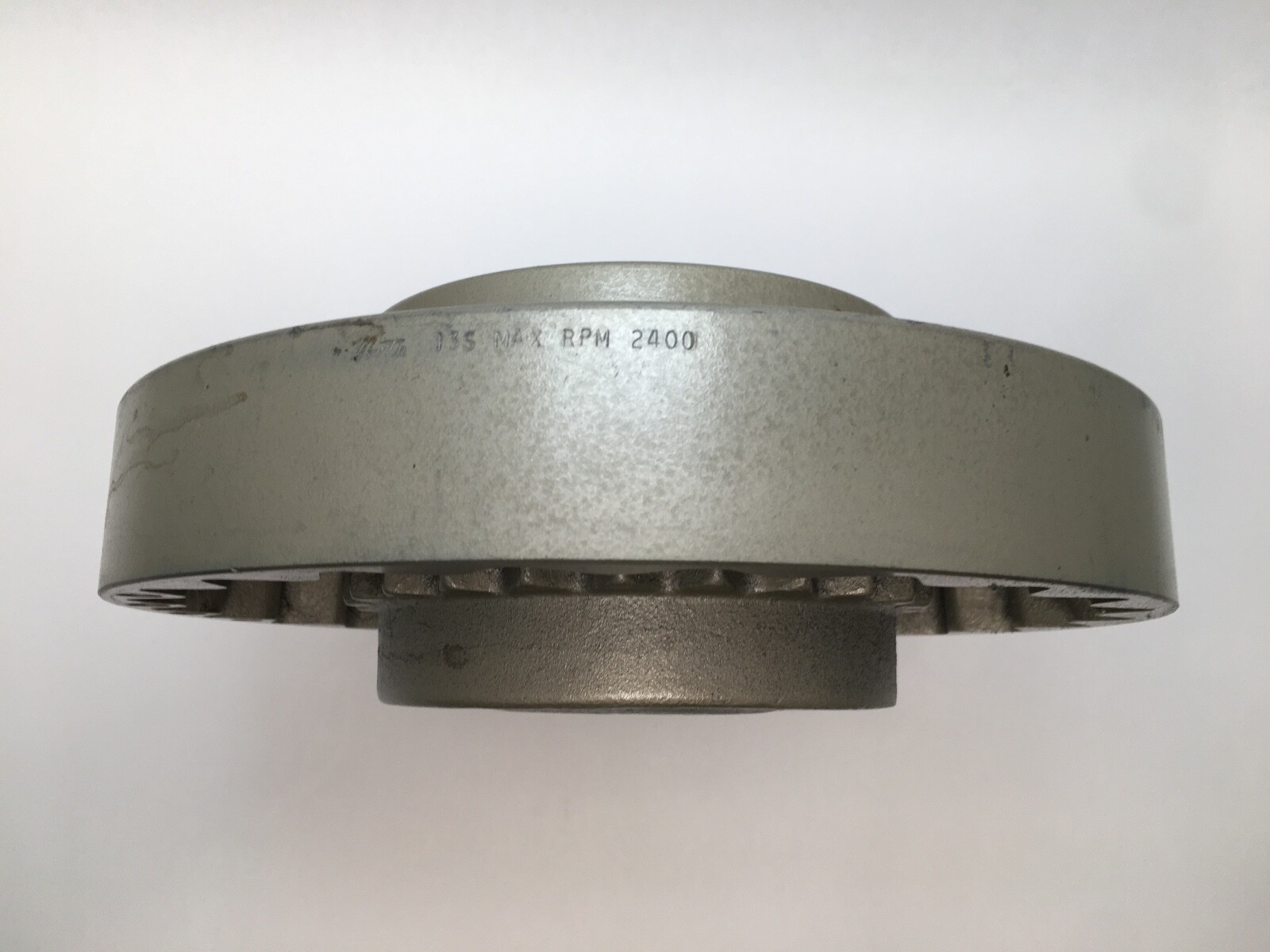

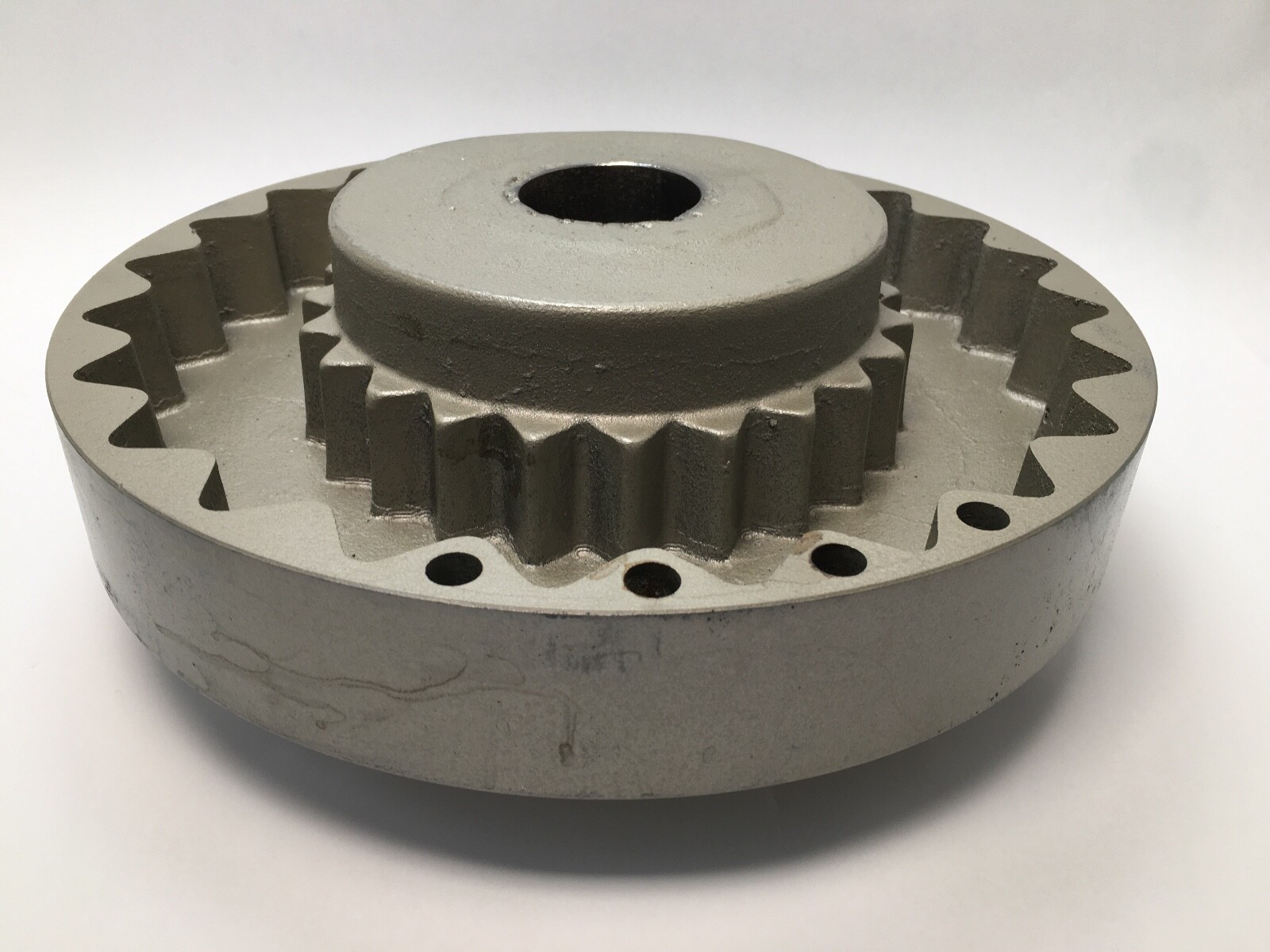

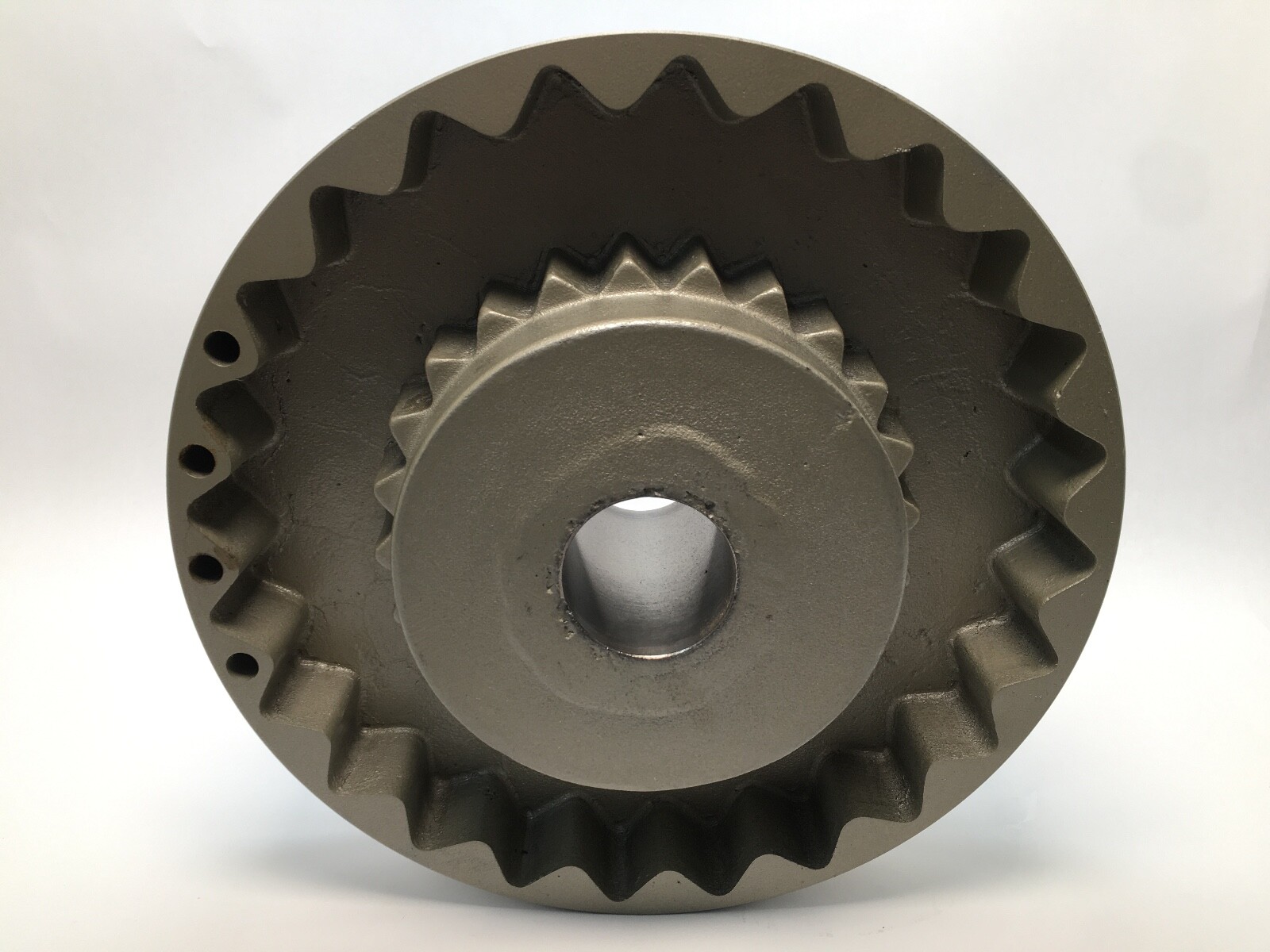

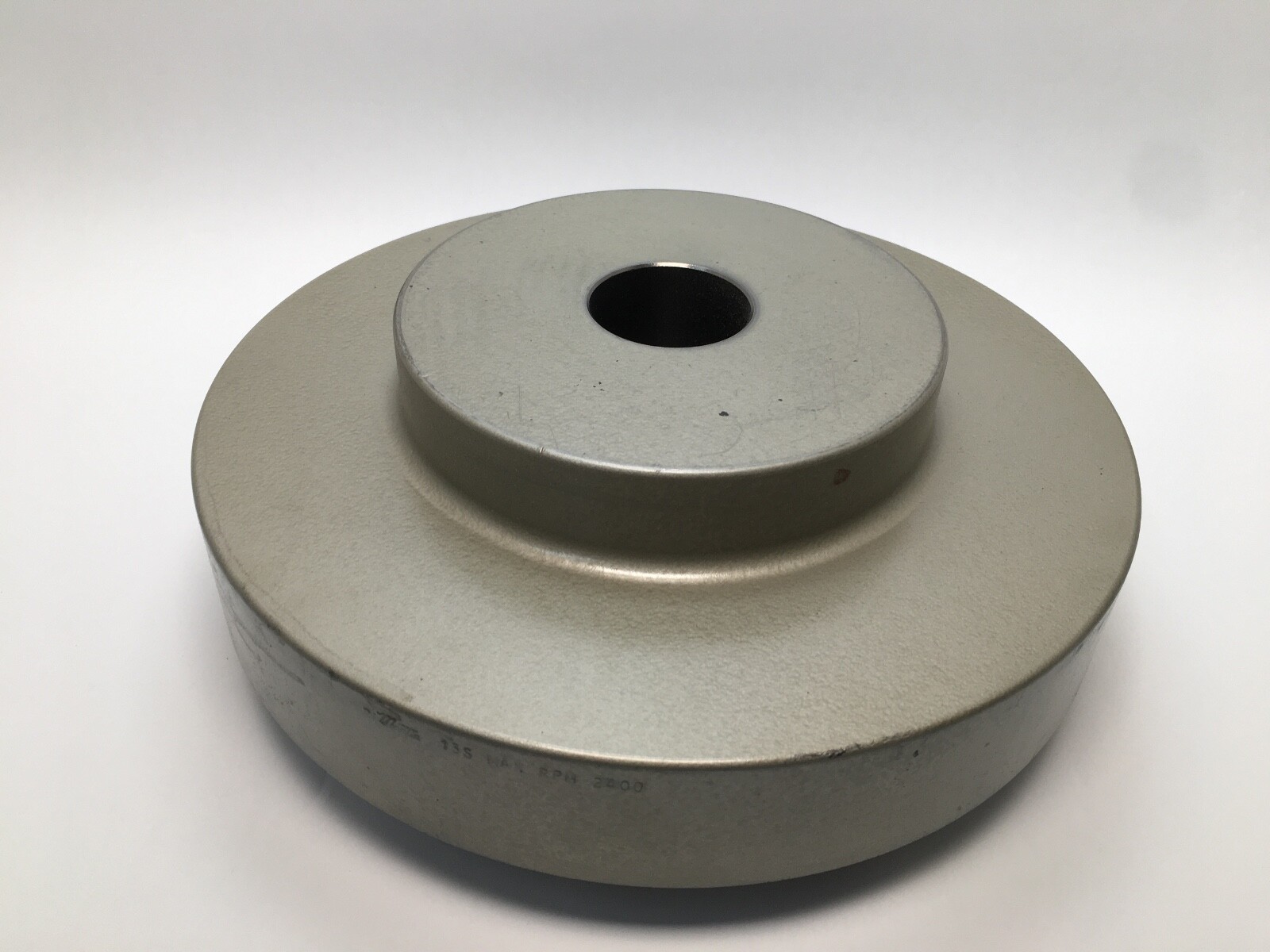

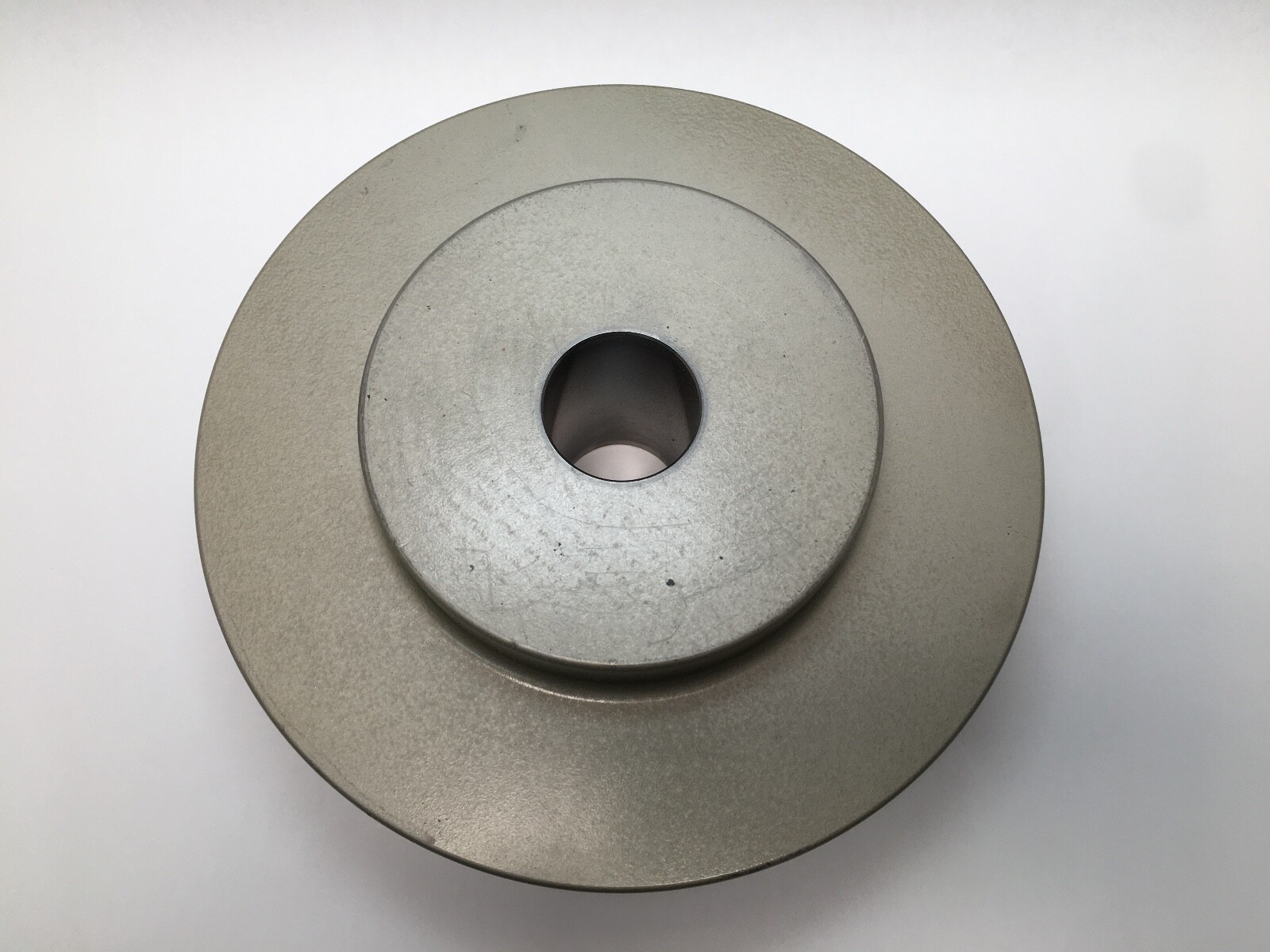

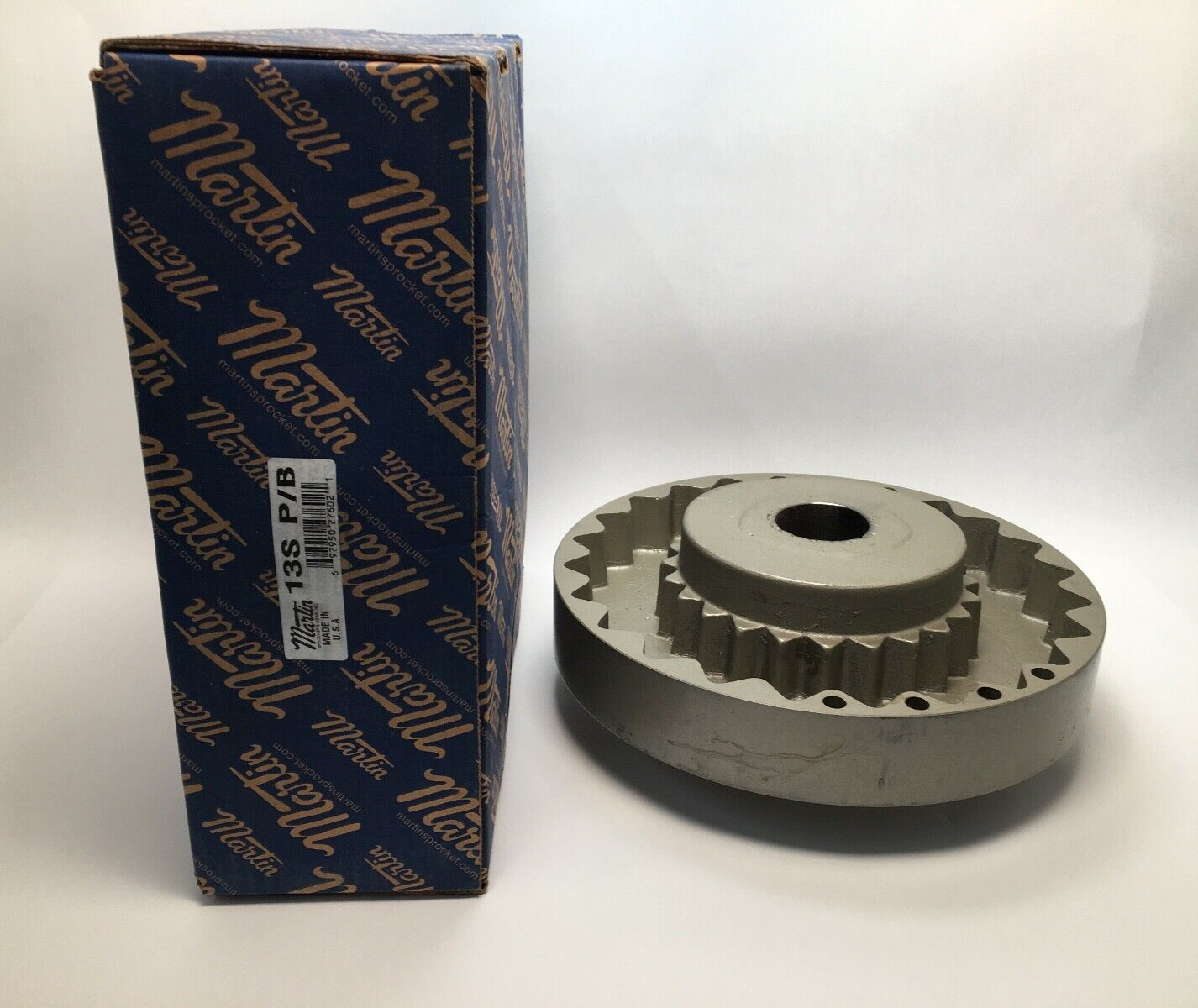

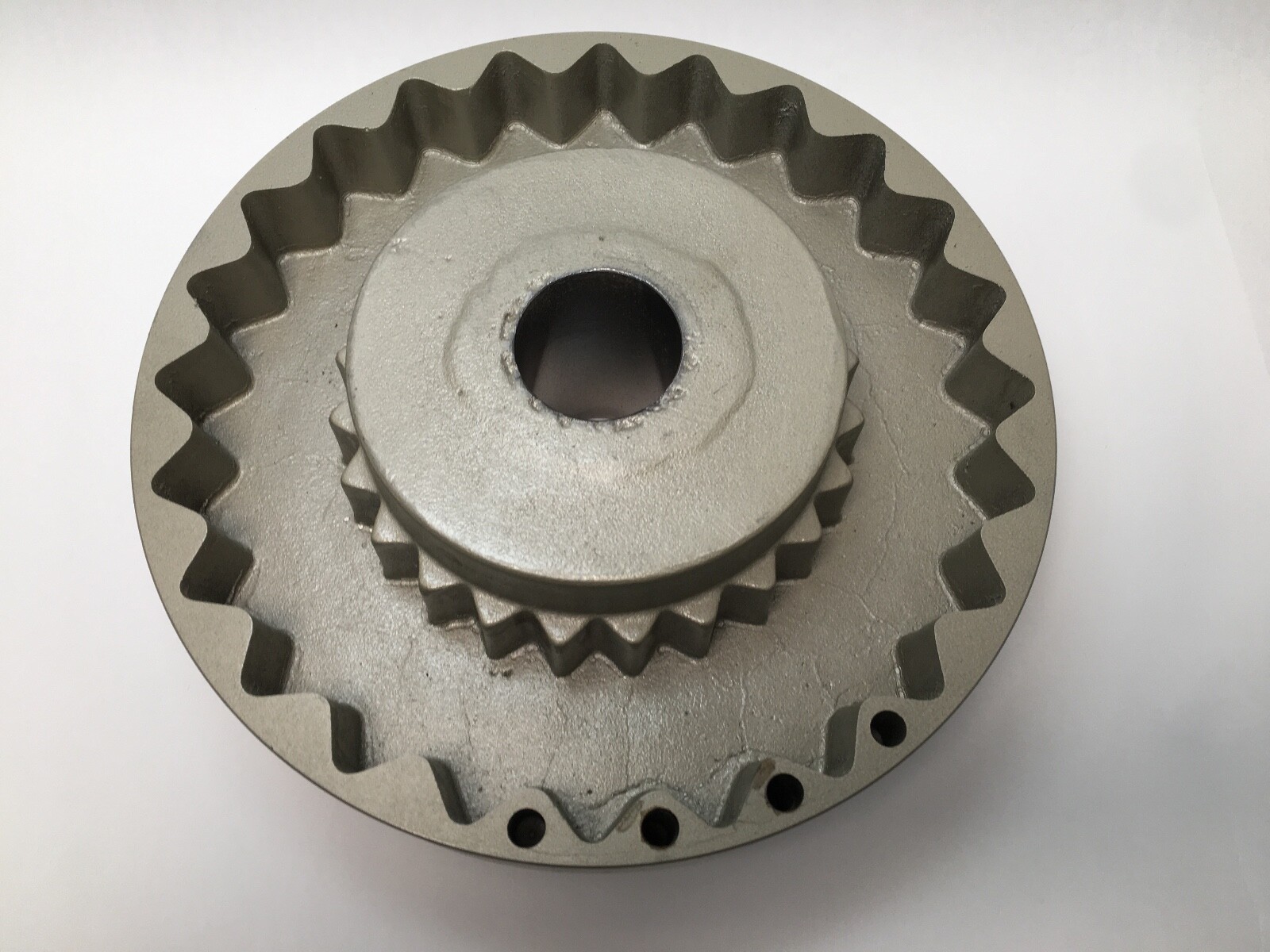

Martin 13S P/B is a Quadra-Flex size 13 Type S coupling flange in cast iron, supplied pilot bored for reboring. Type: Flexible Coupling Flange, Type S. Coupling Size: 13. Material: Cast iron.
13 — Quadra-Flex coupling size 013.
S — Type S flange, cast iron.
P/B — pilot bore, reborable to shaft size.

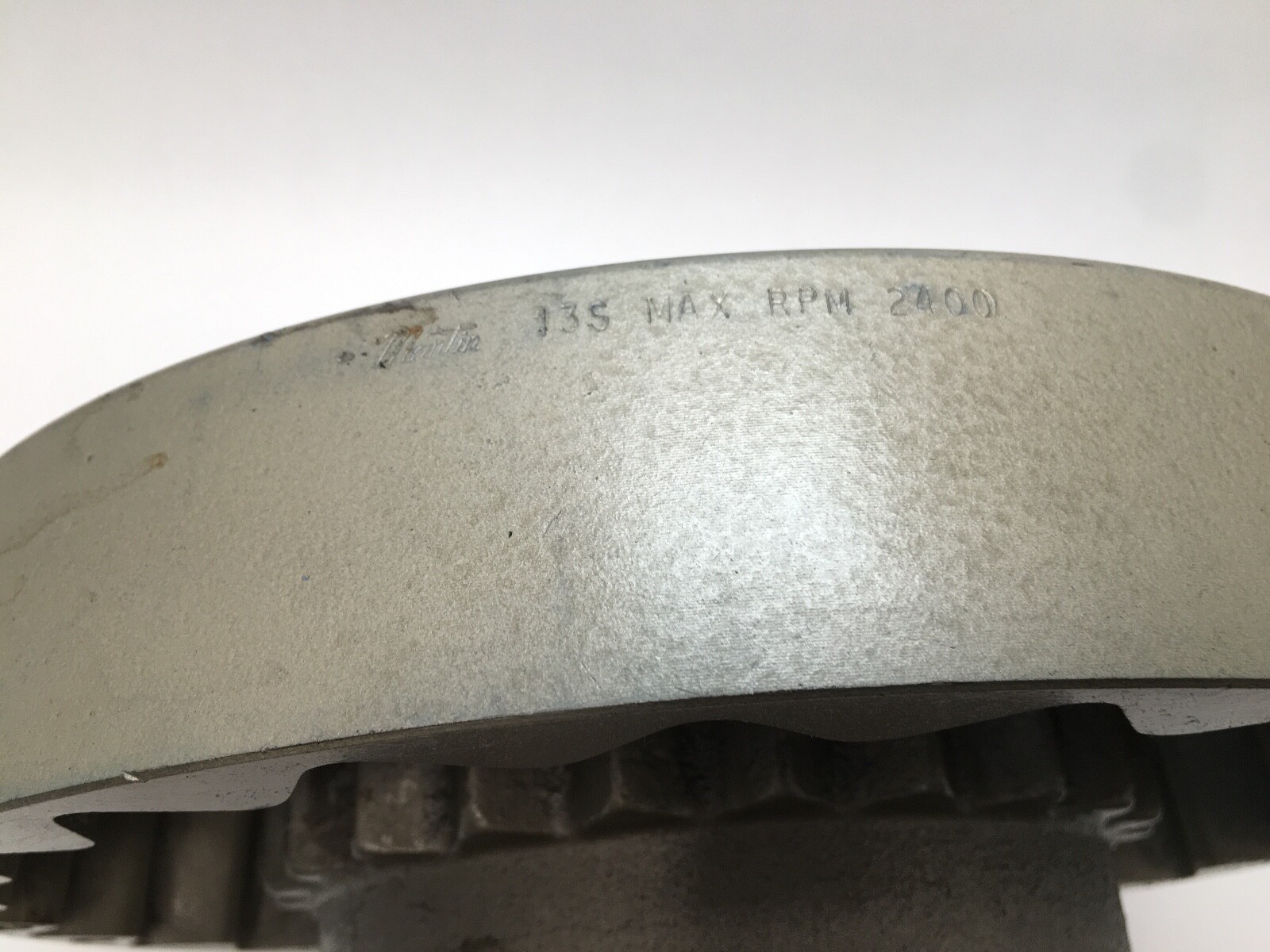

Bore Range: 2 in to 4-1/2 in. Hub Diameter: 6-3/4 in. Hub Length: 1.31 in. Length Through Bore: 4-3/8 in. Maximum Speed: 2,400 rpm. Item Weight: 52.40 lb. The Type S flange transfers shock and misalignment to the flexible center sleeve, and the sleeve teeth spread torsional load.
Unit Quantity: 1 Pc, one flange. A complete Quadra-Flex coupling uses two flanges and a size 13 sleeve.
Fits Martin Quadra-Flex size 13 sleeves. GTIN: 697950276021.
