Availability:
1 in stock
Dodge Para-Flex PS60FBS spacer shaft hub, 1-1/8 in finished bore with keyway, 4.45 in OD, 1.22 in length through bore. Rated 1,800 in-lb, 4,000 rpm max.
List Price
$52.70
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | PS60FBS 1-1/8 |
| Model | PX60 PS60FBSX1-1/8 |
| Condition | New – Open box |
|---|---|
| Type | Flexible Coupling Shaft Hub |
| Base Number | PS60FBS |
| Industry Terms | Para-Flex spacer hub, spacer coupling hub, tire coupling hub, elastomeric coupling hub, drop-out spacer coupling hub, straight bore coupling hub |
| Common Misspellings | Paraflex, Para Flex, PS-60, PS 60 FBS, PS60FBSX, 00721, Dodge Baldor |
| Application Types | Pump drives, fan and blower drives, motor-to-gearbox spacer couplings, conveyor drives |
| Bore Width | 1.22 in (1-7/32 in) |
| Bore Shaft Size | 1-1/8 in (28.58 mm) |
| Locking Method | Keyed finished bore, clearance fit |
| Mpn Variants | 000721, PS60FBS 1-1/8, PS60FBS1-1/8, PS60 FBS 1-1/8, 000721/FBS-1-1/8 PS60, 000721 FBS-1-1/8 PS60, PX60 PS60FBSX1-1/8 |
| Compatible With Replaces | Dodge Para-Flex PS60 spacer center assemblies; Dodge Para-Flex PS60 spacer couplings |
| Additional Attributes | Coupling Size: PS60. PS60FBS Bore Range: 7/8 in to 1-15/16 in. Hub Outside Diameter: 4.45 in. Length Through Bore: 1.22 in. Rated Torque: 1,800 in-lb. Power Rating: 2.86 hp per 100 rpm. Center Assembly Removal Clearance: 2.50 in. Hub Weight at Maximum Bore: 4.00 lb. |
| Limiting Speed | 4,000 rpm |
| Harmonization Code | 8483.60 |
Dodge 000721 is a PS60FBS Para-Flex spacer shaft hub with a finished 1-1/8 in straight bore. Product Type: Spacer coupling shaft hub, straight bore. Coupling Size: PS60. Unit Quantity: 1 Pc.
000721 — Dodge catalogue part number for this exact hub and bore.
PS60 — Para-Flex spacer coupling, size 60.
FBS — the shorter of Dodge’s two straight-bore PS60 hub styles, covering 7/8 in to 1-15/16 in bores.
1-1/8 — bore diameter in inches.
Bore / Shaft Size: 1-1/8 in (28.58 mm). PS60FBS Bore Range: 7/8 in to 1-15/16 in. Hub Outside Diameter: 4.45 in (4-29/64 in). Length Through Bore: 1.22 in (1-7/32 in). Rated Torque: 1,800 in-lb. Power Rating: 2.86 hp per 100 rpm. Maximum Speed: 4,000 rpm. Center Assembly Removal Clearance: 2.50 in. Hub Weight at Maximum Bore: 4.00 lb (1.81 kg).
Straight-bore Para-Flex hubs in sizes 40 through 120 are furnished with a clearance fit. The spacer center assembly bolts between two hubs and lifts out, so the flexible element is serviced without moving either machine.

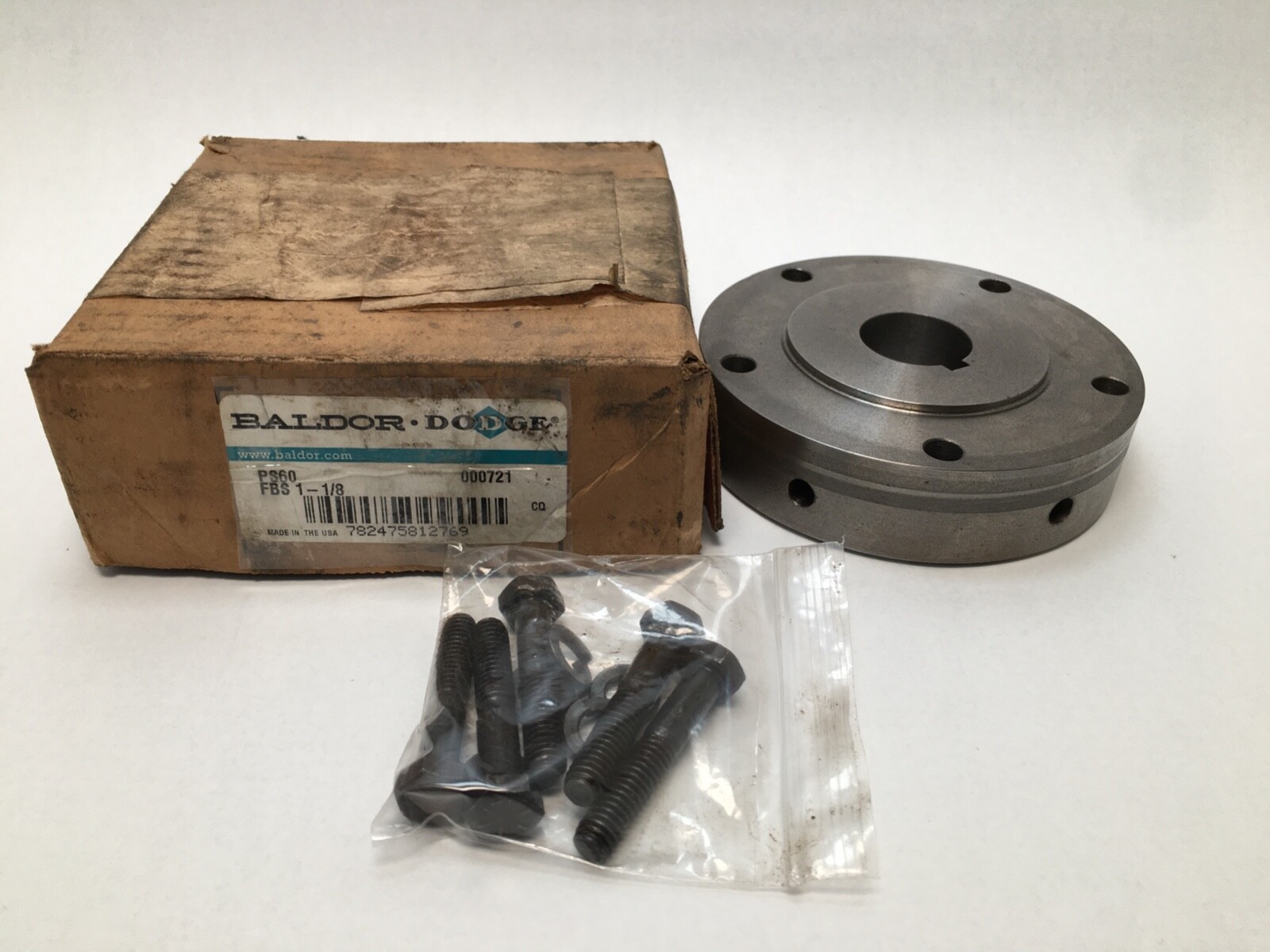

One shaft hub with keyed bore, five screws and five crush washers. A complete PS60 spacer coupling uses two shaft hubs and one PS60 spacer center assembly.
Fits Dodge Para-Flex PS60 spacer center assemblies, catalogued in between-shaft-end lengths from 3.38 in to 7.33 in. Other PS60 hubs in the range: PS60TL Taper-Lock hub 011621 (1610 bushing) and the PS60FBS finished-bore series from 7/8 in (000719).
