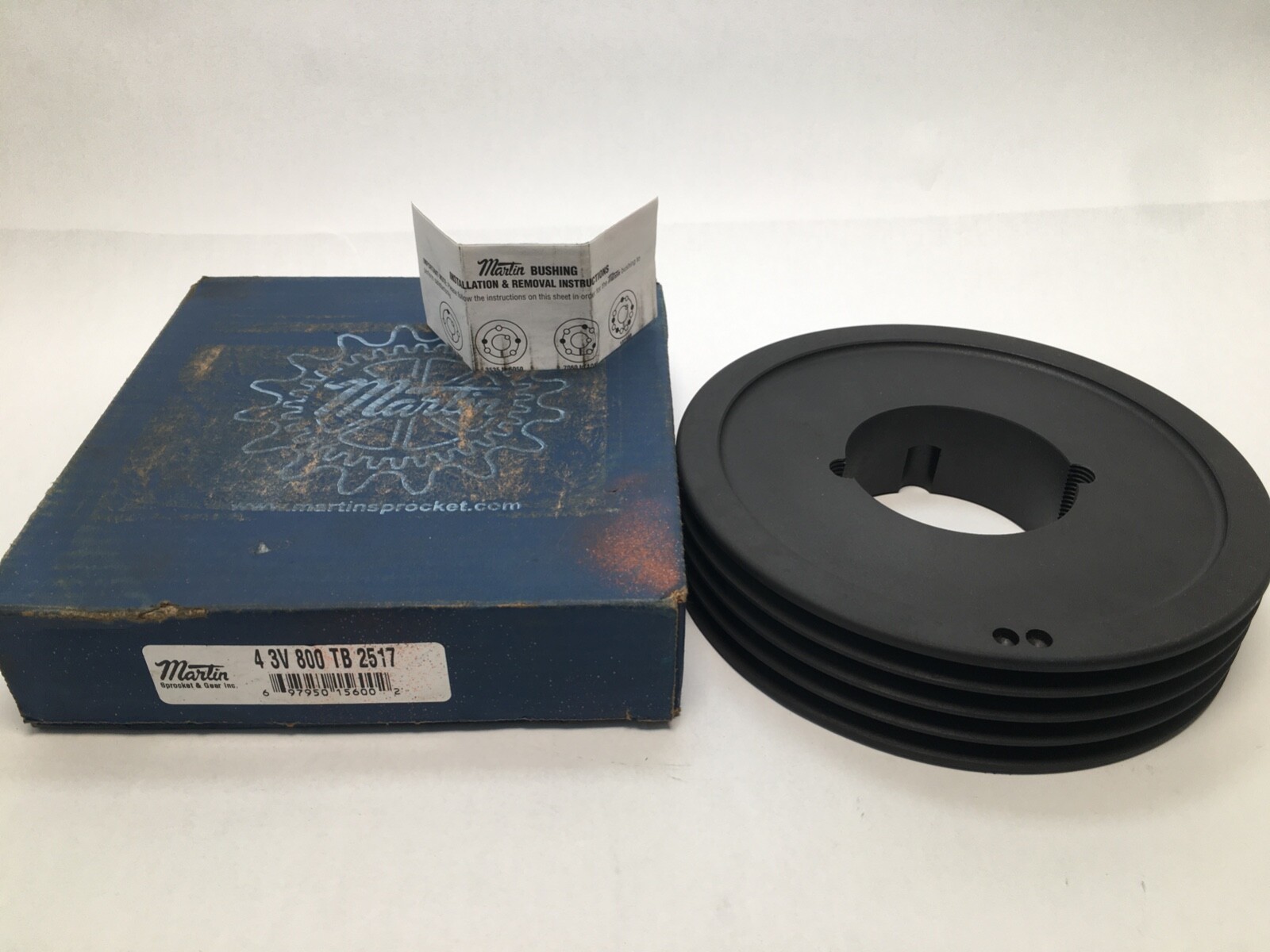

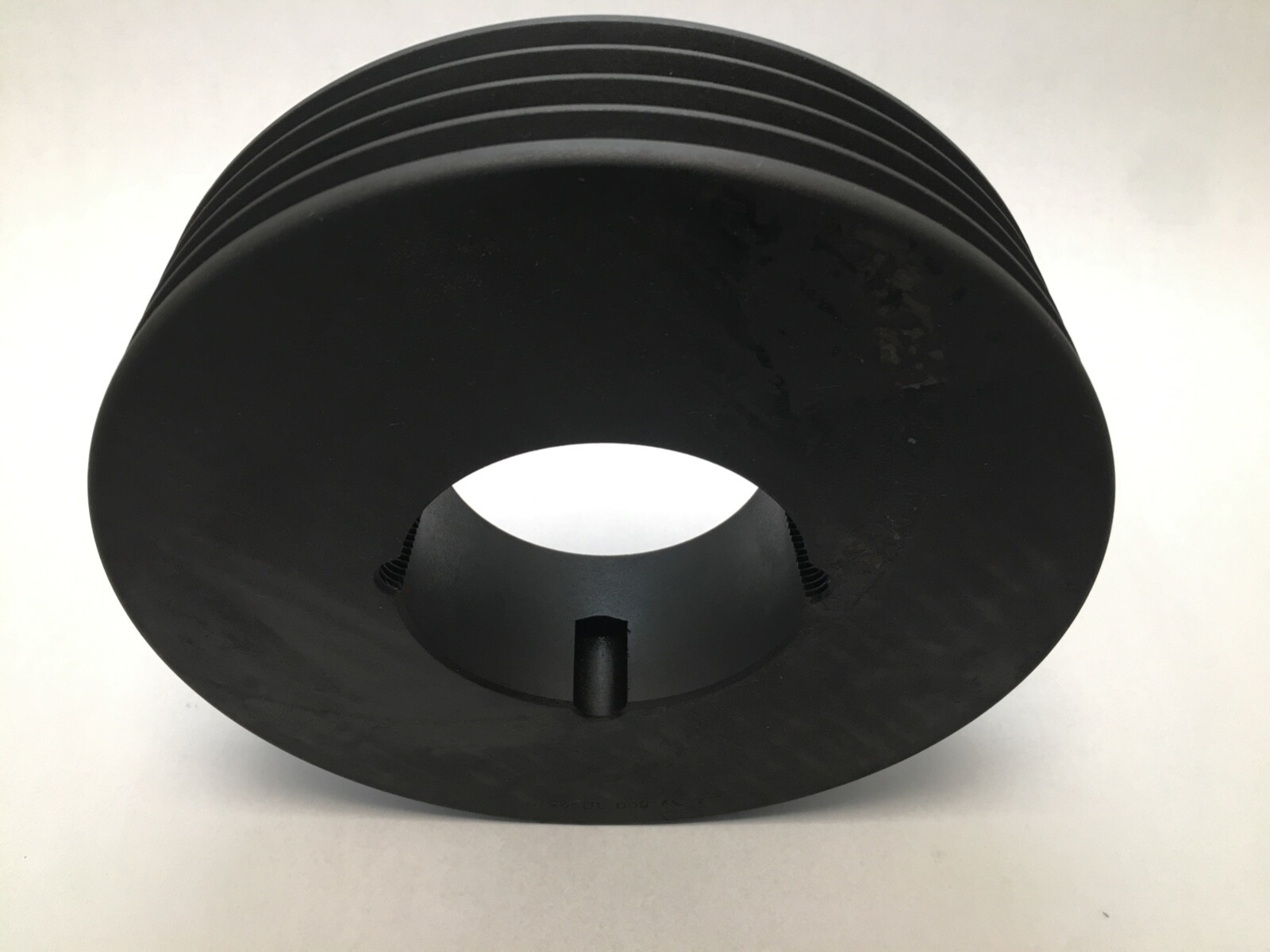

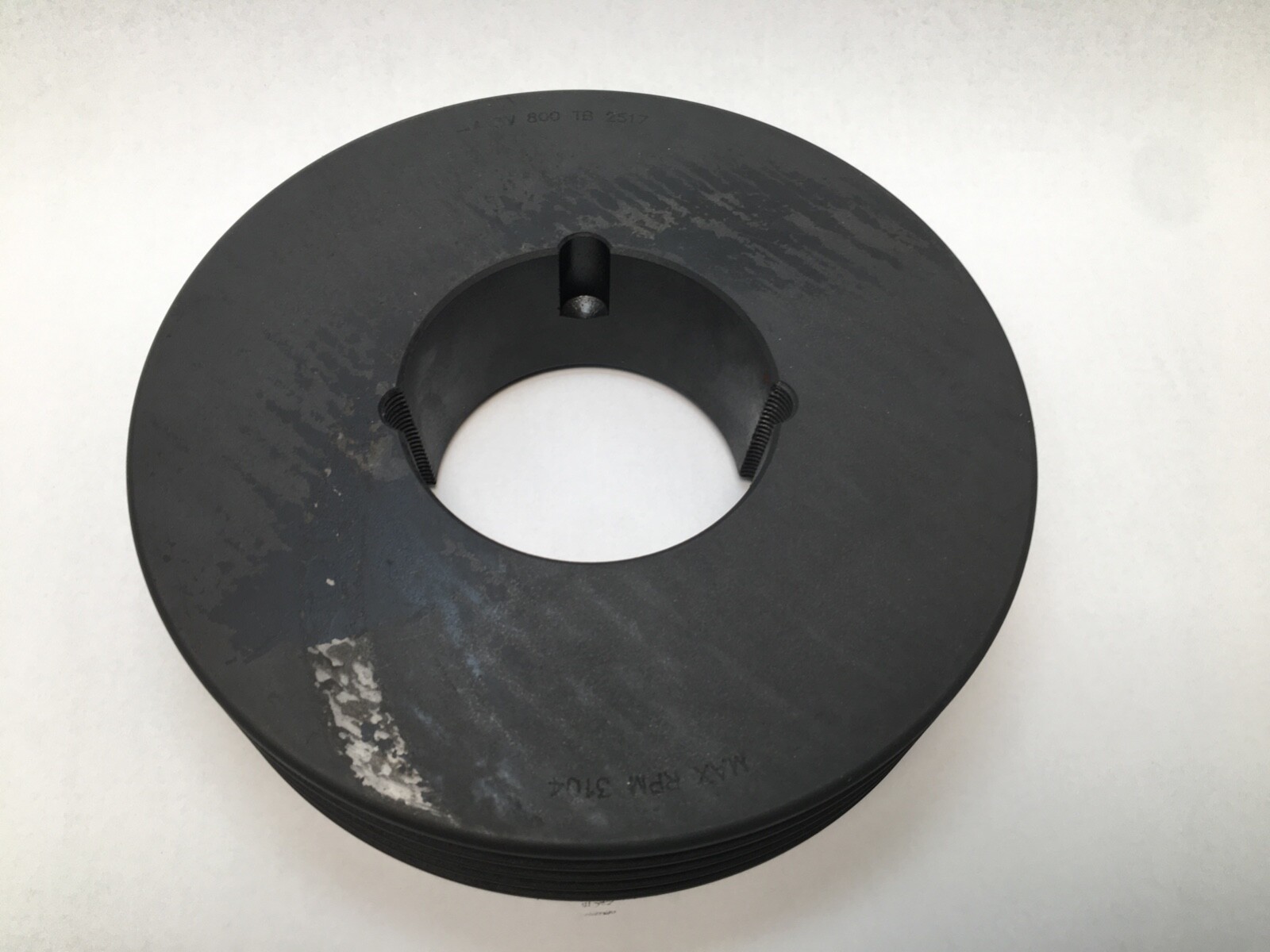

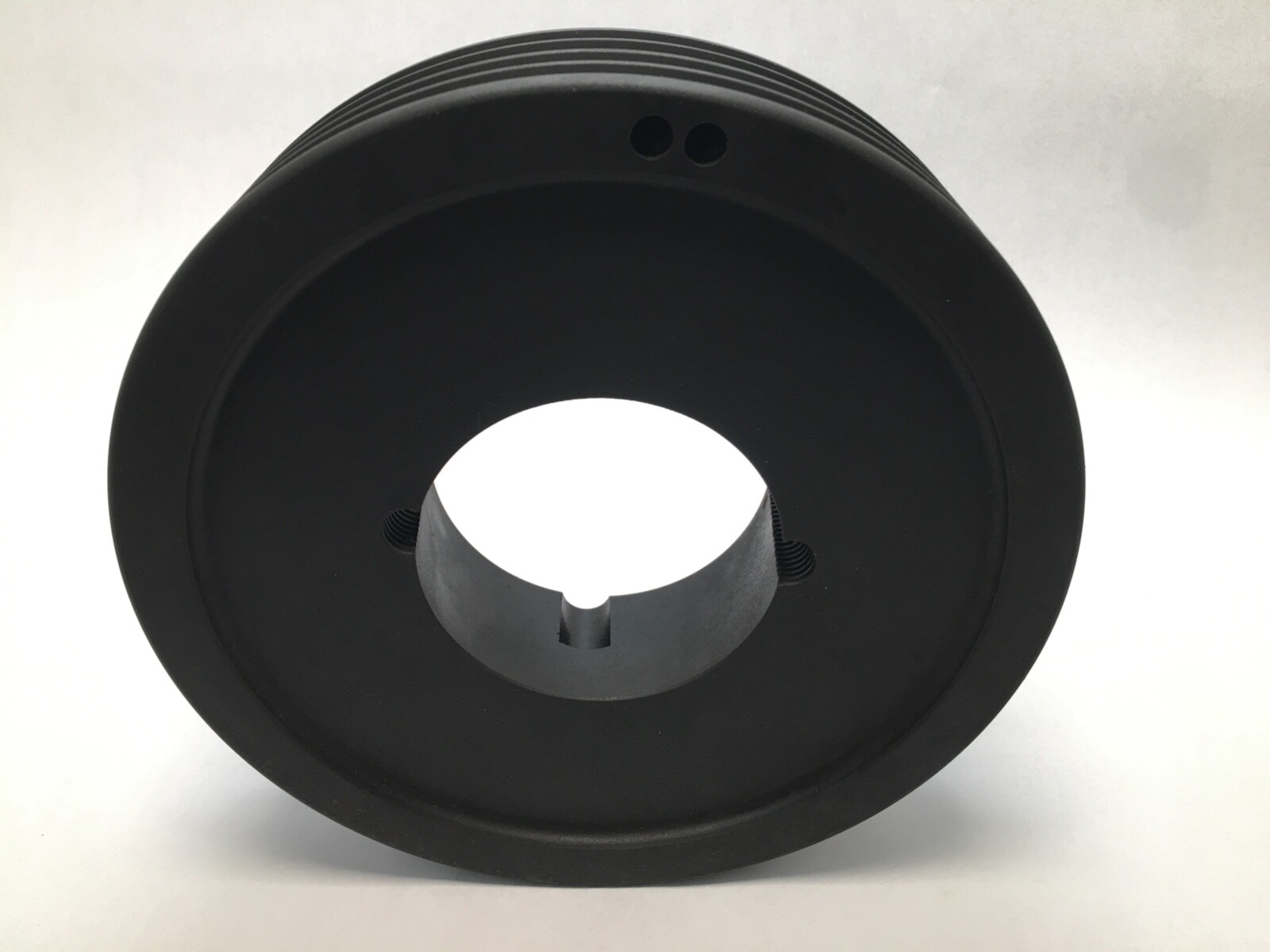

Martin 4 3V 800 TB four-groove 3V V-belt sheave, 8.00 in OD, 1-29/32 in face, taper bushed for a 2517 bushing. New old stock, open box.
List Price
$90.84
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Martin |
|---|---|

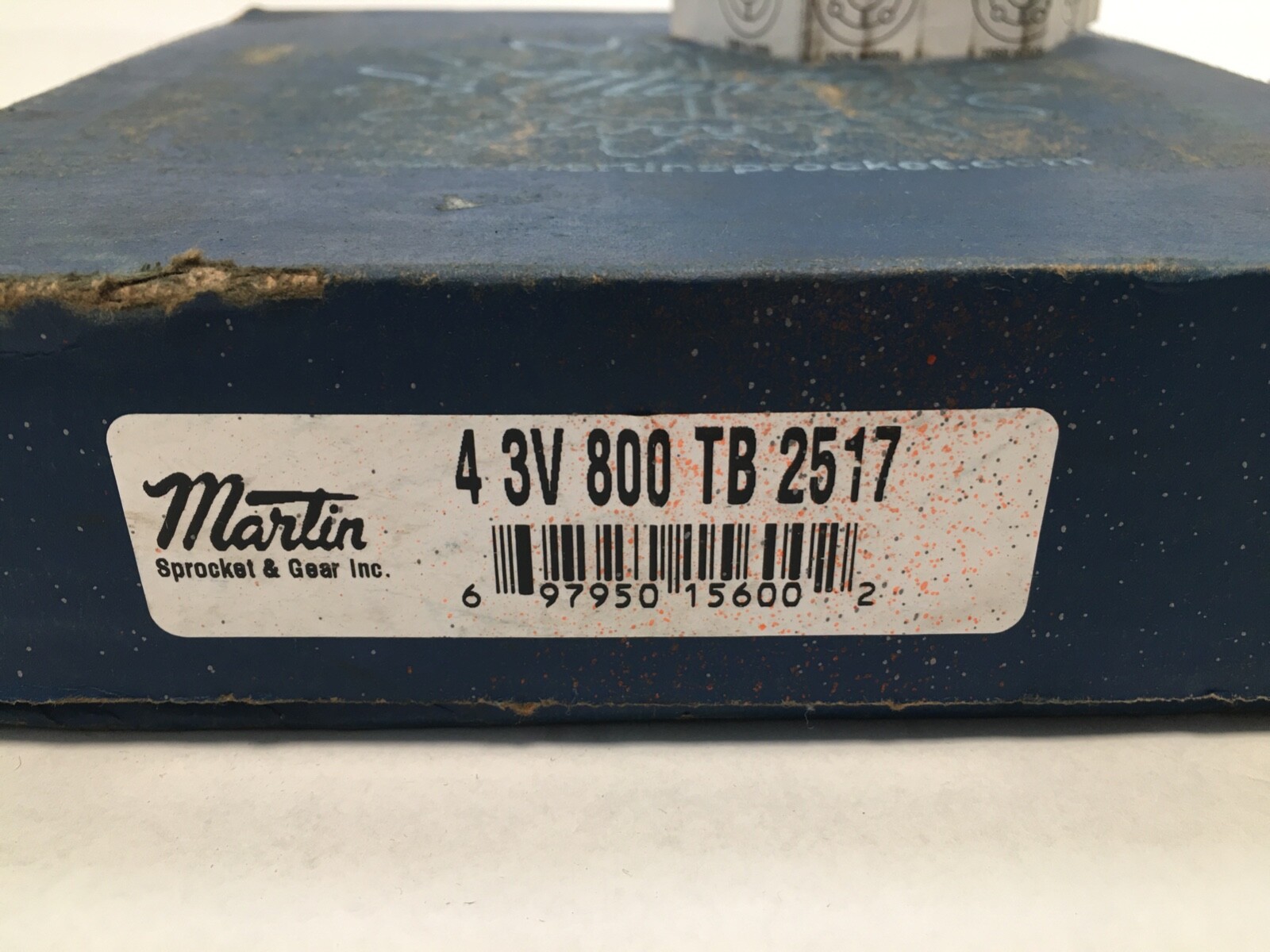

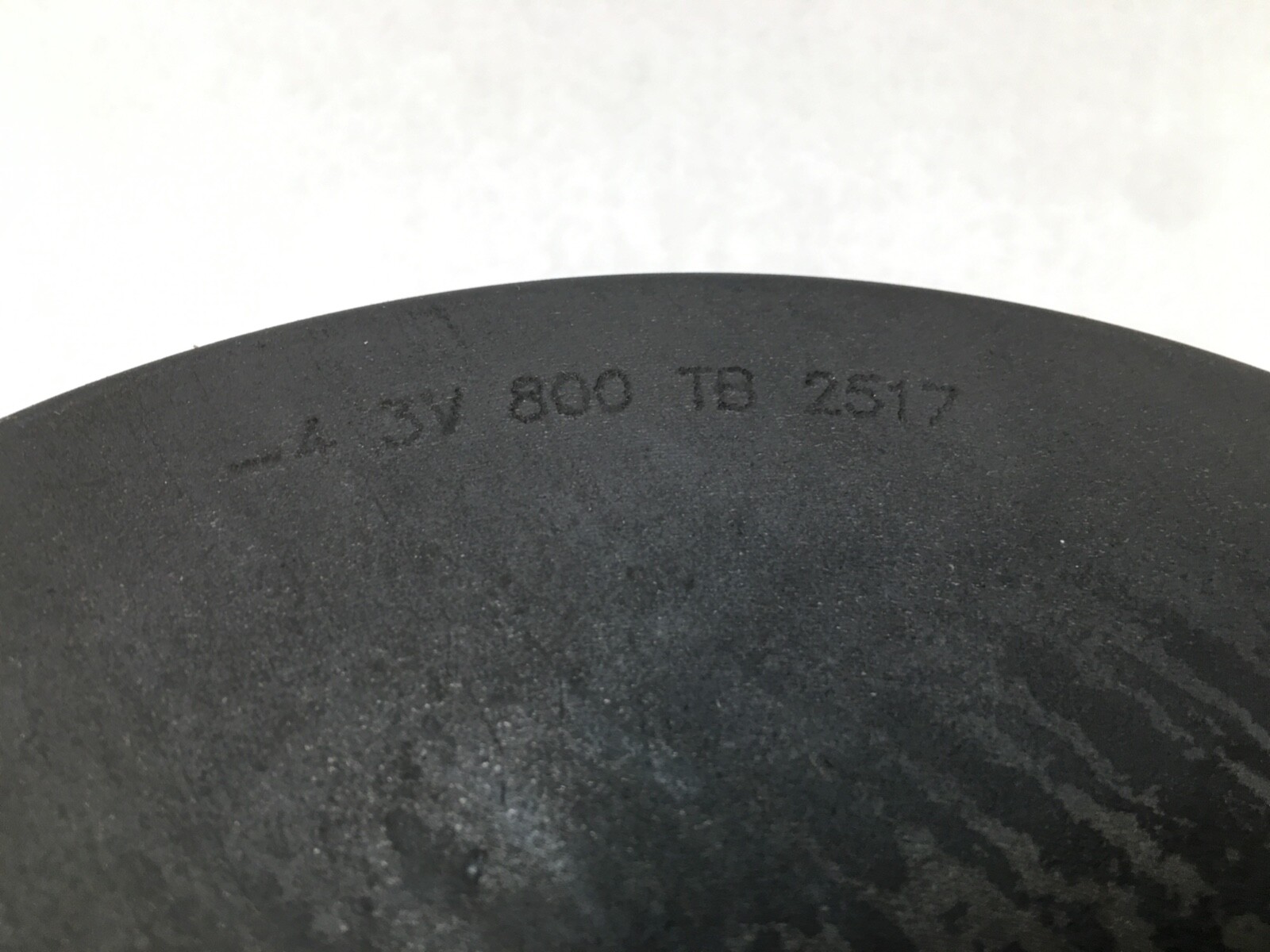

| MPN | 4 3V 800 TB 2517 |
| GTIN | 697950156002 |
| Model | 4 3V 800 TB |
| Condition | New – Open box |
|---|---|
| Type | V-Belt Sheave |
| Industry Terms | V-belt pulley, narrow V-belt sheave, taper bushed sheave, TL sheave, 3V sheave |
| Common Misspellings | Martin 43V800, 4 3V 80 TB, sheeve |
| Application Types | Fans, blowers, pumps, compressors, conveyor drives |
| Mpn Variants | 4 3V 800 TB, 4-3V-800-TB-2517, 43V800TB2517, 4/3V8.00 TB-2517, 4-3V800-TB, 43V800TB |
| Additional Attributes | Grooves: 4; Belt Section: 3V; Outside Diameter: 8.00 in; Face Width: 1-29/32 in; Bushing: 2517 |

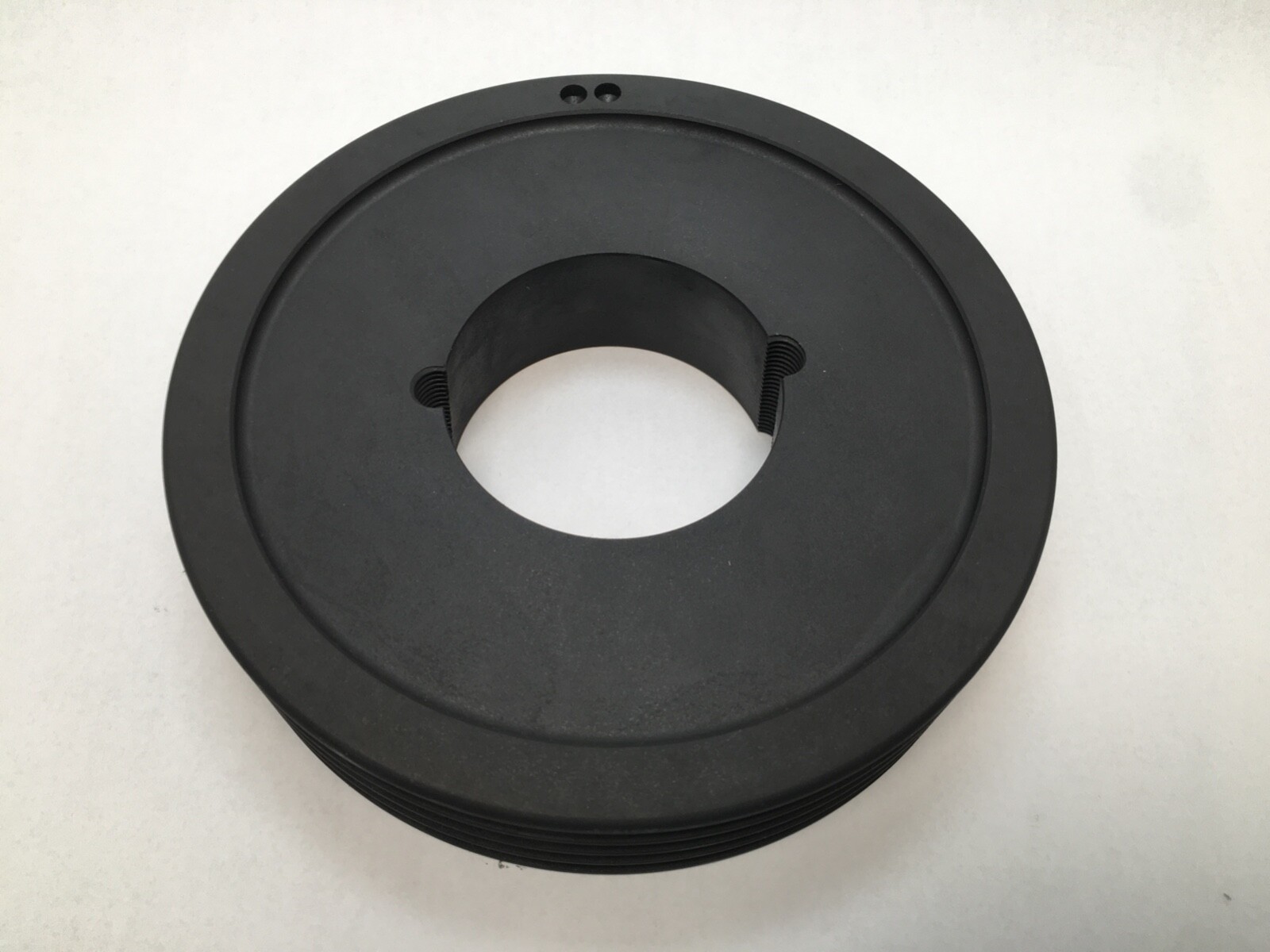

Martin 4 3V 800 TB. A four-groove 3V narrow-section V-belt sheave, 8.00 in outside diameter, taper bushed for a 2517 bushing.

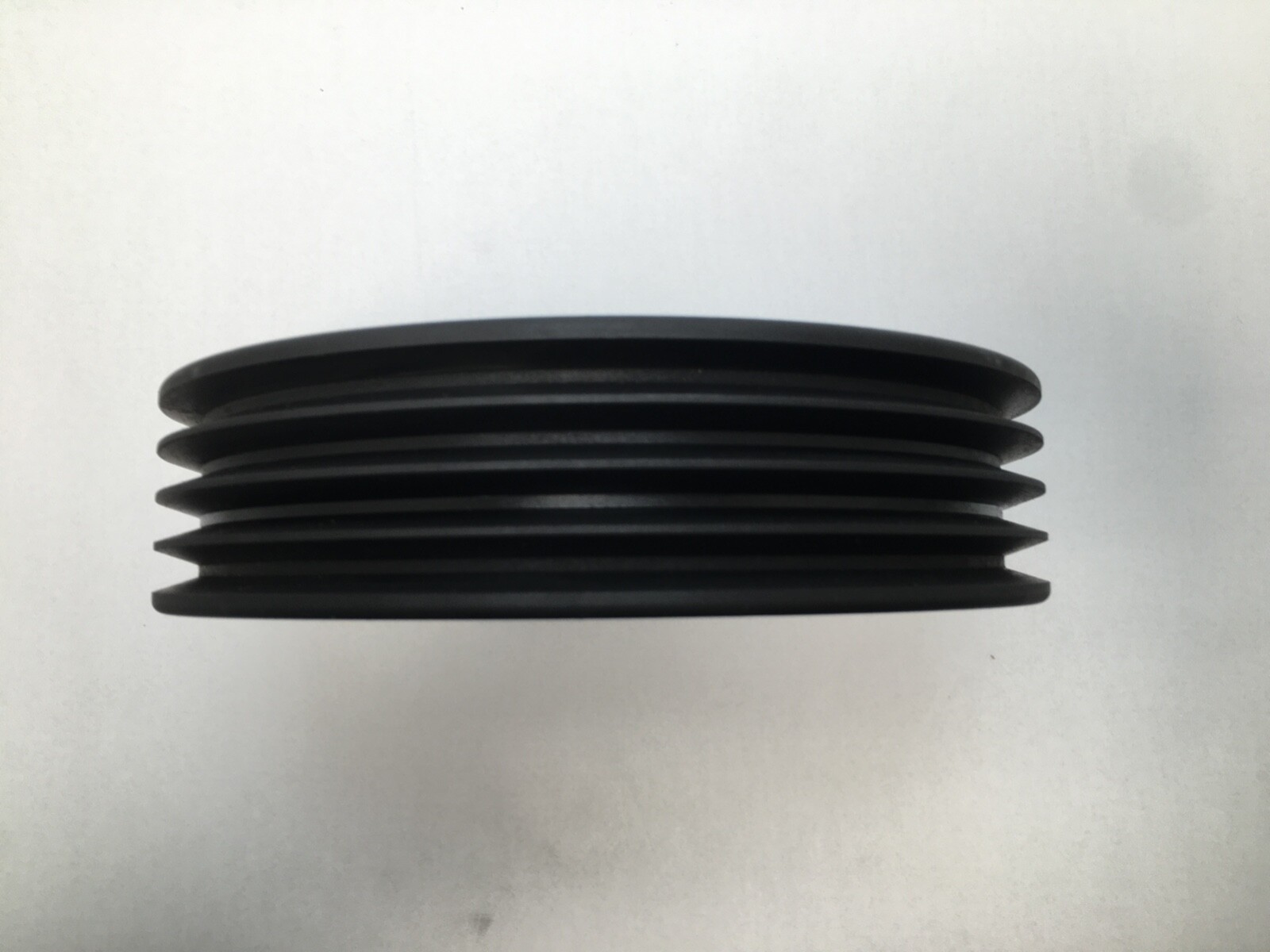

4 — four grooves.
3V — 3V narrow V-belt section.
800 — 8.00 in outside diameter.
TB — Martin taper-bushed hub.
2517 — bushing size, 2517 taper bushing.
Grooves: 4. Belt Section: 3V. Outside Diameter: 8.00 in. Face Width: 1-29/32 in. Bushing: 2517 taper bushing. Hub Taper Bore: 3-1/8 in / 3-11/32 in.
A 2517 taper bushing accepts shaft bores from 1/2 in to 2-11/16 in, so one sheave covers many shaft sizes by changing the bushing.
Face Width: 1-29/32 in. Bushing: 2517, separate item.
Belts: 3V section narrow V-belts. Bushing: any 2517 taper bushing.
