| MFR / Brand | NTN |
|---|---|
| MPN | UELFU-1 |
| Model | UELFU 1 |
| ID | 1.000 in |
| Series | UELFU |
|---|---|
| Condition | New |
| Type | Flanged Mount Bearing |
| Lubricant | Grease |
| Material | Cast Iron Housing |
| Bolt Center To Center | 70 mm |
| Number Of Bolt Holes | 4 |
| Bolt Center To Center Length | 70 mm |
| Number Of Bolt Holes For Fasteners | 4 |
| Min Temp | -20 °C |
| Cage Type | Ribbon |
| Dynamic Load Rating | 14.0 kN / 3150 lbf |
| Static Load Rating | 7.8 kN / 1760 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Bearing Type | 4-Bolt Flange Unit |
| Item Weight | 2.90 lbs |
| Cage Material | Steel |
| Limiting Speed | 5300 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Duty Type | Standard |
| Locking Device | Eccentric Collar |
| Relubrication Feature | Yes |
| Mounting Arrangement | 4-Bolt |
| Housing Material | Cast Iron |
| Expansion Type | Non-Expansion |
| Cross Reference 1 | SKF FY 1. FM |
|---|---|
| Cross Reference 2 | Dodge F4B-SC-100 |
| Cross Reference 3 | Fafnir RCJ 1 |
| Cross Reference 4 | INA RCJY1 |
| Cross Reference 5 | Sealmaster MFC-16 |

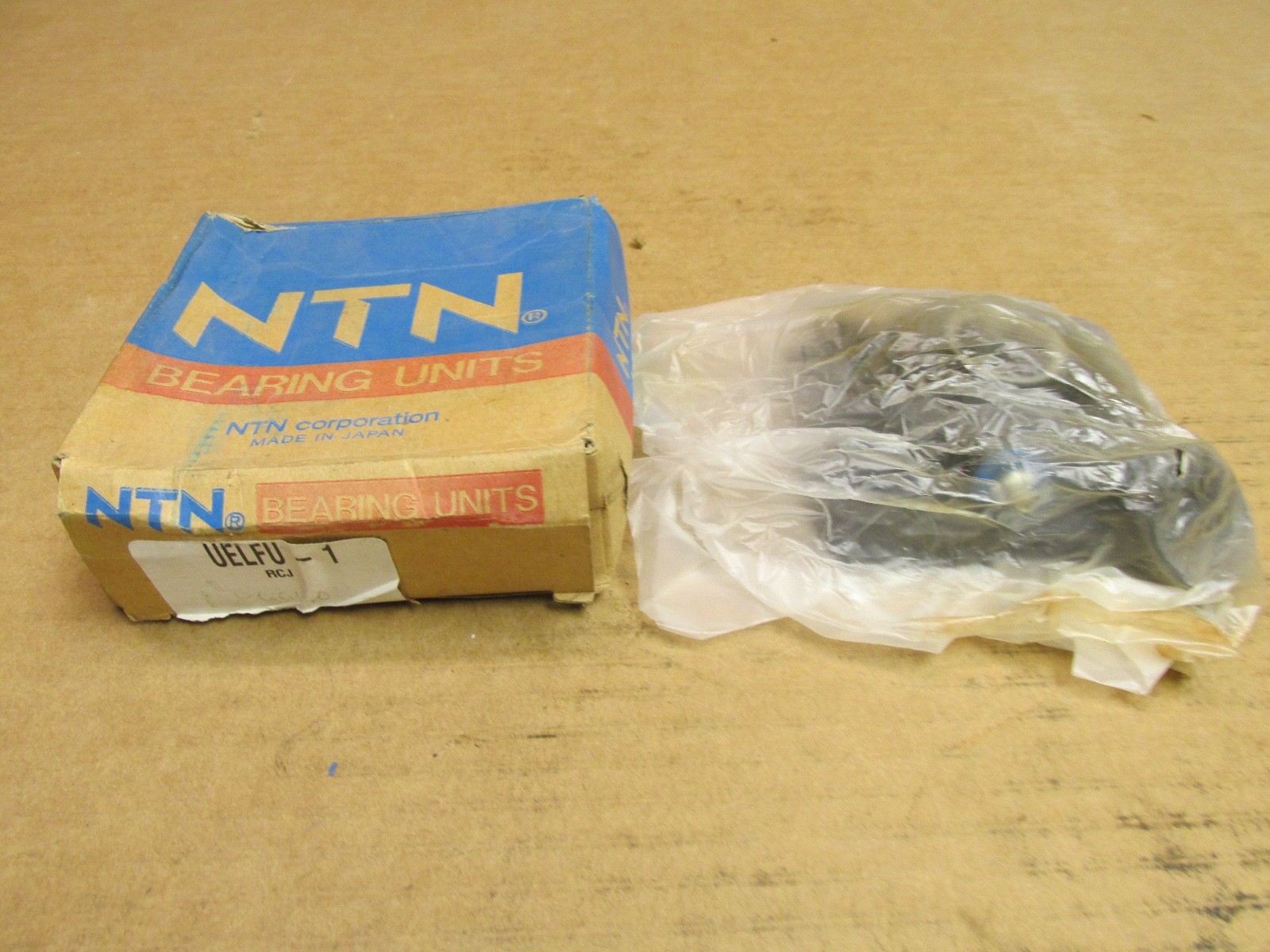

NTN UELFU-1 4-Bolt Flange Bearing Unit. 1.000 in Bore. Eccentric Locking Collar (UEL insert). Cast iron housing. Standard duty for industrial use.
