SNR7004HG1DUJ84Super Precision Angular Contact Spindle Bearing Matched Pair 20 x 42 x 12 mm 25 Degree Contact Angle ABEC 7 P4 Universally Ground Phenolic Cage

Product Description

What this part is

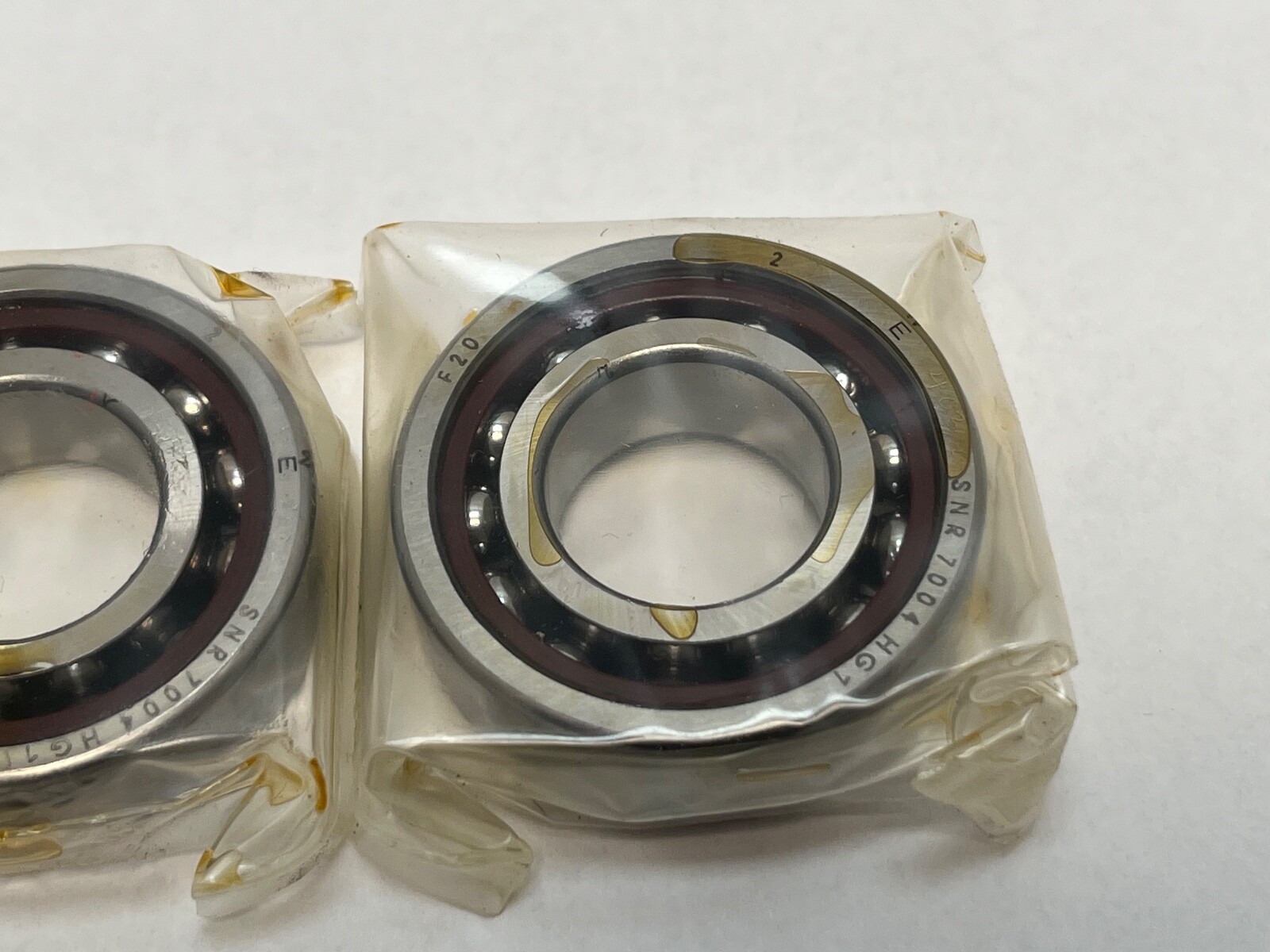

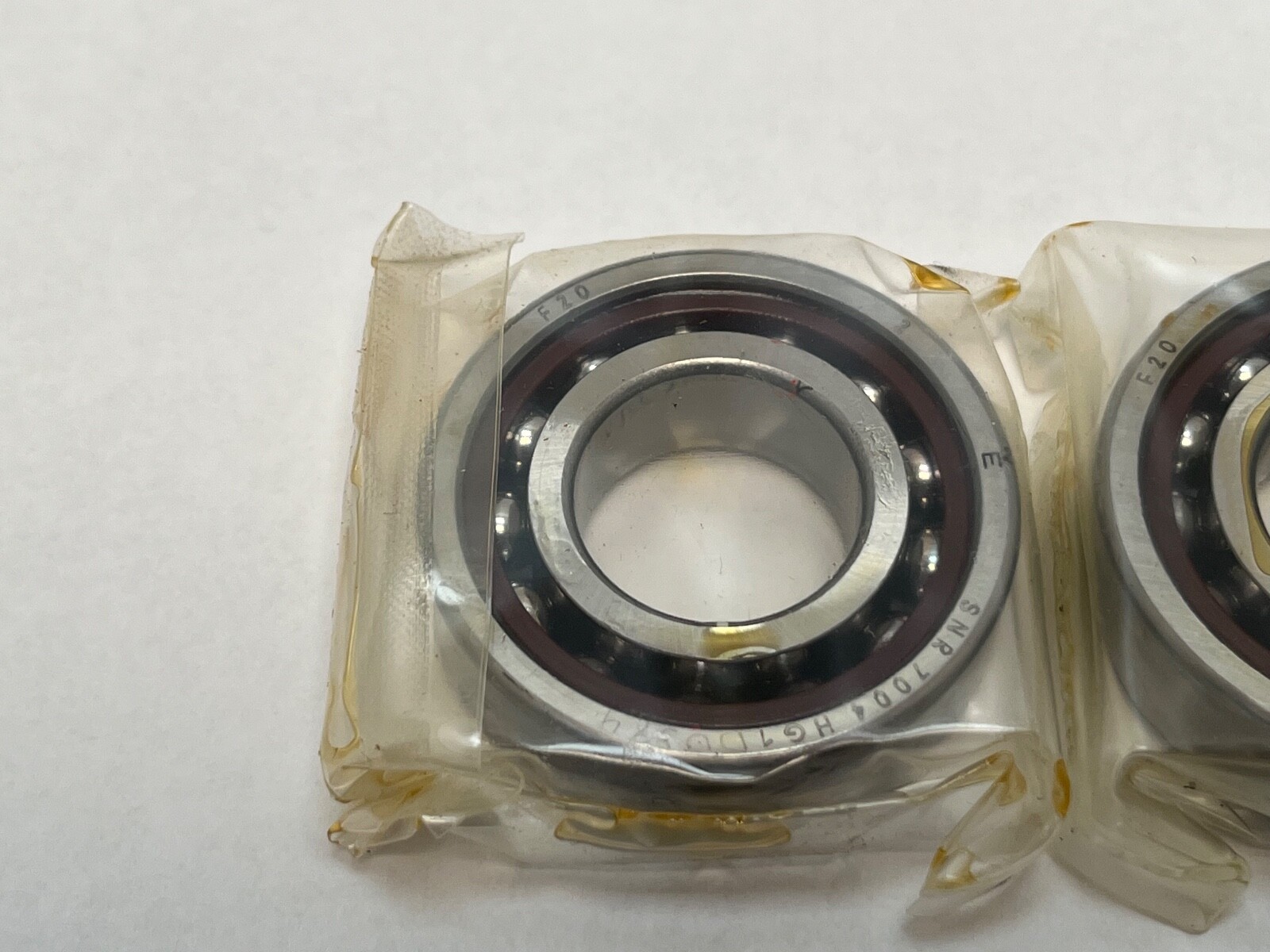

SNR 7004HG1DUJ84 super-precision single-row angular contact ball bearings, supplied as a matched universally ground pair. Brand: SNR (now NTN-SNR). Bore: 20 mm. Outside Diameter: 42 mm. Width: 12 mm per bearing. Total Width: 24 mm for the pair. Contact Angle: 25°. Precision Class: ISO P4, ABEC 7. Cage Type: machined fabric-reinforced phenolic. Rolling Elements: steel balls. Closure Type: open. Series: 70. Base Number: 7004. Carton date code 05 1989, factory new old stock.

Decoding the designation

7004: 70-series single-row angular contact ball bearing on a 20 mm bore. H: 25° contact angle in SNR’s designation scheme. G1: SNR special cage code — this execution carries a machined phenolic cage. DU: duplex, universally ground. J84: the trailing 4 is ISO precision class 4, P4 / ABEC 7. F20 and the outer-ring sequence marks 1 and 2 are SNR pair-matching marks identifying these two rings as ground and measured as one set. Searchable forms: 7004HG1DUJ84, 7004 H G1 DU J84, 7004-H-G1-DU-J84, 7004.H.G1.DU.J84, and the world equivalent 7004-E-T-DUM-P4.

What these specs mean in practice

A 25° contact angle tilts the load path further toward the bearing axis than a 15° angle, giving higher thrust capacity and higher axial stiffness, so a spindle holds size better under heavier and interrupted cuts. The trade is speed: the steeper angle raises centrifugal and gyroscopic ball loading, so limiting speed is lower and heat generation higher than an otherwise identical 15° bearing. Fabric-reinforced phenolic is light, self-lubricating and tolerant of marginal lubrication, which is why it remains standard on machine-tool spindle bearings. ISO P4 gives tighter running accuracy and lower running vibration than standard tolerance.

Quantity and configuration

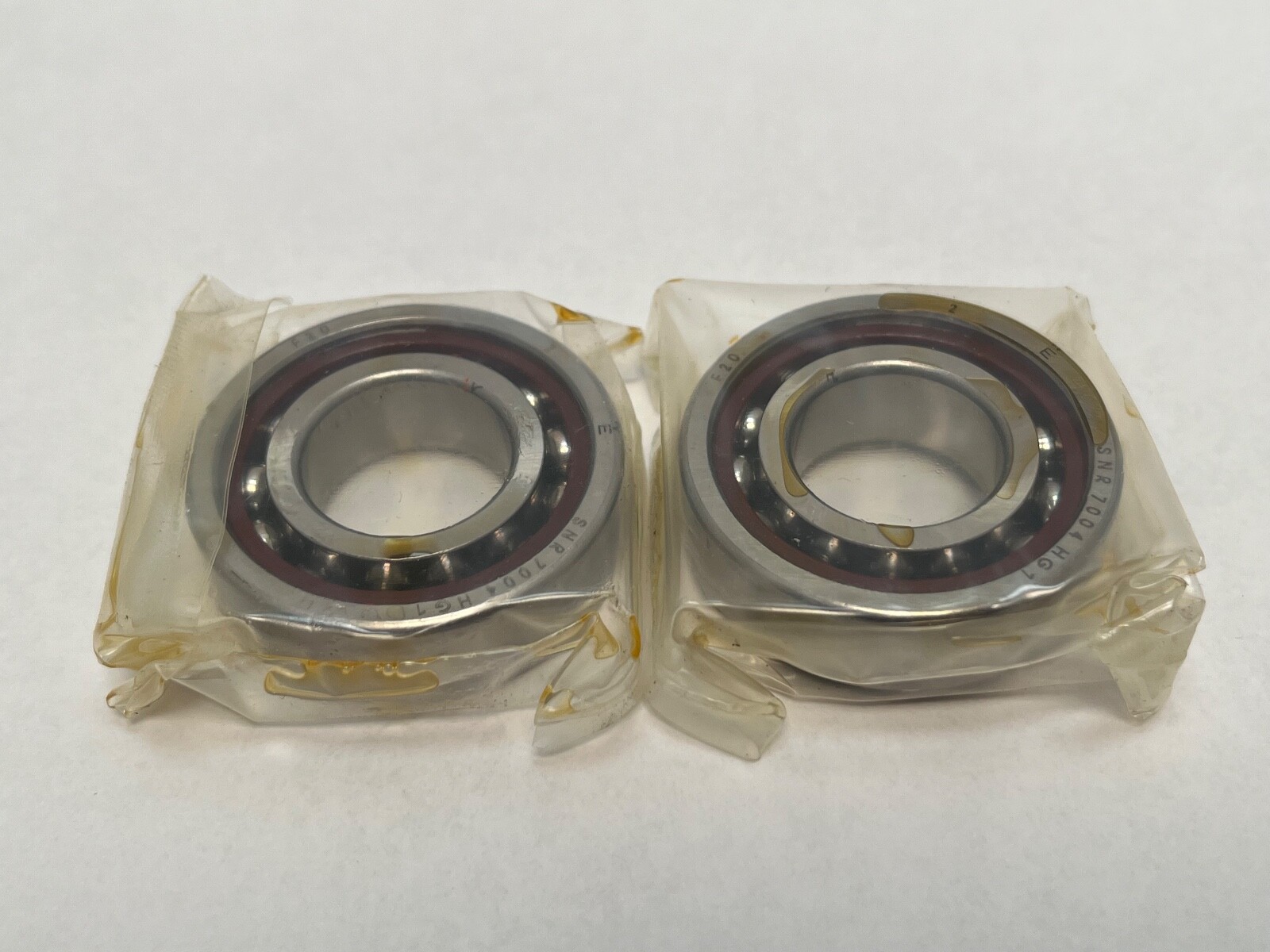

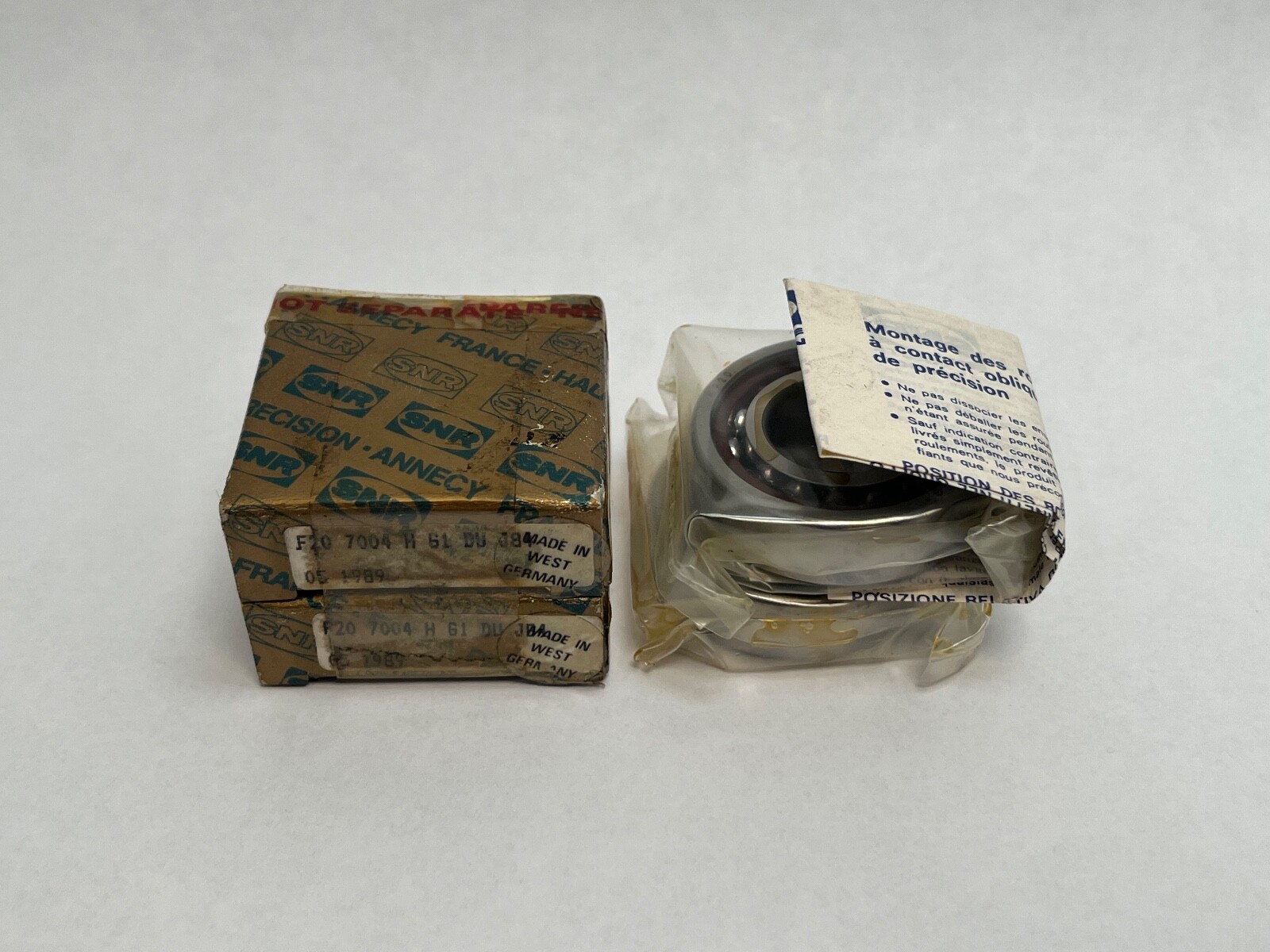

Unit Quantity: 2 bearings, one matched DU pair. Universal grinding means any two bearings of this designation pair in any orientation and come up to the intended preload when clamped, with no shims and no matched-set paperwork. The pair mounts back-to-back (DB) for maximum moment stiffness and two-direction thrust, face-to-face (DF) for tolerance of shaft-to-housing misalignment, or in tandem (DT) to double thrust capacity in one direction. Both bearings are individually shrink-wrapped in factory preservative, with two SNR cartons and the original SNR French-language mounting instruction sheet for precision angular contact bearings.

Fitting notes

The set is handled and installed as a unit, following the etched sequence marks and the mounting sheet when orienting the rings. Preservative is cleaned off and the bearings lubricated to spindle specification before assembly. The press fit goes on the rotating ring only, with uniform clamping through a faced nut or spacer so preload rises evenly and load passes through the rings rather than the balls. Spindle bearing clearance and lubrication interval account for the higher heat generation of a 25° pair, and housing and shoulder diameters clear the bearing corners.

Interchange guidance

SNR bearing operations merged into NTN-SNR, so current-catalogue equivalents are listed under NTN-SNR. Same-envelope 20 x 42 x 12 mm, 25°, P4 universally ground alternatives: NSK 7004A5TYNDUMP4 (A5 = 25°), FAG / Schaeffler B7004-E-T-P4S-UM, and SKF 7004 ACD/P4ADGA (AC = 25°). Preload class matches within a single spindle stack. A 15° execution is a related size rather than an interchange, since axial stiffness differs.
