NTNTS3-22210CC4Spherical Roller Bearing – Straight Bore, 50 mm ID, 90 mm OD, 23 mm Width, Open, C4 Internal clearance.

Product Description

What this part is

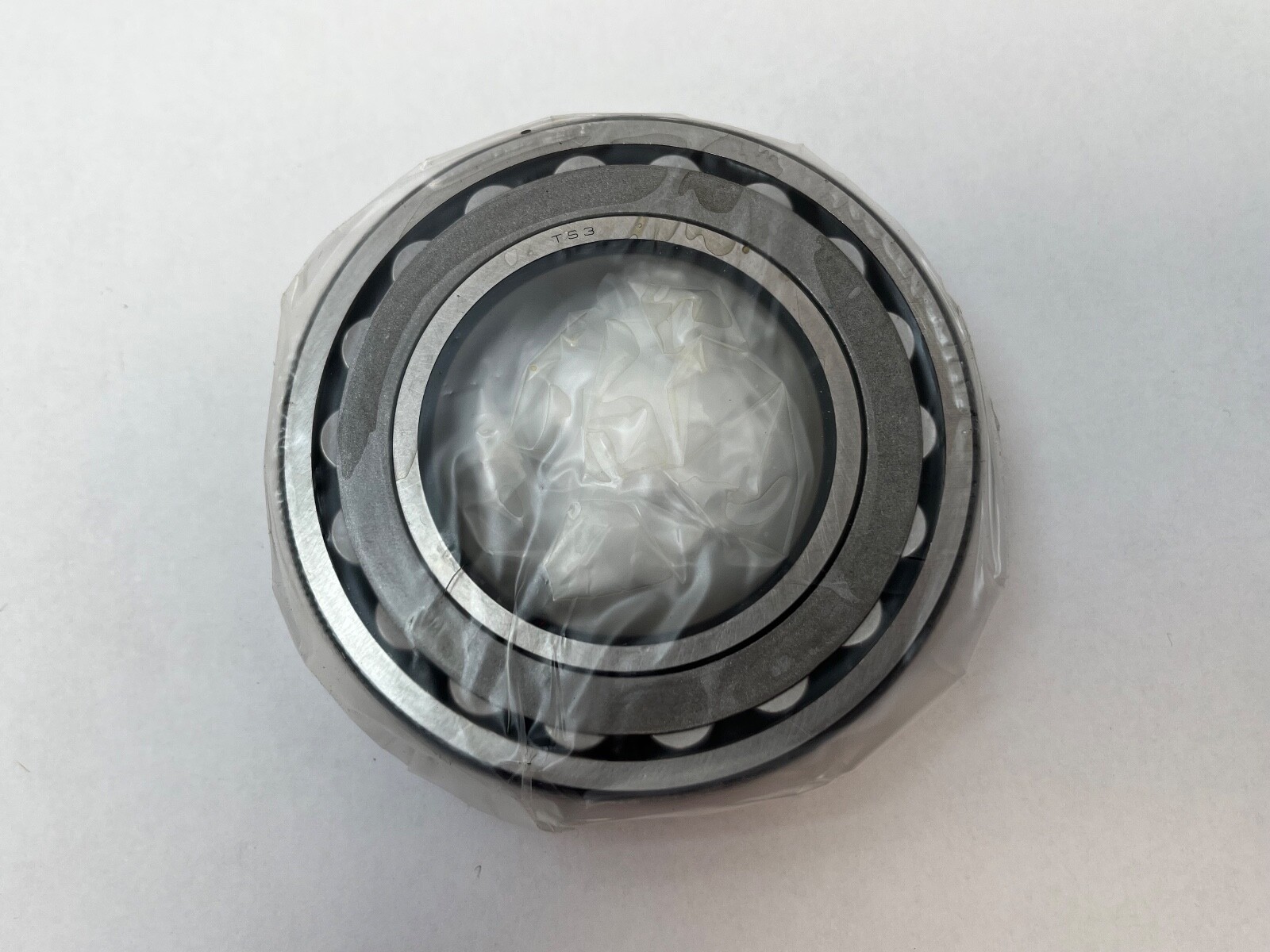

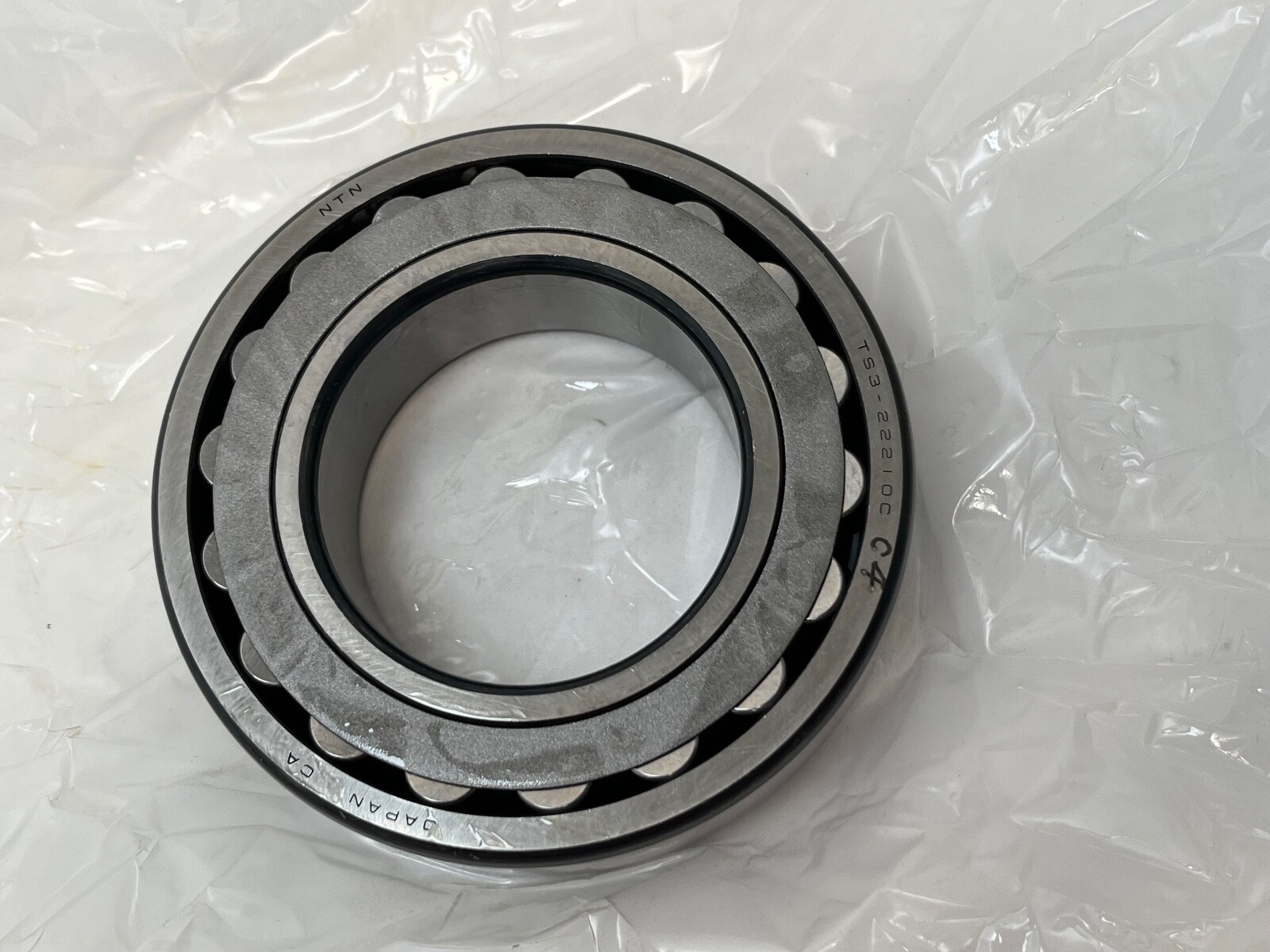

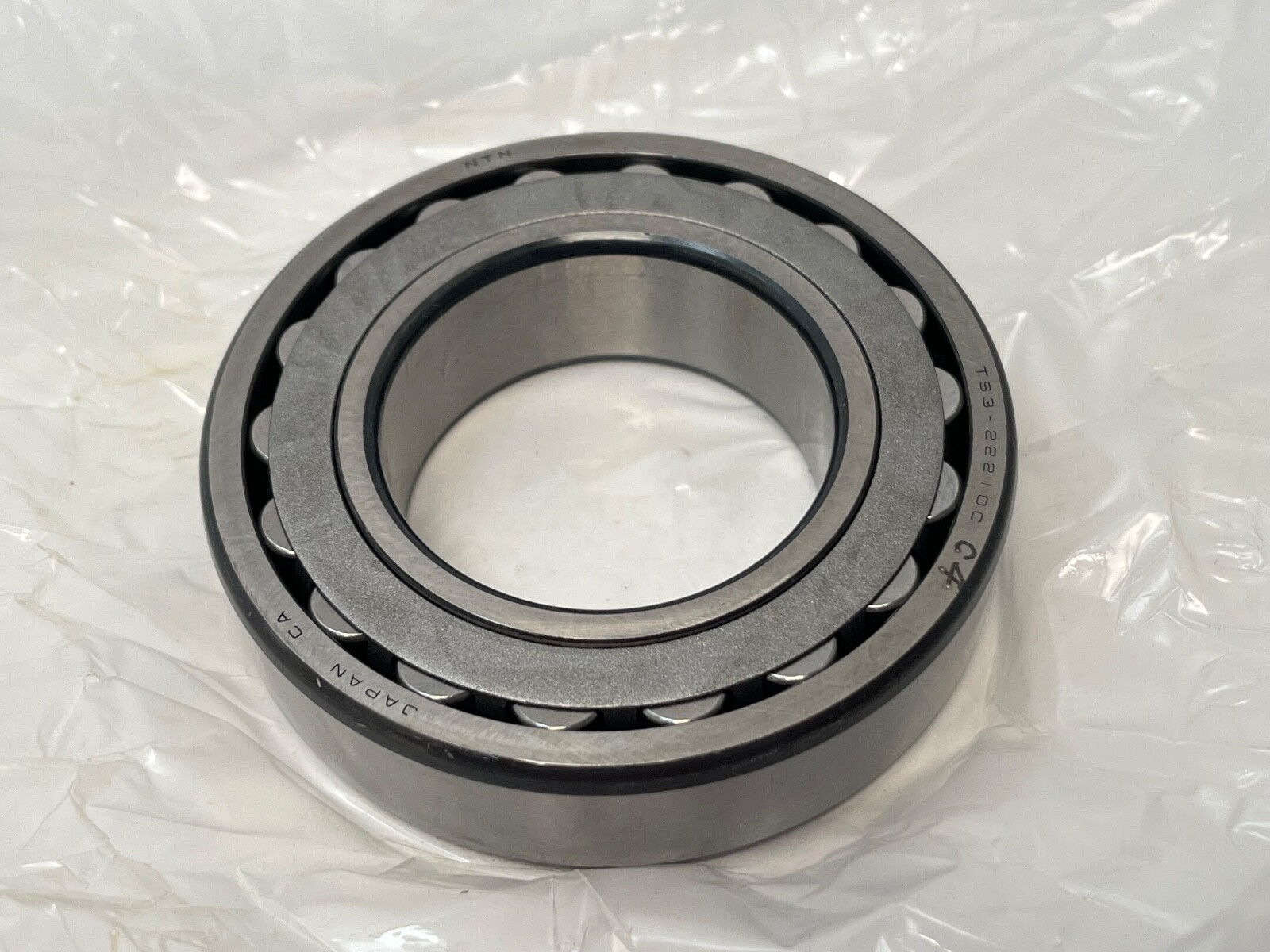

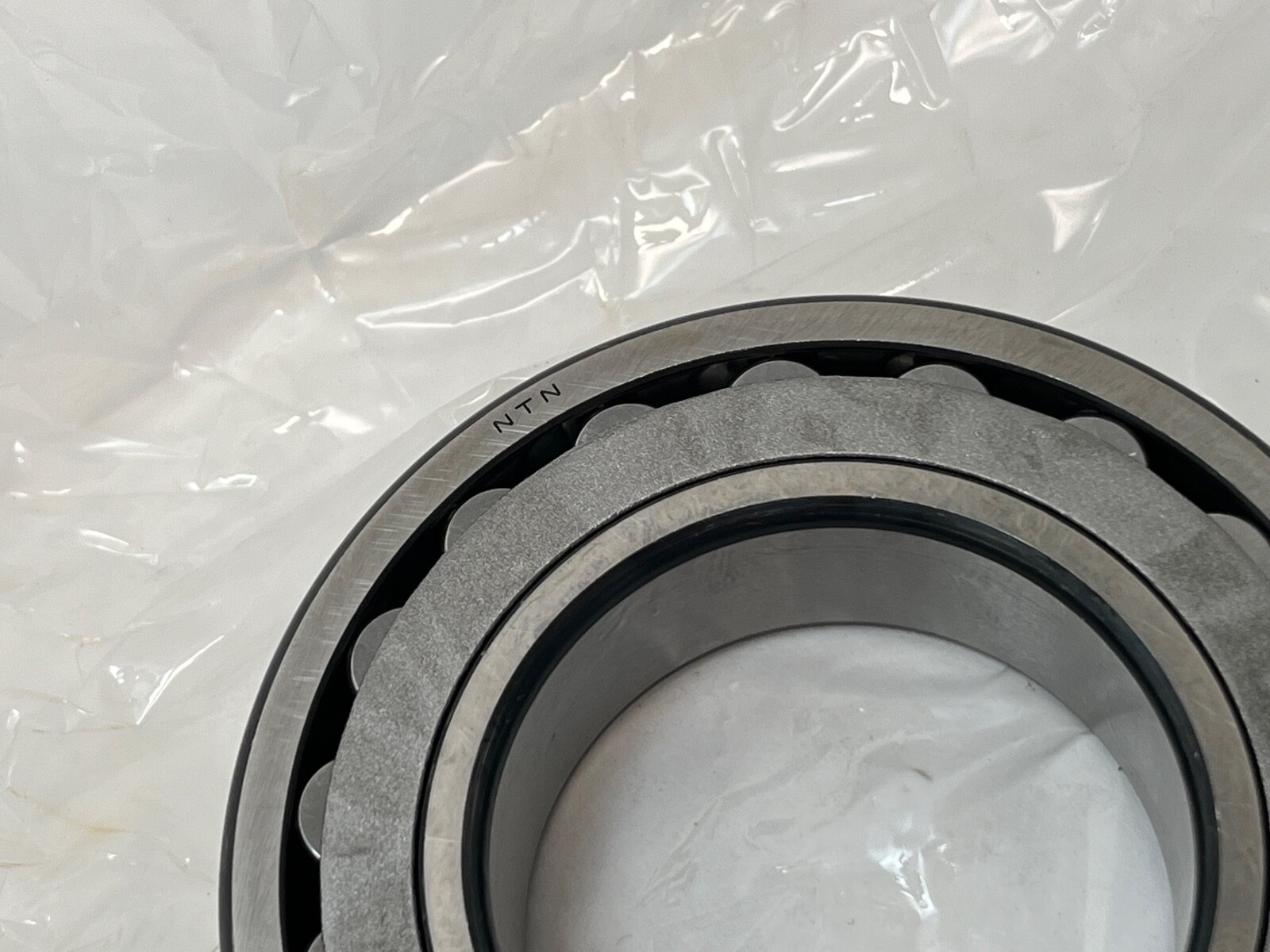

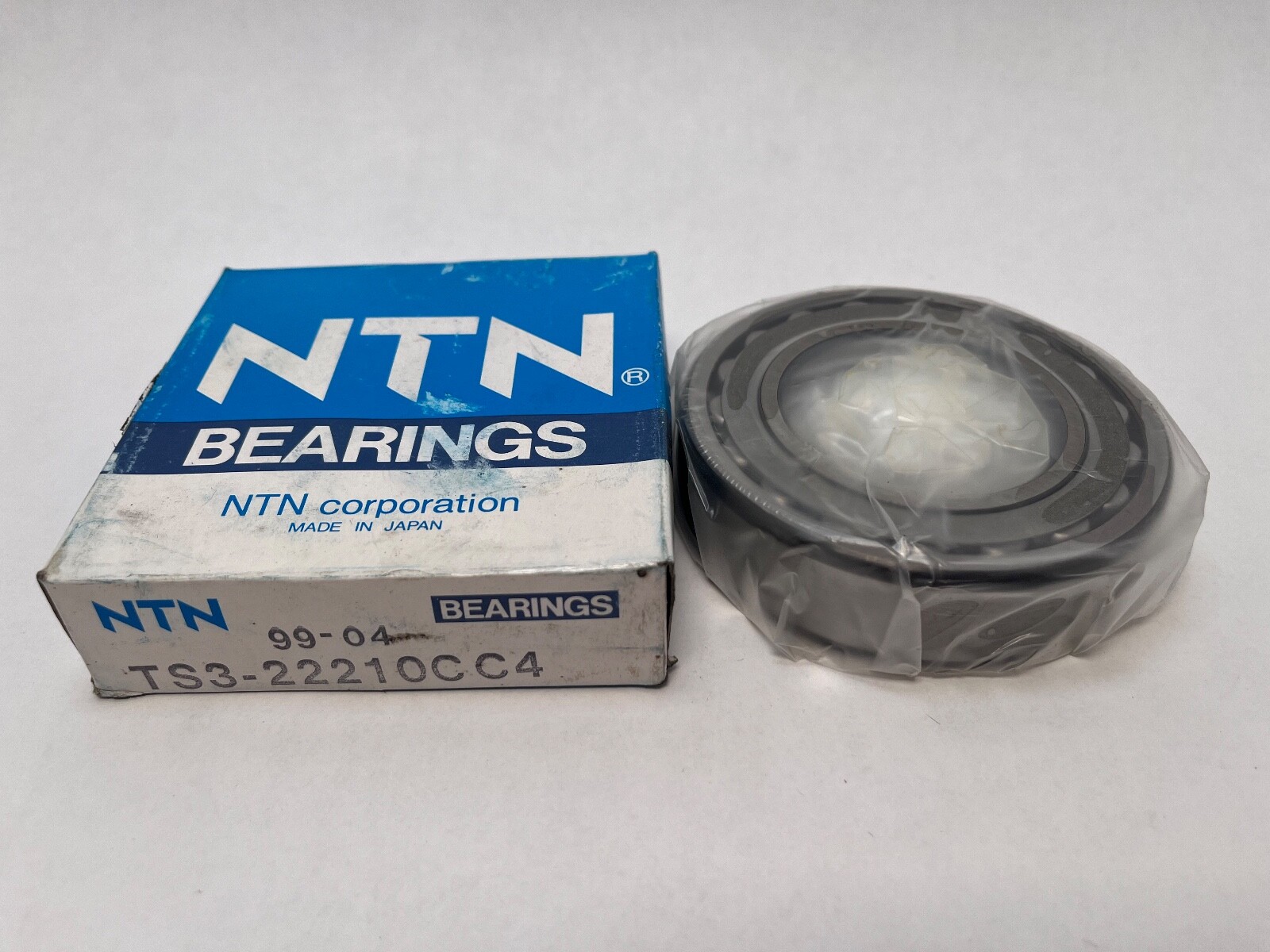

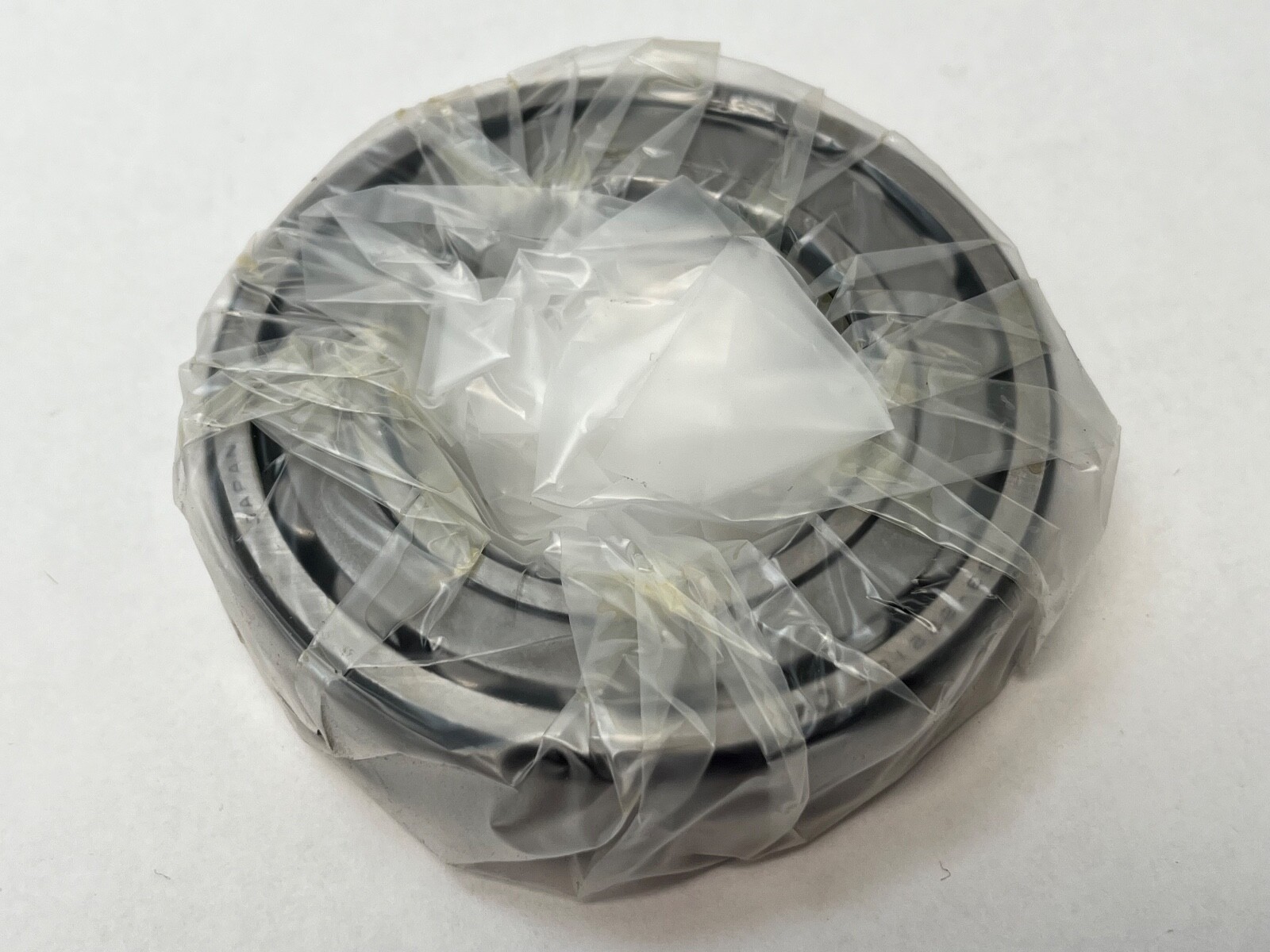

NTN TS3-22210CC4 double-row spherical roller bearing. Straight cylindrical bore, 50 mm bore, 90 mm outside diameter, 23 mm width. Open on both faces, pressed steel cage, C4 internal clearance, dimension-stabilised steel rated for service to 200 °C.

Decoding the designation

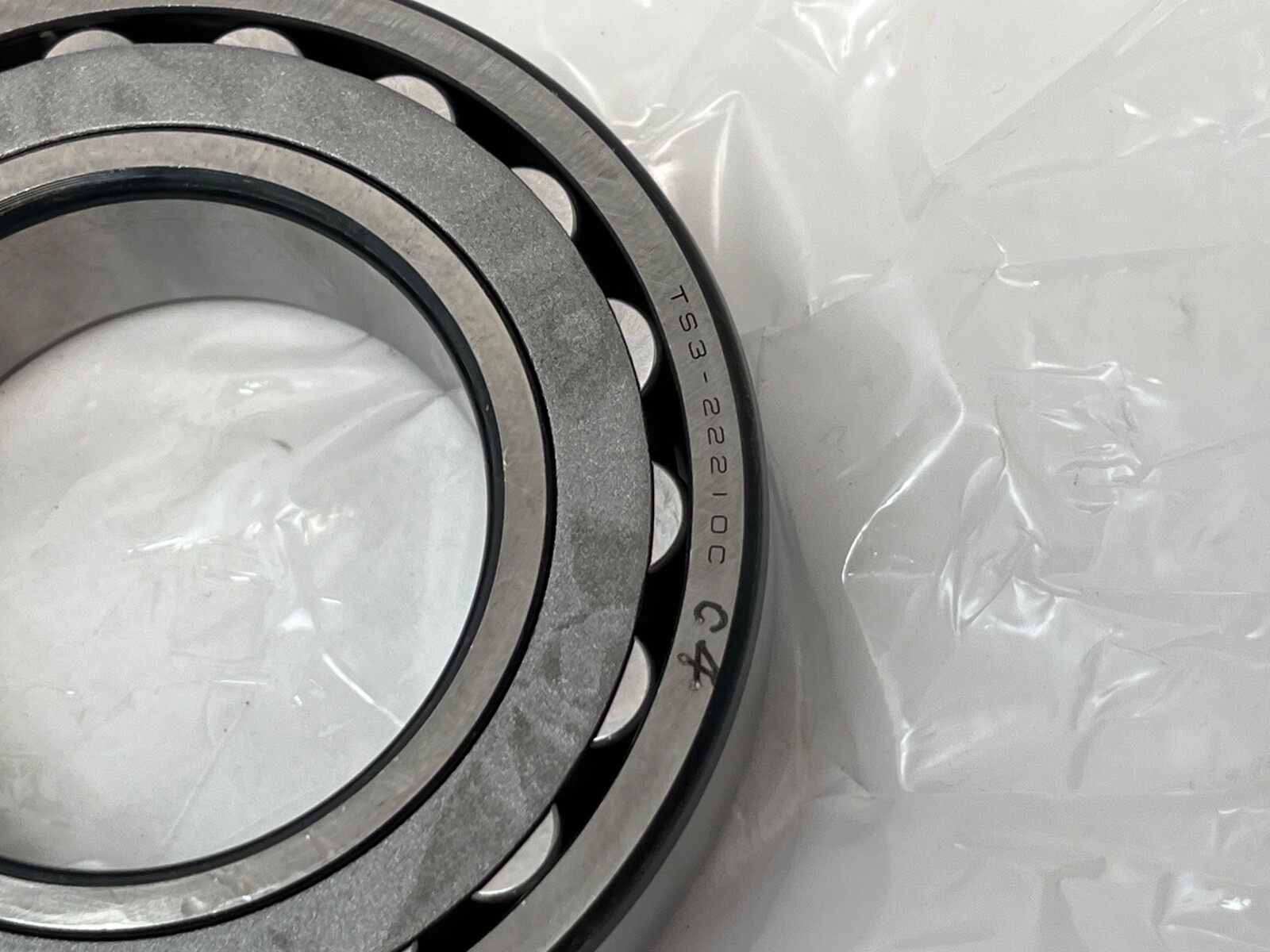

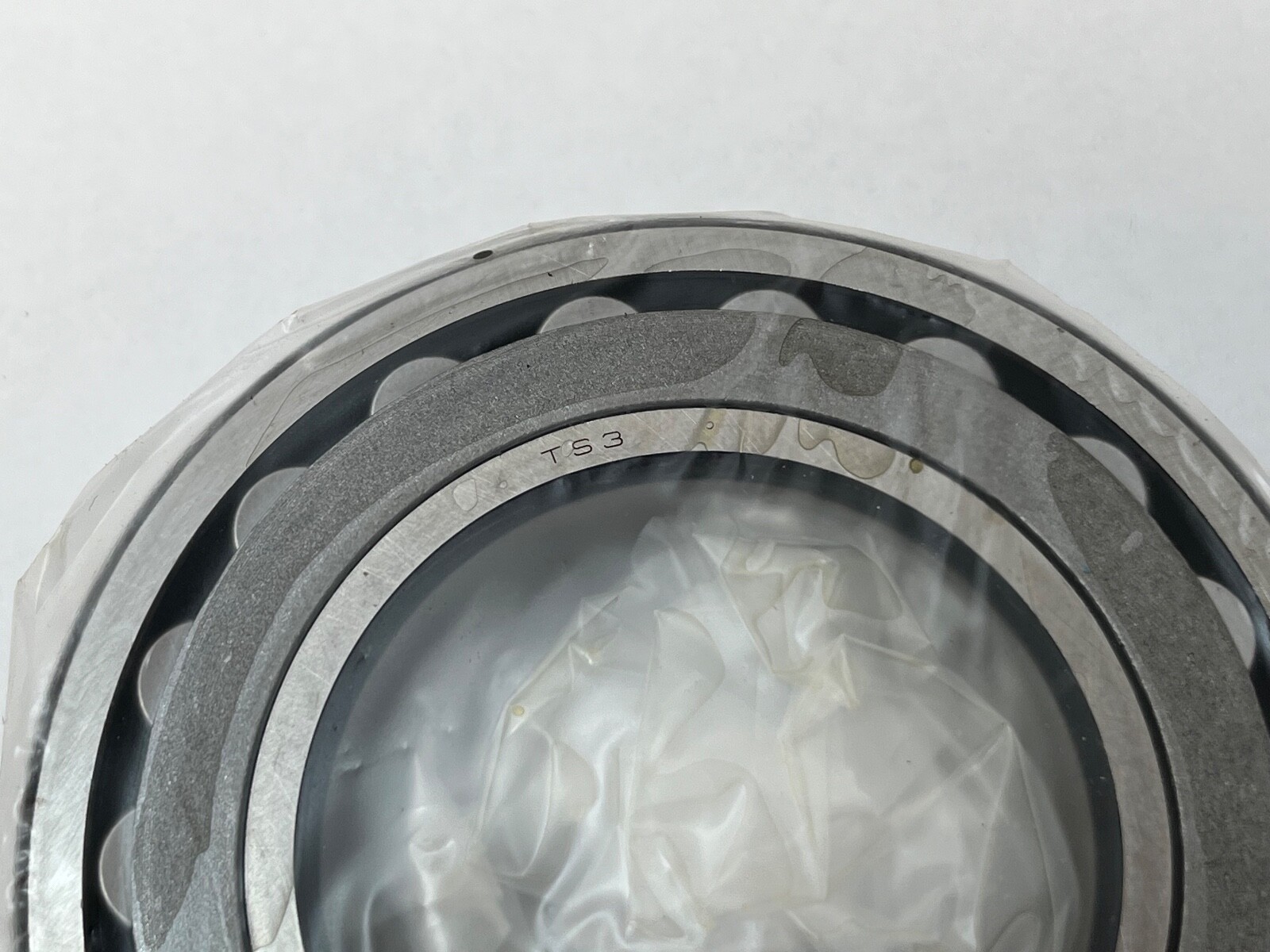

The TS3 prefix is NTN’s dimension-stabilised heat treatment for elevated-temperature service to 200 °C. 22210 is the ISO basic number: 222 dimension series, bore code 10 for a 50 mm bore. The C denotes the pressed steel cage design. C4 is the internal clearance class, greater than C3 and well above normal. No K appears in the designation, so the bore is straight rather than 1:12 tapered. No W33 appears, so the outer ring has no lubrication groove or feed holes.

What these specs mean in practice

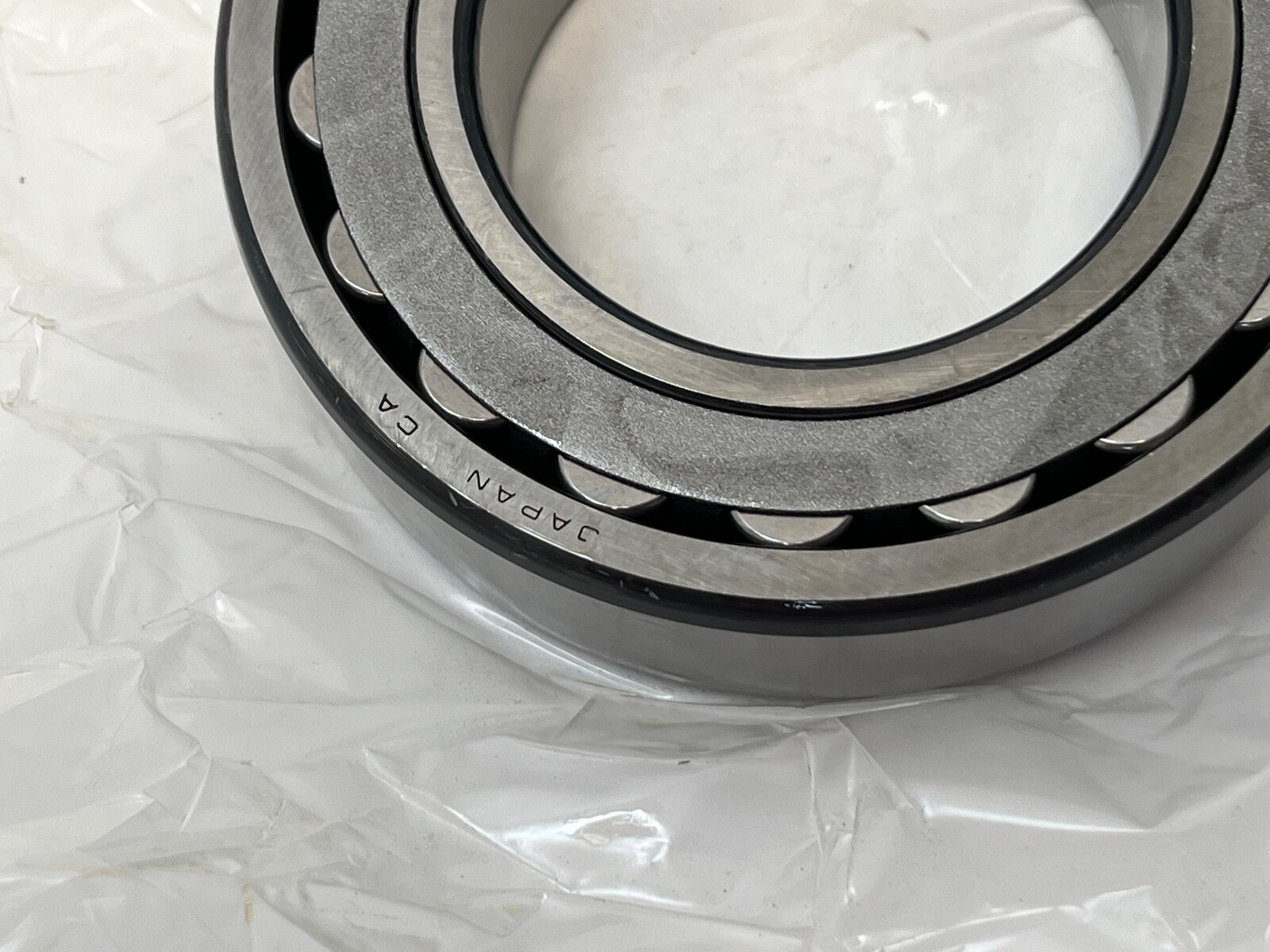

Double-row spherical rollers run on a common spherical outer raceway, so the bearing accommodates static and dynamic misalignment between shaft and housing while carrying heavy radial load and thrust in both directions. C4 clearance leaves extra room for thermal growth of the inner ring and for interference fits at both seats, which is what pairs with the TS3 stabilisation on hot running equipment. Dynamic rating 104 kN (23,380 lbf), static rating 107 kN (24,055 lbf), limiting speed 6,700 rpm.

Bore form

Straight bore. The bearing mounts directly on a 50 mm shaft seat with an interference fit, with no adapter sleeve in the assembly. The tapered-bore counterpart in this size is the 22210 K, which seats on an H310 adapter sleeve with a KM10 locknut and MB10 washer.

Quantity and configuration

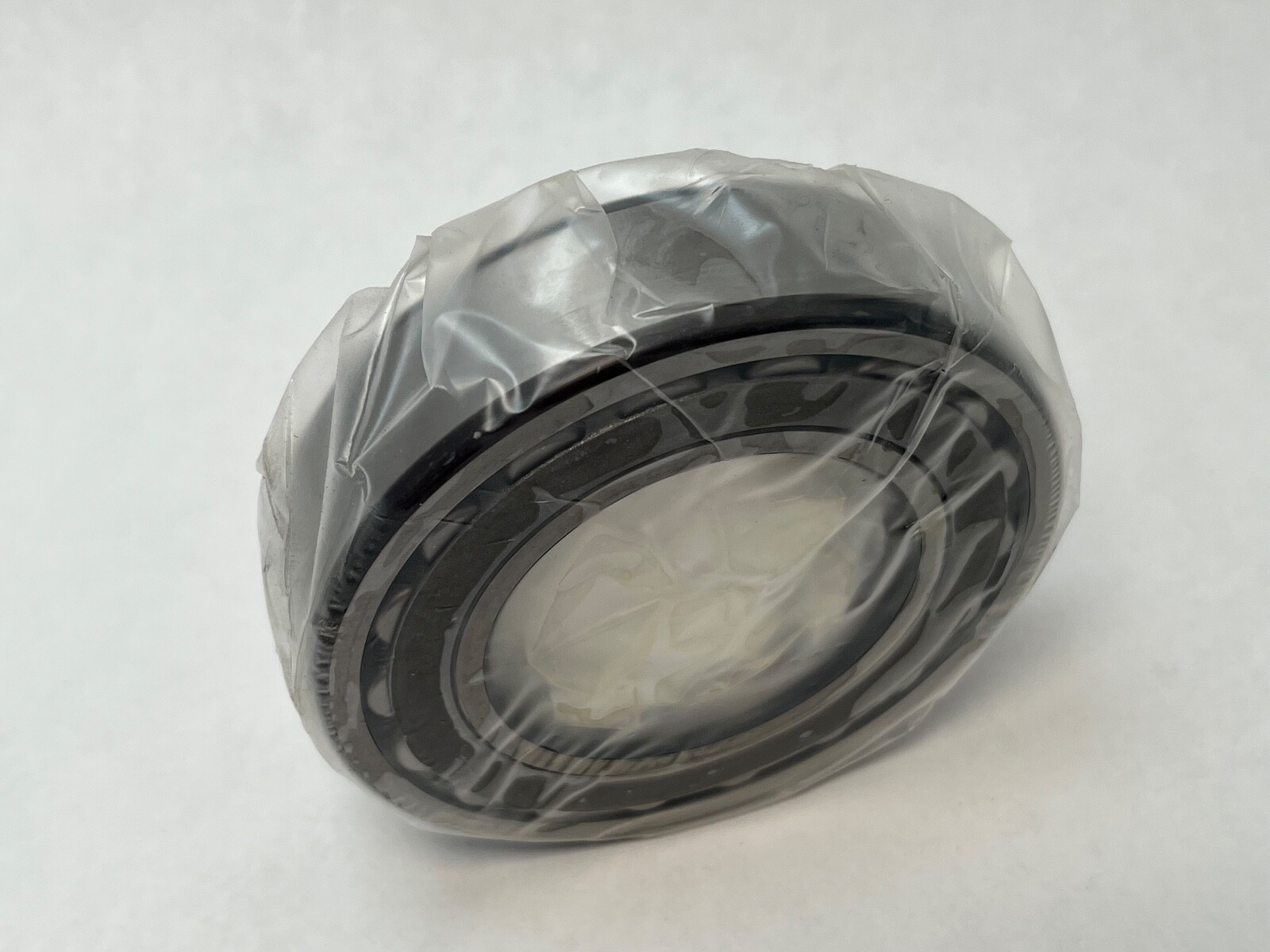

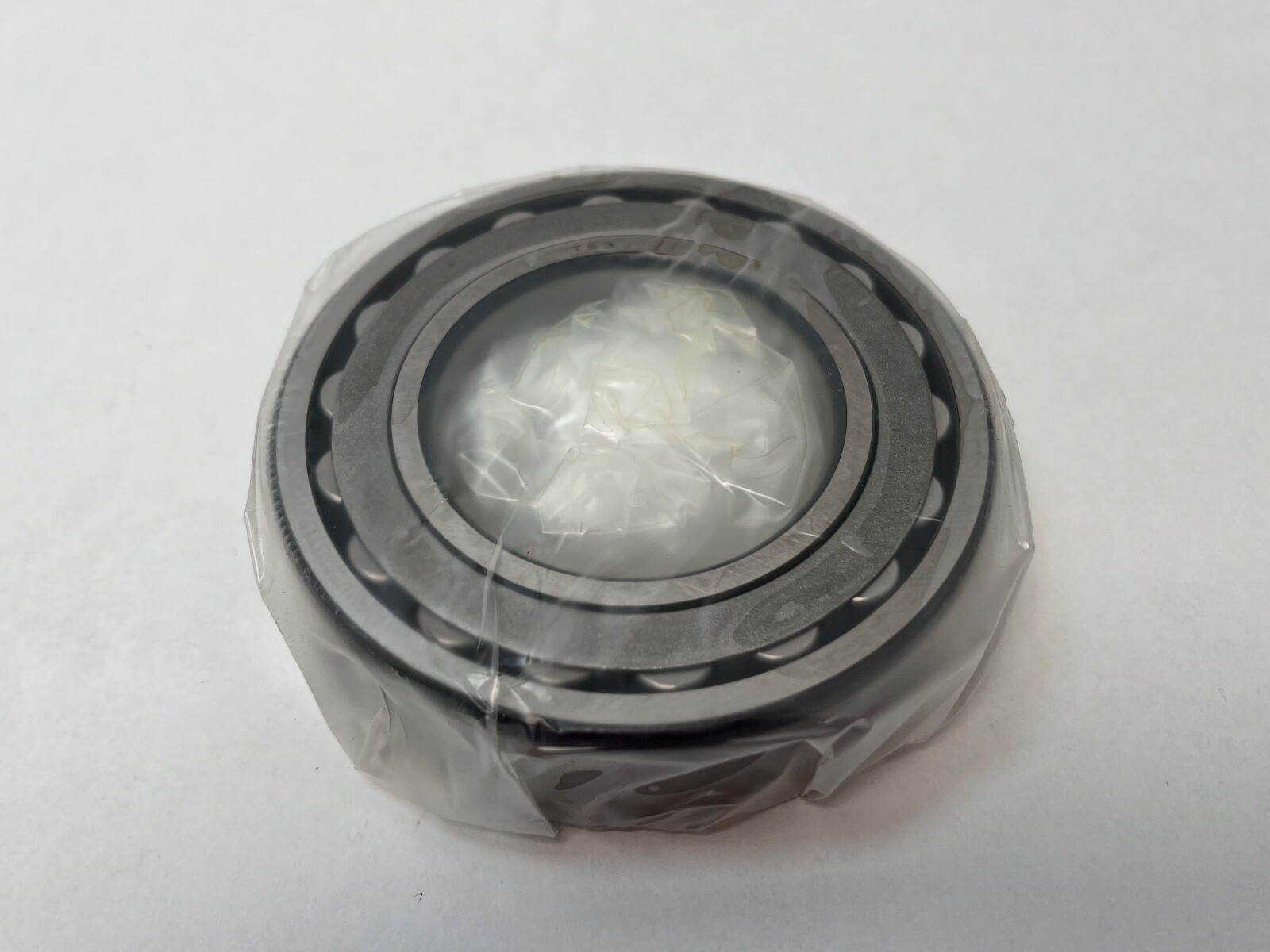

Sold as 1 Pc. Complete bearing: inner ring, roller and cage assembly, and outer ring.

Interchange guidance

Dimensionally interchangeable with any 22210 in the 50 x 90 x 23 mm envelope. Cage and clearance are the variables that matter on a substitution: an E or EA design carries a reinforced roller complement and a different cage, and a C3 part runs tighter than this C4. A W33 variant adds an outer-ring lubrication groove with three radial feed holes, which requires a housing arranged to feed it.
