LeuzePRK 96K/P-1360-21Polarized Retro-Reflective Photoelectric Sensor — 0.3-8 m Range, Red LED, 10-30 V DC, 2 PNP Outputs, IP67

Condition: New

Availability:

2 in stock

Leuze PRK 96K/P-1360-21 polarized retro-reflective sensor, 0.3 to 8 m range, red LED, 10-30 V DC, two PNP outputs, terminal, IP67. Leuze part 50025163.

Same day shipment

List Price

$283.99

2 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

2 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandLeuze
MPNPRK 96K/P-1360-21
Model50025163

Technical Specifications

TypePolarized Retro-Reflective Photoelectric Sensor
Base NumberPRK 96K
Industry Termsretro-reflective sensor, polarized reflex sensor, photo eye, photoelectric switch, reflector sensor, retroreflective light barrier
Common MisspellingsLeuze Electronic PRK96, Leuse PRK 96K, Luze PRK96K, PRK-96-K/P
Mpn VariantsPRK 96K/P-1360-21, PRK-96K/P-1360-21, PRK96K/P-1360-21, PRK96K/P136021, PRK 96 K/P-1360-21, PRK96KP136021, 50025163
Compatible With ReplacesLeuze successors: PRK 96M/P-3360-21 (50082065), PRK49C/4P-TB (50134446)
Additional AttributesOperating Range: 0.3-8 m; Operating Range Limit: 0.1-10 m; Light Source: Red LED; Supply Voltage: 10-30 V DC; Outputs: 2 x PNP (light/dark switching); Switching Frequency: 1,000 Hz; Connection: Terminal, 4-pin; Dimensions: 30 x 90 x 70 mm; Housing: PC plastic; Protection: IP67; Protection Class: II; Approvals: c UL US; Leuze Part No.: 50025163
Min Temp-40 °C
Series96
Max Temp55 °C
Item Weight150 g (0.33 lb)
Application TypesObject detection on conveyors; packaging machinery; material handling; industrial automation

Cross-References

Cross Reference 1Leuze PRK 96M/P-3360-21 – successor, 0.3 to 15 m range
Cross Reference 2Leuze PRK49C/4P-TB – successor, 0.1 to 24 m range
Seller Part Number: B-AE4B3#DIEYVC

Product Description

What this part is:

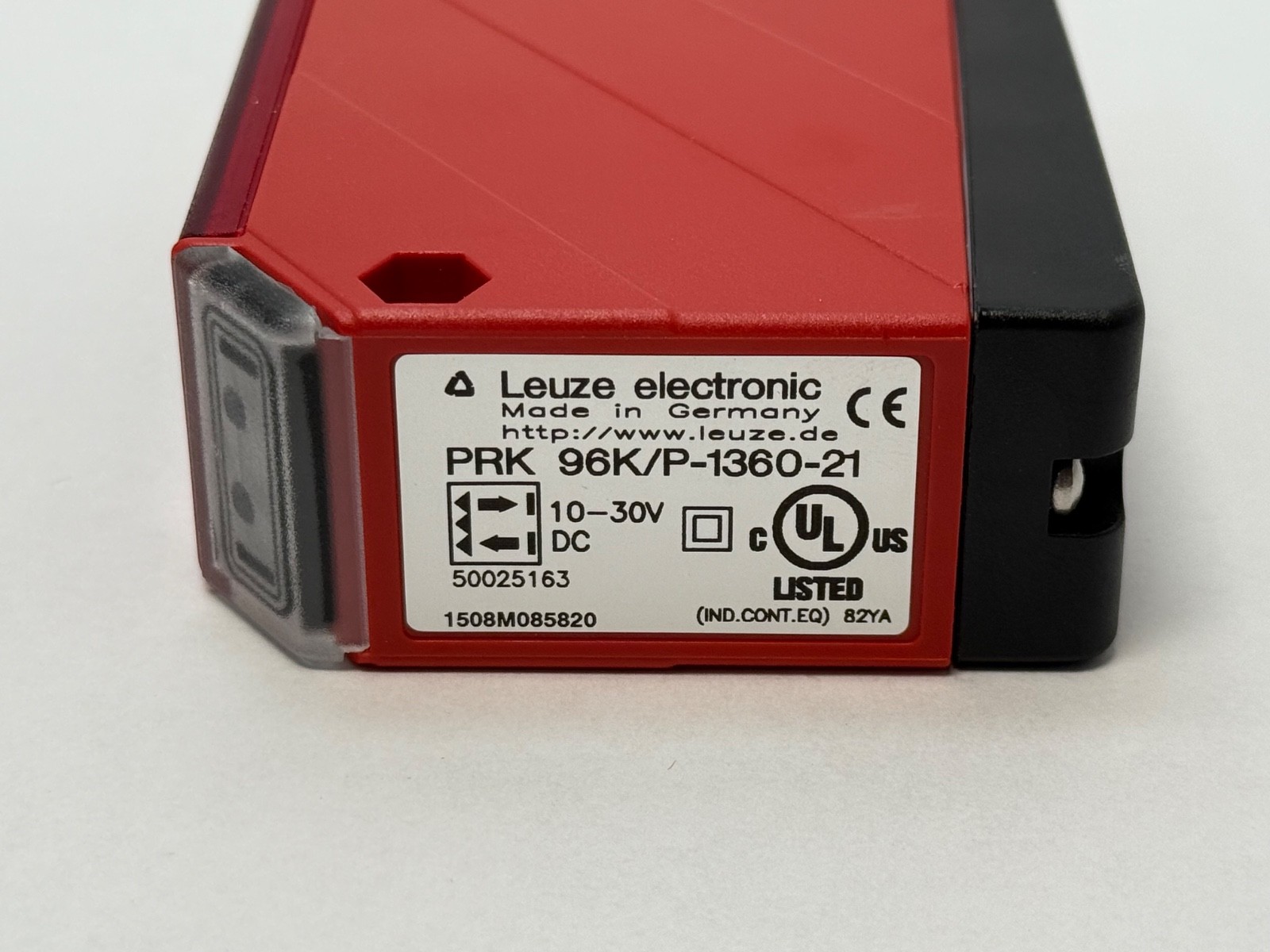

Leuze PRK 96K/P-1360-21 polarized retro-reflective photoelectric sensor, Leuze part number 50025163. Cubic Series 96 sensor with a red LED light source, two PNP outputs and terminal connection. Unit Quantity: 1 Pc. Condition: New.

Decoding the designation:

PRK — Leuze polarized retro-reflective photoelectric sensor.

96K — Series 96 cubic housing, 30 x 90 x 70 mm.

P — PNP transistor switching outputs.

50025163 — Leuze part number for this exact version.

Specifications:

Operating Range: 0.3 to 8 m (guaranteed). Operating Range Limit: 0.1 to 10 m (typical). Light Source: LED, red. Supply Voltage: 10 to 30 V DC. Residual Ripple: 0 to 15 % of UB. Open-Circuit Current: 0 to 50 mA. Switching Outputs: 2, PNP transistor. Output 1: light switching. Output 2: dark switching. Switching Frequency: 1,000 Hz. Connection: Terminal, 4-pin. Operational Controls: 270° potentiometer. Display: LED. Degree of Protection: IP67. Protection Class: II. Approvals: c UL US. Standard: IEC 60947-5-2. Ambient Temperature, Operation: -40 to 55 °C.

Dimensions and mounting:

Dimensions (W x H x L): 30 mm x 90 mm x 70 mm. Housing Material: Plastic, PC. Lens Cover: Plastic. Net Weight: 150 g. Customs Tariff Number: 85365019.

Compatibility and replacement:

Leuze lists the PRK 96K/P-1360-21 as a spare-part article. Leuze successor devices: PRK 96M/P-3360-21 (part number 50082065, 0.3 to 15 m) and PRK49C/4P-TB (part number 50134446, 0.1 to 24 m). The PRK 96K/P-1360-41 (50025165) is a sibling version of the same series.

Frequently asked questions:

What is the operating range of the Leuze PRK 96K/P-1360-21?

Operating Range: 0.3 to 8 m (guaranteed). Operating Range Limit: 0.1 to 10 m (typical).

What supply voltage and outputs does it have?

Supply Voltage: 10 to 30 V DC. Switching Outputs: 2, PNP transistor; output 1 light switching, output 2 dark switching.

What is the Leuze part number and successor?

Leuze part number 50025163. Leuze successor devices: PRK 96M/P-3360-21 (50082065) and PRK49C/4P-TB (50134446).
