Availability:
3 in stock
ifm TP3237 evaluation unit for Pt100/Pt1000 sensors, scalable -50 to 300 °C, 4-20 mA output, IO-Link, 20-32 V DC, M12, IP67. New surplus, one piece.
List Price
$113.60
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | IFM |
|---|---|
| Model | TP 3237 |
| Bundle Description | No |
|---|---|
| Sensor Function | Temperature |
| Industry Terms | RTD transmitter, Pt100 converter, temperature signal converter, 4-20 mA transmitter, in-line temperature transmitter, IO-Link temperature evaluation unit |
| Common Misspellings | IFM TP 3237, ifm efector TP3237, TP3273, TP3227 |
| Mpn Variants | TP3237, TP 3237, TP-3237, TP-CEC-A-ZVG/US |
| Additional Attributes | Input: Pt100/Pt1000; Measuring Range: -50 to 300 C (scalable, factory 0-100 C); Output: 4-20 mA, Rmax 300 ohm; Accuracy: +/-0.3 K + 0.1 % of span; IO-Link: COM2, rev 1.0; Operating Voltage: 20-32 V DC; Connection: M12, gold-plated contacts; Protection: IP67; MTTF: 449 years |
| Min Temp | -25 °C |
| Series | TP |
| Max Temp | 70 °C |
| Type | Temperature Transmitter |
| Item Weight | 0.039 kg (0.09 lb) |

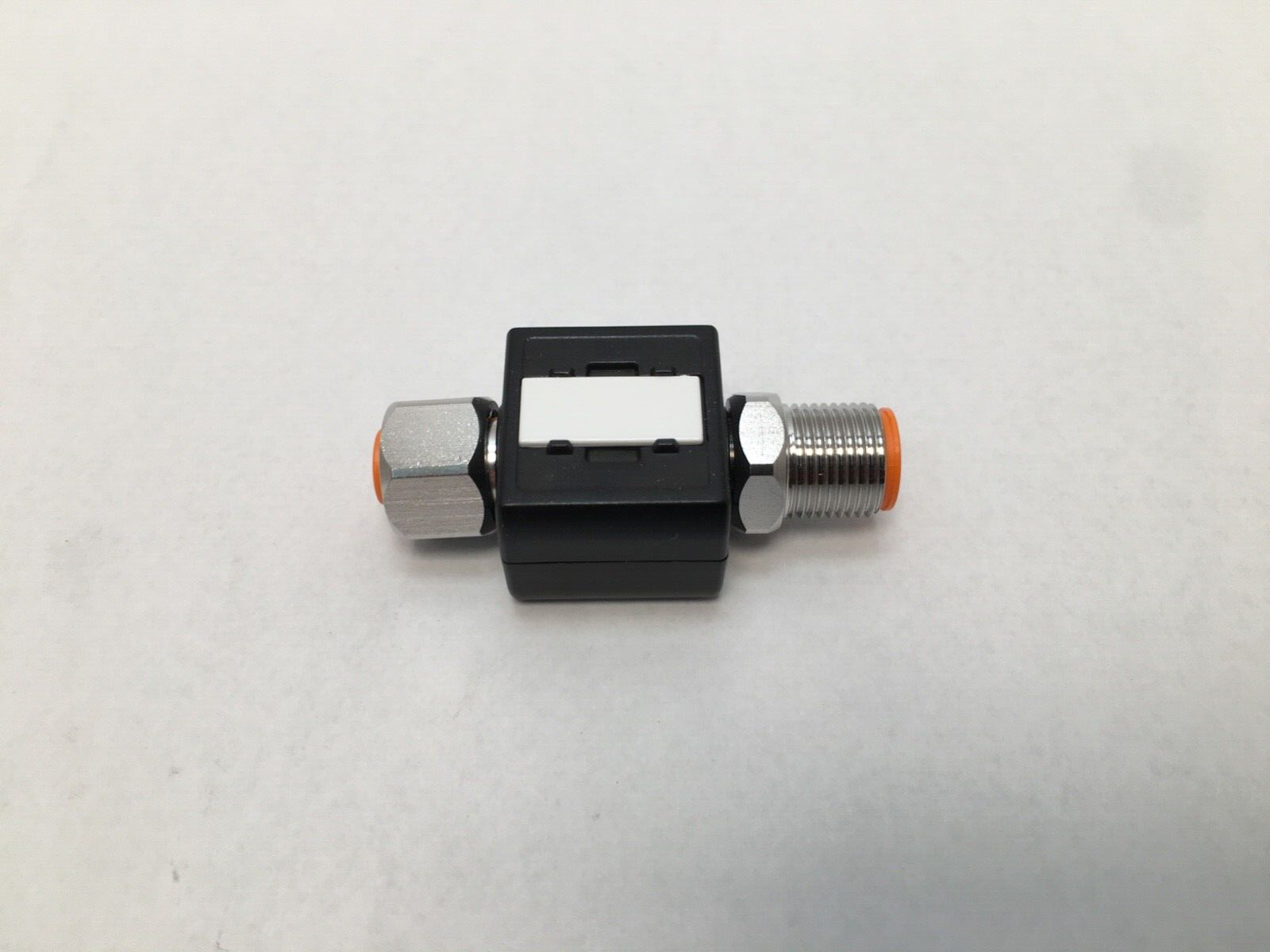

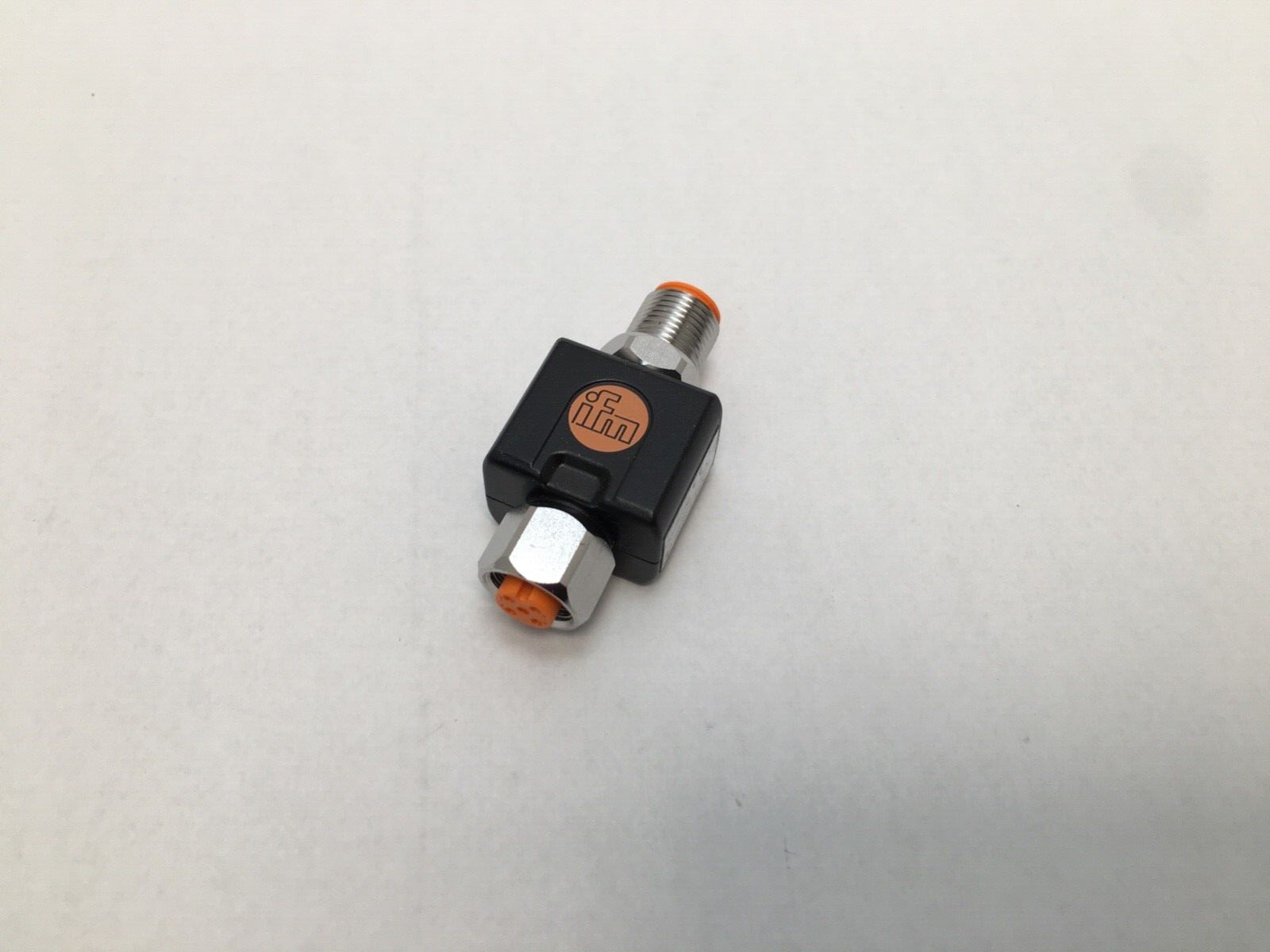

ifm efector TP3237 evaluation unit for Pt100 and Pt1000 temperature sensors. An in-line measured-signal converter with M12 connectors that turns an RTD signal into a scalable 4–20 mA analogue output, with IO-Link communication.

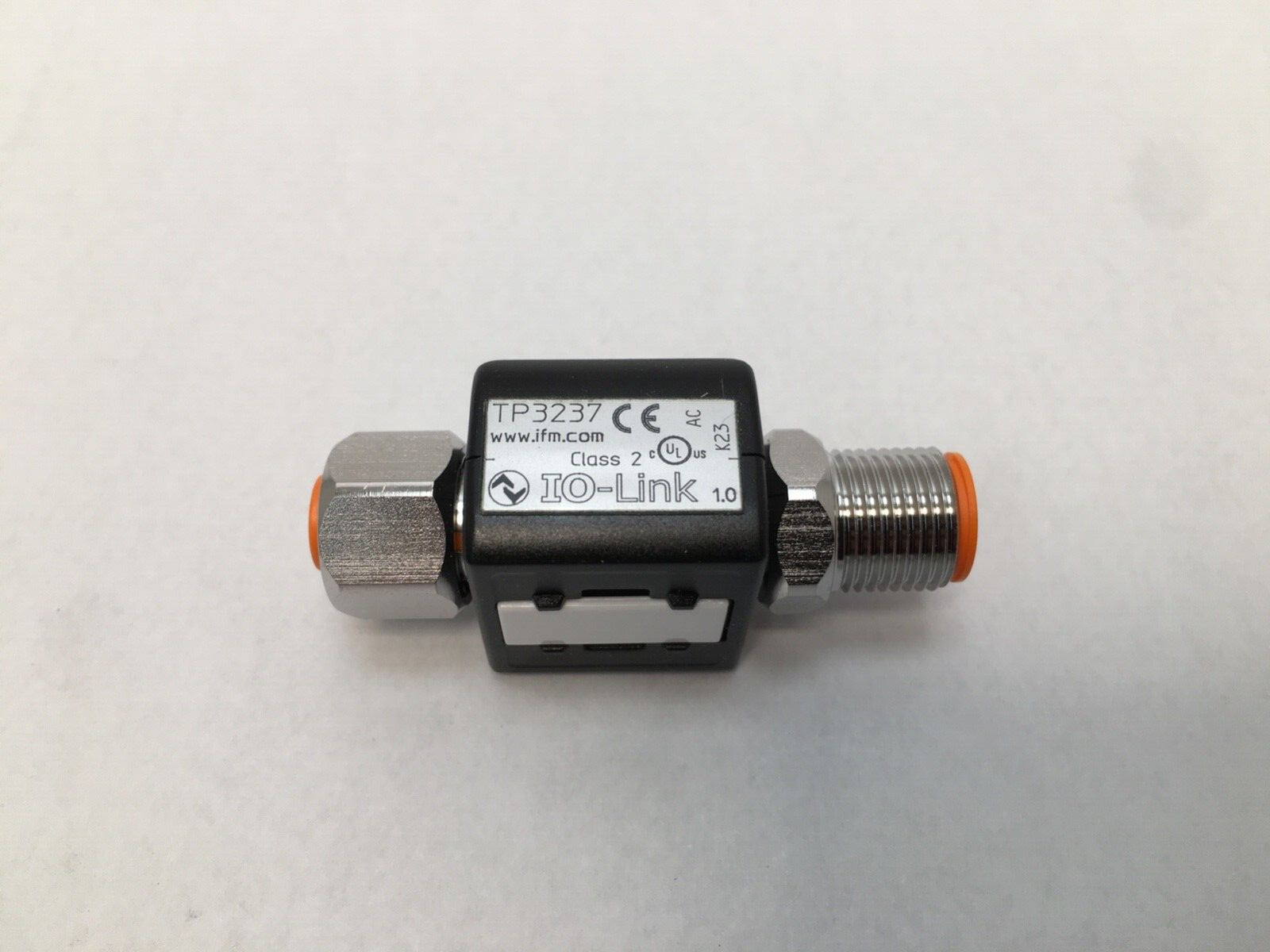

TP3237 — ifm article number for this exact version: Pt100/Pt1000 input, 4–20 mA output, IO-Link, M12.
Input: Pt100 and Pt1000 measuring elements, two-wire or four-wire sensor. Measuring Range: -50 to 300 °C (-58 to 572 °F), scalable. Factory Setting: 0 to 100 °C. Output: Analogue 4–20 mA, Rmax 300 Ω. Accuracy, Analogue Output: ±0.3 K + (±0.1 % of set span). Temperature Coefficient: 0.1 % of span per 10 K. Power-On Delay: 1 s. Measuring Cycle: 100 ms. Integrated Watchdog: Yes.
Operating Voltage: 20 to 32 V DC. Protection Class: III. Reverse Polarity Protection: Yes. Short-Circuit Protection: Pulsed. Overload Protection: Yes. Wiring: operation as 2-wire temperature transmitter, or as 3-wire unit with IO-Link communication. IO-Link: Device, COM2 (38.4 kBaud), revision 1.0.
Ambient Temperature: -25 to 70 °C. Storage Temperature: -40 to 85 °C. Protection: IP67. EMC: EN 61326-1. Shock Resistance: 50 g (11 ms). Vibration Resistance: 20 g (10–2000 Hz). MTTF: 449 years. Housing Materials: PA PACM 12 (Trogamid), PET, FPM (Viton) seal, 316L / 1.4404 stainless steel nut, TPU connector. Connection: M12 connector, gold-plated contacts. Weight: 0.039 kg. Approval note: cULus, Class 2 source required.
The 2-wire loop-powered mode lets the unit sit in the cable run of an existing RTD and feed a standard 4–20 mA PLC input directly.

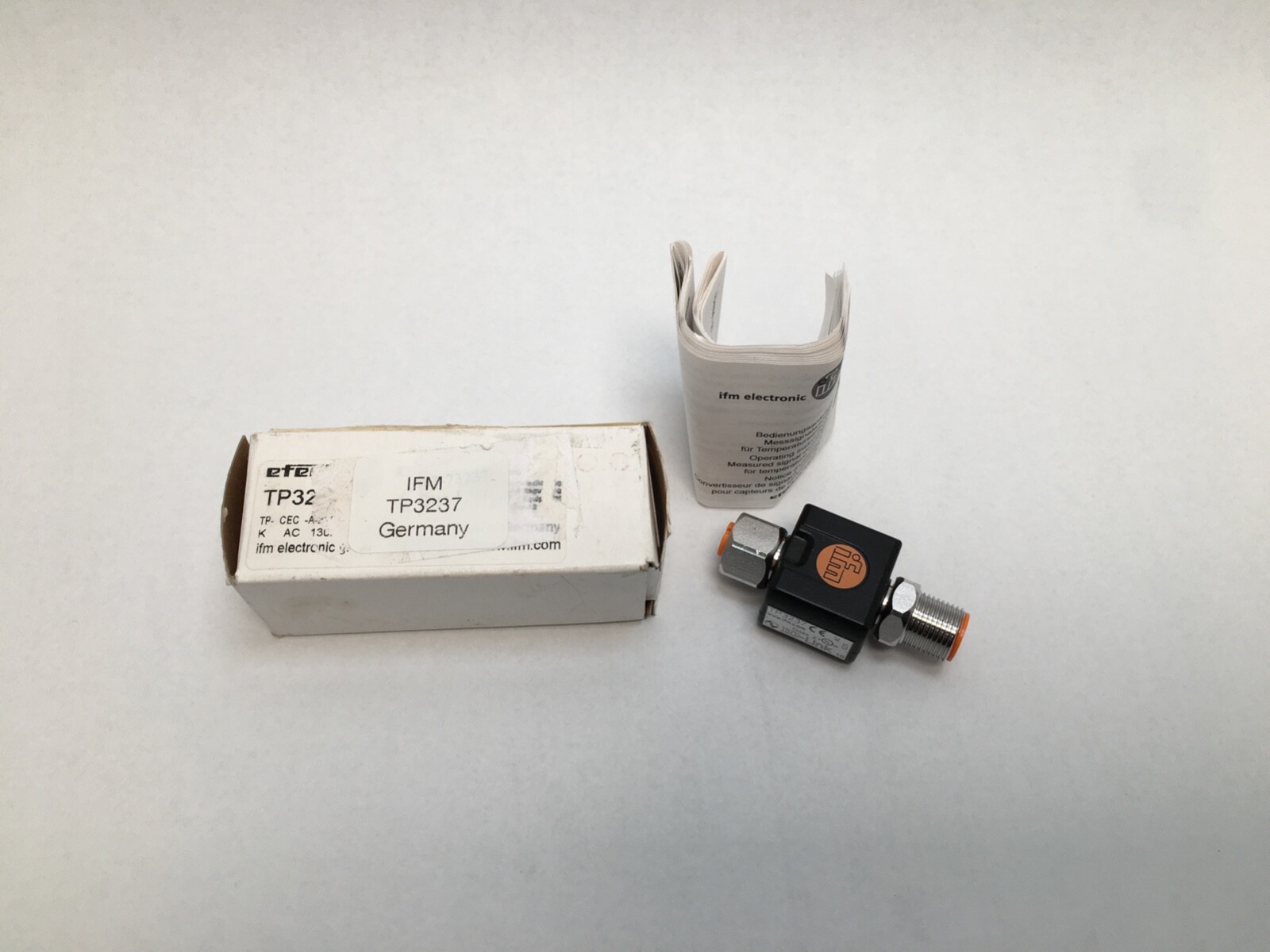

Unit Quantity: 1 Pc. Condition: New.

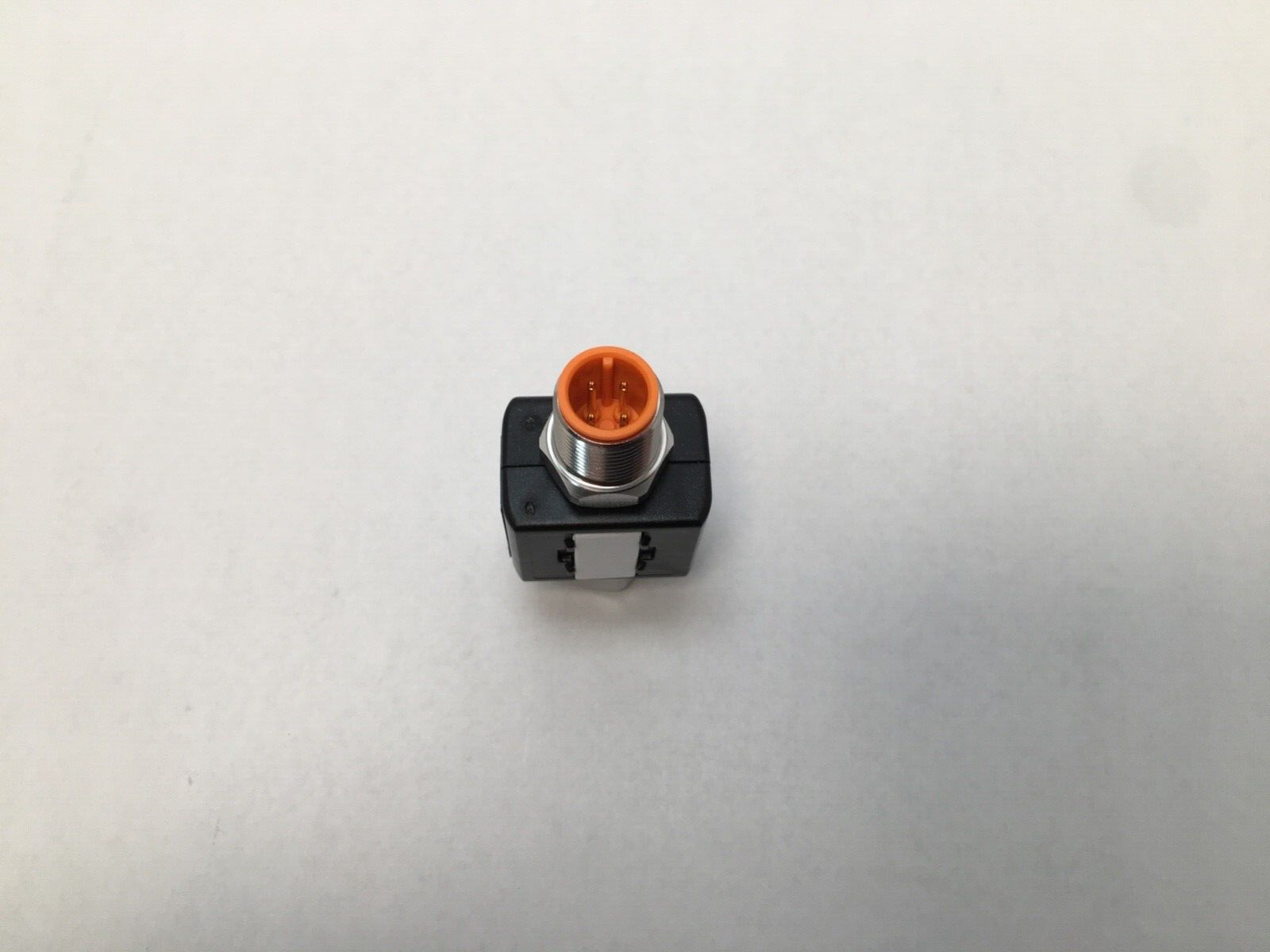

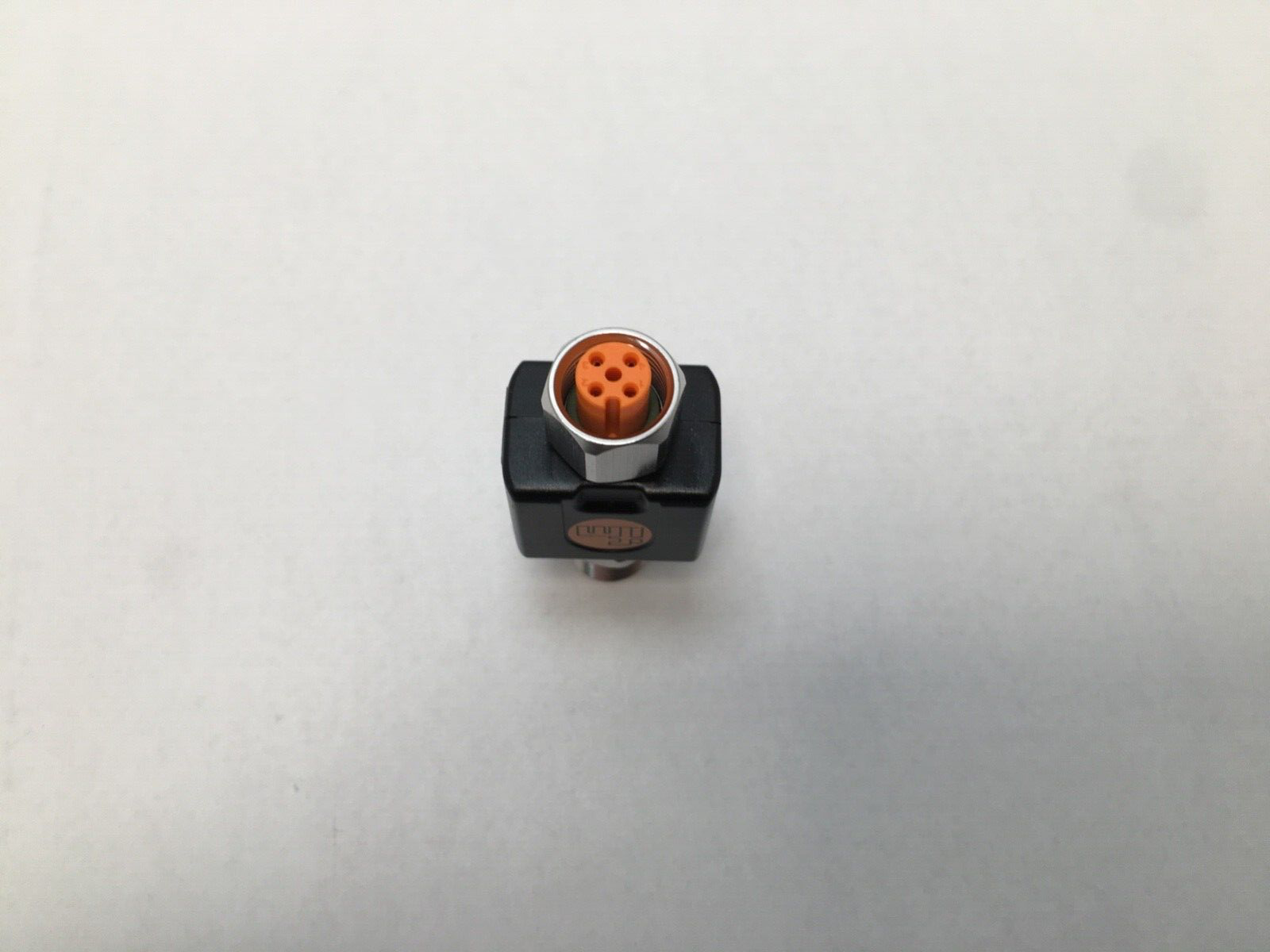

Order reference: ifm TP3237. The temperature sensor connects separately to connector 2; supply and output run on connector 1.
