Emotron01-3738-00AC Variable Speed Drive – 1.5 kW / 2 HP, 1-Phase 200-240 VAC Input, 3-Phase Output, 7.5 A, IP20

Condition: New

Availability:

1 in stock

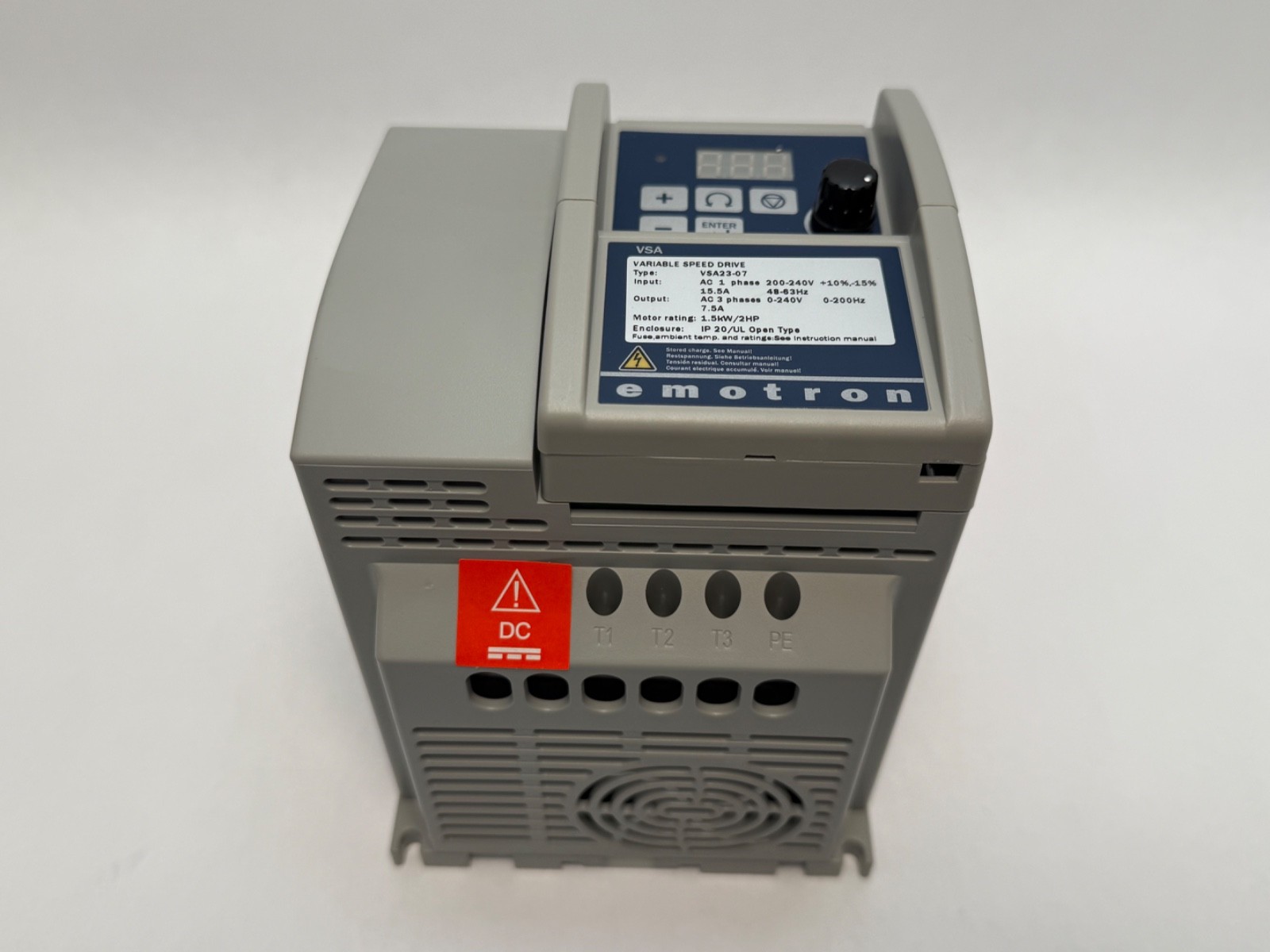

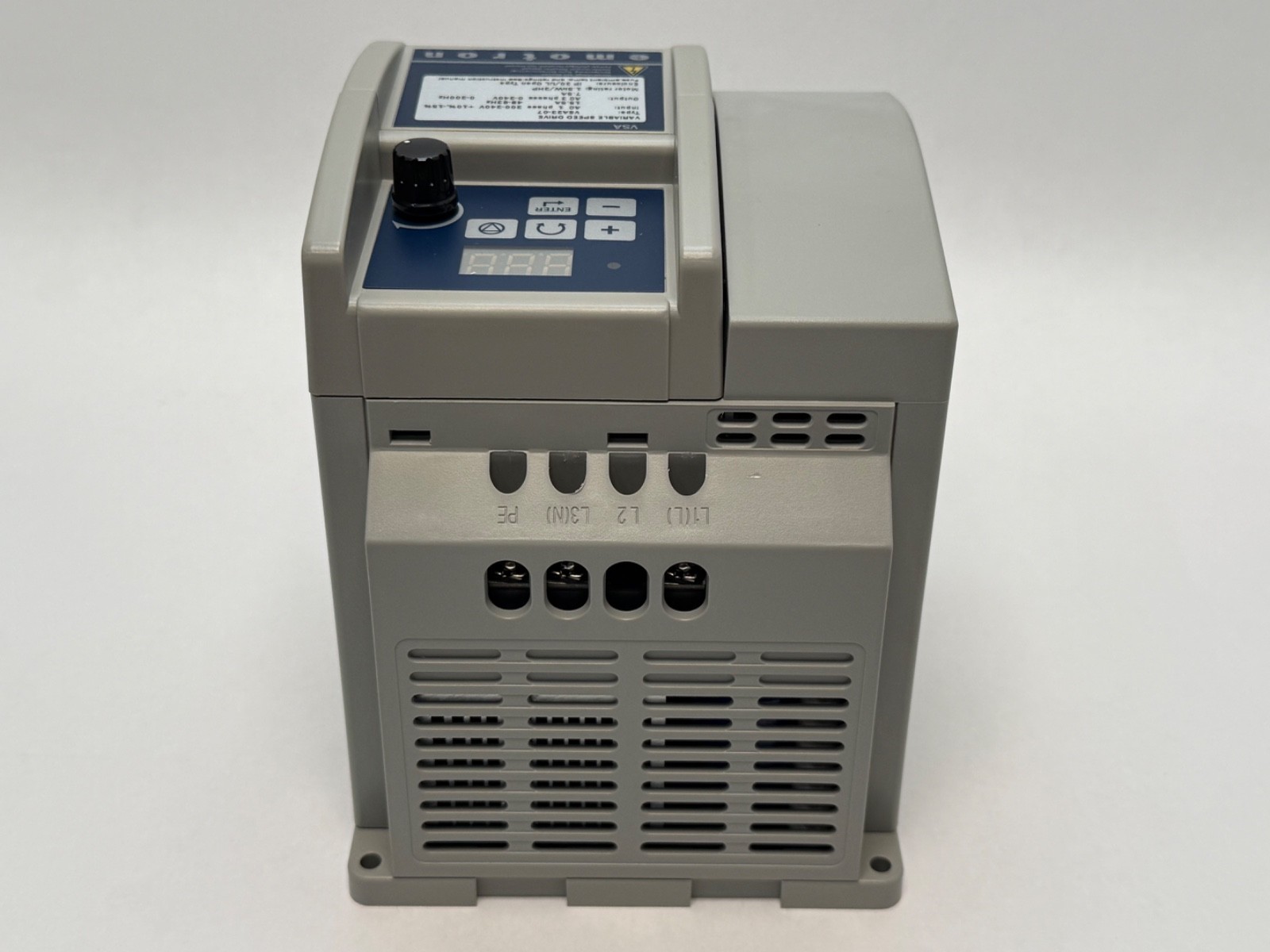

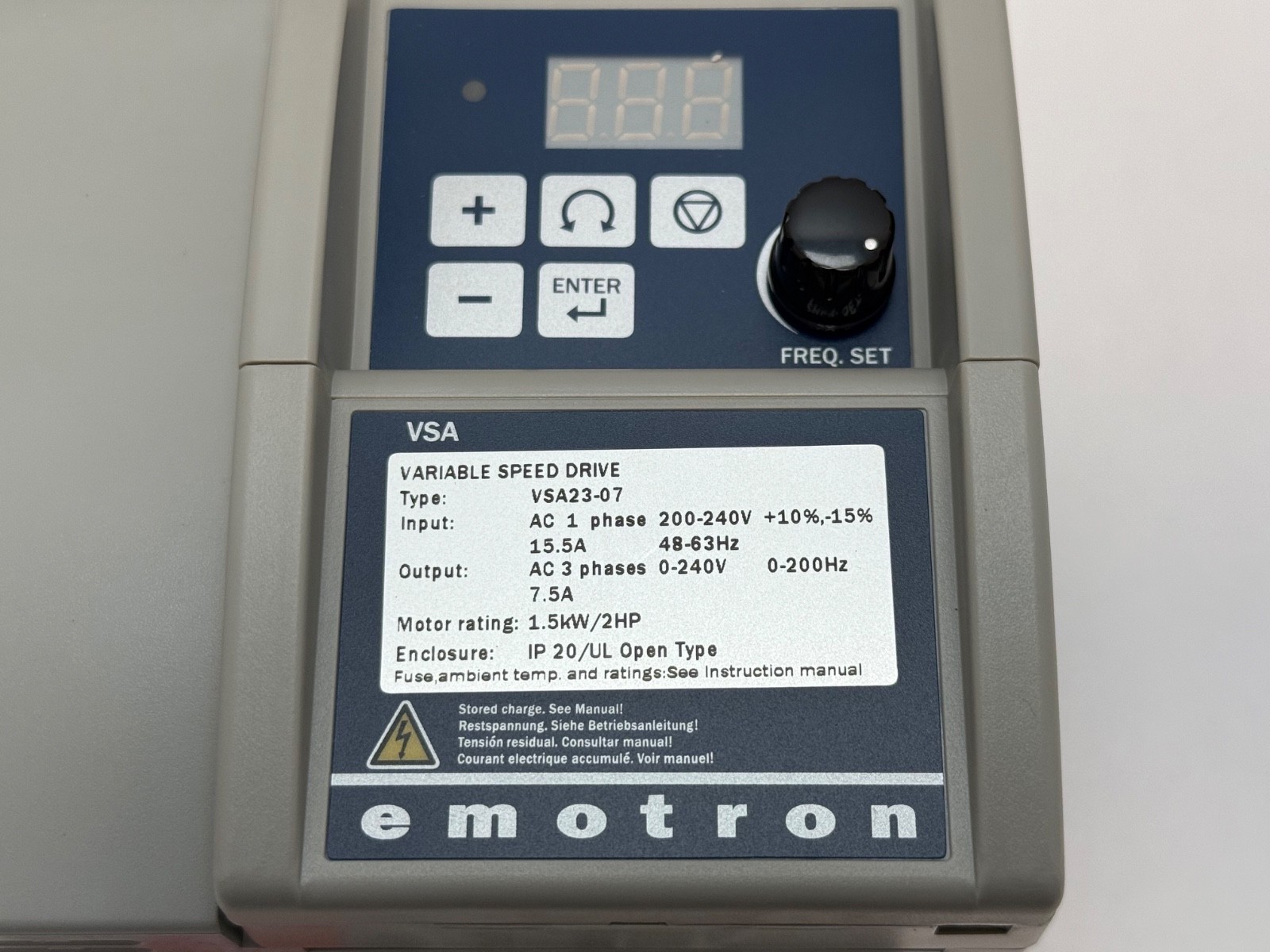

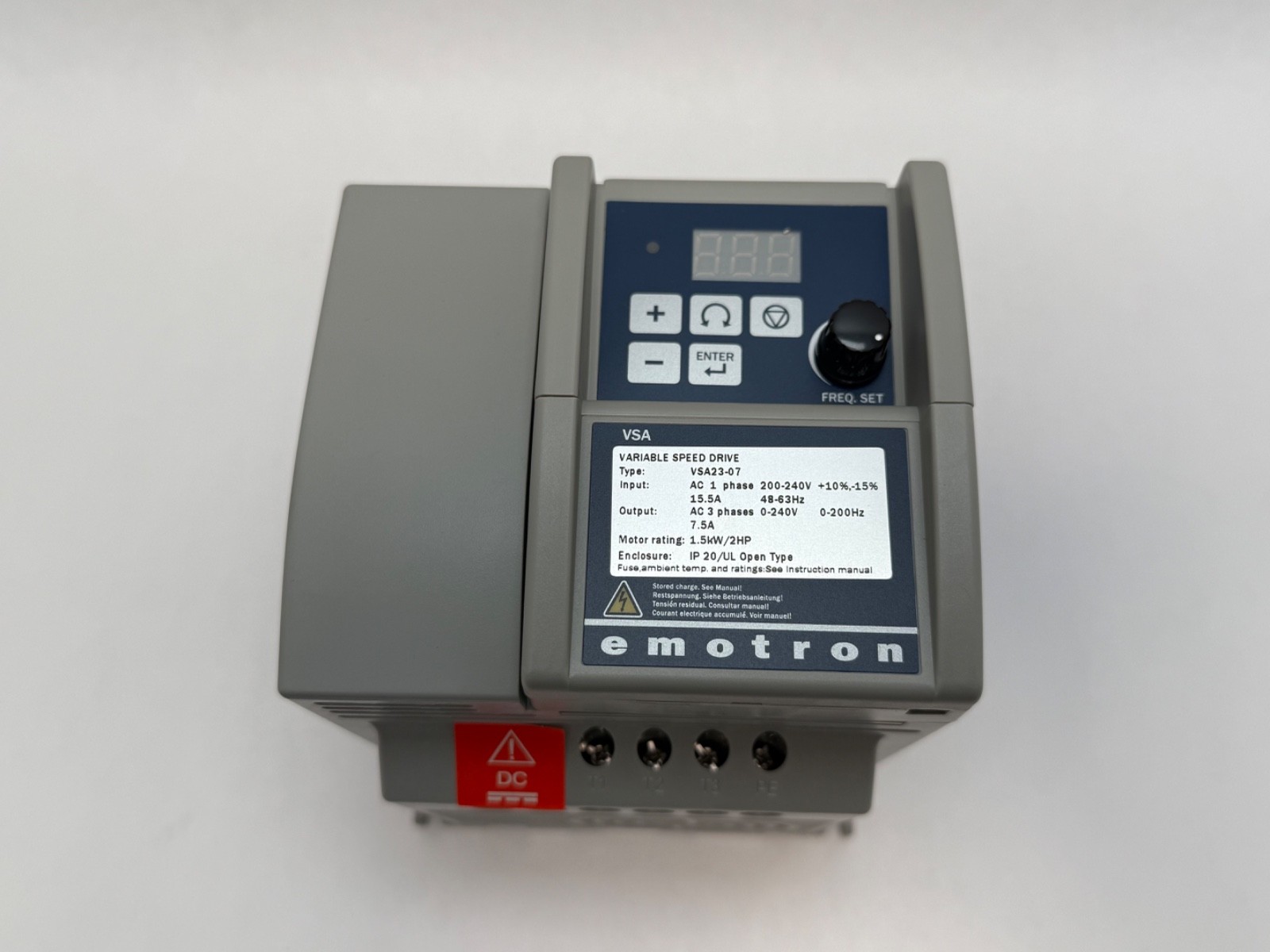

Emotron VSA23-07 AC variable speed drive, 1.5 kW / 2 HP, single-phase 200-240 VAC input, three-phase 230 V output, 7.5 A rated, IP20. Part 01-3738-00.

Same day shipment

List Price

$362.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandEmotron
MPN01-3738-00
ModelVSA23-07

Technical Specifications

EnclosureIP20
Power Rating1.5 KW
Number Of Phases1-Phase input, 3-Phase output
Input Voltage200-240V
Base NumberVSA23
Industry TermsVFD, AC drive, frequency inverter, variable frequency drive, motor speed controller
Common MisspellingsEmotronic, VSA2307, VSA23-7
Application TypesPumps, fans, compressors, mixers, conveyors
Mpn Variants01-3738-00, 01373800, VSA23-07, VSA2307, VSA 23-07
Additional AttributesPower: 1.5 kW / 2 HP; Input: 1-phase 200-240 VAC 50/60 Hz; Output: 3-phase 230 V; Rated Current: 7.5 A; Control: V/F or sensorless vector; Output Frequency: 0-200 Hz; Overload: 150% 60 s; Enclosure: IP20; Dimensions HxWxD: 132 x 118 x 148 mm; Approvals: CE, UL, cUL
Seller Part Number: B-BE3#4J0N4W

Product Description

What this part is:

Emotron VSA23-07 (part number 01-3738-00) is a compact AC variable speed drive from the Emotron VSA series for three-phase induction motors. Single-phase 200–240 V AC input, three-phase 230 V output, 1.5 kW (2 HP), 7.5 A rated current, IP20 enclosure. One drive.

Decoding the designation:

VSA — Emotron VSA compact variable speed drive series.

23 — single-phase 200–240 V AC supply.

07 — 1.5 kW / 2 HP, 7.5 A size.

Specifications:

Power Rating: 1.5 kW (2 HP). Input: 1-phase, 200–240 V AC, 50/60 Hz. Output: 3-phase, 230 V. Rated Current: 7.5 A. Control Mode: V/F or sensorless vector. Output Frequency: 0–200 Hz. Start Torque: 100% at 3 Hz. Overload: 150% for 60 s. Digital Inputs: 4, NPN/PNP selectable. Analog Input: 1 (0–10 V / 4–20 mA). Communication: RS232, RS485, Profibus option. EMC: built-in filter for first environment, unrestricted distribution. Approvals: CE, UL, cUL. Enclosure: IP20.

Dimensions and mounting:

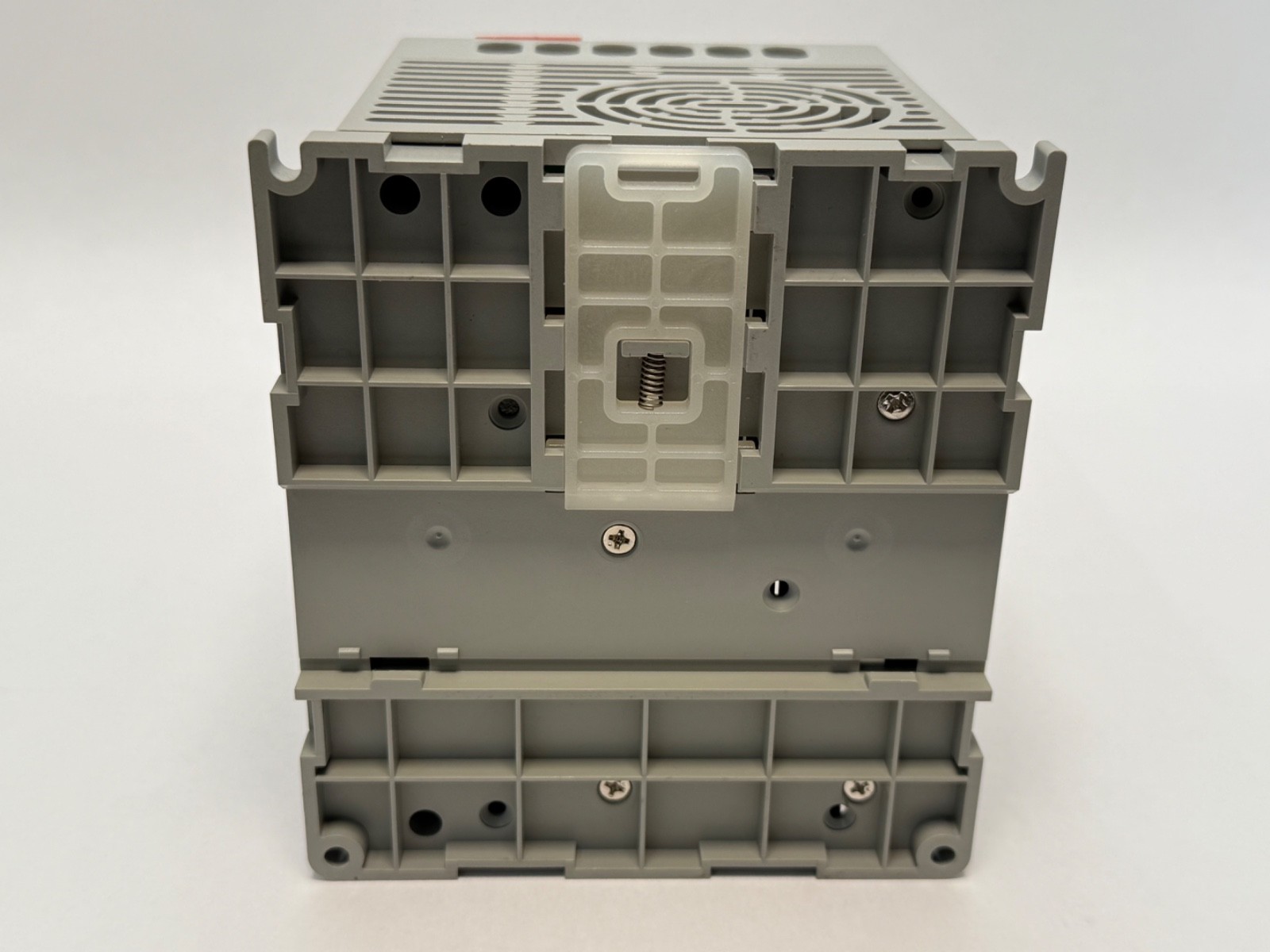

Dimensions (H x W x D): 132 x 118 x 148 mm. Mounting: DIN rail or screw. Operating Temperature: −10 to 50 °C.

Frequently asked questions:

What is the Emotron VSA23-07?

It is a compact AC variable speed drive, part number 01-3738-00, rated 1.5 kW (2 HP) and 7.5 A, with IP20 enclosure.

What supply does it take and what motor does it drive?

Input is single-phase 200–240 V AC, 50/60 Hz. Output is three-phase 230 V for a three-phase induction motor.

What control and communication does it offer?

Control mode is V/F or sensorless vector, output frequency 0–200 Hz, 4 digital inputs, 1 analog input, and RS232, RS485 or optional Profibus communication.
