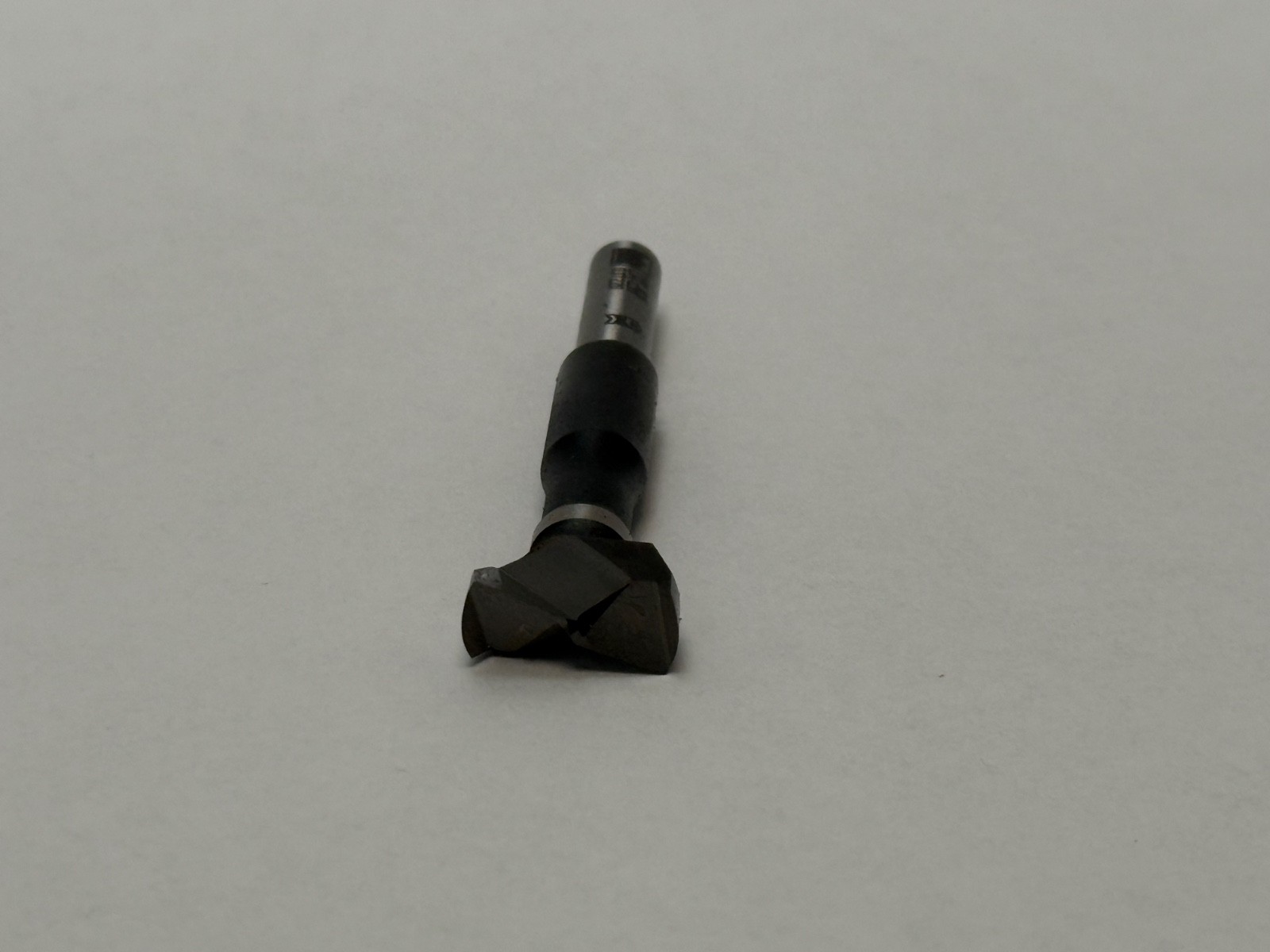

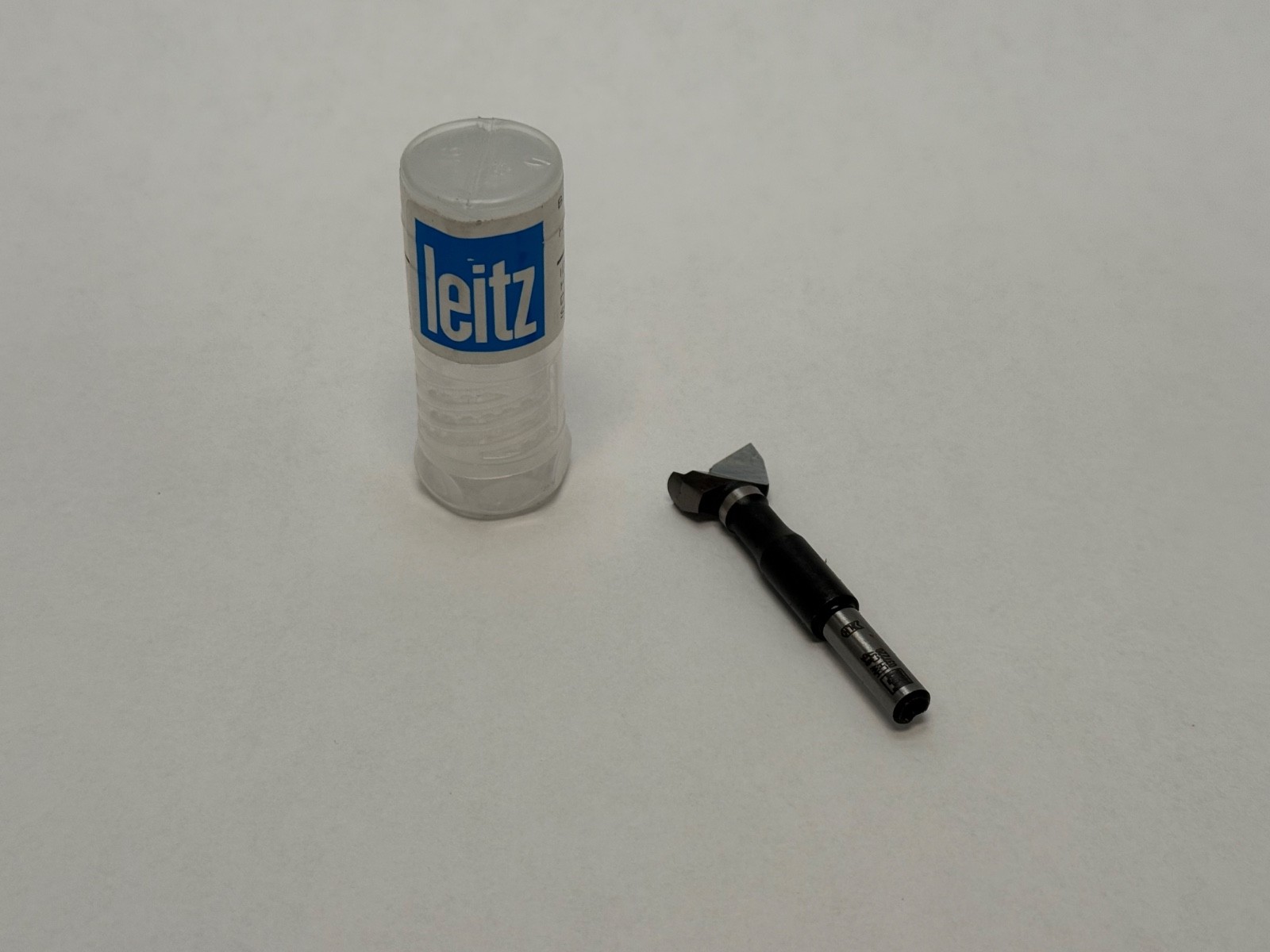

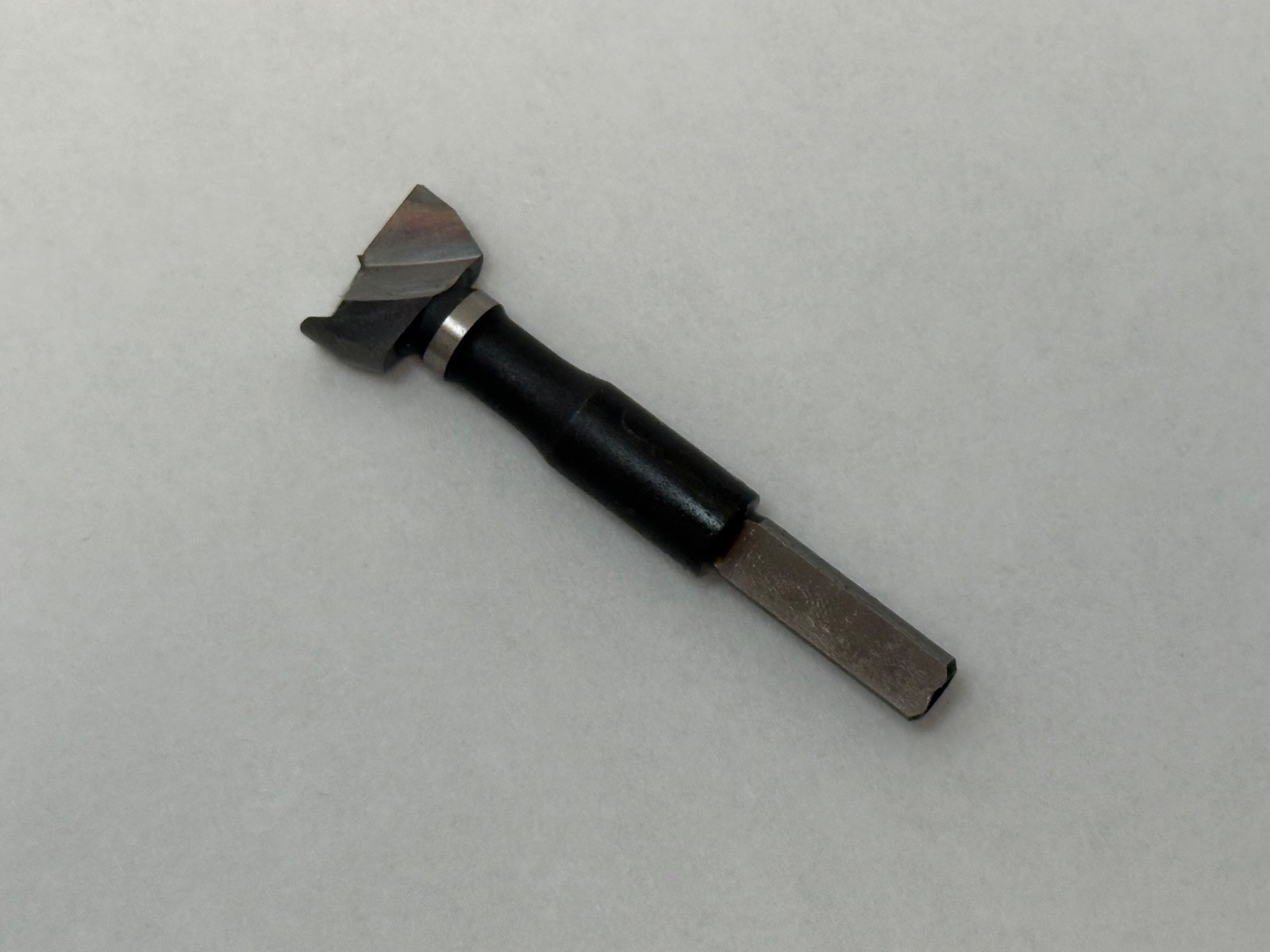

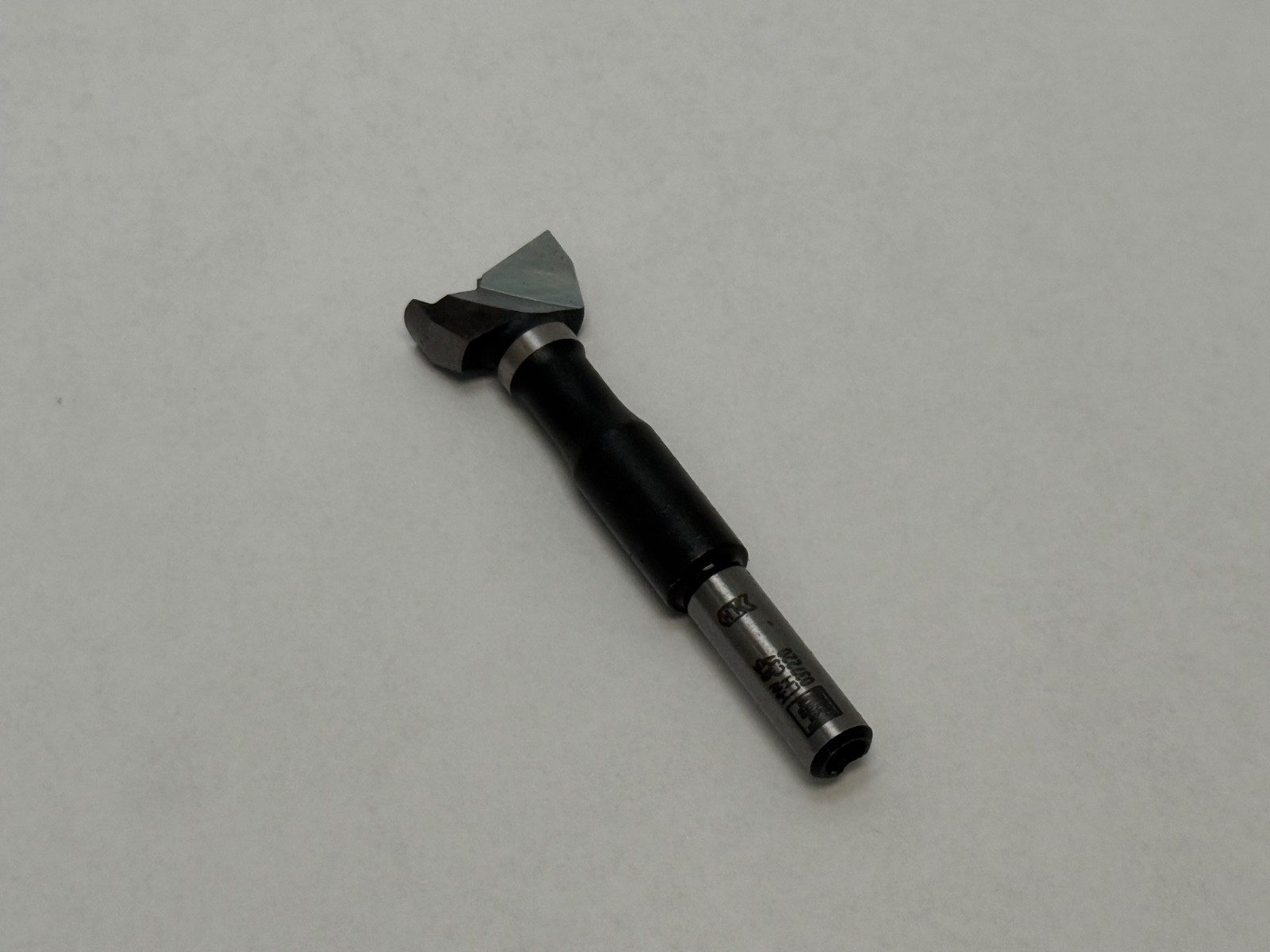

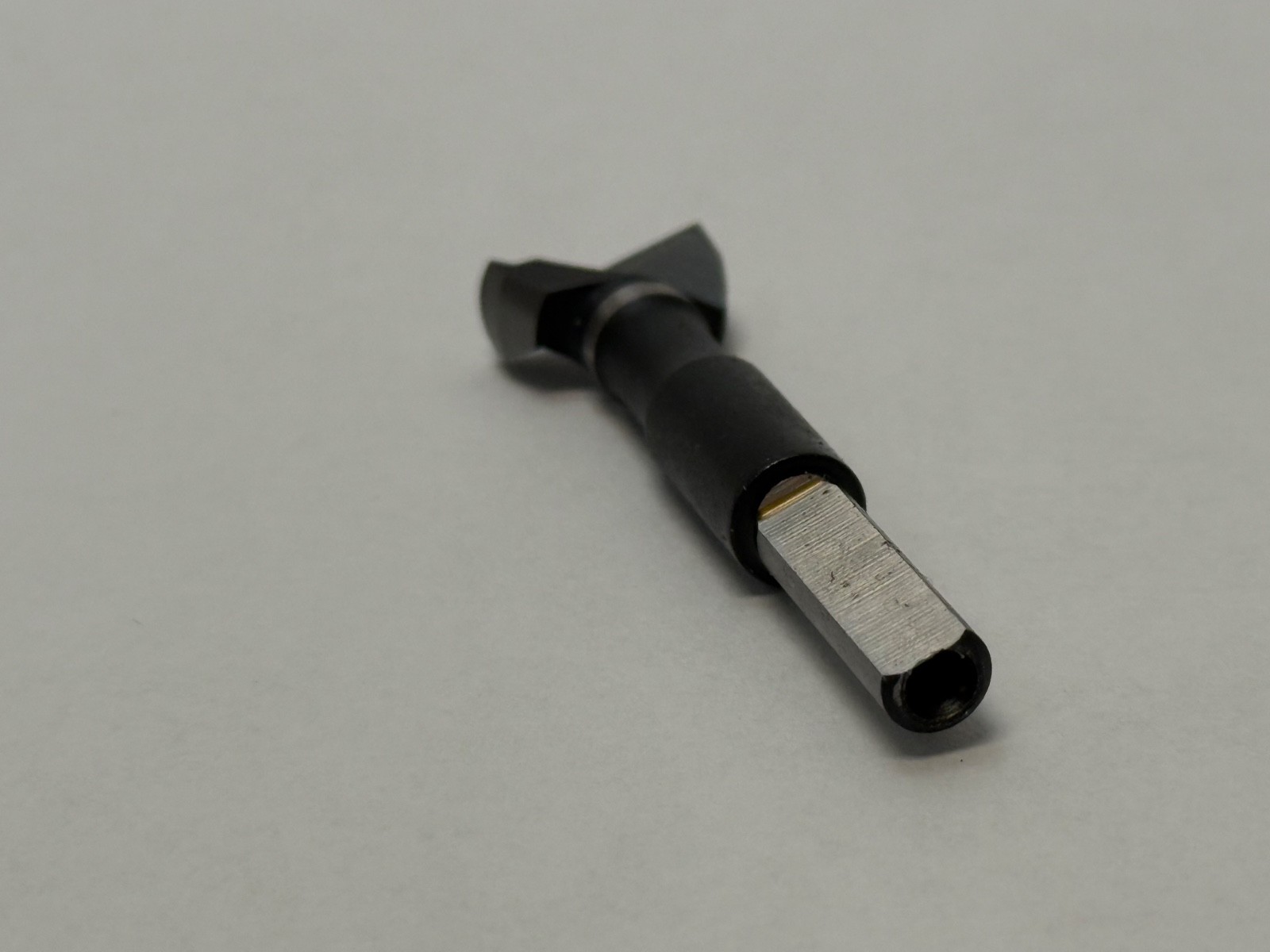

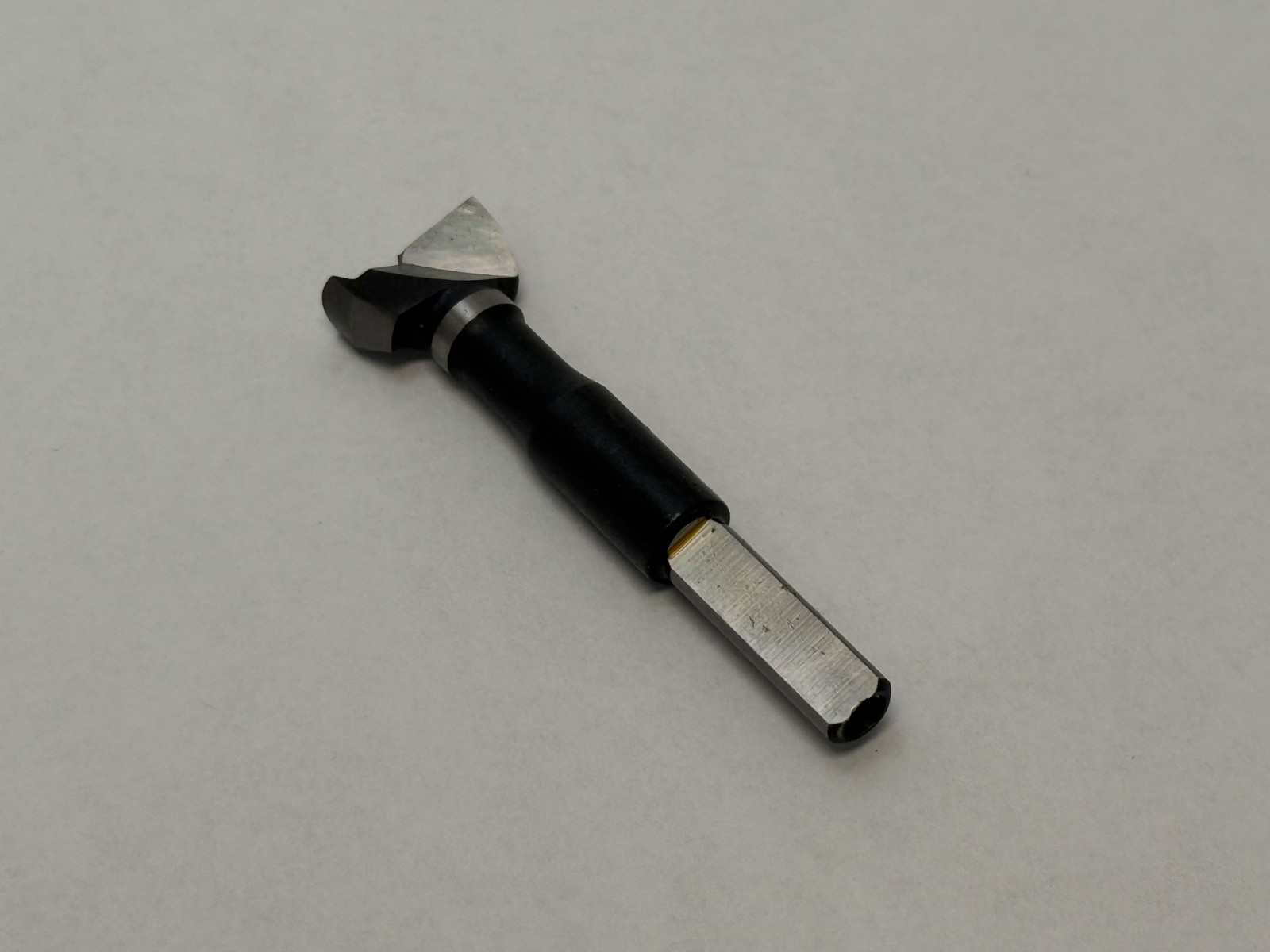

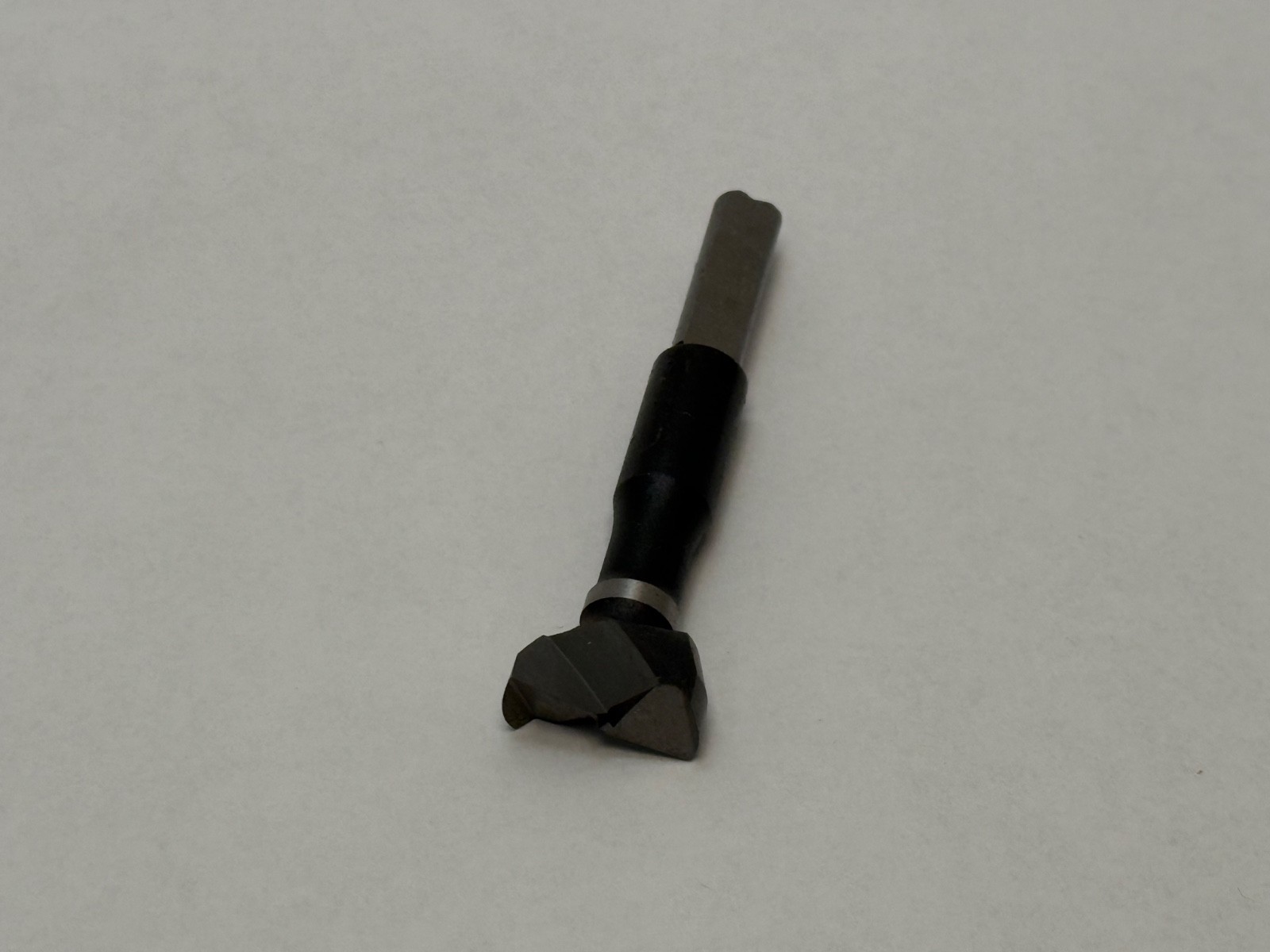

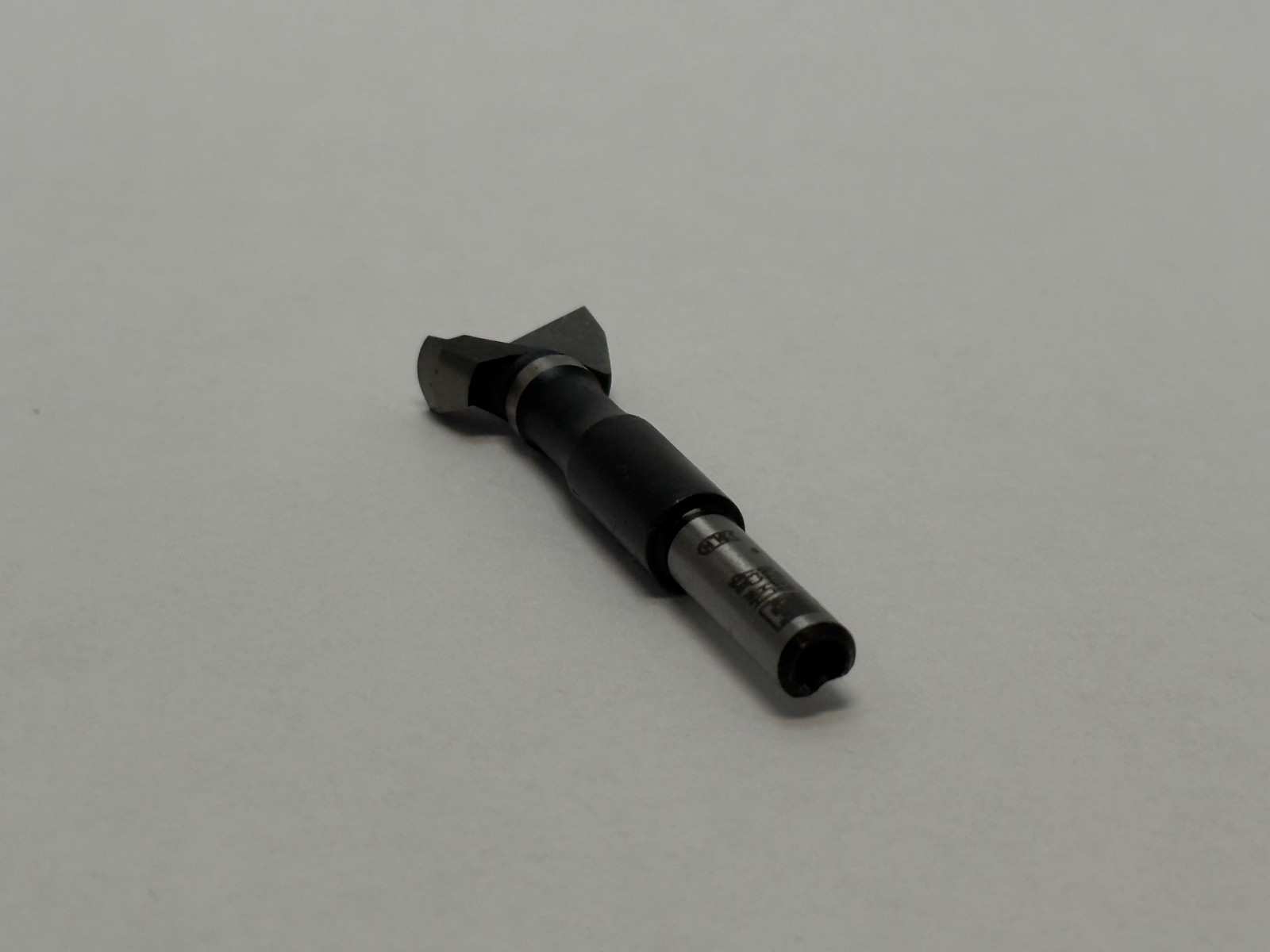

Leitz 037220 carbide (HW) hinge boring bit, 15 mm cutting diameter, 57.5 mm overall length, two cutting edges and two spurs (Z2/V2), left-hand rotation.
List Price
$40.05
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Leitz |
|---|---|
| MPN | 037220 |
| Model | 37220 |
| Condition | New |
|---|---|
| Type | Hinge Boring Bit |
| Application | Hinge Boring |
| Industry Terms | hinge boring bit, hinge drill, cup hinge bit, blind hole boring bit, dowel drill |
| Common Misspellings | Lietz 037220, Leiz 037220, Leitz 37220 |
| Application Types | Hinge boring machines, point-to-point boring, CNC machining centres, multi-spindle boring in chipboard, MDF and solid wood |
| Mpn Variants | 037220, 37220, HW/TCT-L D=15 S=6 Z=2/V2 GL=57,5 |
| Compatible With Replaces | Leitz 037220; right-hand counterpart Leitz 037221 |

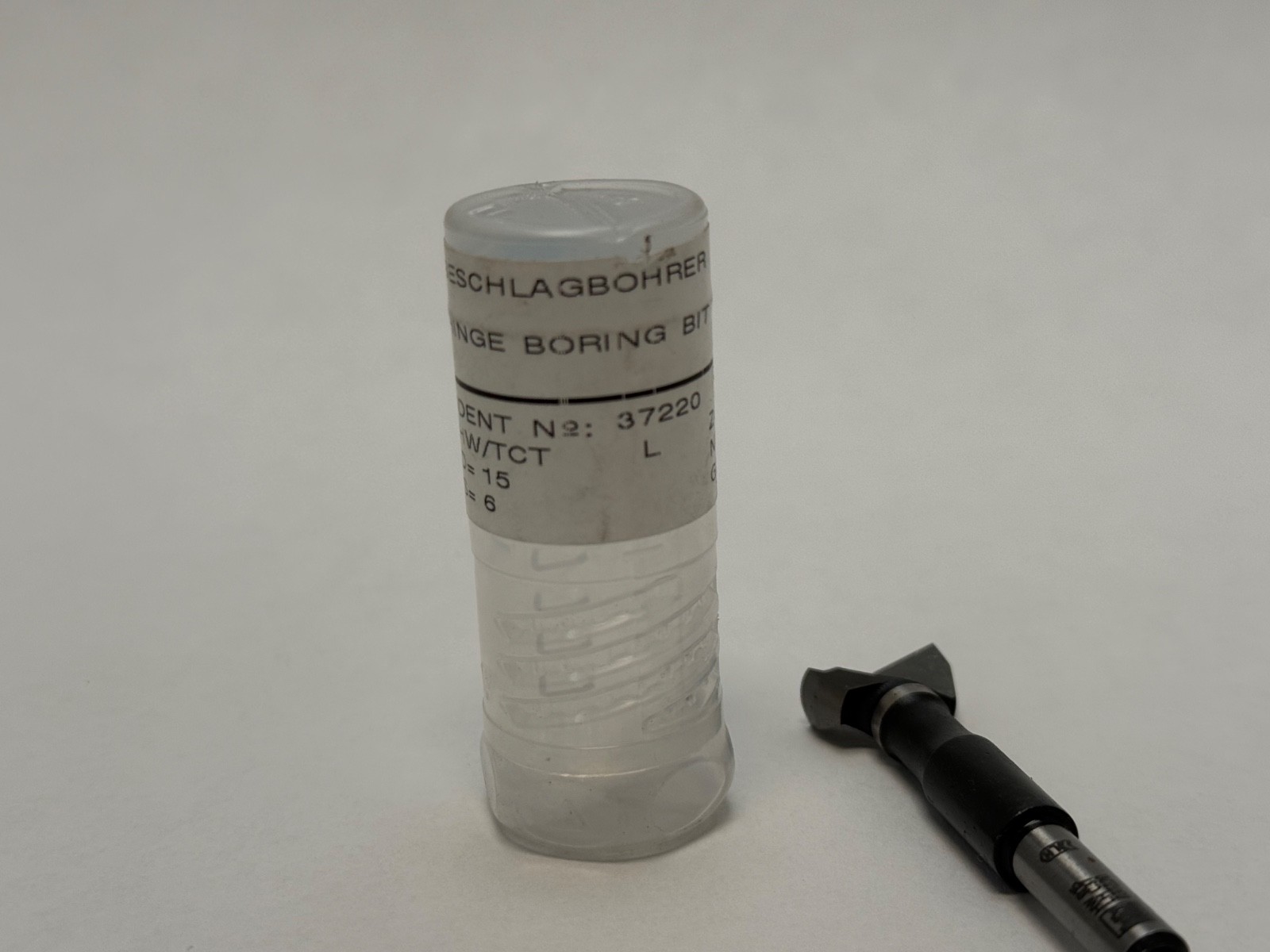

| Additional Attributes | Spurs: 2 (V2); Label: HW/TCT-L D=15 S=6 Z=2/V2 GL=57,5 |
| Overall Length | 57.5 mm |
| Material | Tungsten Carbide (HW) |
The Leitz 037220 is a tungsten carbide hinge boring bit for drilling blind holes in wood and wood-based panels on hinge boring machines, point-to-point machines and CNC boring units. Left-hand rotation.
037220 — Leitz identification number for this bit.
HW/TCT — tungsten carbide cutting material.
L — left-hand (counter-clockwise) rotation.
D=15 — cutting diameter 15 mm.
Z=2/V2 — two main cutting edges and two spurs.
GL=57,5 — overall length 57.5 mm.
Tool Type: Hinge boring bit. Cutting Material: Tungsten carbide (HW). Cutting Diameter: 15 mm. Overall Length: 57.5 mm. Number of Cutting Edges: 2. Number of Spurs: 2. Rotation: Left-hand. Label Marking: HW/TCT-L D=15 S=6 Z=2/V2 GL=57,5.
Cutting Diameter: 15 mm. Overall Length: 57.5 mm. Mounts in the chuck of a hinge boring machine or multi-spindle boring head that takes left-hand rotation bits.
Replaces Leitz 037220. The right-hand version of the same bit is Leitz 037221.
What diameter hole does the Leitz 037220 drill?
It drills a 15 mm diameter hole.
Is the Leitz 037220 a right-hand or left-hand bit?
It is a left-hand rotation bit. The right-hand version is Leitz 037221.
What is the Leitz 037220 made of?
The cutting edges are tungsten carbide (HW).
