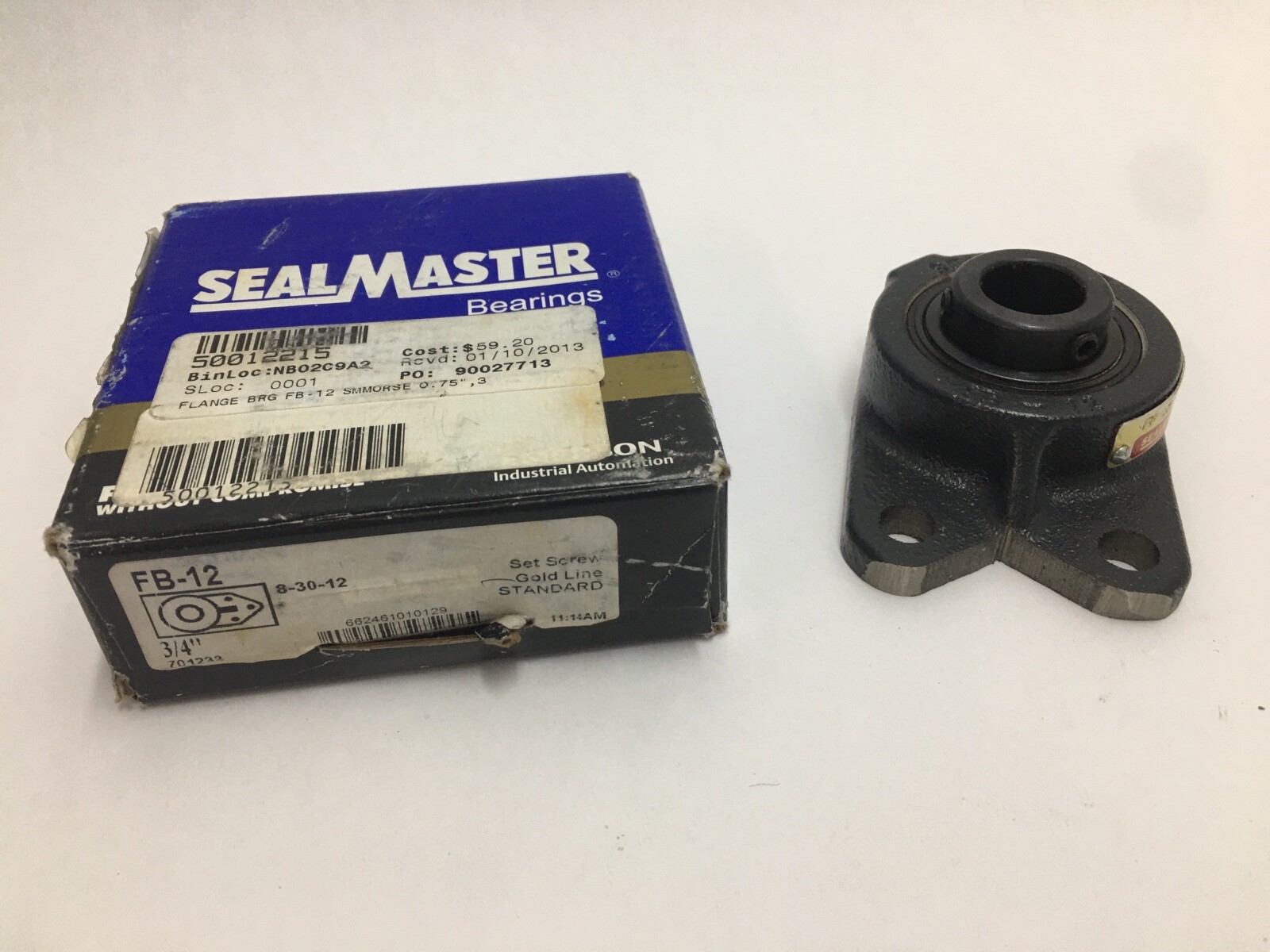

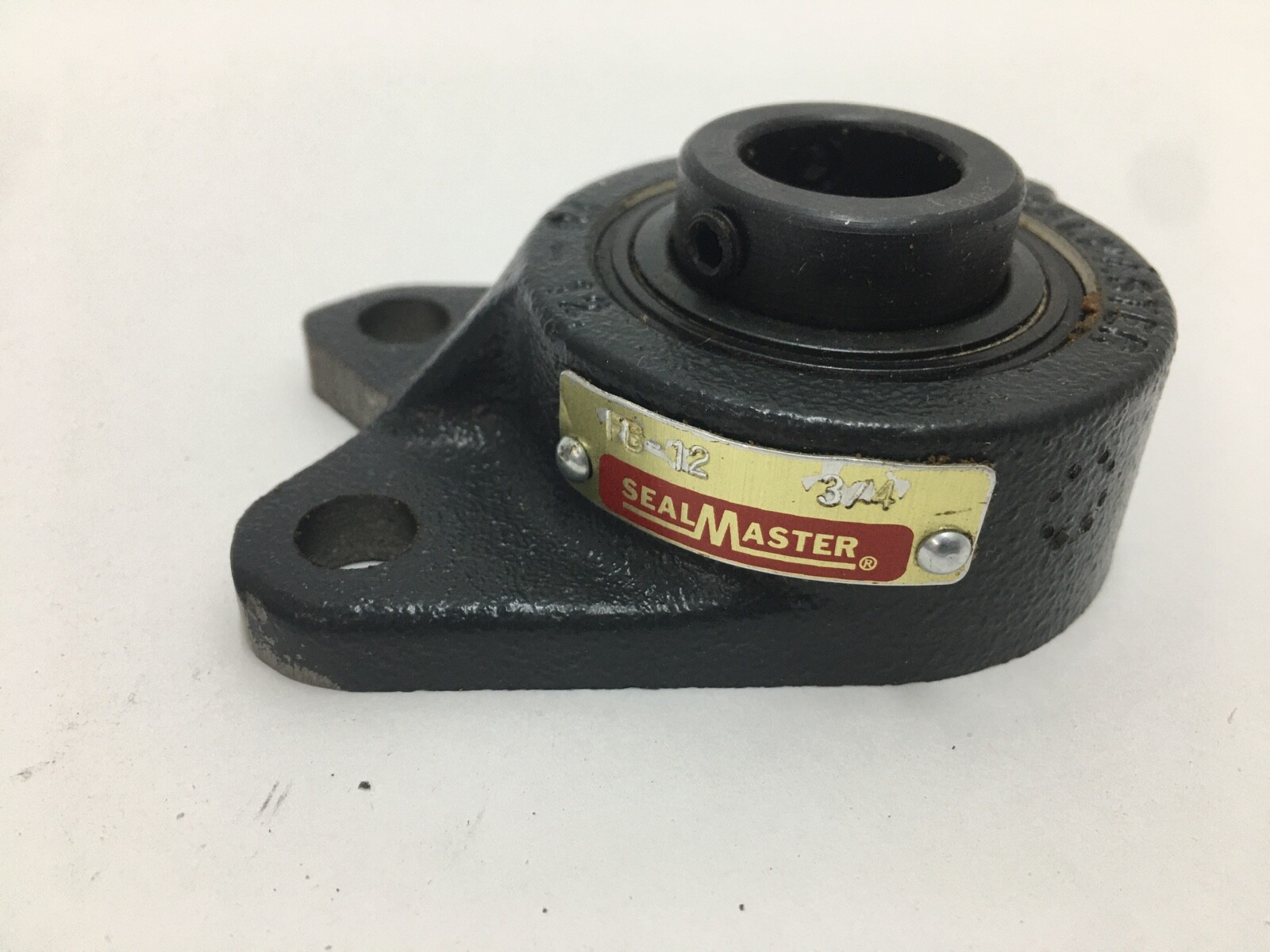

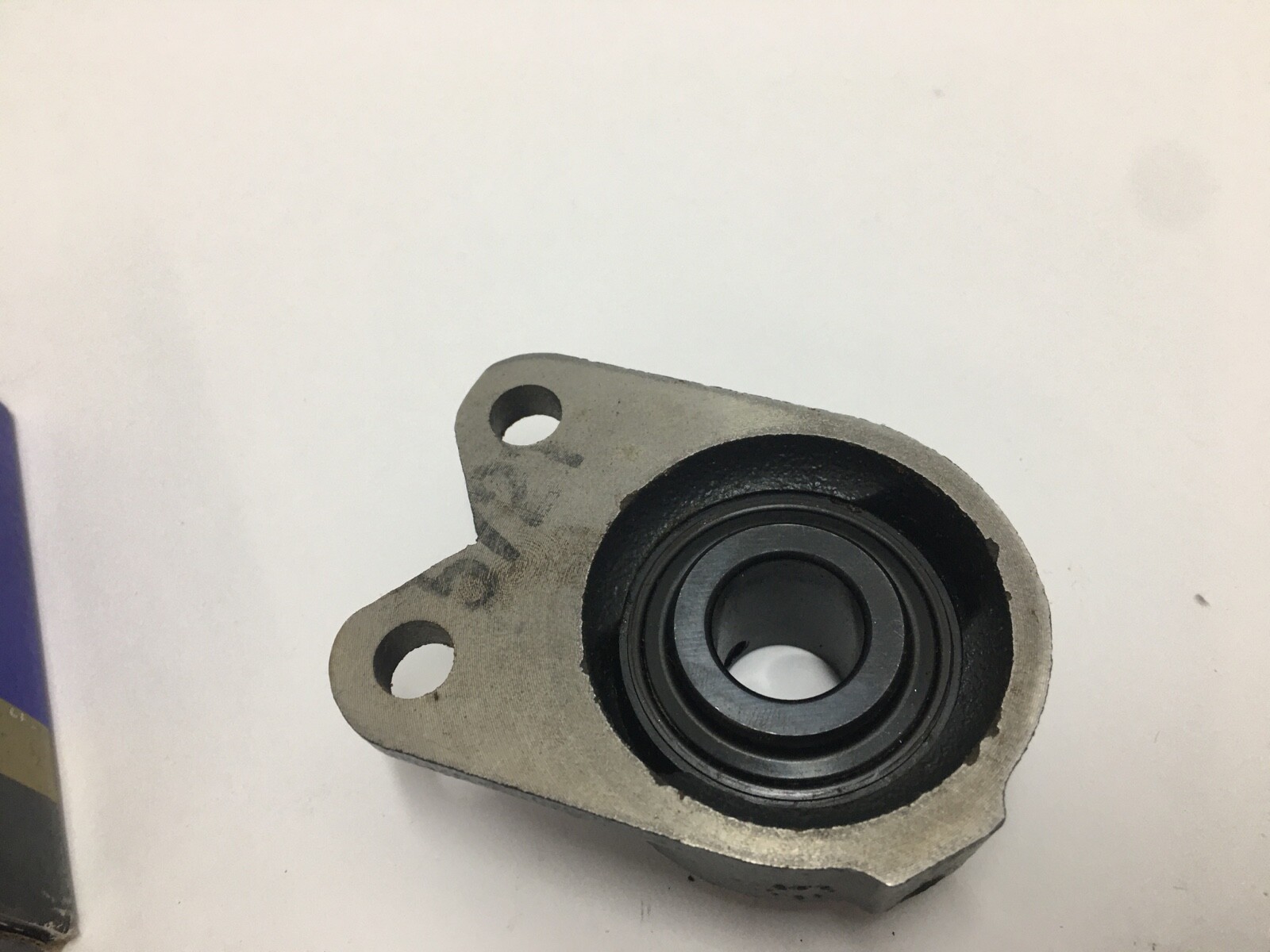

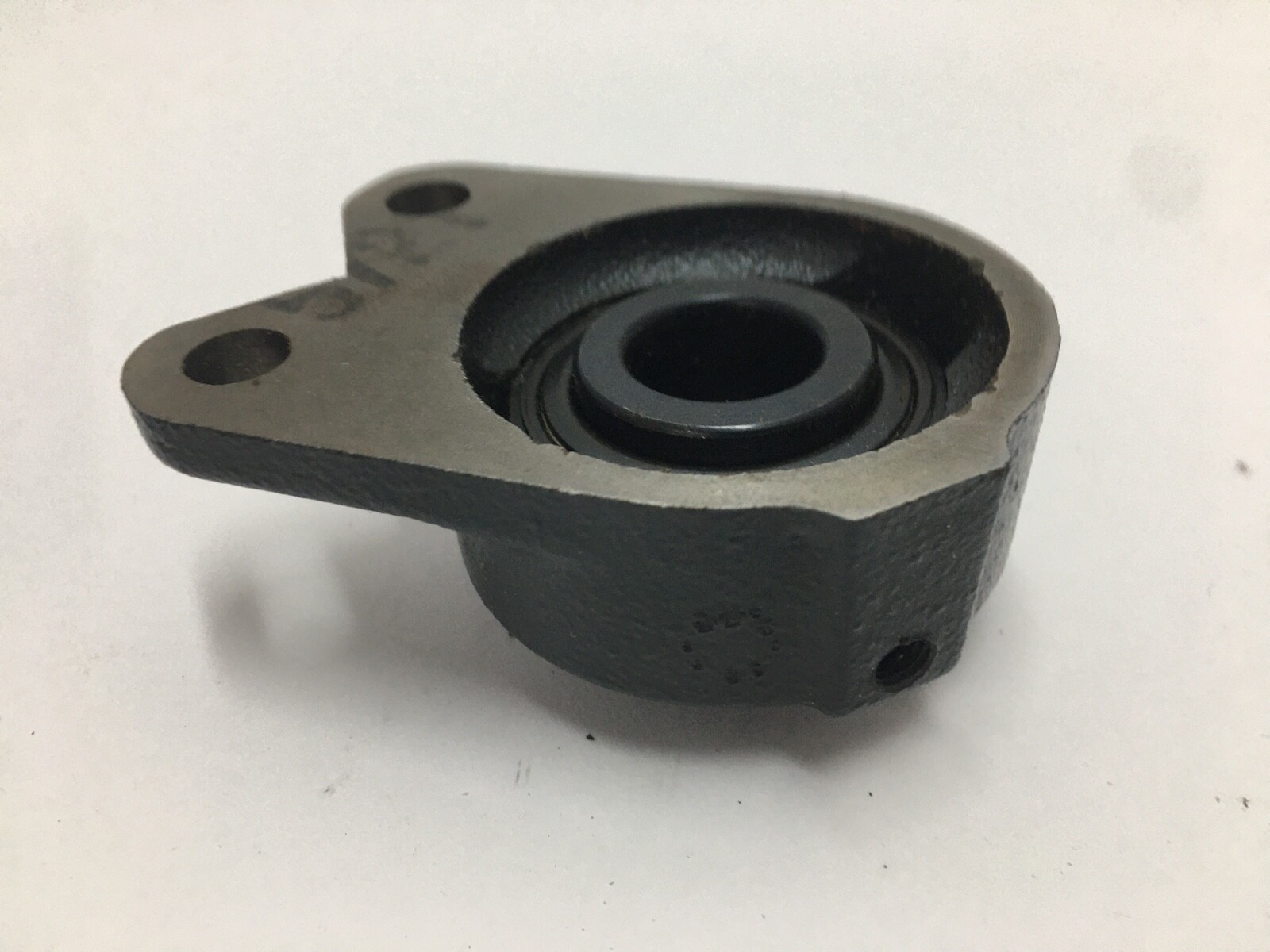

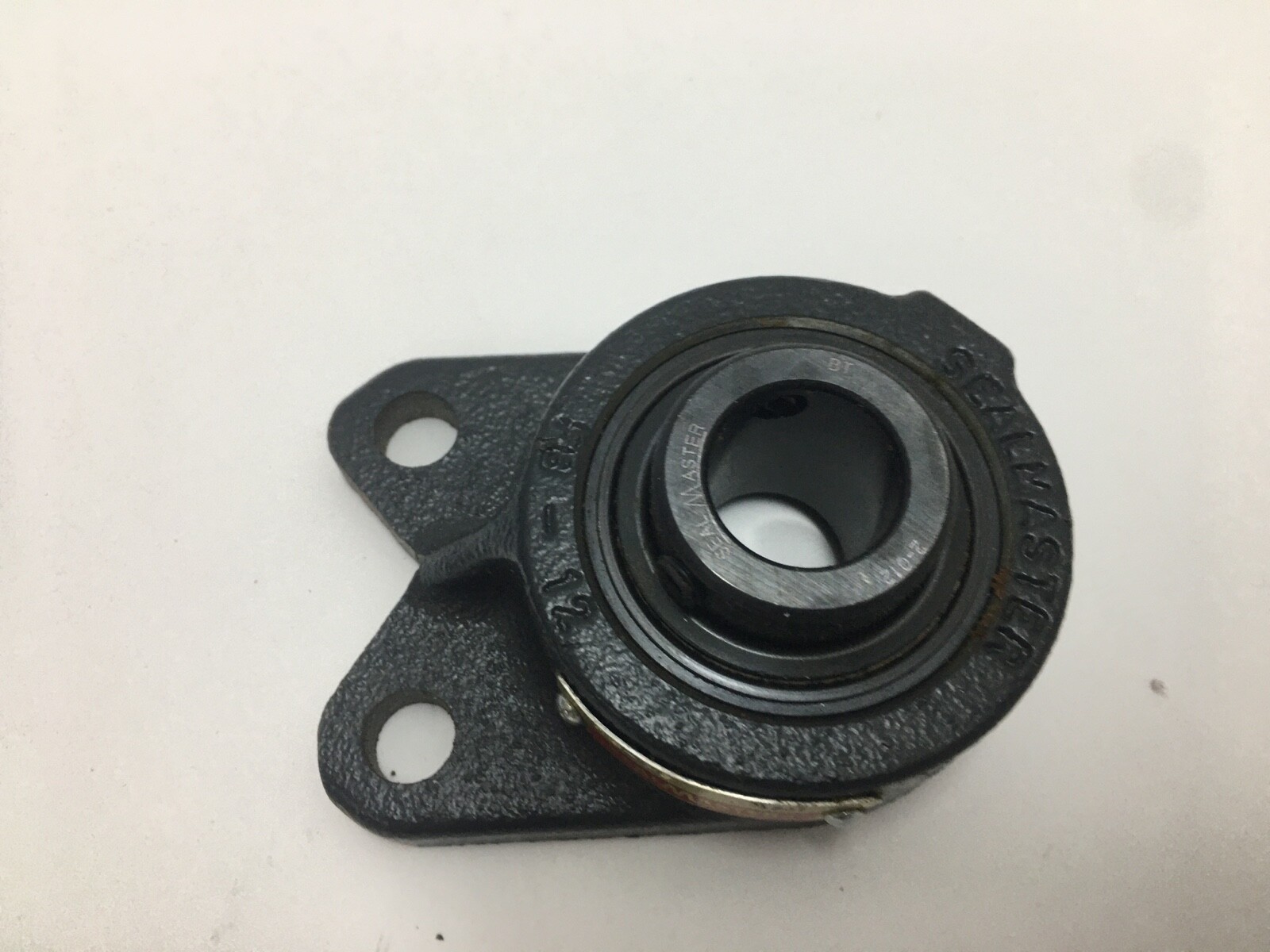

Flange Unit – 0.75 in Bore, Cast Iron Housing, Standard Duty, Non-Expansion
| MFR / Brand | SealMaster |
|---|---|
| MPN | FB-12 |
| Model | FB 12 |
| Bearing Type | 3-Bolt Flange Unit, Felt Seal |
| ID | 0.75 in |
| Width | 2.38 in |
| Bolt Center To Center | 1.50 in |
|---|---|
| Number Of Bolt Holes | 3 |
| Bolt Center To Center Length | 1.50 in |
| Number Of Bolt Holes For Fasteners | 3 |
| Min Temp | -20°C |
| Dynamic Load Rating | 11.6 kN / 2611 lbf |
| Static Load Rating | 6.4 kN / 1444 lbf |
| Series | FB |
| Rolling Elements | Balls |
| Max Temp | 100°C |
| Condition | New |
| Item Weight | 2.00 lbs |
| Limiting Speed | 7300 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Internal Clearance | CN |
| Lubricant | Grease |
| Duty Type | Standard |
| Locking Device | Set Screw |
| Housing Material | Cast Iron |
| Expansion Type | Non-Expansion |
| Cross Reference 1 | Dodge F3B-SC-012 |
|---|---|
| Cross Reference 2 | Link-Belt F3-U212N |
| Cross Reference 3 | SKF FY 3/4 TF |
| Cross Reference 4 | Browning VF3-212 |
| Cross Reference 5 | Timken YCJ 3/4 |
