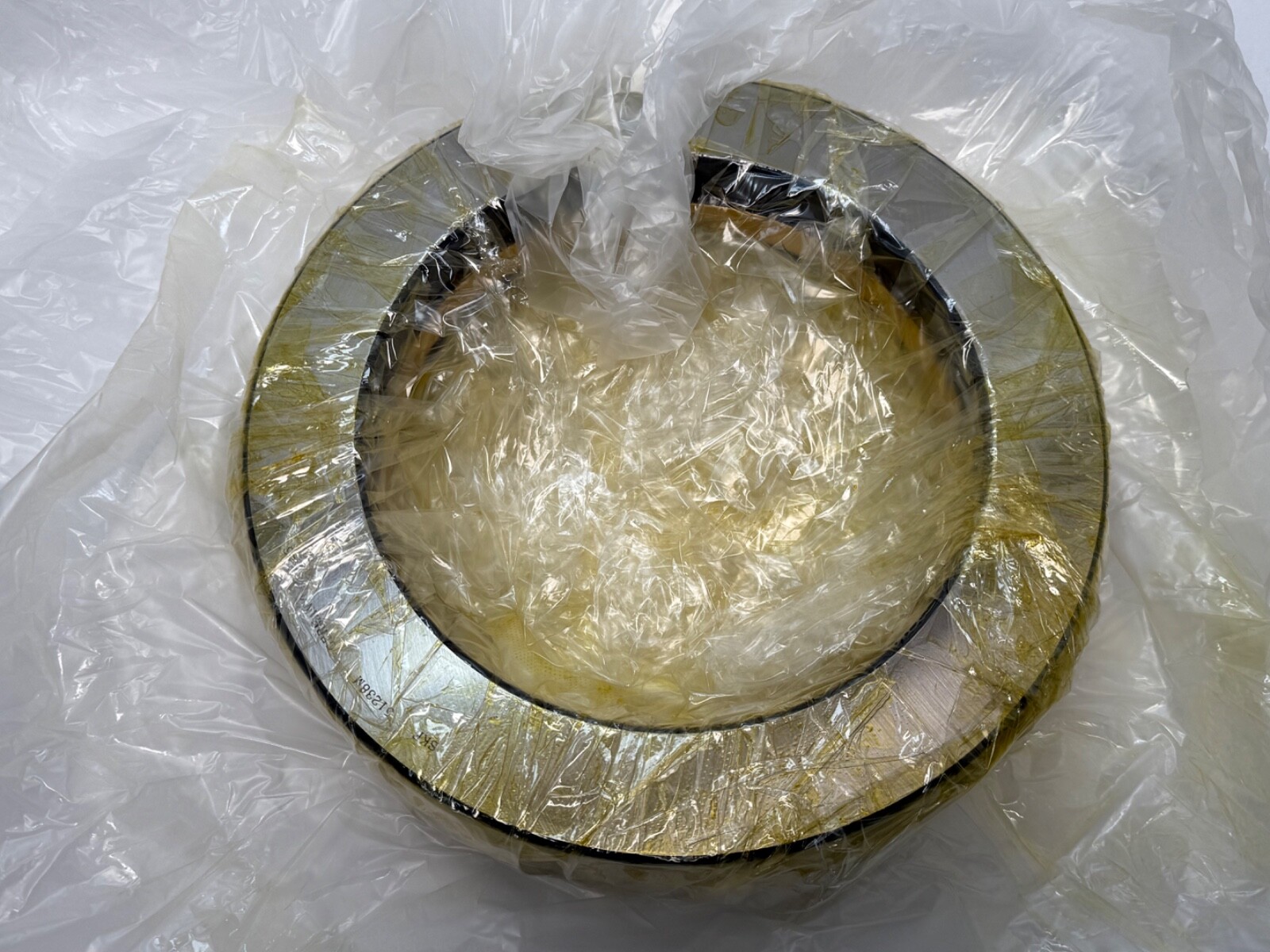

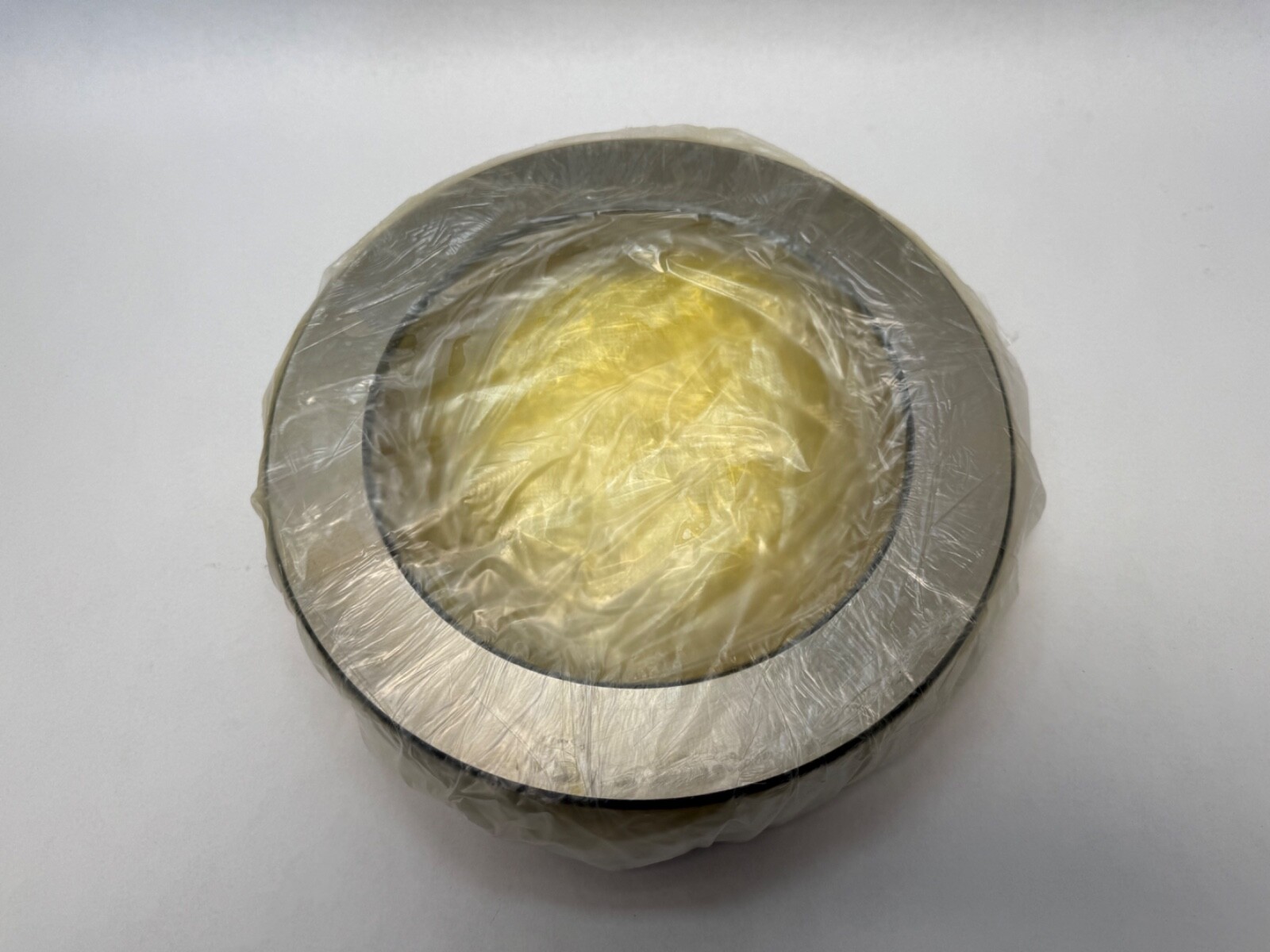

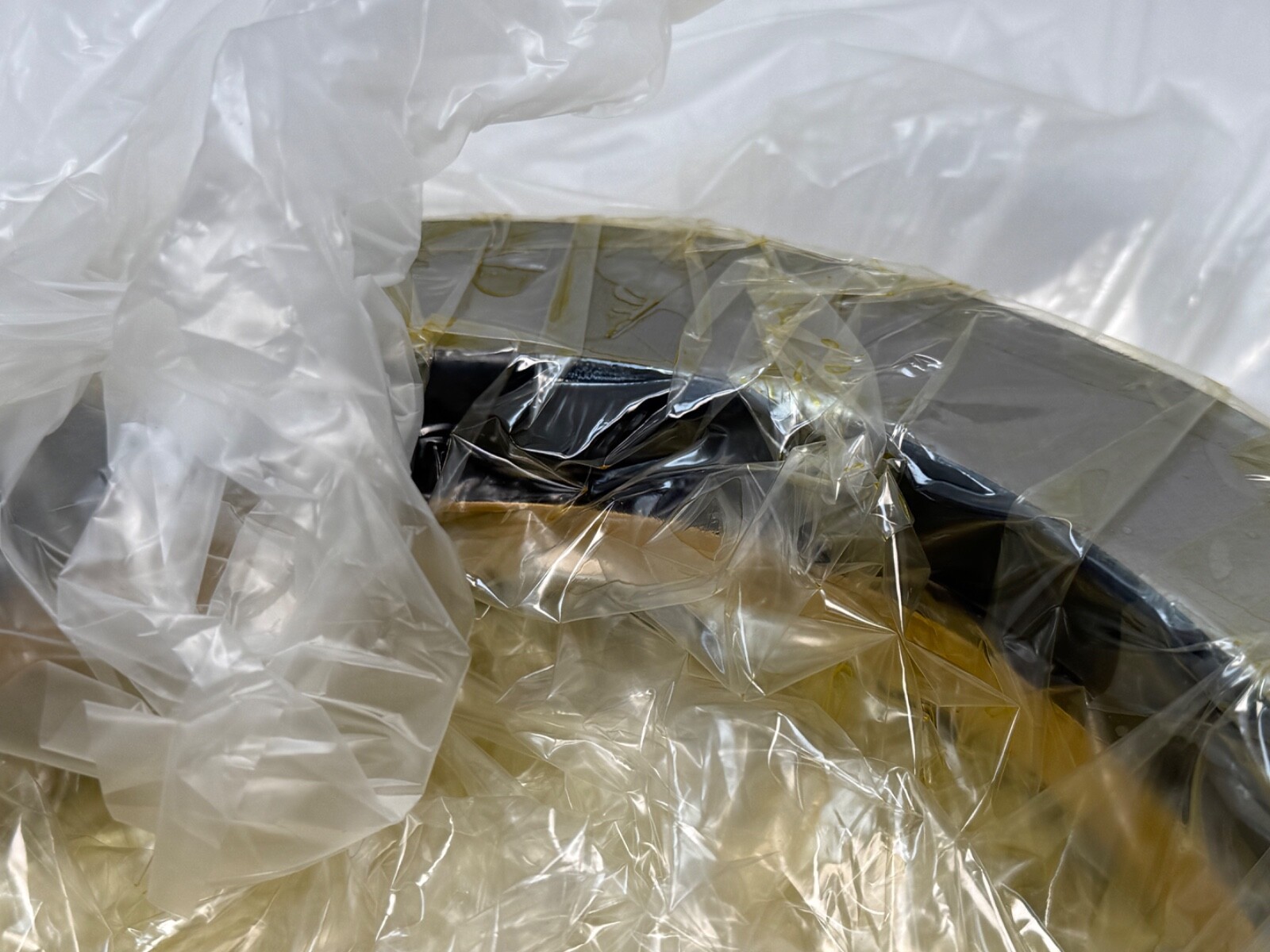

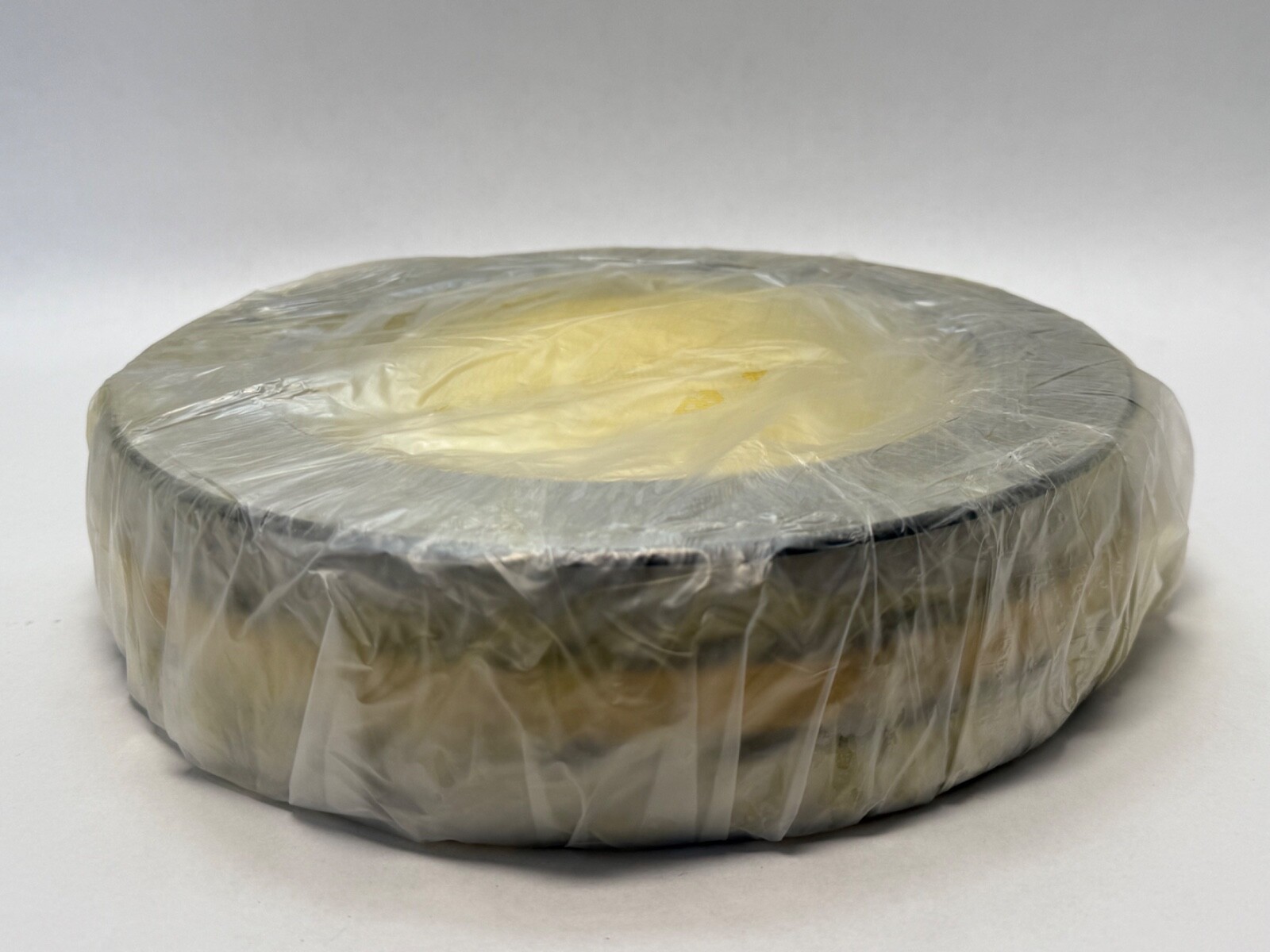

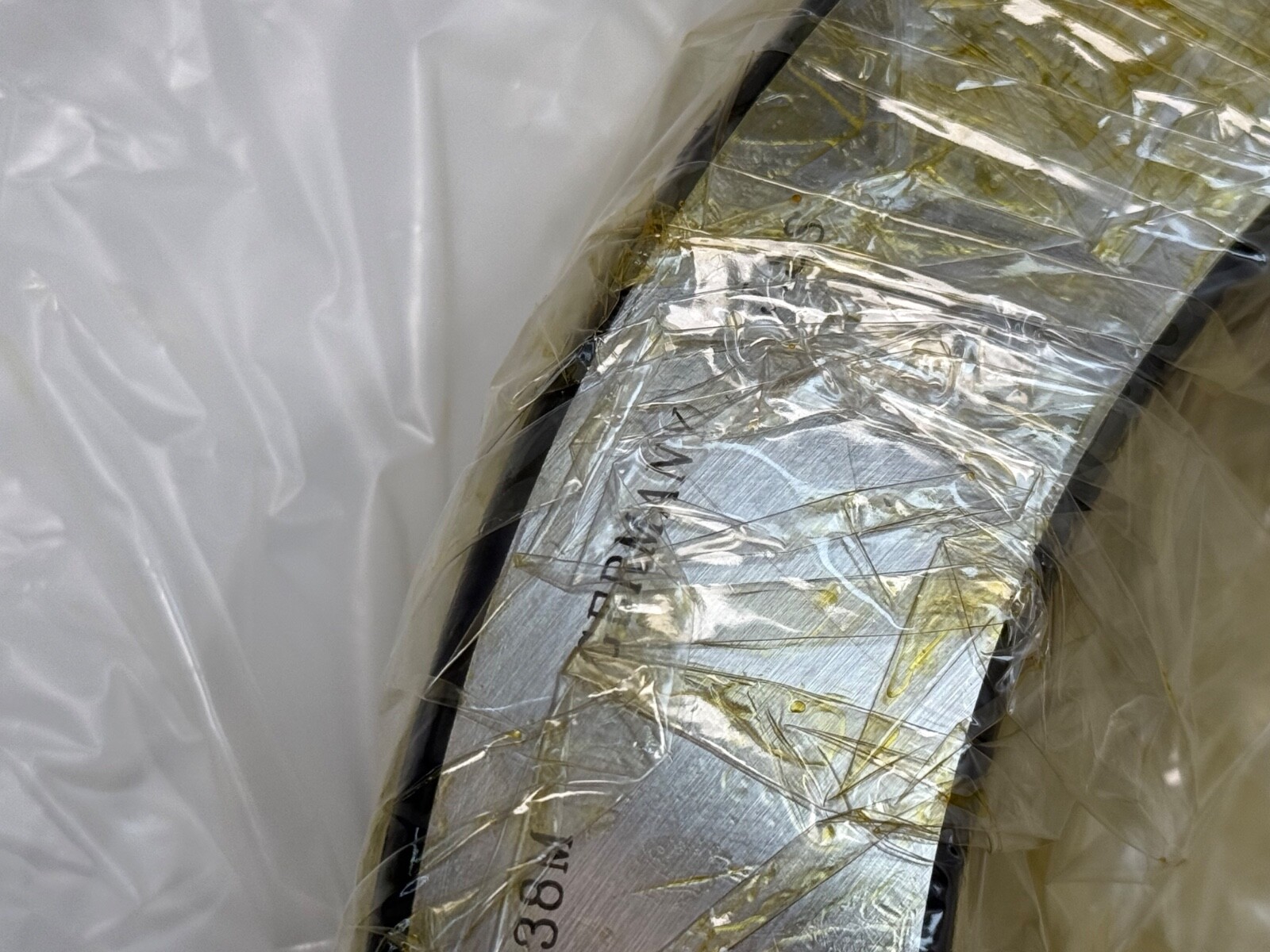

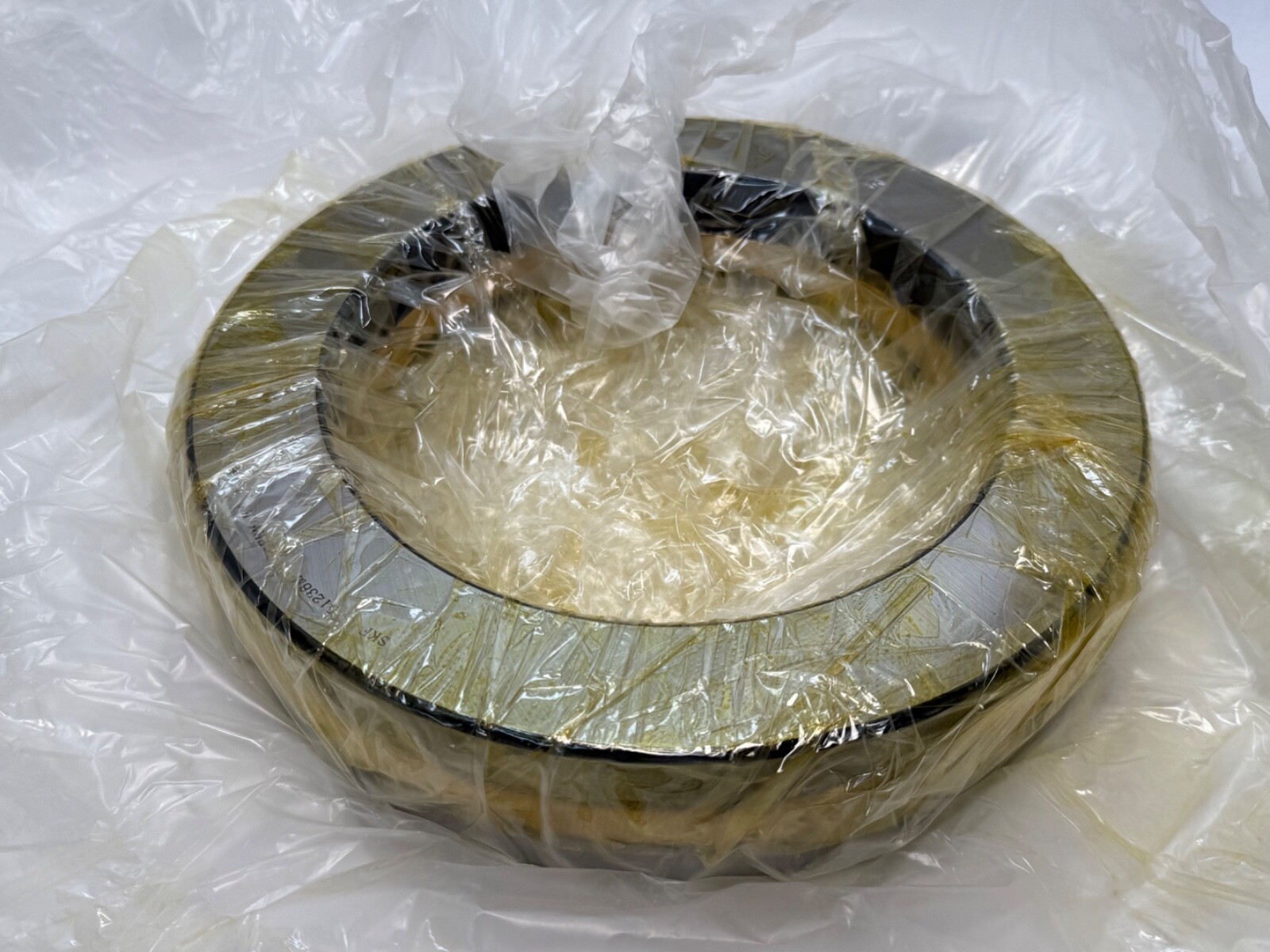

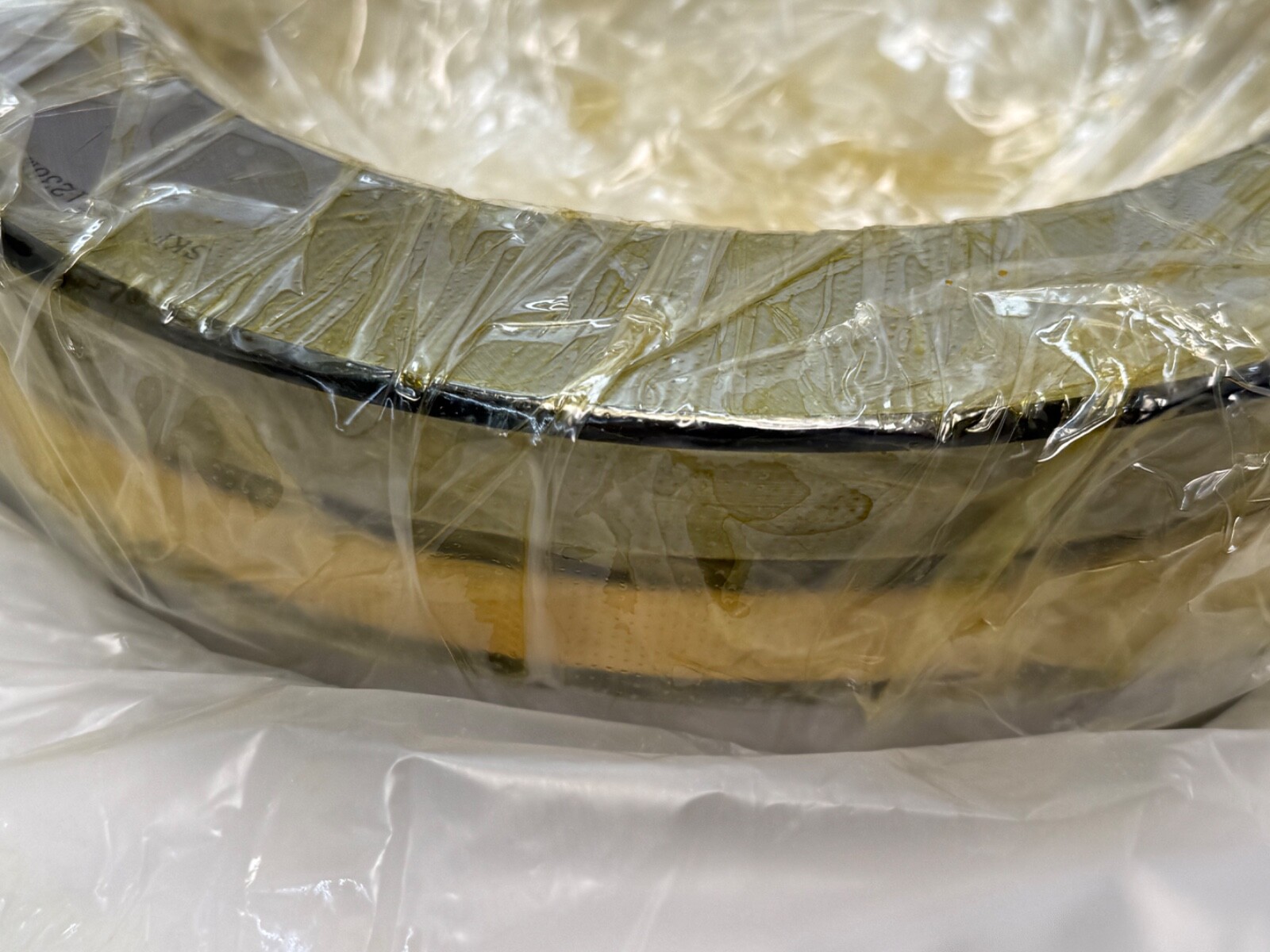

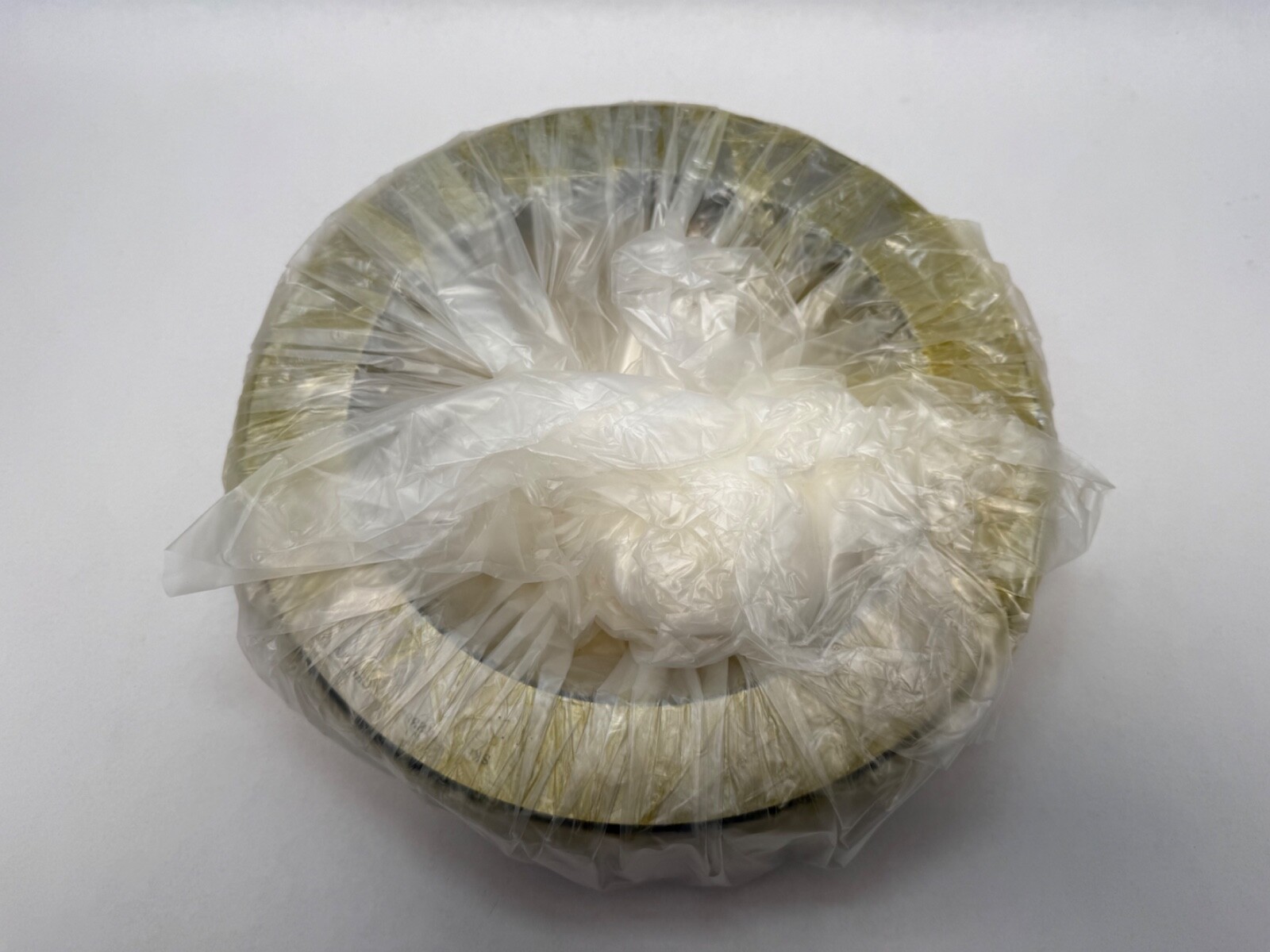

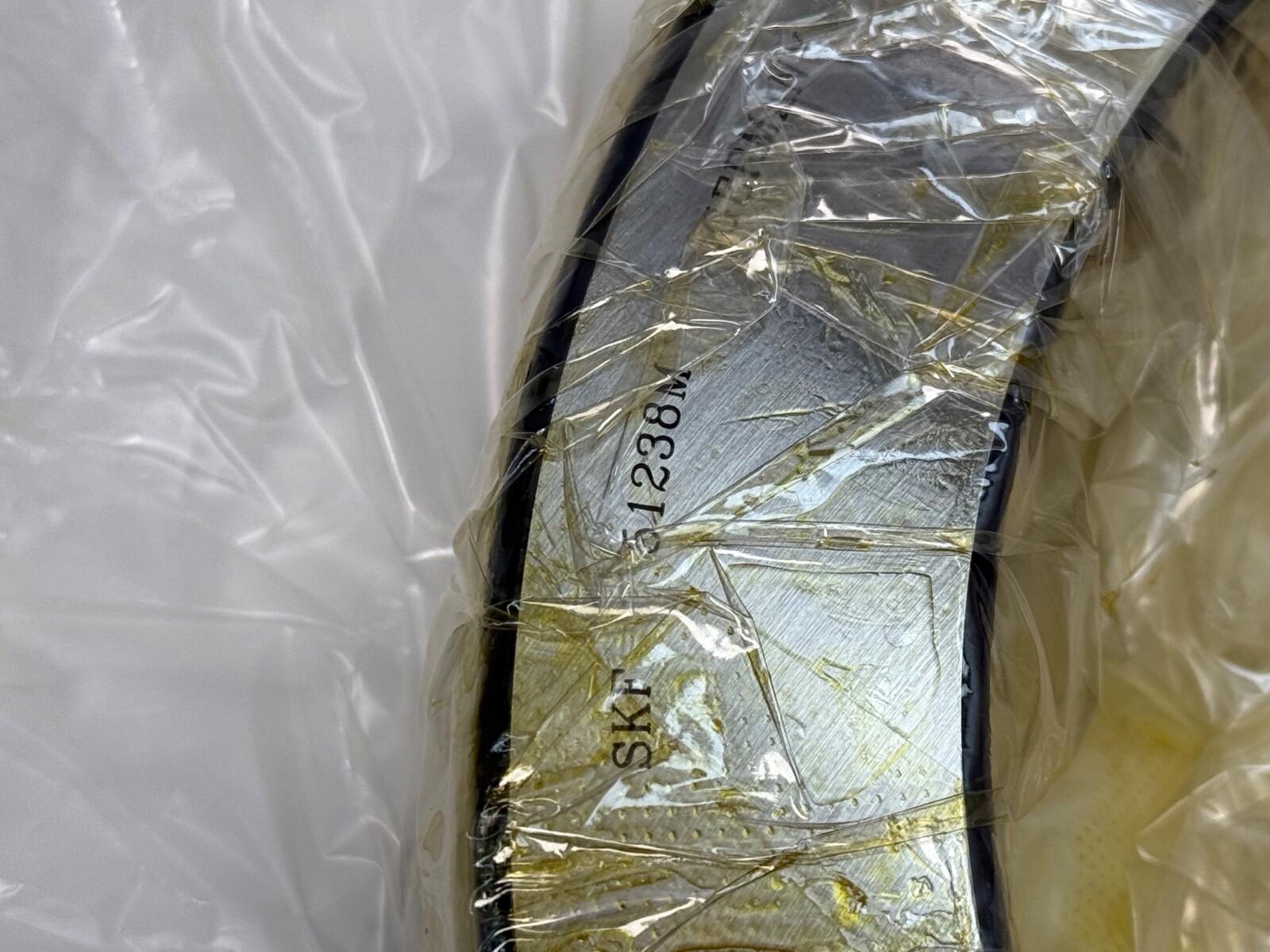

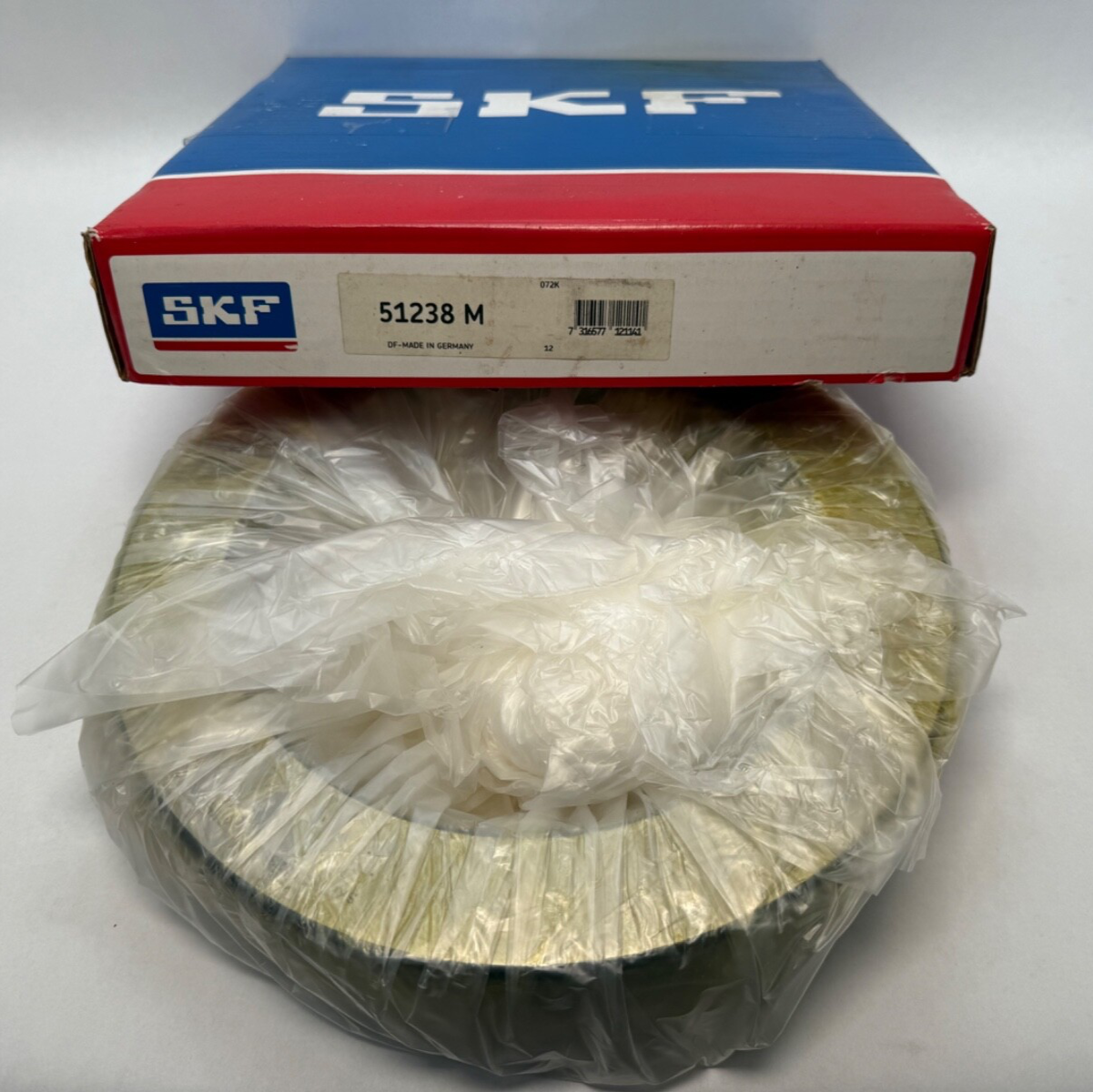

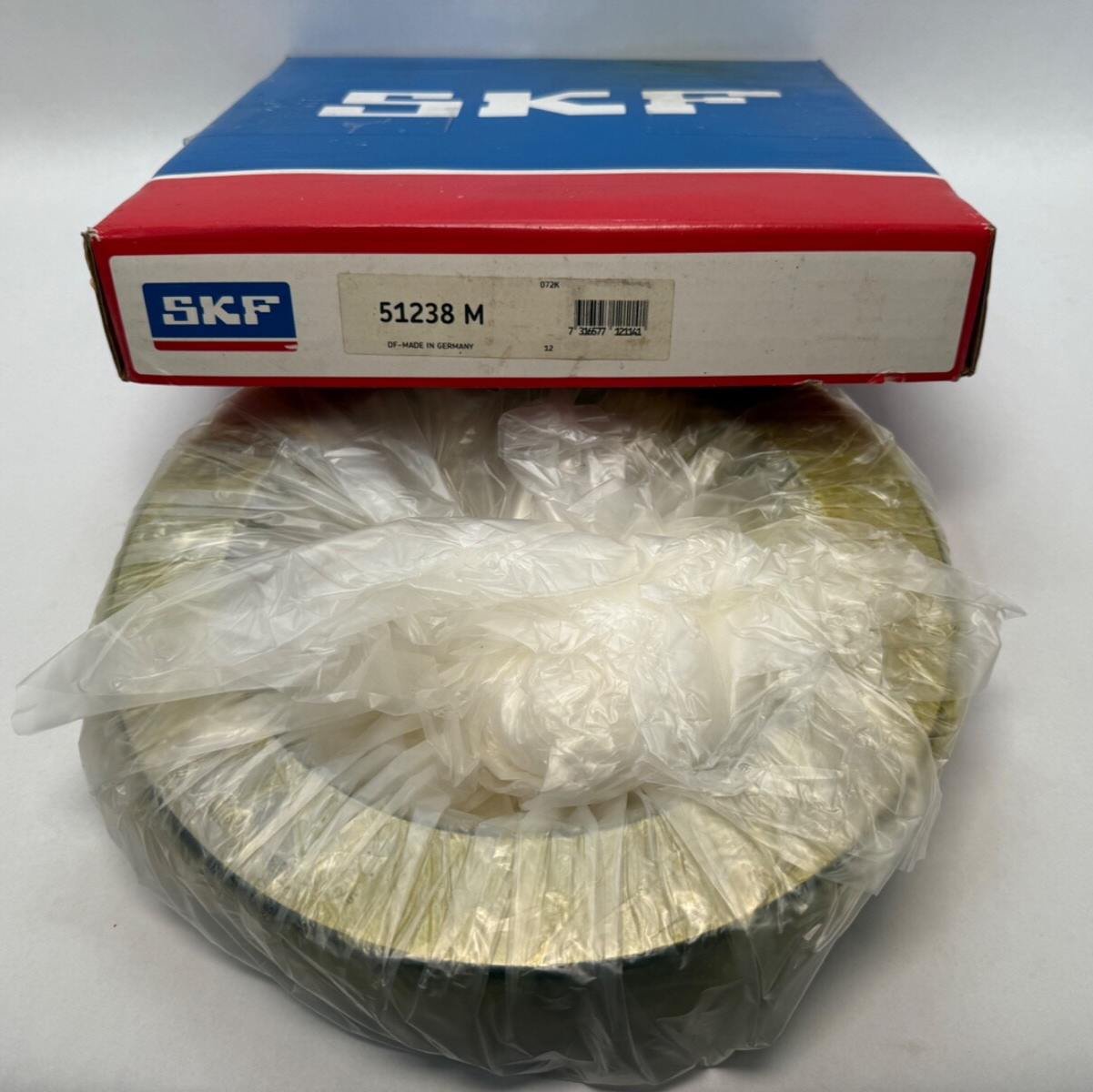

SKF 51238 M single direction thrust ball bearing, 190 x 270 x 62 mm, machined brass cage. Dynamic rating 338,000 N, static 1,250,000 N, mass 11.5 kg.
List Price
$718.86
5 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 51238-M |
| Model | 51238-M |
| ID | 190 mm |
| OD | 270 mm |
| Width | 62 mm |
| Material | Chrome Steel |
|---|---|
| Series | 51200 |
| Lubricant | Oil/Grease |
| Rolling Elements | Ball |
| Mpn Variants | 51238 M, 51238-M, 51238M |
| Precision Class | Normal |
| Closure Type | Open |
| Cage Type | Machined |
| Dynamic Load Rating | 338,000 N |
| Static Load Rating | 1,250,000 N |
| Precision Rating | Normal |
| Bearing Type | Thrust Ball Bearing, Open |
| Item Weight | 11.5 kg (25.35 lb) |
| Cage Material | Machined brass |
| Limiting Speed | 1,400 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Bearing Material | Bearing steel |
| Cross Reference 1 | FAG 51238-MP |
|---|---|
| Cross Reference 2 | NSK 51238 |
| Cross Reference 3 | NTN 51238 |
| Cross Reference 4 | Koyo 51238 |

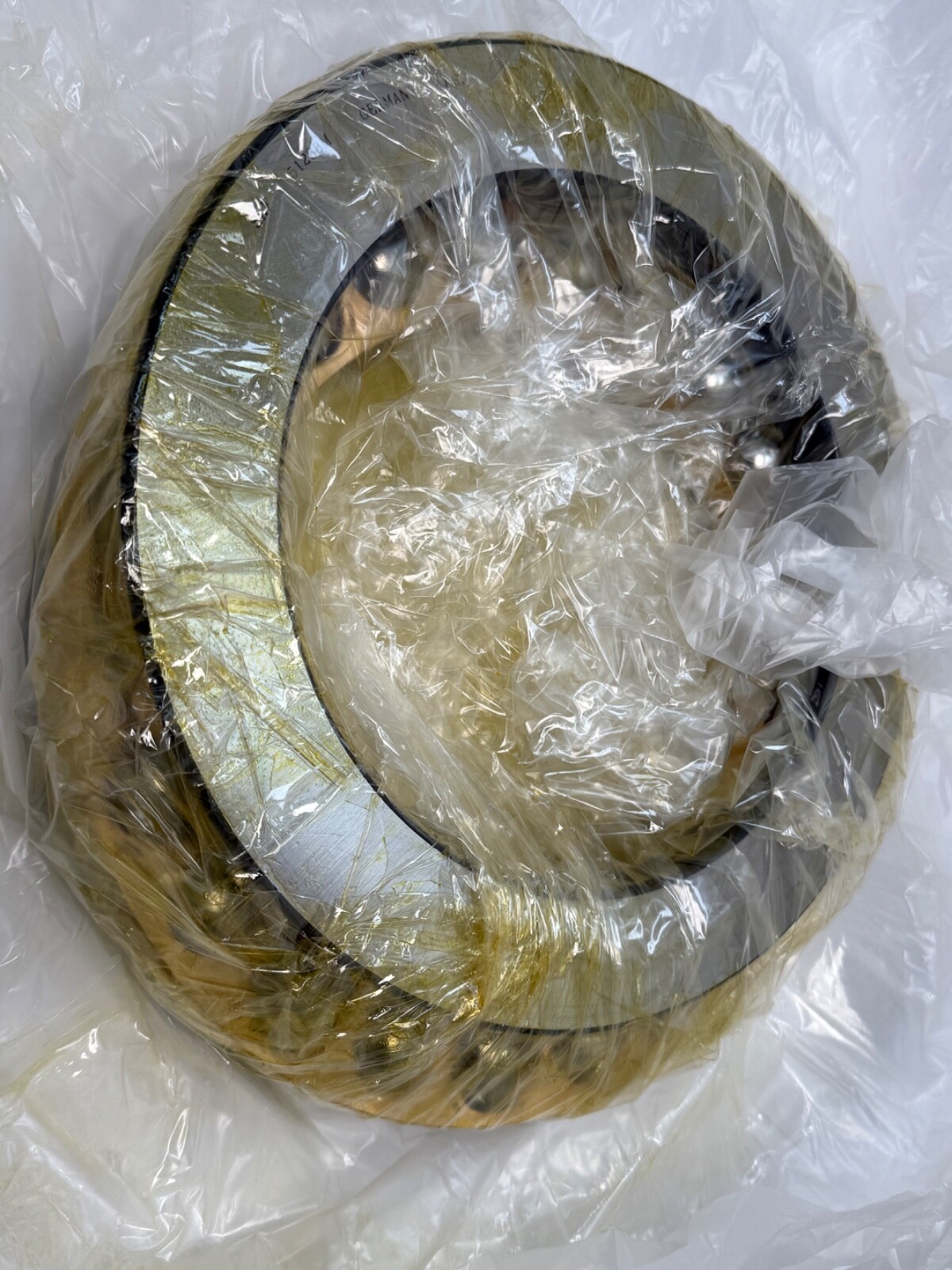

SKF 51238 M is a single direction thrust ball bearing with a machined brass cage. It carries axial load in one direction only and takes no radial load. Shaft washer, housing washer and ball-and-cage assembly are separable. The shaft washer has a ground bore for an interference fit.
512 — single direction thrust ball bearing, dimension series 12.
38 — bore code, 38 x 5 = 190 mm bore.

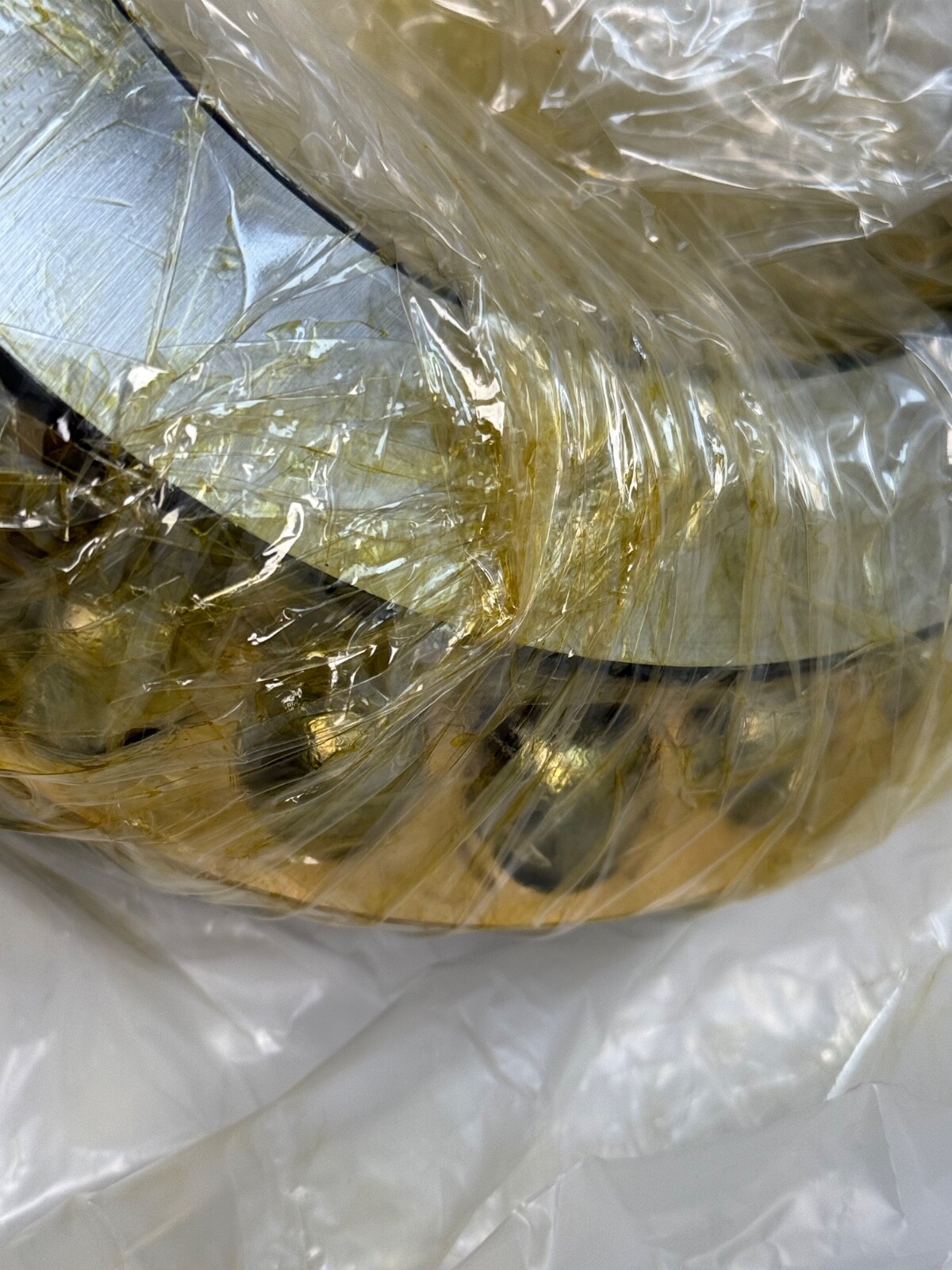

M — machined brass cage, ball centred.
Bore Diameter: 190 mm. Outside Diameter: 270 mm. Height: 62 mm. Dynamic Load Rating: 338,000 N. Static Load Rating: 1,250,000 N. Reference Speed: 1,000 rpm. Limiting Speed: 1,400 rpm. Axial Load Capability: Single-direction. Number Of Rows: 1. Cage Material: Machined brass. Housing Washer Type: Flat. Tolerance Class: Normal. Bearing Material: Bearing steel. Item Weight: 11.5 kg (25.35 lb). Closure Type: Open. Lubricant: grease or oil.
The flat housing washer seats on a flat housing shoulder. The brass cage tolerates higher temperatures and heavier shock than pressed steel cages.
Unit Quantity: 1 Pc. Complete bearing: shaft washer, housing washer and ball-and-cage assembly.
Same envelope and type: FAG 51238-MP, NSK 51238, NTN 51238, Koyo 51238. MPN variants: 51238 M, 51238-M, 51238M. GTIN: 7316577121141. Harmonization Code: 8482.10.50.
