This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Spindle Deep Groove Ball Bearing – 10 mm Bore, 30 mm OD, 9 mm Width, Open, Straight Bore$22.10
Thrust Ball Bearing - 55 mm ID, 78 mm OD, 16 mm Height, Single Direction, Pressed Steel Cage$23.30
Stud Type Track Roller Cam Follower — 19 mm Outer Ring Diameter, 11 mm Width, M8x1.25 Stud, Crowned Outer Ring, Sealed Both Sides$24.10
Cam Follower — 1-3/4 in OD, 1 in Width, 3/4-16 Stud, Sealed, Cylindrical Outer Ring$25.49| MFR / Brand | NSK |
|---|---|
| MPN | PNP1.1/4CR |
| Model | PNP 1 1/4 CR |
| ID | 1.25 in |
| Material | Cast Iron |
|---|---|
| Series | PNP |
| Lubricant | Grease |
| Bolt Center To Center | 5 in |
| Number Of Bolt Holes | 2 |
| Bolt Center To Center Length | 5 in |
| Centre Height Base To Bore Centerlinepillow Block | 1.875 in |
| Number Of Bolt Holes For Fasteners | 2 |
| Dynamic Load Rating | 21 kN / 4721 lbf |
| Static Load Rating | 12.5 kN / 2810 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Max Temp | 100°C |
| Bearing Type | Pillow Block Bearing, Double Rubber Seal |
| Item Weight | 3.85 lbs |
| Limiting Speed | 5600 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Duty Type | Standard Duty |
| Locking Device | Eccentric Collar |
| Insert Outer Ring | Spherical |
| Relubrication Feature | Yes |
| Harmonization Code | 8483.20.40 |
| Housing Material | Cast Iron |
| Expansion Type | Non-Expanding |

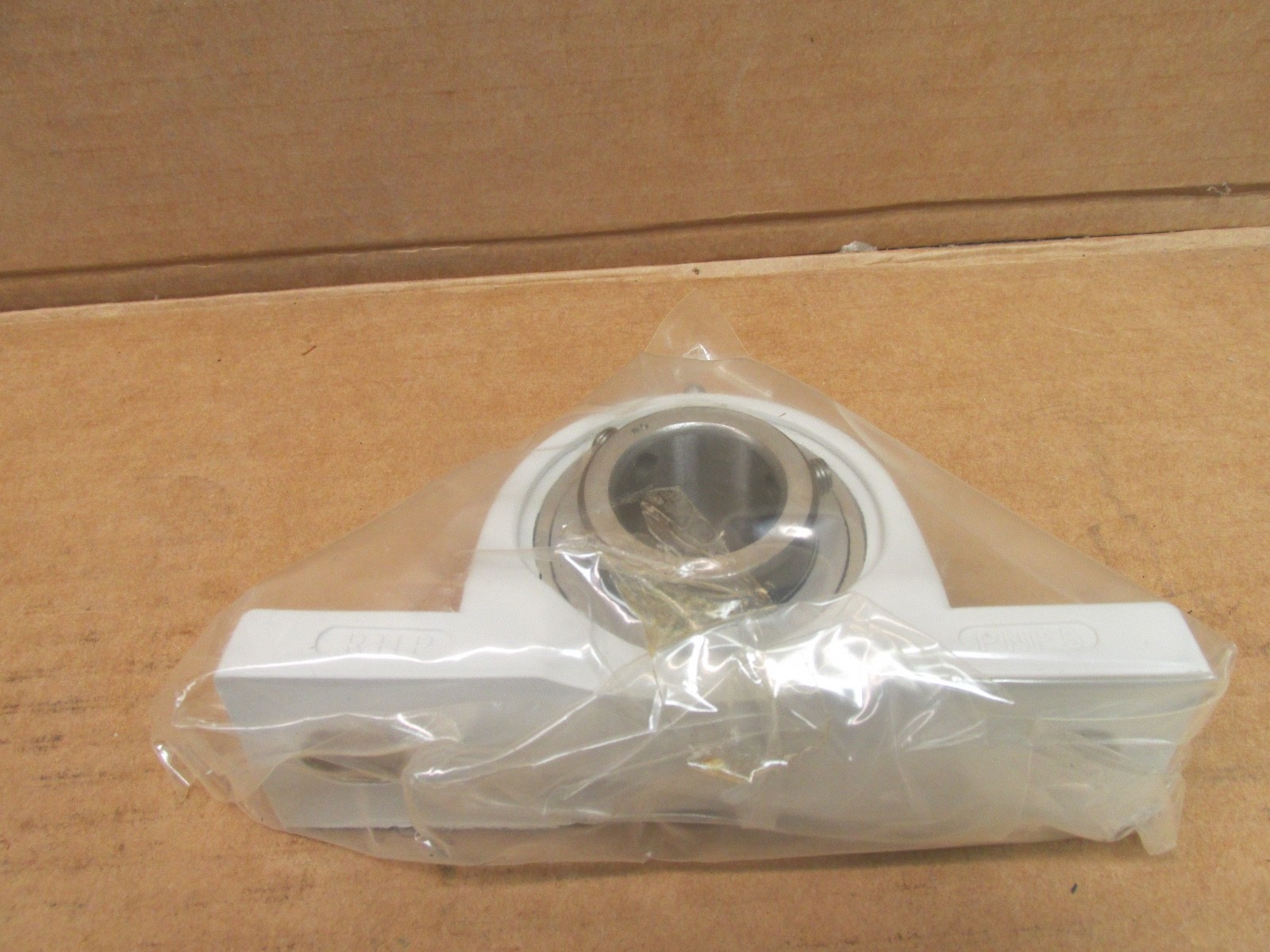

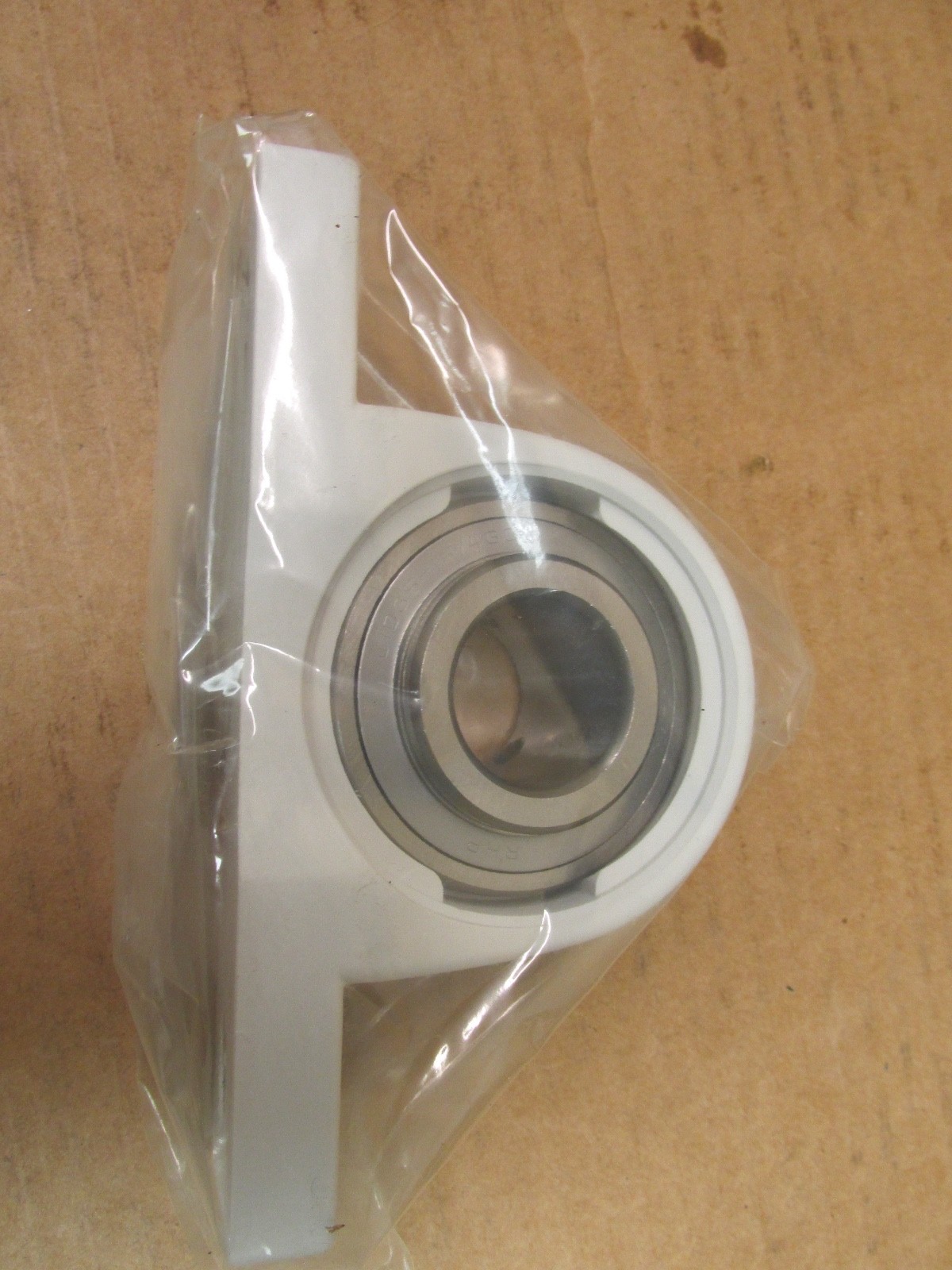

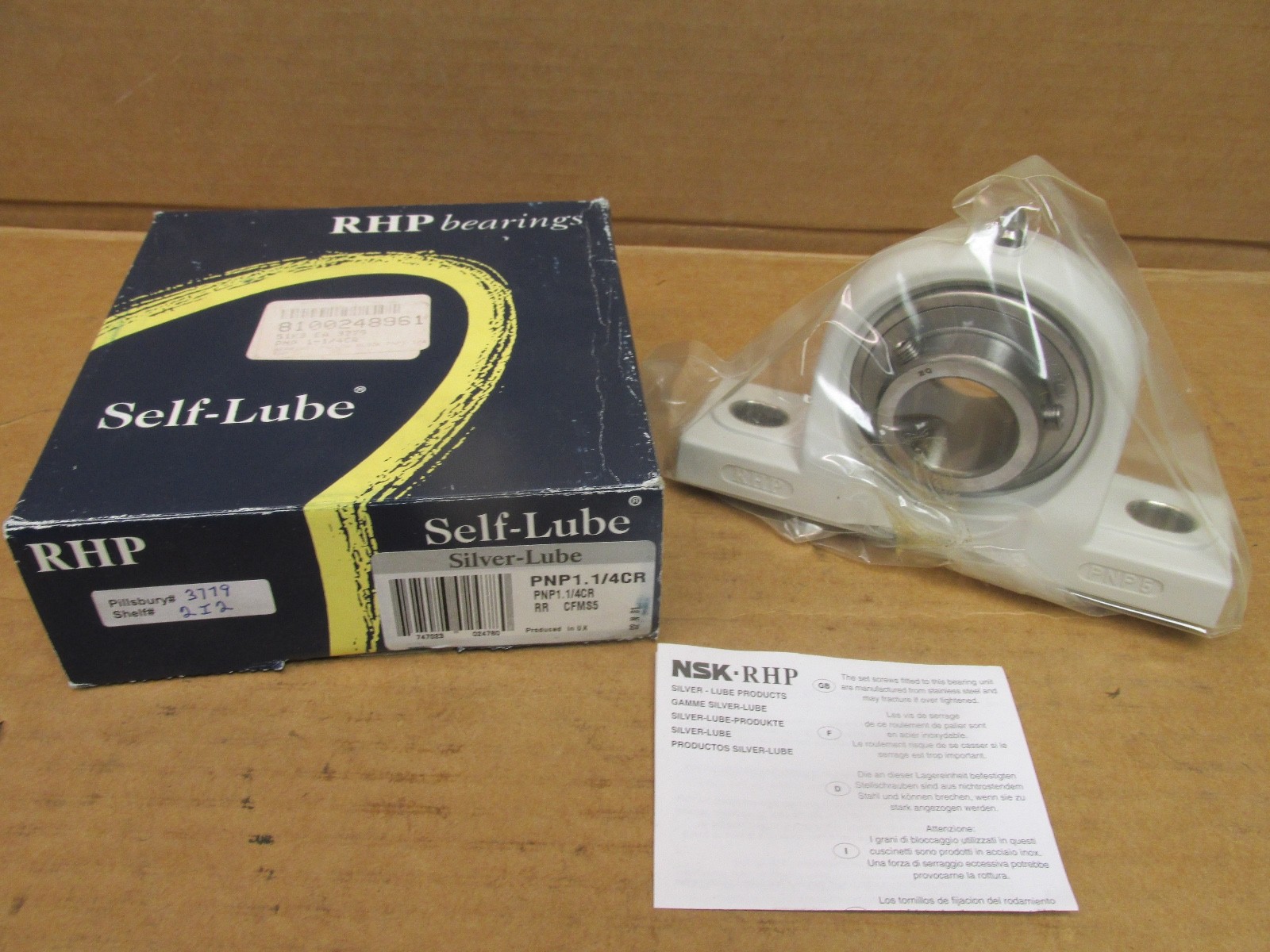

Introducing the RHP PNP1.1/4CR Thermoplastic Flange Bearing Unit – your ultimate solution for a high-quality and reliable mounted bearing. With a 1-1/4″ inner diameter, this premium part, manufactured by NSK in the United Kingdom, is designed to meet the highest standards of performance and durability. Key Features: Robust Construction: Crafted from thermoplastic material, the RHP PNP 1-1/4 CR ensures longevity and resistance to wear and tear. Easy Installation: This flange bearing unit is engineered for straightforward mounting, allowing for quick and efficient setup in your machinery. Smooth Operation: Experience reduced friction and noise, contributing to better performance and extended equipment life. International Shipping: We offer prompt and reliable shipping options worldwide, ensuring you receive your order swiftly. Combining Shipping Discounts: Save on shipping costs with our combined shipping options on multiple orders. Same-Day and Next-Day Shipping Available: Select your preferred shipping at checkout for urgent orders. If you have surplus bearings, do not hesitate to contact us. We buy surplus bearings to help you make the most of your assets. Upgrade your machinery today with the RHP PNP1.1/4CR Thermoplastic Flange Bearing Unit – a smart choice for any maintenance or engineering project!
$137.64
92 in stock
$61.17
64 in stock
$141.11
255 in stock
$61.18
97 in stock
