FAG54217Double Direction Thrust Ball Bearing 125 mm OD 59.5 mm Height Grooved Raceway Axial Both Directions

Product Description

What this part is

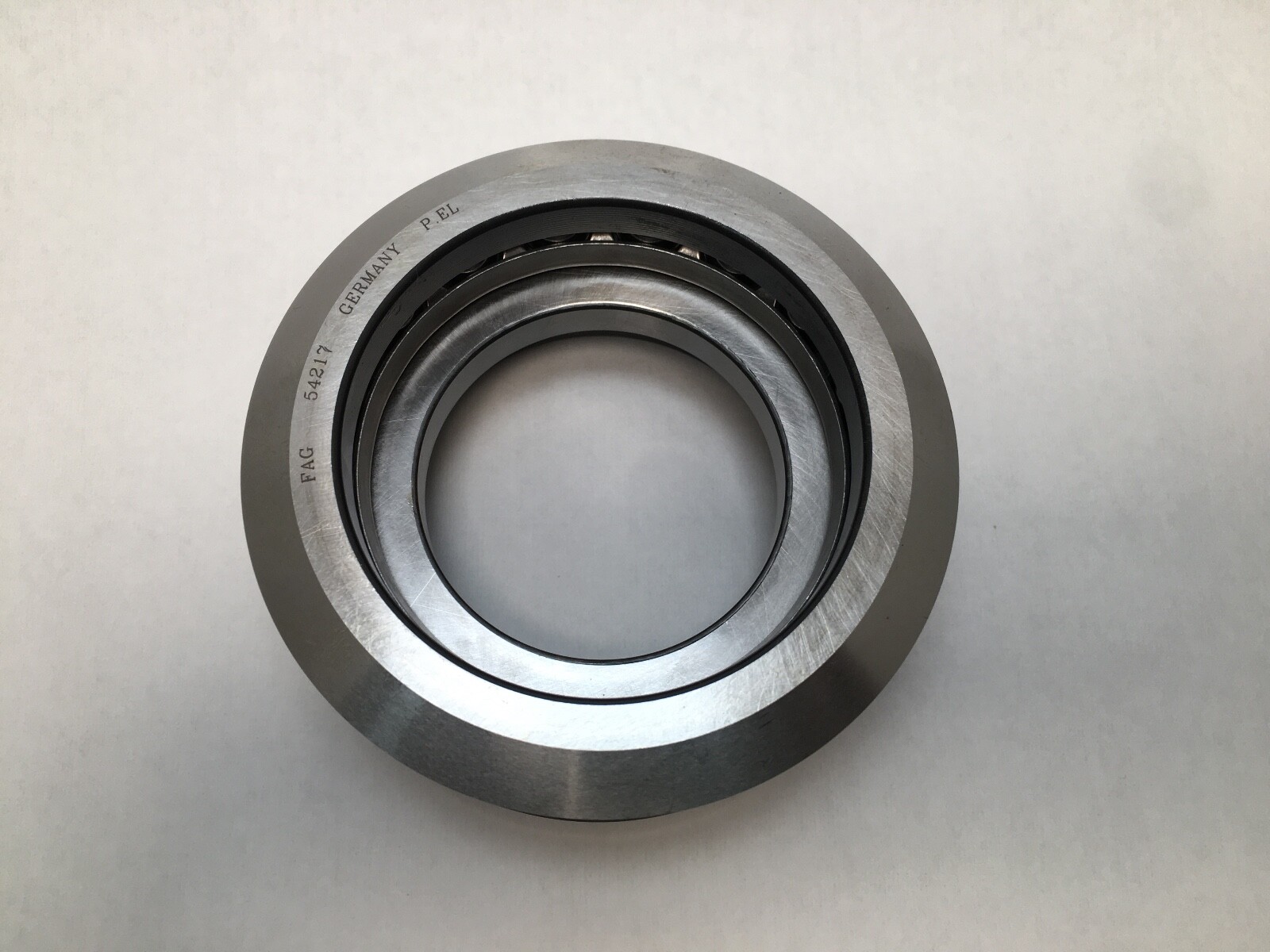

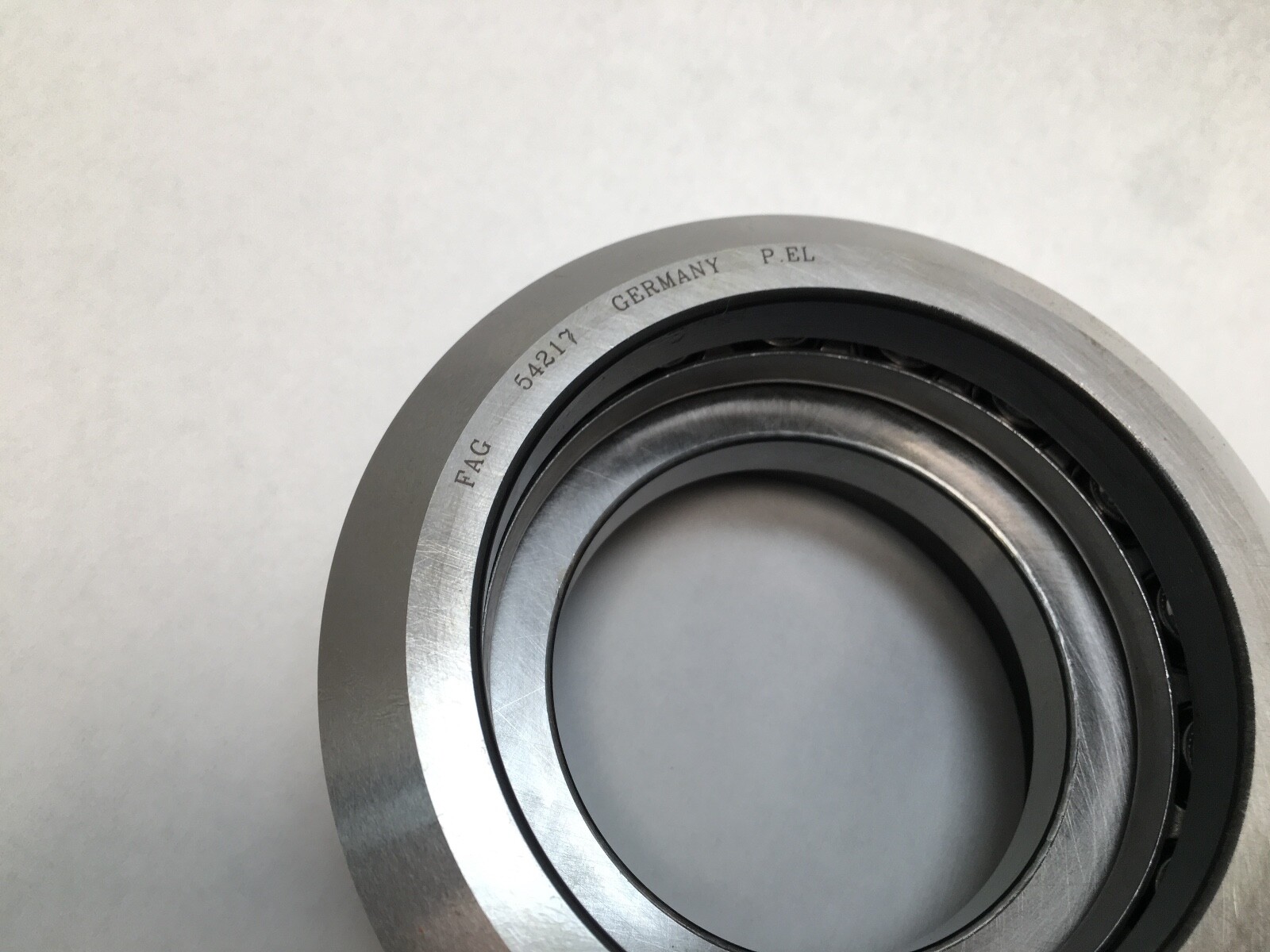

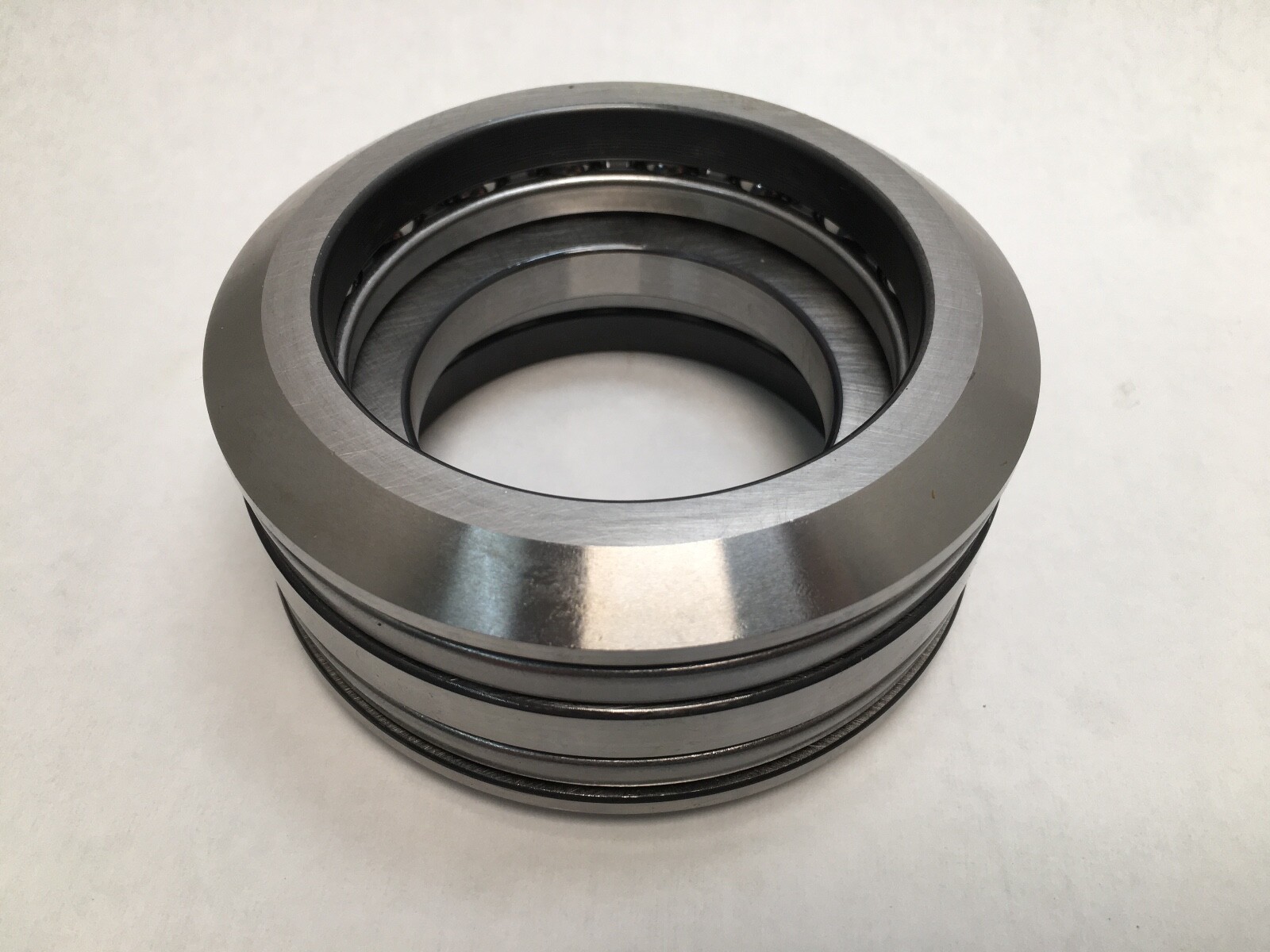

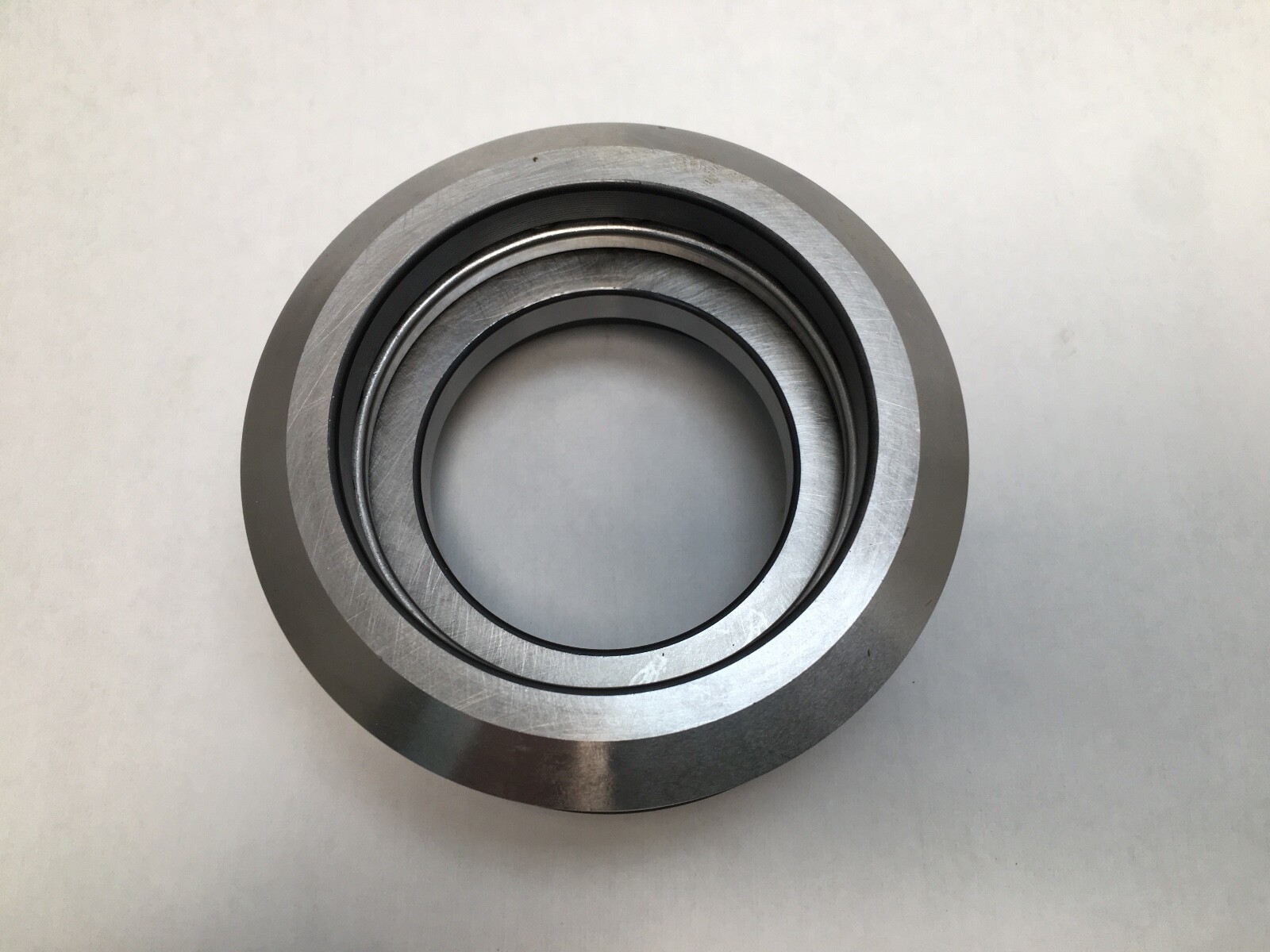

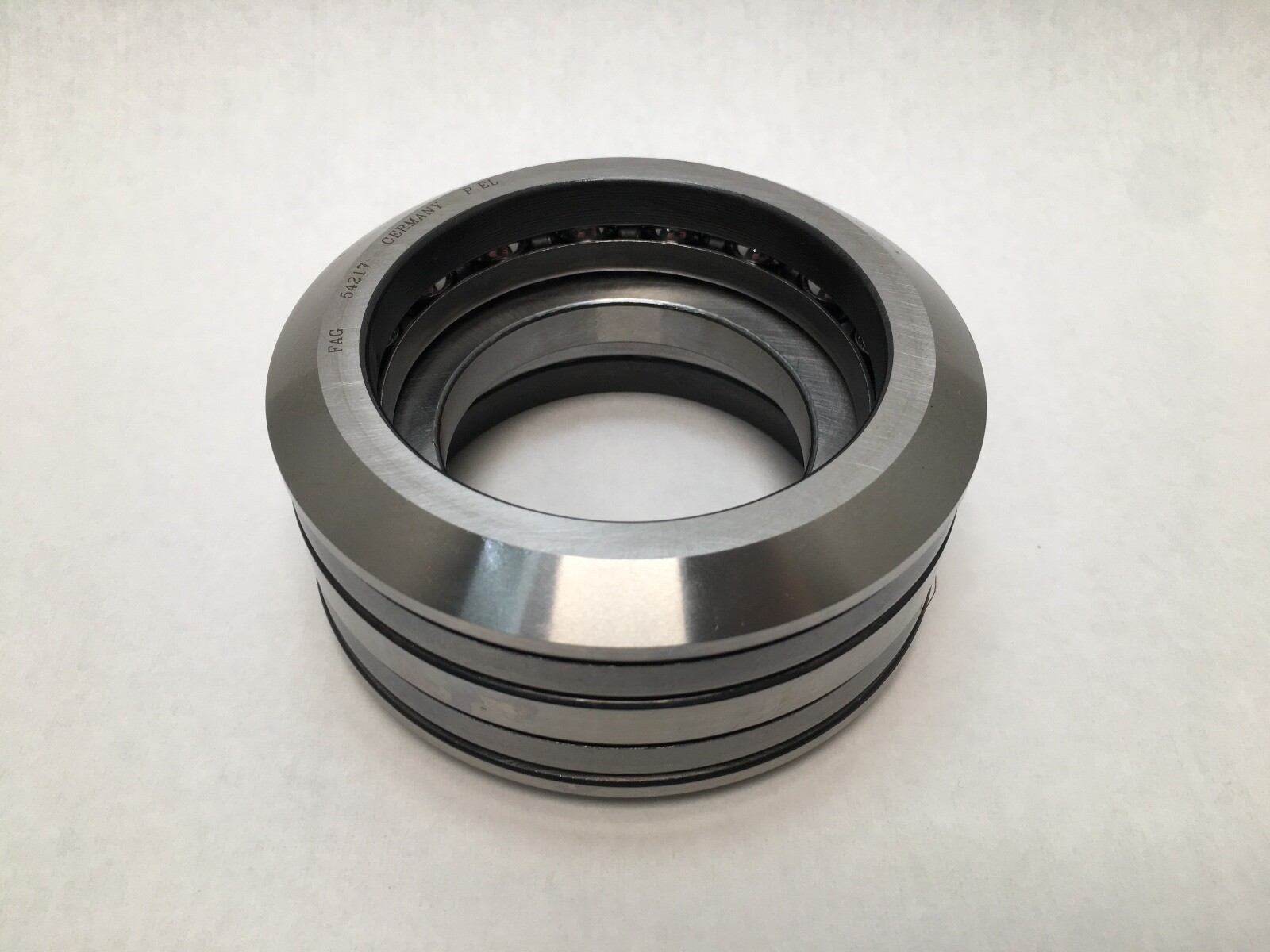

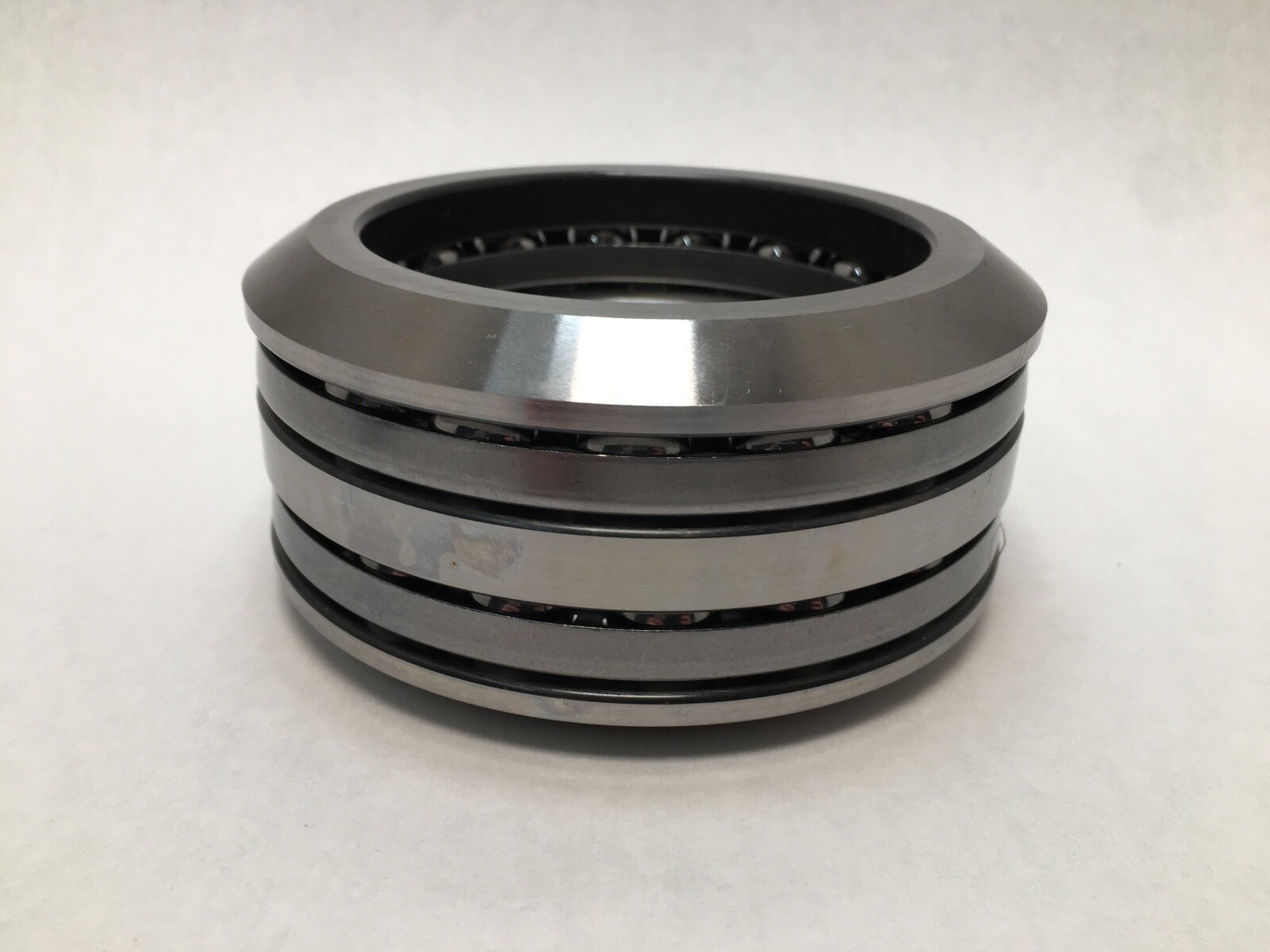

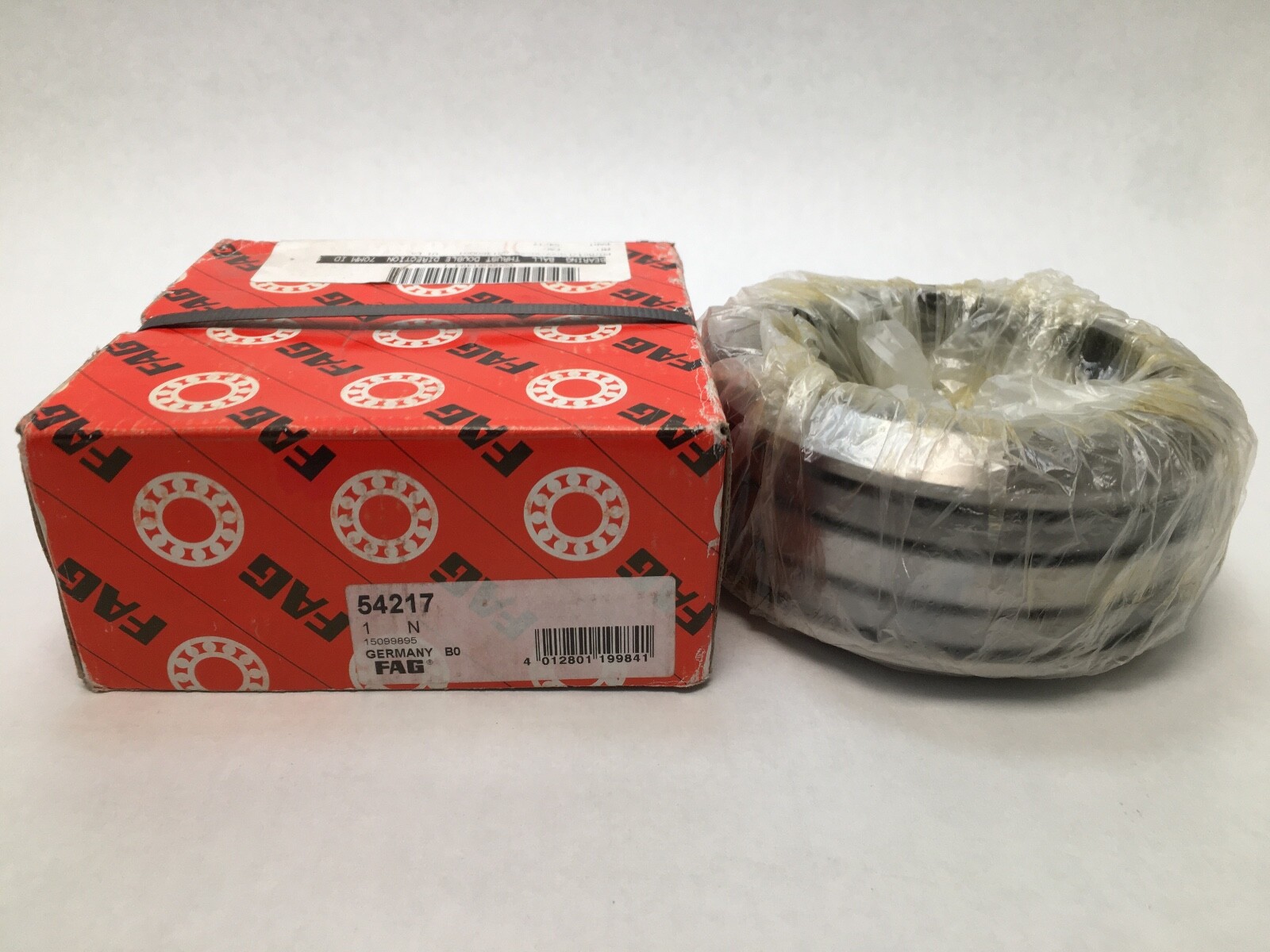

A FAG 54217 double-direction thrust ball bearing with grooved raceways, 125 mm outside diameter and 59.5 mm overall height. It carries pure axial load in both directions and locates a shaft axially on its own.

Decoding the designation

54 — double-direction thrust ball bearing series.
2 — dimension series within the thrust range.
17 — bore size code.

Construction

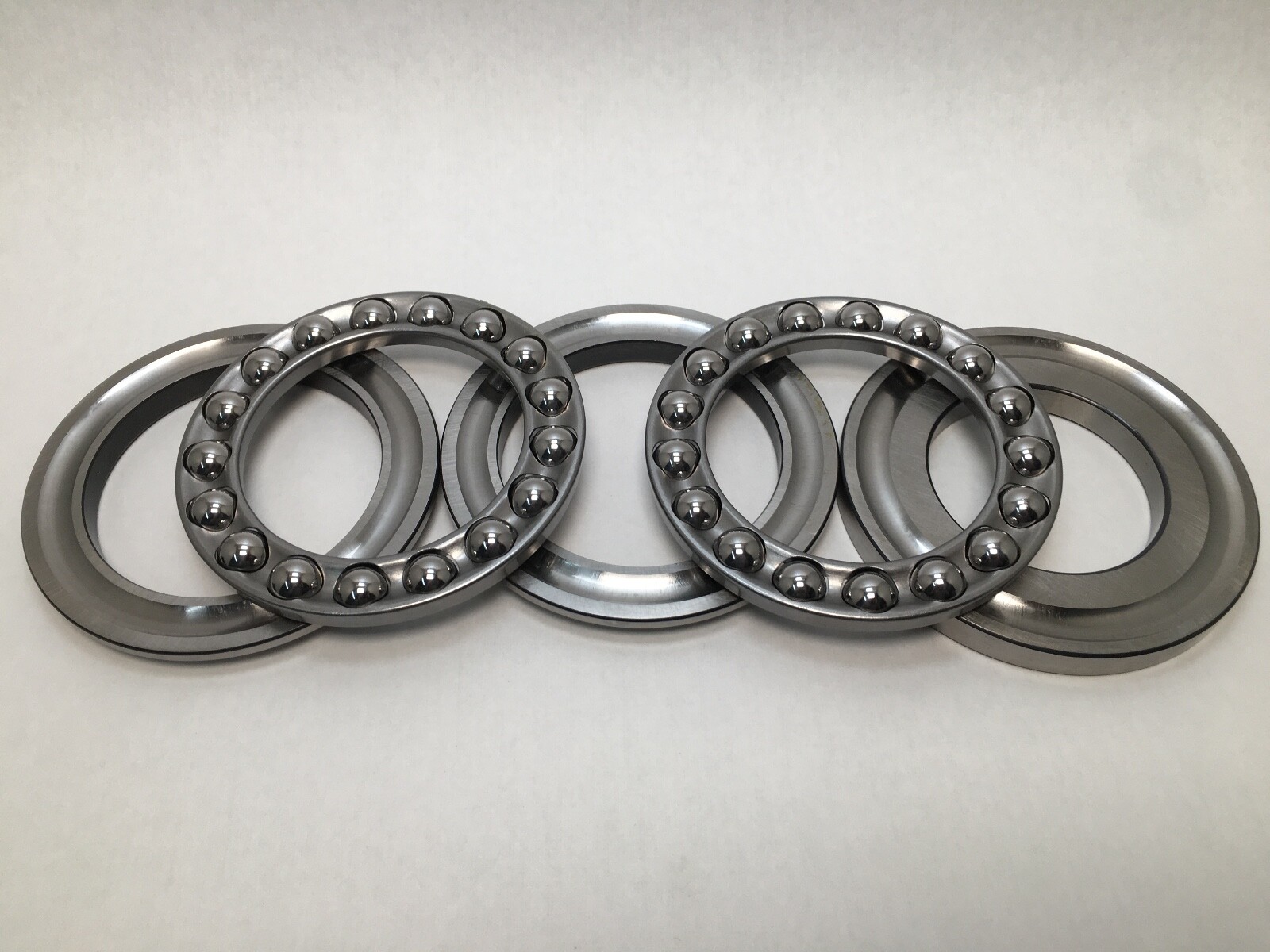

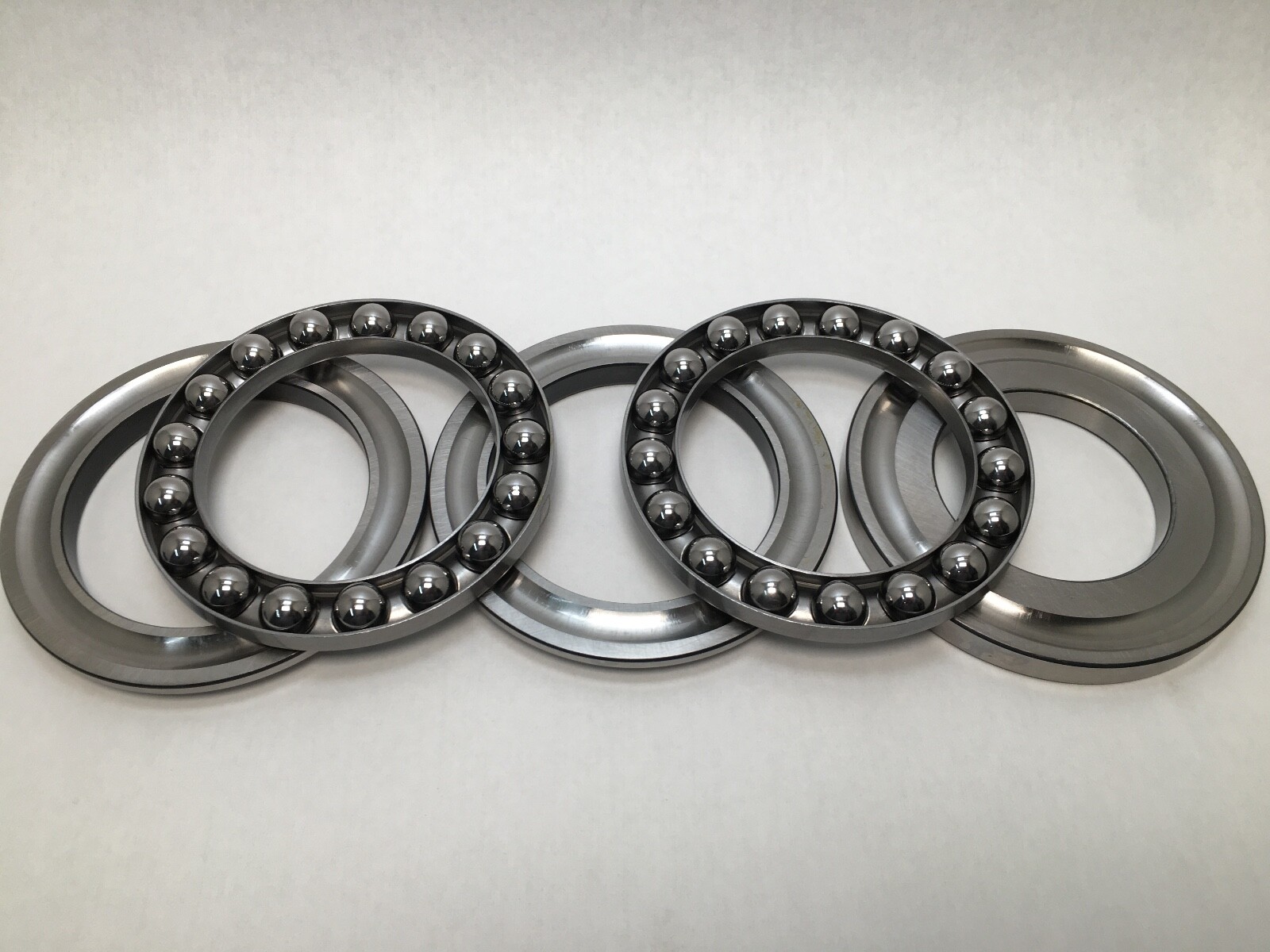

The bearing is an assembly of one central shaft washer with a ground raceway on each face, two housing washers, and two ball and cage assemblies. The shaft washer is clamped to the rotating shaft between the two ball rows, so axial load applied from either side is taken through a fully formed ball-to-raceway contact.

What these specs mean in practice

A thrust ball bearing of this type is a pure axial member and takes no meaningful radial load, so it works alongside a separate radial bearing that carries the shaft weight and any side loading. Because the raceways are grooved rather than flat, the balls run in a defined contact path and the bearing holds far more axial load than a flat-washer thrust bearing of the same diameter. Double-direction construction means one bearing replaces two opposed single-direction units and sets the shaft position from both faces.

Published specifications

Shaft washer bore: 75 mm (2.953 in)
Outside diameter: 125 mm (4.921 in)
Overall height: 59.5 mm (2-11/32 in)
Load direction: axial, both directions
Rows: 2 ball rows
Rolling elements: balls
Raceway form: grooved
Closure: open

Quantity and configuration

Sale unit is 1 Pc, one complete double-direction assembly comprising the shaft washer, both housing washers and both ball and cage assemblies.

Fitting notes

The two housing washers seat against faces square to the shaft axis, and the central shaft washer is clamped to the shaft so it turns with it. Alignment matters more than on a radial bearing, since any out-of-square in a housing face loads one arc of the ball path in preference to the rest.

Interchange guidance

The 54200 series is the double-direction form. Single-direction thrust ball bearings in the 51000 series and the 52000 double-direction series are related sizes with different washer arrangements, not interchanges. Double-direction angular contact thrust bearings in the 234400 series carry combined load and are a different product type.
