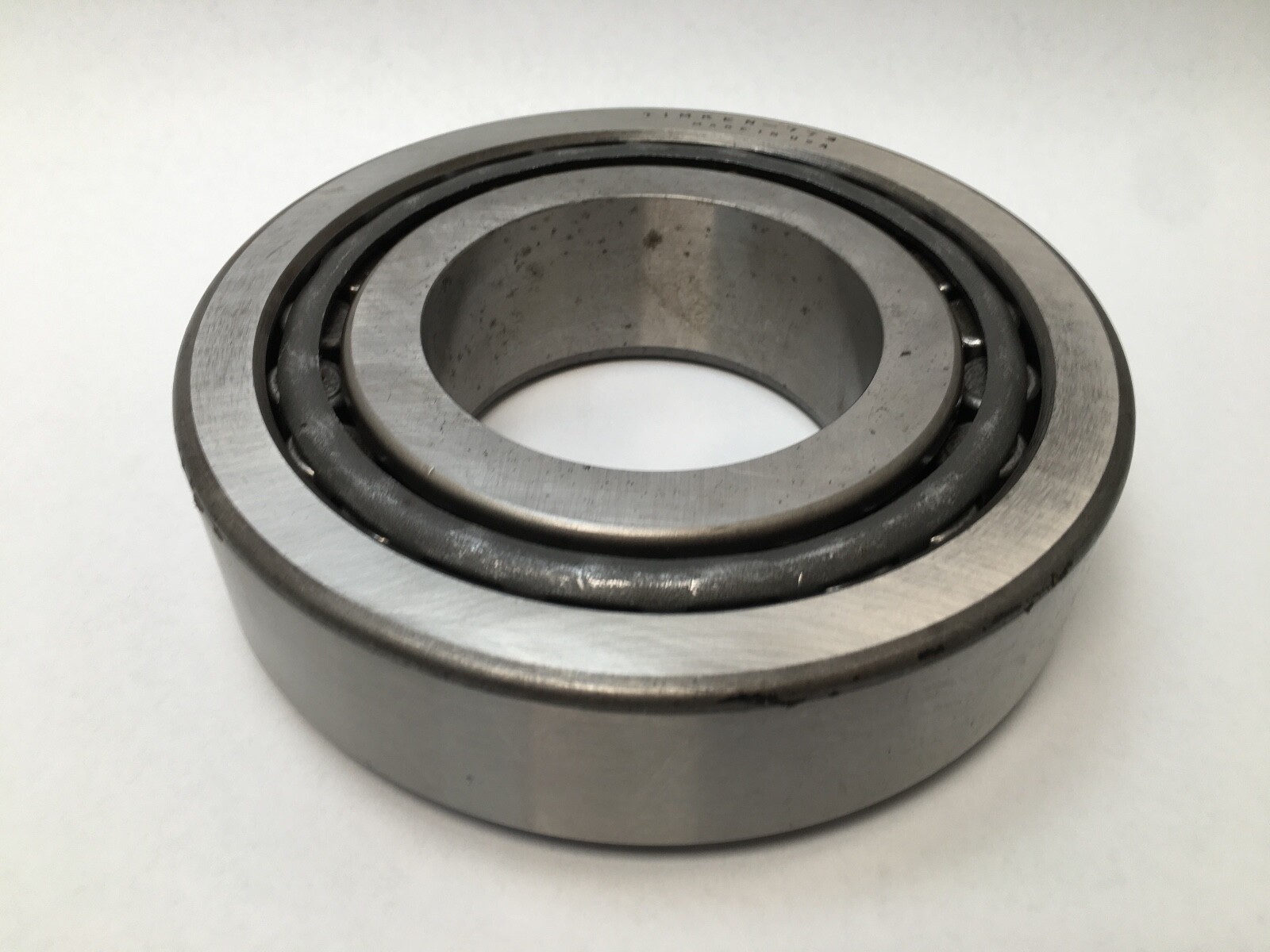

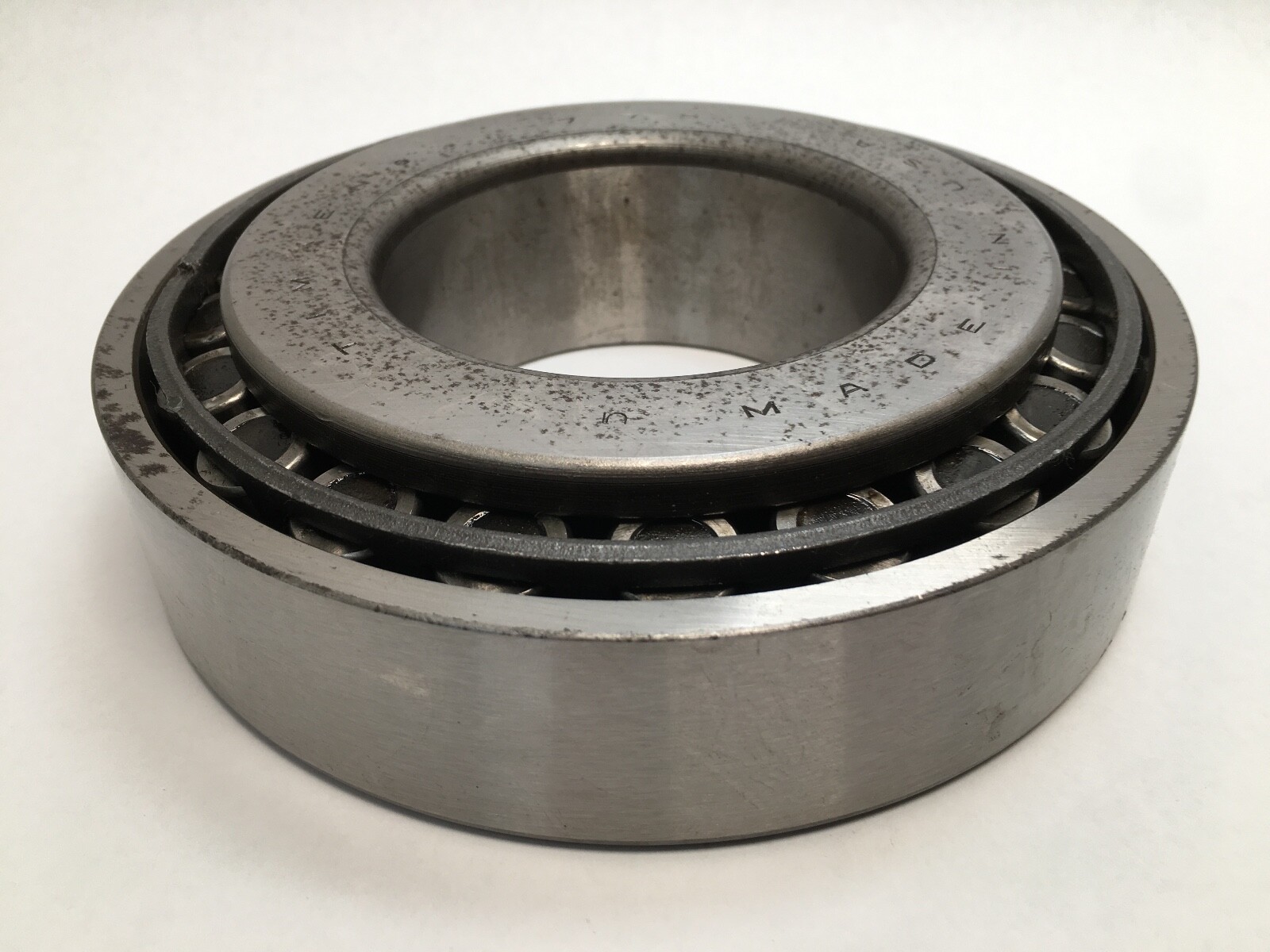

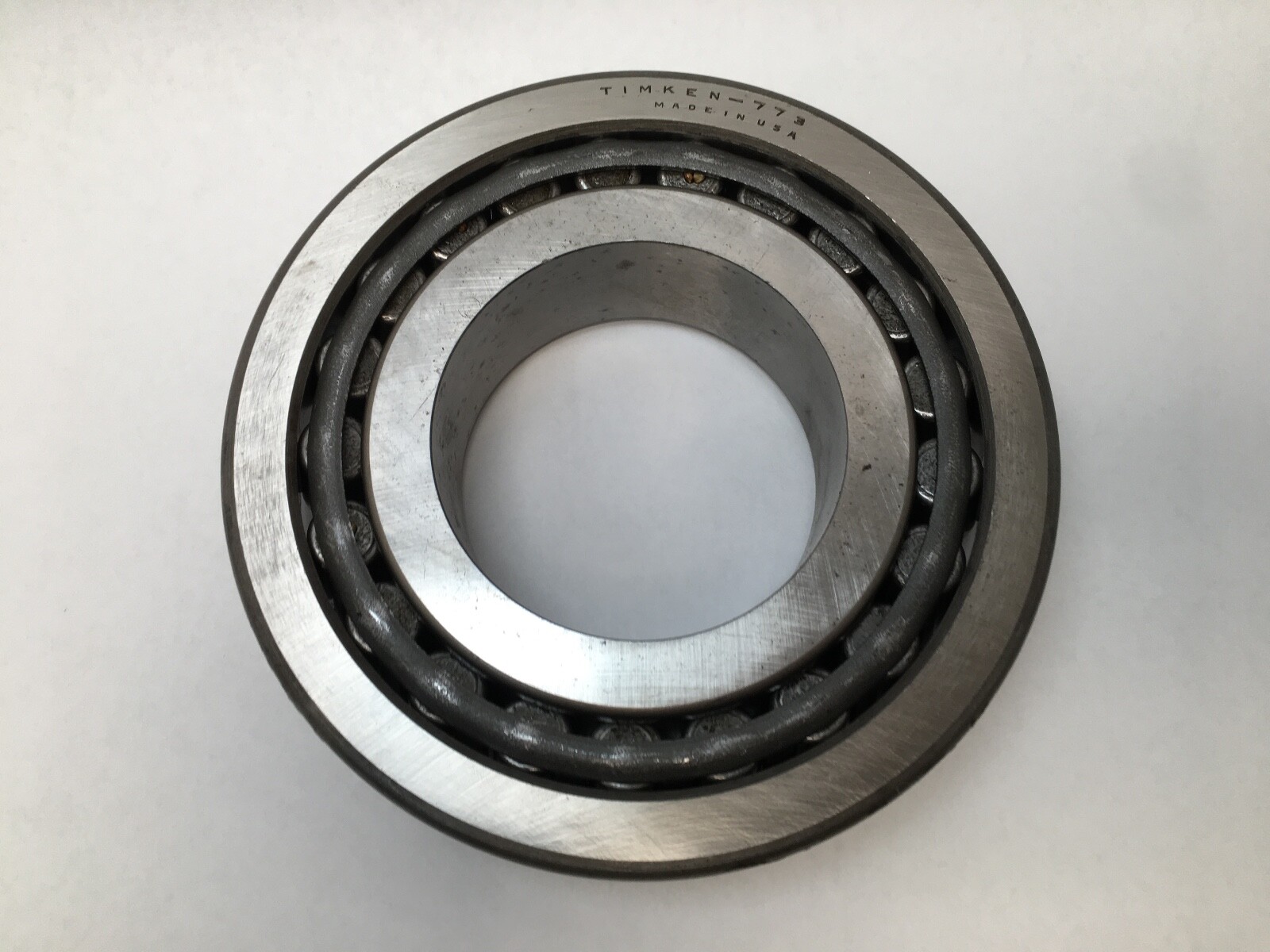

Timken775/773Tapered Roller Bearing Cone and Cup — 3.5000 in (88.900 mm) Bore, 7.0866 in (180 mm) OD, 1.8898 in (48.001 mm) Width

Condition: New – Open box

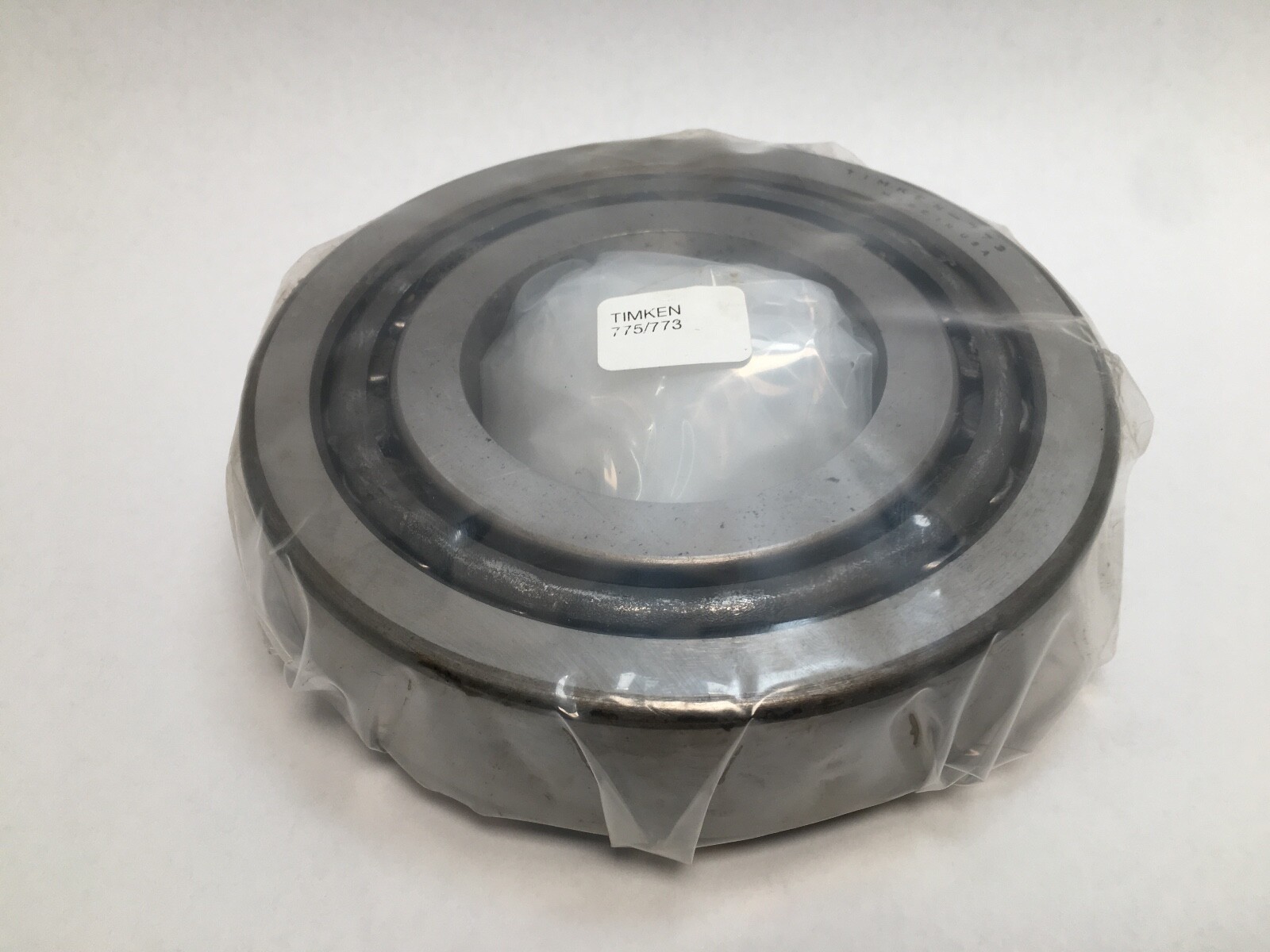

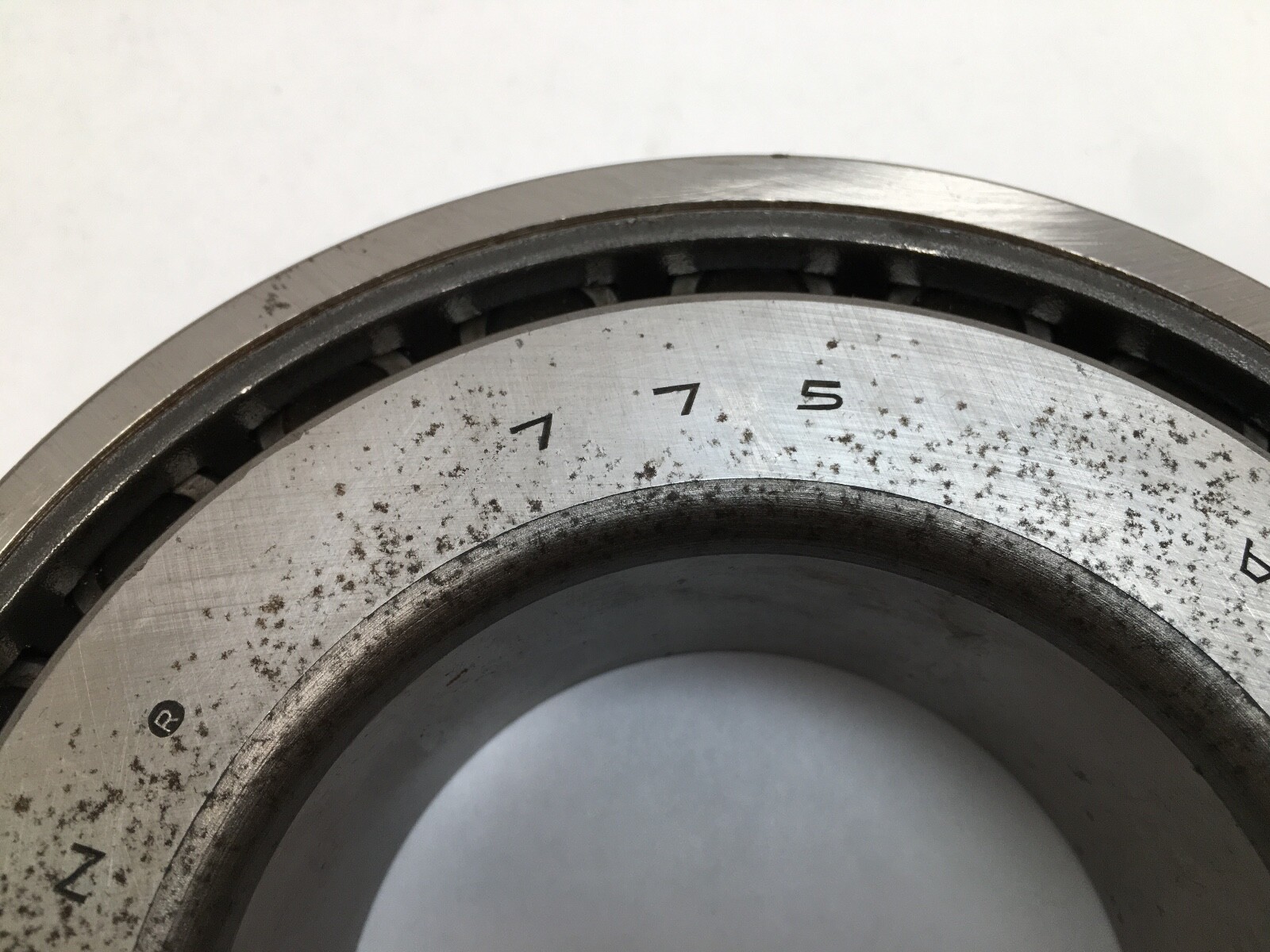

Condition Note: Made In USA, New Old Stock, Stained

Availability:

1 in stock

Tapered roller bearing cone and cup set, 3.5000 in (88.9 mm) bore, 7.0866 in (180 mm) OD, 1.8898 in width, 346,000 N C1. Timken 775/773 set.

Same day shipment

List Price

$123.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandTimken
MPN775/773
Model775 / 773
Bearing TypeTapered Roller Bearing
ID3.5000 in (88.900 mm)
OD7.0866 in (180.000 mm)

Technical Specifications

Series775
Mpn Variants775/773, 775 773
Dynamic Load Rating346,000 N
Static Load Rating495,000 N
Item Weight5.7 kg (12.60 lb)
Number Of Rows1
Harmonization Code8482.20.00
Cup Part Number773
Cup Width1.5748 in (40.000 mm)
Cone Part Number775
Cone Width1.8900 in (48.006 mm)
Effective Center Location-0.32 in (-8.1 mm)
Industry Termstapered roller bearing cone and cup set; taper bearing set; inch tapered roller bearing; 3-1/2 inch bore tapered bearing; 775/773 bearing
Common MisspellingsTimken 775 773; Timken 775-773; Timken 775/ 773; Timkin 775/773; Timkin 775 773
Application TypesIndustrial gearboxes; heavy equipment axles; machinery shafts; agricultural equipment

Cross-References

Cross Reference 1SKF 775/773
Cross Reference 2NTN 4T-775/773
Cross Reference 3Koyo 775/773
Cross Reference 4Bower 775/773
Cross Reference 5Timken 775/772 (related, 772 cup)
Seller Part Number: CD4#5ABURQ

Product Description

What this part is:

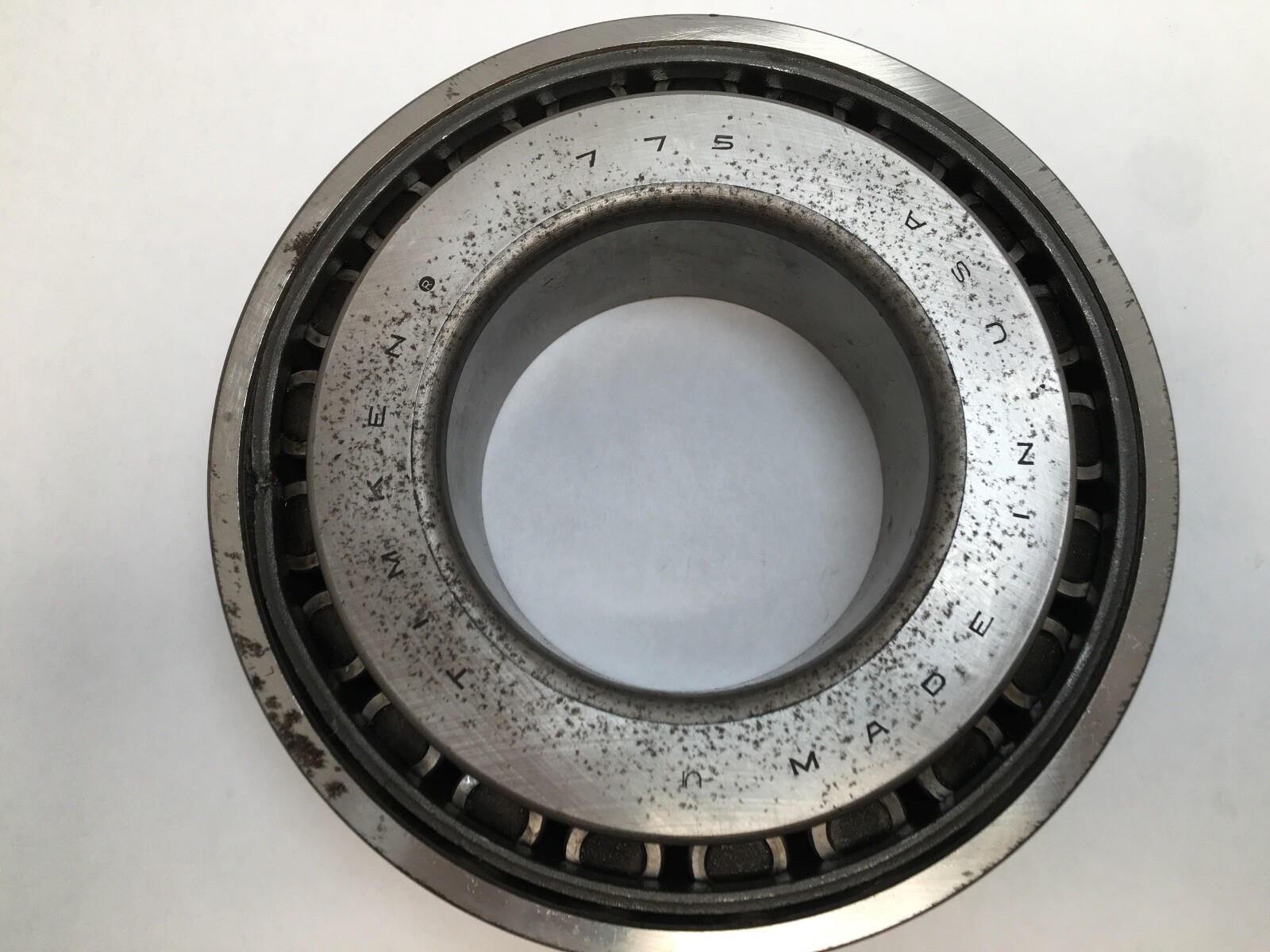

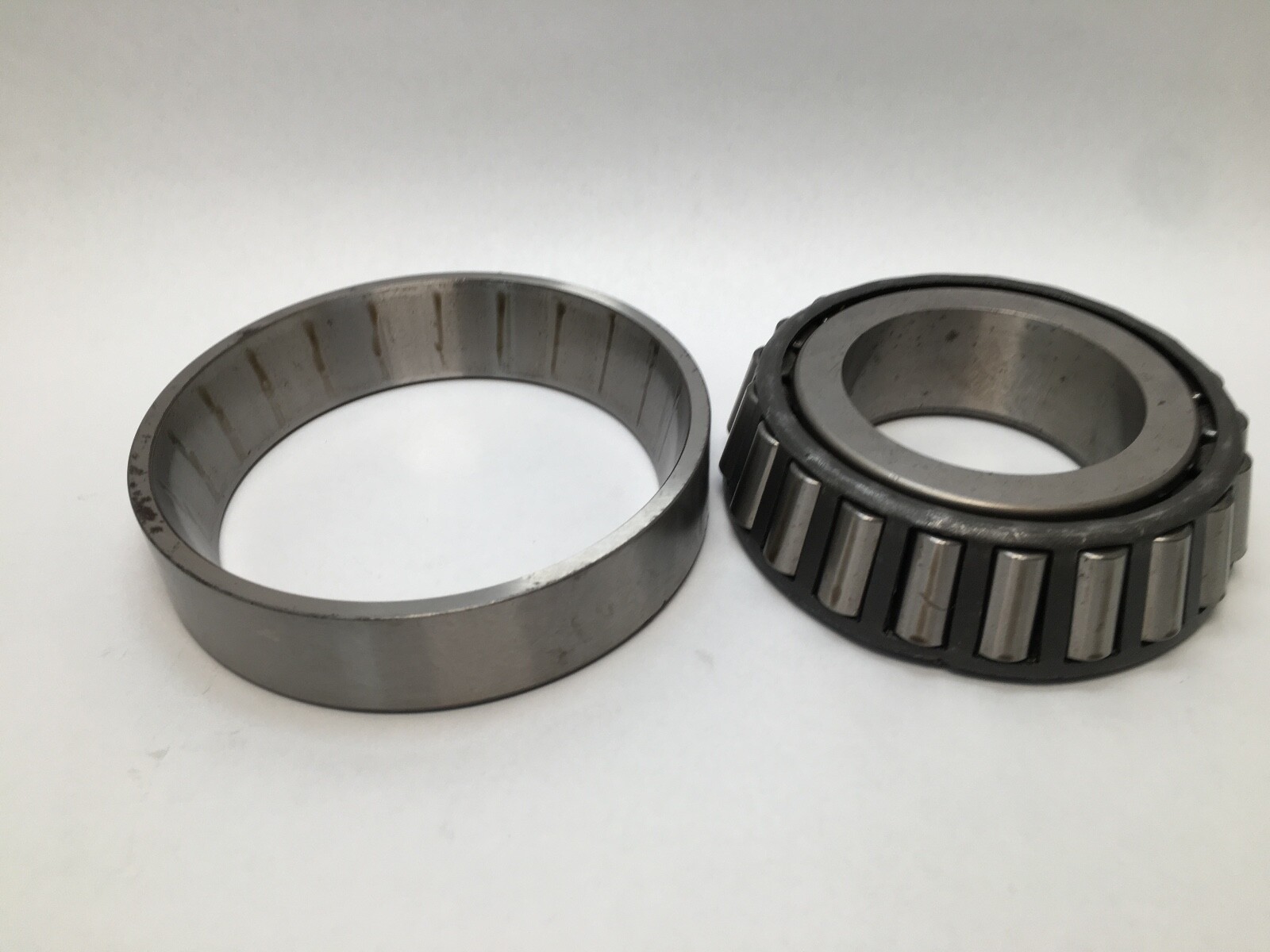

Timken 775/773 single-row tapered roller bearing: one 775 cone and one 773 cup. Bore Diameter: 3.5000 in (88.900 mm). Outside Diameter: 7.0866 in (180.000 mm). Overall Width: 1.8898 in (48.001 mm). Cone Width: 1.8900 in (48.006 mm). Cup Width: 1.5748 in (40.000 mm). Item Weight: 5.7 kg (12.60 lb). Series: 775. Number Of Rows: 1. Rolling Elements: Tapered Roller. Unit Quantity: 2 Pcs, one cone and one cup.

Decoding the designation:

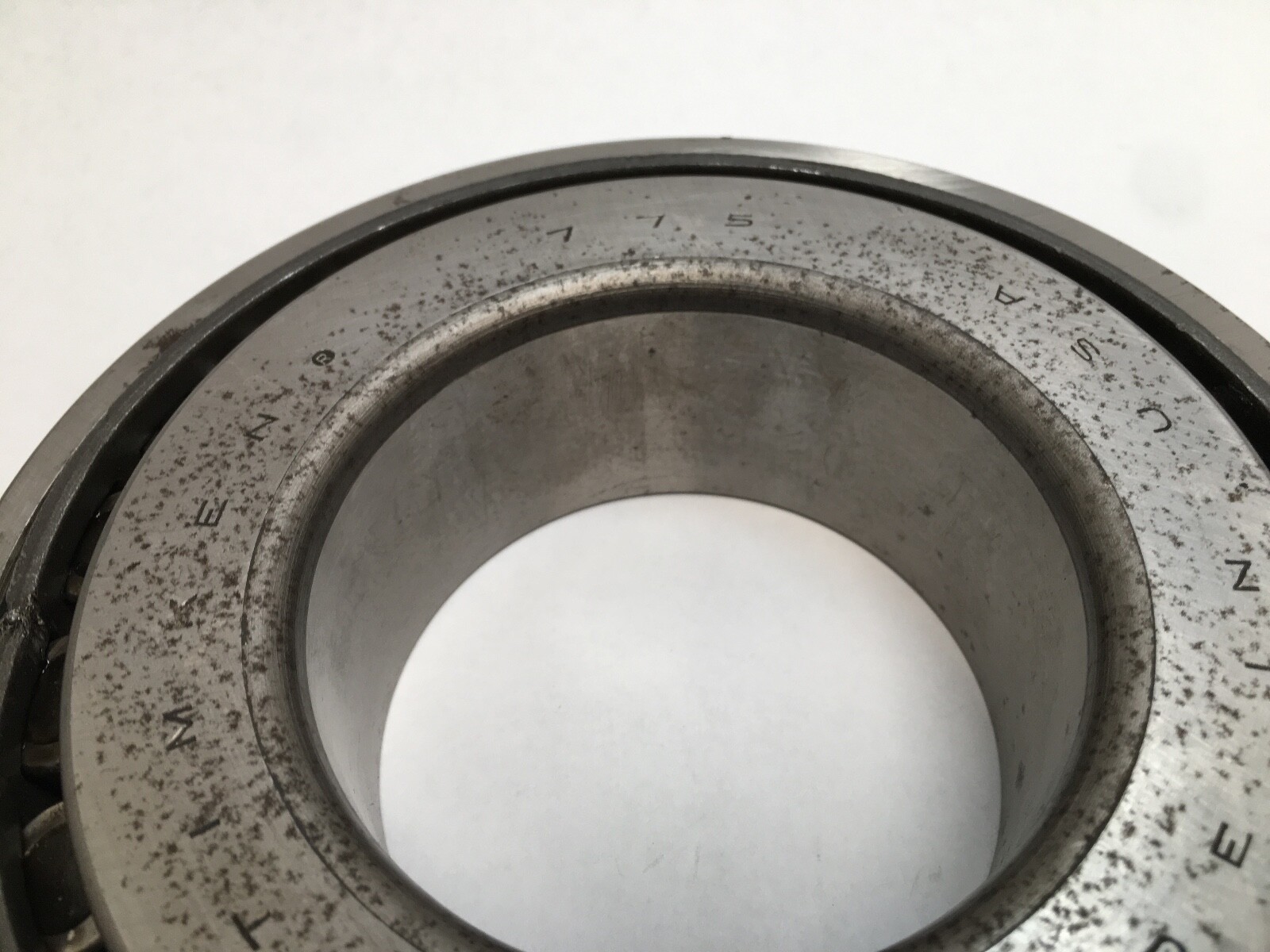

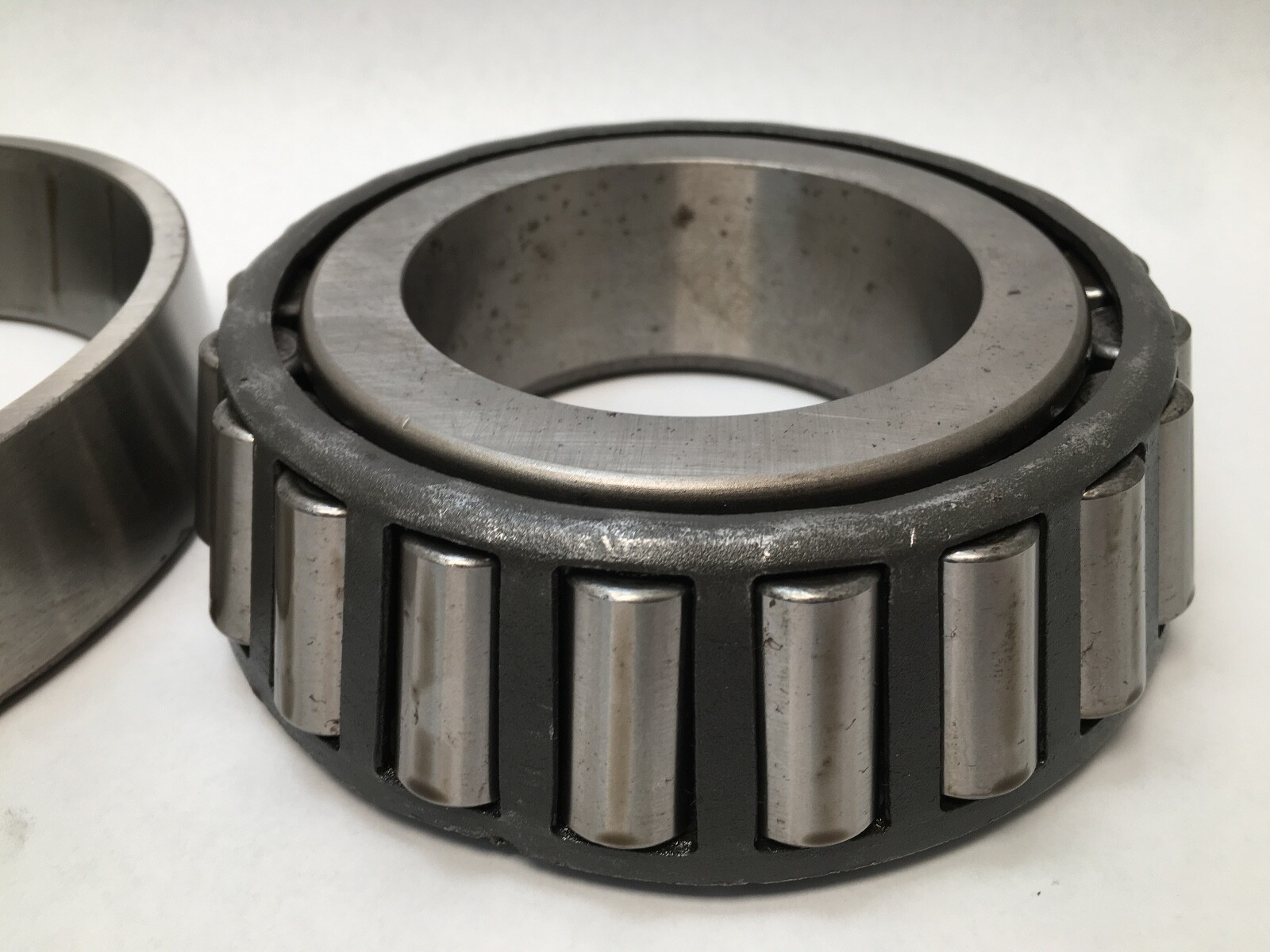

775 — Timken inch-series cone, 3.5000 in bore.

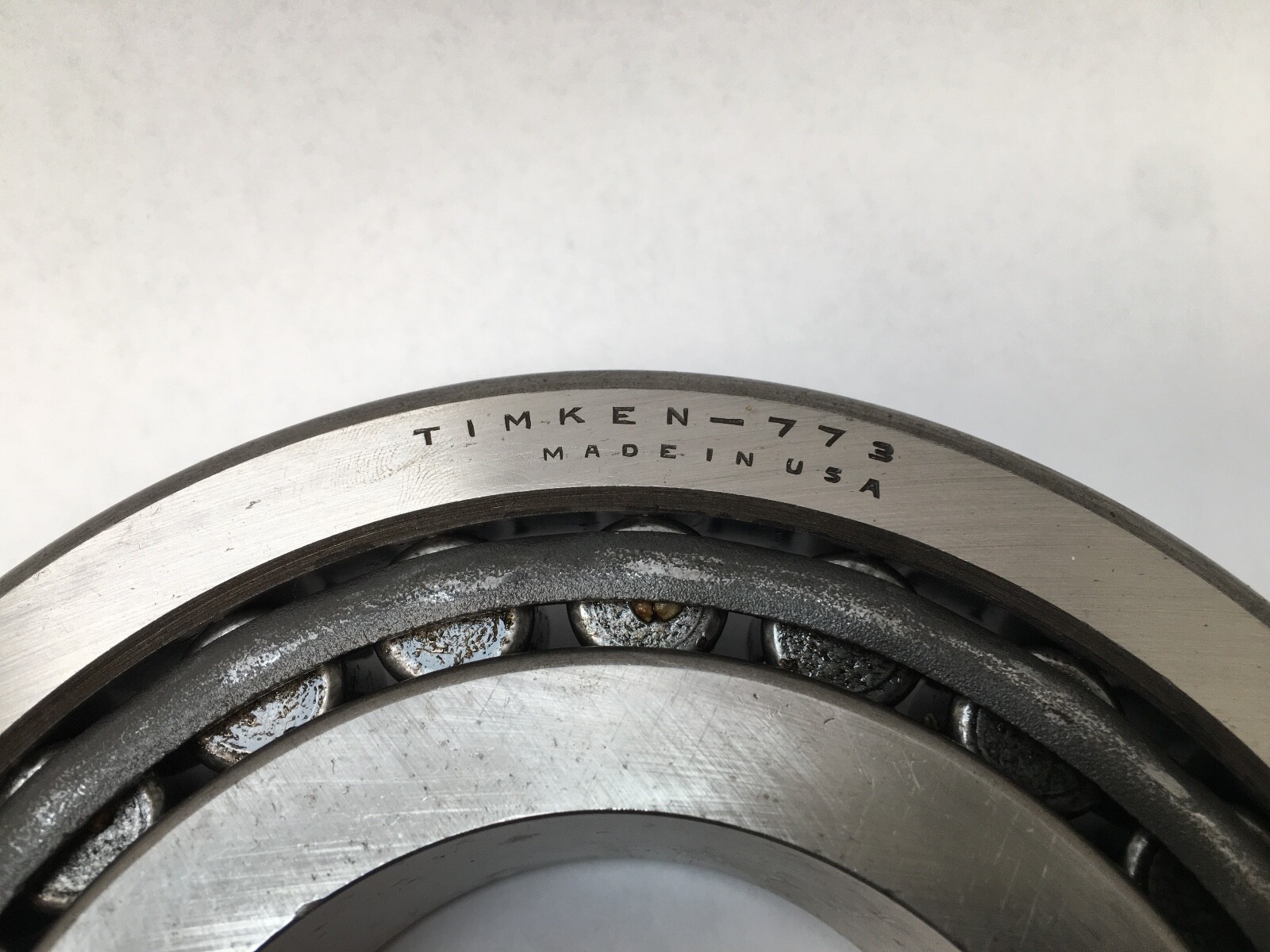

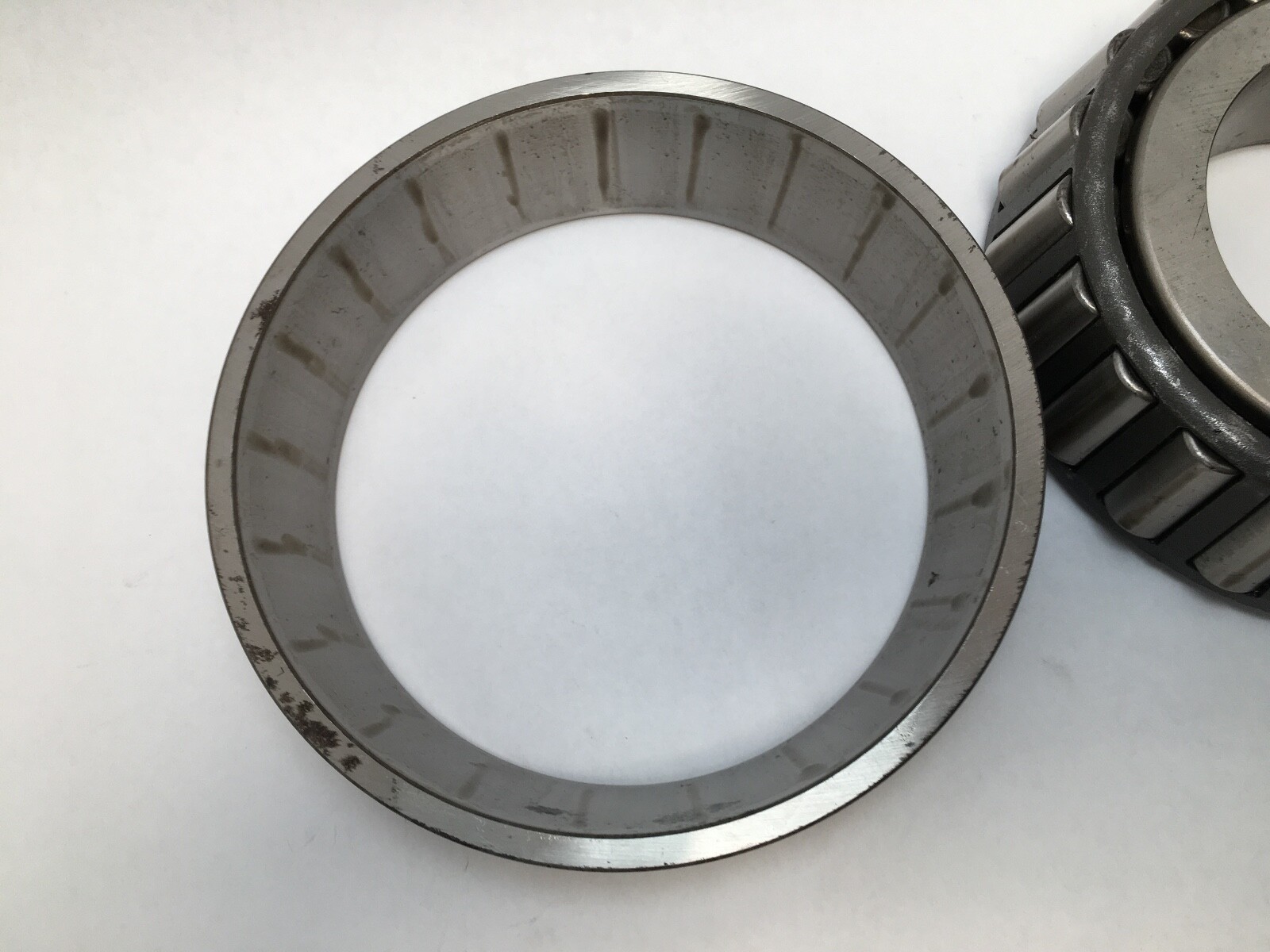

773 — the matching single cup, 7.0866 in (180 mm) OD.

Specifications:

Dynamic Load Rating: 346,000 N (77,800 lbf), Timken C1 at 1 million revolutions. Dynamic Radial Rating C90: 89,700 N (20,200 lbf). Dynamic Axial Rating Ca90: 59,200 N (13,300 lbf). Static Load Rating: 495,000 N (111,000 lbf). e Factor: 0.39. K Factor: 1.51. Y Factor: 1.56. Harmonization Code: 8482.20.00.

Dimensions and mounting:

Effective Center Location: -0.32 in (-8.1 mm). Max Shaft Fillet Radius: 0.19 in (4.8 mm). Max Housing Fillet Radius: 0.12 in (3.05 mm). Shaft Backing Shoulder Diameter, Frontface (da): 4.06 in (103 mm). Shaft Backing Shoulder Diameter, Backface (db): 4.41 in (112 mm). Housing Backing Shoulder Diameter, Frontface (Da): 6.65 in (167.90 mm). Housing Backing Shoulder Diameter, Backface (Db): 6.30 in (160.02 mm).

Compatibility and replacement:

Cross-references: SKF 775/773; NTN 4T-775/773; Koyo 775/773; Bower 775/773. The 775 cone also mates the 772 cup (Timken 775/772, related). CAD model and data sheet: available from Timken (cad.timken.com).

Frequently asked questions:

What are the dimensions of the Timken 775/773?

Bore Diameter: 3.5000 in (88.900 mm). Outside Diameter: 7.0866 in (180.000 mm). Overall Width: 1.8898 in (48.001 mm).

What is included in the set?

Unit Quantity: 2 Pcs, one 775 cone and one 773 cup.

What is the dynamic load rating?

Dynamic Load Rating: 346,000 N (77,800 lbf), Timken C1 at 1 million revolutions.
