NSKHR33010JDBP5+KL7CP45Matched DB Tapered Roller Bearing Pair, 50 mm ID, 80 mm OD, P5

Condition: New

Availability:

2 in stock

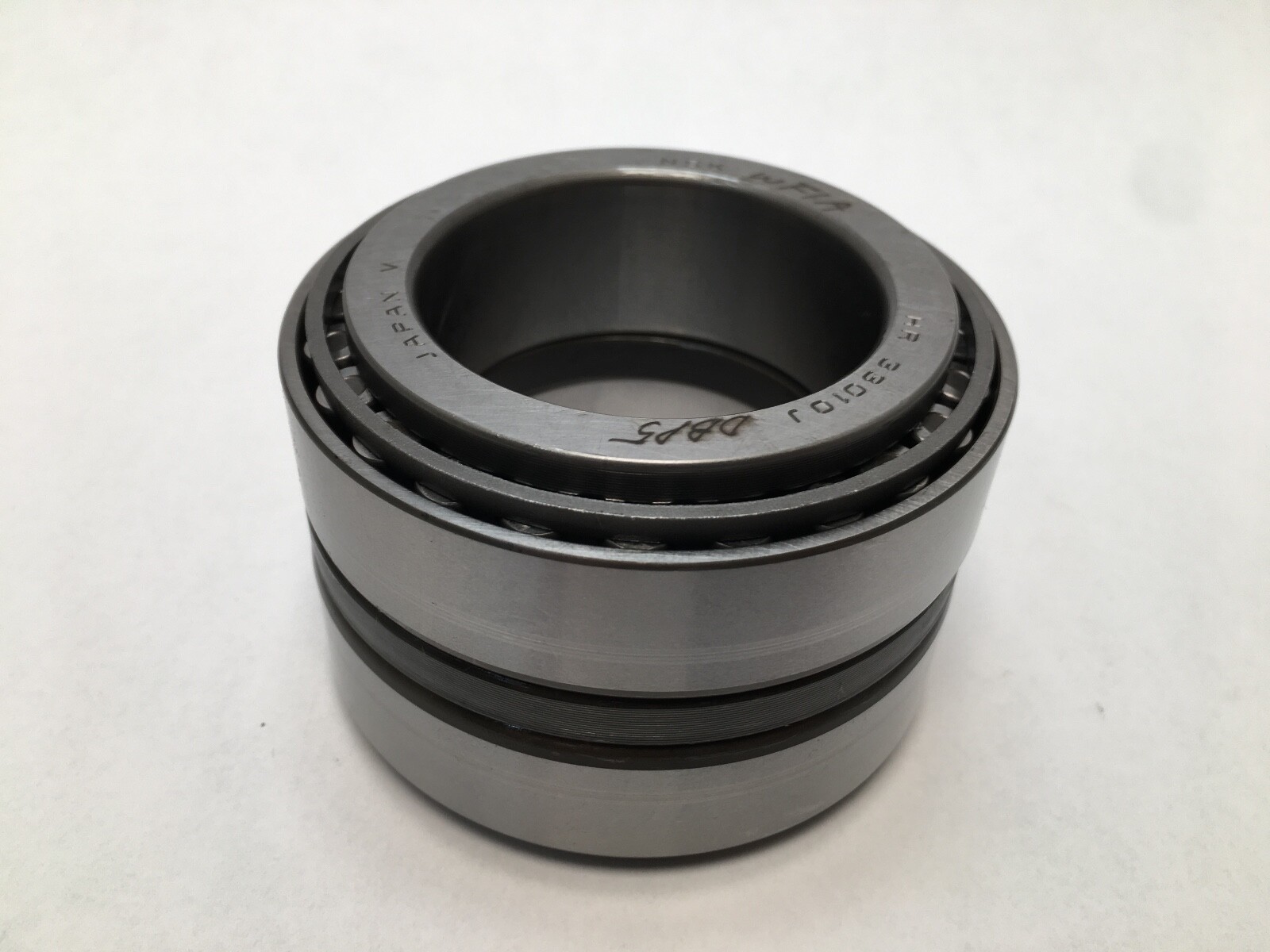

Matched back-to-back (DB) pair of NSK HR33010J tapered roller bearings, 50 mm bore, 80 mm OD, P5 precision, with ground spacer. Five pieces per set.

Same day shipment

List Price

$101.99

2 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

2 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandNSK
MPNHR33010JDBP5+KL7CP45
ModelHR 33010 J DB P5 KL7CP45
Bearing TypeTapered Roller Bearing
ID50 mm
OD80 mm
Width24 mm

Technical Specifications

Base Number33010
Industry Termsmatched pair bearing, DB pair, back-to-back tapered roller
Common MisspellingsNSK HR33010, HR33010J DBP5, HR-33010-J, KL7CP-45, NKS bearings
Application TypesMachine tool spindles, rotary tables, worm gear reducers
Bore Shaft Size50 mm
Mpn VariantsHR33010JDBP5+KL7CP45, HR33010JDBP5, HR33010J DB P5, HR33010JDB
Manufacturer StatusNSK new stock in original carton with inspection slip
Compatible With Replaces50 mm shaft, 80 mm bore positions requiring a preset DB set
Precision ClassP5
Precision RatingABEC 5
Cage MaterialPressed steel
Number Of Rows2 (per matched set)
Part NumberHR33010JDBP5+KL7CP45
Overall Width24 mm
Seller Part Number: B-O1#XXL1YS

Product Description

What this part is:

NSK HR33010JDBP5+KL7CP45 is a factory-matched pair of metric single-row tapered roller bearings, supplied as a back-to-back DB set with a ground spacer ring. Bore Diameter: 50 mm. Outside Diameter: 80 mm. The rings and the spacer are ground together as a unit to produce a specified preload.

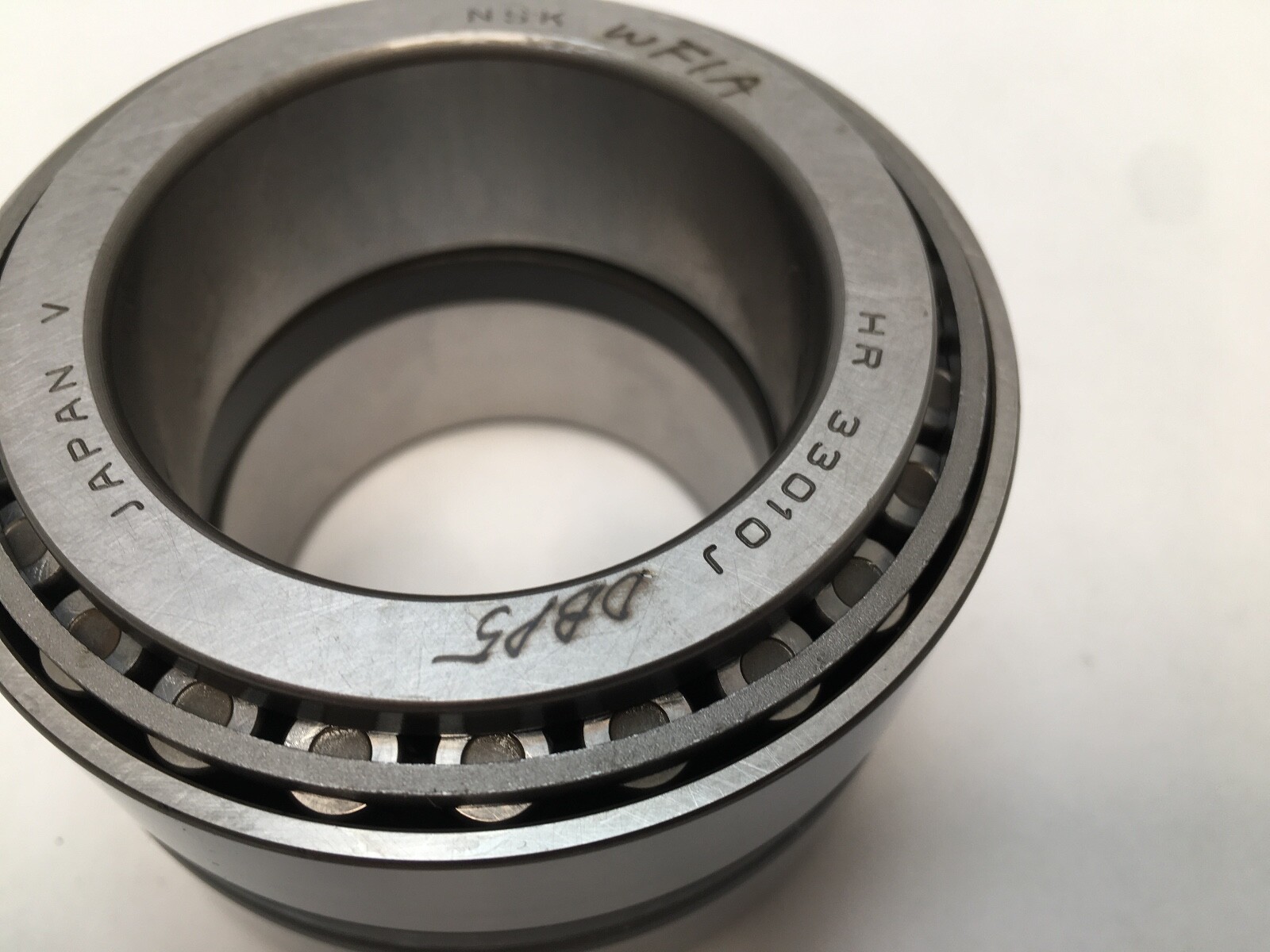

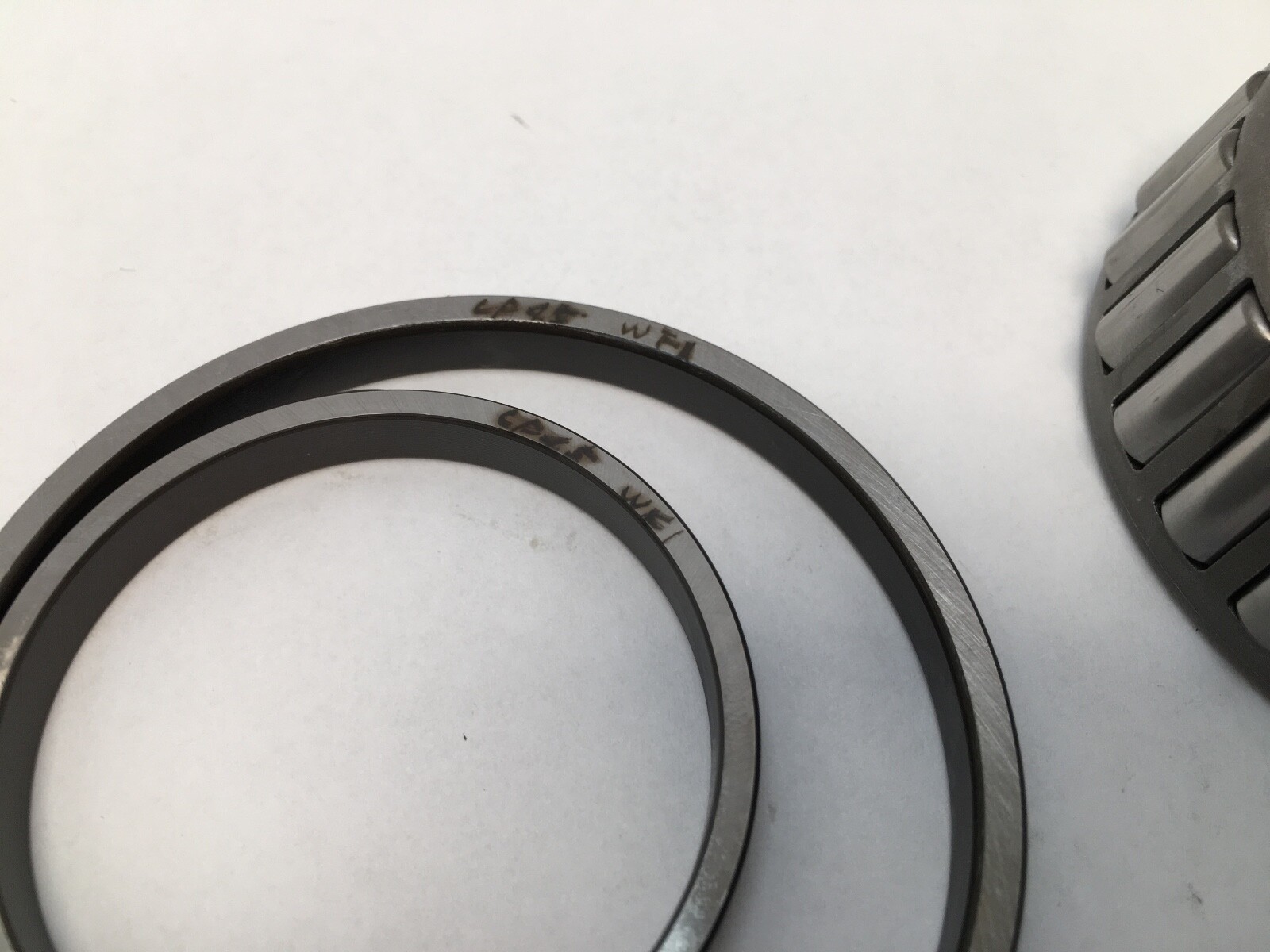

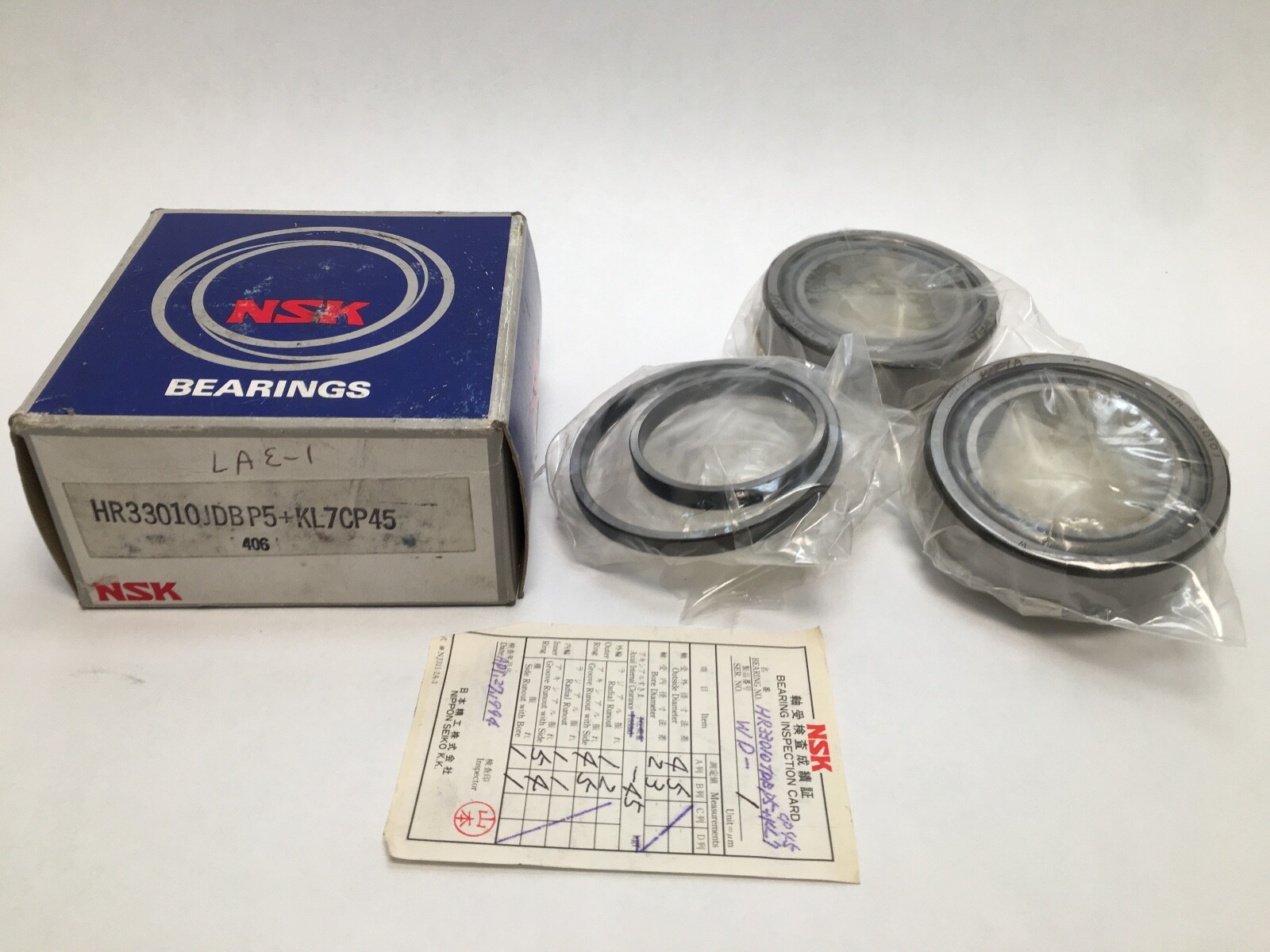

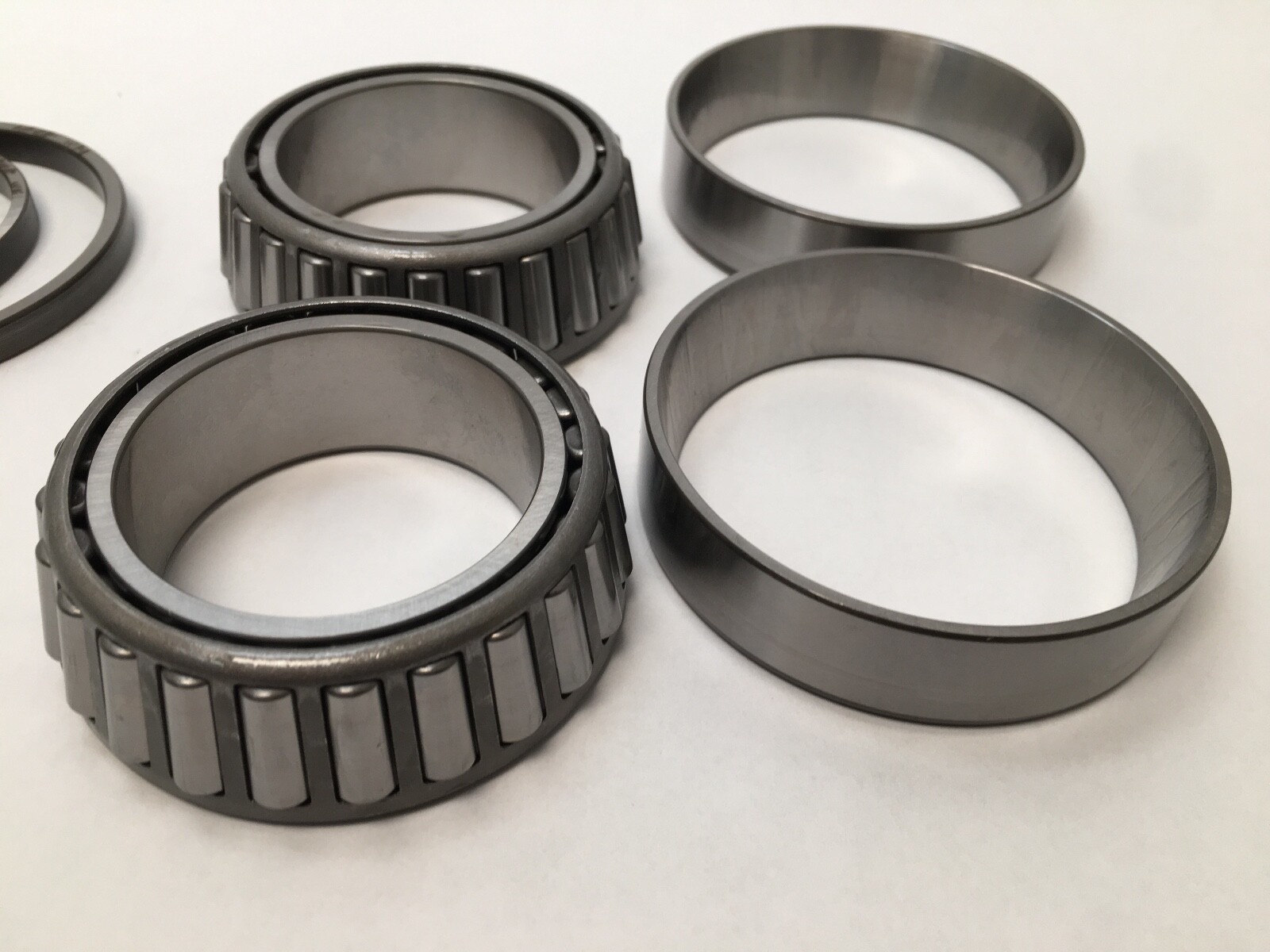

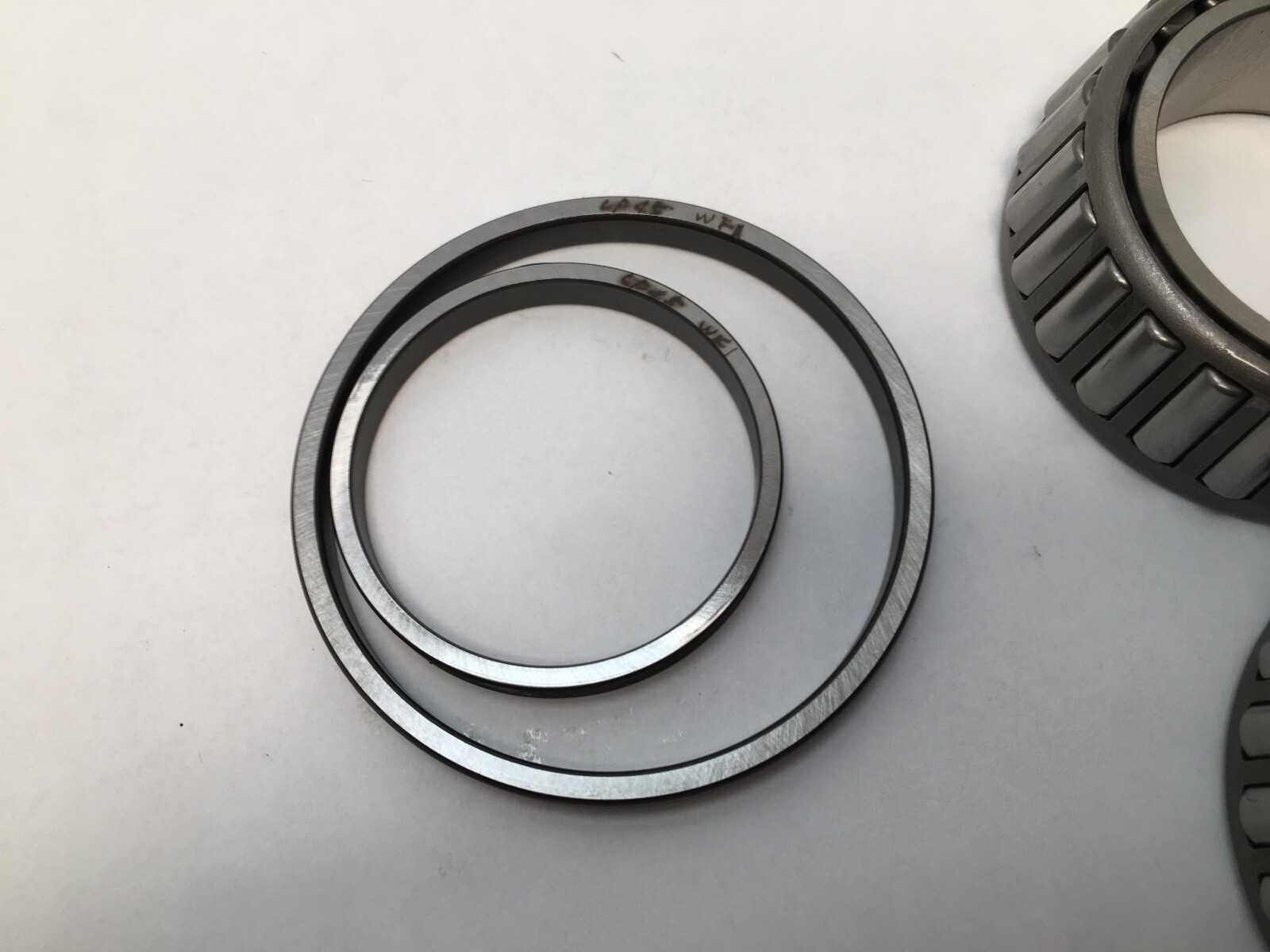

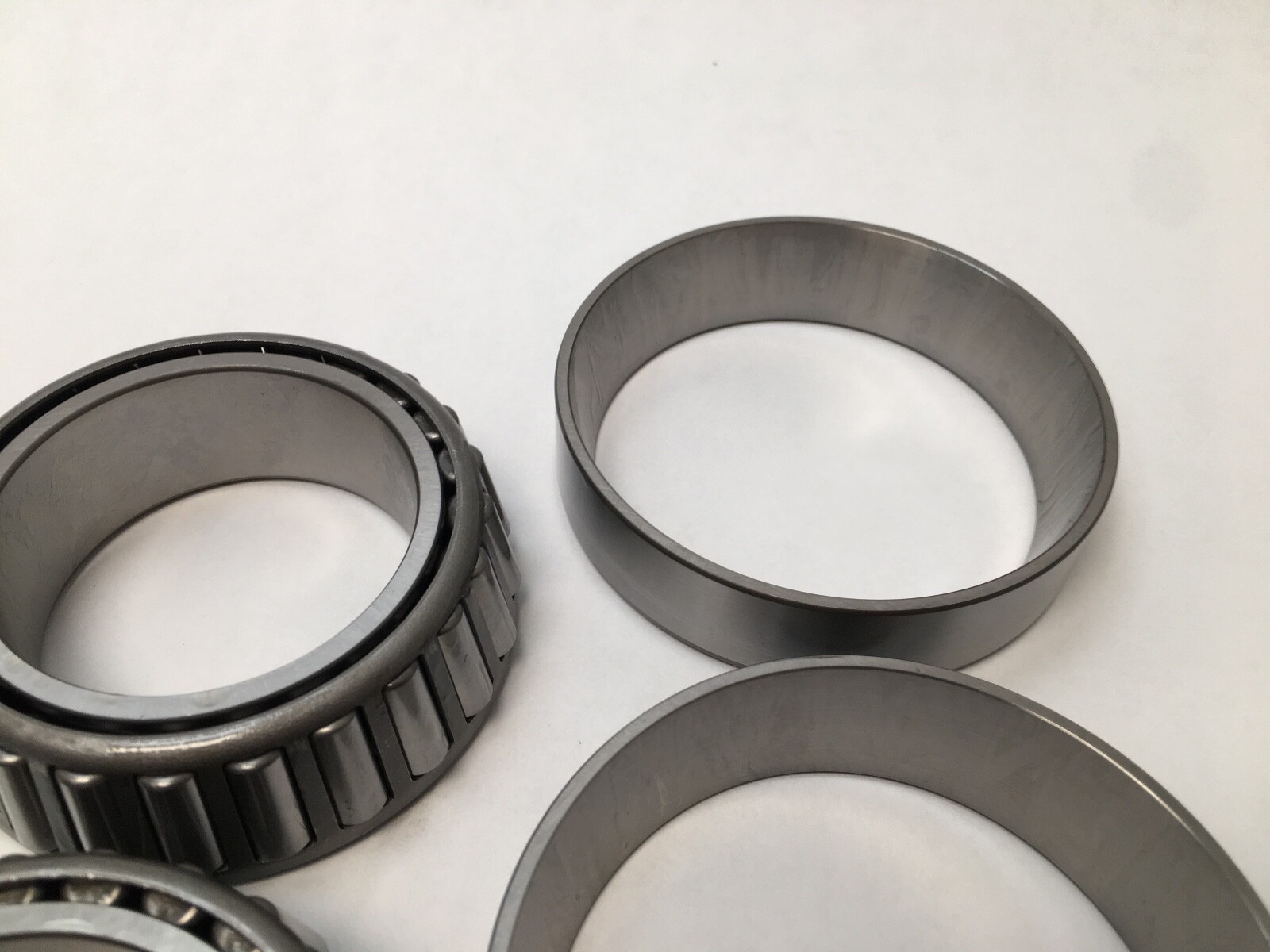

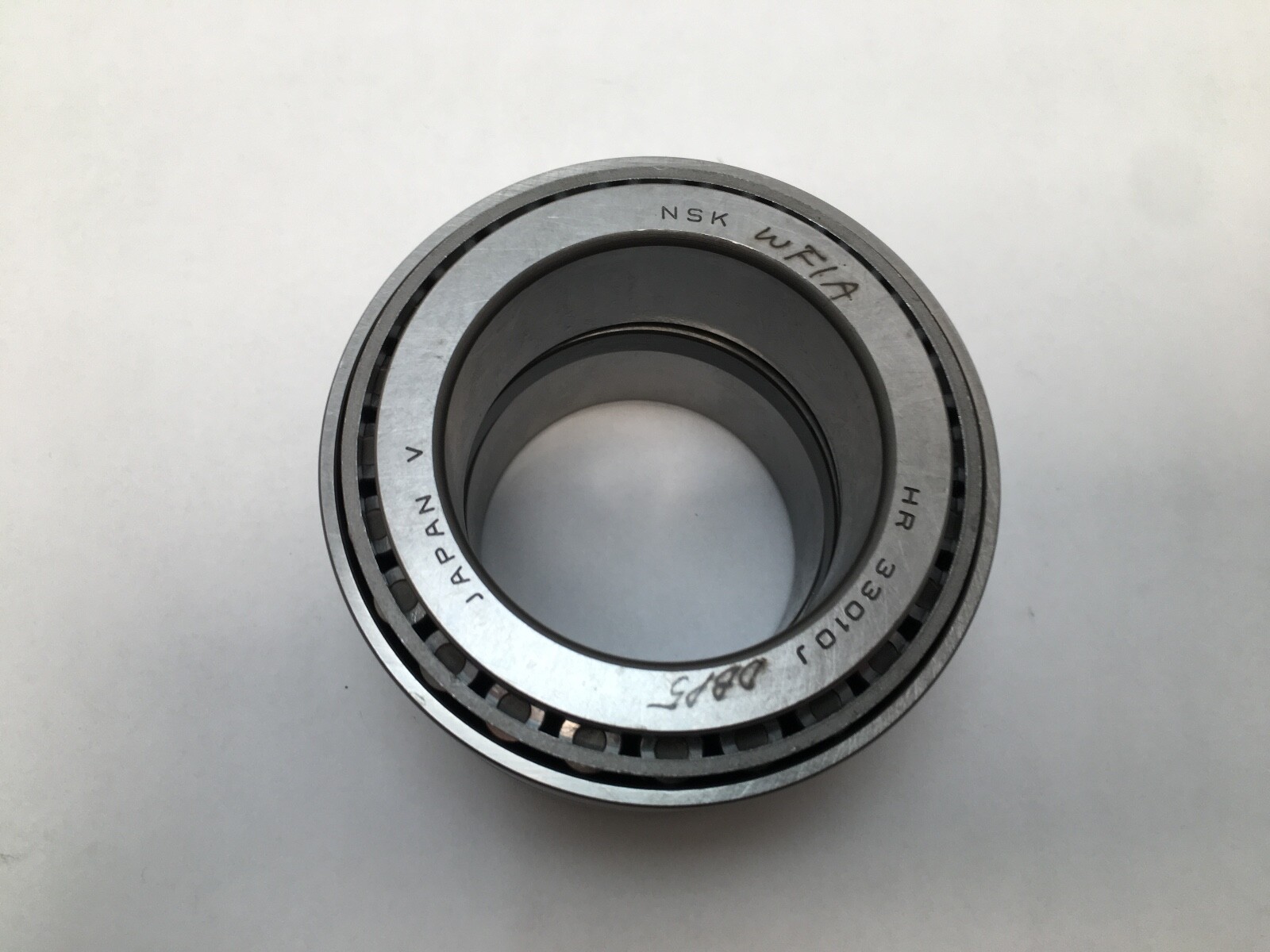

Composition: five pieces per set — two cones (inner rings with roller and cage assemblies), two cups (outer rings) and one ground spacer ring. Ring markings read NSK HR 33010J with the DBP5 pairing mark; the carton is labelled HR33010JDBP5+KL7CP45, lot 406, with the original NSK inspection slip.

Decoding the designation:

HR — NSK’s high-capacity tapered roller design. Larger and longer rollers in the same envelope than the base metric series, so the load rating rises without a dimensional change.

33010 — ISO metric tapered roller size designation: 50 mm bore, 80 mm outside diameter.

J — pressed steel cage.

DB — back-to-back arrangement. The two cup backfaces sit together, so the effective load lines diverge outward.

P5 — ISO precision class 5, equivalent to ABEC 5.

Specifications:

Bearing Type: Tapered Roller Bearing, matched pair. Bore Diameter: 50 mm. Outside Diameter: 80 mm. Width: 24 mm. Number Of Rows: 2 per set. Cage Material: Pressed steel (J). Precision Class: P5 (ISO class 5 / ABEC 5). Arrangement: DB, back-to-back, matched with ground spacer. Preload: set by the ground spacer. Series: 33010 ISO metric tapered roller series, NSK HR design. Unit Quantity: 1 matched set (two cones, two cups, one spacer).

Dimensions and mounting:

Bore: 50 mm shaft. Outside diameter: 80 mm housing bore. Arrangement: DB, back-to-back.

Compatibility and replacement:

Written variously as HR33010JDBP5+KL7CP45, HR33010J DB P5, HR33010JDB, HR33010J, HR 33010 J, 33010J and 33010.

Frequently asked questions:

What is the NSK HR33010JDBP5+KL7CP45?

A factory-matched back-to-back (DB) set of two NSK HR33010J tapered roller bearings with a ground spacer ring, five pieces per set, to P5 precision.

What size is the HR33010J?

50 mm bore, 80 mm outside diameter, 24 mm width.

What does P5 mean in the designation?

ISO precision class 5, equivalent to ABEC 5.
