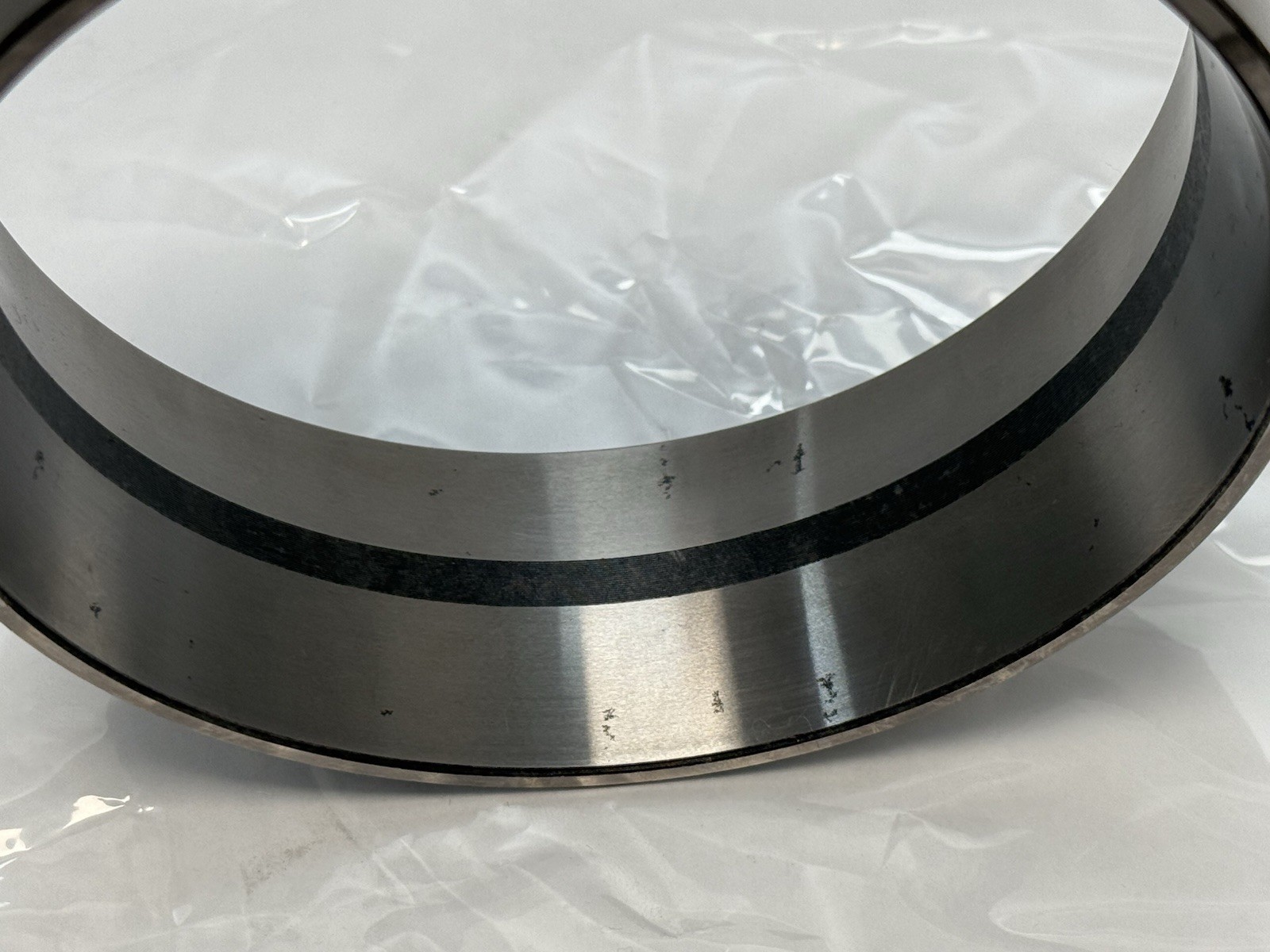

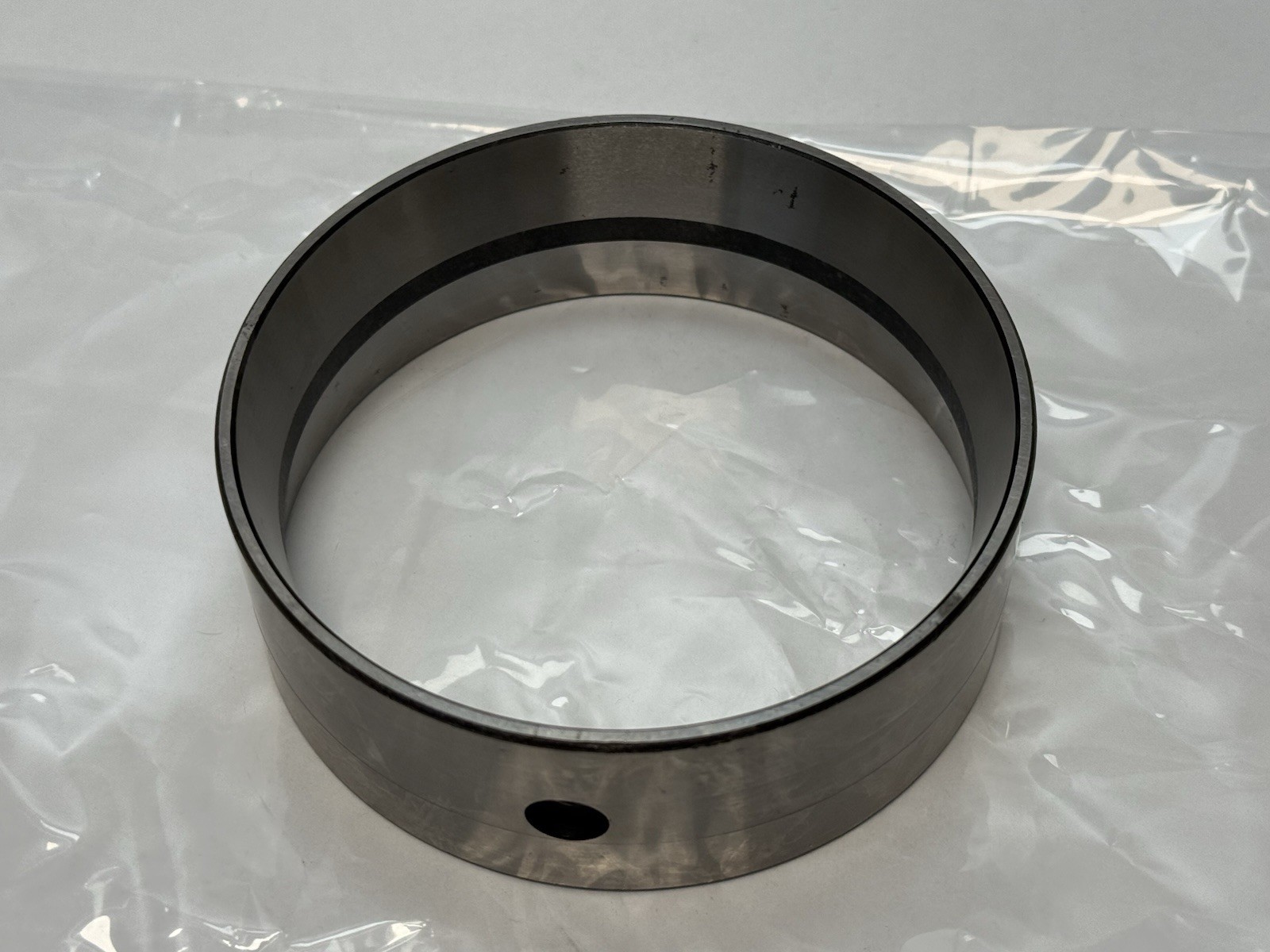

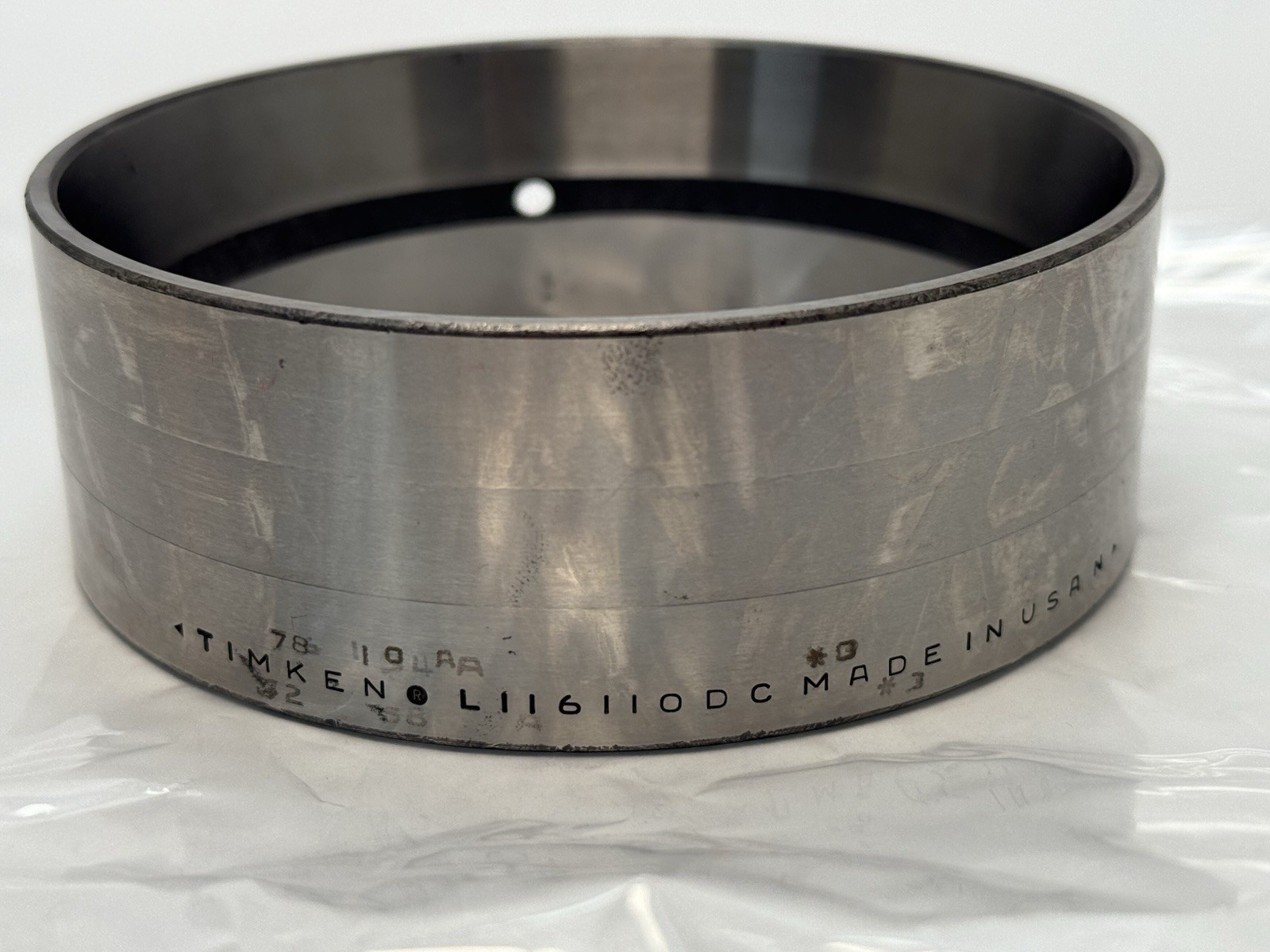

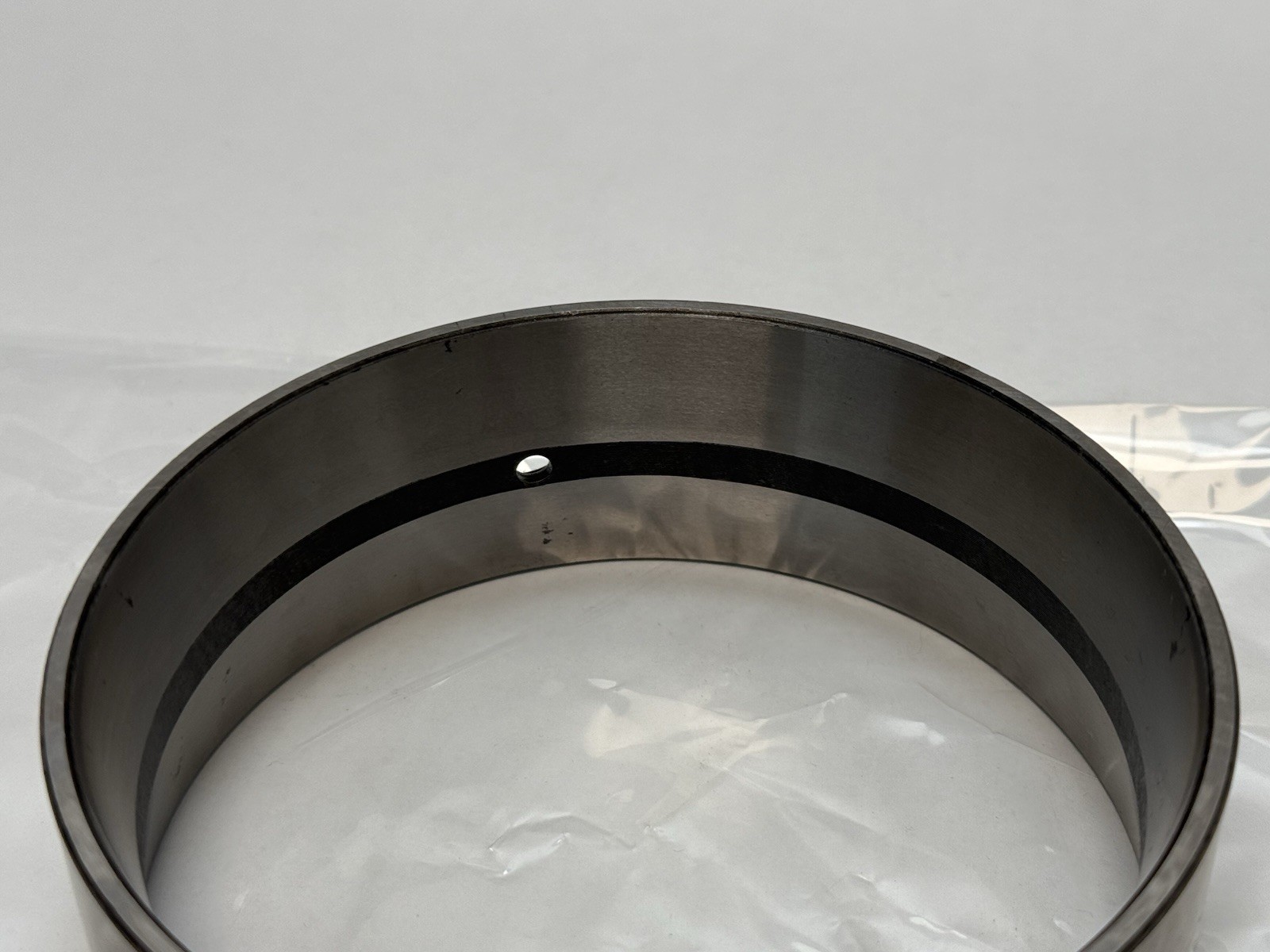

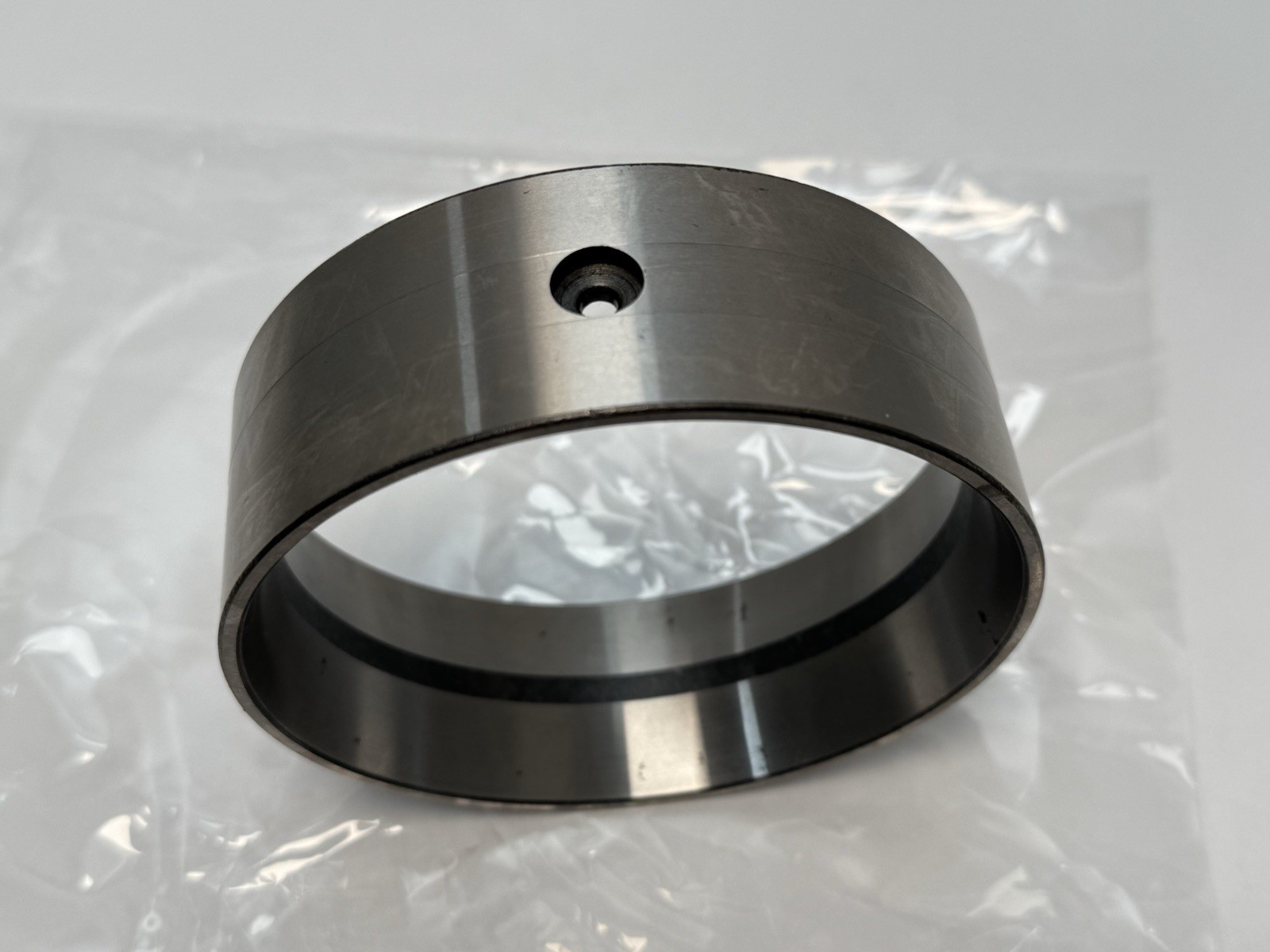

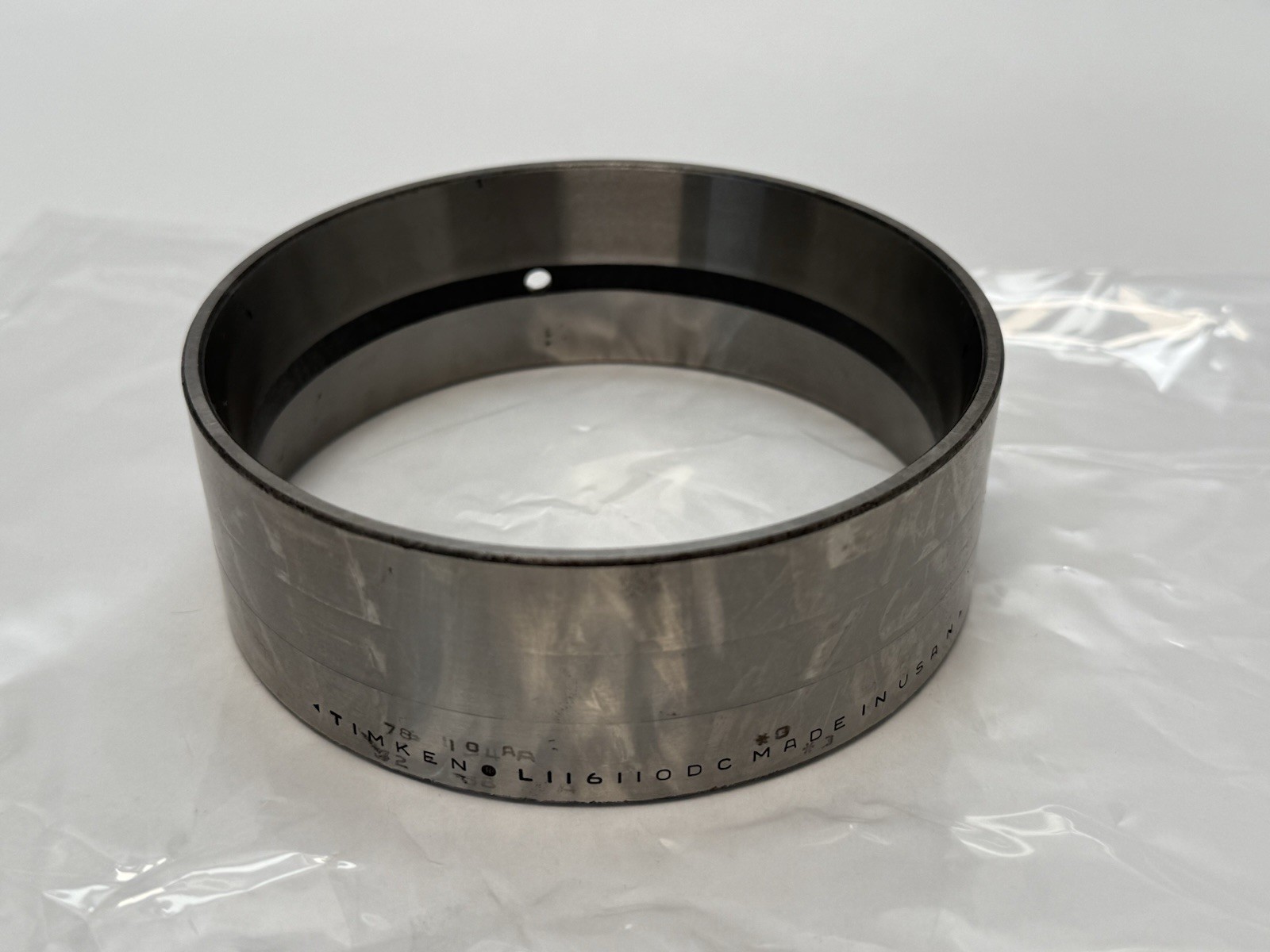

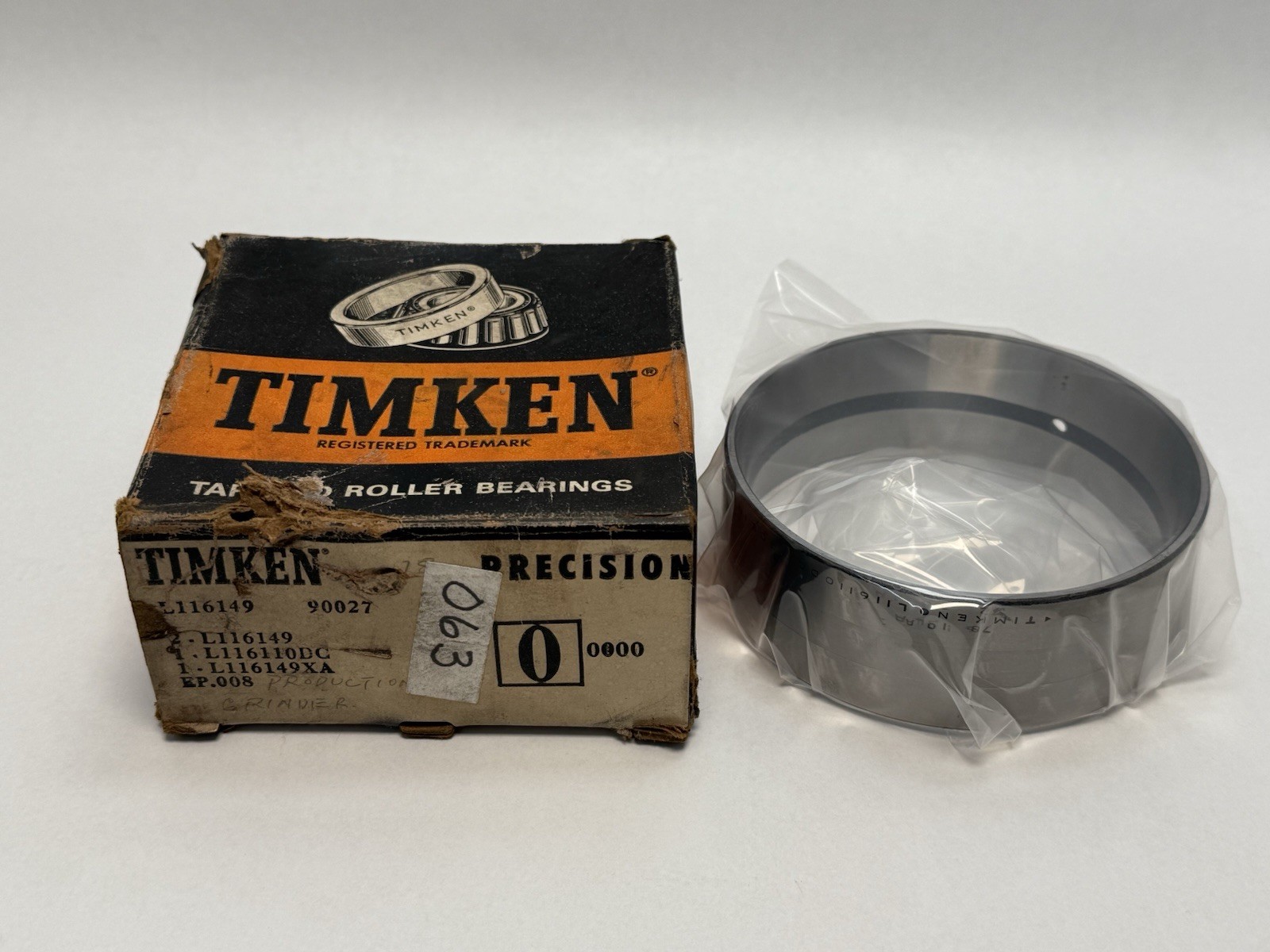

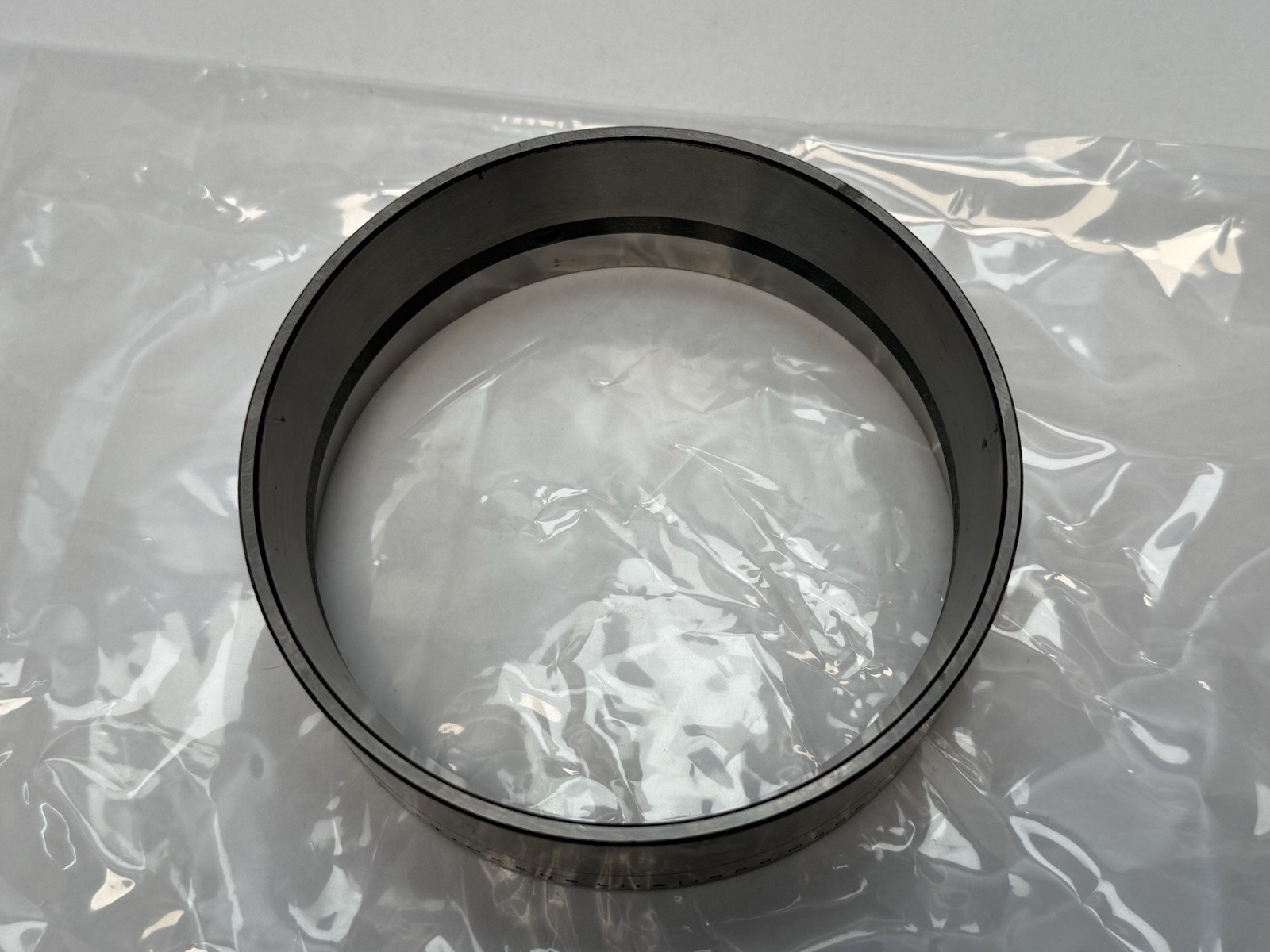

Timken L116110DC double tapered roller bearing cup, 4.5625 in OD, 1.5626 in wide, one-piece outer ring for TDO assembly. Mates with two L116149 cones.
List Price
$205.16
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | L116110DC |
| Model | L 116110 DC |
| Bearing Type | Tapered Roller Bearing Cup |
| OD | 4.5625 in (115.888 mm) |
| Width | 1.5626 in (39.69 mm) |
| Material | Steel |
|---|---|
| Series | L116100 |
| Base Number | L116110 |
| Industry Terms | double cup, double outer race, TDO tapered roller bearing cup, two-row taper bearing outer ring |
| Overall Width | 1.5626 in (39.69 mm) |
| Mpn Variants | L116110DC, L 116110 DC, L116110-DC, L116110D |
| Compatible With Replaces | Timken L116149 cone (two per cup); assembly L116149/L116110DC |
| Precision Class | Not specified |
| Rolling Elements | Tapered Roller |
| Harmonization Code | 8482.20.00 |
| Mounting Arrangement | TDO (two rows, back to back, one-piece double cup) |
| Cup Part Number | L116110DC |
| Cup Width | 1.5626 in (39.69 mm) |
Timken L116110DC double cup: the one-piece outer ring of a two-row TDO (tapered double outer) inch tapered roller bearing. Outside Diameter: 4.5625 in (115.888 mm). Overall Width: 1.5626 in (39.69 mm). Rolling Elements: Tapered Roller. Cup only. Mating cone: Timken L116149, two cones per double cup. Unit Quantity: 1 Pc, one L116110DC double cup.
L — Timken light-series prefix within the ABMA inch numbering.
116110 — cup number in the L116100 series, 4.5625 in OD.
DC — double cup: one outer ring with two tapered raceways, taking two single cones.
Outside Diameter: 4.5625 in (115.888 mm). Overall Width: 1.5626 in (39.69 mm). Rolling Elements: Tapered Roller. Series: L116100. Unit Quantity: 1 Pc. MPN Variants: L116110DC, L 116110 DC, L116110-DC, L116110D.
Max Housing Fillet Radius: 0.03 in (0.8 mm). Housing Backing Shoulder Diameter (Da): 4.41 in (112.00 mm). The TDO arrangement places the two roller rows back to back in one outer ring. Complete assembly: Timken L116149/L116110DC, 3.2500 in (82.550 mm) bore, 1.8749 in (47.622 mm) total width.
Assembly: Timken L116149/L116110DC with two L116149 cones. Series: L116100.
The outside diameter is 4.5625 in (115.888 mm) and the overall width is 1.5626 in (39.69 mm).
Two Timken L116149 cones mate with each L116110DC double cup.
DC is a double cup: one outer ring with two tapered raceways, taking two single cones.
